SKU TMG-MVL22H

TMG Industrial Stand-On Mini Track Loader, 22 HP Honda Engine, Eaton Hydraulic Motor, Permco Hydraulic Pump, Italian Hydro Control Valve, Joystick Controls, 750 lb Load Capacity, Smooth Bucket Included, TMG-MVL22H

Original price $27,999.00 - Original price $27,999.00
Original price
$27,999.00
$27,999.00 - $27,999.00
Current price $27,999.00
CURRENTLY IN STOCK
FREE SHIPPING IN USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
2470.0 lb
45 x 100 x 56 inches
More Shipping Info
  • Compact, versatile design for use on your farm or worksites
  • Powered by a 22 HP Honda gasoline engine
  • 750 lb loading capacity
  • Rubber tracks w/open undercarriage profile
  • Easy to use joystick controls for ground drive operation
Product Manual

Features

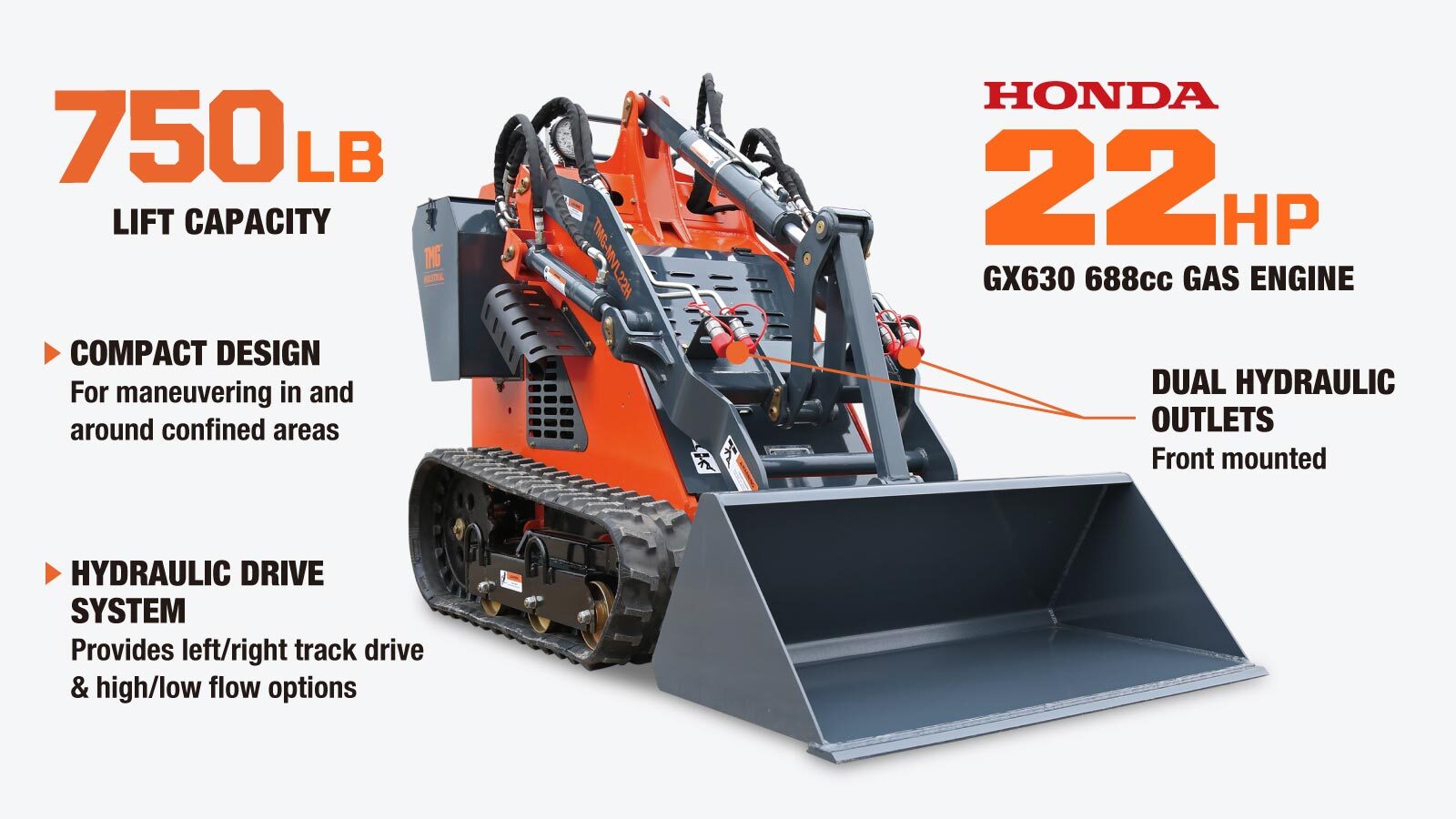

  • Compact mini track loader to use around your farm, commercial property and job sites that is perfect for loading, clearing and moving type tasks

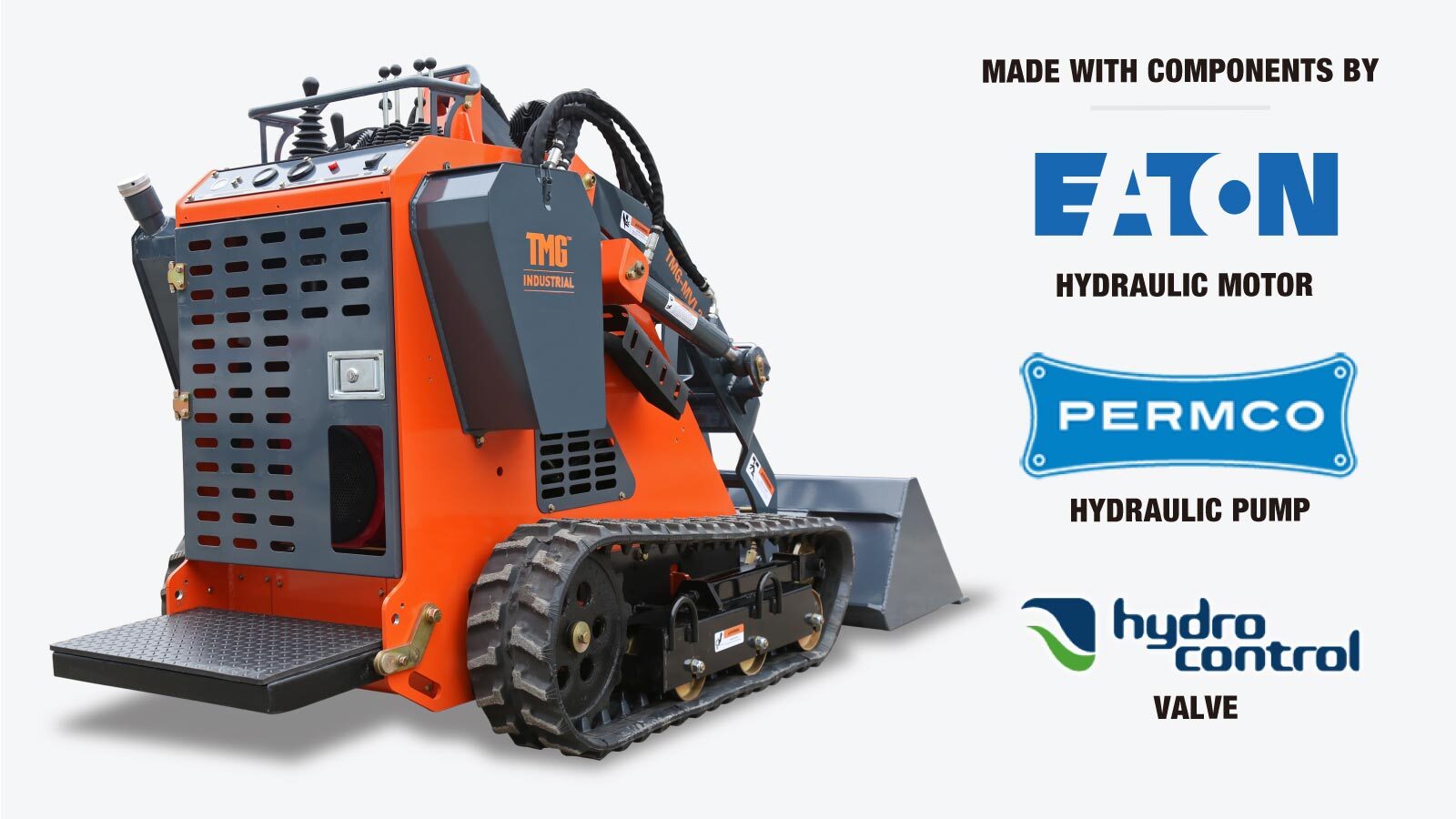

  • Built with the best parts; American made Eaton hydraulic motor and Permco hydraulic pump as well as an Italian made hydro control valve
  • Powered by a reliable 22 HP Honda gasoline engine with a max. speed of 3600 RPM that delivers a lifting capacity of up to 750 lb
  • Included smooth bucket to begin operating immediately and front mounted dual hydraulic outlets to accommodate other compatible attachments
  • Track mounted sprockets and open track-drive profile make up the undercarriage and allow debris to easily pass throw, avoiding damage and obstruction
  • Simple to use joystick controls for your ground drive and a stand-on operator platform that optimizes comfort and stability while working
  • Rubber tracks that evenly disperse machine and load pressure; rear panel offers easy access for routine maintenance and long-lasting use
TMG Industrial Stand-On Mini Track Loader, 22 HP Honda Engine, Eaton Hydraulic Motor, Permco Hydraulic Pump, Italian Hydro Control Valve, Joystick Controls, 750 lb Load Capacity, Smooth Bucket Included, TMG-MVL22H-description-image

Specifications

  • Overall machine dimensions: 99” x 44” x 55” (L x W x H)
  • Length: 99” (w/bucket), 68” (w/o bucket)
  • Width: 44” (w/bucket), 43” (w/o bucket)
  • Machine height: 55” (bucket grounded)
  • Track mark on ground: 35”
  • Track width: 8”
  • Max hinge pin height: 78”
  • Weight (with bucket, tracks and Honda engine): 2450 lb
  • Ground clearance: 4”
  • Operating lift capacity: 750 lb
  • Tipping capacity: 1600 lb
  • Operating weight: 2450 lb
  • Travel speed: 3 MPH (forward), 1.2 MPH (reverse)
  • Hydraulic system pressure: 2610 PSI
  • Hydraulic primary flow rate: 16 GPM
  • Hydraulic secondary flow rate (machine driving): 8 GPM
  • Hydraulic secondary flow rate (work operating): 9 GPM
  • Standard bucket capacity: 5.4 cu-ft
  • Noise level: 86-98 dBA
  • Left/right track drive & high/low flow options
  • American Eaton hydraulic motor
  • American Permco hydraulic pump
  • Italian hydro control valve

Engine:

  • 22 HP Honda GX630 OHV gasoline
  • Air-cooled 4-stroke
  • Displacement: 688 cc
  • Bore x Stroke: 3.1” x 2.8”
  • Max. speed: 3600 RPM
  • Max. torque: 35.6 lb-ft at 2500 RPM
  • Fuel tank capacity: 7.13 gal
  • Engine oil: 0.5 US gal
  • US EPA Emissions compliance

*Some skid steers have proprietary mounts. Therefore modifications to this product may be required to fit your specific machine. Check with your skid steer manufacturer to determine if your machine is compatible with this universal skid steer quick mount.
TMG Industrial Stand-On Mini Track Loader, 22 HP Honda Engine, Eaton Hydraulic Motor, Permco Hydraulic Pump, Italian Hydro Control Valve, Joystick Controls, 750 lb Load Capacity, Smooth Bucket Included, TMG-MVL22H-specifications-image

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a meal crate shipping box

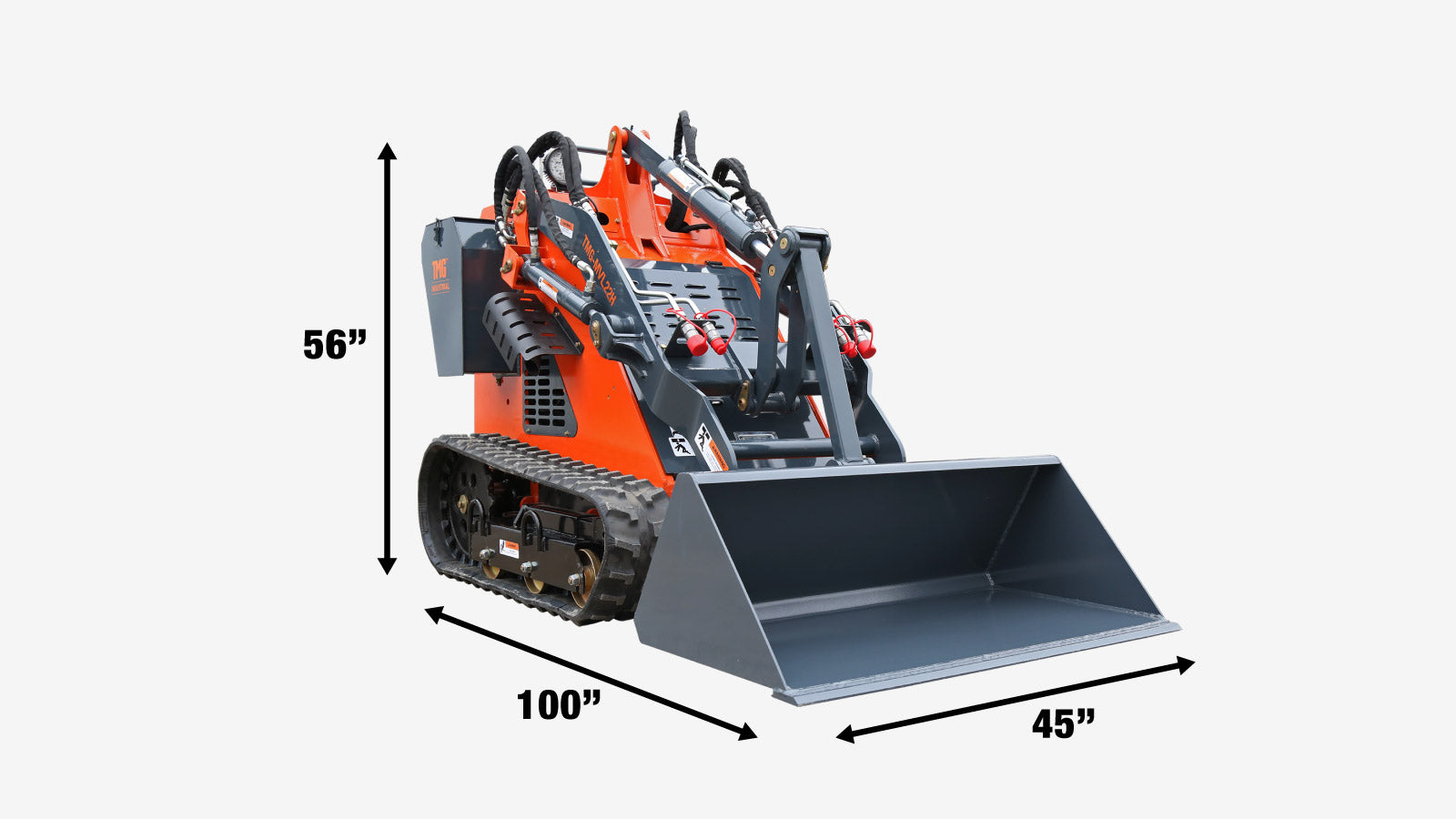

  • Shipping dimension: 100” x 45” x 56” (L x W x H)
  • Shipping weight: 2470 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.
Shipping from Richmond BC or Mississauga ON

Product Description

The TMG-MVL22H Stand-On Mini Track Loader is the perfect farm, commercial property and worksite companion for any sort of moving, loading, clearing and grading tasks. Extremely versatile and packed with power all in one compact design that is easy to maneuver in and around any sort of confined area. Equipped with the best parts; fitted with an American made Eaton hydraulic motor and Permco hydraulic pump, as well as an Italian made hydro control valve.

Powered by a 22 HP Honda gasoline engine, this mini loader has a lifting capacity of up to 750 lb. It has a 3 MPH forward speed for steady, precise control and front mounted dual hydraulic outlets that give you hookup options for other compatible hydraulic attachments. Comes with an included smooth bucket to get you working the moment it arrives.

Track-mounted sprockets and an open track-drive profile are part of the undercarriage and allow debris to pass through the track system, avoiding obstructions and clogging. A simple to use joystick controls your ground drive with a stand-on operator platform that optimizes comfort and stability.

We also carry a 25 HP Perkins diesel powered mini track loader: TMG-MVL25P

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
