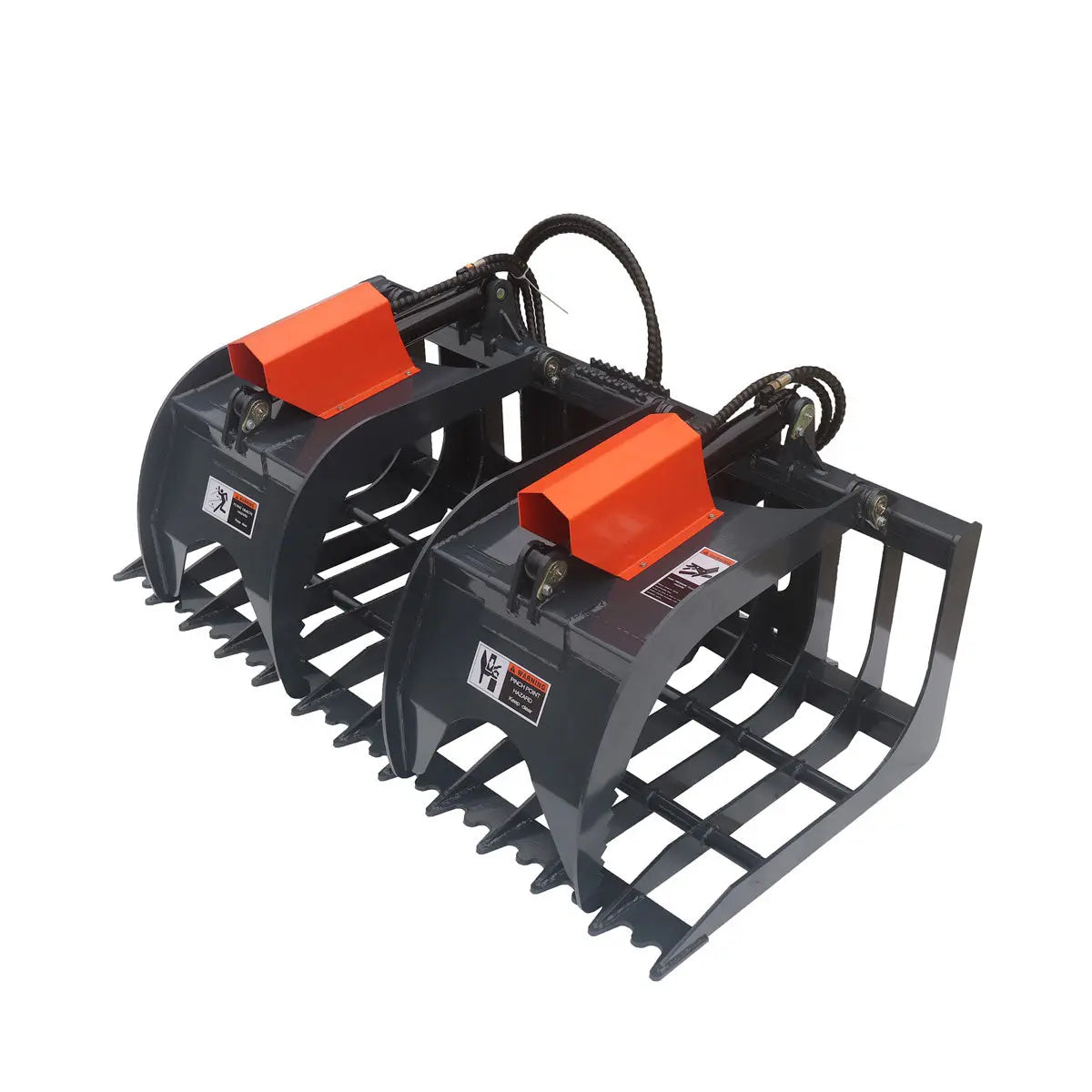

72" Skid Steer Rock Skeleton Grapple Attachment, Universal Mount, 36" Arm Opening, 6" Tine Spacing, 2500 lb Weight Capacity, TMG-SG72
FREE
shipping to most locations in
USA
Learn More
Features
Features
- Flat bottom slides over the ground not to damage the surface
- 3" x 3" primary frame beams
- Dual 3000 PSI hydraulic cylinders
- Cylinder guards included
- Greaseable pivot pins with bolt-locked design
- Universal skid steer mount
Specifications
Specifications
- Compatible with 30-70 HP skid steers
- Overall dimension: 73” (L) x 39” (W) x 29” (H)
- Working width: 72”
- Grapple capacity: 2500 lb
- Dual cylinders: 2-½” bore x 8” stroke
- Tine spacing: 6”
- Tine thickness: ½”
- Grapple arm opening: 36”
- Hydraulic pressure: 3000 PSI
- Flow rate: 12-24 GPM
- Twin hydraulic cylinder grapple arms with protective guards
- Universal skid steer mount
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 77” x 48” x 36” (L x W x H)
- Shipping weight: 870 lb
Product Description
Product Description
The TMG-SG72 Skid Steer Skeleton Rock Grapple features twin hydraulic cylinder arms that can produce a grappling capacity of up to 2500 lb. A versatile attachment for your skid steer that can be used for a variety of applications including brush/log pick up, recycling, rock raking, scrap metal sorting and any sort of moving chore around your acreage, farm or job site.
Equipped with a universal mount for easy hookup to your skid steer and quick, efficient workflow. A flat bottom build slides effortlessly over the ground leaving the surface undisturbed, and 3" x 3" primary frame beams create an overall heavy-duty construction that will work through the toughest projects and ensure you get the job done.
72" of working width offers diverse grappling capabilities on your farm, commercial property or worksite. The ½" serrated cutting edges and skeleton tine bottom design make it easy for loose debris to sift through so you can efficiently manage the transport of bulkier material. Built to last with greasable pins and bushings for easy routine maintenance, and comes with included flat-face couplers and hydraulic hoses.
We also carry a larger model of this skeleton grapple attachment: TMG-SG84
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
