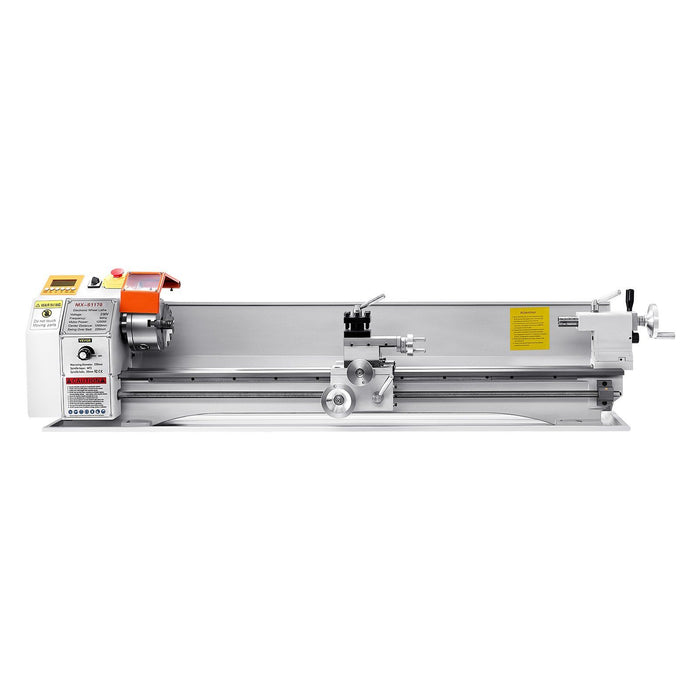

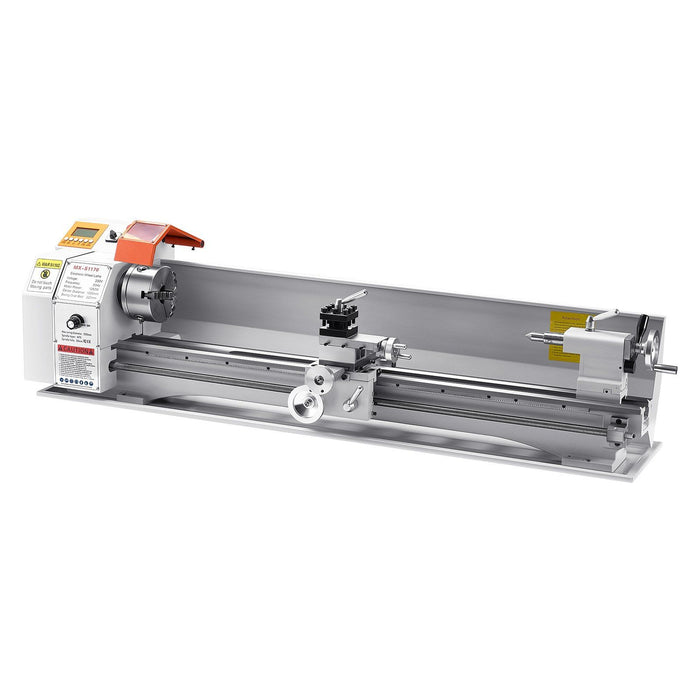

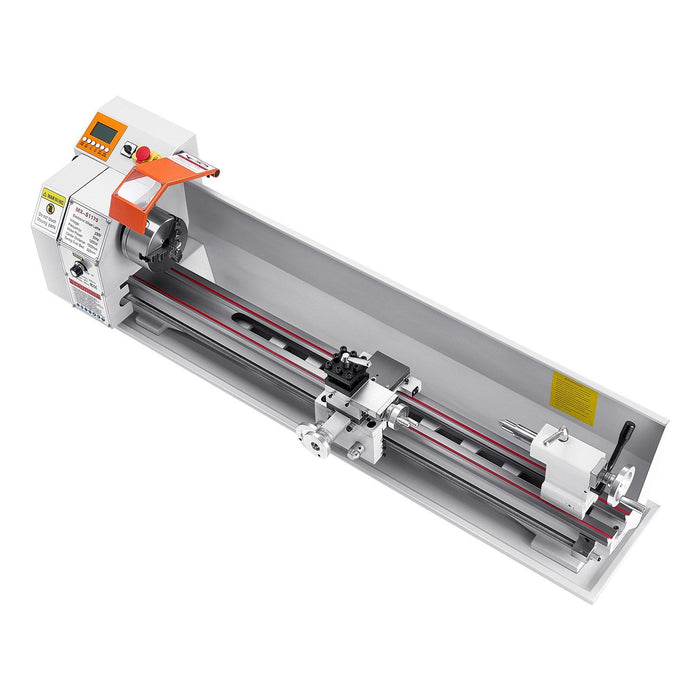

8.7" x 39" Metal Lathe Machine, Precision Bench Lathe, Variable Speed Power Control, Heavy-Duty Metalworking Tool, DOBA-ML8739
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features

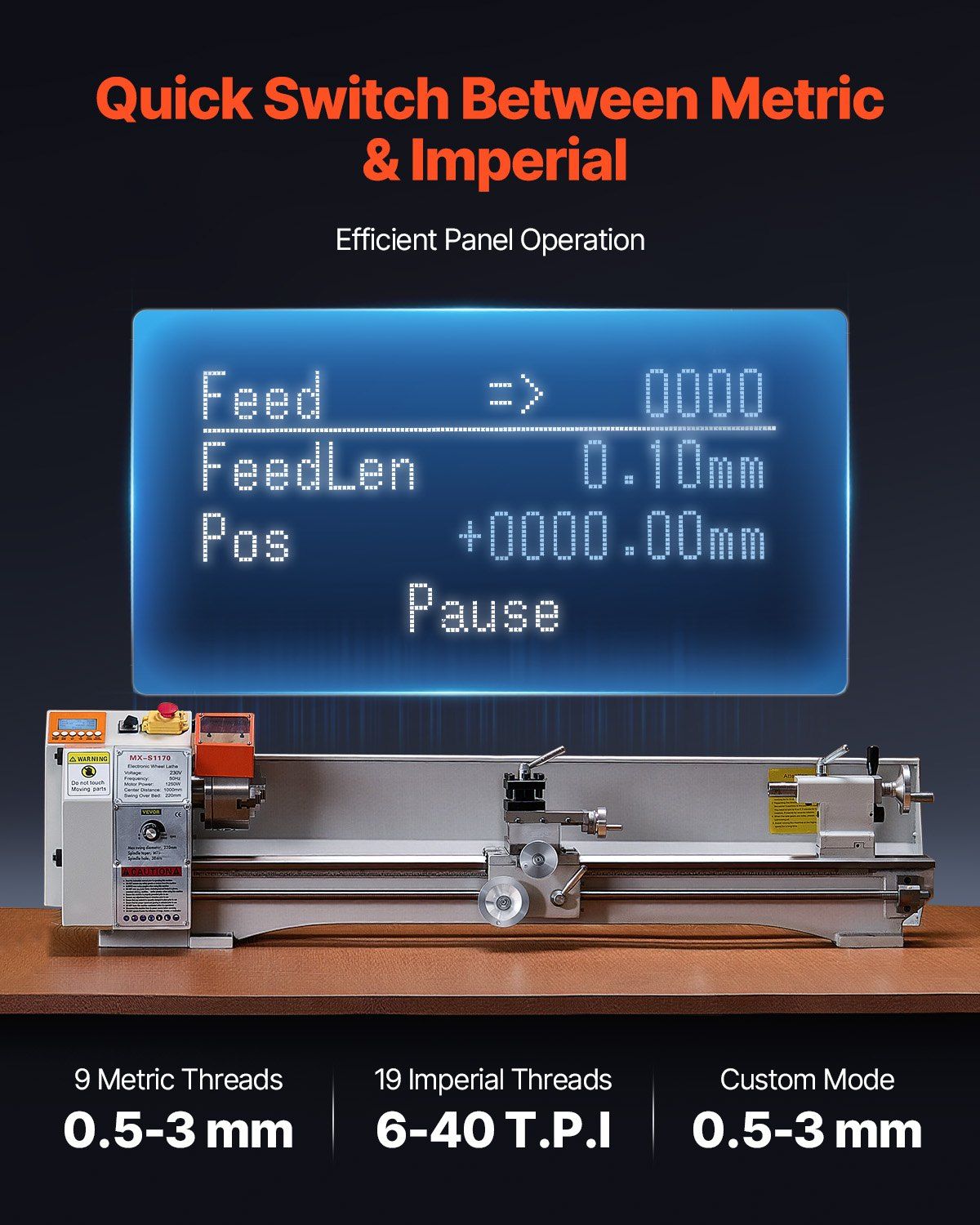

- Electronic Gear System: Switch between metric and imperial threads electronically without manual gear changes. Supports 9 metric (0.5–3 mm), 19 imperial (6–40 TPI), and custom thread modes.

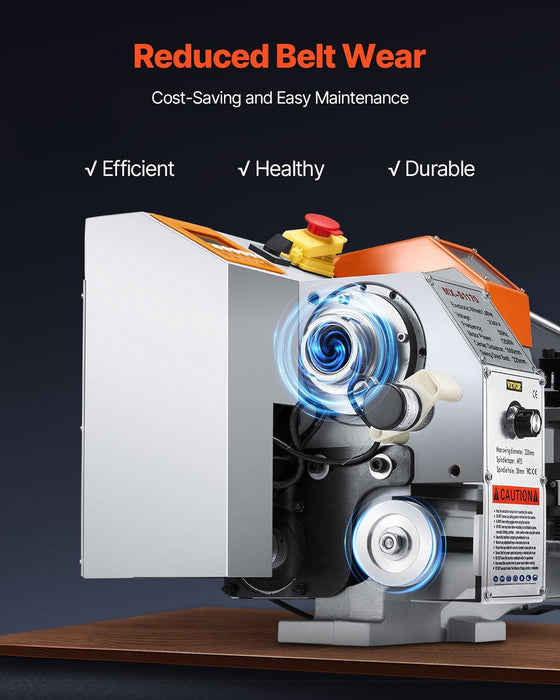

- Belt-Free Operation: Direct spindle drive eliminates belt wear and reduces maintenance for smoother, quieter performance and longer machine life.

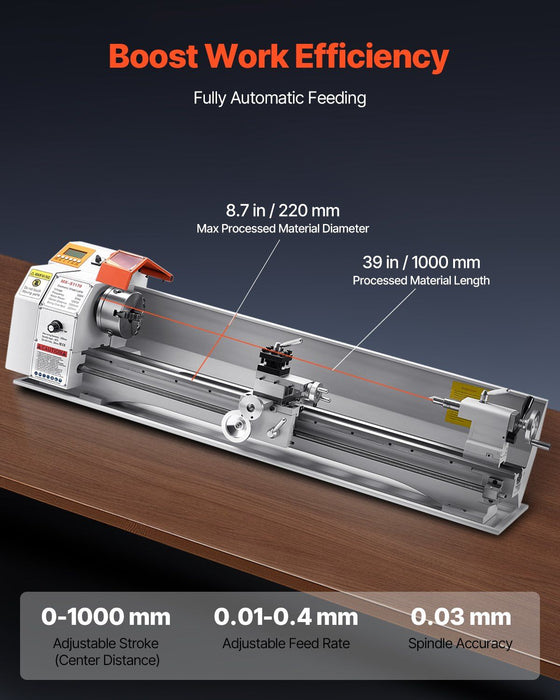

- Fully Automatic Feed: Adjustable stroke (0–1000 mm) and feed rate (0.01–0.40 mm) controlled via panel. The 8.7" × 39" worktable supports materials up to 220 mm in diameter and 1000 mm in length.

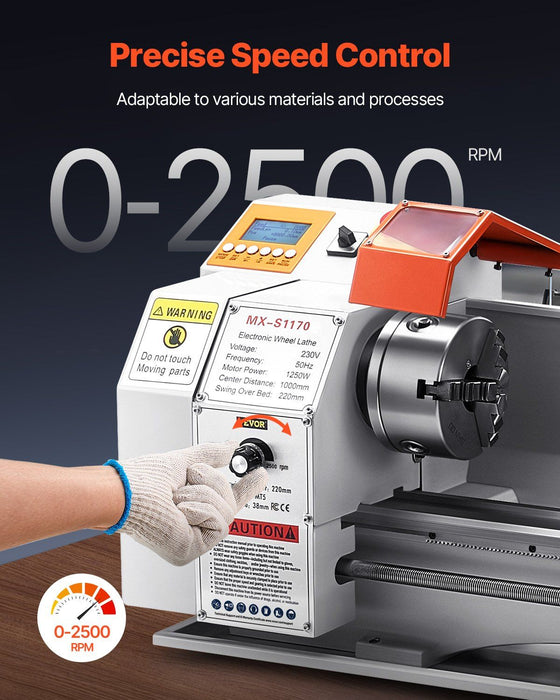

- High Precision Processing: Variable speed up to 2500 RPM enables fine-tuned control for different materials; tailstock and movable center include precision scales for accuracy.

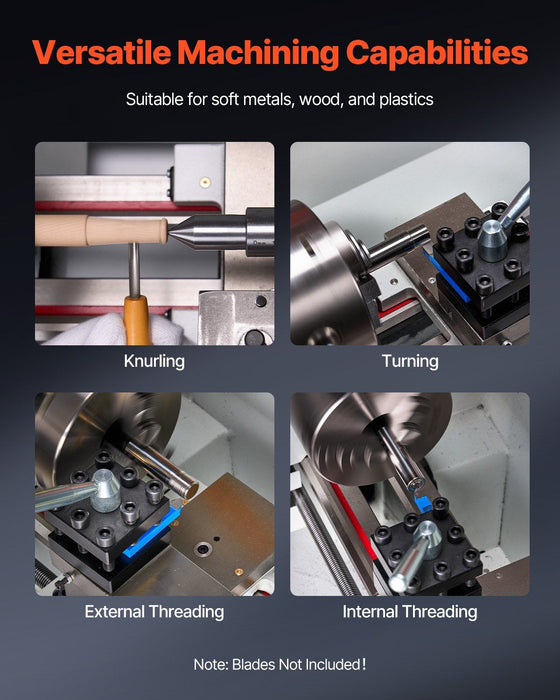

- Versatile Applications: Ideal for machining soft metals, acrylic, and plastic — perfect for drilling, boring, reaming, knurling, threading, and other detailed machining tasks.

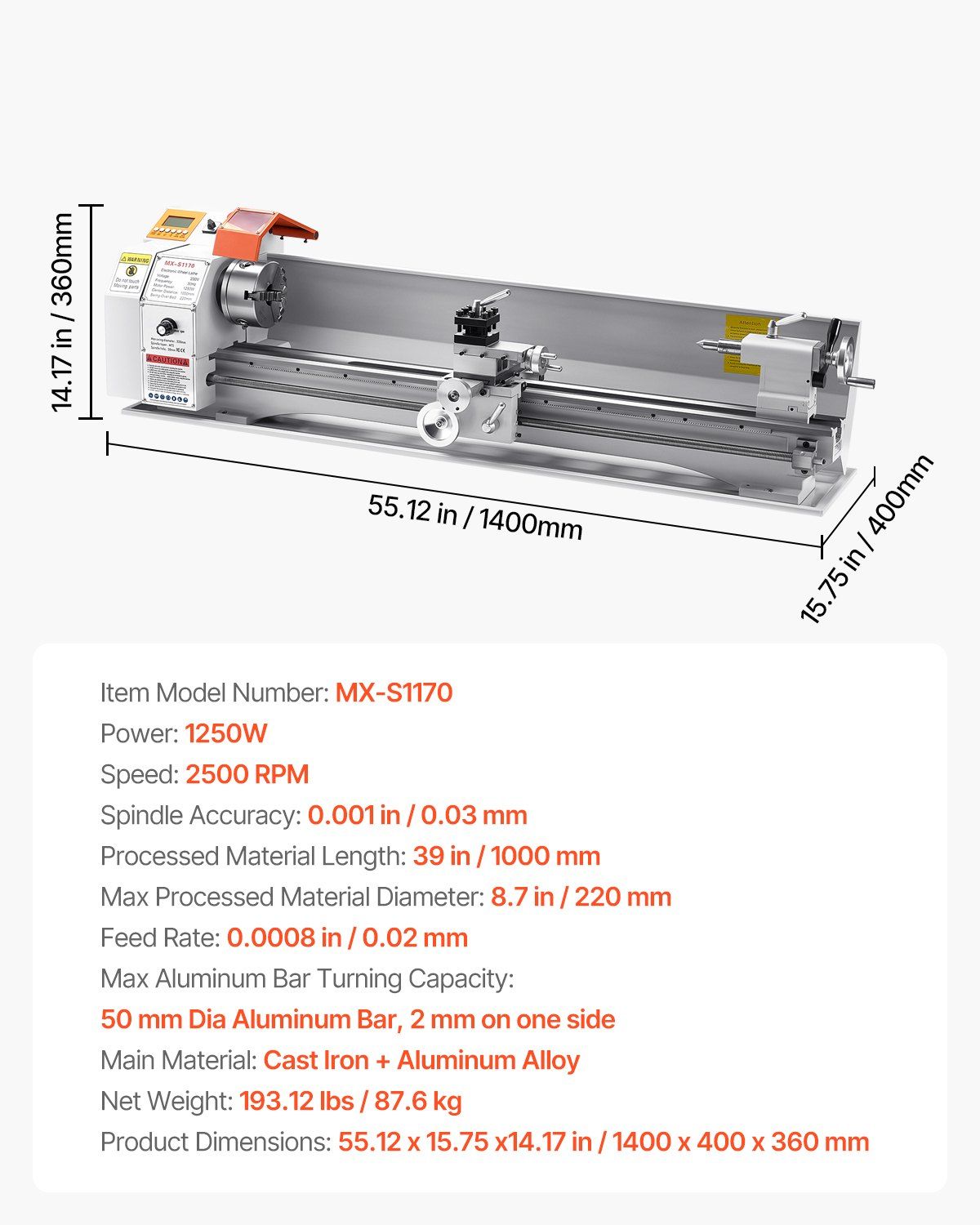

Specifications
Specifications
- Item Model Number: MX-S1170
- Power: 1250W
- Speed: 2500 RPM
- Spindle Accuracy: 0.001 in / 0.03 mm
- Processed Material Length: 39 in / 1000 mm
- Max Processed Material Diameter: 8.7 in / 220 mm
- Feed Rate: 0.0008 in / 0.02 mm
- Max Aluminum Bar Turning Capacity: 50 mm Dia Aluminum Bar, 2 mm on one side
- Main Material: Cast Iron + Aluminum Alloy
- Net Weight: 193.12 lbs / 87.6 kg
- Product Dimensions (L × W × H): 55.12" × 15.75" × 14.17" (1400 × 400 × 360 mm)
Shipping Information
Shipping Information
- Packing Size: 59.06" × 20.87" × 22.05"
- Packing Weight: 238.10 lb
- Shipping From: United States
- Shipping Method: Seller-selected shipping (buyer cannot choose)
- Ship-to Country/Region: United States (excluding Alaska and Hawaii)
- Shipping Cost: Free shipping
- Estimated Delivery Time: 2–7 days

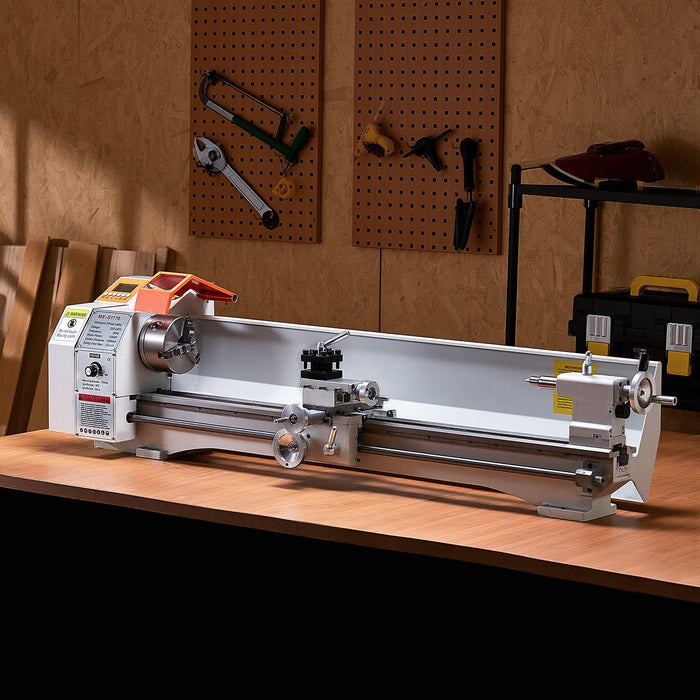

Product Description
Product Description
This benchtop metal lathe features an advanced electronic gear system that lets you seamlessly switch between metric and imperial threads without changing gears, saving time and effort. It supports 9 metric threads (0.5–3 mm), 19 imperial threads (6–40 TPI), and a custom mode (0.5–3 mm) for precise versatility. The belt-free spindle drive eliminates belt wear, lowers maintenance costs, and ensures smoother operation. With fully automatic feed control, you can adjust the stroke from 0–1000 mm and feed rate from 0.01–0.40 mm directly from the control panel. The 8.7" × 39" worktable accommodates materials up to 220 mm in diameter and 1000 mm in length. Operating at up to 2500 RPM with variable speed control, it enables fine-tuned precision for different materials and processes. Perfect for machining soft metals, acrylic, and plastic, this versatile lathe handles drilling, boring, threading, knurling, and more with high accuracy and stability.
Warranty
Warranty
This product is supplied by DOBA and follows a separate warranty policy from TMG Industrial products.
- Return & refund application needs to be filed within 30 days from the delivered date.
- We don’t support order cancellation before shipping.
- We don’t accept non-defective remorse returns.
- If the item was delivered damaged or defective, you will need to return them, and we will provide a return label at supplier's cost.
- We don't offer warranties to customers.
