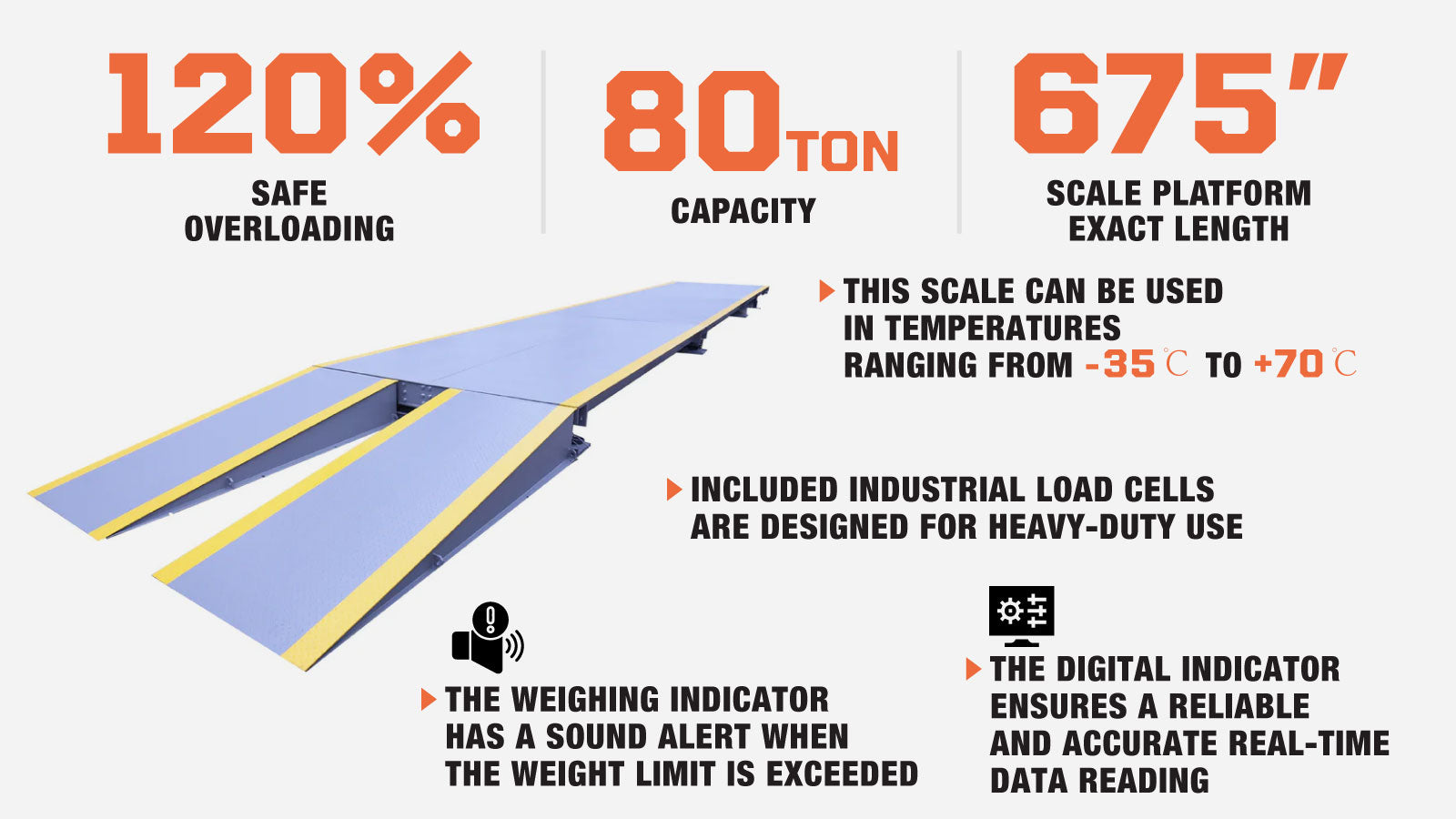

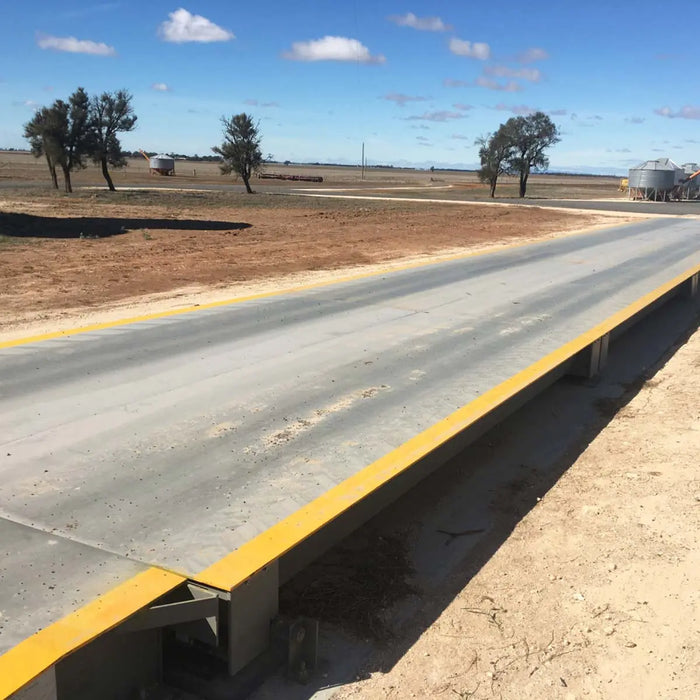

• Built with high-quality steel in a standard U-shape beam and modular design, making it easy to assemble/disassemble, durable, and long-lasting
• Anti-rust and anti-corrosion coating on the scale ensures that it will not rust or corrode over time, even with regular and prolonged use in varying weather

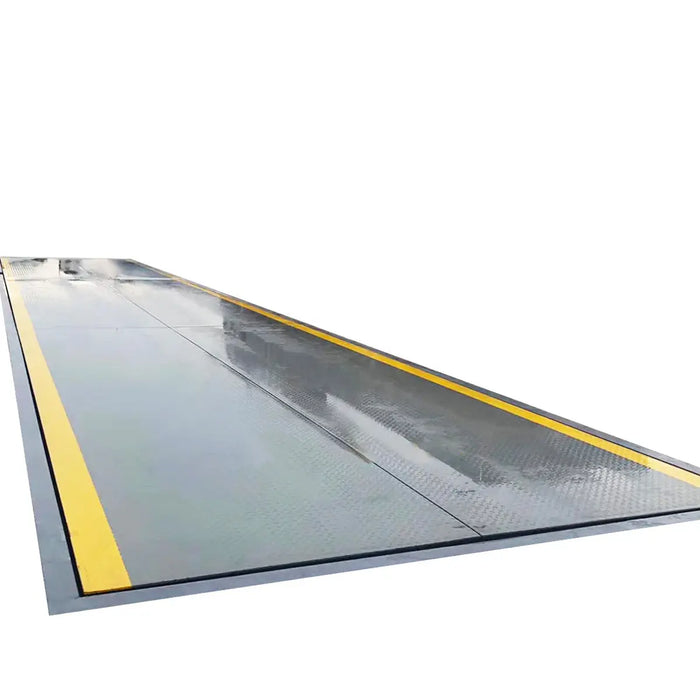

• The scale's top plate is checker plated, which makes it slip-resistant, ensuring that vehicles will stay in place during weighing for safety and accuracy
• This scale can be used in temperatures ranging from -35℃ to +70℃, making it suitable for use in various weather, seasons, and locations
• Included industrial load cells are designed for heavy-duty use and the digital indicator ensures a reliable and accurate real-time data reading
• The weighing indicator has a sound alert when the weight limit is exceeded, ensuring that users are aware when the scale is overloaded; 120% safe overload limit
• Weighing records can be stored, checked, and deleted, and are secured through power-off protection, providing users with a convenient way to track their data over time

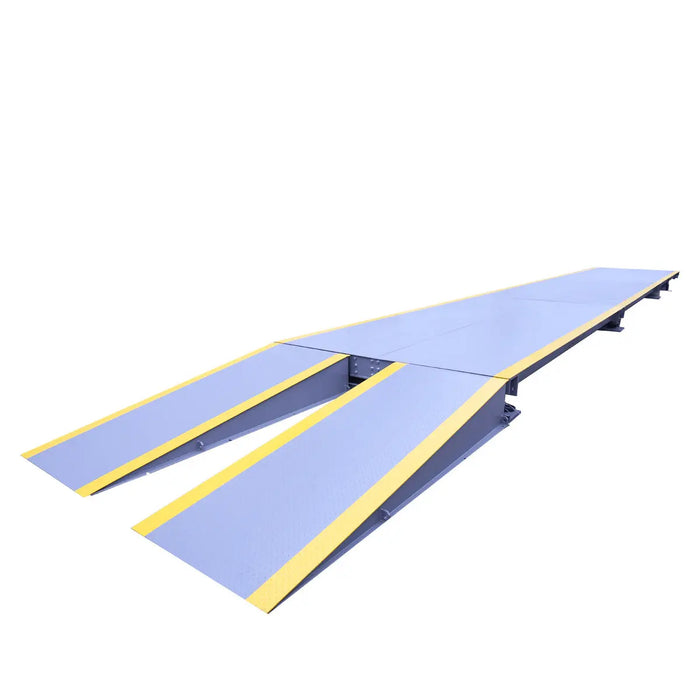

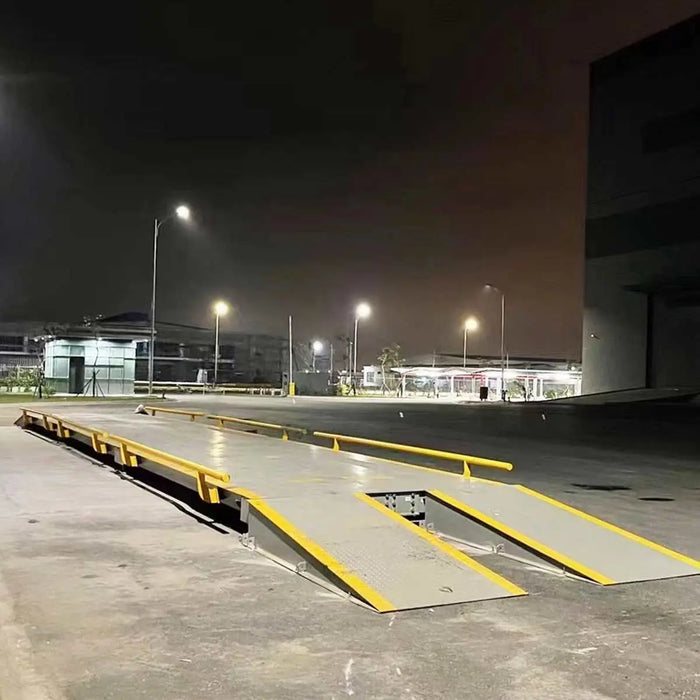

• Above ground ramps are optional (sold separately)
• Optional accessories to order on parts store: https://parts.tmgindustrial.com/

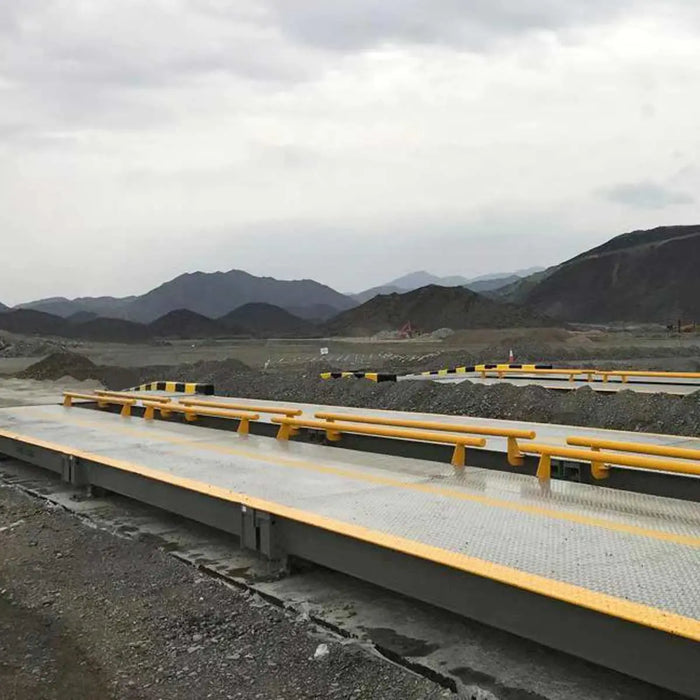

  • Guard rails (3 sections for both sides, 18m)

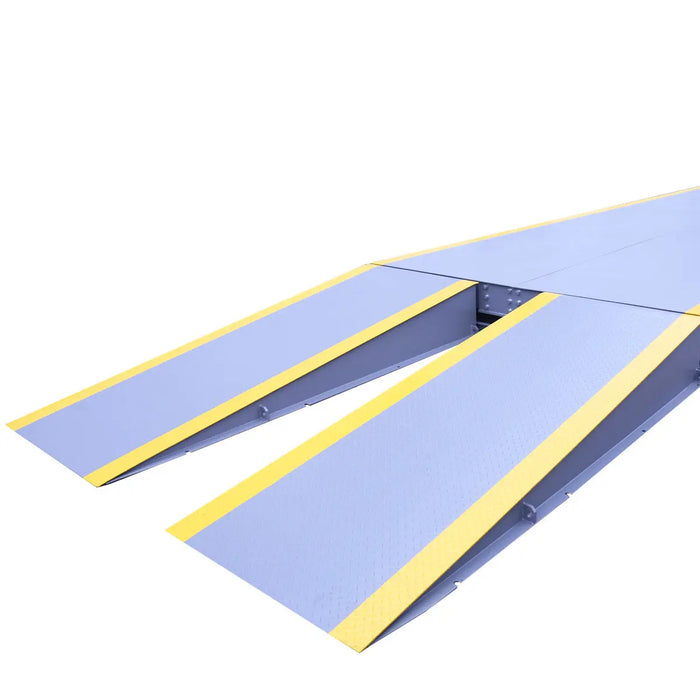

  • Above ground ramps for both ends (4 pieces, 1.2 x 2.8m)
  • External wall mounted LED display

• Capacity: 80 ton
• Scale platform width (exact): 118” (9.84’)
• Scale platform exact length (exact): 675” (56’)
• Structure: U-shaped beam (6)
• Steel: High-quality steel
• Painting: Anti-rust & anti-corrosion painting

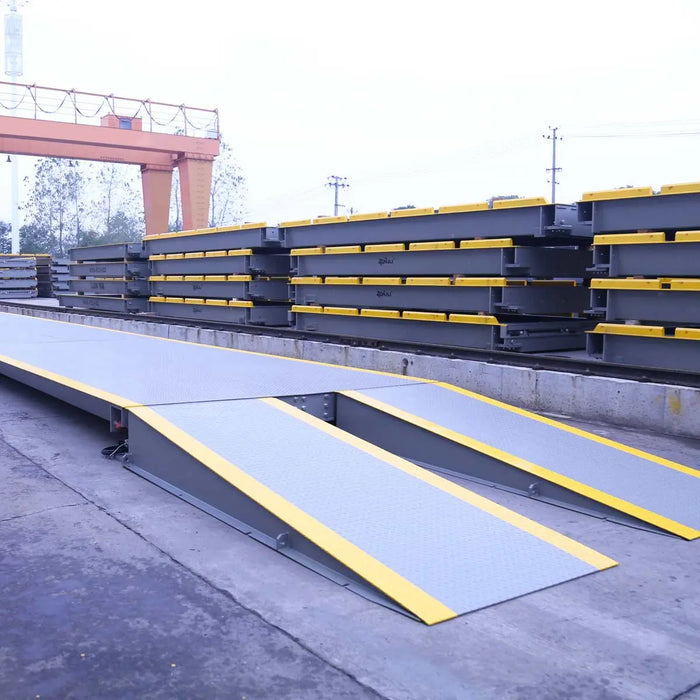

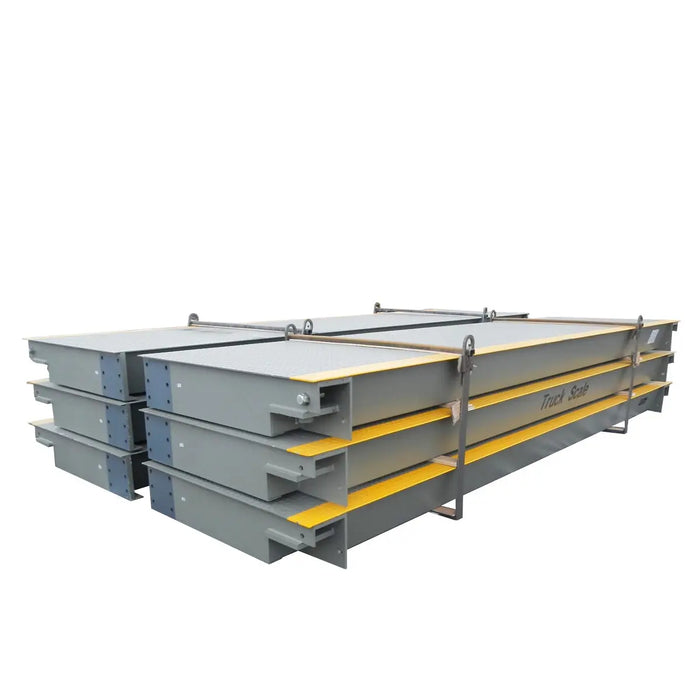

• Truck scale consists of 6 modular pieces (59” x 225”)
• Top plate: 8 mm checker plate
• Accuracy: OIML III
• Working temperature: -35℃-+70℃
• Relative humidity: <95%
• Safe overloading: 120%
• Anti-cheating technology to eliminate electronic interference

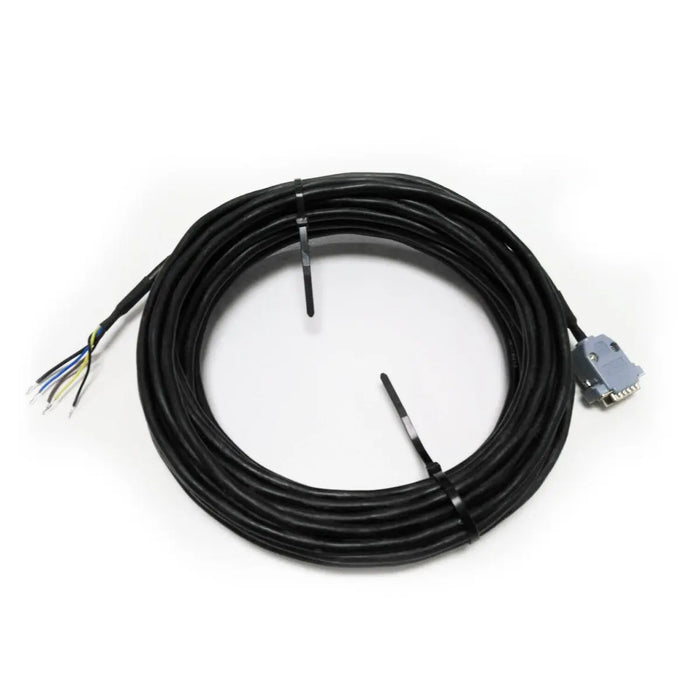

• Can be connected to external devices such as printers, computers & large monitor displays

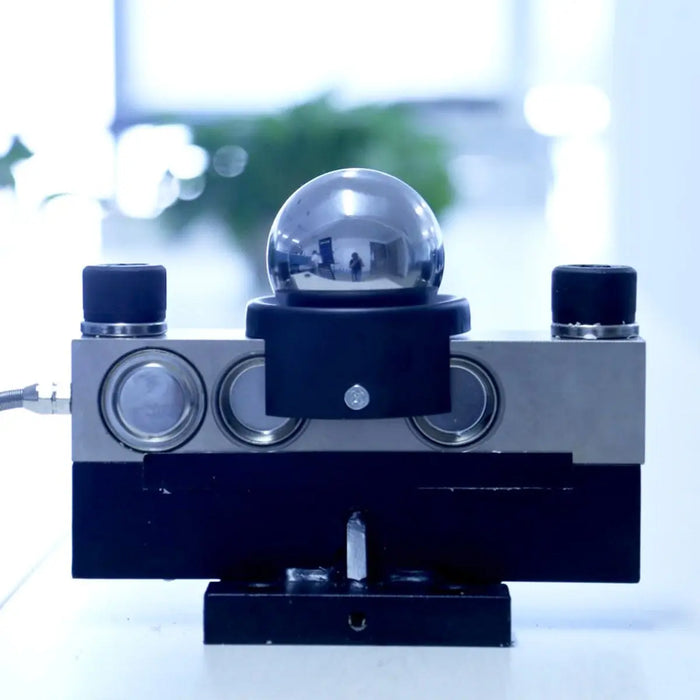

Load Cell

• Working temperature range: -35℃-+70℃
• Safe Overload: 150% (full scale)
• Ultimate overload: 300% (full scale)
• Hermetically sealed
• Protection class: IP68

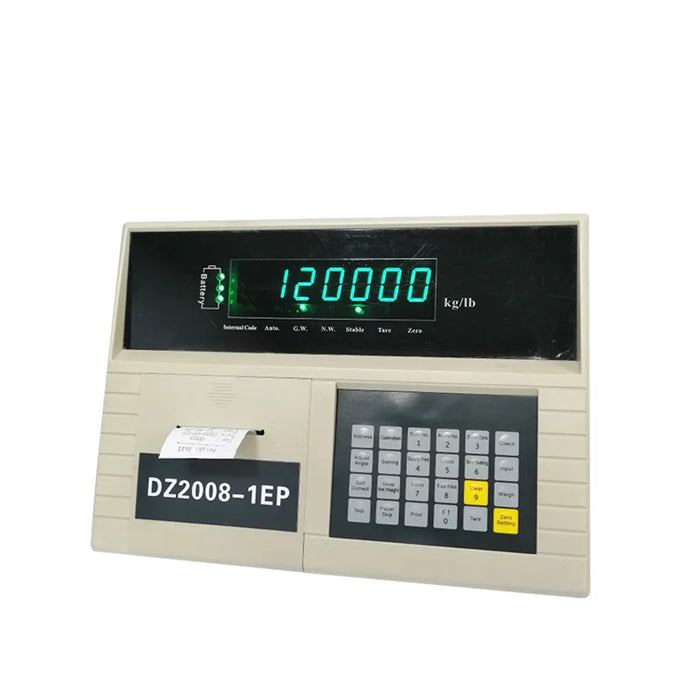

Weight Indicator

• Operating temperature: 0℃~40℃
• Relative humidity: ≤85%RH
• Power supply: 220V/60Hz or 110V/60Hz
• Transmission mode: RS232/RS422/485 (optional)
• Baud rate: 600/1200/2400/4800/9600 (optional)
• Weighing record storage/check/delete/power-off protection
• Sound alert when over weight limit

Stainless Steel Junction Box

• Waterproof seal joints
• Resistance protection device
• Stainless steel cover

P.S. The scale is not certified for legal trade business.

This product is available for Pre-Sale order process only. The order will ship FREE from our main warehouse in Richmond, BC. Under normal circumstances it will take 8 to 12 weeks to process the production and get ready to ship from the warehouse. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• The scale will be shipped in an enclosed container or a flat deck truck
• Shipping dimension: 59” x 225” x 12” (per modular x 6) (L x W x H)
• Shipping weight: 17,600 lb
