SKU TMG-AJA12

TMG Industrial 12 Ton Air Hydraulic Bottle Jack, Manual & Pneumatic Control, Double Springs, 20” Lift Height, TMG-AJA12

Original price $179.00 - Original price $179.00
Original price
$179.00
$179.00 - $179.00
Current price $179.00
CURRENTLY IN STOCK
+ SHIPPING ( Get FREE SHIPPING on orders over $1000 )

Other financial option:

30.0 lb
11 x 7 x 12 inches
More Shipping Info
  • 12 ton (26,400 lb) lifting capacity
  • Lifting height of up to 6-1/2” for a total max. height of 20”
  • Vertical top can be controlled both manually & pneumatically
  • External double tension spring structure to ensure restoring forces
  • Air filter built into the pneumatic switch for debris mitigation
Product Manual

Features

  • 12 ton (26,400 lb) lifting capacity for all your undercarriage mechanical, tire change, equipment or vehicle lifting needs
  • Adjustment screw that allows you to easily modify the lift height up to 6-1/2” for a total maximum height of 20”
  • Vertical top can be powered both manually and pneumatically so you can use this jack whether or not you’re near an air supply
  • External double tension spring structure that ensures restoring forces for a gentle lowering action and less wear on the jack
  • Air filter is built right into the pneumatic switch to help mitigate the chances of debris entering into and damaging the unit over time

Specifications

  • Capacity: 12 ton (26,400 lb)
  • Min. Height: 265mm (approx. 10-1/2”)
  • Lifting Height: 165mm (approx. 6-1/2”)
  • Adjustable Height: 80mm (approx. 3”)
  • Max. Height: 510mm (approx. 20”)
  • Ground clearance required: 265mm (approx. 10-1/2”)
  • Net weight: 27 lb
  • Finish: Orange/black
  • Material: All steel

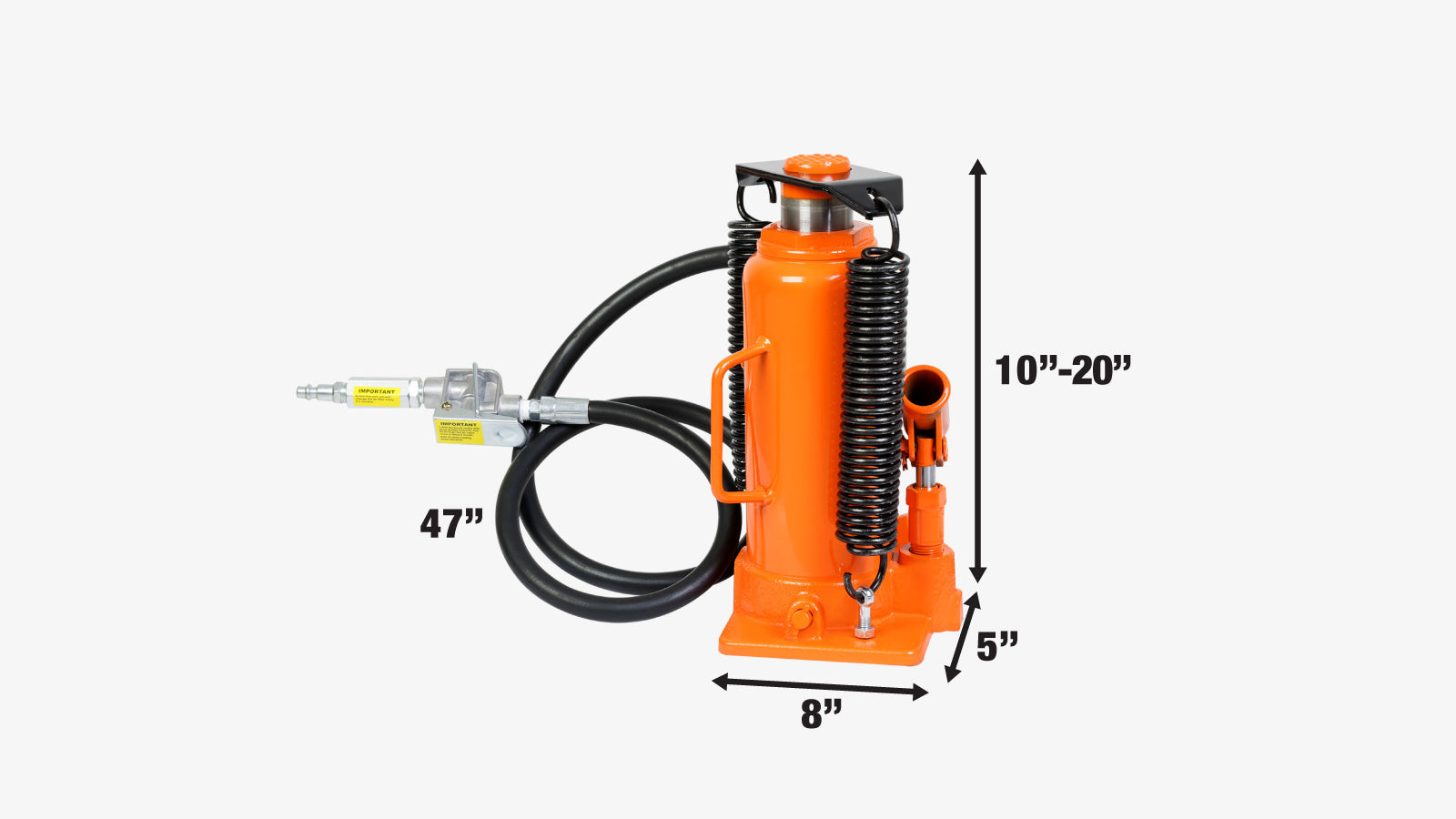

TMG Industrial 12 Ton Air Hydraulic Bottle Jack, Manual & Pneumatic Control, Double Springs, 20” Lift Height, TMG-AJA12-specifications-image

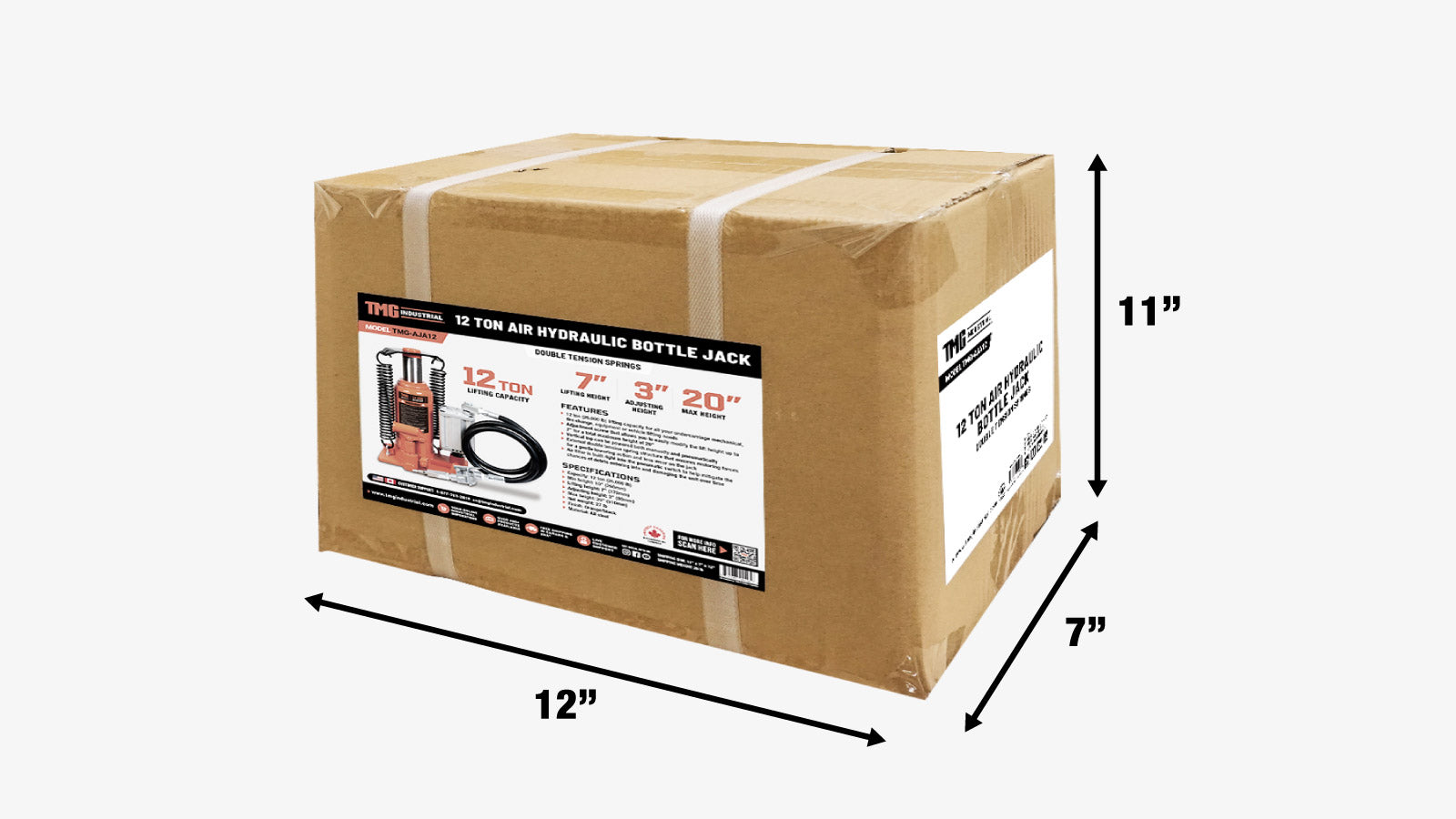

Shipping Information

The order will ship FREE from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a carton crate shipping box
  • Shipping dimension: 11” x 7” x 12” (L x W x H)
  • Shipping weight: 30 lb
This order will ship from TMG Industrial warehouse in Seattle, WA.
What happens after you place your order?
TMG Industrial 12 Ton Air Hydraulic Bottle Jack, Manual & Pneumatic Control, Double Springs, 20” Lift Height, TMG-AJA12-shipping-info-image

Product Description

The TMG-AJA12 Air Hydraulic Bottle Jack has a 12 ton (26,400 lb) lifting capacity for all your undercarriage mechanical, tire change, and general equipment or vehicle lifting needs. Designed with an easy-to-use adjustment screw so you can modify the height as needed.

A vertical top can be controlled by both manually and pneumatically so the operator has the versatility to be able to use this jack whether they’re near an air source or not. The jack has a lifting height of 6-1/2” and can be used on sturdy blocks to reach higher frame bodies if necessary.

The external double tension spring structure ensures restoring forces, and an air filter has also been built into the pneumatic switch to reduce the chance of debris making its way into the unit. These features combine for reliable lift assistance that will serve you for many years to come.

We also carry a 20-ton model of this jack: TMG-AJA20

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
