CURRENTLY OUT OF STOCK
SKU TMG-MVE12

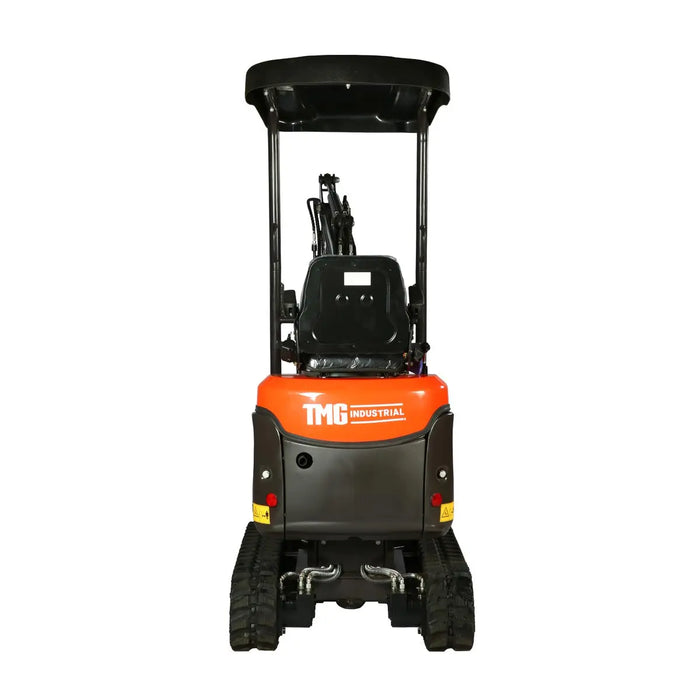

1200 KG Compact Mini Excavator (Discontinued – No Longer Available) TMG-MVE12

1200 KG Compact Mini Excavator (Discontinued – No Longer Available) TMG-MVE12

CURRENTLY OUT OF STOCK
SKU TMG-MVE12
Original price $22,999.00 - Original price $22,999.00
Original price
MSRP: $22,999.00
$22,999.00 - $22,999.00
Current price $22,999.00
MSRP: $22,999.00

FREE

shipping to most locations in

USA

Delivered in 10 to 15 business days Learn More
Product Manual

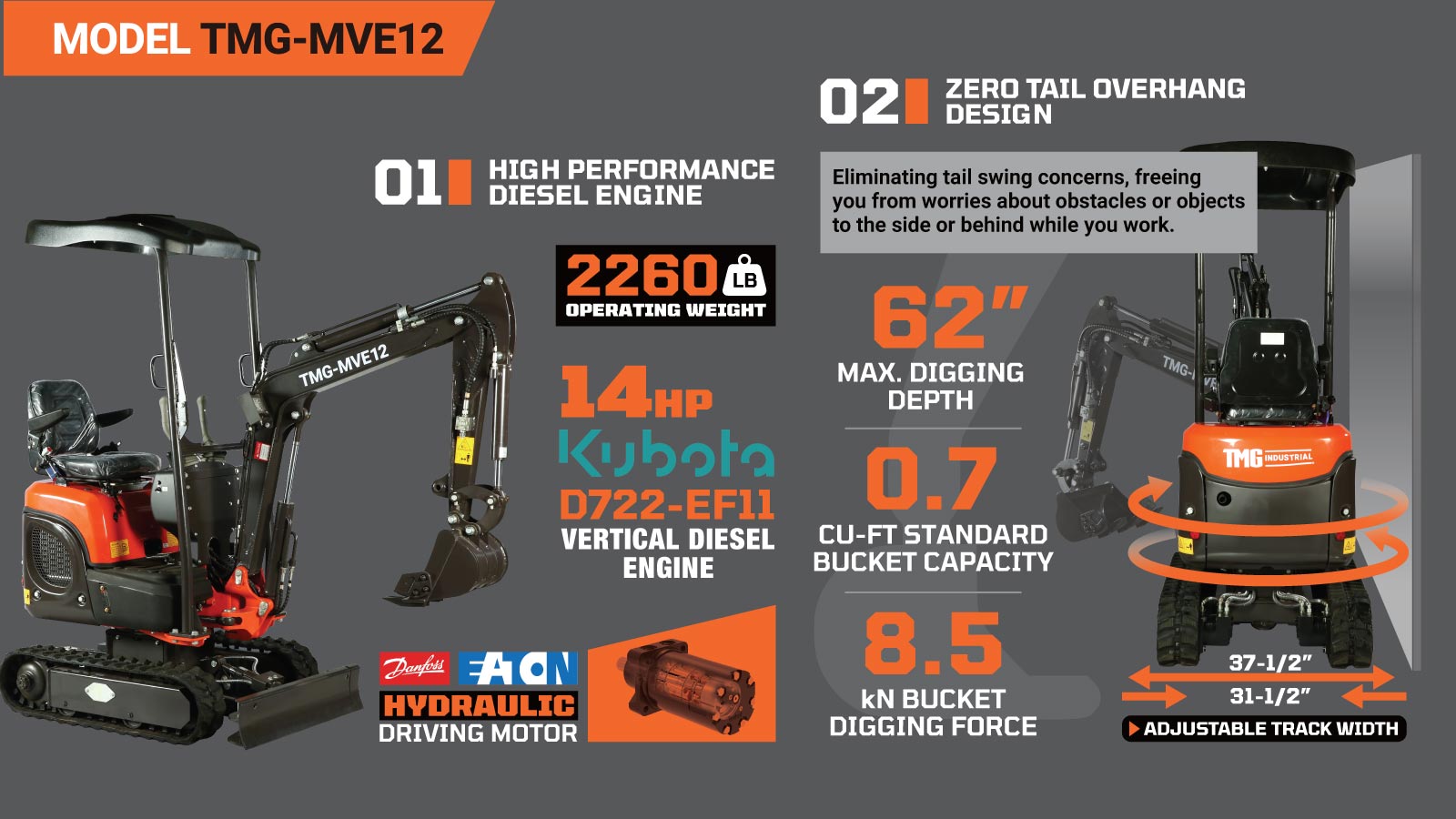

Features

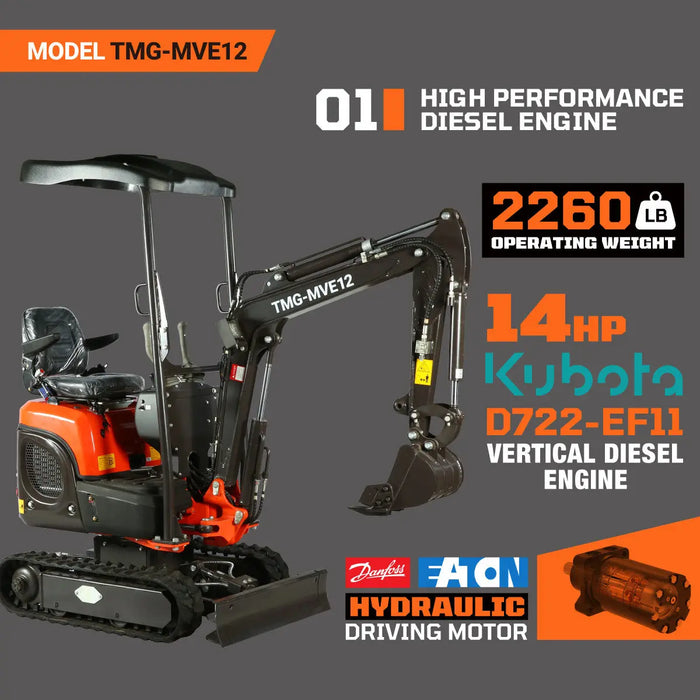

  • 14 HP Kubota 3-cycle water-cooled diesel engine, ensures a potent combination of reliable performance and fuel efficiency
  • KDK hydraulic main pump and Eaton motor work together to ensure smooth and precise operation, minimizing downtime and maximizing productivity
  • The operator area is thoughtfully designed for comfort and ease of operation, providing a spacious layout that reduces fatigue during long working hours
  • Standard auxiliary hydraulics open up a world of possibilities, empowering users to easily attach a variety of tools and attachments for different uses
  • Maximum travel speed of 1.5 km/h, maximum digging depth of 62”, and a maximum unloading height of 78” to accommodate a wide variety of tasks

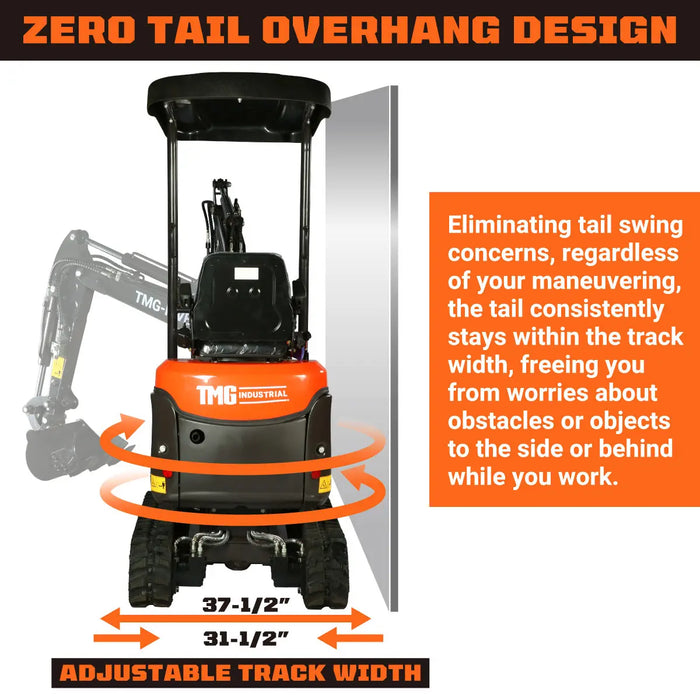

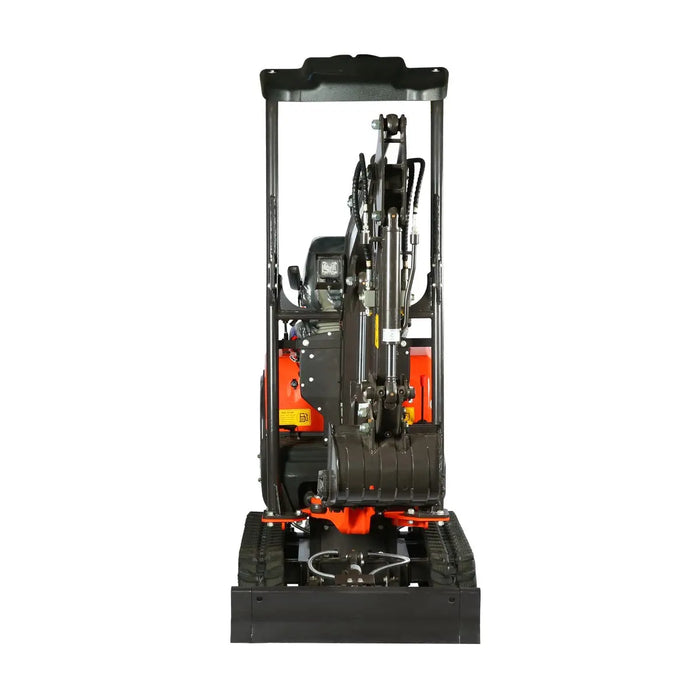

  • Zero tail overhang: Eliminating tail swing concerns, regardless of your maneuvering, the tail consistently stays within the track width, freeing you from worries about obstacles or objects to the side or behind while you work.
1200 KG Compact Mini Excavator (Discontinued – No Longer Available) TMG-MVE12-description-image

Specifications

  • Operating weight: 2260 lb

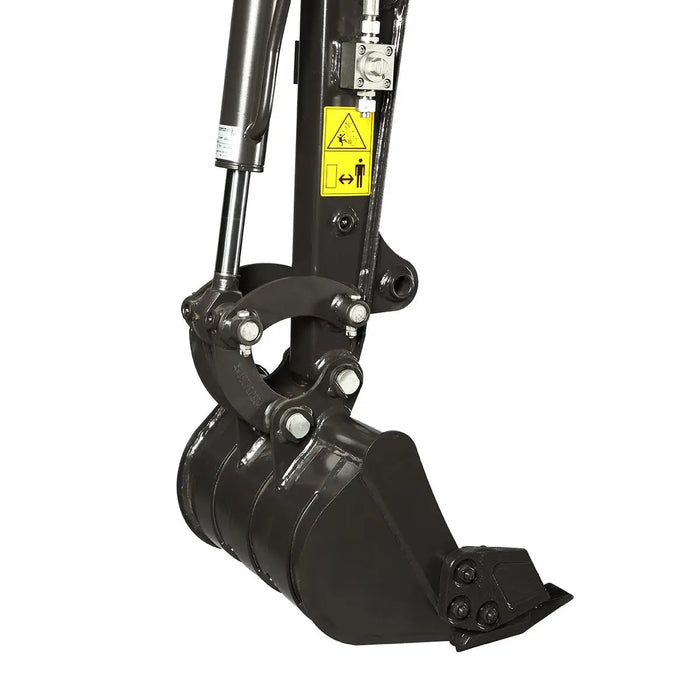

  • Standard bucket capacity: 0.7 cu-ft
  • Working device form: Backhoe
  • Max. travel speed: 1.5 km/h
  • Swing speed: 11 RPM
  • Max. gradeability: 30°
  • Track ground pressure: 32.8 kpa

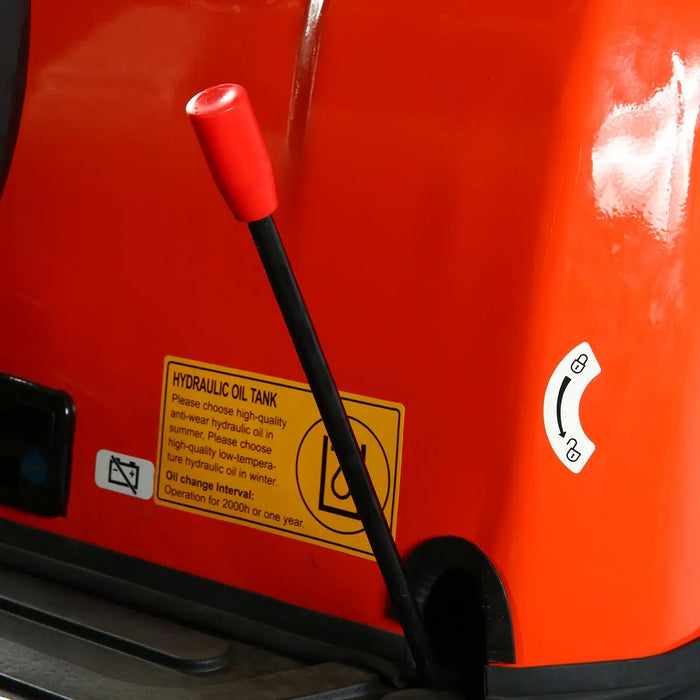

  • Hydraulic oil tank capacity: 16 L
  • Fuel tank capacity: 11 L
  • Max. tractive force: 13.5 kN
  • TMG-MVE12 Mini Excavator — Technical Specs (PDF)

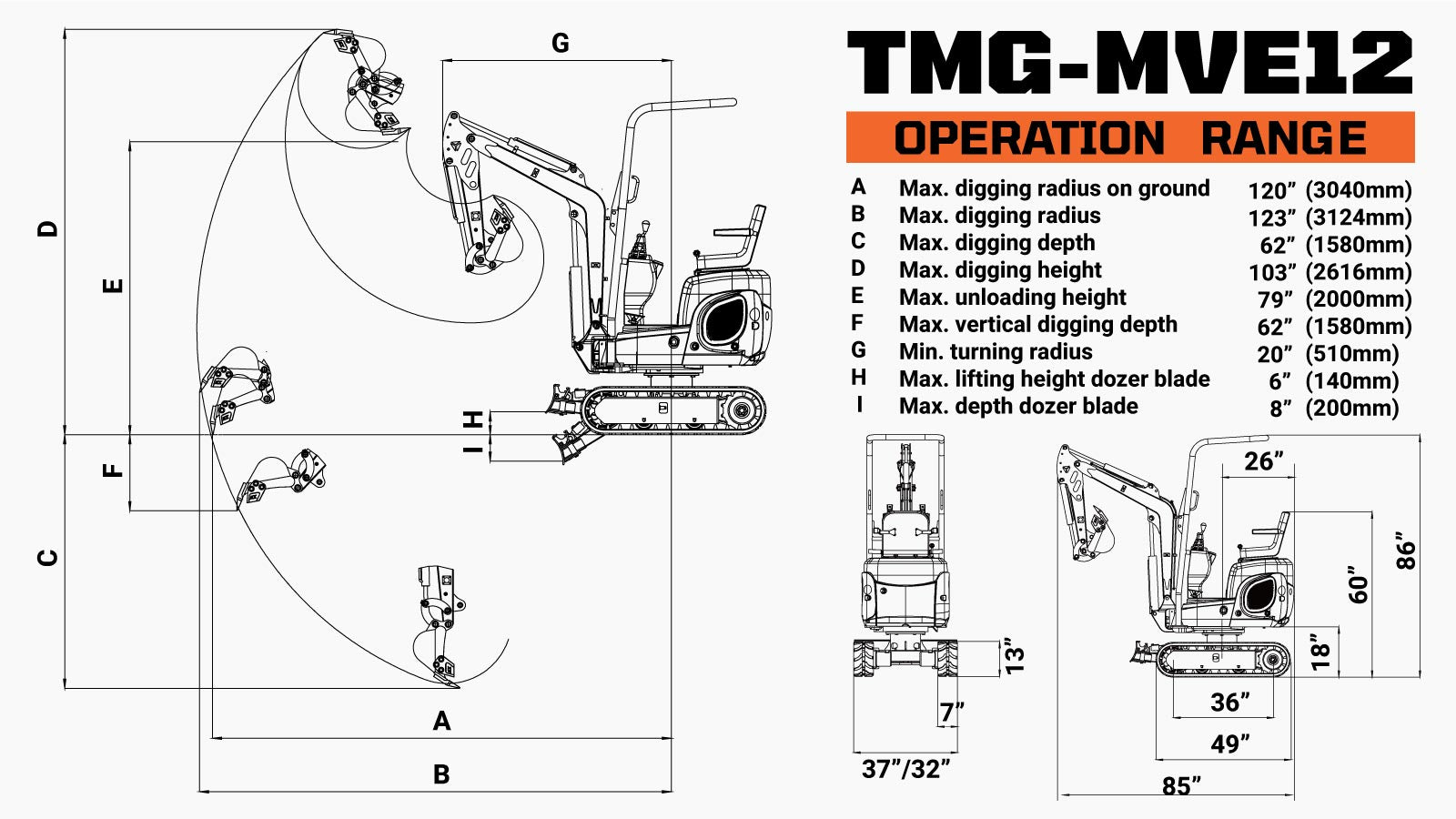

  • Operating Range

  • Max. digging depth: 62”
  • Overall operating height (fully raised): 103”
  • Max. digging radius: 123”
  • Max. unloading height: 78”
  • Max. vertical digging depth: 62”
  • Min. turning radius: 59”
  • Max. lifting height dozer blade: 5-½”
  • Max. depth dozer blade: 8”
  • Boom swing-left: 50°
  • Boom swing-right: 55°
  • Dipper boom digging force 6.1 kN
  • Bucket digging force 8.5 kN
  • Main Dimensions

  • Track length: 49”
  • Upper chassis ground clearance: 18”
  • Counterweight turning radius: 26”
  • Chassis width: 31-½”/37-½”
  • Track width: 7”
  • Track height: 13”
  • Transportation length: 85”
  • Height of seat to ground: 60”
  • Overall height: 87”

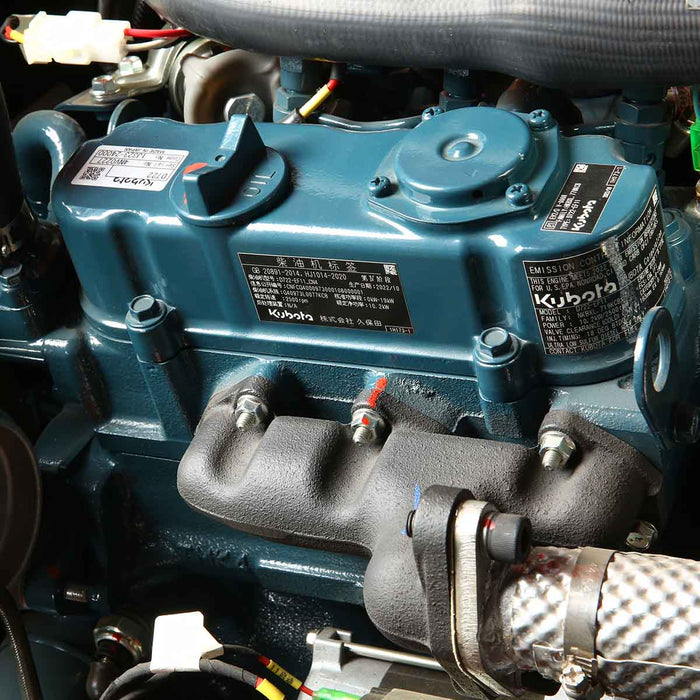

  • Engine

  • Powerful 14 HP Kubota vertical 3-cycle water-cooled diesel engine
  • Displacement: 0.719 L
  • Start type: Electric start w/battery included (12V/20A)
  • Rated power: 14 HP/2500 RPM
  • Max. torque: 42.9N.m
  • Engine oil capacity: 15.3 L
1200 KG Compact Mini Excavator (Discontinued – No Longer Available) TMG-MVE12-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

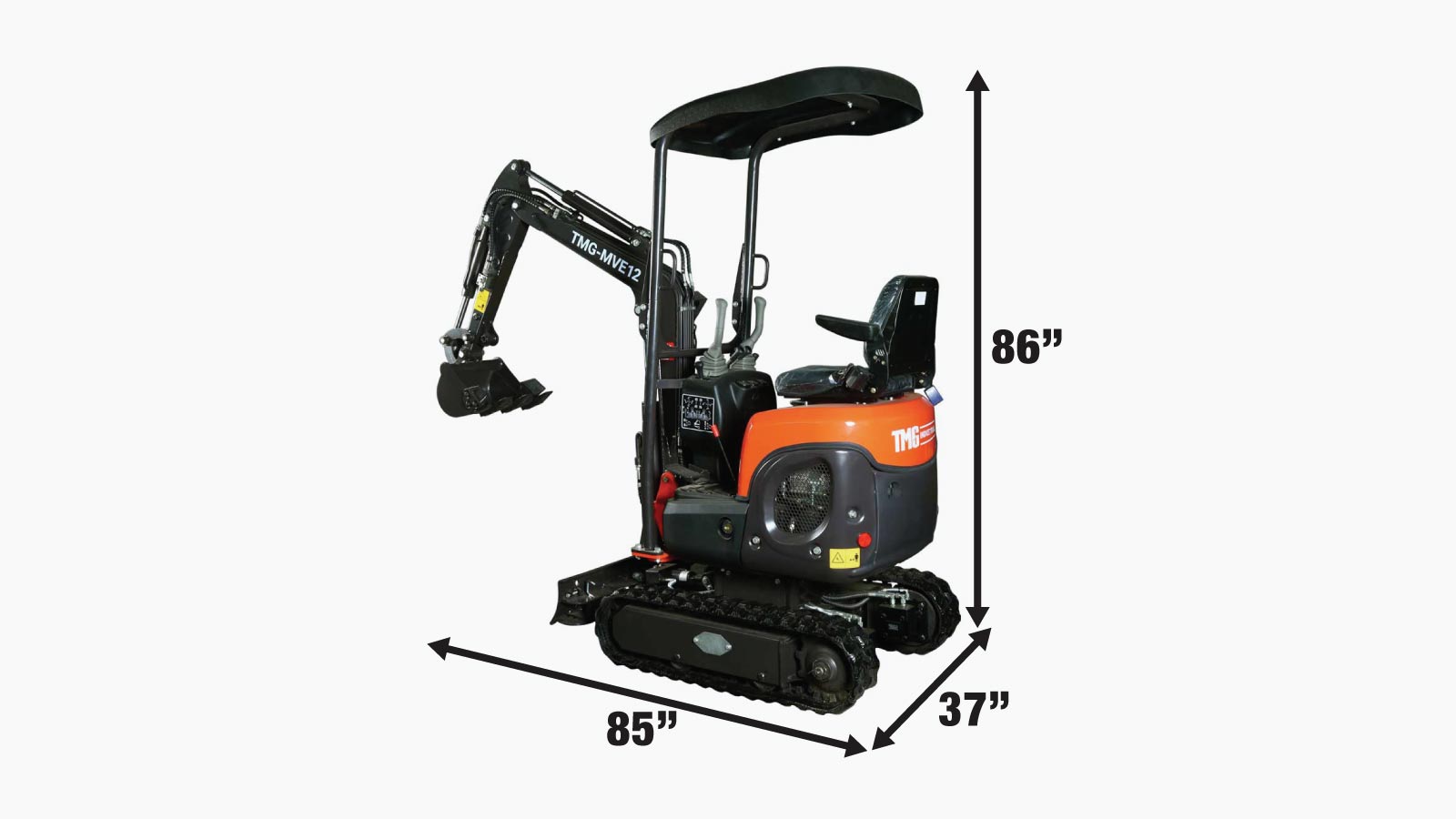

  • Shipping dimension: 85” x 37” x 86” (L x W x H)
  • Shipping weight: 2275 lb
Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
1200 KG Compact Mini Excavator (Discontinued – No Longer Available) TMG-MVE12-shipping-info-image

Product Description

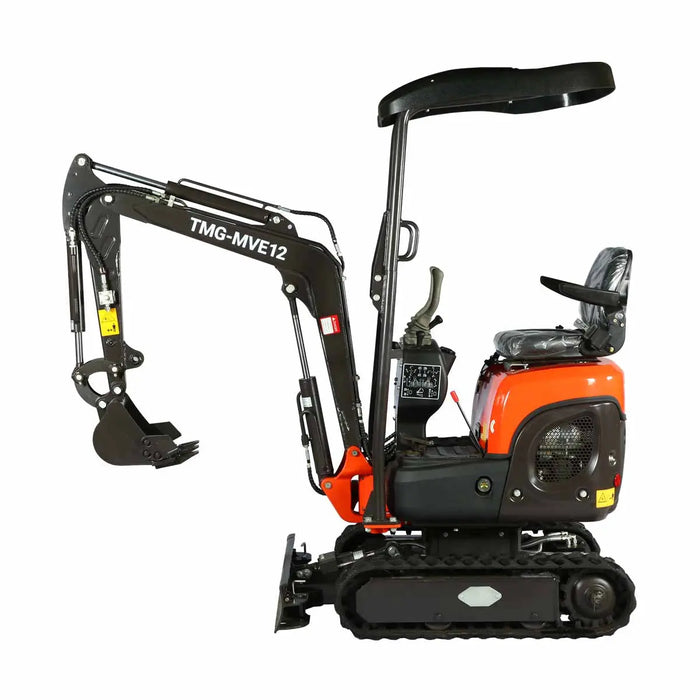

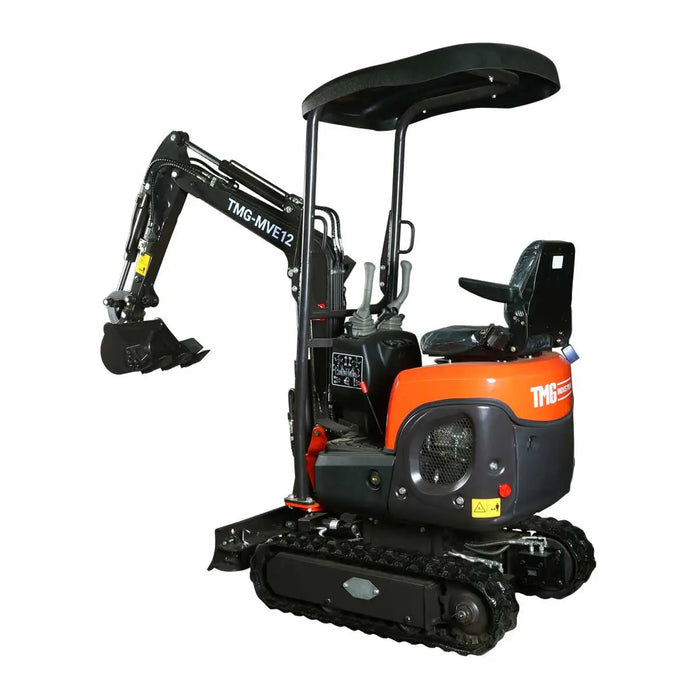

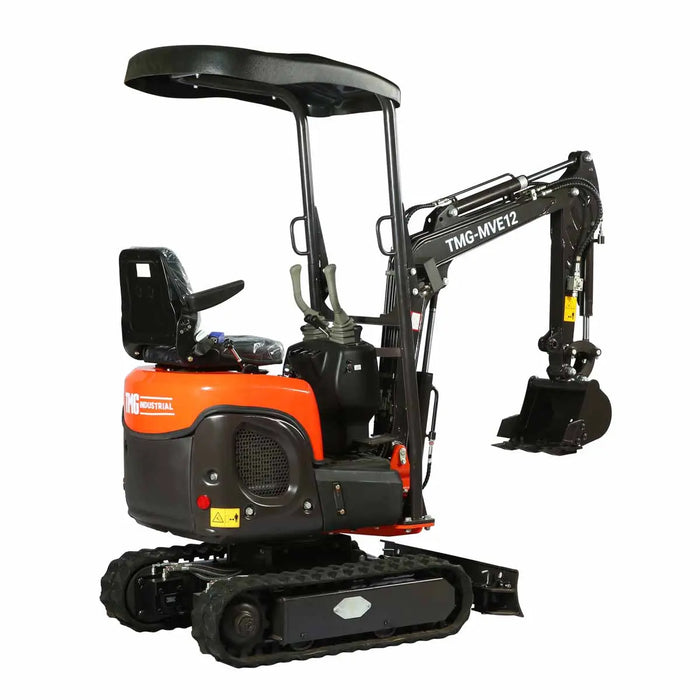

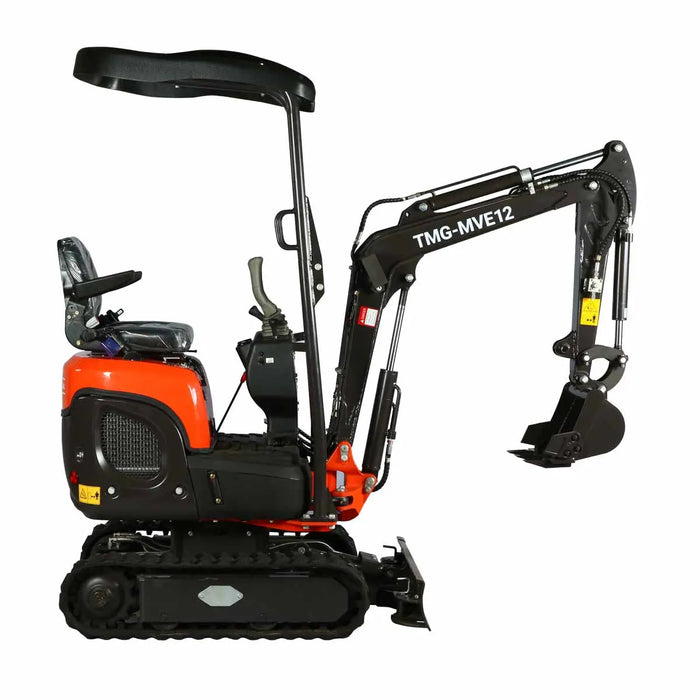

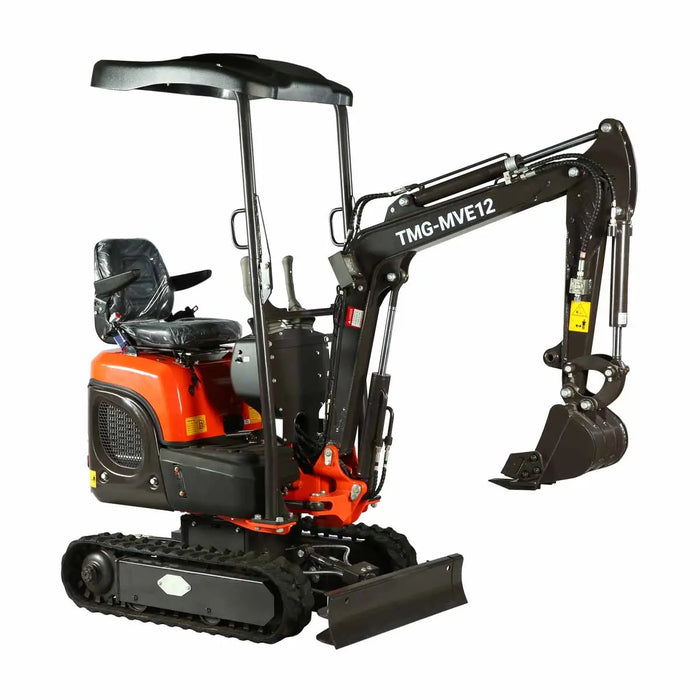

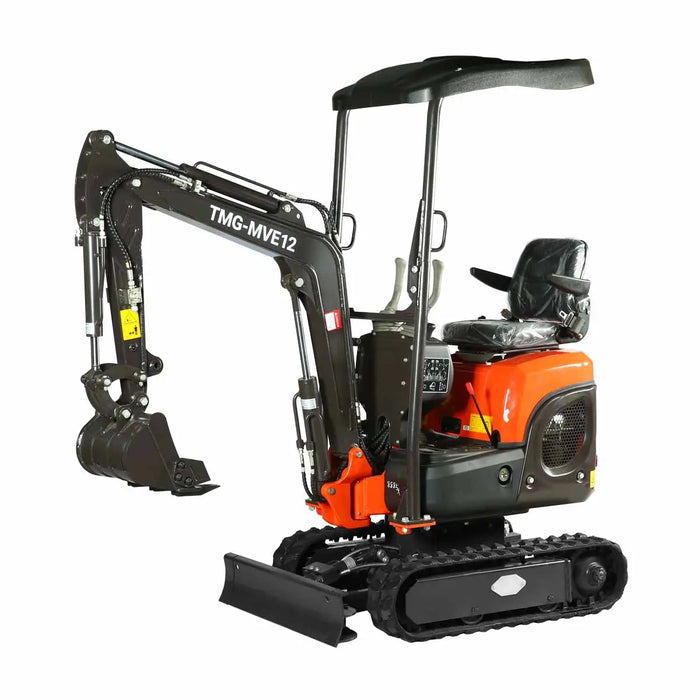

The TMG-MVE12 Mini Compact Excavator is a robust and reliable powerhouse machine designed for efficient excavation in tight spaces. Equipped with an industry-proven 14 HP vertical 3-cycle water-cooled Kubota diesel engine, this mini excavator offers optimal performance while meeting EPA standards. The KDK hydraulic main pump and Eaton motor contribute to its smooth operation and precise control.

With zero tail swing capability, the TMG-MVE12 offers unparalleled flexibility in navigating job sites while providing maximum protection against obstacles. The spacious operator area is thoughtfully laid out for comfort and ease of operation, ensuring productivity throughout the workday. Standard auxiliary hydraulics empower the use of various attachments, enhancing the machine's versatility.

This mini excavator has a max travel speed of 1.5 km/h, a digging depth of 62", and a maximum unloading height of 78", making it ideal for a wide range of excavation tasks and work environments. With a compact design and dimensions tailored for maneuverability, this excavator is the go-to solution for precision projects on your farm or commercial job site.

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
