SKU TMG-STS35

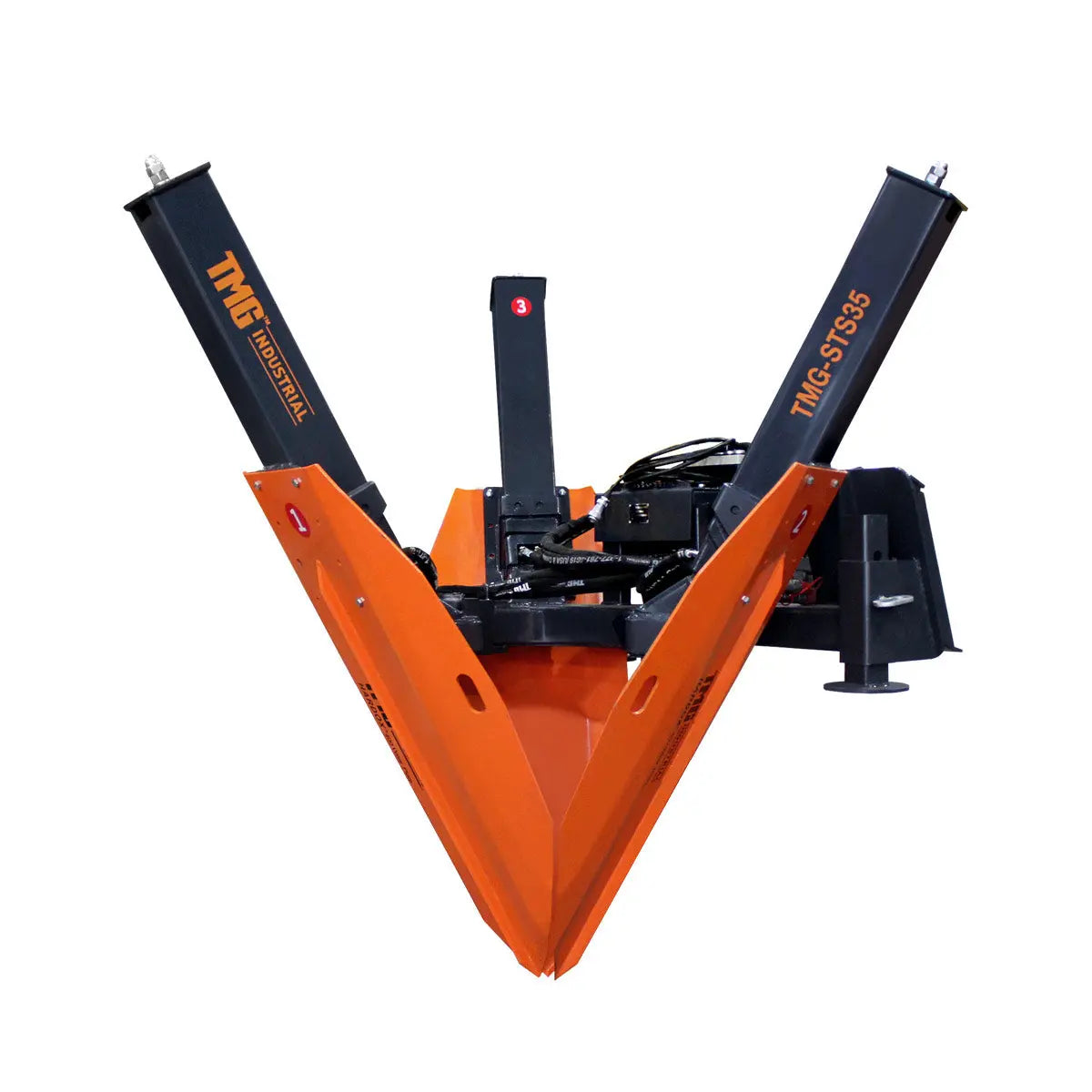

TMG Industrial 36” Skid Steer Hydraulic Tree Spade, 4” Diameter Cut Capacity, 22” Blade Opening, Hardox® 400 Blades, TMG-STS35

Original price $19,999.00 - Original price $19,999.00
Original price
$19,999.00
$19,999.00 - $19,999.00
Current price $19,999.00
CURRENTLY IN STOCK
FREE SHIPPING IN USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
1700.0 lb
80 x 50 x 50 inches
More Shipping Info
  • Ideal for nurseries & landscapers who need to transplant or remove small trees
  • Abrasion-resistant Hardox® 400 steel blades operate at a 30° angle
  • Easily move trees up to 4” in diameter
  • 22” spade opening cuts a root ball 36” in diameter & 27-½” deep
  • Heavy gauge frame design provides firm rear stabilization & down-pressure
Product Manual

Features

  • Incredible attachment for any nursery or landscaping business that needs to remove or transplant trees with minimal ground disturbance
  • Abrasion-resistant Hardox® 400 steel blades provide toughness and durability to slice through tree roots and offer a clean cut every time
  • 22” wide blade opening can accommodate various tree types up to 4” in diameter and four to six feet in height
  • Oppositely configured blades form an evenly sized root ball for easy transplanting; blades are removable for easy changing and sharpening
  • Enclosed heavy gauge frame design provides firm rear stabilization and heavy down-pressure support for a smooth working action

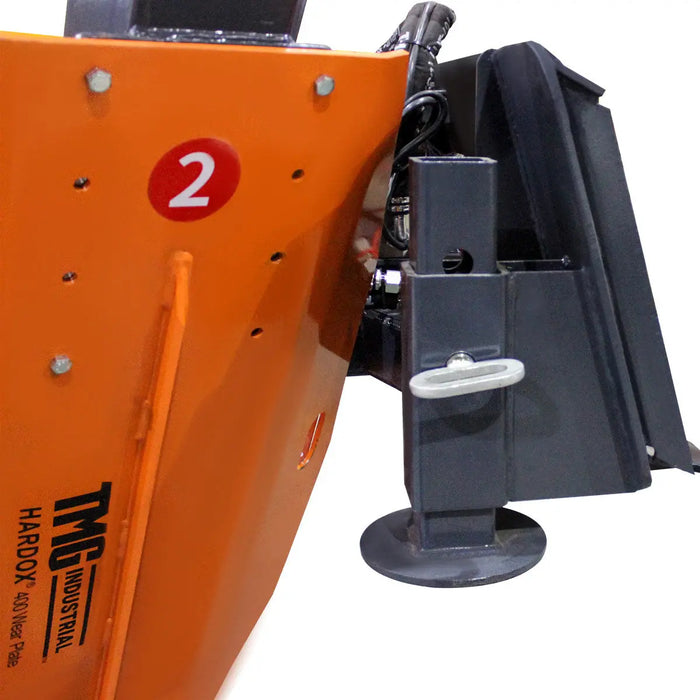

  • Two height-adjustable kickstands for easy storage and greaseable pin fittings for simple routine maintenance that will keep this spade running long-term

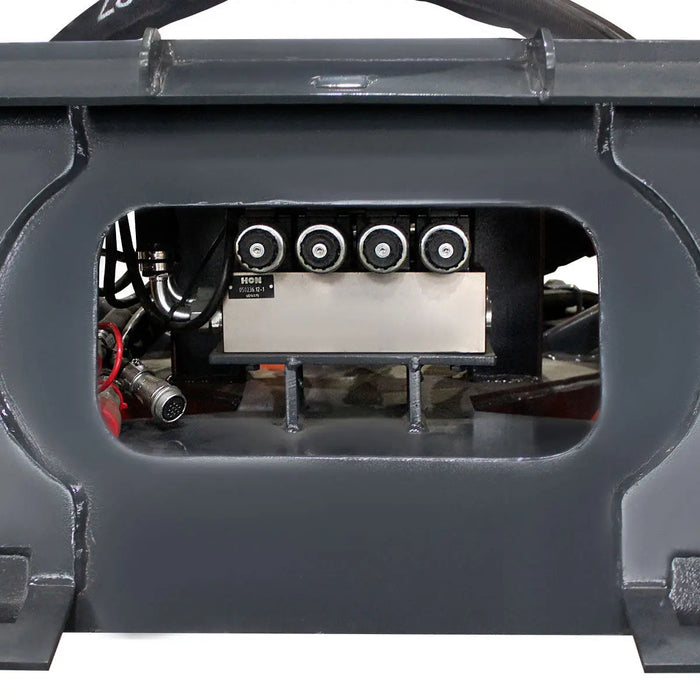

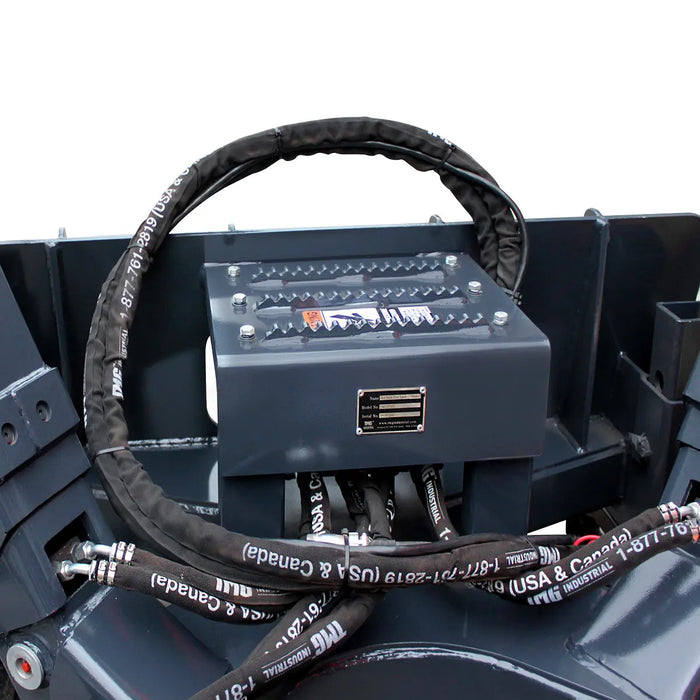

  • Universal mount that fits most skid steer makes and models; included hydraulic hoses, flat face couplers and control box

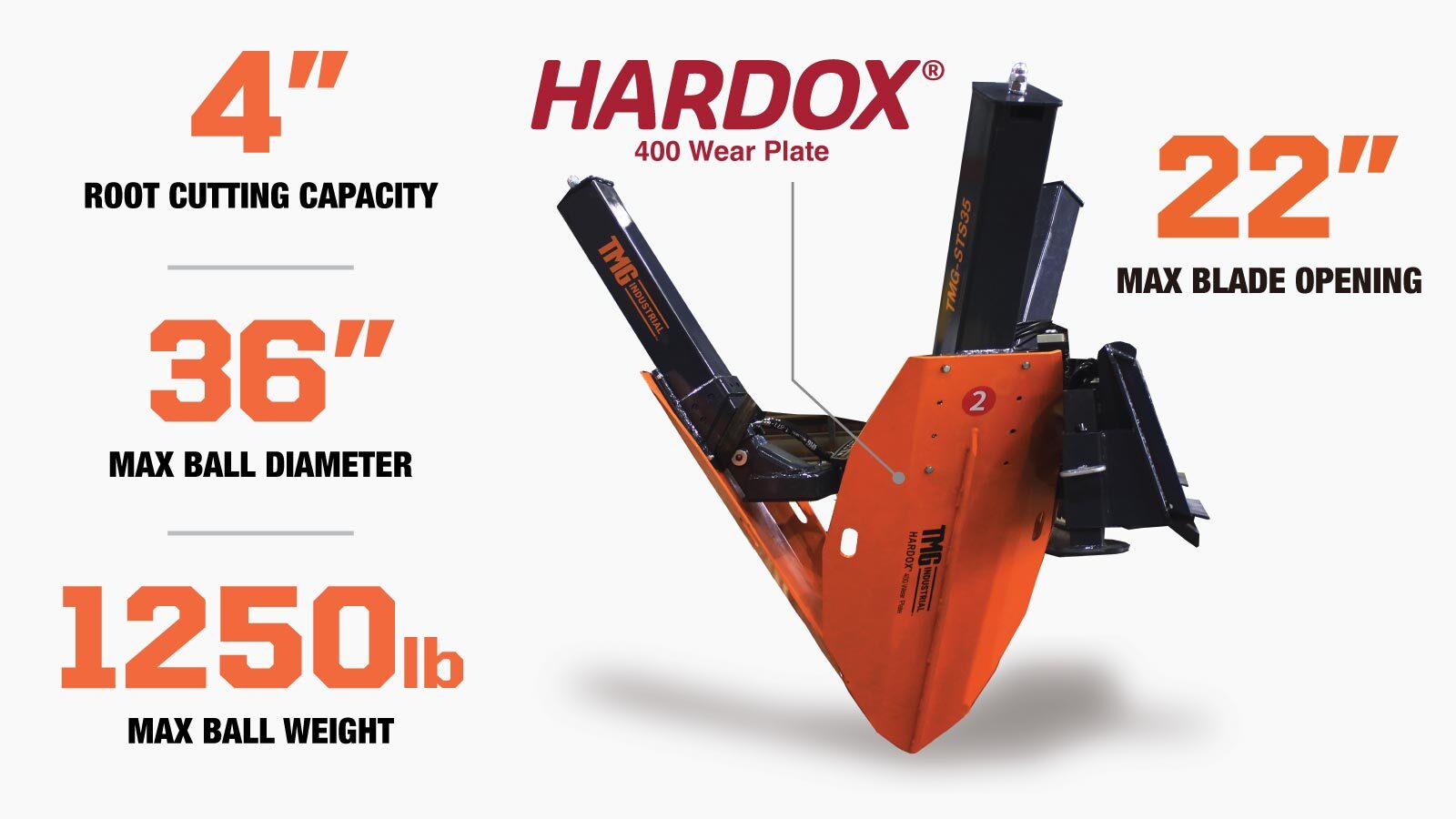

TMG Industrial 36” Skid Steer Hydraulic Tree Spade, 4” Diameter Cut Capacity, 22” Blade Opening, Hardox® 400 Blades, TMG-STS35-description-image

Specifications

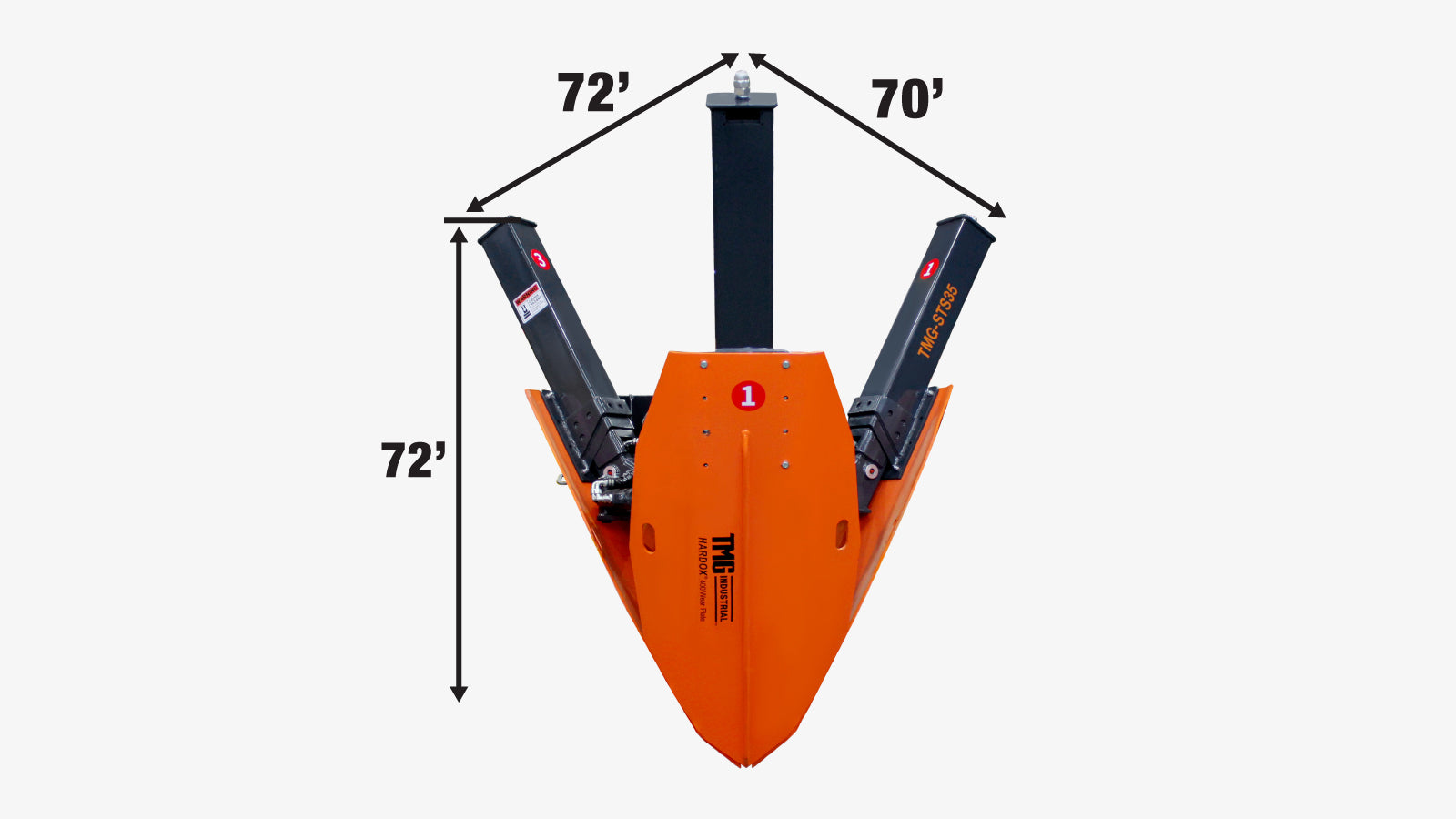

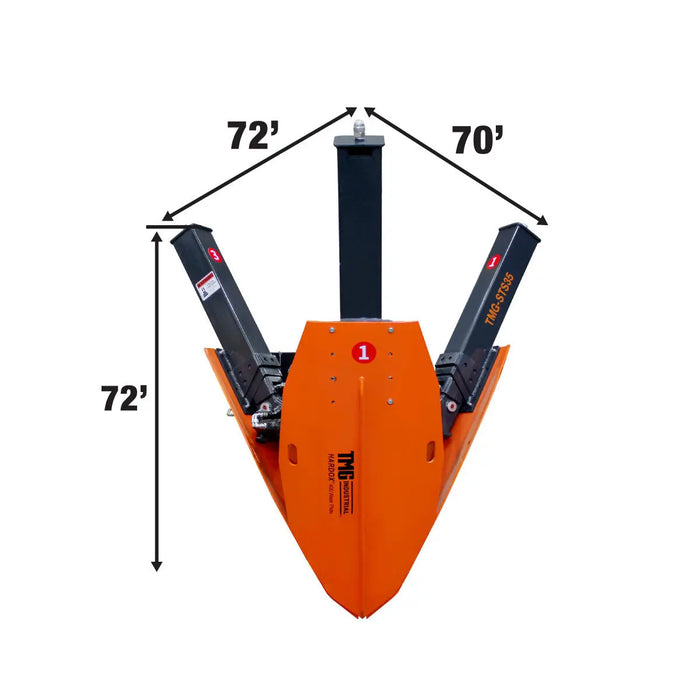

  • Overall size: 72” (L) x 70” (W) x 72” (H)
  • Operating weight: 1500 lb
  • Tree height capacity: 4-6 feet (approx.)

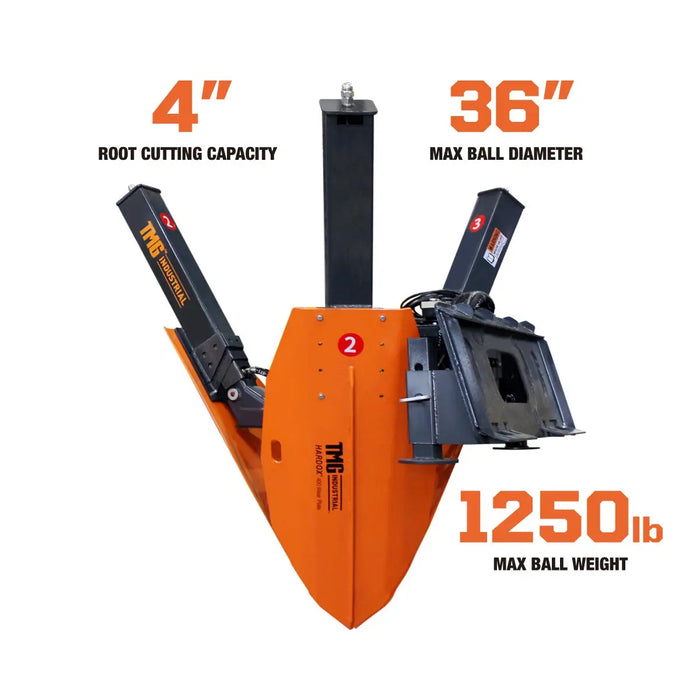

  • Max. root cutting capacity: 4”
  • Max. ball diameter: 36”
  • Max. ball depth: 27-½”
  • Max. ball weight: 1250 lb
  • Blade quantity: 3
  • Max. blade opening: 22”
  • Blade cylinder stroke: 28”
  • Swing cylinder stroke: 4-½”

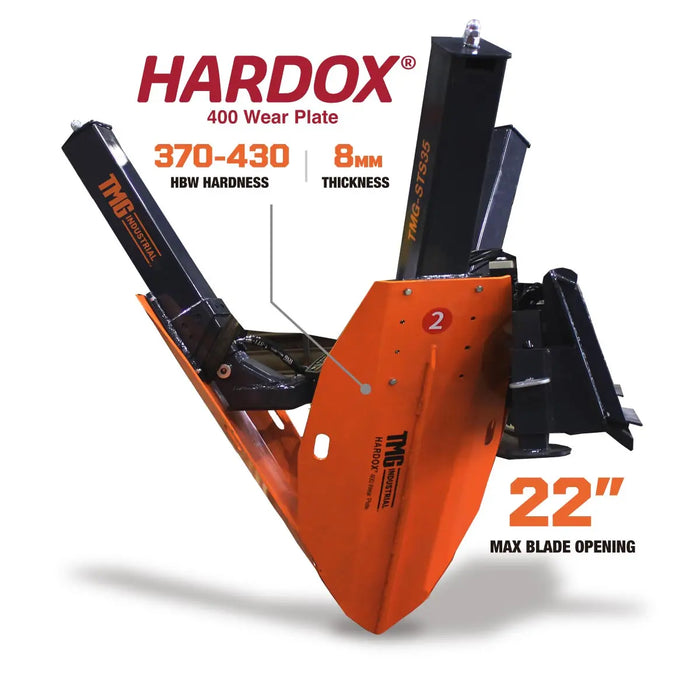

  • Hardox® 400 steel blades:
    • Hardness: 370-430 HBW
    • Thickness: 8 mm
  • Blades angle: 30°
  • Flow rate: 16-21 GPM
  • Pressure range: 1740-3045 PSI
  • Hydraulic hoses, flat-face couplers and control box included
  • Two height-adjustable kickstands
  • Greaseable pin fittings

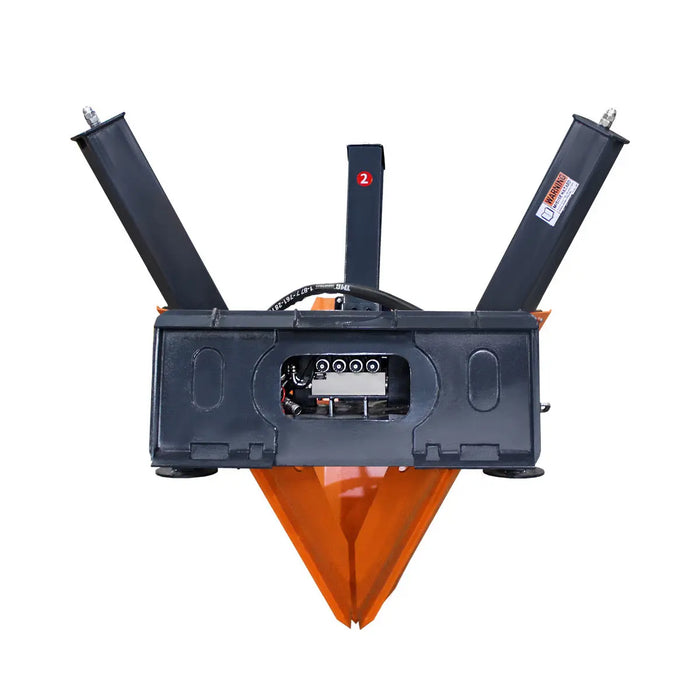

  • Universal skid steer mount

*Some skid steers have proprietary mounts. Therefore modifications to this product may be required to fit your specific machine. Check with your skid steer manufacturer to determine if your machine is compatible with this universal skid steer quick mount.
TMG Industrial 36” Skid Steer Hydraulic Tree Spade, 4” Diameter Cut Capacity, 22” Blade Opening, Hardox® 400 Blades, TMG-STS35-specifications-image

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

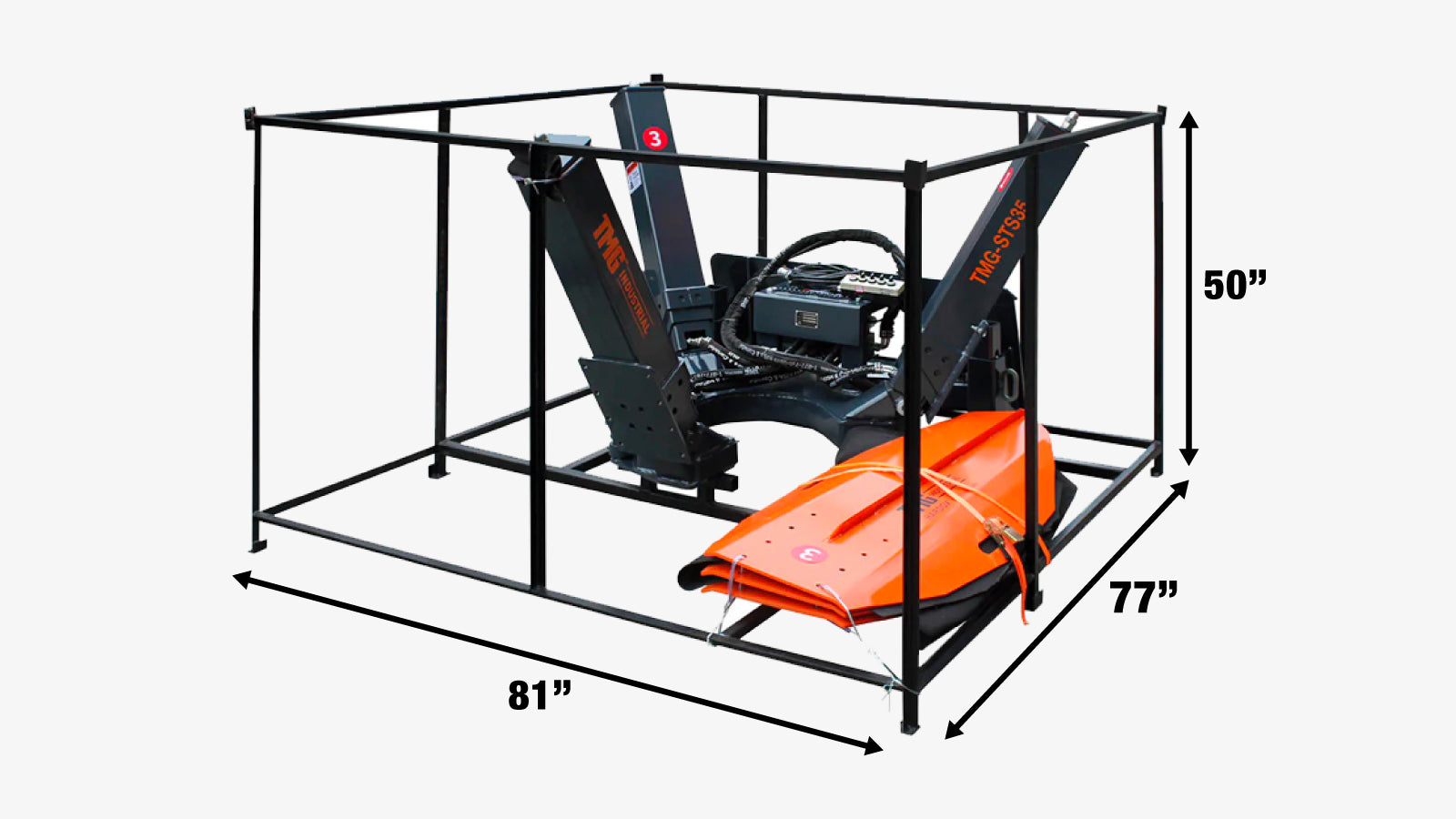

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 80” x 50” x 50” (L x W x H)
  • Shipping weight: 1700 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.
Shipping from Richmond BC or Mississauga ON

Product Description

The TMG-STS35 Skid Steer Hydraulic Tree Spade is an excellent addition to the inventor of any nursery or landscaping business. Add phenomenal tree removal and transplanting capabilities to your customers with the clean and powerful working action of this tree spade. Equipped with heavy-duty Hardox® 400 Blades that slice through roots and minimize any damage to the tree so it can be immediately replanted or repurposed.

Capable of working with trees up to 4” in diameter so you can easily distribute new growth saplings to customers and sell more product without tearing up your growing grounds. The root ball itself is 36” in diameter and 27-½” in depth. Our tree spade has an opening of 22” and can accommodate various tree types ranging anywhere from four to six feet in height.

Three removable blades can easily be sharpened or replaced and are arranged opposite one another for a completely clean cut configuration that supports the root ball upon removal. Enclosed heavy gauge frame design provides firm rear stabilization and heavy down-pressure support for a smooth working action. This attachment mitigates the labor-intensive work around your nursery, is easy to maintain and ships free from our warehouse in Richmond, BC.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
