TMG Industrial 10,000-lb Two Post Floor Plate Auto Lift, Symmetric Arms, 77” Lift Height, Dual-Point Lock Release, TMG-TPL45

• Ideal for repairs, fluid changes, body work and more in commercial shops, personal garages and general automotive service departments
• 10,000 lb lifting capacity and 77” lift height can accommodate most trucks, cars, SUVs and classic/sport models with ease
• Floor plate design protects cables, hydraulic lines and electrical wires while keeping the top open for maximum vehicle clearance overhead

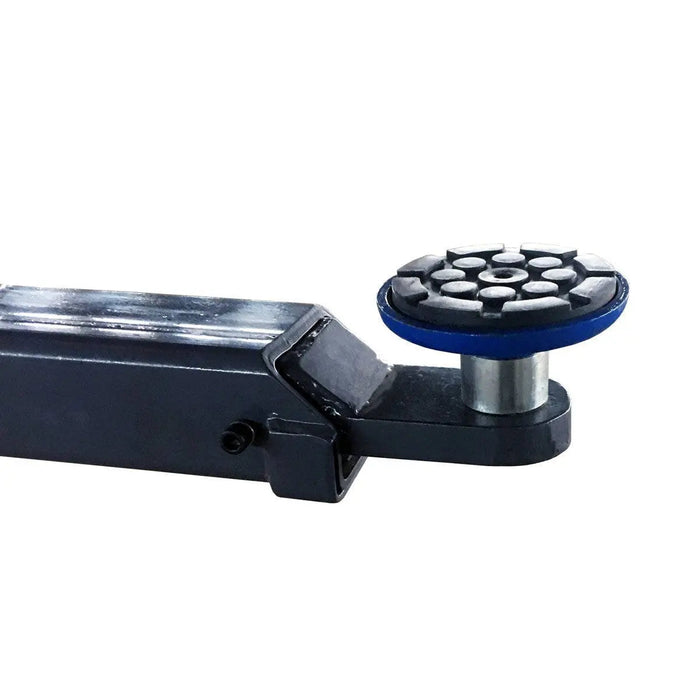

• Symmetric telescopic reach arms on either side feature automatic arm restraints and offer a diverse array of support positions
• Dual hydraulic chain-drive cylinders power heavy-duty ⅜” steel cables and generate more than enough force for a smooth lifting operation
• Two post floor plate design is only limited by ceiling height; it has a small footprint and is easy to install in a variety of locations around your shop or garage
• Reliable, solid, industrial construction with a reinforced base is optimized for safety and high-traffic commercial or personal work

• Lift capacity: 10,000 lb

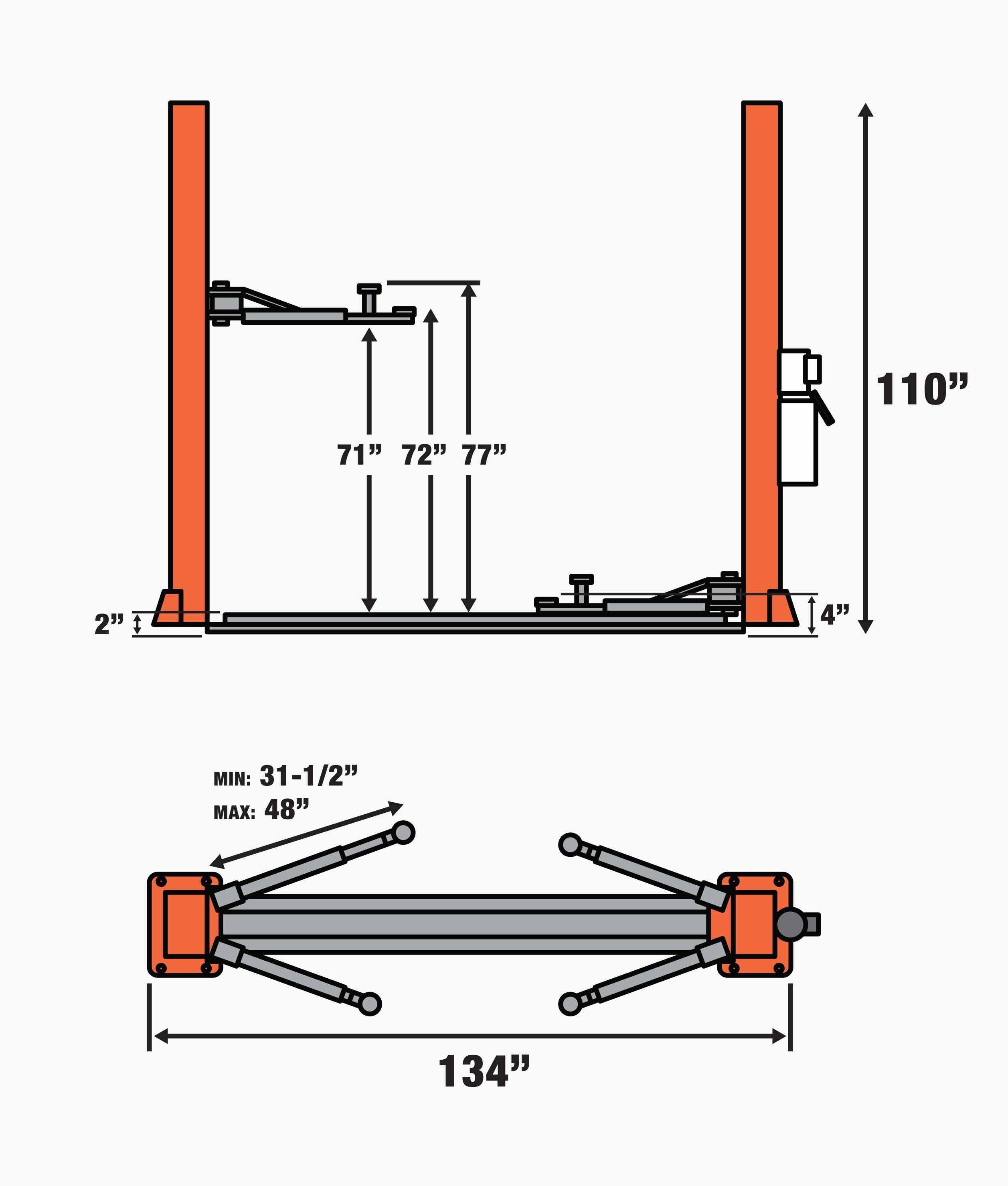

• Overall height: 110”
• Overall width: 134”
• Outside column width: 124”
• Inside column width: 110”
• Crossing floor plate height: 1-¼”
• Column size: 10-1/2” x 7”
• Column base: 20” x 15”
• Column steel: 6 GA
• Carriage steel: 4 GA
• Cable diameter: ⅜”

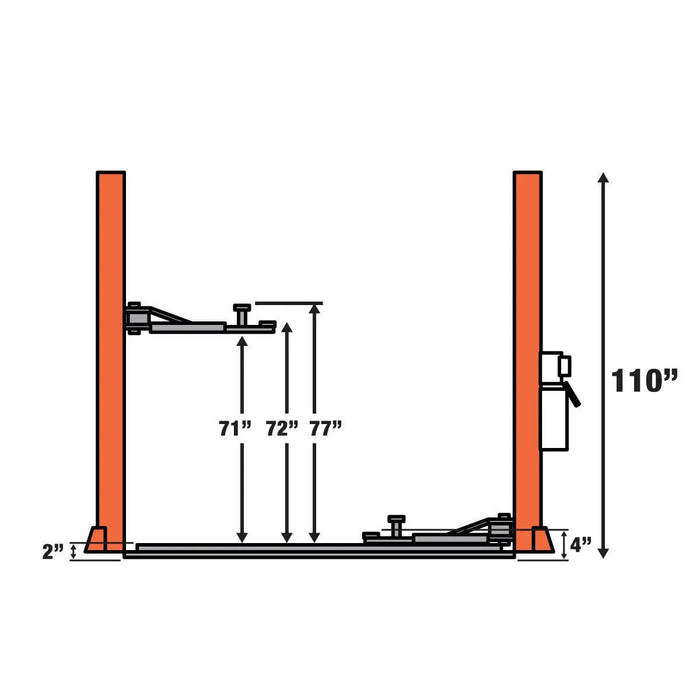

• Lift height (pad only): 72”

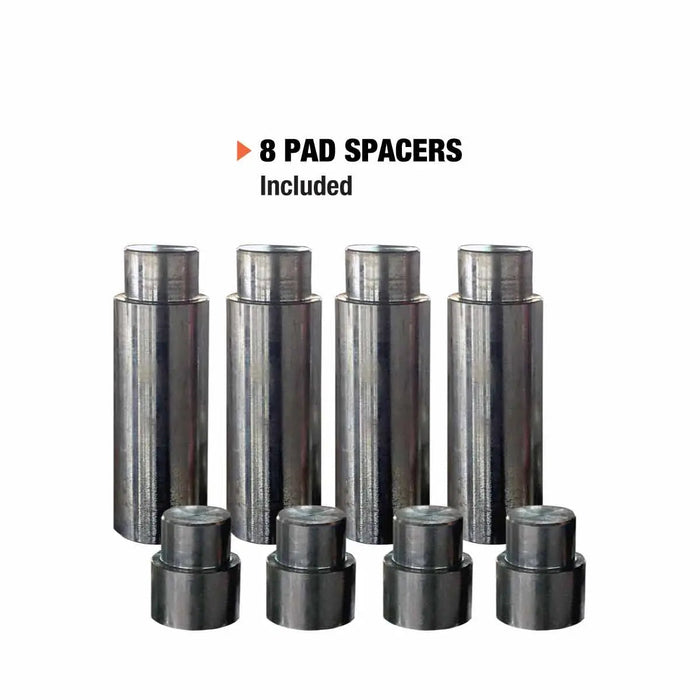

• Lift height (with 5” adapter): 77”
• Lift height clearance: 71"
• Minimum height from the ground: 4-½”
• Drive through clearance: 100”

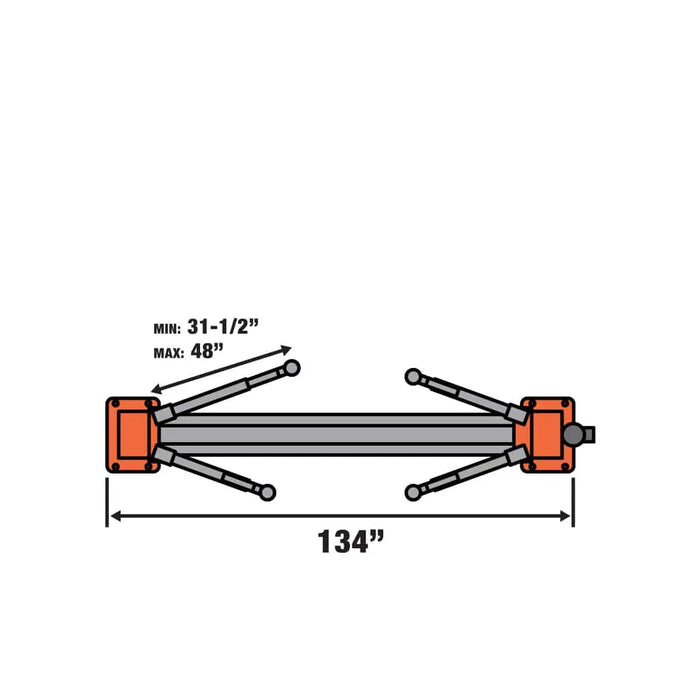

• Retractable front arm: 31-1/2” - 48”
• Retractable rear arm: 31-1/2" to 48"
• Travel speed:
  • Rise up at 90% load: 45 to 50 sec.
  • Lower down: 30 to 35 sec.
• Max. load capacity per arm: 2,250 lb
• Installation concrete slab required (minimum): 4-½” with 3000 PSI cured

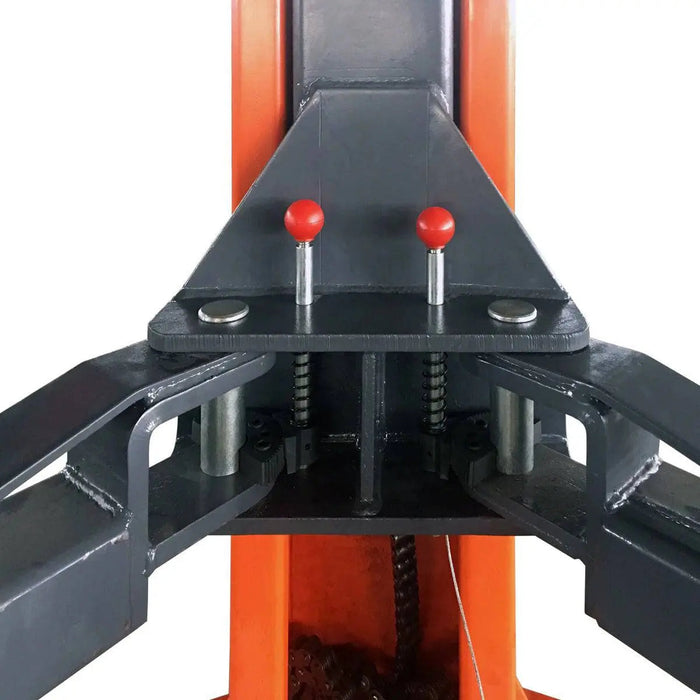

• Automatic arm restraints
• Dual point lock release
• Mounting hardware included

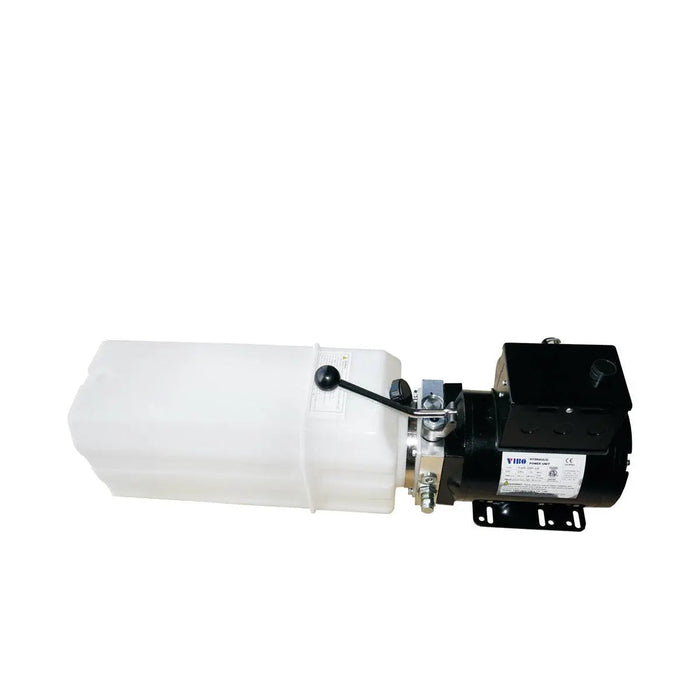

Hydraulic Motor Pump Power Unit:

• 220 VAC, 3 HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gal
• Pump oil required: AW32/AW46
• CETL certified

The order will ship FREE from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is. In-store pickup is also available.

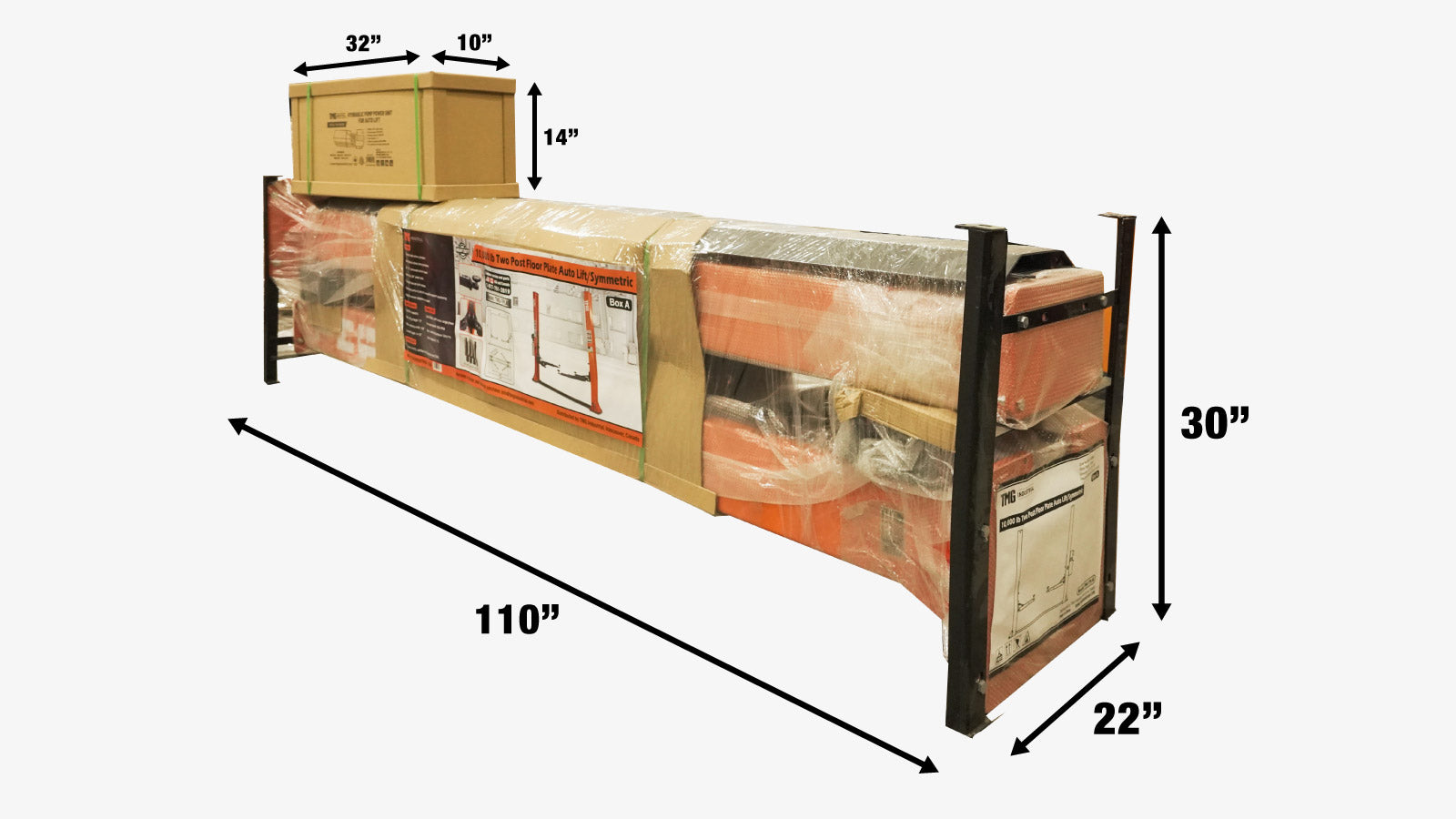

• This product is packed in two crate shipping boxes
• Box A: 110” x 22” x 30” (L x W x H)
• Box B: 32” x 10” x 14” (L x W x H) (ALP03)
• Shipping weight: 1285 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
