30' x 40' Container Peak Roof Shelter TMG Heavy Series™ with Heavy Duty 17 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-ST3042CG (Previously ST3041CG)
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

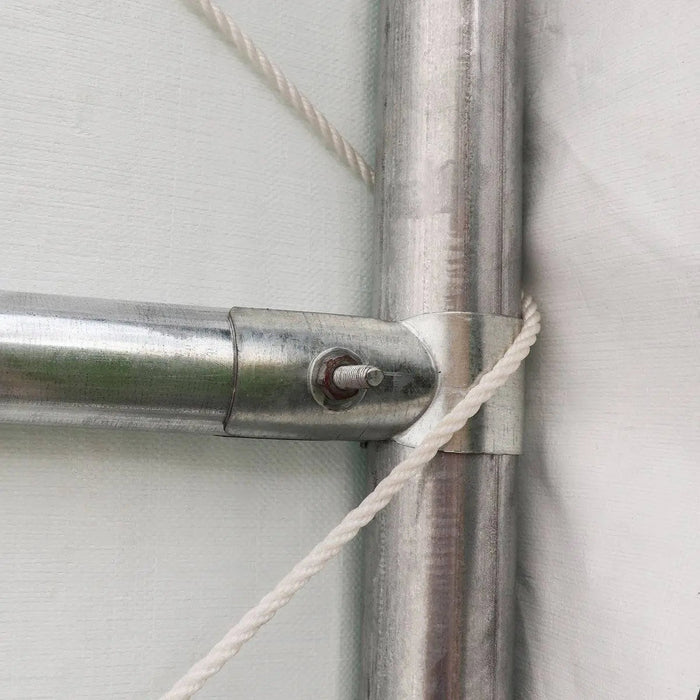

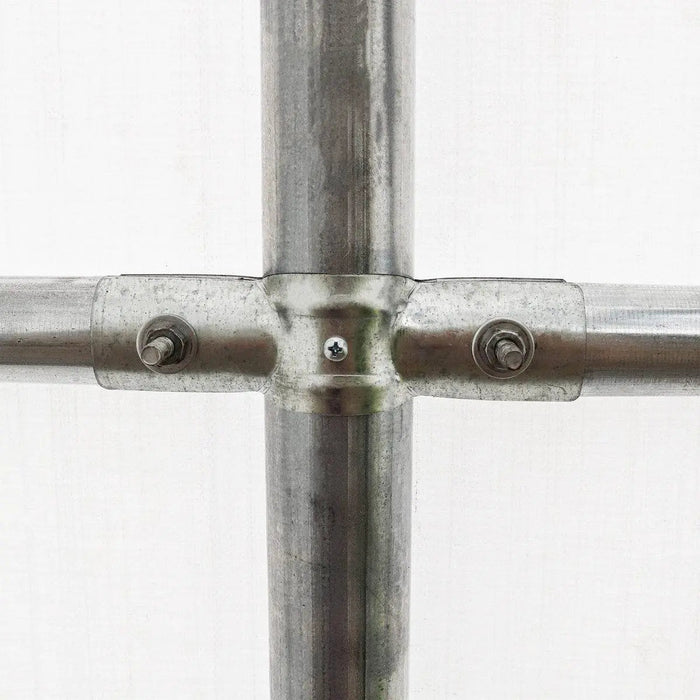

- Single truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
- Fully enclosed design provides year-round, all weather protection for your machinery, tools, materials and other sensitive cargo
- Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
- Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White

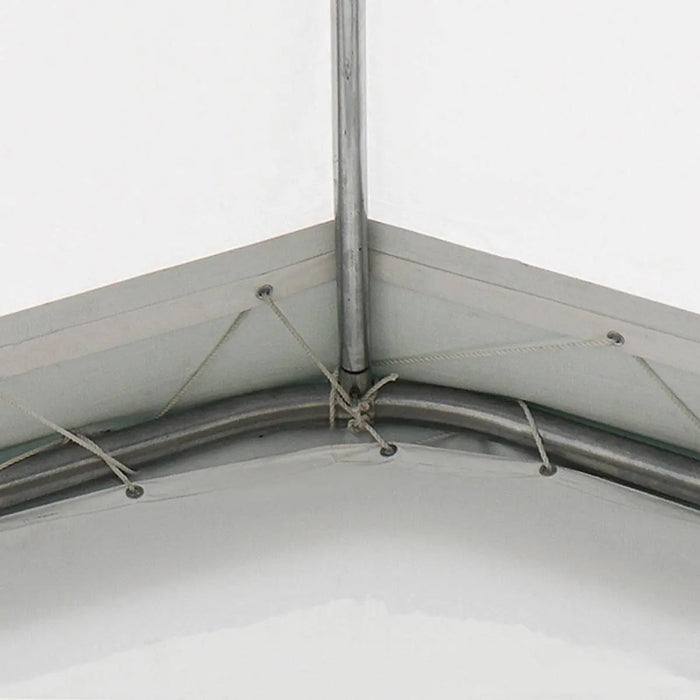

- Designed with 50" truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite
- Wide open front wall winch roll up door allows for easy parking, machine operation and dynamic workflow to run throughout
- Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
- Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
- PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

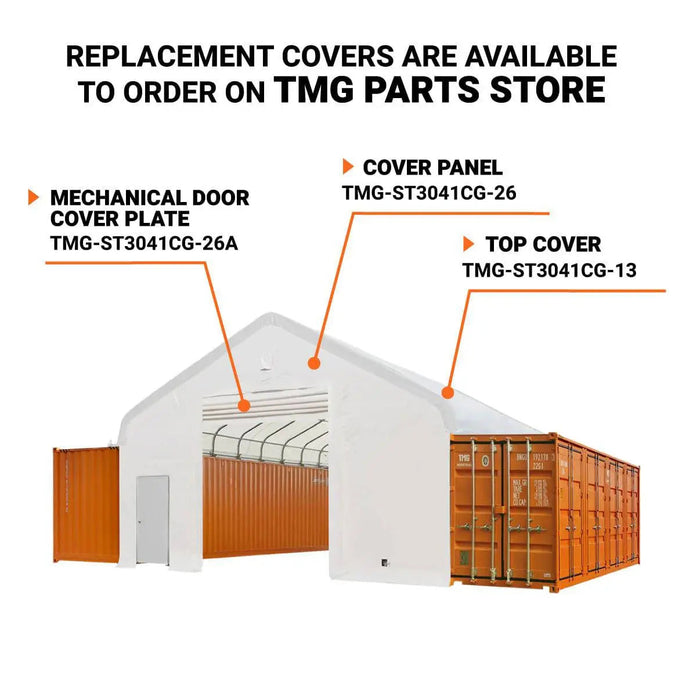

- Replacement covers available for order here TMG PARTS STORE
- Custom lengths available for 53’ containers or other dimensions upon request.
Specifications
Specifications

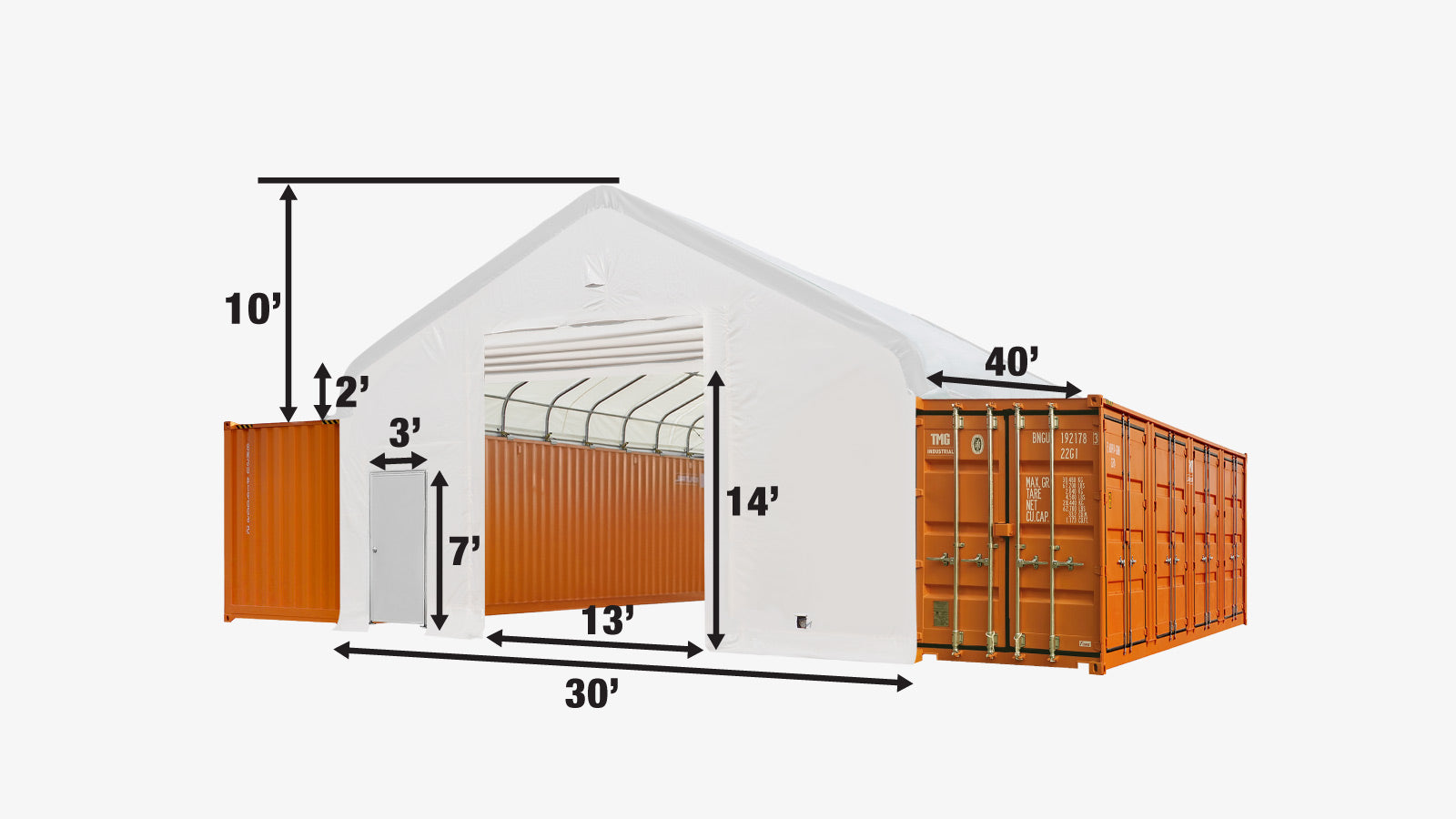

- Exact floor footprint: 30’ (W) x 39’5" (L)
- Truss spacing: 50"
- Truss quantity: 10 groups
- Truss tubes: ⌀2.3” – 15 GA (approx.)
- Purlin tubes: ⌀1.65” – 16 GA (approx.)
- Peak ceiling height from the ground: 19.5' (with 40' HC container)
- Peak ceiling height from the base: 10'
- Cover material: 17 oz PVC
- TMG-ST30FW9V (Front End Wall Kit) + TMG-ST30BW9V (Back End Wall Kit)
- Designed for 40’HC containers
- Complete frame built and covered back wall
- Complete frame built and covered front wall with man door and winch roll up door
- Man door: 3’ x 7’(W x H)
- Mechanical rollup door with drive through clearance: 13’ x 14’ (W x H)
- Cover material: 17 oz PVC fabric (white color)

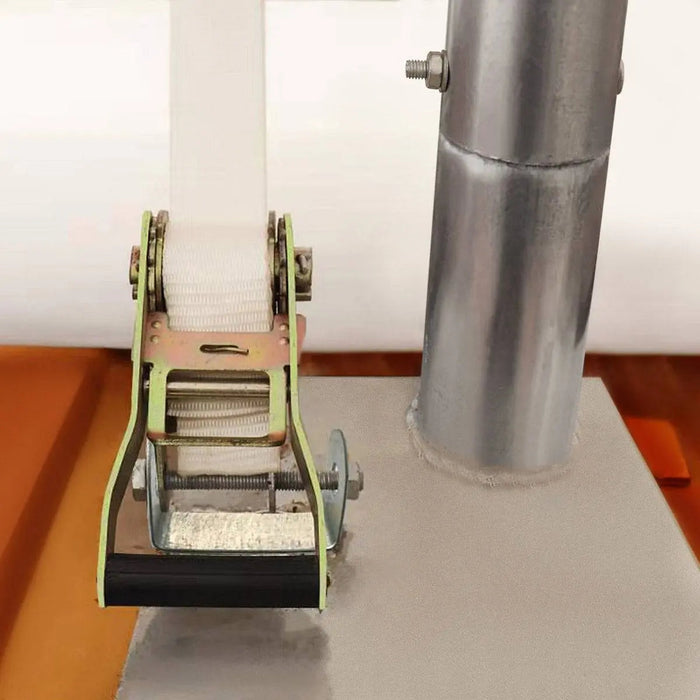

- Welding required for all footplates
- Containers not included
- Inner container edges to maximize interior clearance and usable square footage.
- Outer container edges to allow snow runoff and prevent accumulation in high-load regions.

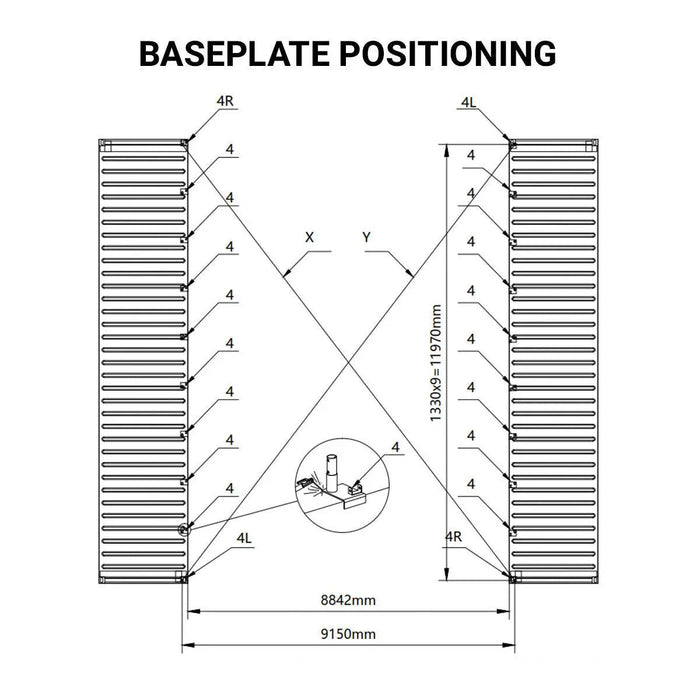

Baseplate Installation Positions (plan ahead for width):
Product Description
Product Description

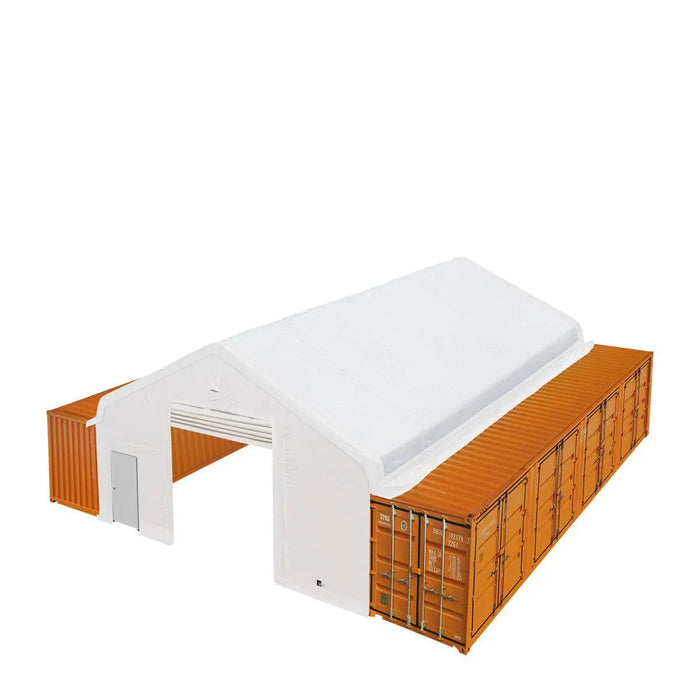

The TMG-ST3042CG Container Peak Roof Shelter TMG Heavy Series™ provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 1200 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any standard containers for versatile useability whether you’re working in remote, rural or industrial locations.
Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. Fully enclosed design provides year-round protection for your materials, machinery and any other weather-sensitive cargo. Endwalls are designed for 40’ HC containers.
Trusses also run throughout the whole interior which reinforces it for exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it’s recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure.
TMG-ST3042CG=TMG-ST3042CV + TMG-ST30FW9V (Front End Wall Kit) + TMG-ST30BW9V (Back End Wall Kit)
Shipping Information
Shipping Information
The order will ship from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

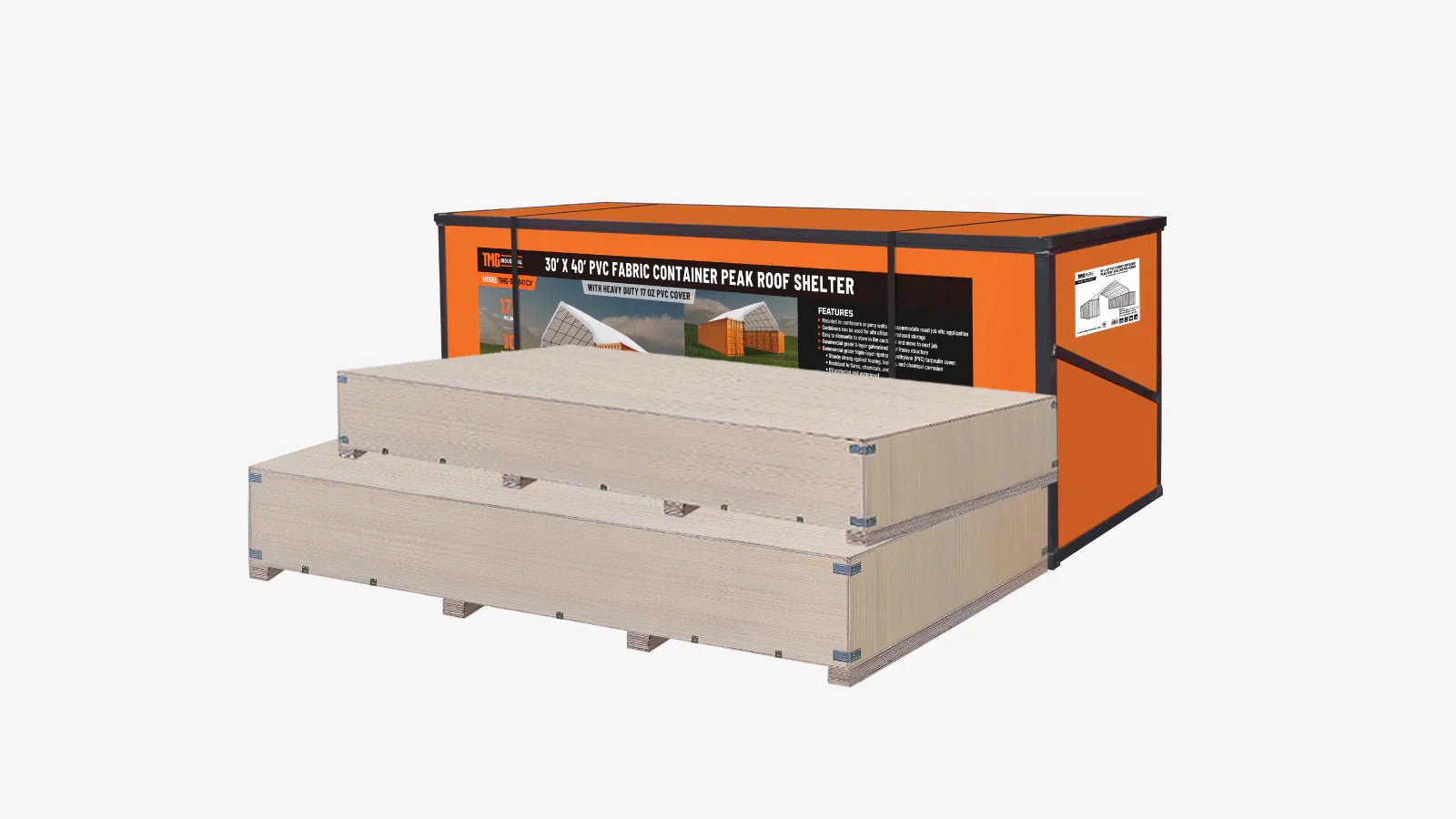

- This product is packed in 1 metal crate shipping box and 2 wooden shipping boxes
- Box A dimension (TMG-ST3042CV): 115” x 29” x 32” (L x W x H)
- Box B dimension (TMG-ST30FW9V): 115” x 45” x 13” (L x W x H)
- Box C dimension (TMG-ST30BW9V): 115” x 29” x 12” (L x W x H)
- Shipping weight: 2575 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
