SKU TMG-DT4080

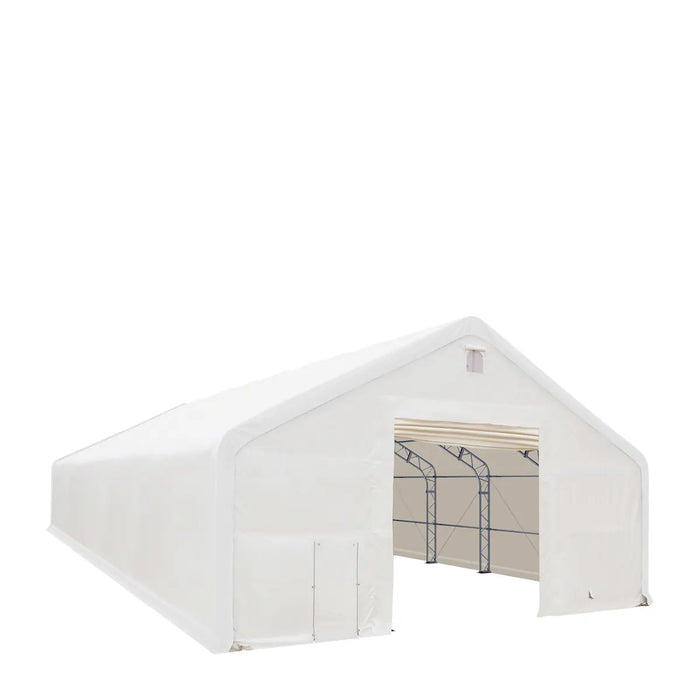

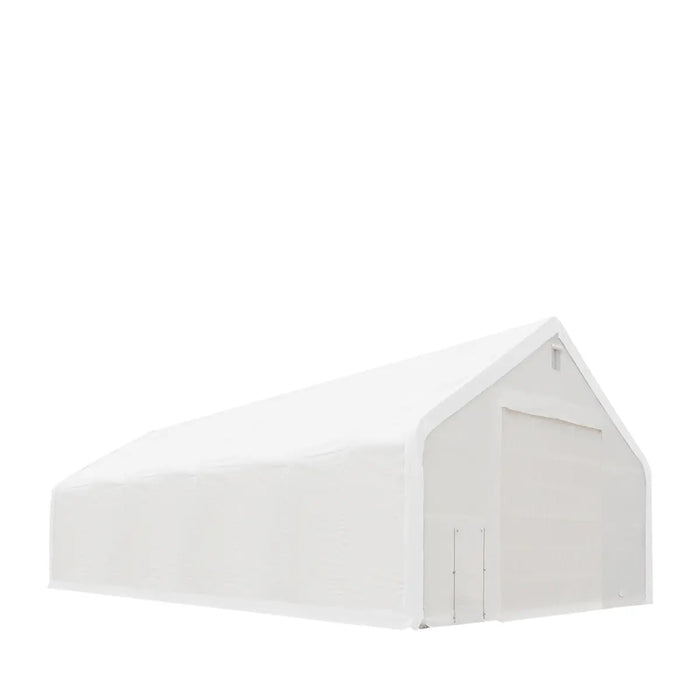

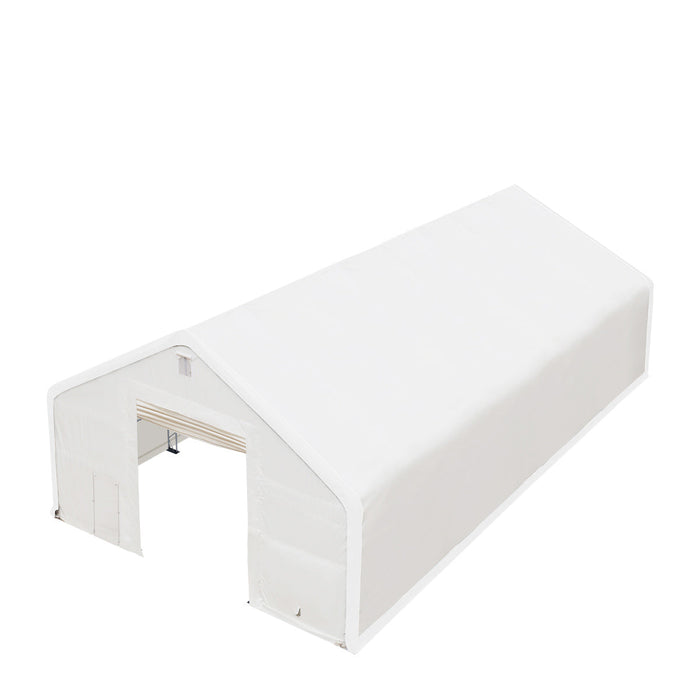

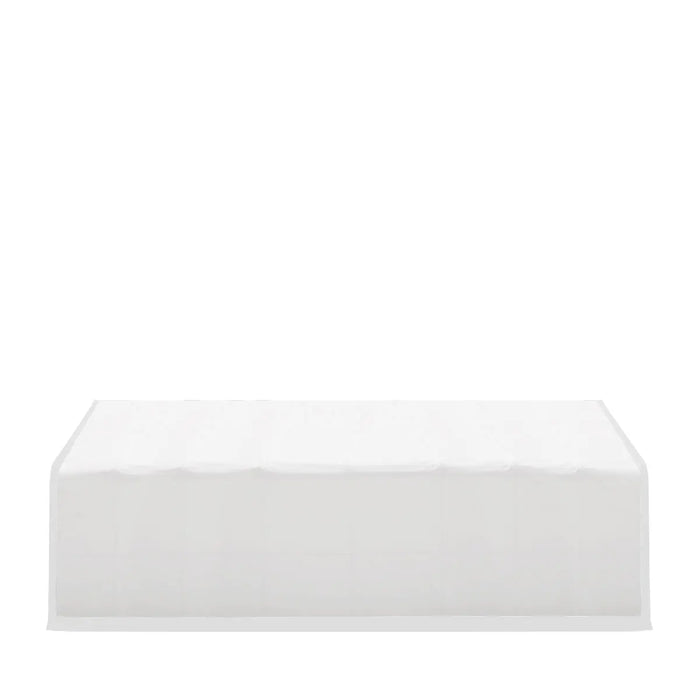

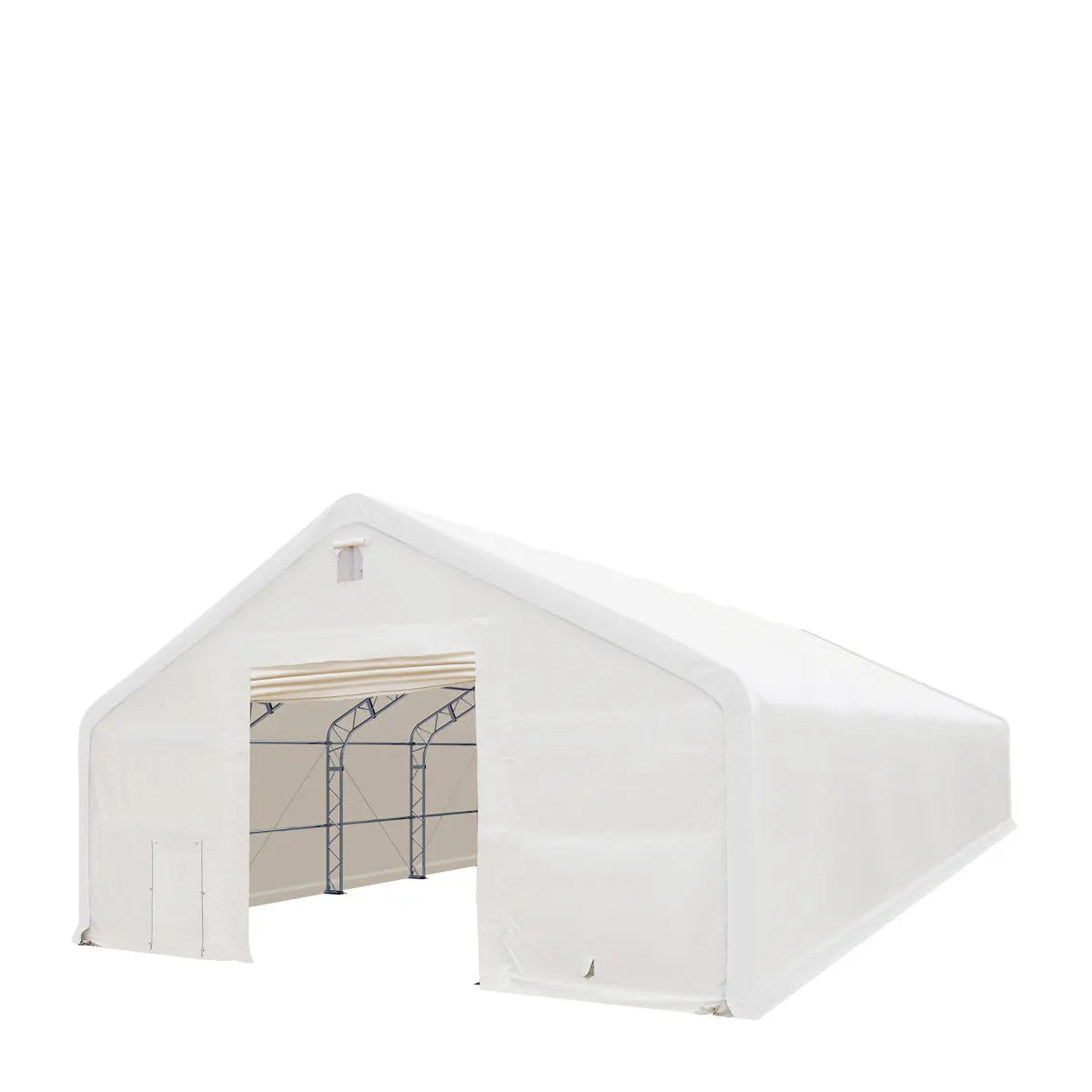

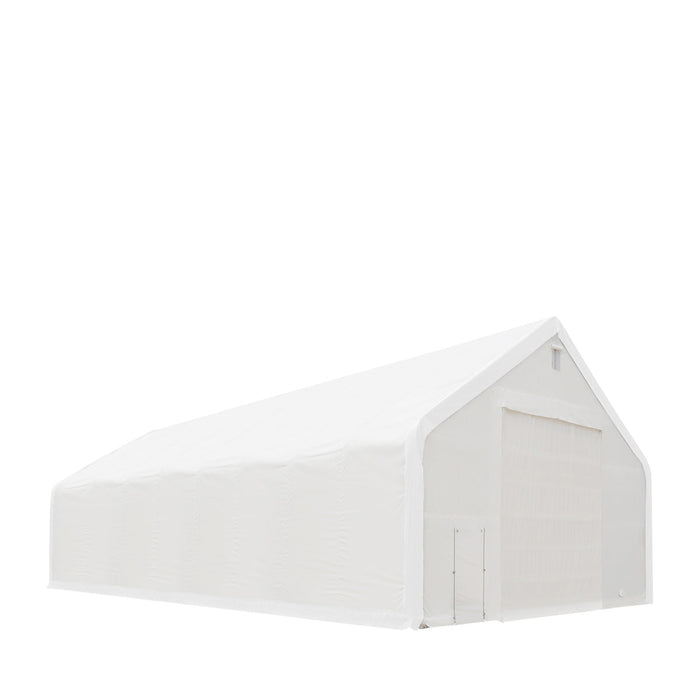

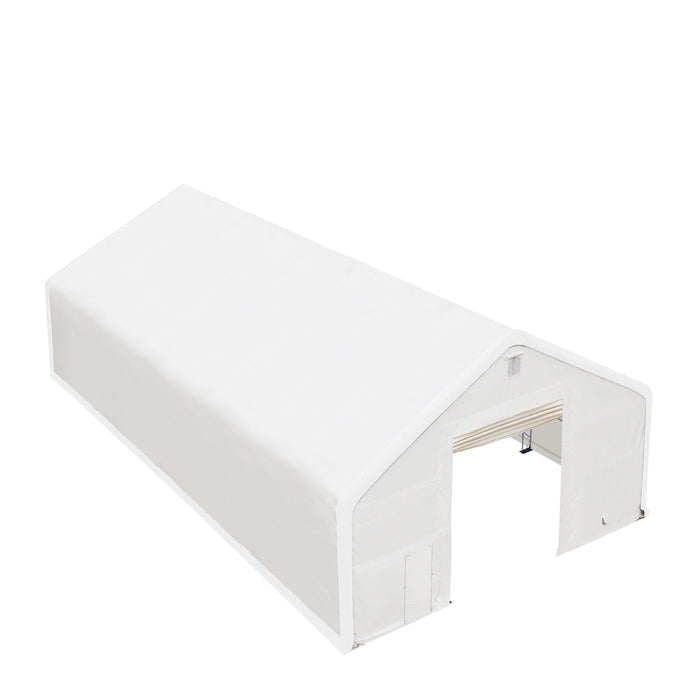

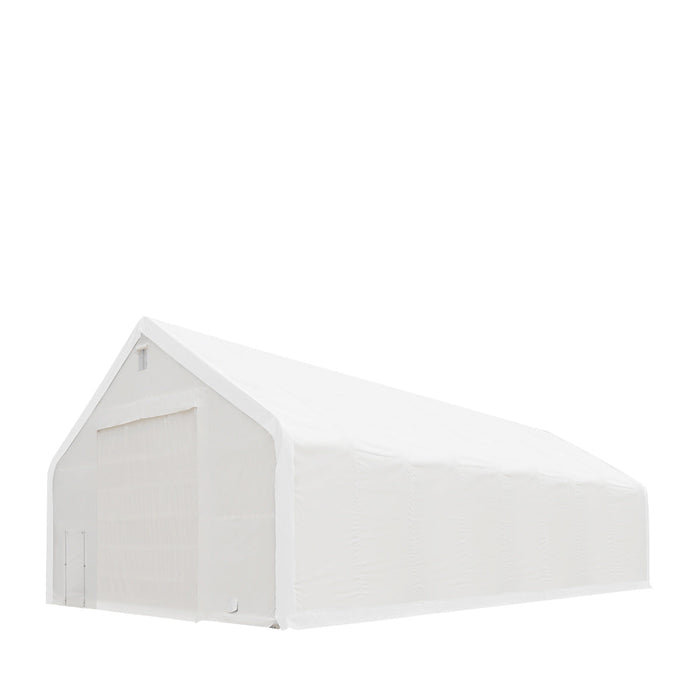

TMG-DT4080 40' x 80' Dual Truss Storage Shelter with Heavy Duty 21oz PVC Cover

Original price $34,500.00 - Original price $34,500.00
Original price
$34,500.00
$34,500.00 - $34,500.00
Current price $34,500.00
CURRENTLY IN STOCK
FREE SHIPPING IN USA* Learn More
6850.0 lb
Total Shipping Box: 3
More Shipping Info
  • Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment and more

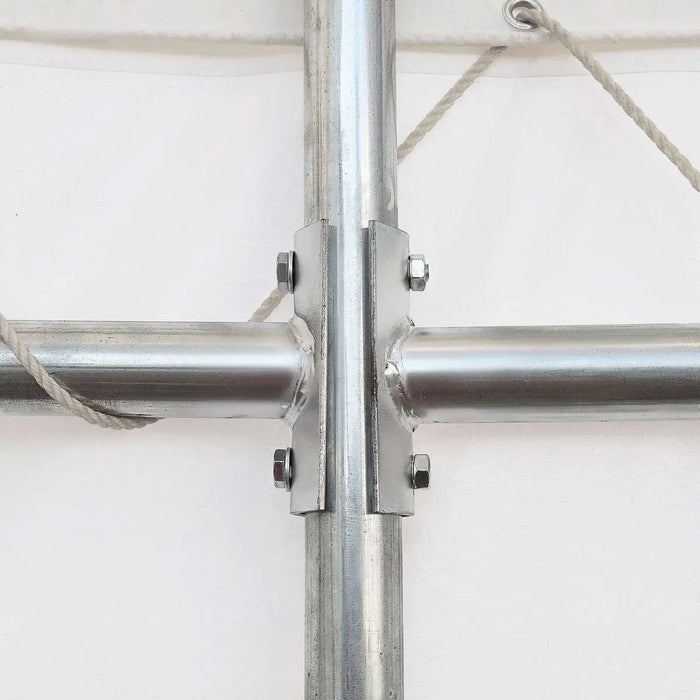

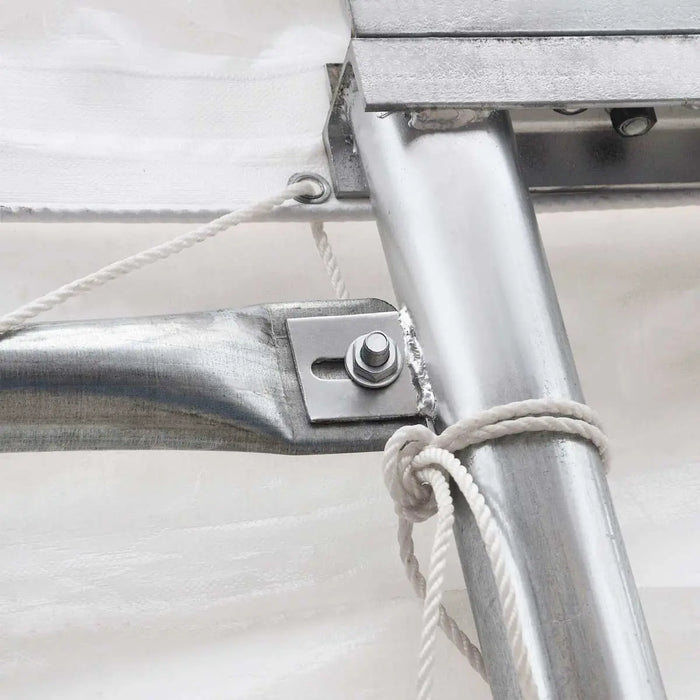

  • Solidly bolted connection on all trusses to increase stability

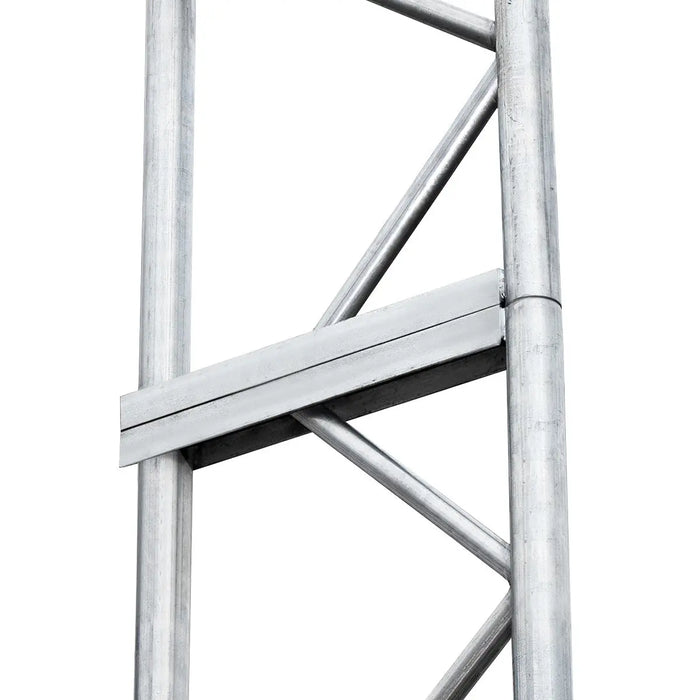

  • Heavy-duty galvanized steel tubes on all trusses and purlins
  • Mechanical winch roll-up doors on both ends
  • 15' front door and 20' wide-open rear door for large combines and machinery
  • Steel sandwich man door for entry convenience
  • Air vents on both ends

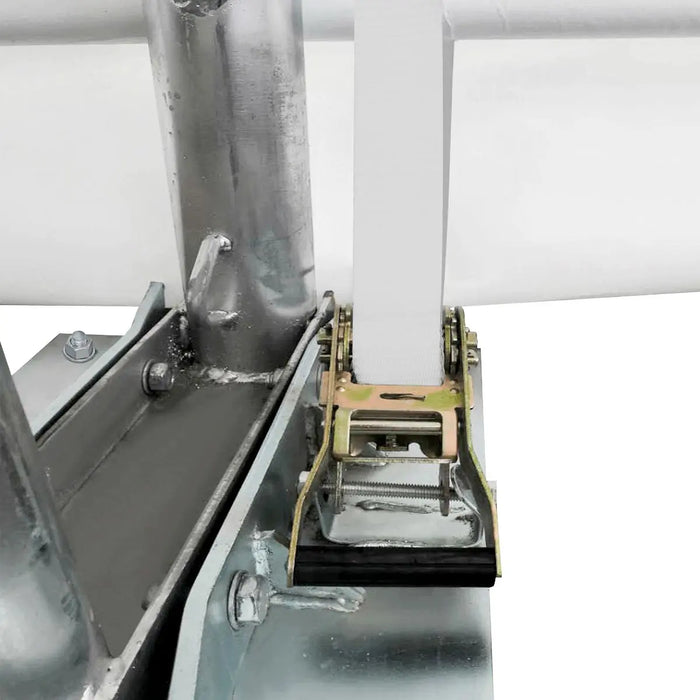

  • A combination of steel tube and cable quad tension system to reinforce stability

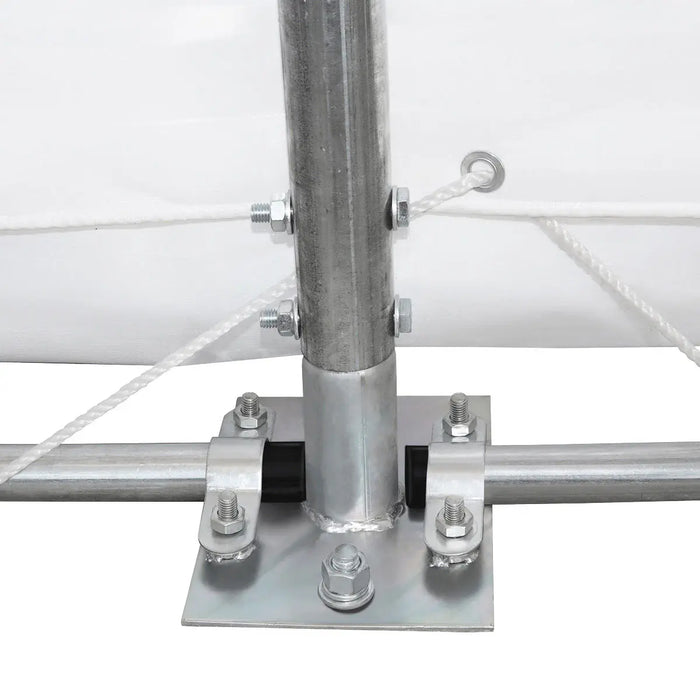

  • Heavy-duty base plates with pre-drilled holes
  • Foundation required: concrete slab or equivalent
  • Anchoring: sleeve anchor bolts (included)
  • Commercial grade PVC cover stands strong against tearing, leaking and chemical corrosion
  • Fire retardant, UV protection and waterproof

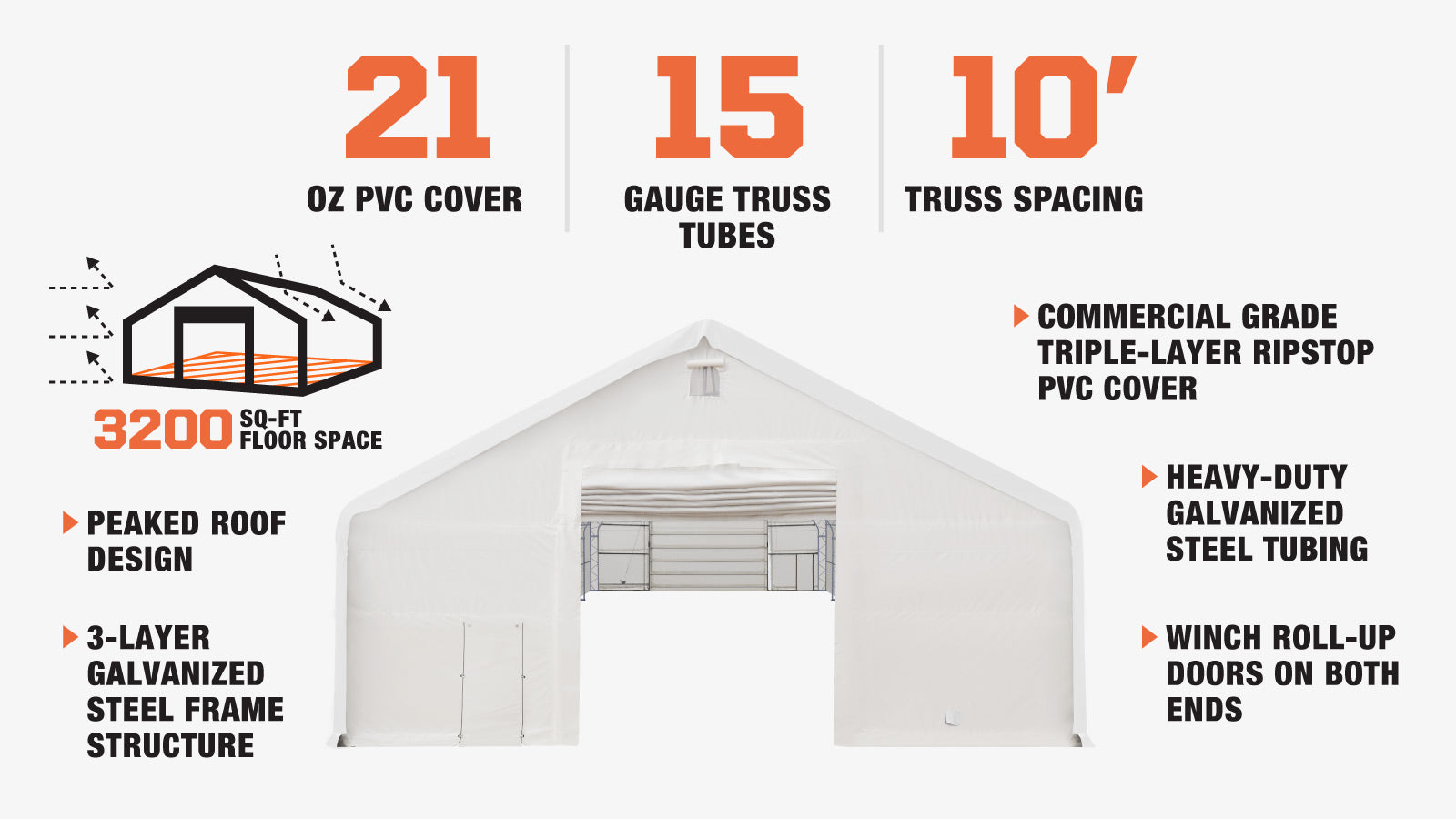

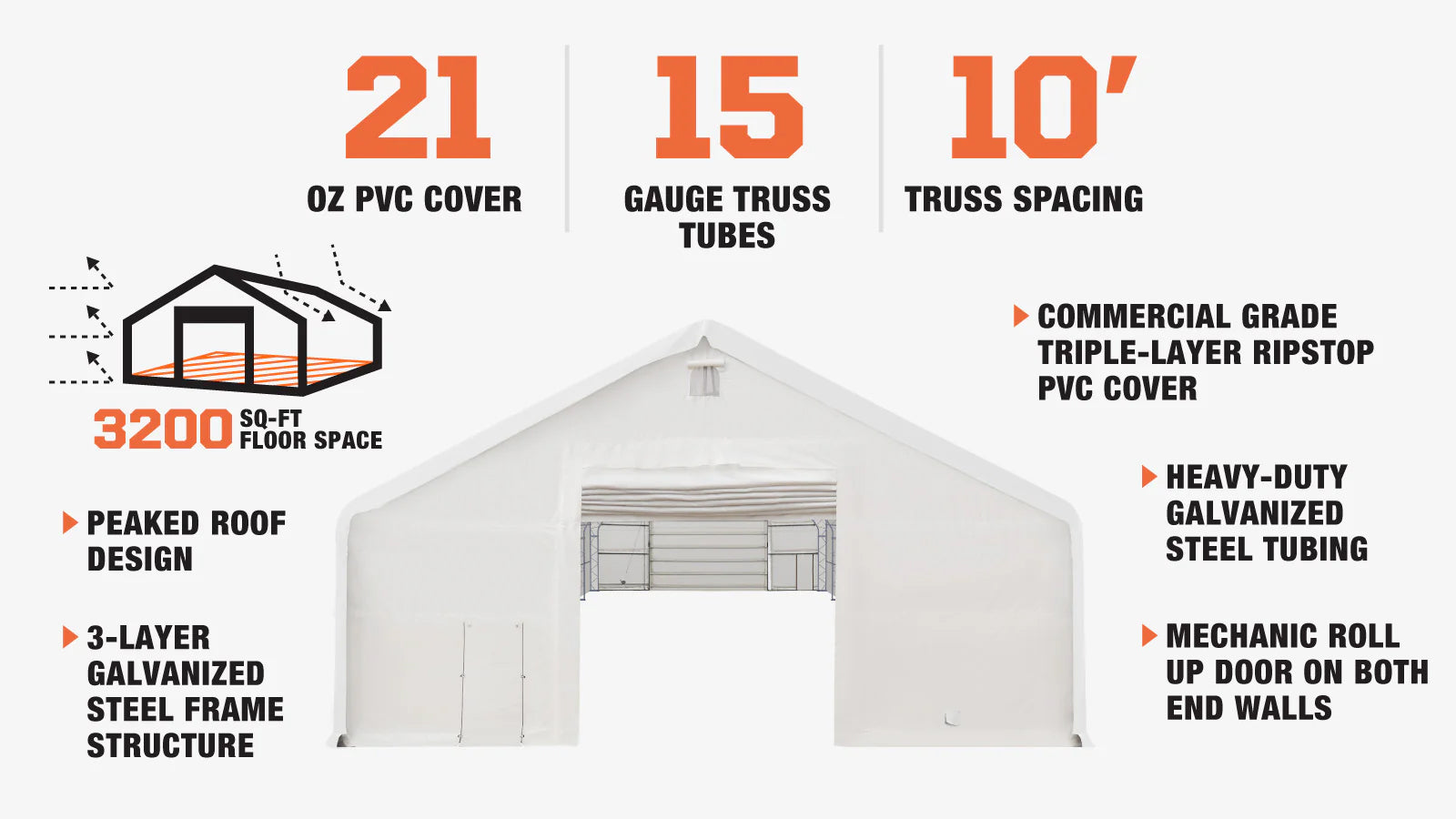

Features

  • Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment and more
  • Solidly bolted connection on all trusses to increase stability
  • Heavy-duty galvanized steel tubes on all trusses and purlins
  • Mechanical winch roll-up doors on both ends
  • 15' front door and 20' wide-open rear door for large combines and machinery
  • Steel sandwich man door for entry convenience
  • Air vents on both ends

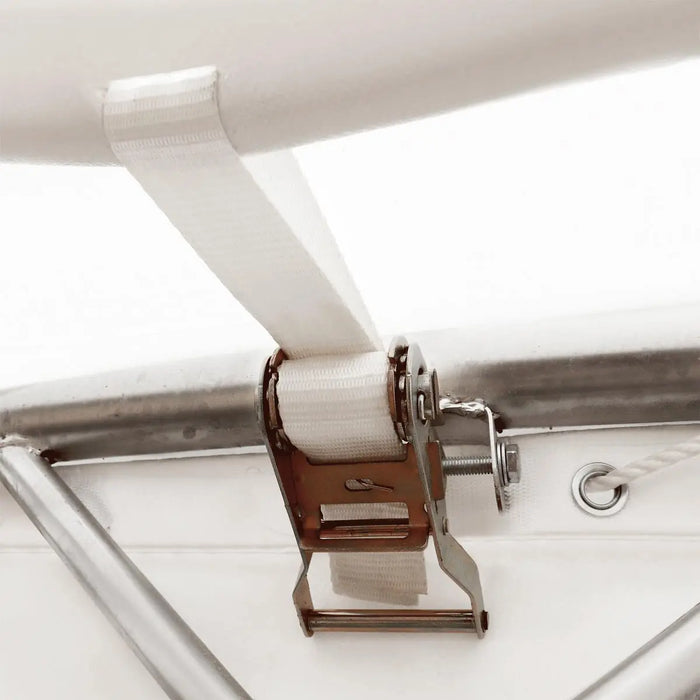

  • A combination of steel tube and cable quad tension system to reinforce stability
  • Heavy-duty base plates with pre-drilled holes

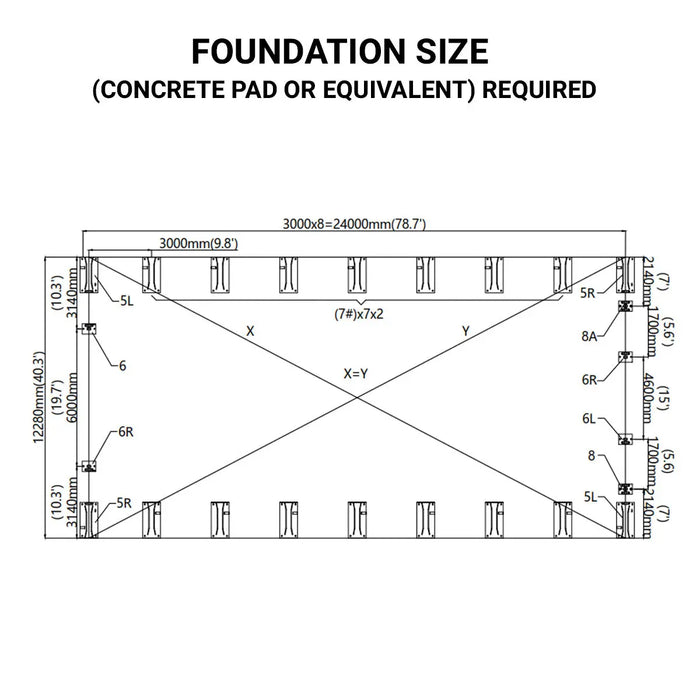

  • Foundation required: concrete slab or equivalent
  • Anchoring: sleeve anchor bolts (included)
  • Commercial grade PVC cover stands strong against tearing, leaking and chemical corrosion
  • Fire retardant, UV protection and waterproof
TMG-DT4080 40' x 80' Dual Truss Storage Shelter with Heavy Duty 21oz PVC Cover-description-image

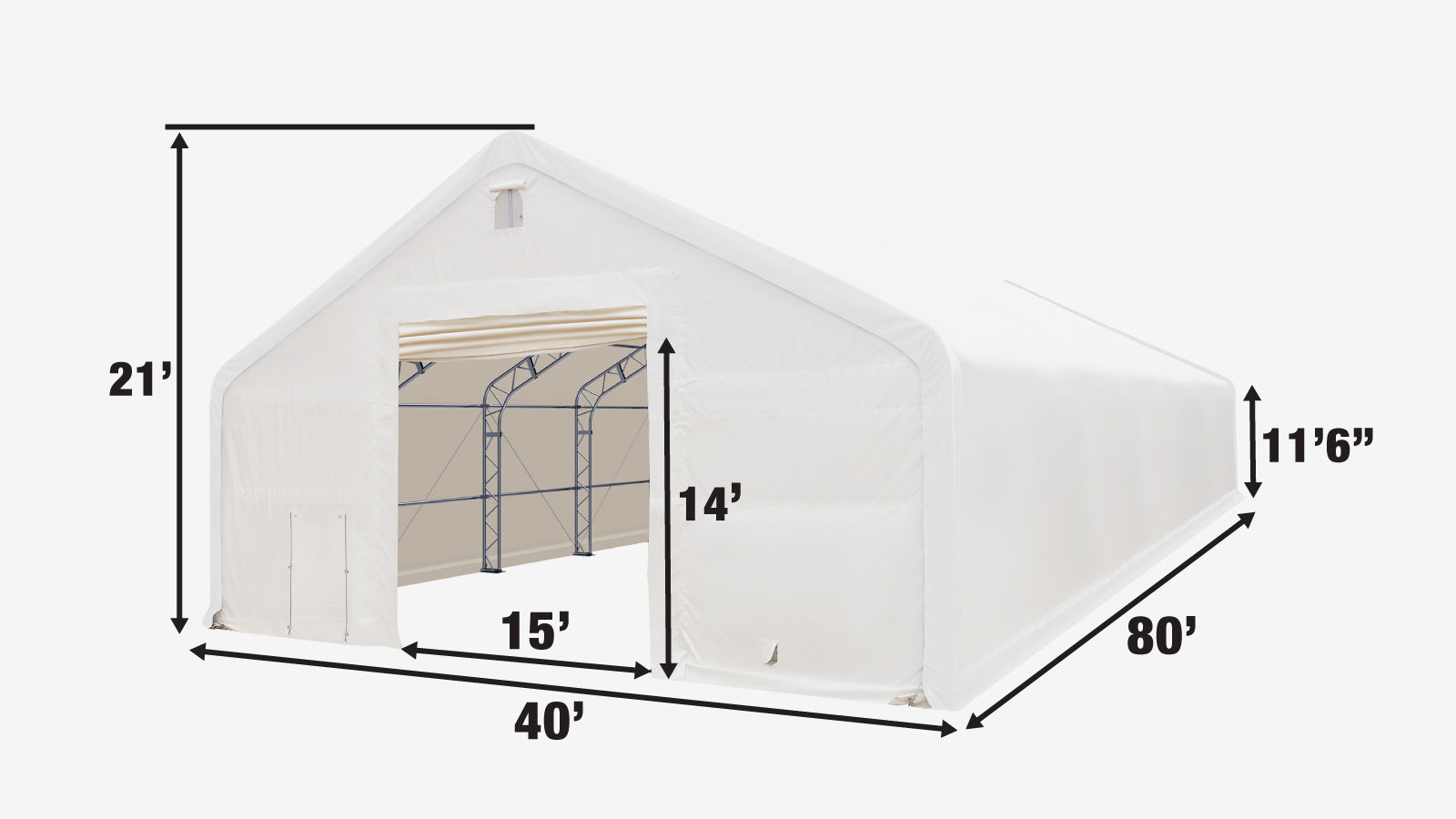

Specifications

  • Exact floor footprint: 40.3'(W) x 78.7'(L)
  • Truss spacing: 10’
  • Sidewall height: 11.5''
  • Peak ceiling height: 21'
  • Door opening clearance:

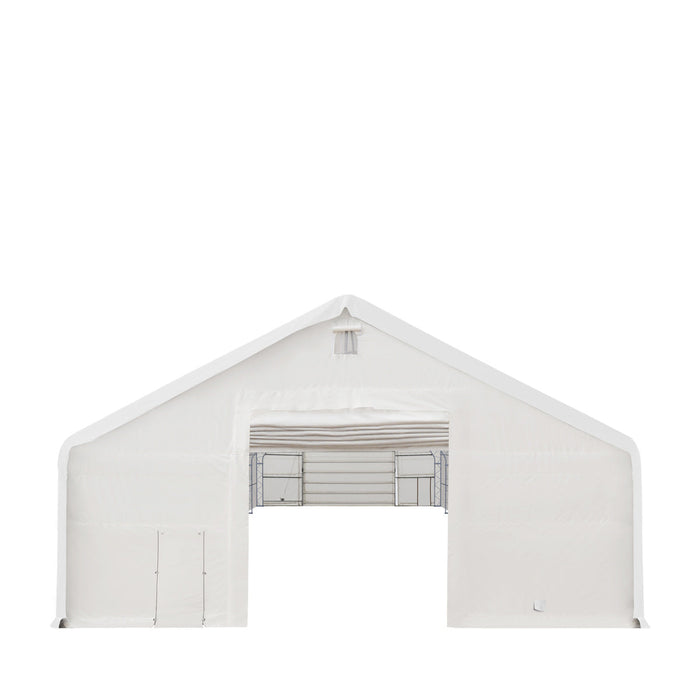

    • Front door: 15’(W) x 14’(H)
    • Rear door: 19.7’(W) x 12.5'(H)
  • Truss and purlin tubes: ⌀2.3” – 15 gauge (approx.)
  • Zipper man door: 36’’(W) x 78’’(H)
  • Cover: 21oz PVC
  • Snow load: 30PSF (reference only)
  • Wind load: 75MPH (reference only)

Shipping Information

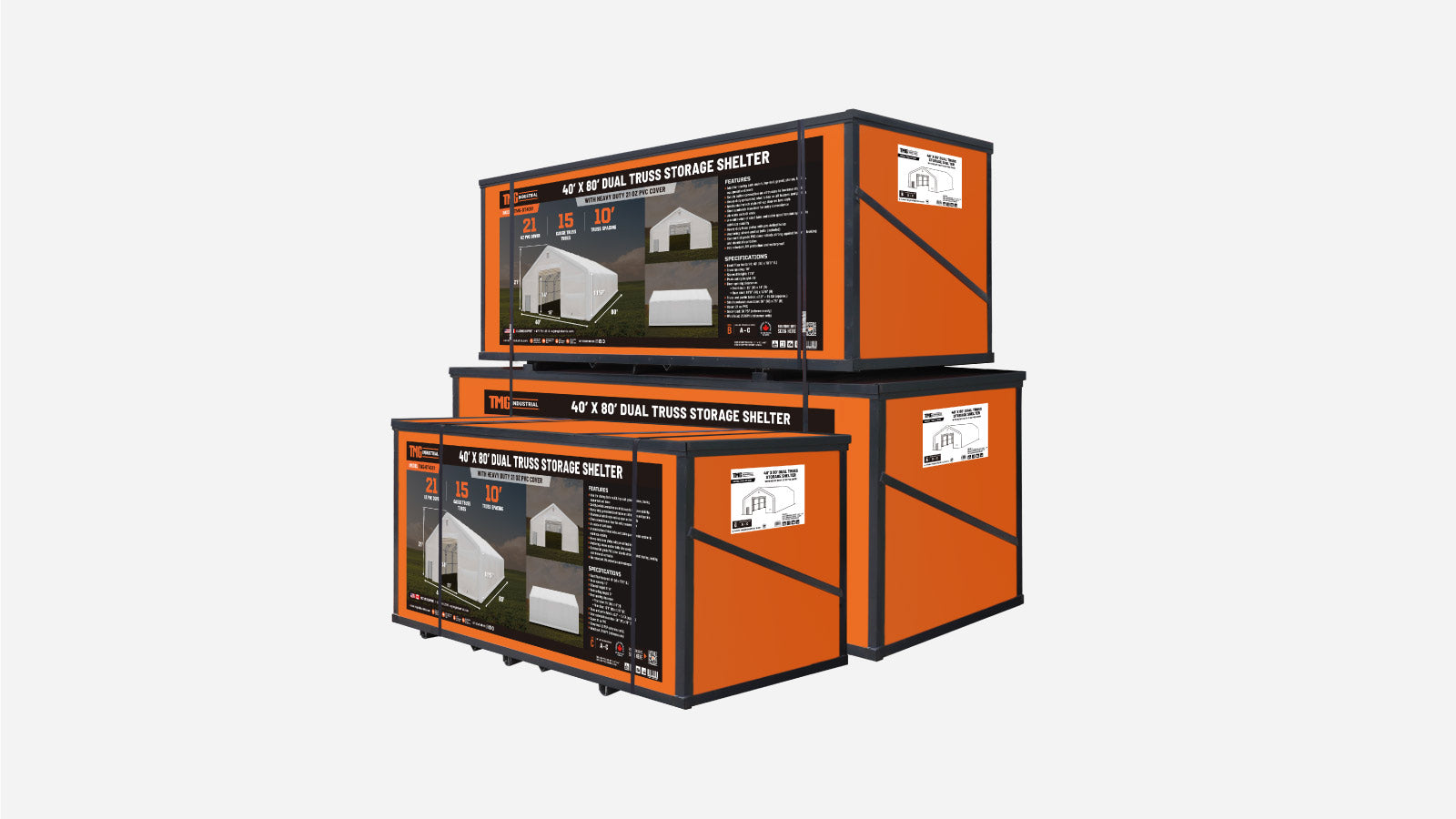

  • Packed in three metal crate shipping boxes
  • Box A shipping dimension: 122” x 45” x 49”
  • Box B shipping dimension: 111” x 45” x 43”
  • Box C shipping dimension: 87” x 45” x 43”
  • Shipping weight: 6850 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to take delivery***
Watch our shipping video
Shipping from Richmond, BC

Product Description

The TMG Industrial 40' x 80’ Dual Truss 21oz PVC storage shelter provides shelter on construction sites, farms, equipment dealerships, auto shops, and more. This improved pro series shelter features 10' truss spacing, solidly bolted connection and durable commercial grade PVC cover. Being relatively quick to build, only taking one to two weeks to erect, and costing less than comparably sized buildings, this shelter is often used at construction sites as a sawing shed or storing construction materials. Another common use is in the agricultural industry as a storage area for tractors and other machinery. Heavy-duty PVC cover and a sturdy dual truss frame mean this shelter is built to stand up to the weather. Keep your worksite dry with the TMG-DT4080 dual truss storage shelter. Sizes available in lengths at 60’ and 80’.

Additional Info

Engineering drawings are not available for this model.

Please check with your local municipality bylaws to ensure compliance. It is the customers' responsibility to provide any necessary drawings to obtain any permits that may be required.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
