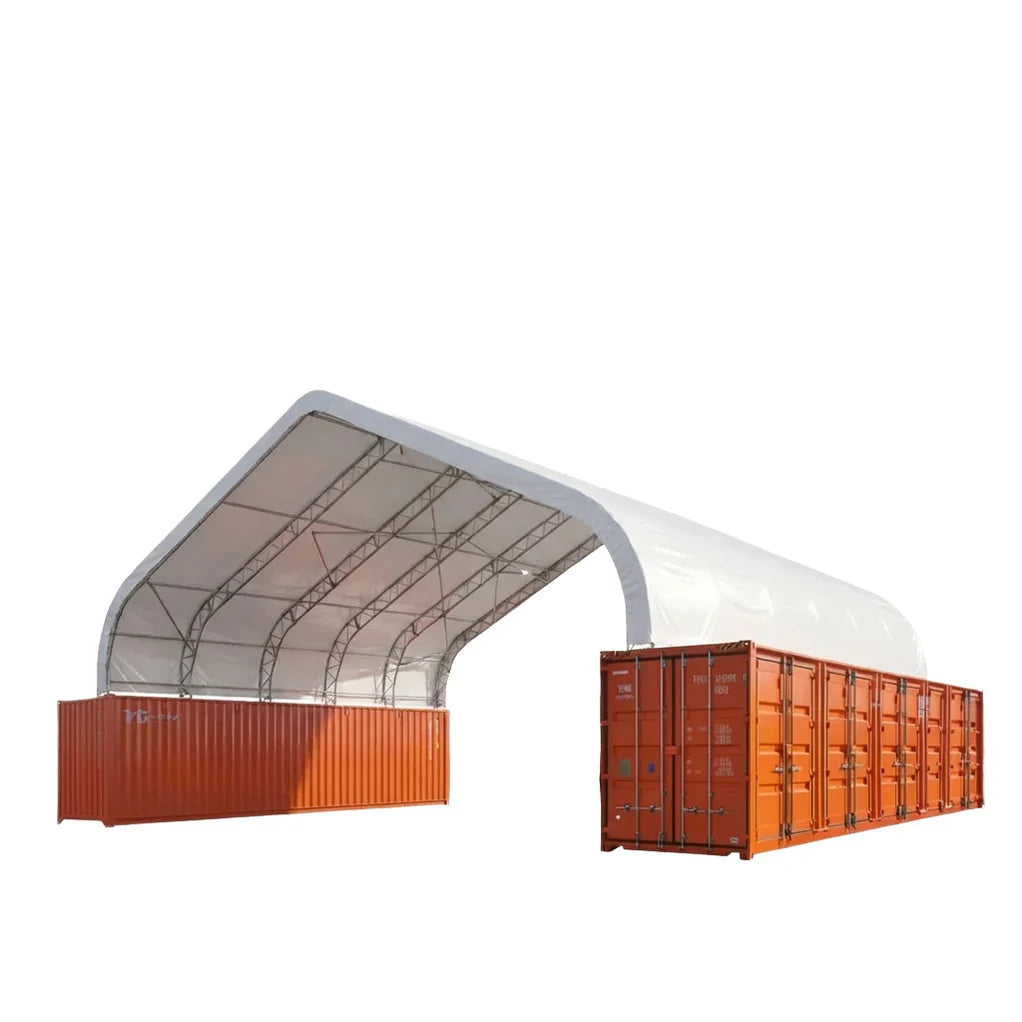

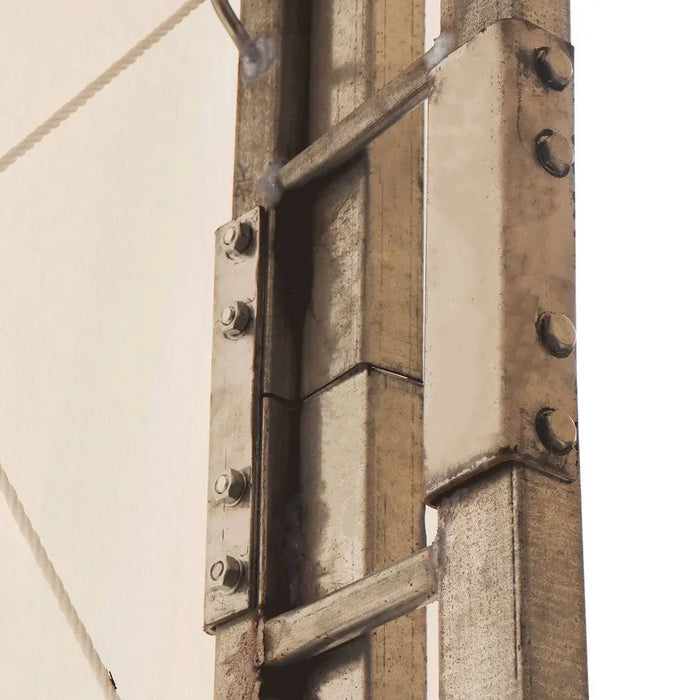

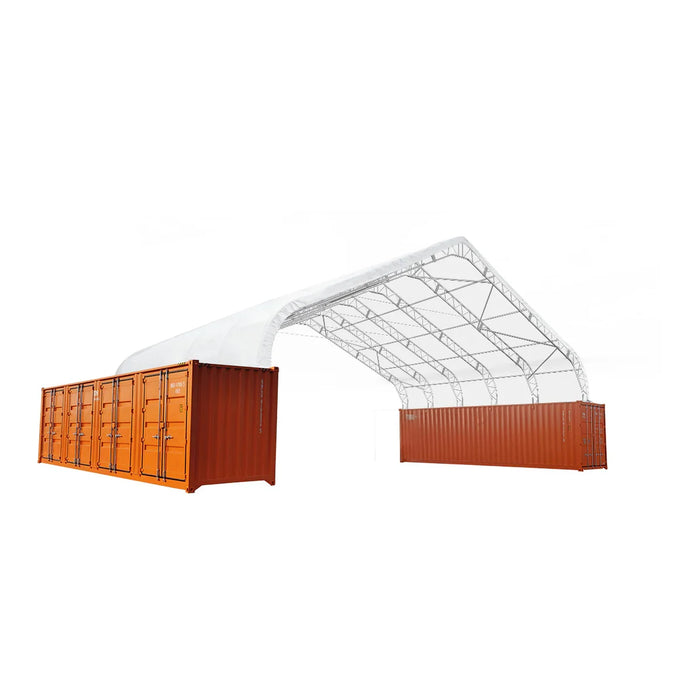

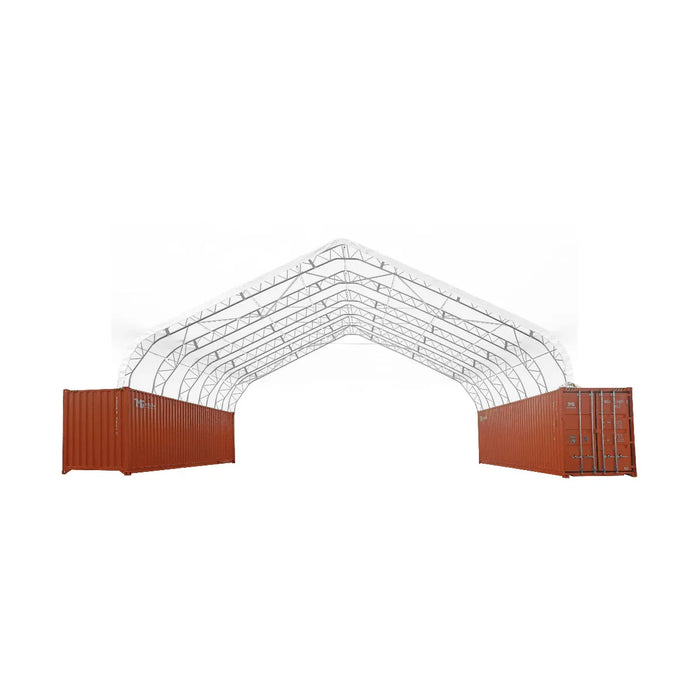

• Engineered for Strength: Double truss frame design with solid-bolted, U-shaped channel connections on all trusses to maximize structural integrity and strength.
• Certified Snow Load: 35 PSF snow load rated by licensed structural engineer. Stamped engineering drawings are available upon request.

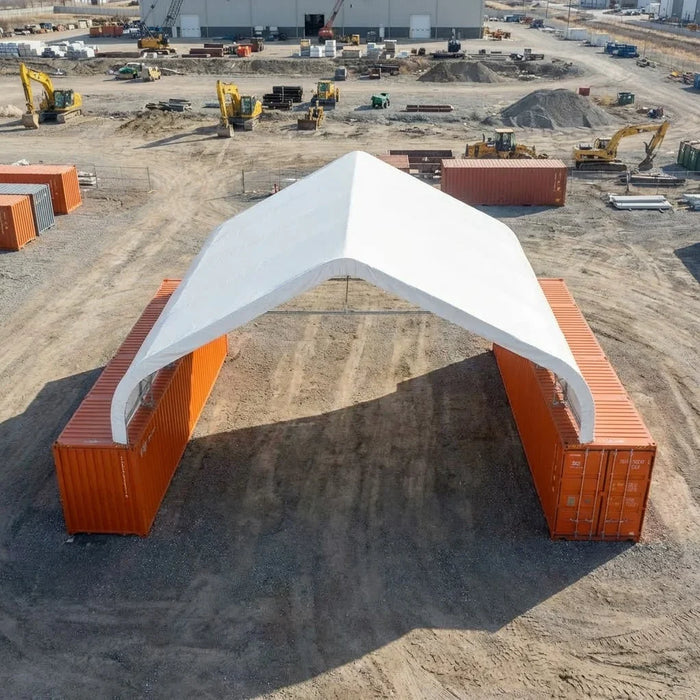

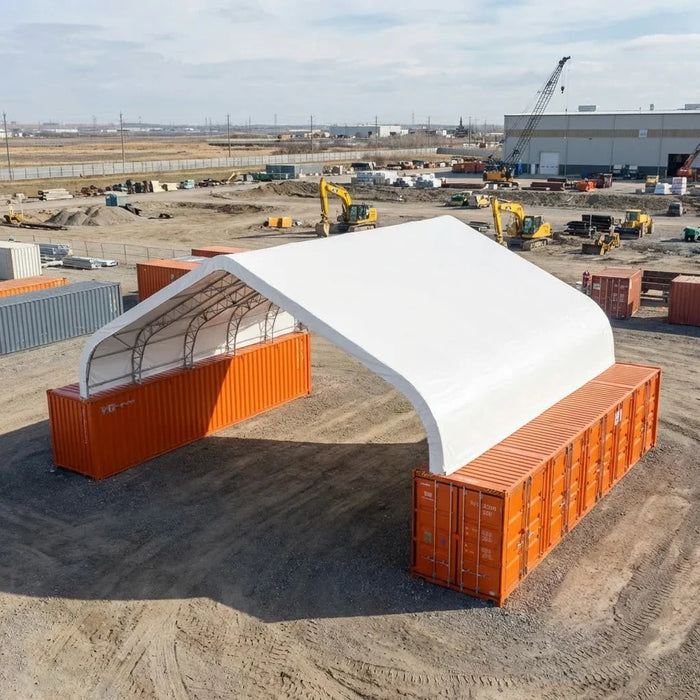

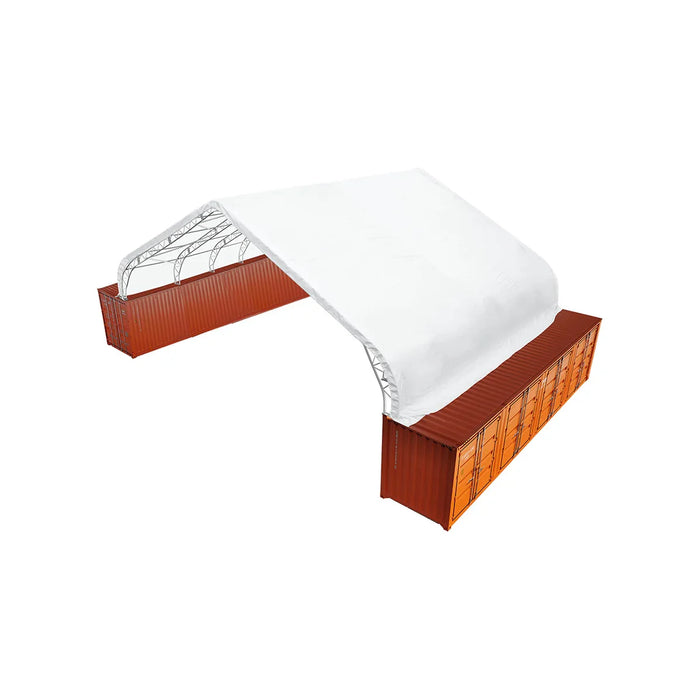

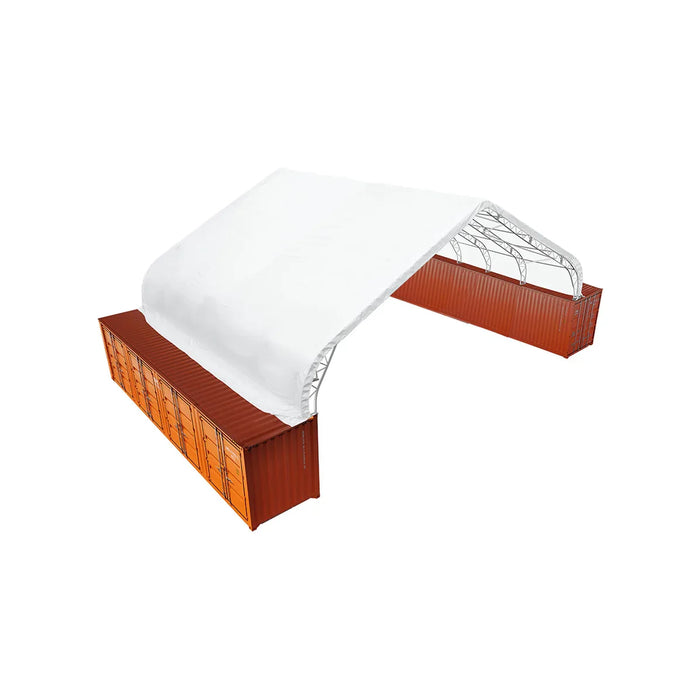

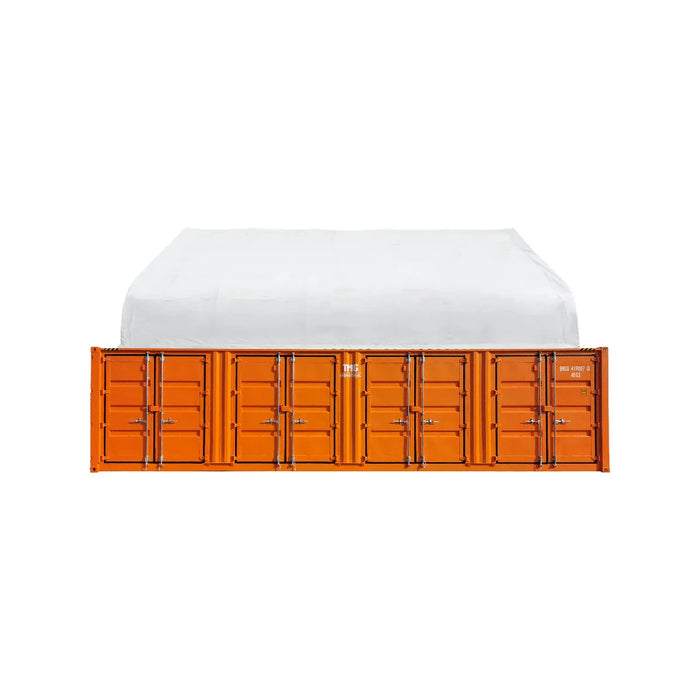

• Foundation & Installation: Can be installed on regular or high cube shipping containers, concrete lock blocks, pony walls or loading bays.
• Corrosion-Resistant Frame: Commercial-grade, 3-layer galvanized steel frame structure has dependable resistance to rust, wear, and environmental corrosion.
• Cost-Effective Storage: Easy to install while costing far less than a comparable permanent commercial building; delivers 1,600 sq. ft. of covered storage space.
• Commercial-Grade Cover: Premium, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover that:
  • Stands strong against tearing, leaking, and chemical corrosion.
  • Features natural flame retardancy and resistance to chemicals and oil.
  • Provides full UV protection and waterproof coverage.
  • Fabric Color: White.
• Reinforced Stability: The structure is built with a reduced truss spacing of 2.4m to ensure maximum strength and stability against heavy weather elements.
• Weather-Shedding Roof: Peaked roof design actively prevents snow build-up and guides moisture off the sides, keeping your equipment completely protected.
• Wall Kits Available: Choose from a variety of front drops, roll-up doors, man doors and enclosed wall panels depending on application and containers used.
• Tailored Solutions: Custom lengths and alternative dimensions are available. Contact us directly for custom builds or specific snow/wind load requirements.

• Exact floor footprint: 39'5" (W) x 39'5" (L)
• Snow Load Rating: 35 psf / 1.68 kPa
• Stamped Engineering Drawing: Available upon request
• Truss tubes: 76mm – 2.5mm
• Purlin tubes: 58mm – 1.7mm
• Truss spacing: 2.0m / 6'7"
• Number of truss frames: 7
• Peak ceiling height from the container top: 4.6m / 15'1"
• Peak ceiling height from the ground:
  • 7.19m / 23' 7" (if installed on regular containers)
  • 7.49m / 24'7" (if installed on high cube containers)
• Cover material: 21 oz PVC fabric (white color)
• Front / back wall kits are sold separately

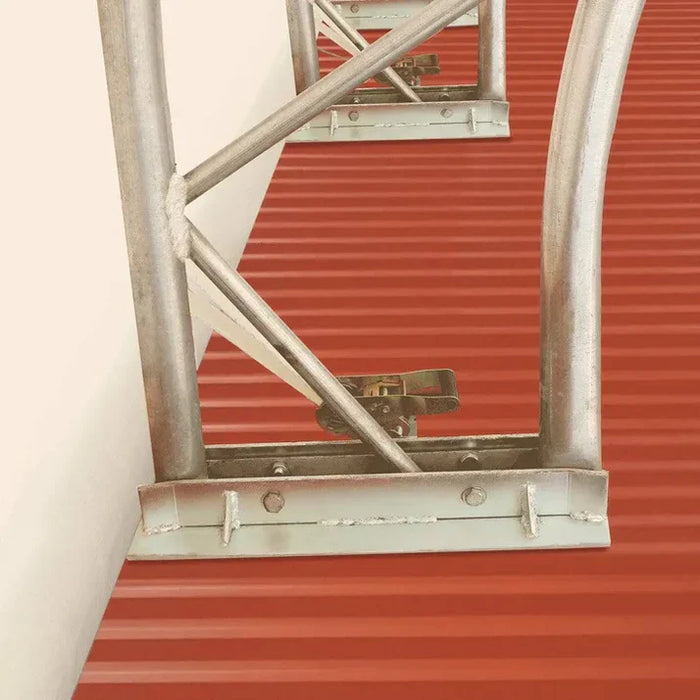

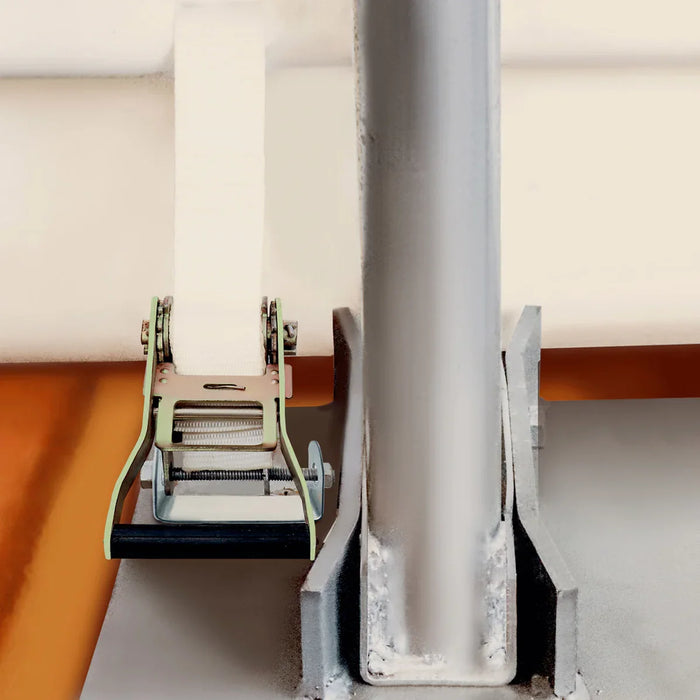

• Welding required for all footplates
• Shipping containers are not included
• Baseplate Installation Positions (plan ahead for width):
  • Inner container edges to maximize interior clearance and usable square footage.
  • Outer container edges to allow snow runoff and prevent accumulation in high-load regions.

Your order will ship directly from one of our fully stocked warehouses in Canada. Under normal circumstances, please allow 2 to 3 business days for order processing and dispatch. Delivery typically takes between 10 to 15 business days, depending on your geographic location and the accessibility of your delivery site.

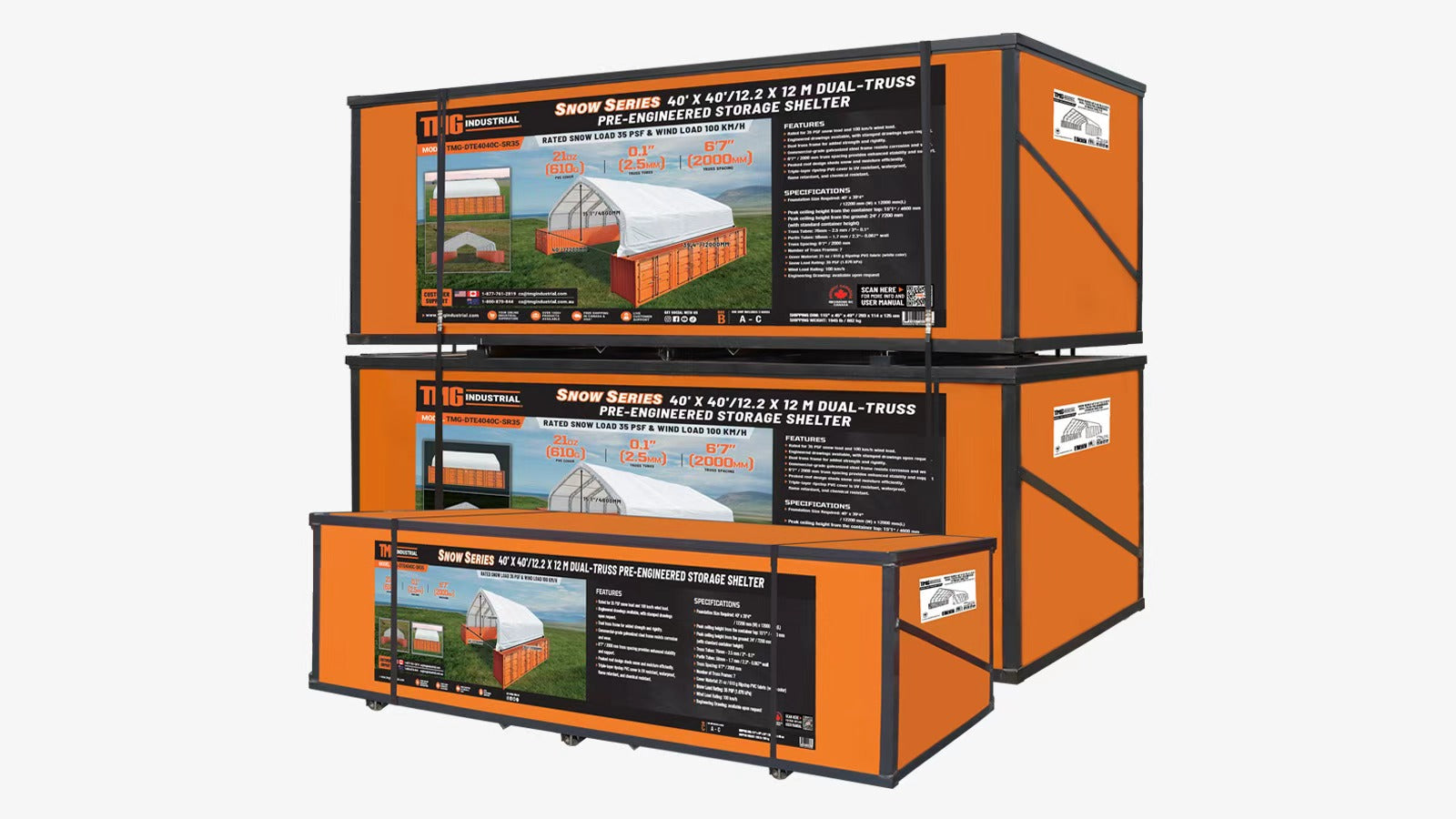

• This product is securely packed in three metal crate shipping boxes:
• Box A Shipping Dimensions: 115" x 45" x 49"
• Box B Shipping Dimensions: 115" x 45" x 49"
• Box C Shipping Dimensions: 115" x 45" x 49"
• Total Shipping Weight: 5,280 lb / 2,400 kg

⚠️ Delivery Notice: This product is too large for standard tailgate delivery. A forklift or equivalent heavy machinery is strictly required at the delivery destination to receive and unload this order.
