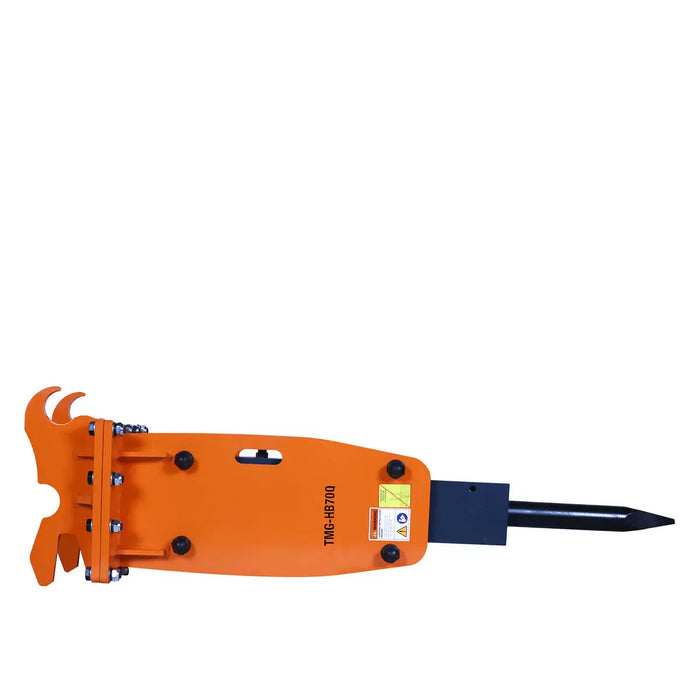

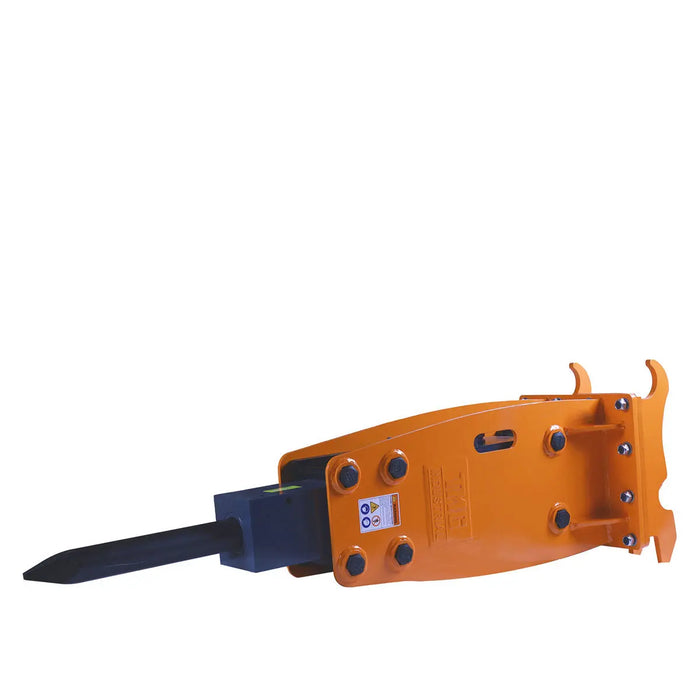

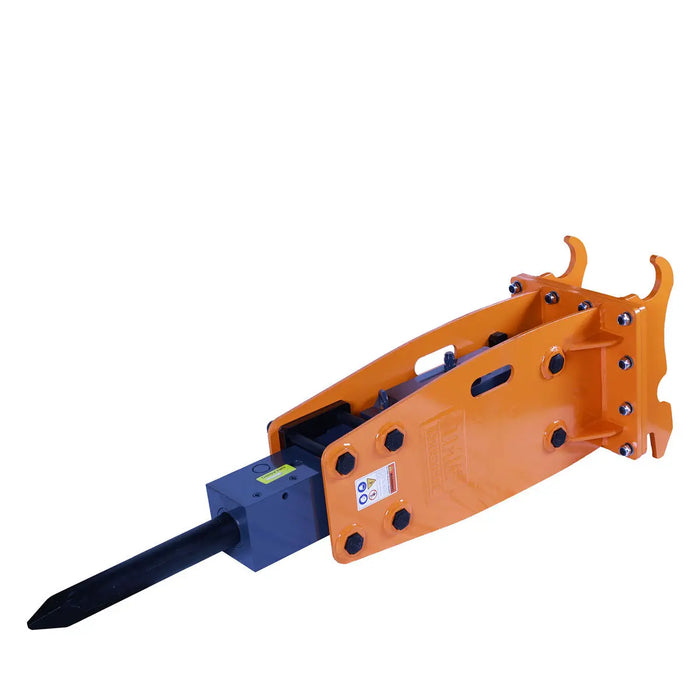

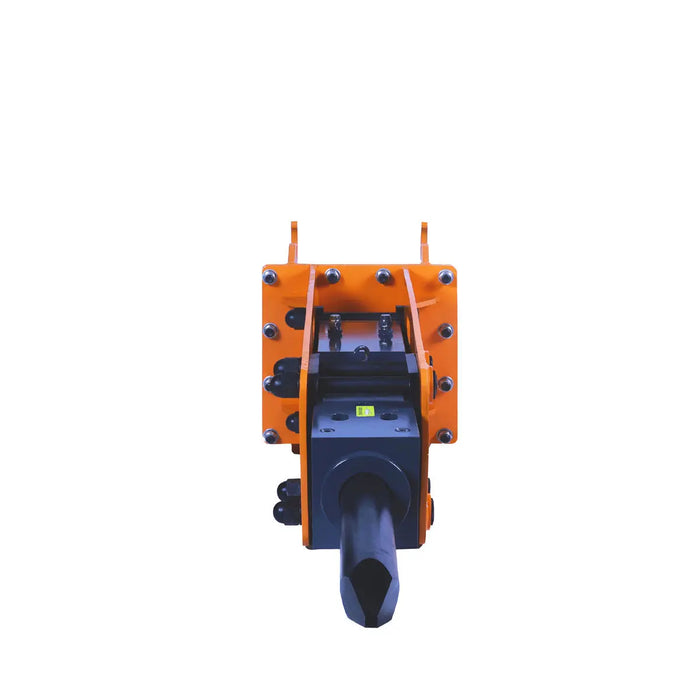

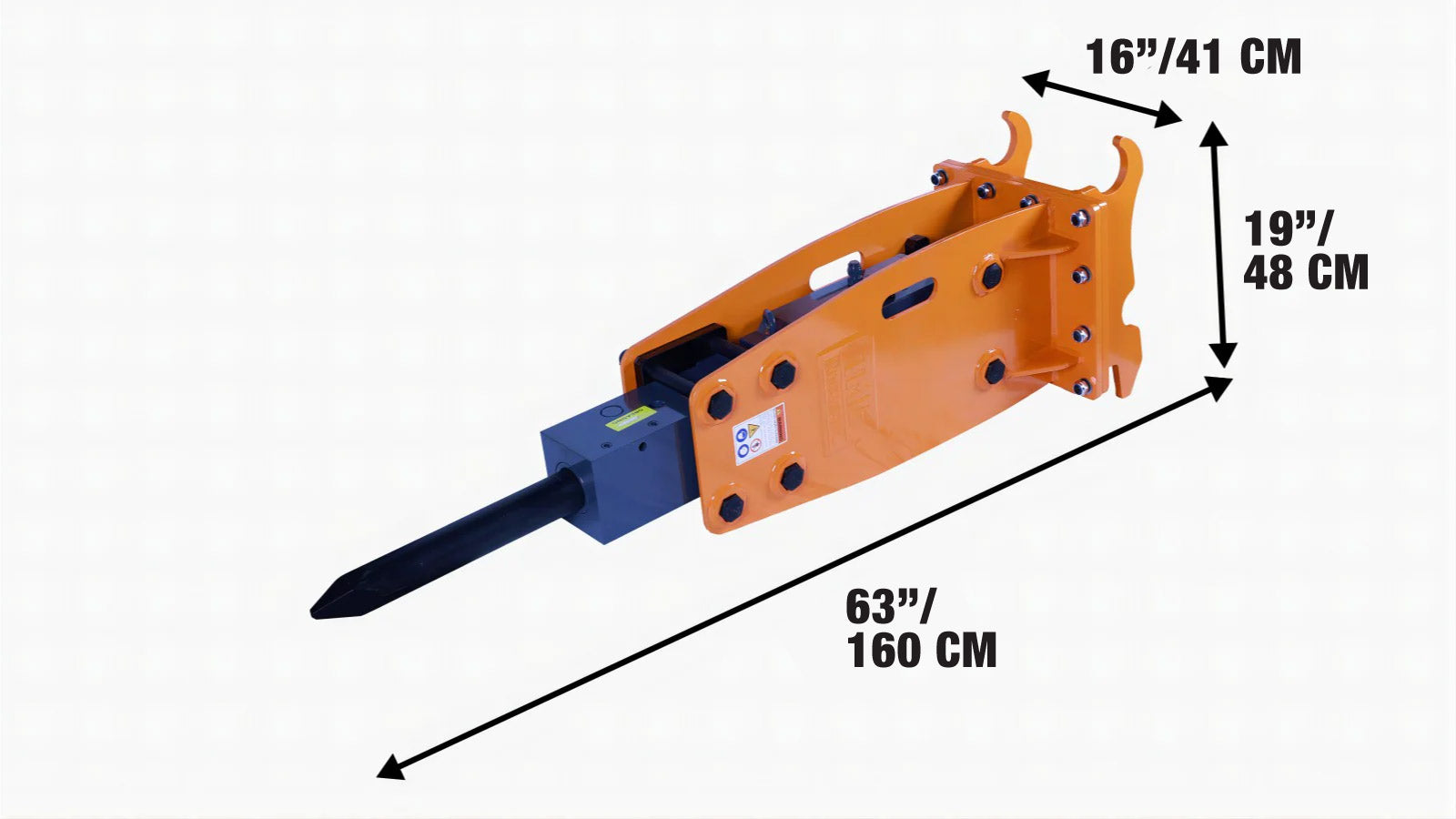

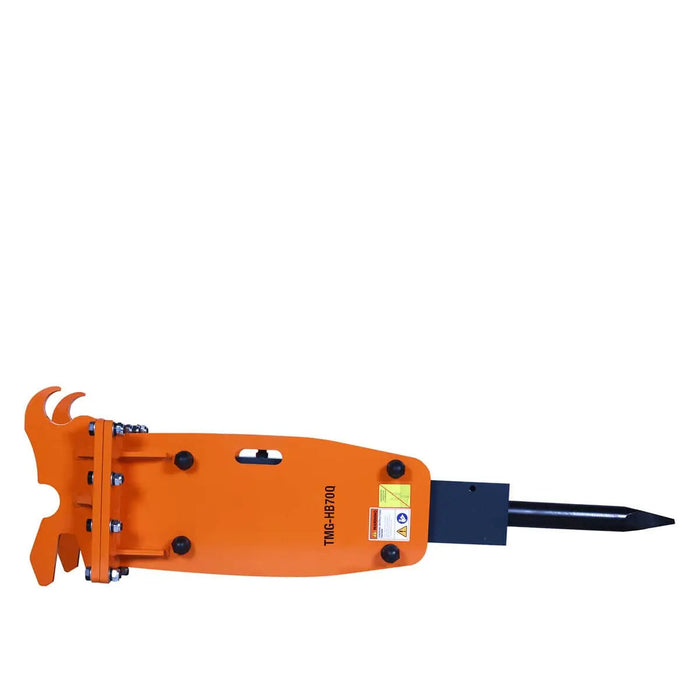

TMG-HB70Q 4 to 7 Ton Q/C Excavator Hydraulic Hammer Breaker, 2-3/4'' (68mm) Moil Point Chisel, 600 Joules Impact Energy, 500-900BPM
SKU TMG-HB70Q

TMG-HB70Q 4 to 7 Ton Q/C Excavator Hydraulic Hammer Breaker, 2-3/4'' (68mm) Moil Point Chisel, 600 Joules Impact Energy, 500-900BPM

$3,150.00 - $3,150.00
$3,150.00
$3,150.00 - $3,150.00
$3,150.00
CURRENTLY OUT OF STOCK
FREE SHIPPING IN USA* Learn More
660.0 lb
49 x 23 x 26 inches
More Shipping Info
1-877-761-2819
  • Maximized power-to-weight ratio breaking strength

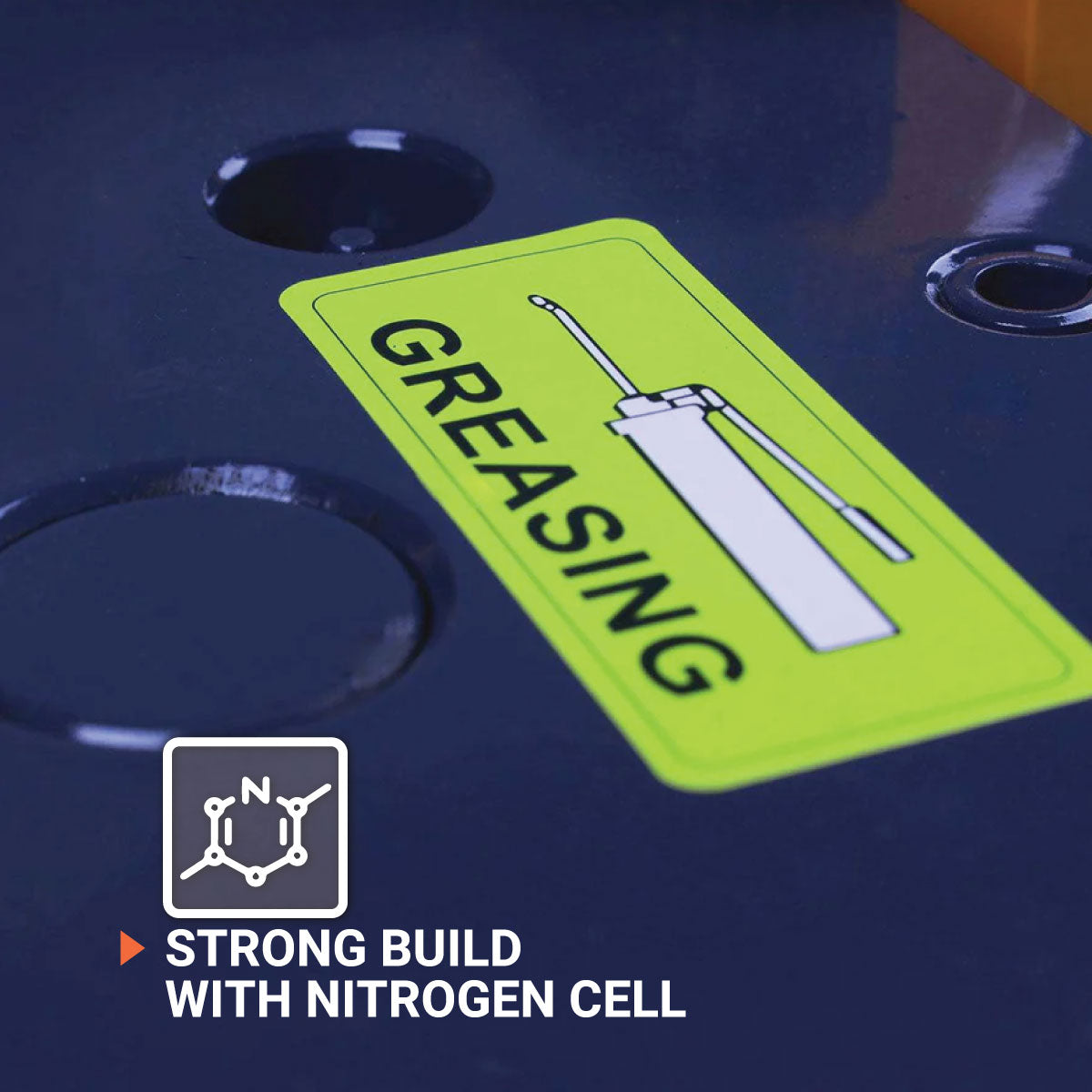

  • The nitrogen-charged operation provides superior breaking efficiency
  • Bottom tie rod bolted design offers easy maintenance
  • Tool bushing for quick, easy replacement

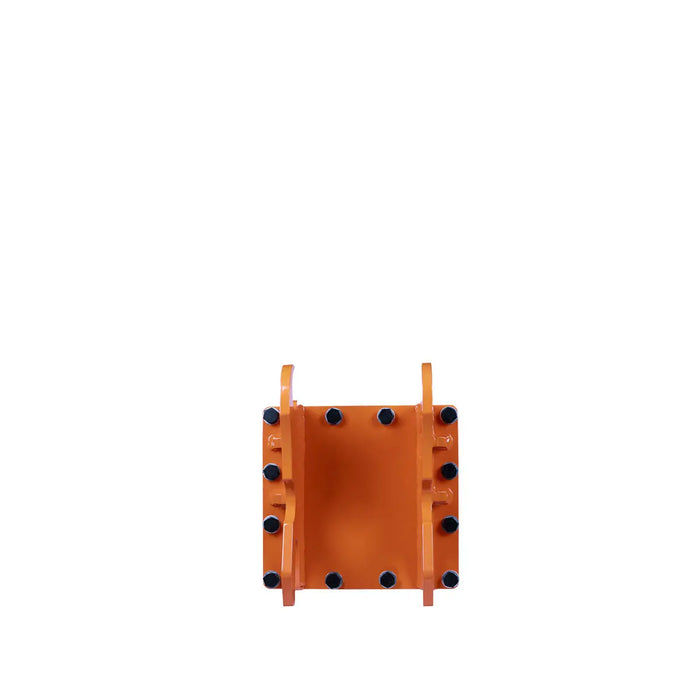

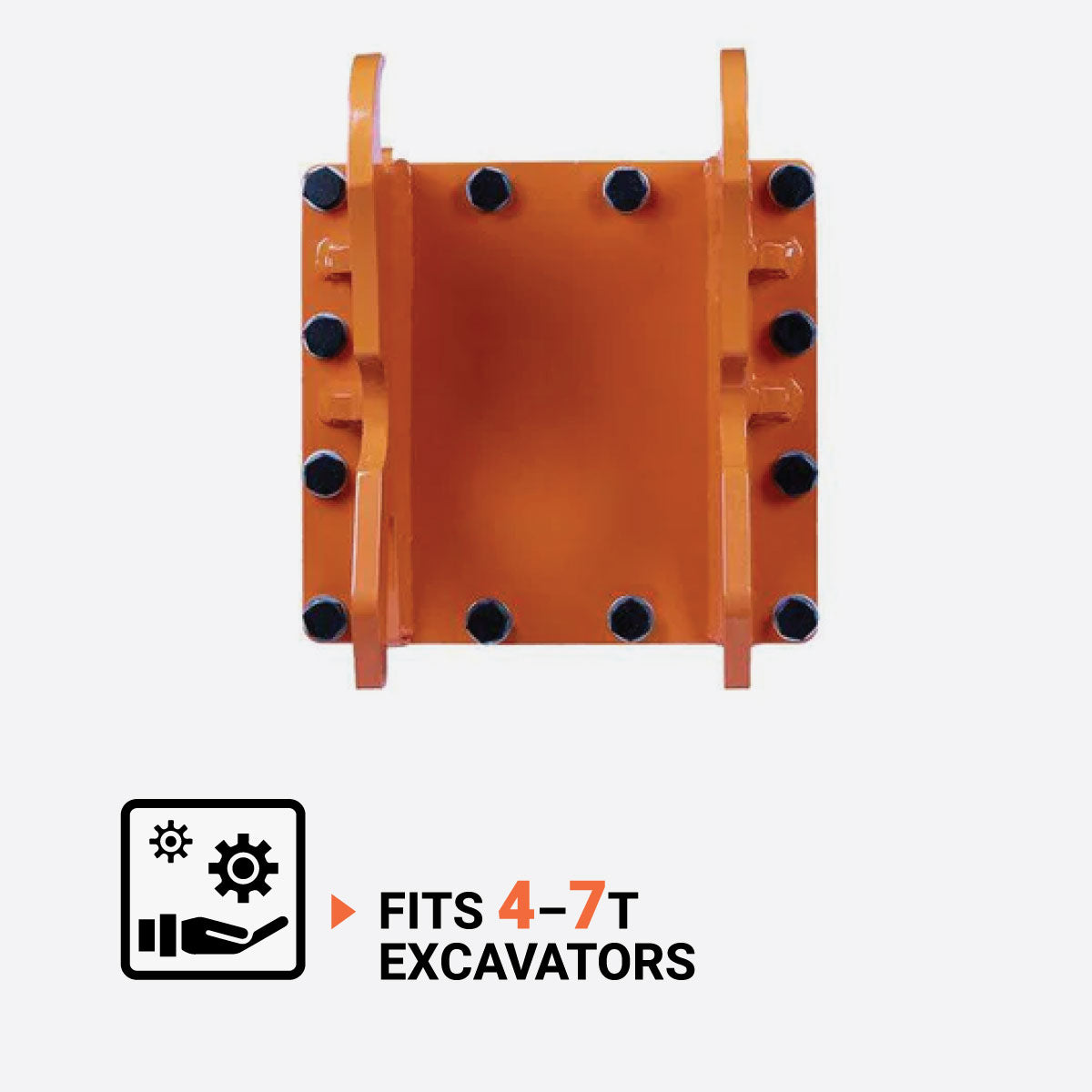

  • Quick-change (Q/C) lugging profile
More Information
Product Manual
Features Specs Shipping Info Description Warranty Reviews

Features

  • Maximized power-to-weight ratio breaking strength
  • The nitrogen-charged operation provides superior breaking efficiency
  • Bottom tie rod bolted design offers easy maintenance
  • Tool bushing for quick, easy replacement
  • Quick-change (Q/C) lugging profile

Specifications

  • Operating weight: 550 lb
  • Working pressure: 1600-2500 PSI
  • Working flow: 9.5-16 GPM

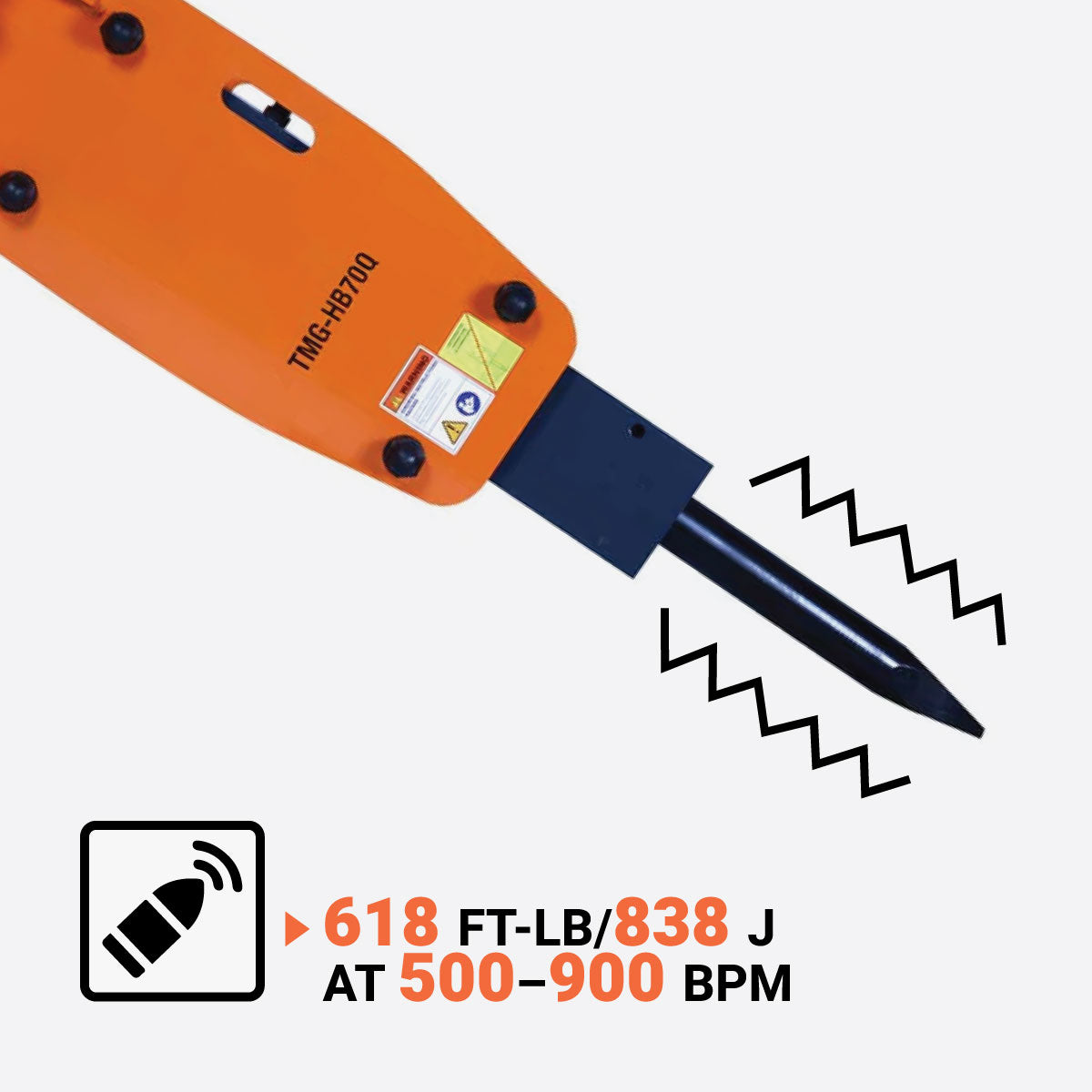

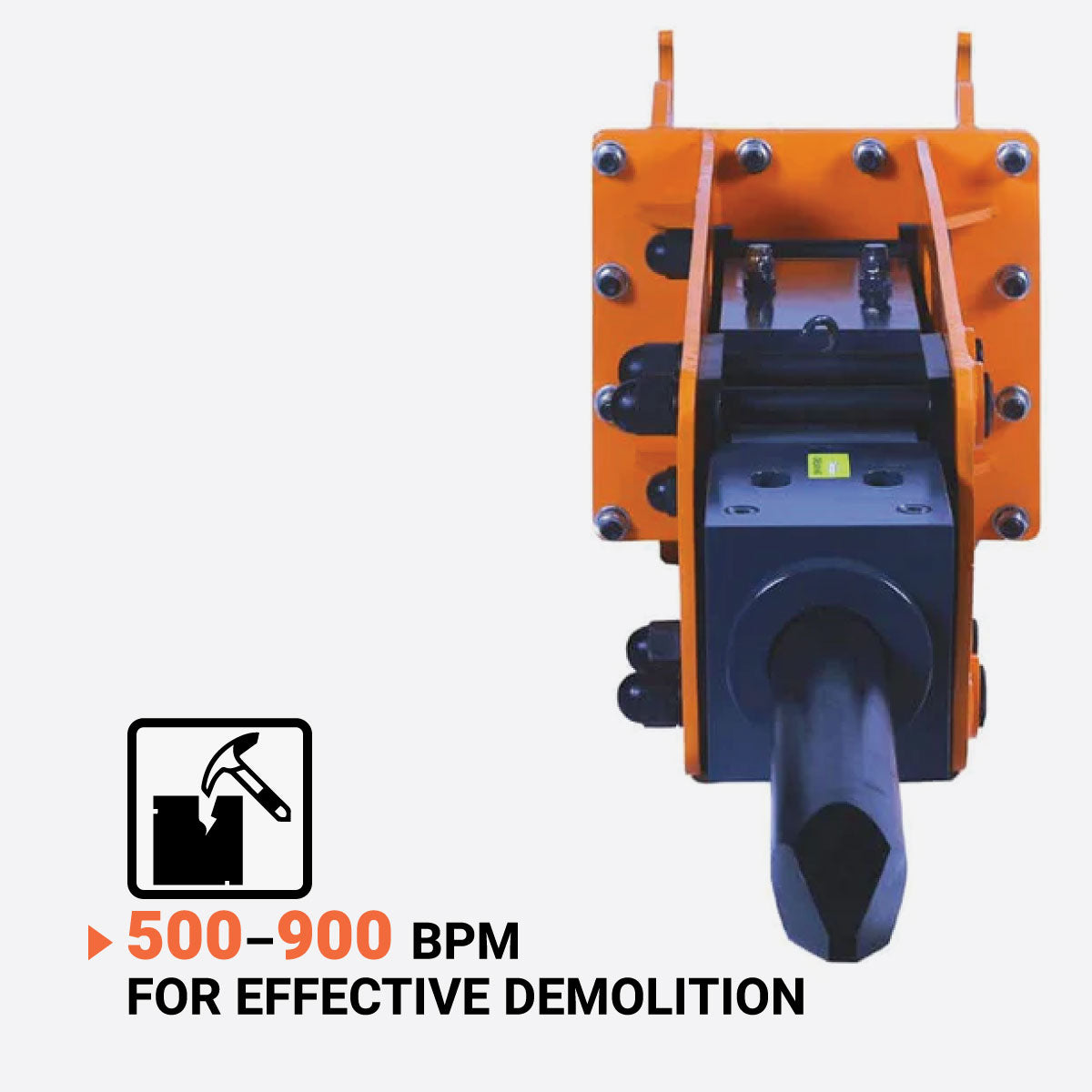

  • Impact rate: 500-900 BPM
  • Impact energy: 600 Joules

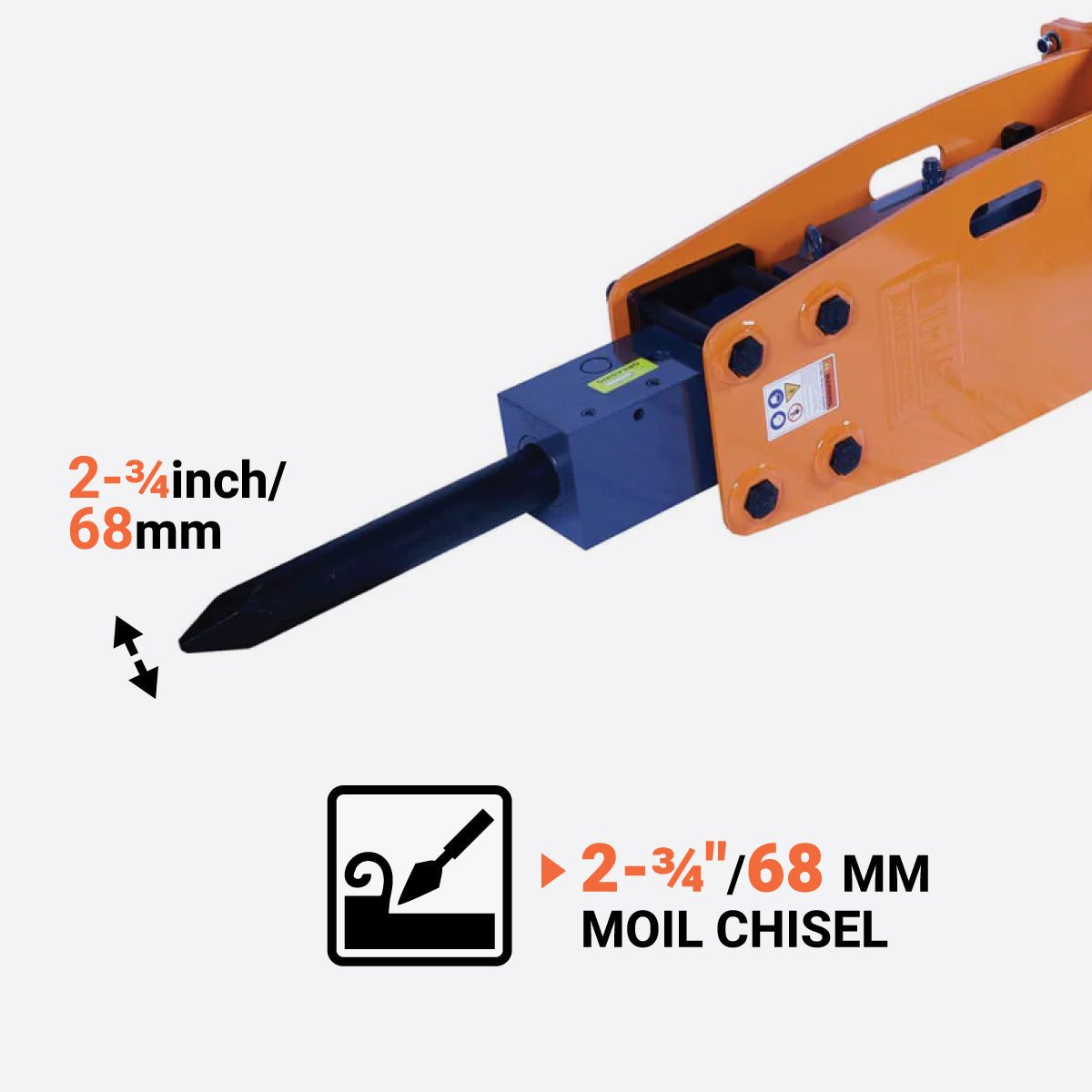

  • Chisel diameter: 2-3/4’’
  • Hydraulic hose diameter: 1/2”

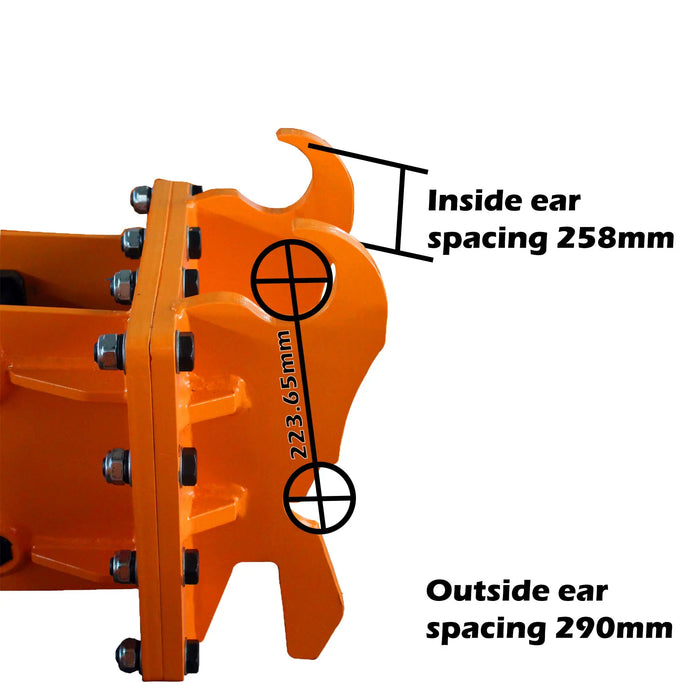

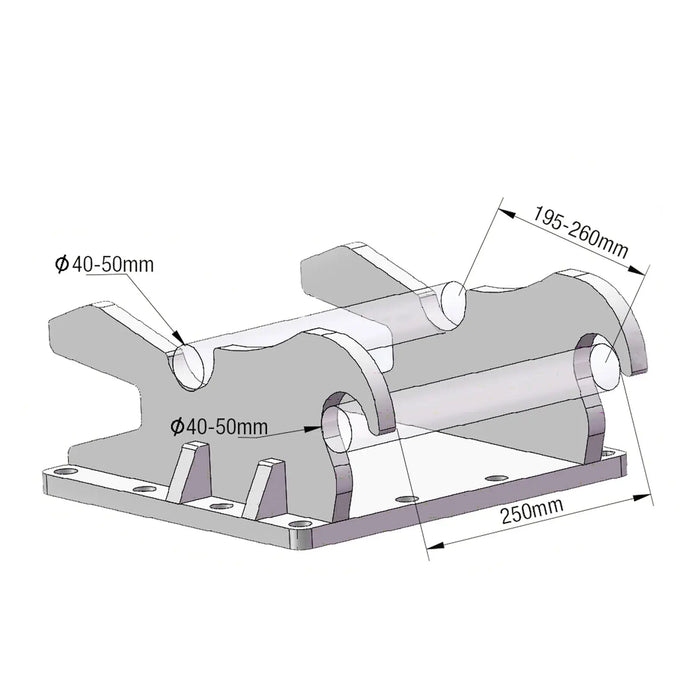

  • Ear spacing - inside: 10.2''
  • Ear spacing - outside: 11.4''
  • Pin center to center: 8.8''

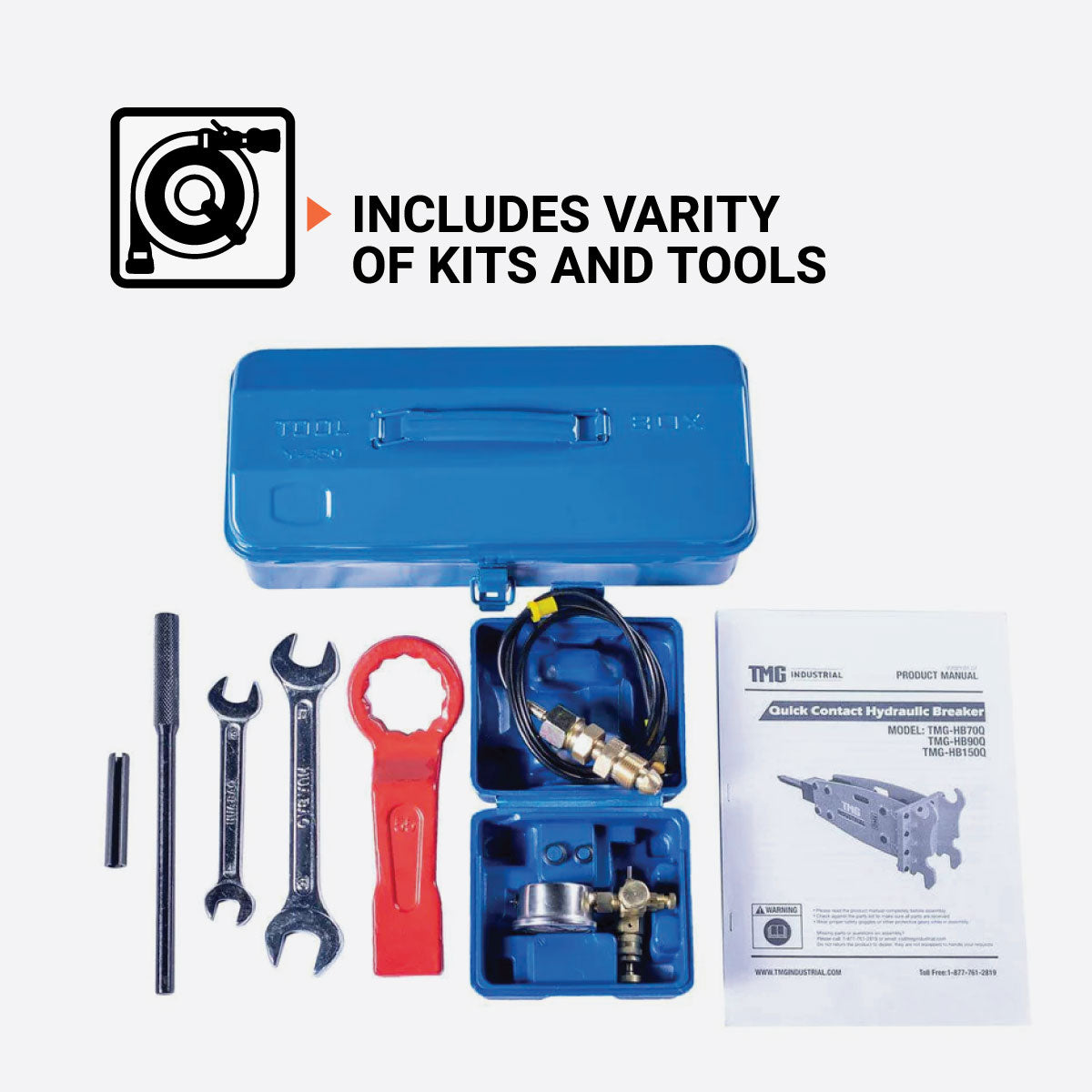

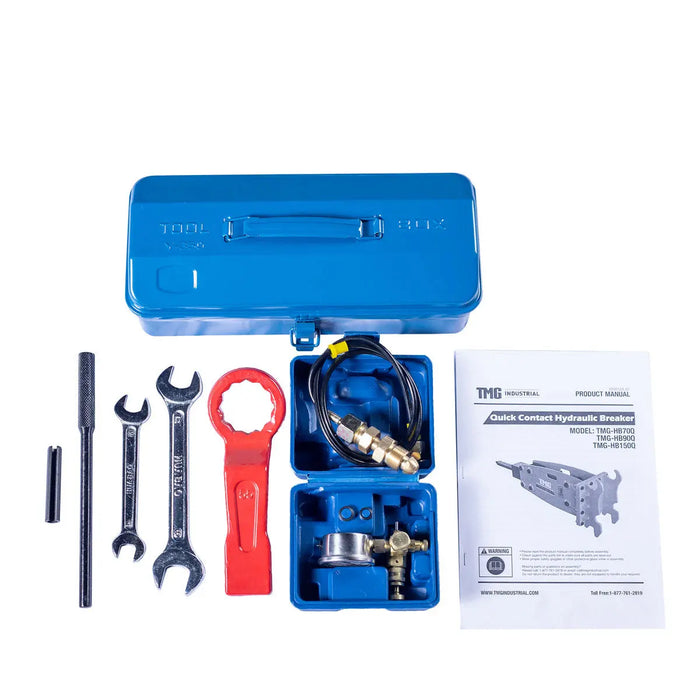

Includes:

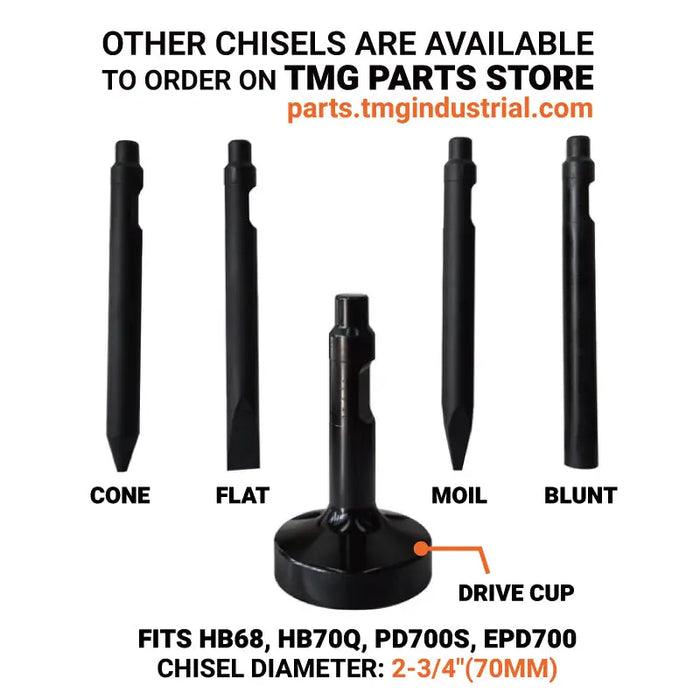

  • (1) 2-3/4’’ (68mm) moil point chisel
  • (2) 1/2” hydraulic hose with NPT fitting
  • (1) nitrogen charge kit with CGA580 cylinder adaptor
  • (1) service tool kit

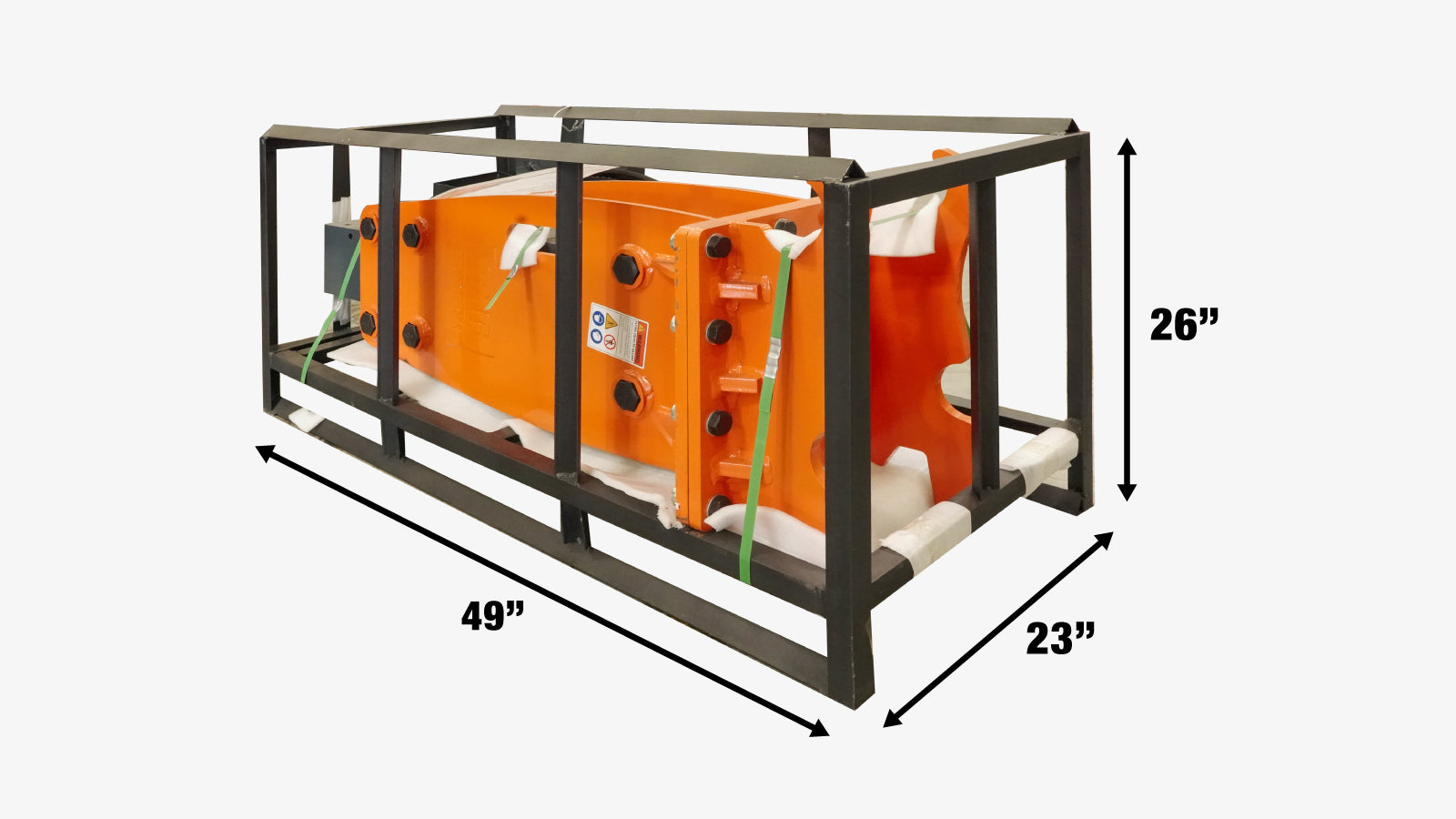

Shipping Information

  • Packed in one metal shipping crate
  • Shipping dimension: 49” x 23” x 26”
  • Shipping weight: 660 lb
Shipping from Richmond, BC

Product Description

The TMG Industrial 4 to 7-ton quick-change (Q/C) excavator hydraulic hammer breaker is designed to be simple to use and reliable. The 2-3/4’’ (68mm) moil point chisel can handle both light and medium jobs and is widely used for demolition, landscaping, and excavation sites. A 500-900 BPM impact rate combined with 1600-2500 PSI working flow pressure makes this a versatile and efficient breaking hammer.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
Customer Reviews
5.0 Based on 3 Reviews
5 ★
100%
3
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
JB
11/16/2021
Jori B.
Canada Canada

Great Hammer for the price!

I was sceptical about this unit because of the price, most demolition hammers run for thousands more. I very happy with this product. It's capable of breaking large pieces of concrete with rebar in it. I also built an attachment for it so I can also pound in fence post with it.

TMG-HB70Q 4 to 7 Ton Excavator Q/C Hydraulic Breaker Hammer with 68mm Chisel
Share   |   Facebook  •  Twitter
Was this helpful?  0    0
R
08/28/2021
Richard
United States United States

you cant beat this deal

Ok our supplier We have relied on for years was out of stock and could not give me a date when we could get one and the price doubled in 5 months I went on line found this hammer called they had the breaker in stock at a vary fair price with FREE shipping from western Canada to Vermont delivered in 11 days installed it on a Yanmar sv 40 vary happy with the Breaker and the sales team at TMG thanks

TMG-HB70Q 4 to 7 Ton Excavator Q/C Hydraulic Breaker Hammer with 68mm Chisel
Share   |   Facebook  •  Twitter
Was this helpful?  1    0
PC
08/11/2021
Pat C.
Canada Canada

4 ton hammer

Hammer worked great. 6 meters in 2hrs. love it

TMG-HB70Q 4 to 7 Ton Excavator Q/C Hydraulic Breaker Hammer with 68mm Chisel
Share   |   Facebook  •  Twitter
Was this helpful?  0    0
