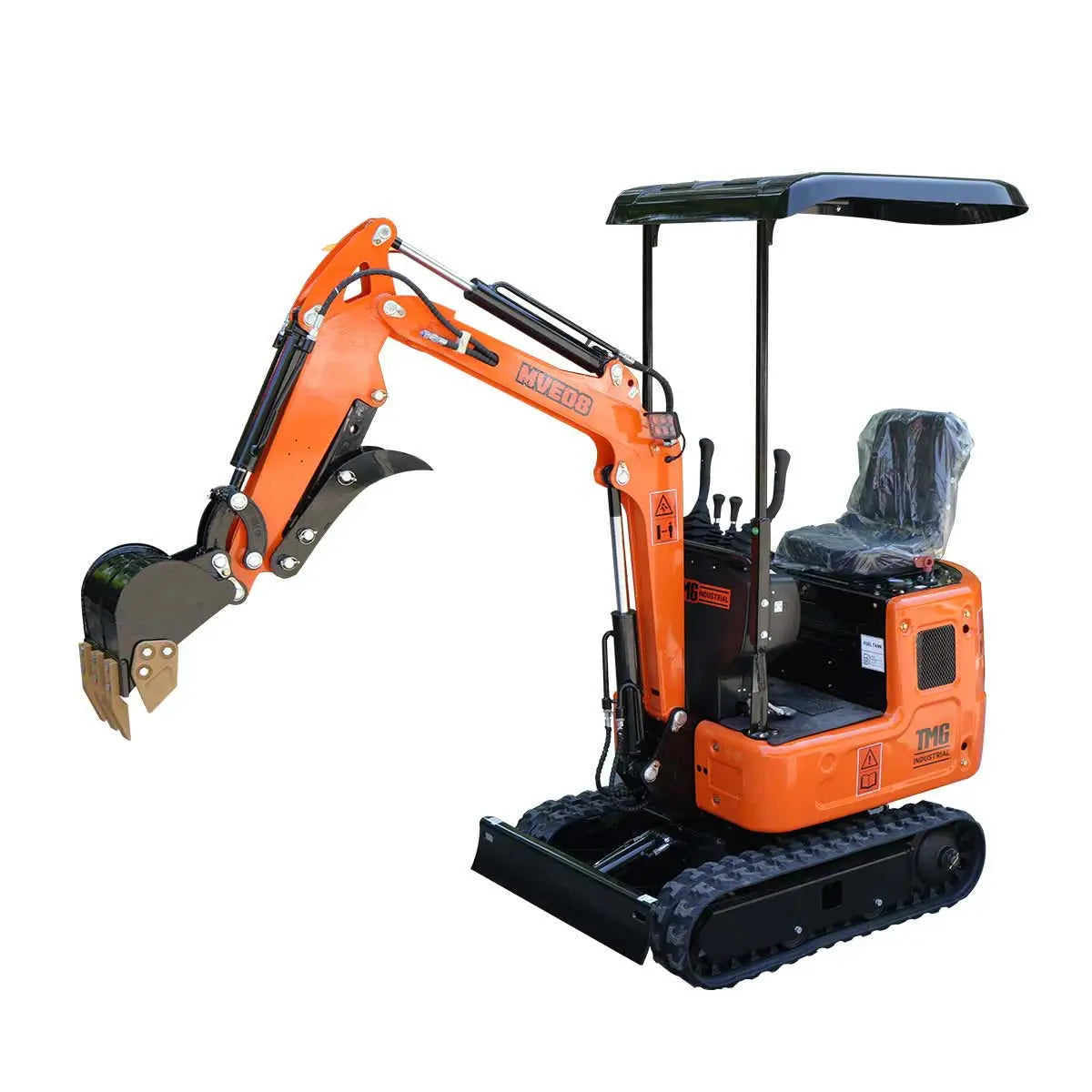

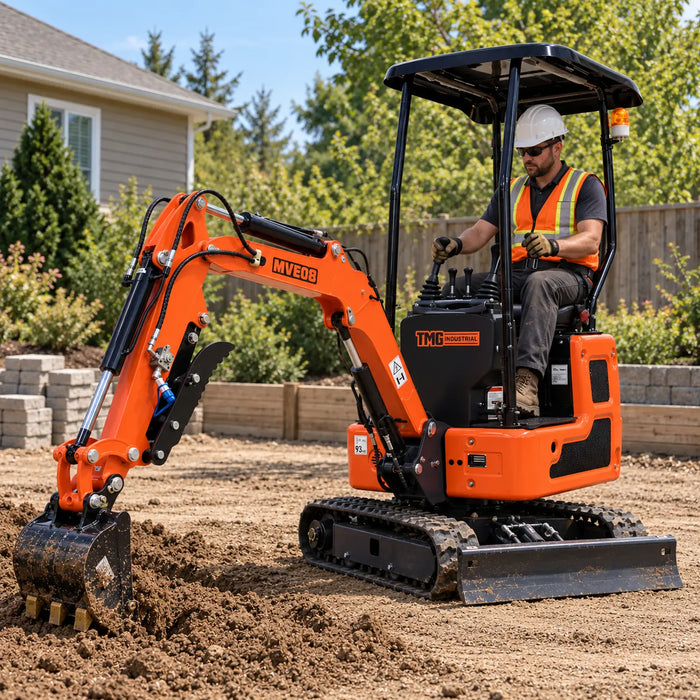

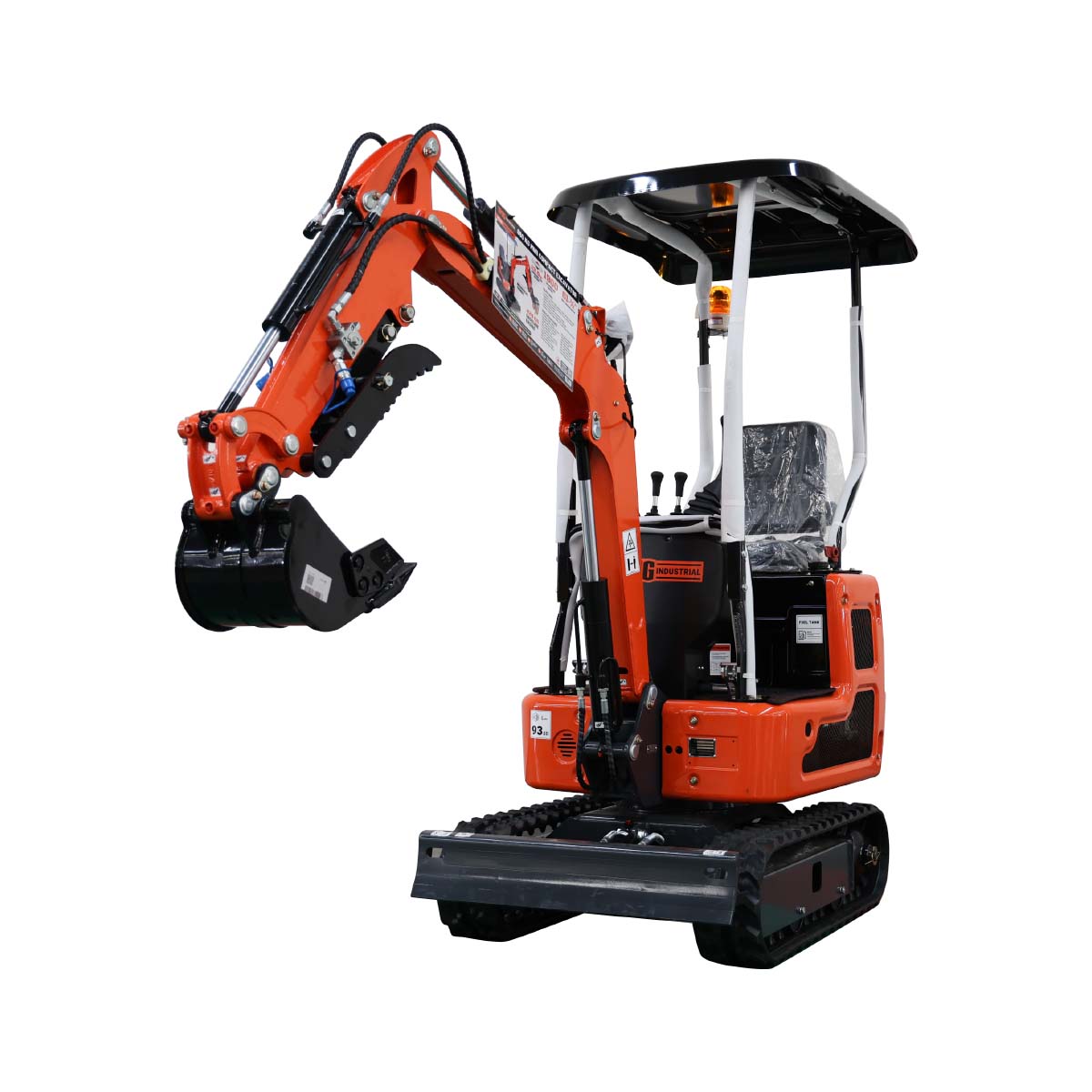

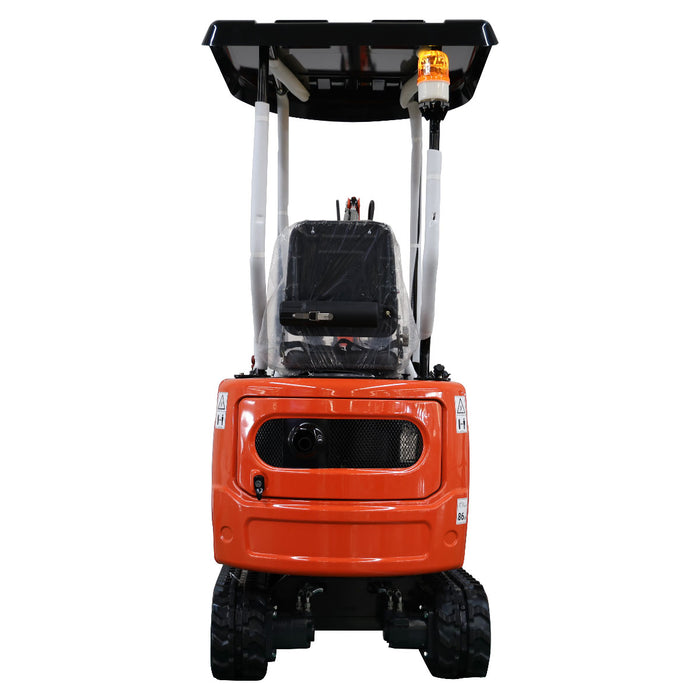

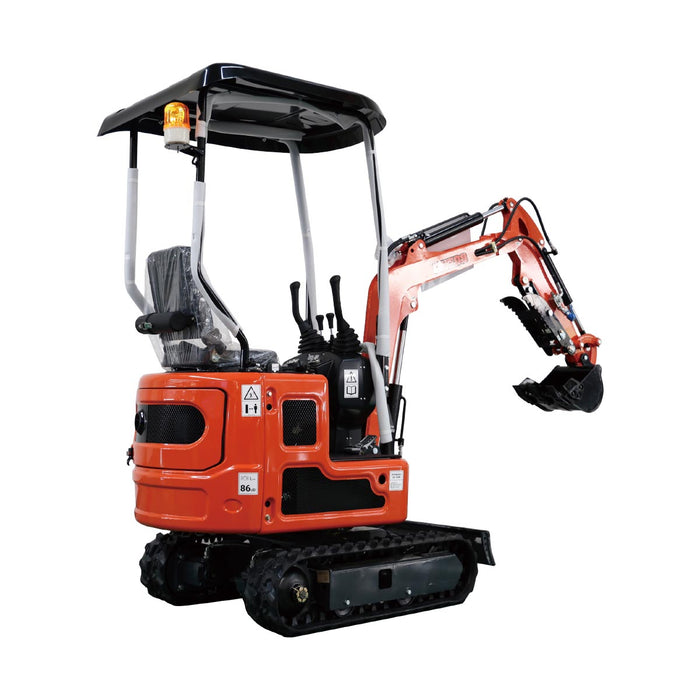

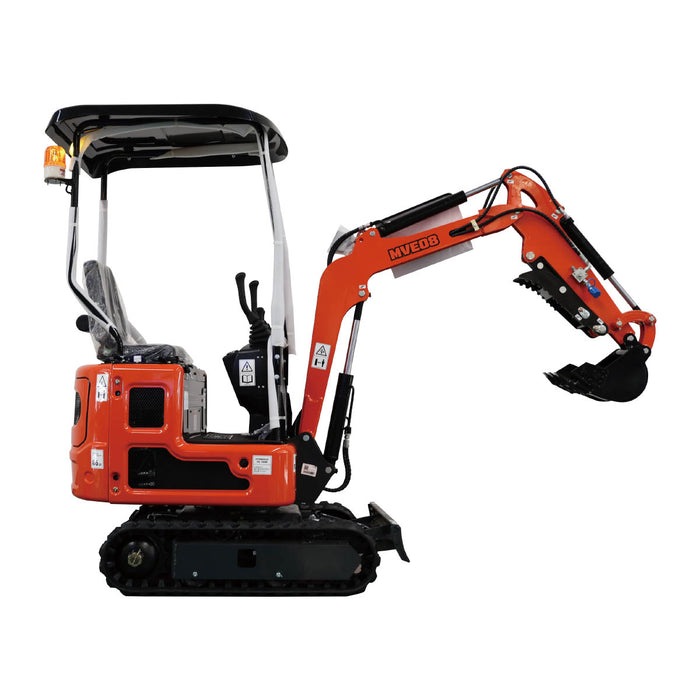

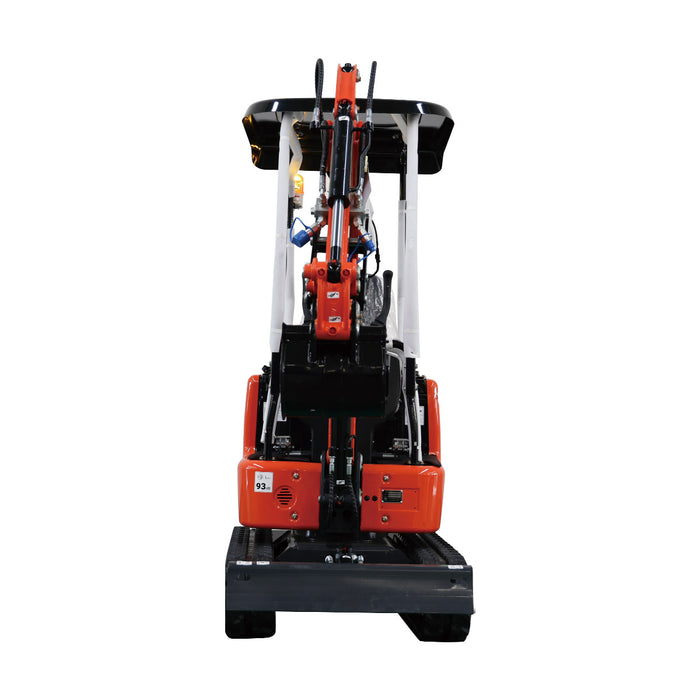

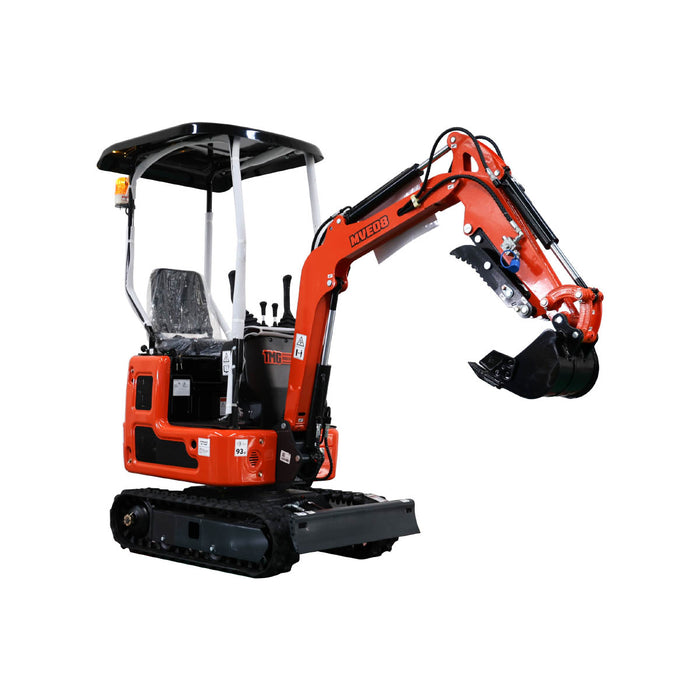

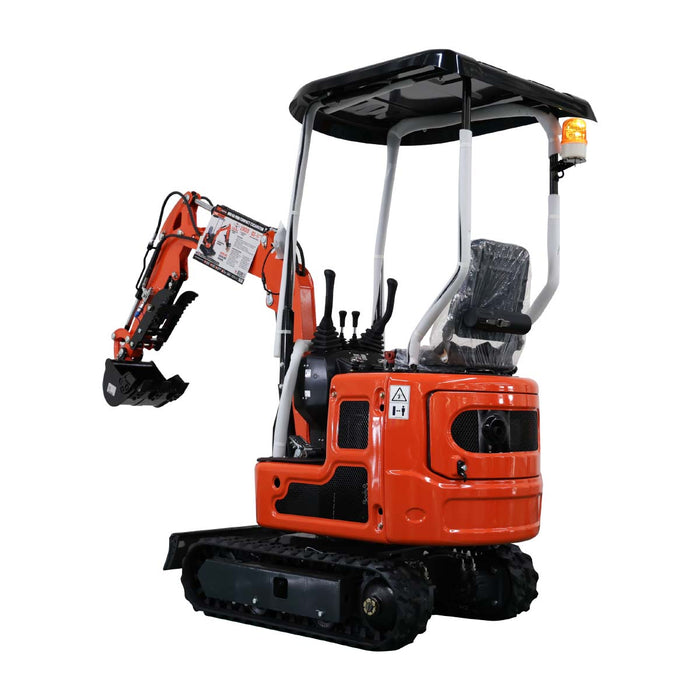

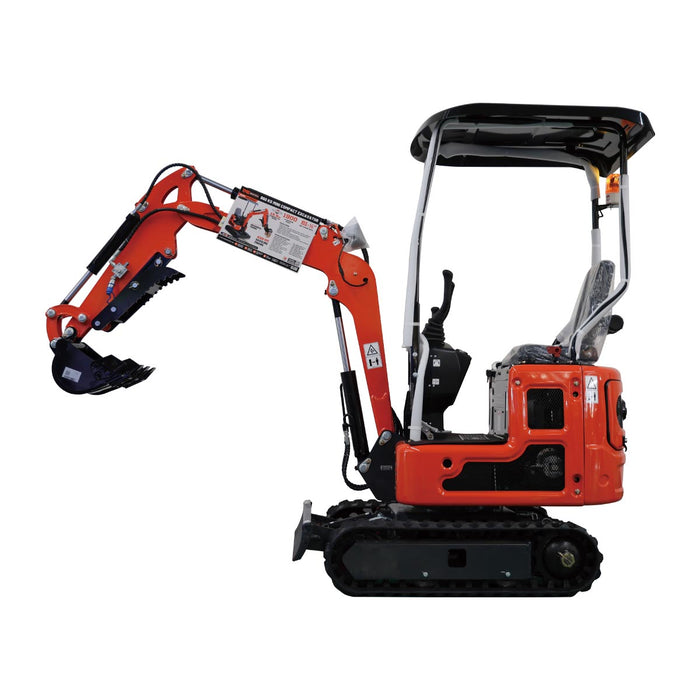

Compact Mini Excavator, 13.5 HP Briggs & Stratton XR Gas Engine, 61-½" Max. Digging Depth, 1900 Lb Operating Weight TMG-MVE08
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Powered by 13.5 HP Briggs & Stratton XR Series Gas Engine with EPA certification

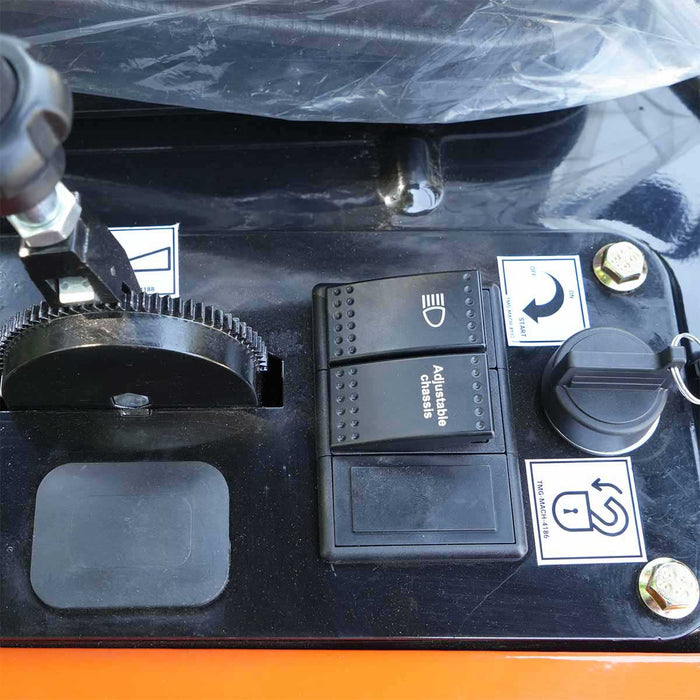

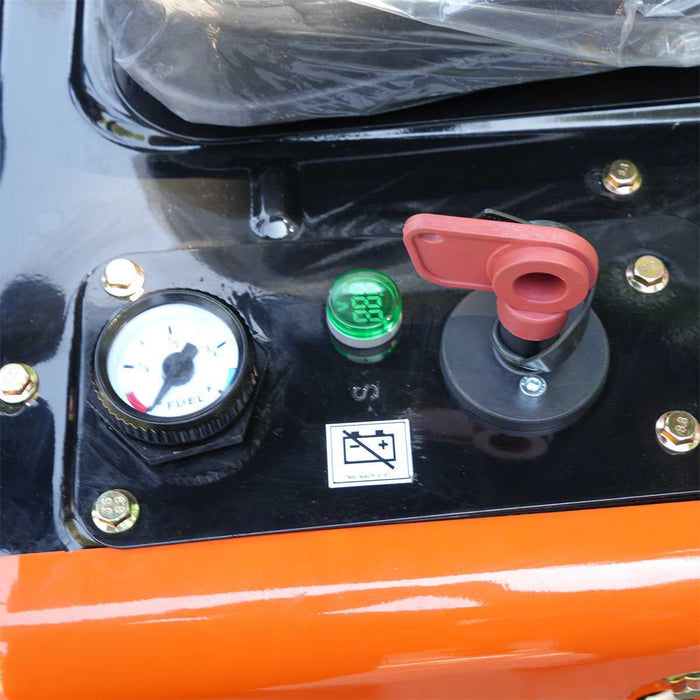

- Equipped with a convenient and simple-to-use operation panel; minimal training required
- Safety is prioritized with reduced dead angles to protect workers and prevent accidents
- Spacious operator area is ergonomically designed for maximum comfort

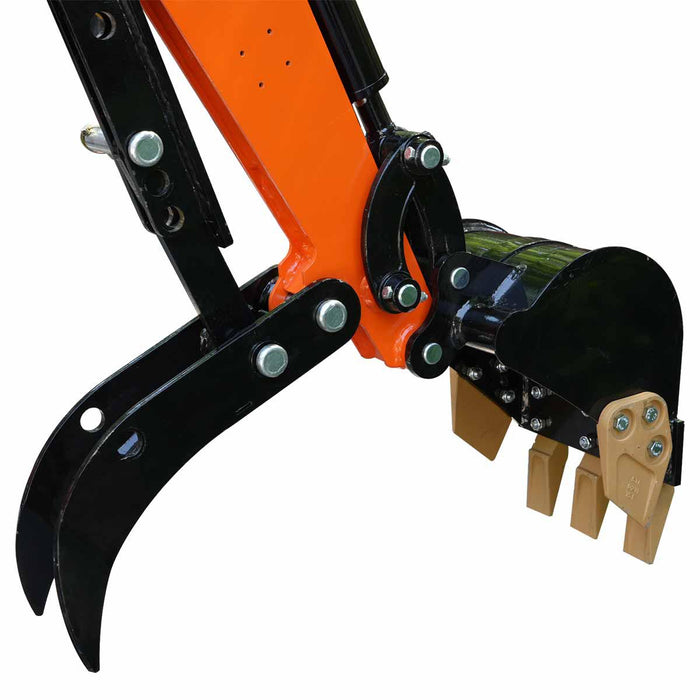

- Includes a standard dozer blade with the option for a mechanical thumb attachment
- Mechanical Thumb sold separately
Specifications
Specifications
- Operating weight: 1,900 lb
- Standard bucket capacity: 0.5 cu ft
- Working device form: Backhoe
- Maximum travel speed: 1.8 km/h
- Maximum gradability: 30°
- Track ground pressure: 25.53 kPa
- Hydraulic oil tank capacity: 12.5 L
- Fuel tank capacity: 5.5 L
- Maximum tractive force: 6.8 kN
- Mechanical thumb: Included
- Hydraulic pump brand: Parker
- Hydraulic flow rate: 21.6 L/min
Operating Range:
- Maximum digging depth: 61-1/2"
- Overall operating height (fully raised): 100"
- Maximum digging radius: 114"
- Maximum unloading height: 75"
- Minimum turning radius: 61"
- Maximum lifting height, dozer blade: 6"
- Maximum depth, dozer blade: 6"
- Dipper boom digging force: 6.1 kN
- Bucket digging force: 9.2 kN
Main Dimensions:
- Track length: 47"
- Upper chassis ground clearance: 15"
- Counterweight turning radius: 32"
- Chassis width: 36"
- Track width: 7"
- Track height: 12"
- Transportation length: 85"
- Seat height from ground: 40-1/2"
- Overall height: 87"
Engine:
- Model: Briggs & Stratton XR Series, Model #25T2
- Type: Single-cylinder, air-cooled, 4-stroke, OHV
- Displacement: 420 cc
- Maximum output power: 13.5 HP / 3600 RPM
- Start type: Electric start with battery included
- Oil capacity: 6.6 L
- Engine oil type: 10W-30, 1.1 L
Product Description
Product Description
The TMG-MVE08 Mini Compact Excavator is a heavy-duty powerhouse packed into a small, easy-to-use package. Featuring a reliable 13.5 HP Briggs & Stratton XR Series air-cooled gas engine with EPA certification, this excavator is designed for both flexibility and safety.
The user-friendly operation panel makes for a quick learning curve, and the spacious operator area enhances comfort for all users. With an operating weight of 1900 lb and a
maximum digging depth of 61-½", this backhoe-type excavator is perfect for tasks of all shapes and sizes.
Auxiliary hydraulics come standard, providing power for multiple attachments. The compact design ensures reduced dead angles, enhancing worker safety during operation. Ideal for tight spaces and versatile projects. Includes a dozer blade and mechanical thumb.
Shipping Information
Shipping Information
The order will ship from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

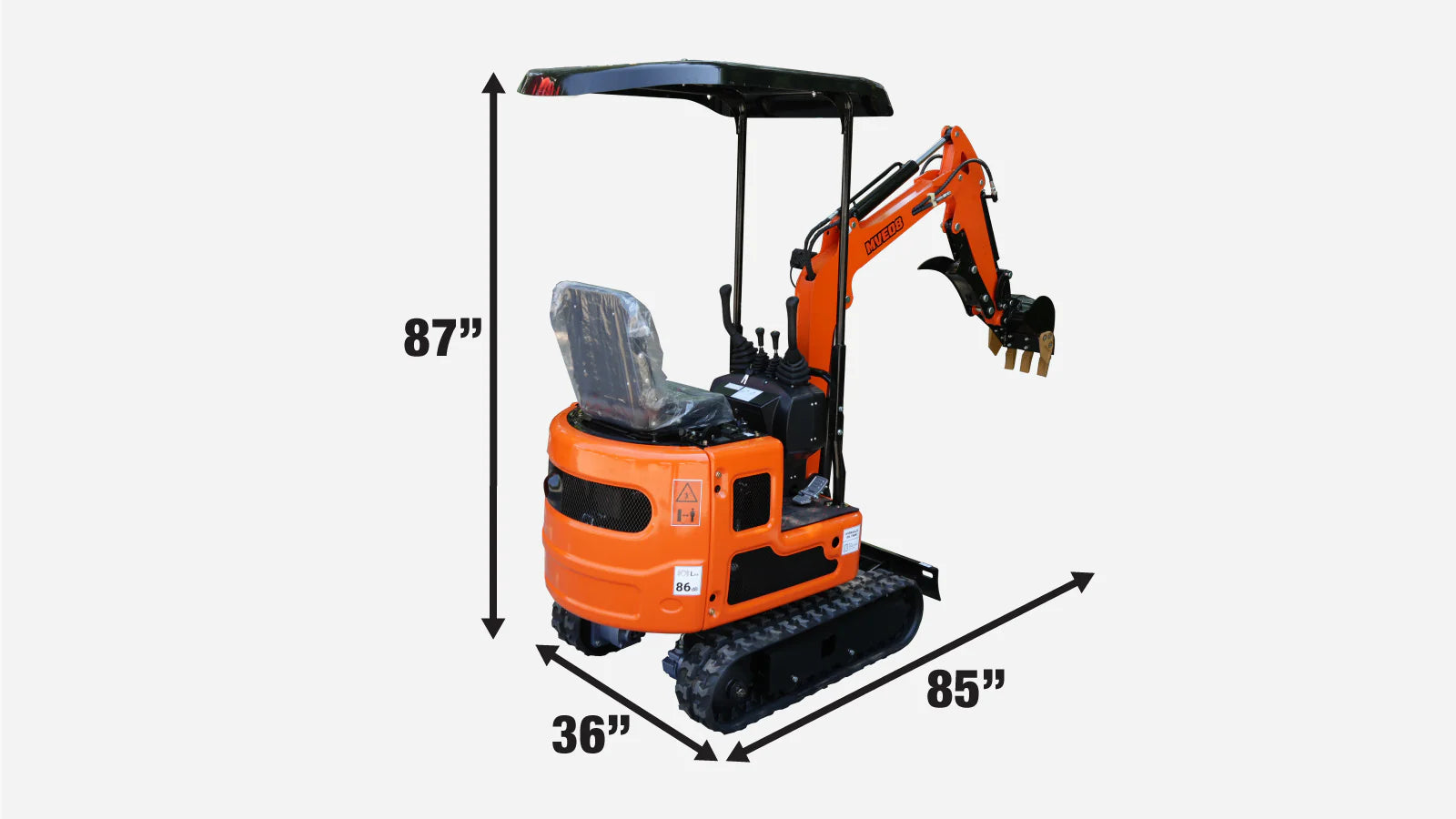

- Shipping dimension: 110" x 36" x 87" (L x W x H)
- Shipping weight: 1,795 lb(w/packaging)
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
