TMG-TFMO50 50" 3-Point Offset Ditch Bank Flail Mower with 90° Tilt for Ditches

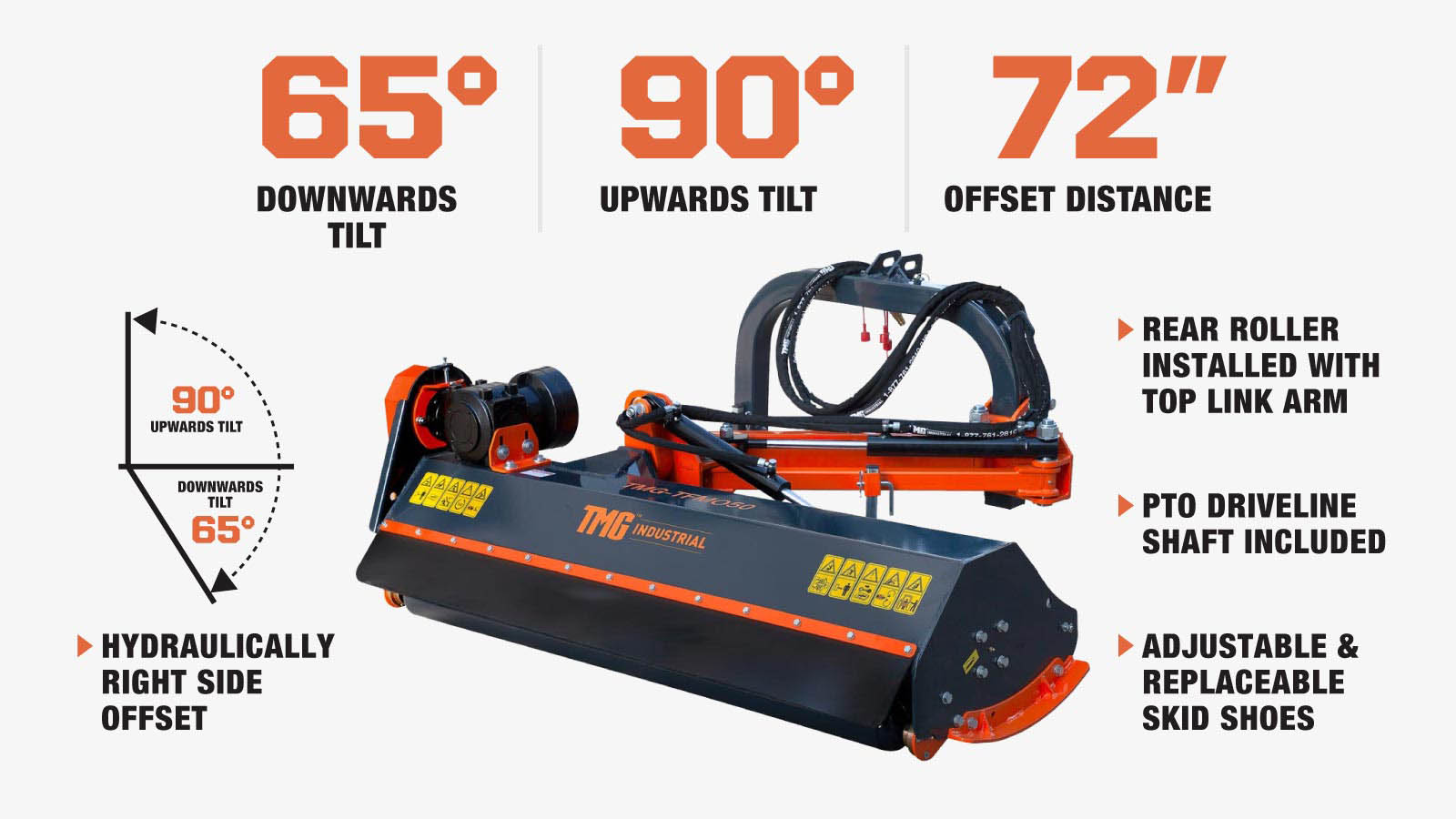

The TMG Industrial 50" 3-Point Offset Ditch Bank Flail Mower comes with a hydraulic operated offset cutting head, which can pivot at downwards 65° and upwards 90° to maintain accurate cutting in ditches, banks, and even for cutting down brushes and saplings. The accurate rotor rotation and forged flail hammers make for efficient and safe cutting, reduce thrown debris, and create a more mulch-like clipping than a brush cutter.

Features:

• Blade rotor shaft driven with three drive belts
• Rear roller installed with tractor top link arm to adjust the cutting height to adapt to uneven areas

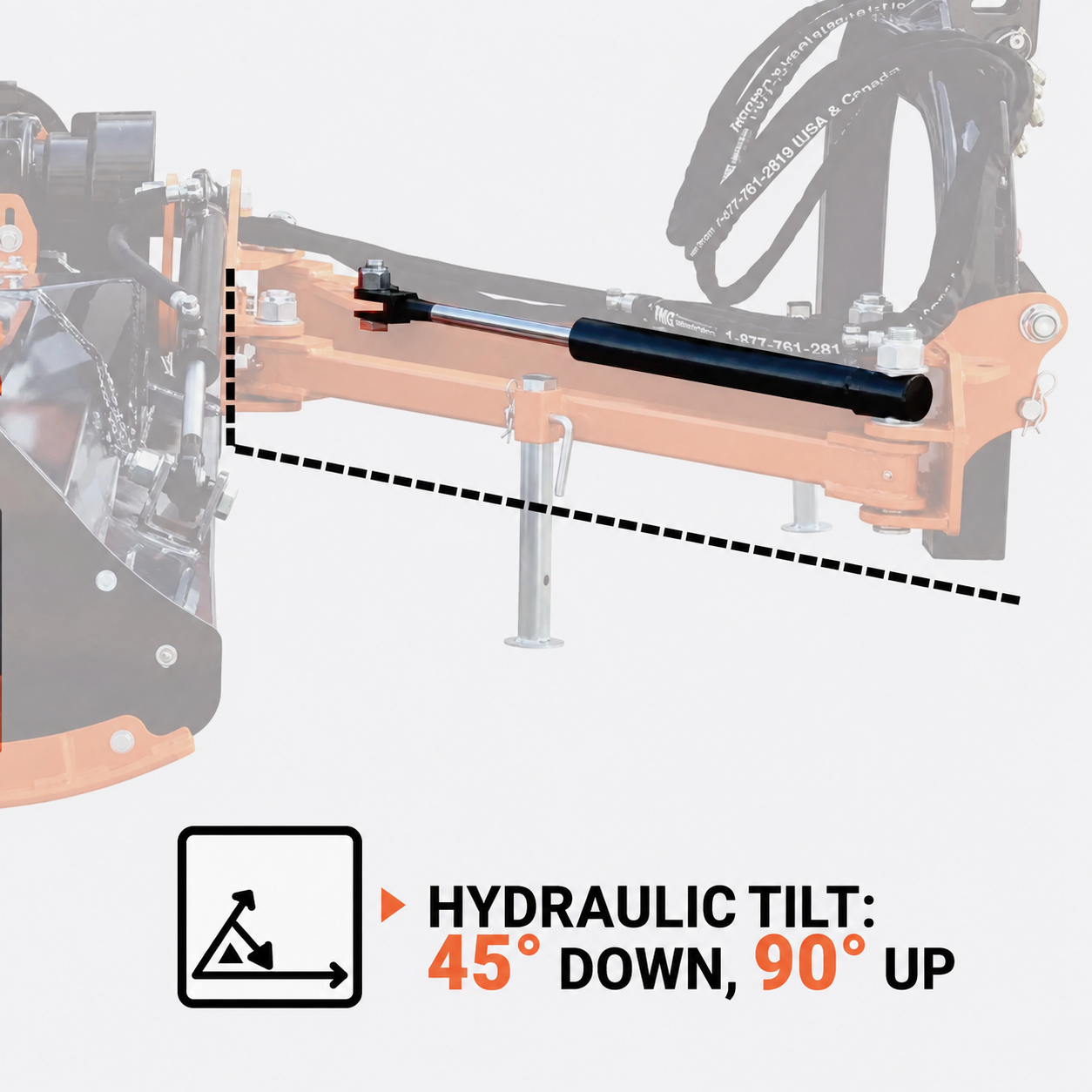

• Hydraulically controlled right side offset and 90° maximum tilt
• Forged flail hammers
• 3-PTO driveline shaft included

Specifications:

• Tractor power required: 20-50 HP

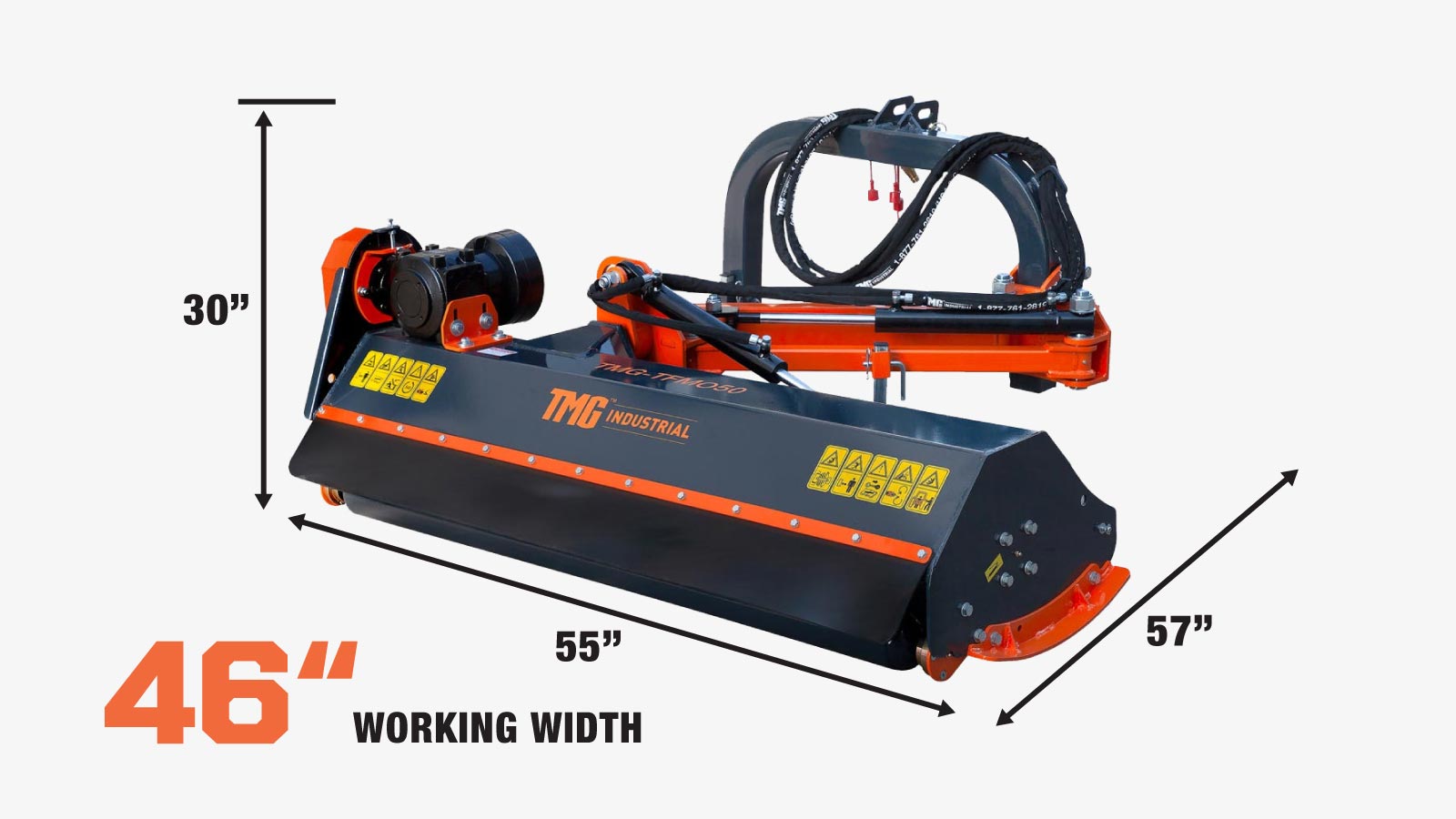

• Working width: 46”
• Work efficiency: 4,680 to 12,000 yd2/h
• Two storage kickstands
• Off set distance from the centre(maximum): 72''
• 3-PTO driveline shaft, 540 RPM, category 1

Packaging:

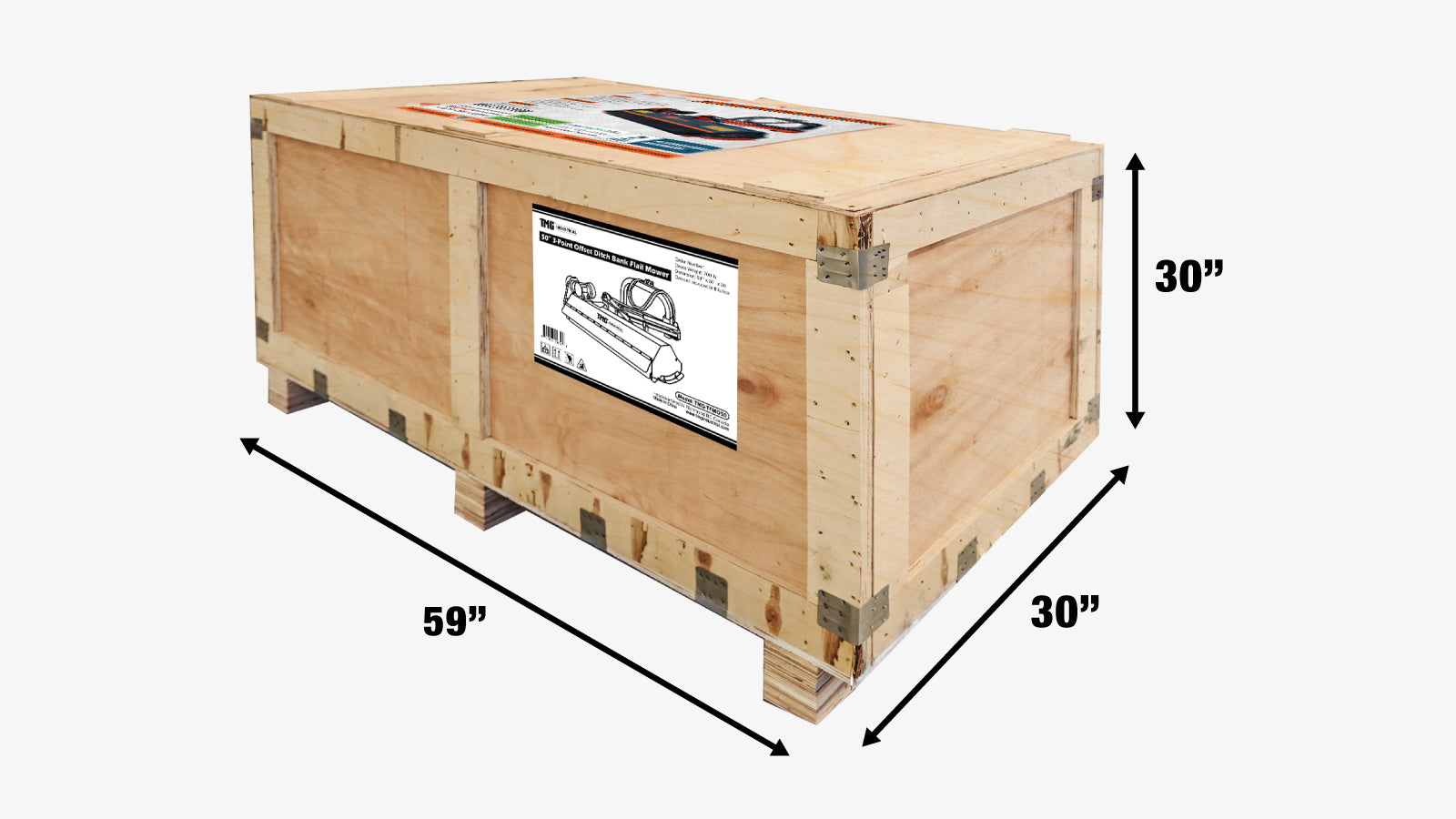

• Shipping dimension: 59” x 30” x 30”
• Shipping weight: 700 lb

Product Manual

Download here
