10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10

10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10

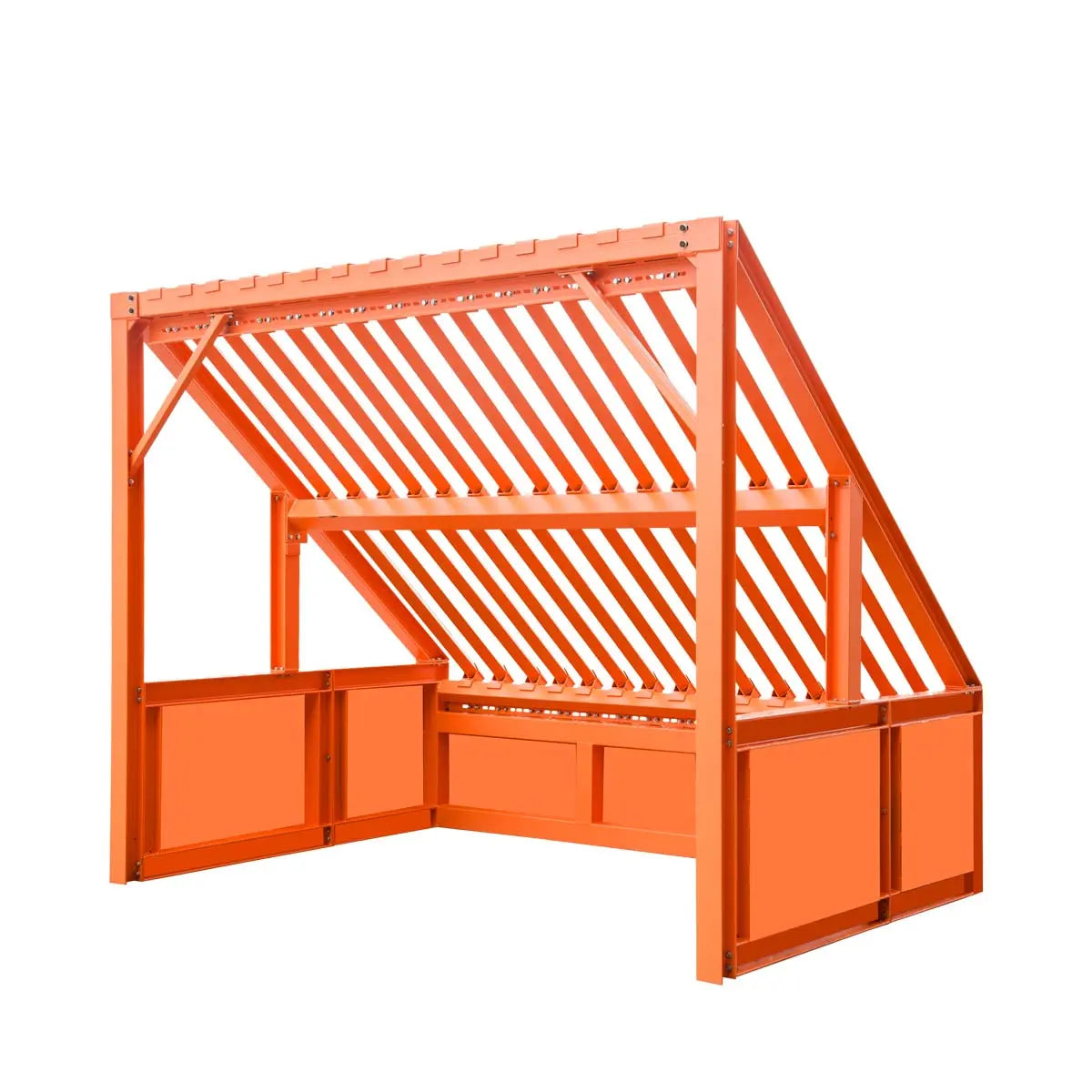

TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
CURRENTLY IN STOCK
SKU TMG-RS10
$6,599.00 - $6,599.00
$6,599.00
$6,599.00 - $6,599.00
$6,599.00
$6,599.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
1-888-467-5788
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

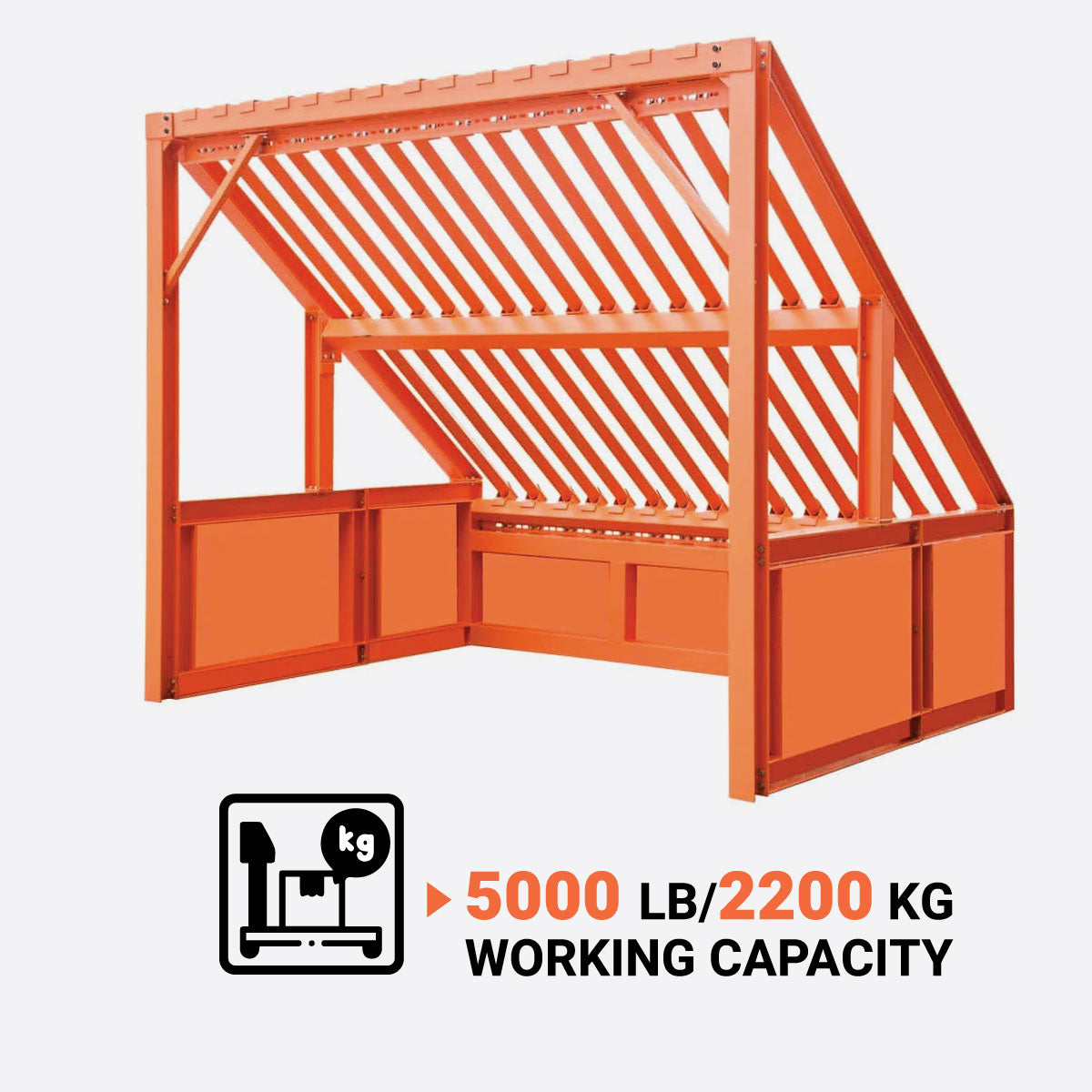

5000 lbs / 2200 kg working capacity will handle any material sorting tasks
Feature Image

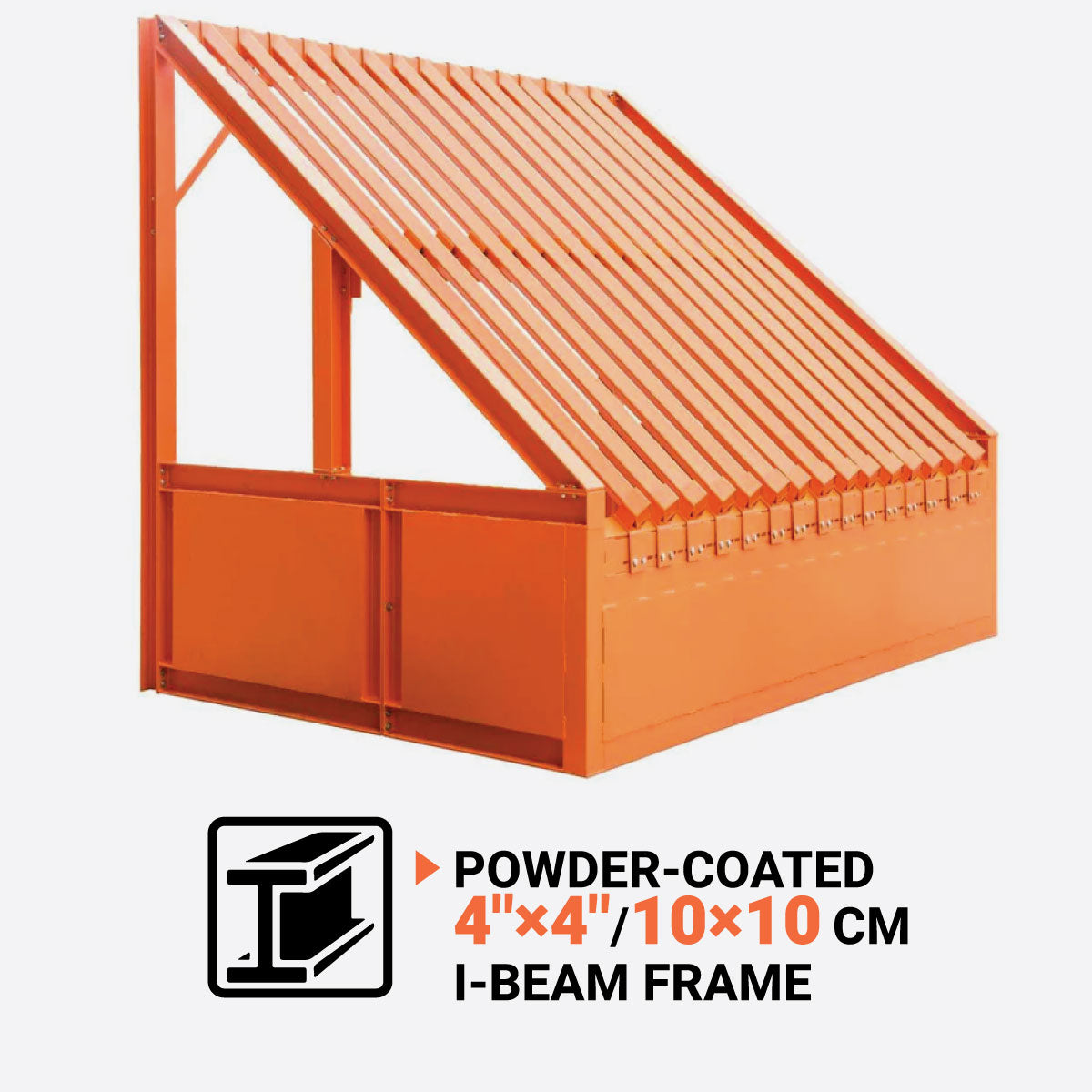

Robust 4" x 4" / 10 cm x 10 cm I-beam frame with powder-coating for enhanced durability
Feature Image

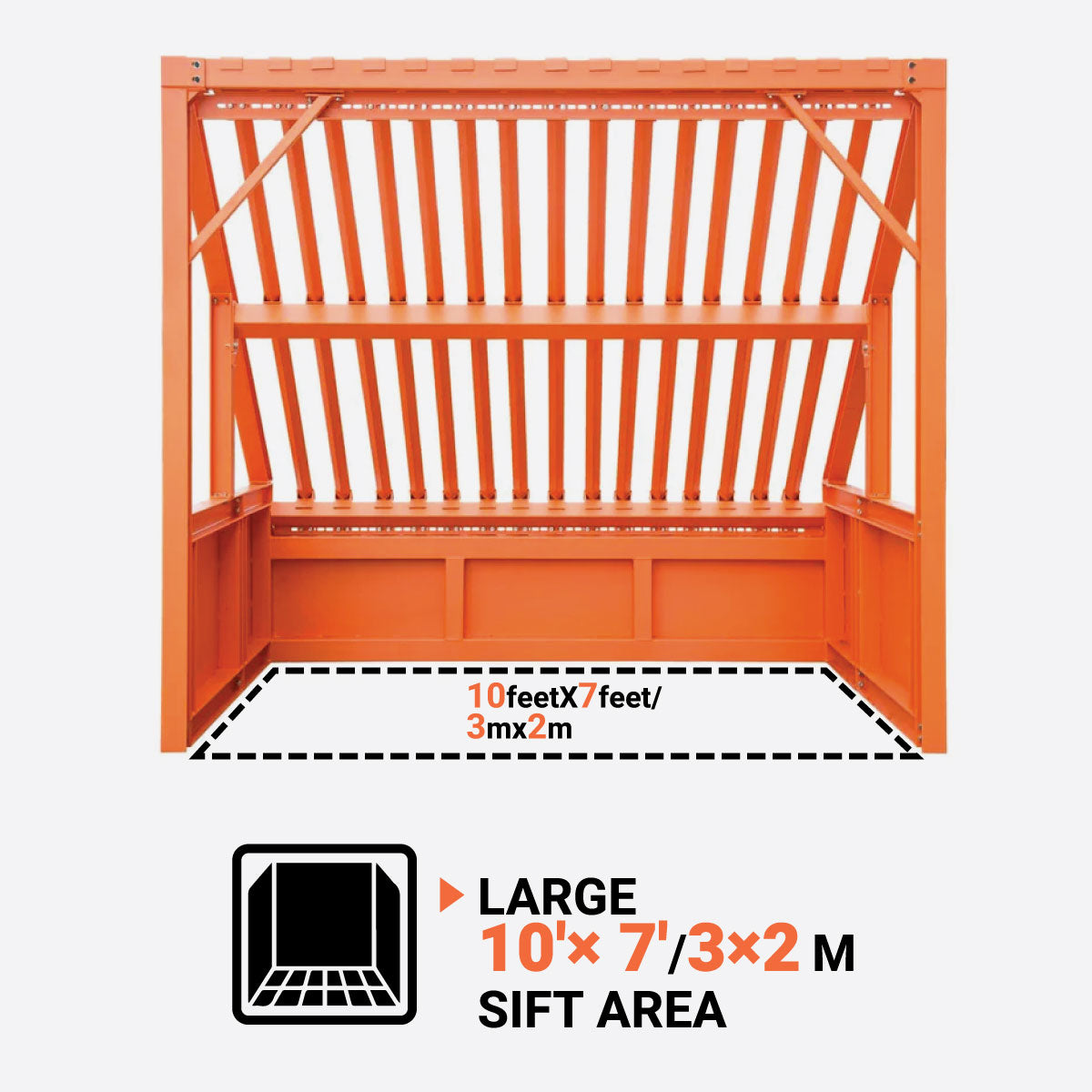

Features a large 10' x 7' / 3 m x 2 m sift accepting area suitable for handling mixed loads
Feature Image

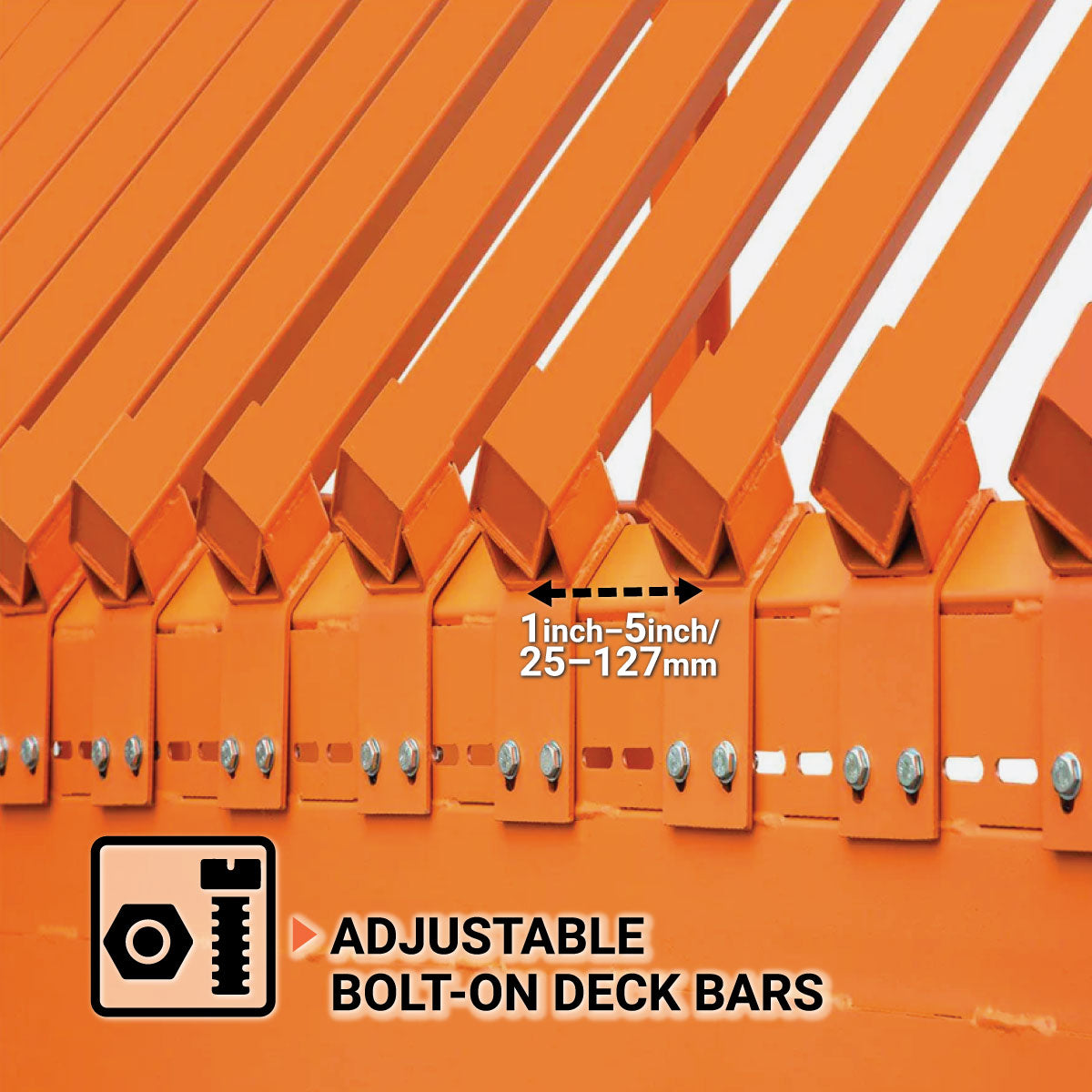

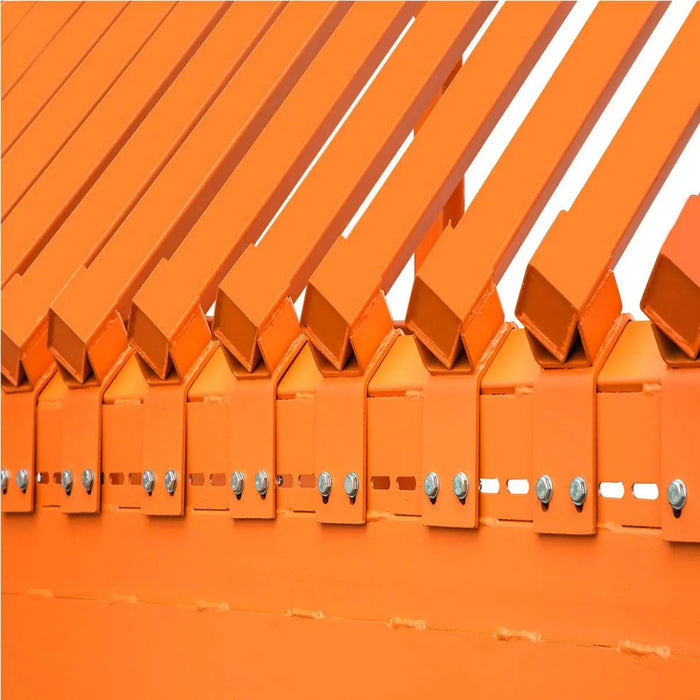

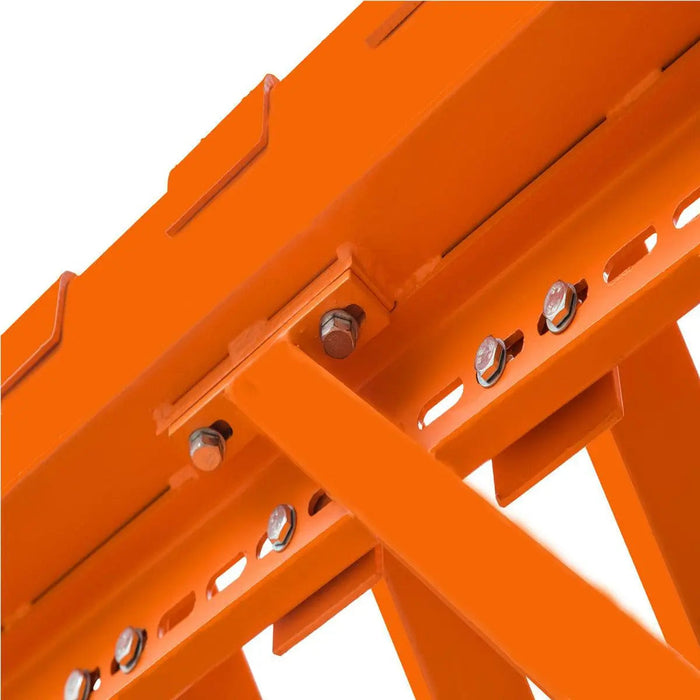

Equipped with adjustable bolt-on deck bars, with spacing options from 1 " to 5" / 25 mm to 127 mm
Feature Image

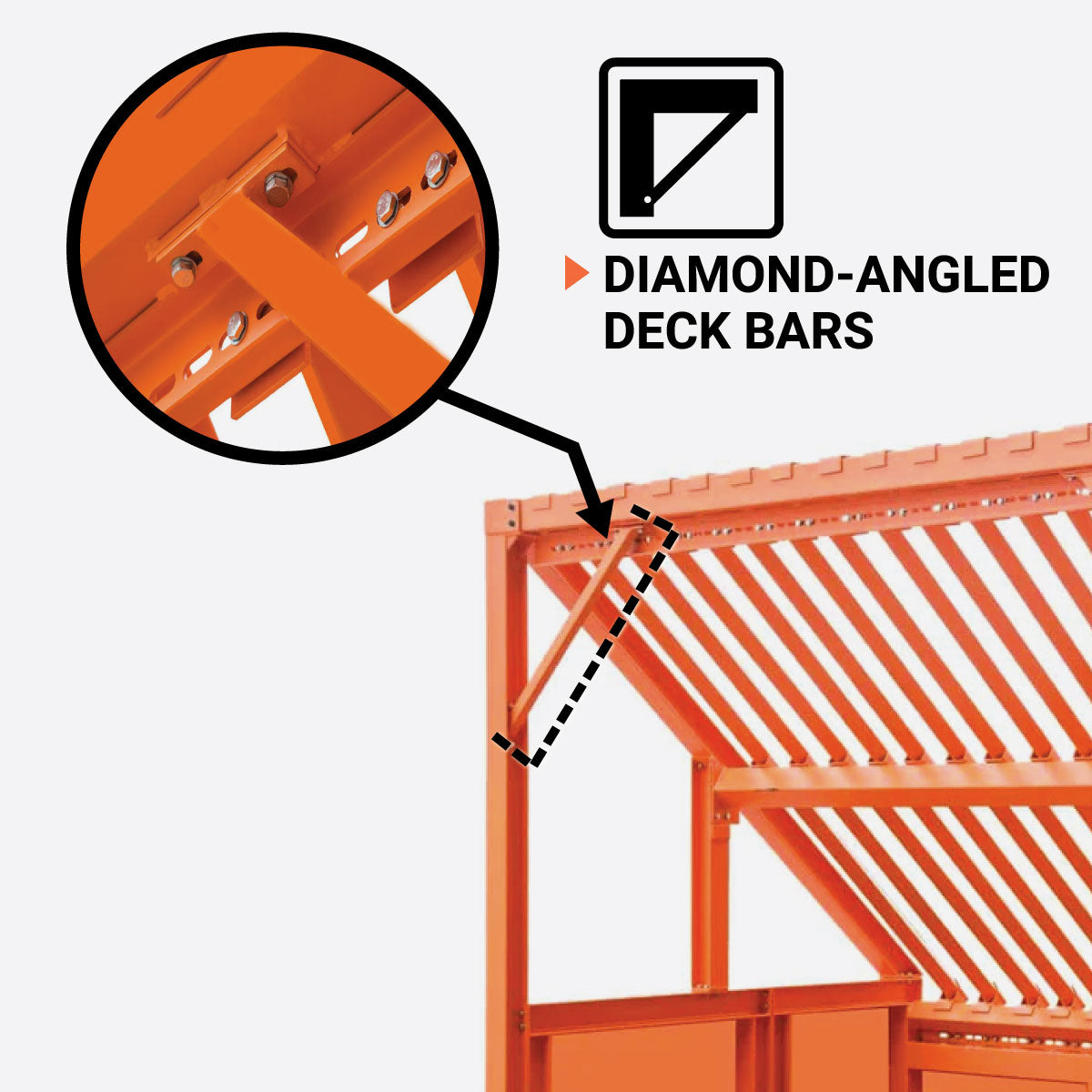

Deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
Feature Image

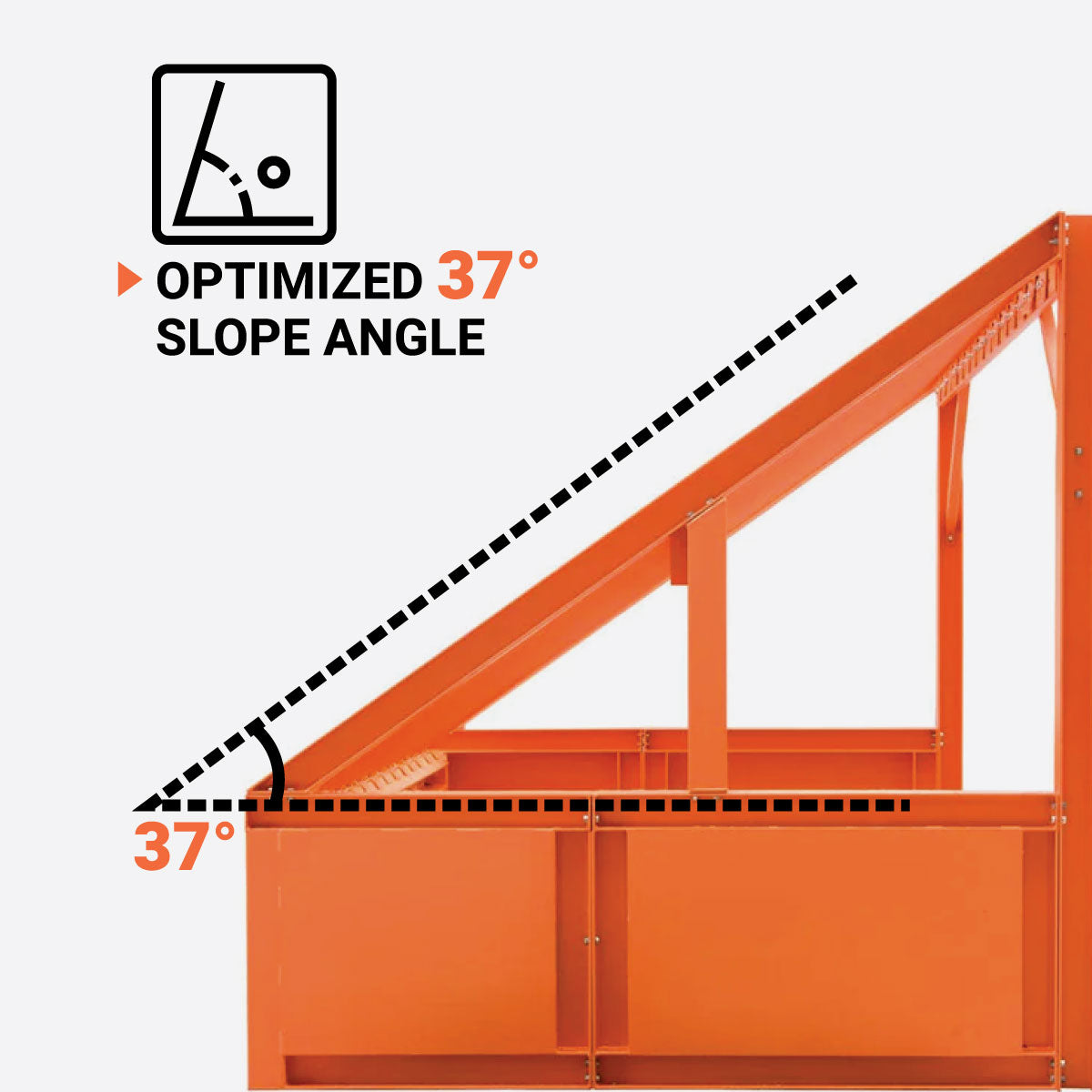

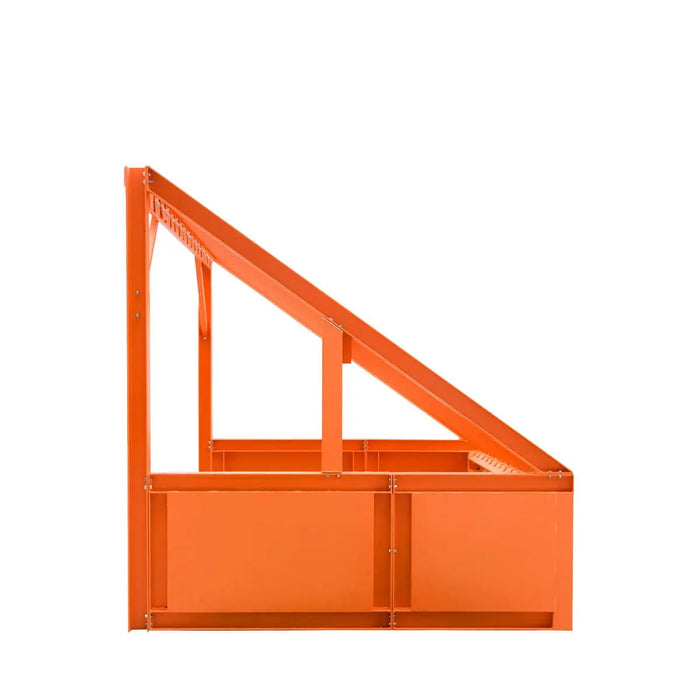

Optimized 37° slope angle for efficient debris removal and material separation

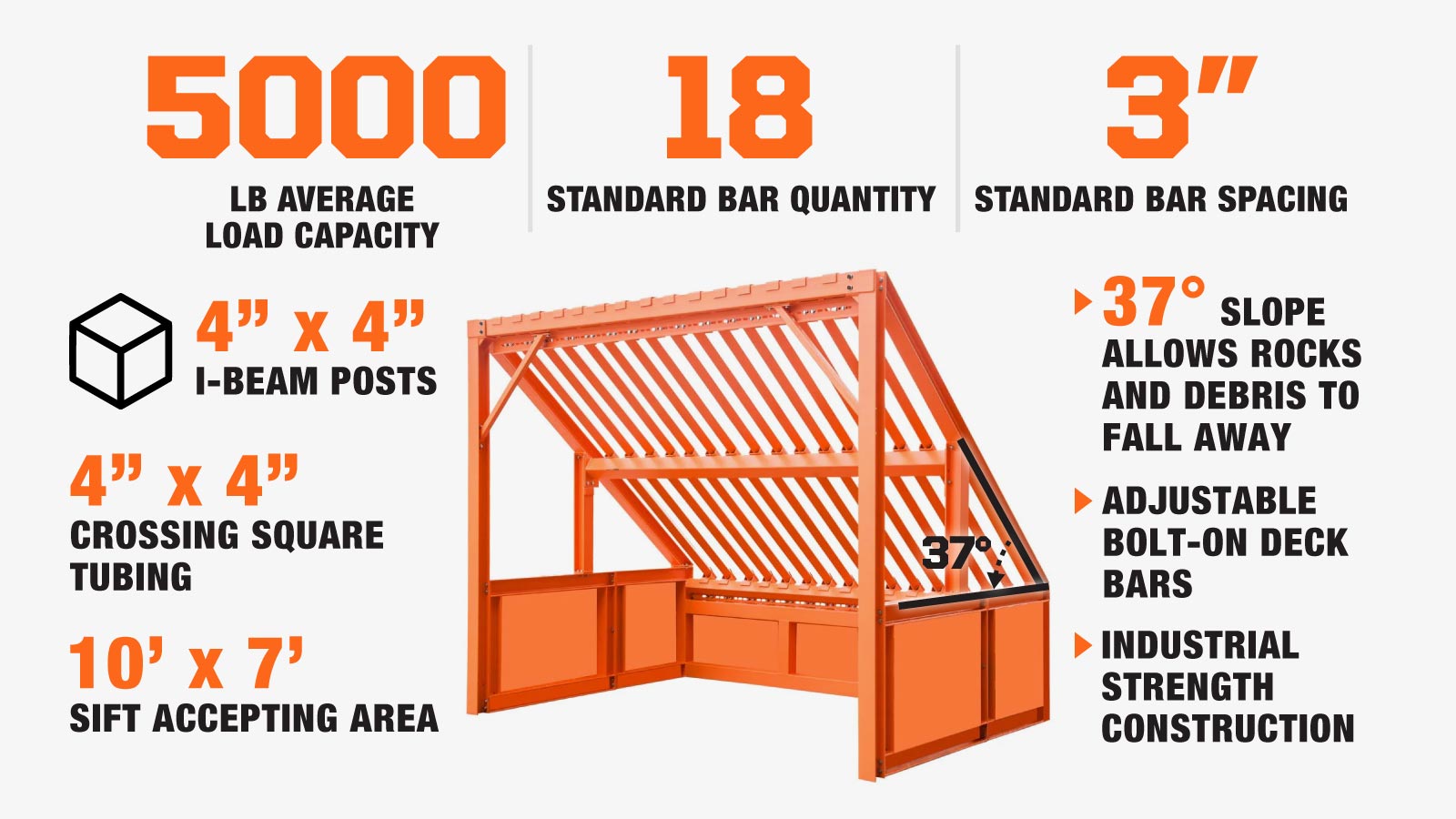

Specifications

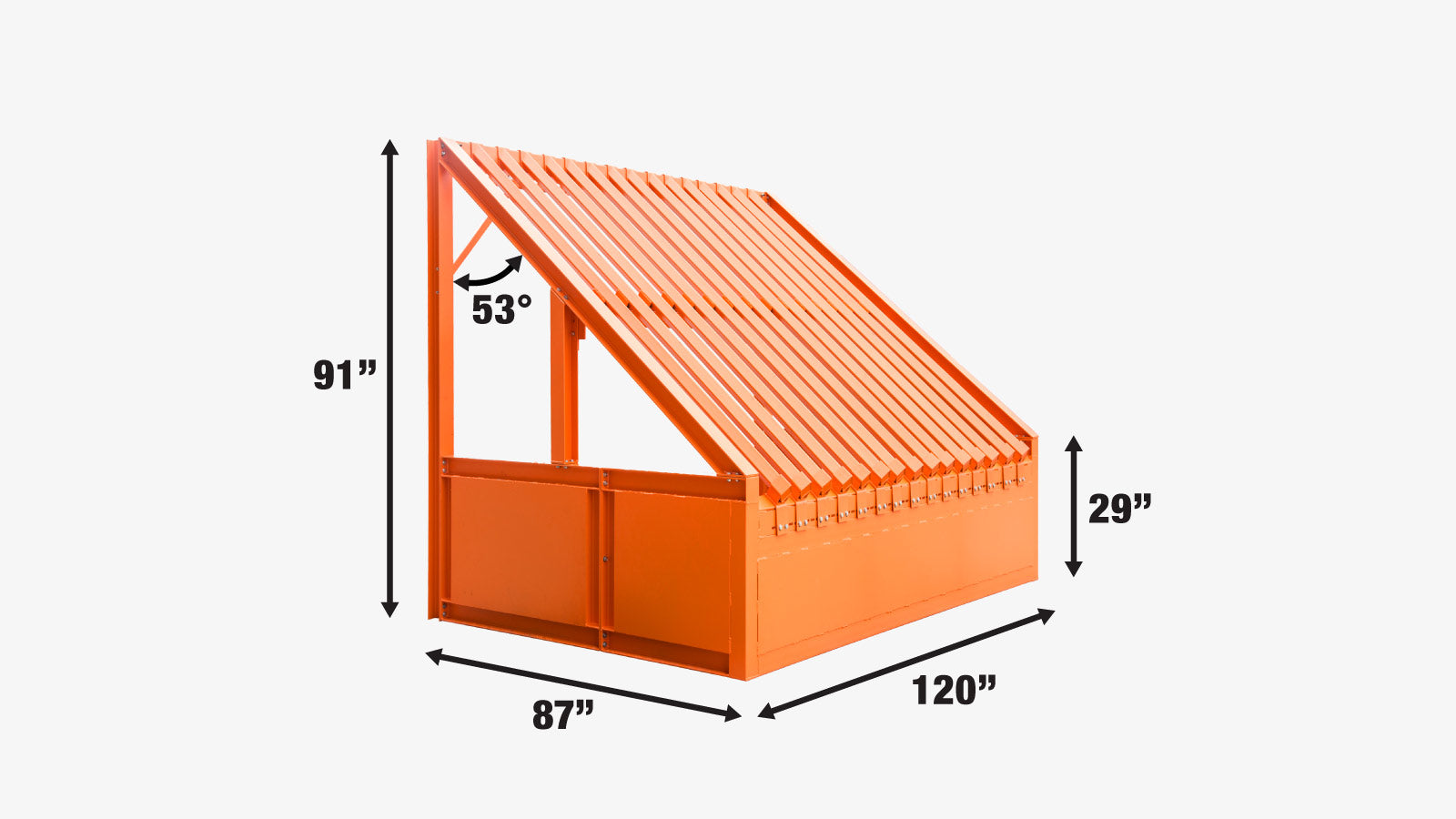

  • Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)
  • Average load capacity: 5000 lb
  • Primary frame:
    • 4” x 4” I-beam posts
    • 4” x 4” crossing square tubing
  • Sidewall and front wall steel plate: 10 GA
  • Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
  • Standard bar spacing: 3”
  • Standard bar quantity: 18 (3” spacing)
  • Minimum bar spacing: 1” (extra deck bars required)
  • Maximum bar quantity: 26 (1” spacing)
  • Maximum bar spacing capacity: 5”
  • First and the last deck bar opening: 2-¾”
  • Slope angle: 37°
  • Spare deck bars sold separately
  • Assembly required
10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10-specifications-image

Product Description

The TMG-RS10 Heavy-Duty Grizzly Static Rock Screen is designed for efficient material sorting in industries like mining, construction, aggregates, recycling, and landscaping. Featuring a robust 4"x4" I-beam frame and a powder-coated steel structure, this screen is built to last. The 10' x 7' loading area and 5000 lb load capacity are ideal for handling large, mixed loads. Adjustable bolt-on deck bars with 1" to 5" spacing provide versatility for different materials.

The diamond-shaped, self-cleaning deck bars reduce maintenance and ensure smooth material flow. The 37° slope allows debris to slide off efficiently, keeping your site clean. Quick to assemble and designed for heavy-duty use, the TMG-RS10 is perfect for pre-sorting oversized materials before crushing or further processing, saving time and improving productivity.

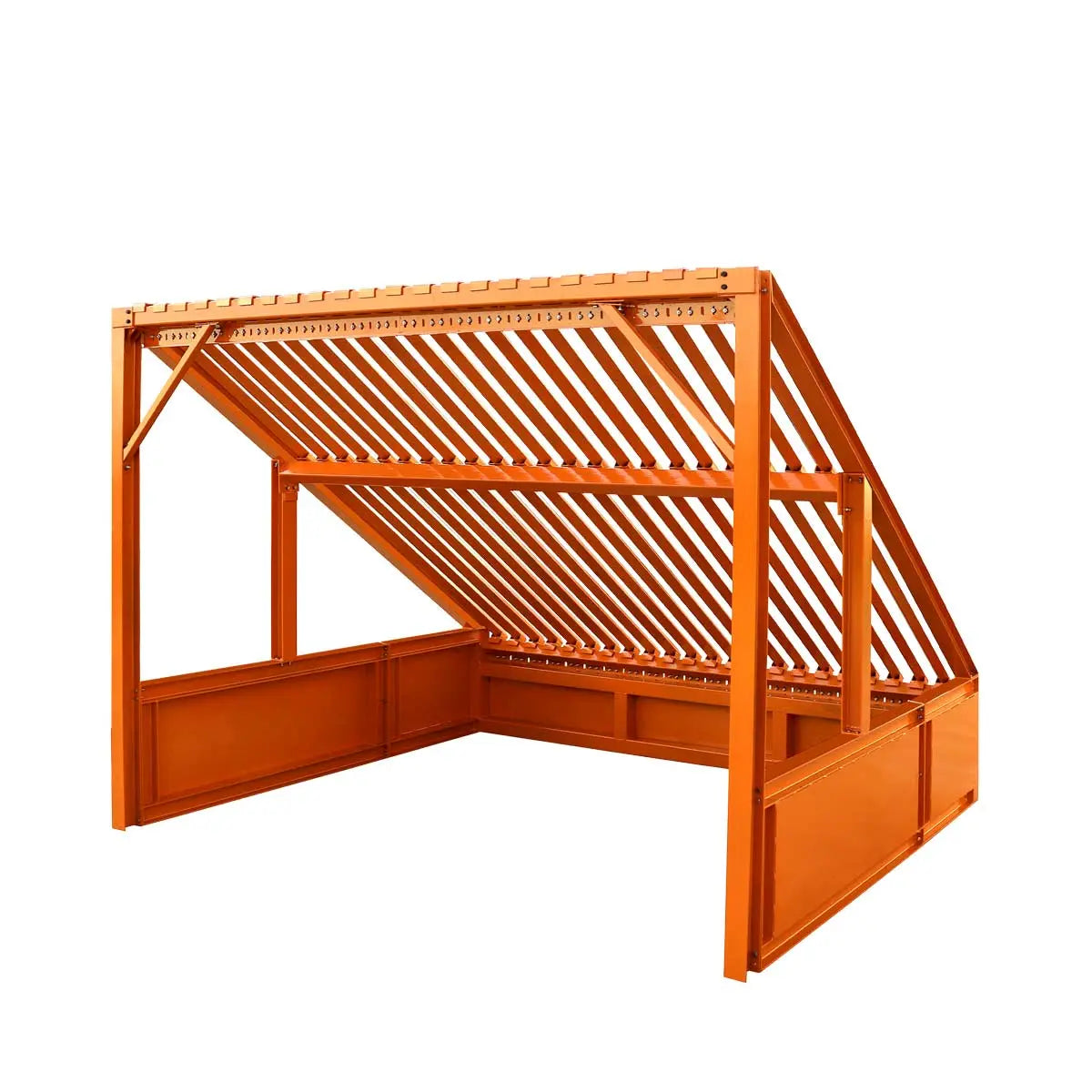

We also carry a larger model of this screen: TMG-RS12 Parts and accessories of this product are compatible with Stanforge SF-RS10.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

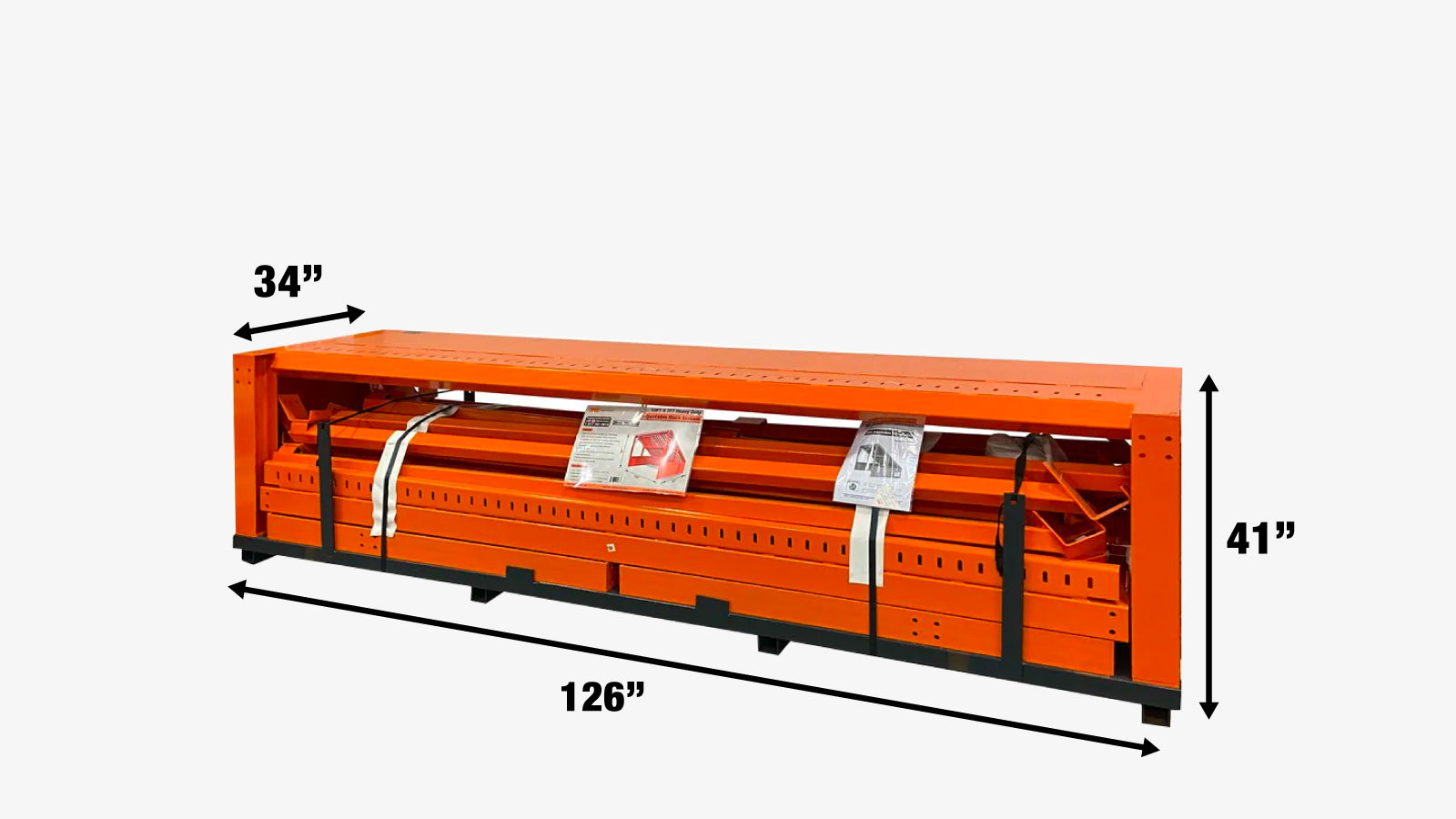

  • This product is packed in a metal shipping crate
  • Shipping dimension: 126” x 34” x 31” (L x W x H)
  • Shipping weight: 2345 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
