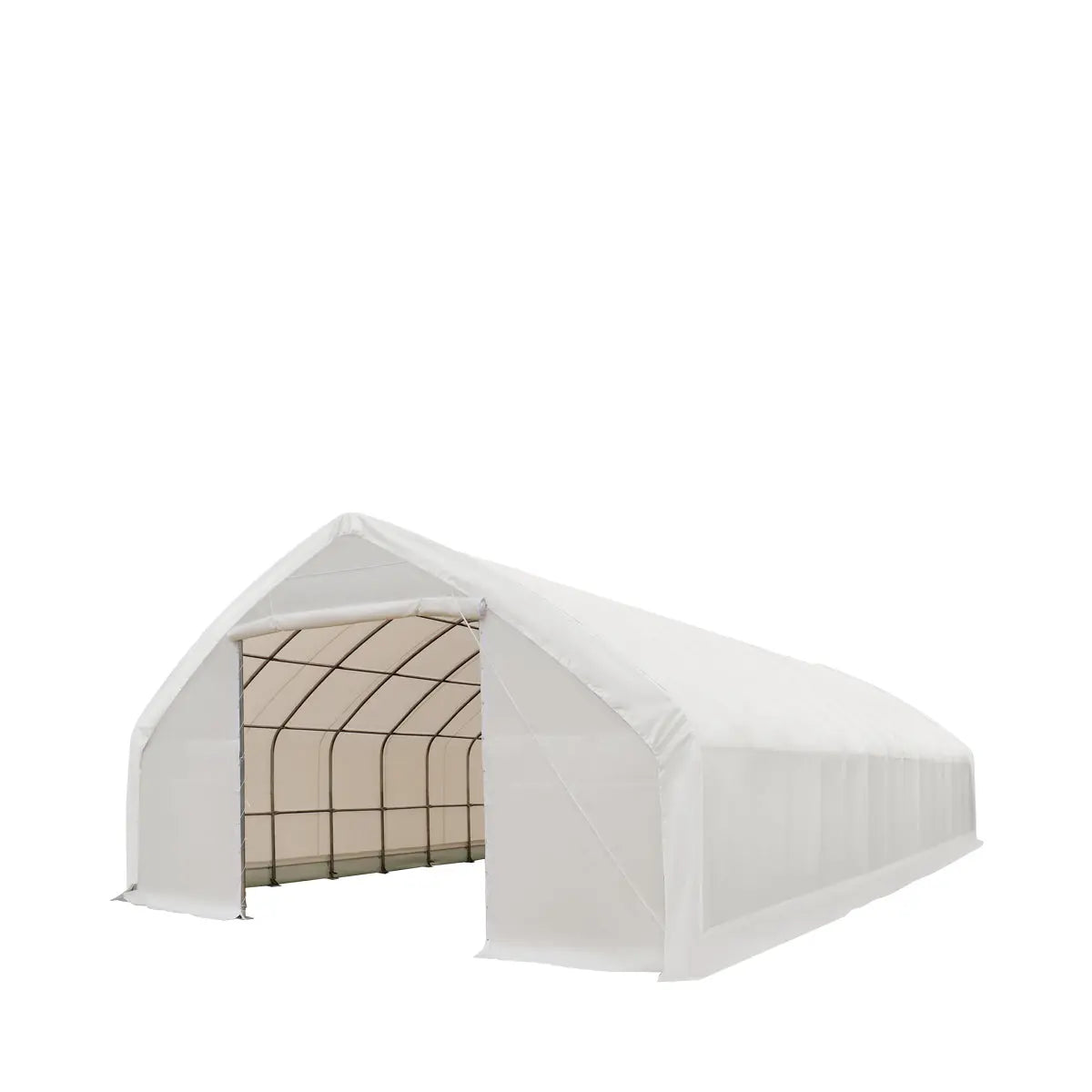

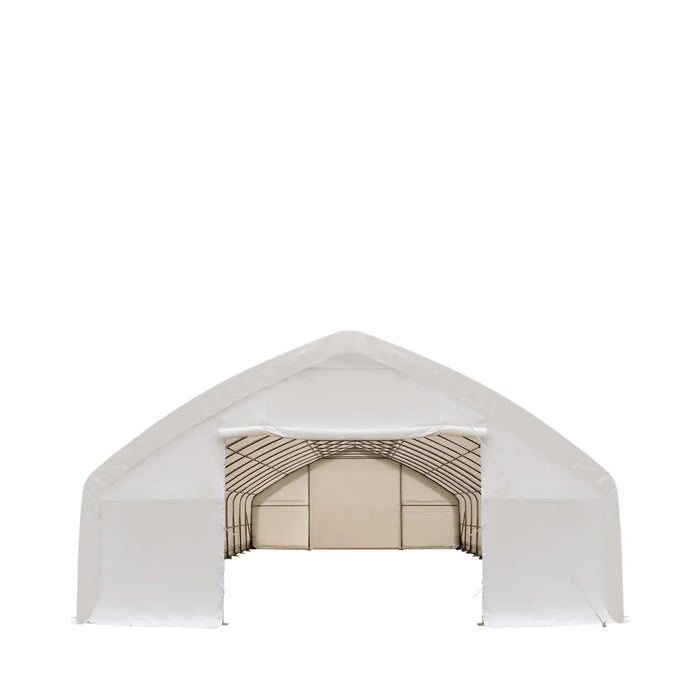

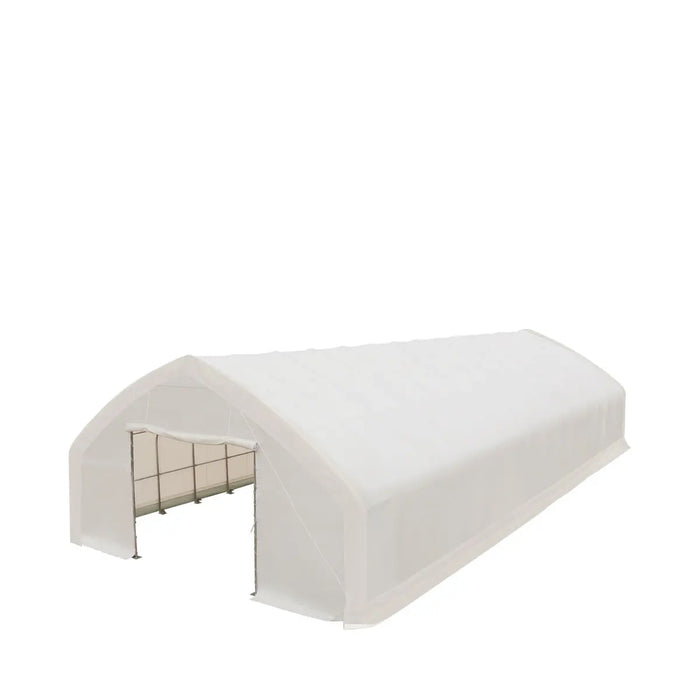

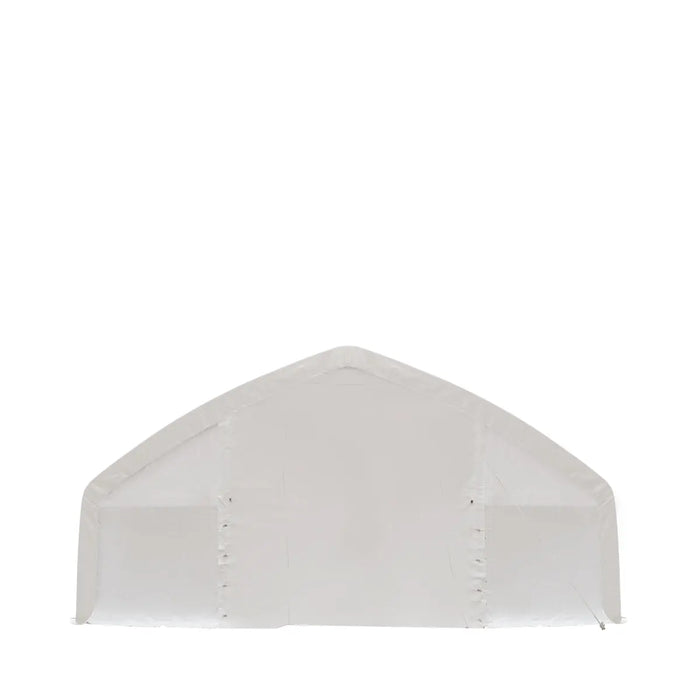

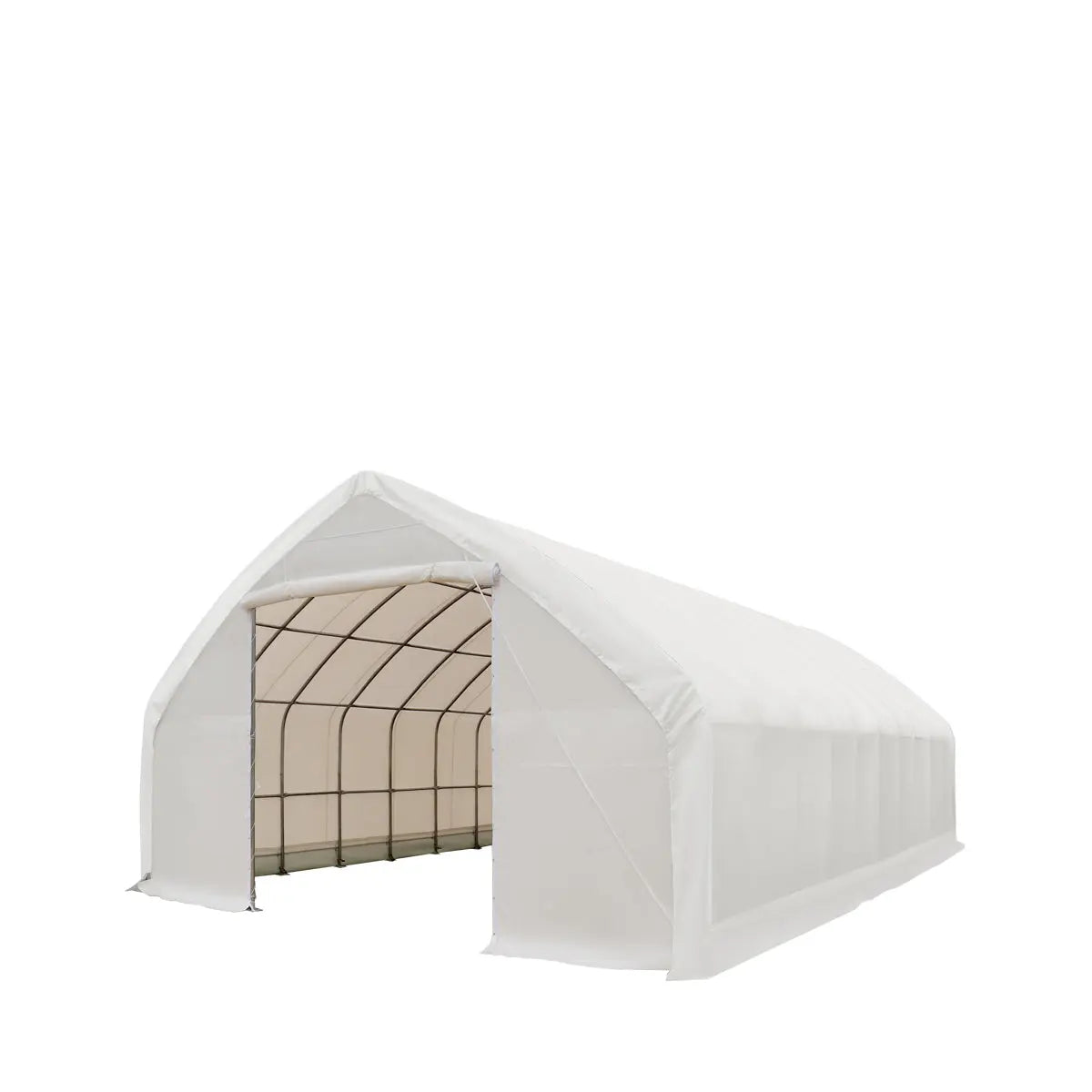

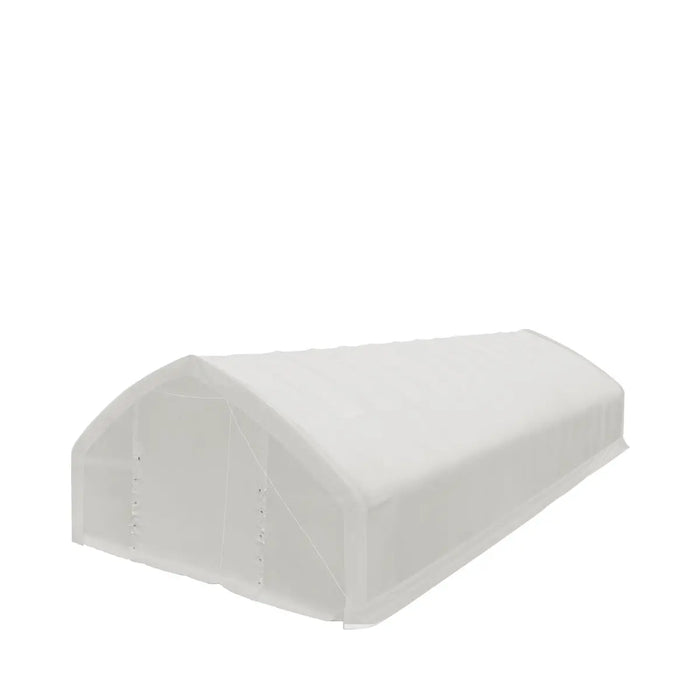

TMG-ST3070V 30' x 70' Straight Wall Storage Shelter Shed with Heavy-Duty 17oz PVC Fabric, Commercial Grade, Fire Retardant, UV, Water Resistant - Roll Up Door On Both Ends

Sold out

Restock ETA: Wed, Sep 22, 2021

Free shipping in USA
Need Help? Call Us at 1-877-761-2819
Product Description

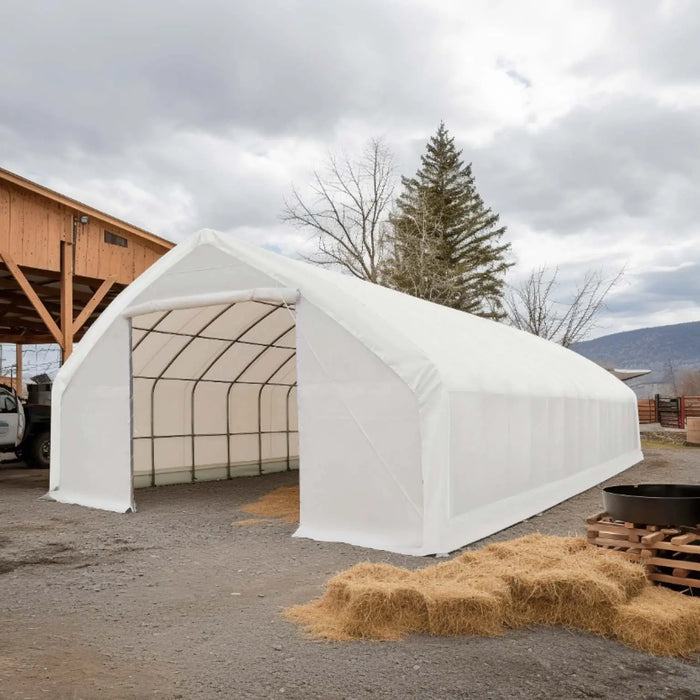

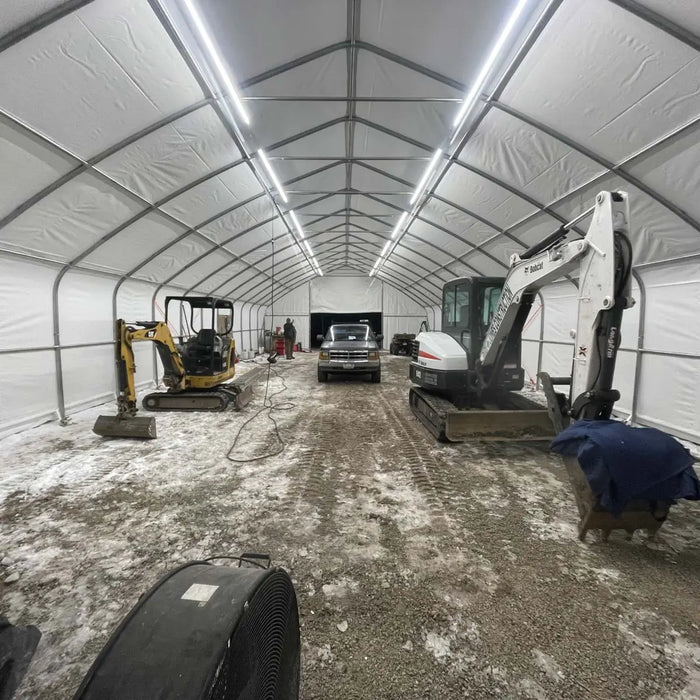

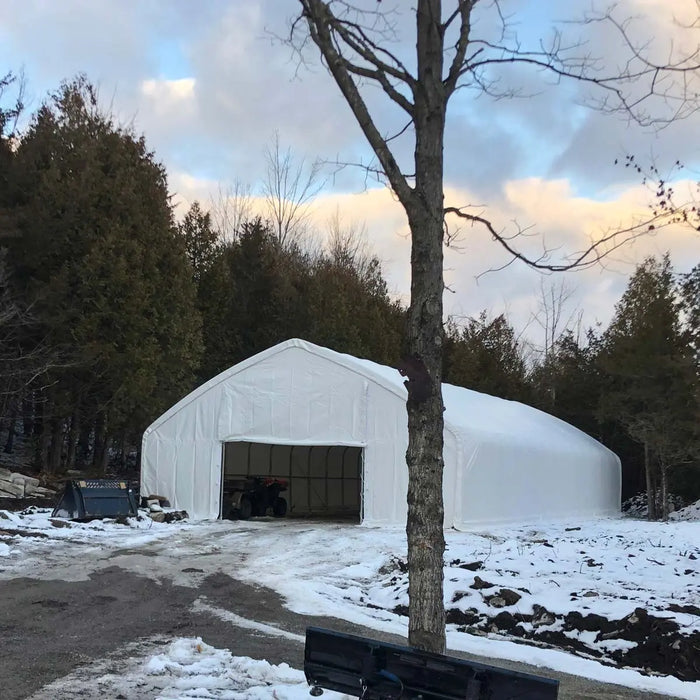

The TMG Industrial 30 x 70 Straight Wall Storage Shelter Shed with Heavy-Duty 17oz PVC Fabric is an upgraded version of the popular TMG Industrial 30 x 70 Straight Wall with PE fabric. The increased fabric thickness and upgraded material mean an extended cover lifetime. This shelter is perfect for a vehicle, boat, and machinery storage. It can be used to store hay, building materials or as a workshop. It is a great option for the shelter of tools, materials, and workers on job sites. This relatively easy to install shelter provided a quick and affordable alternative to all-metal buildings and wood barns.

This shelter is not engineered to handle snow and wind load, the engineering drawing is not available. If you live somewhere snow and harsh winters are a concern, please select our DUAL TRUSS SERIES shelters.

We offer customer service and parts headquartered in Richmond BC, and are proud to provide Free Shipping for purchase of this product to most locations in Canada and the USA lower 48 states.

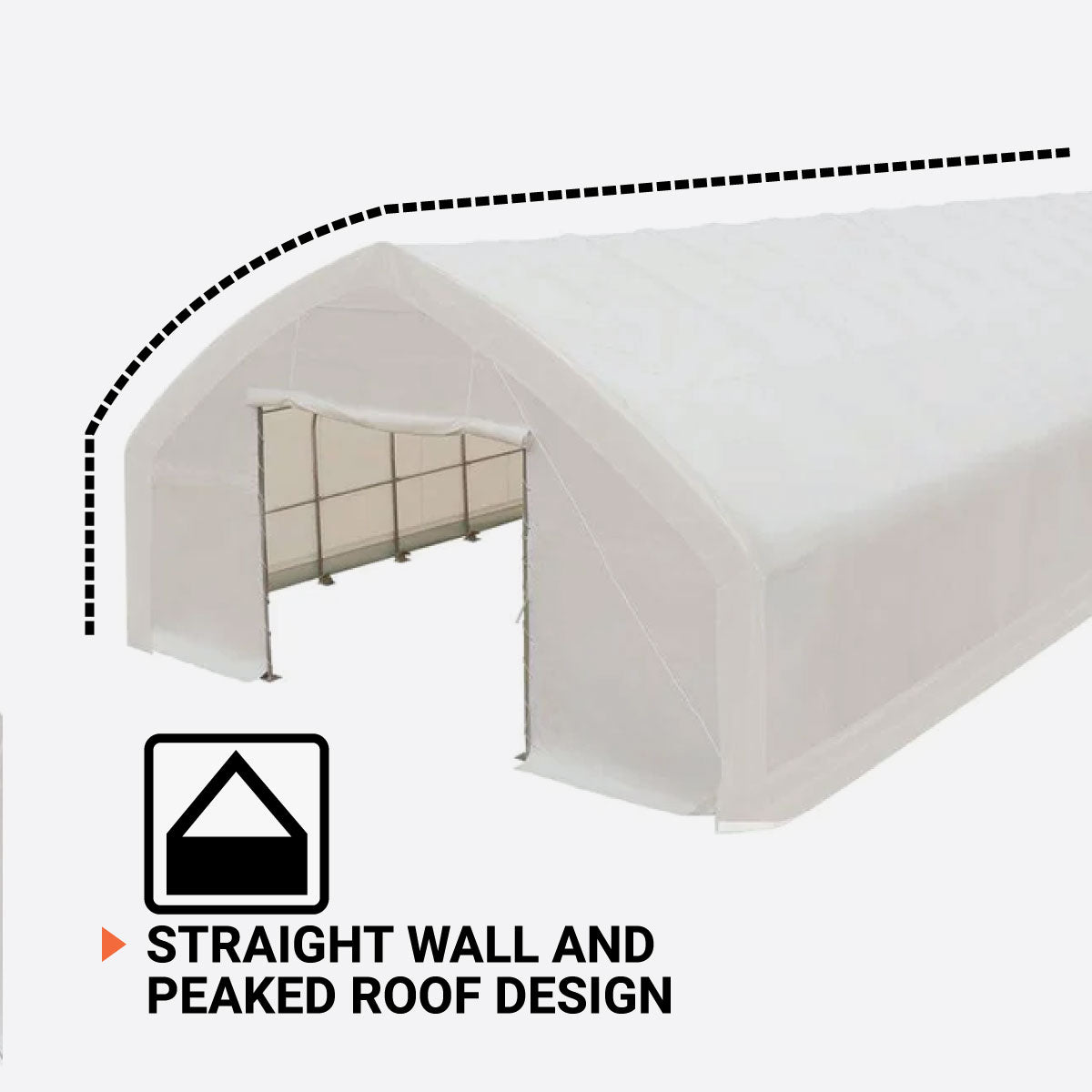

  • Straight wall gable roof design offers ample room along both sides for more storage space

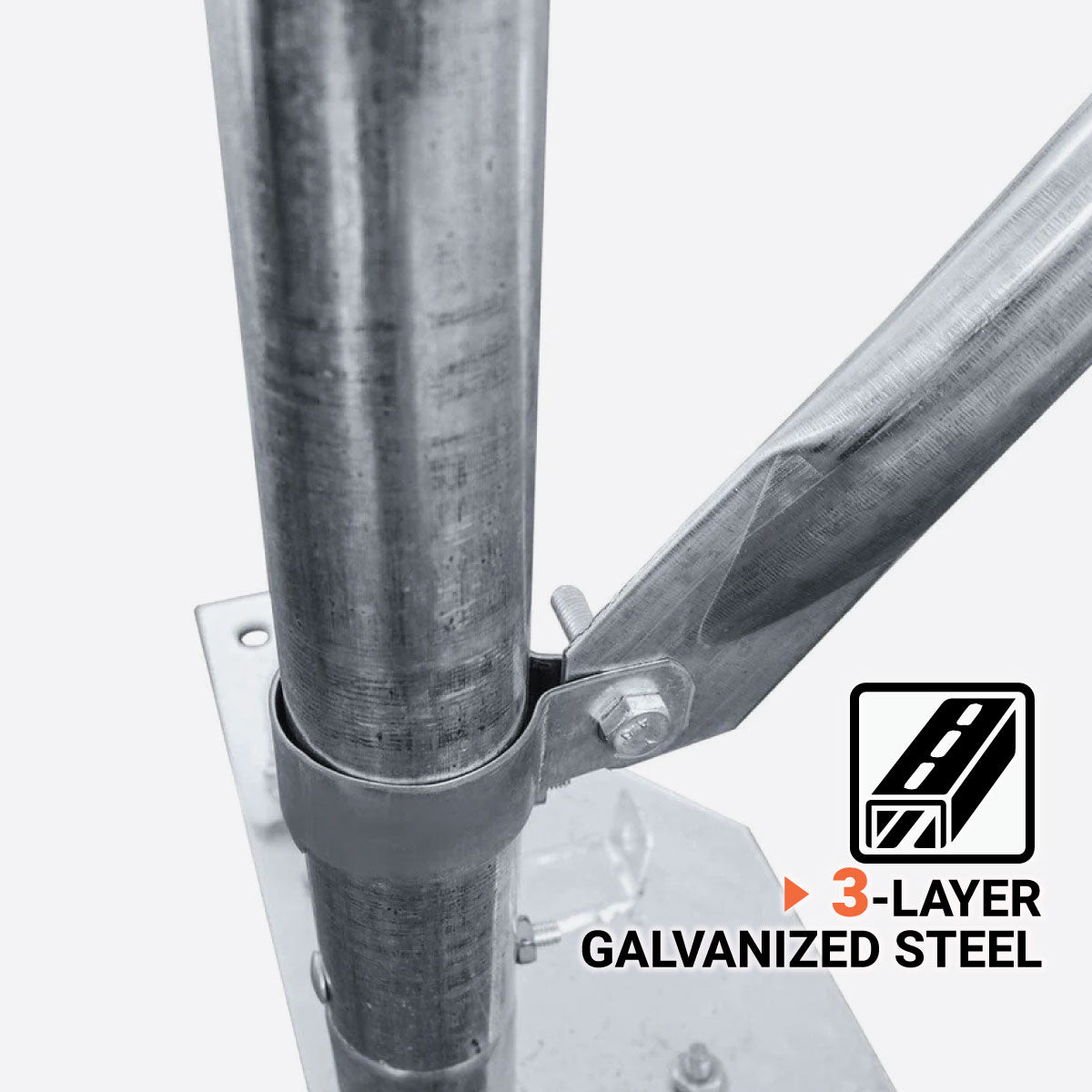

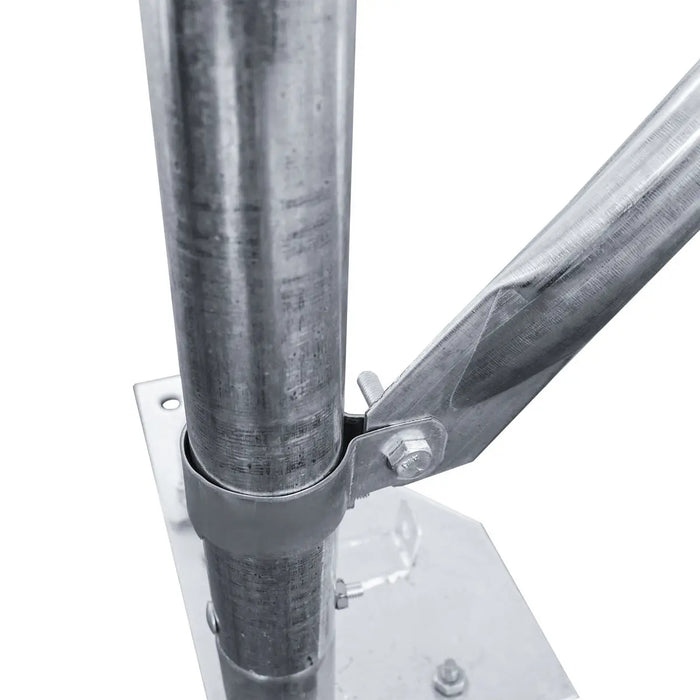

  • Commercial grade 3-layer galvanized steel frame structure

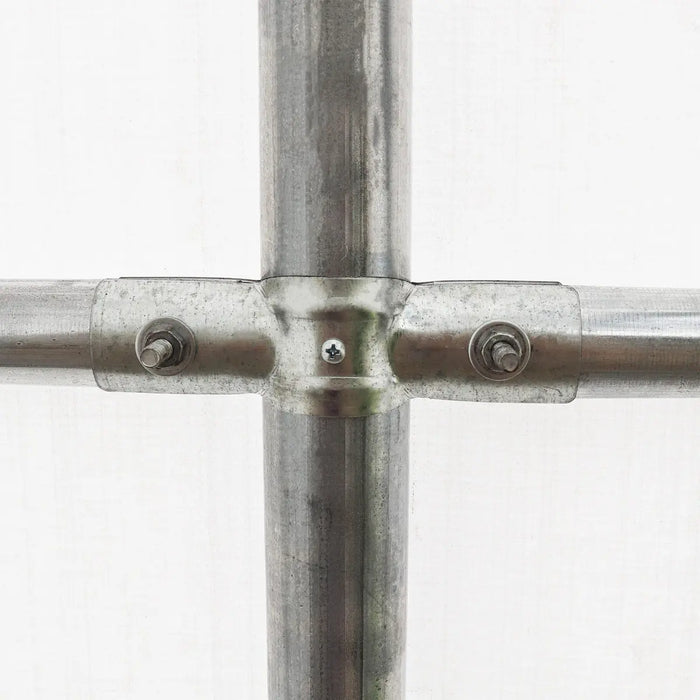

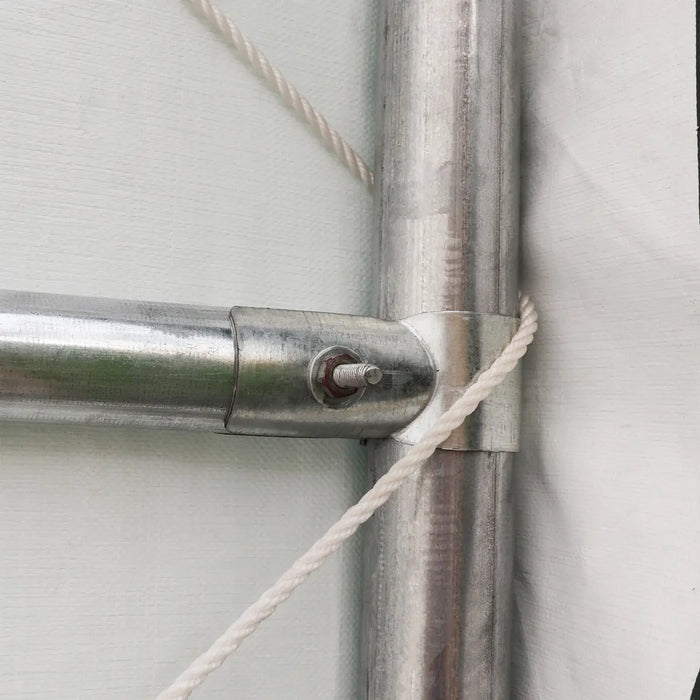

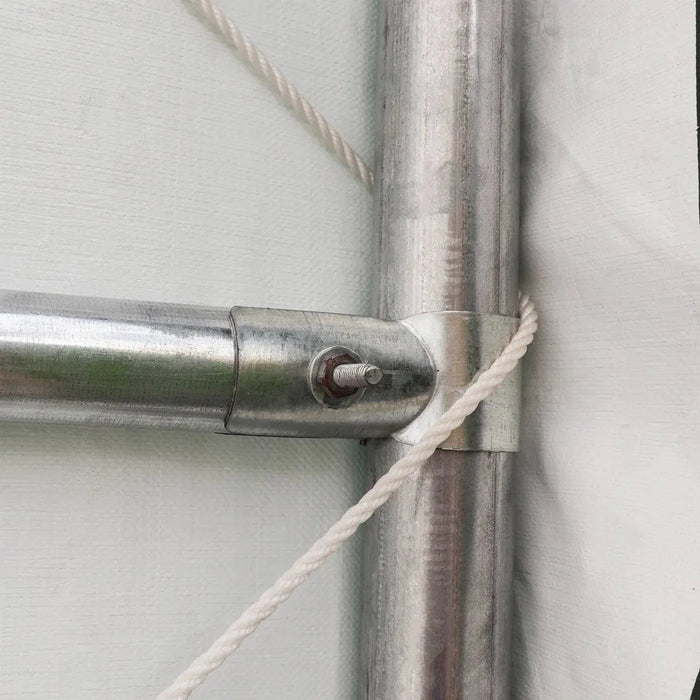

  • Additional purlins and collar beams added to increase stability

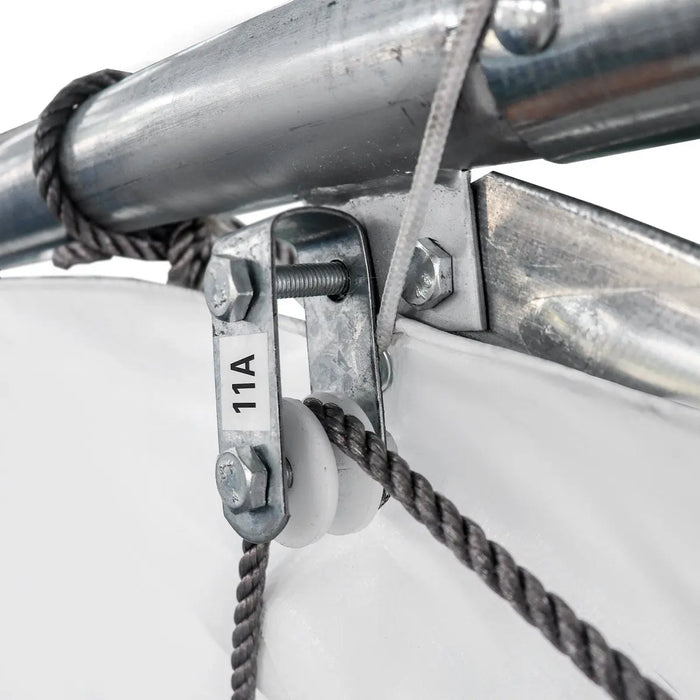

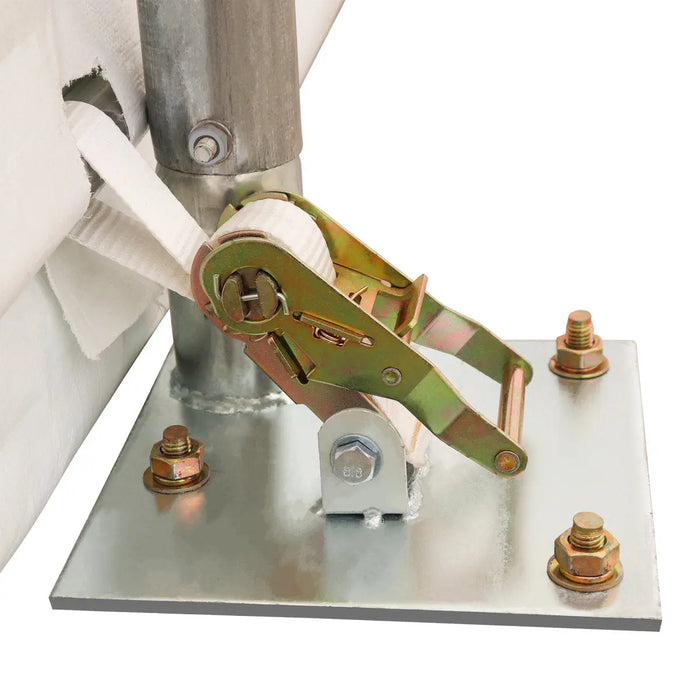

  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds

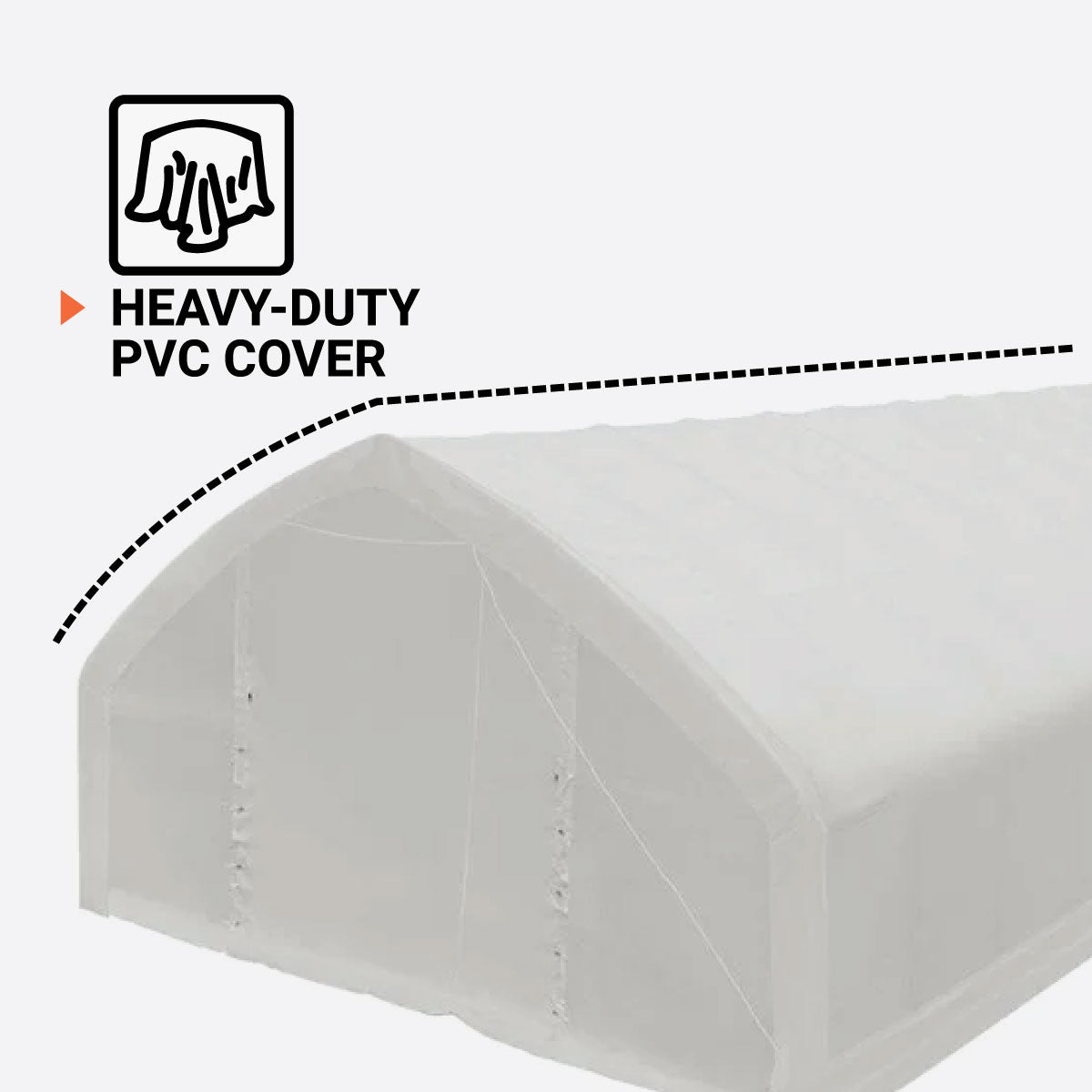

  • Commercial grade triple-layer ripstop polyvinyl chloride (PVC) cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
    • Fabric color: all white

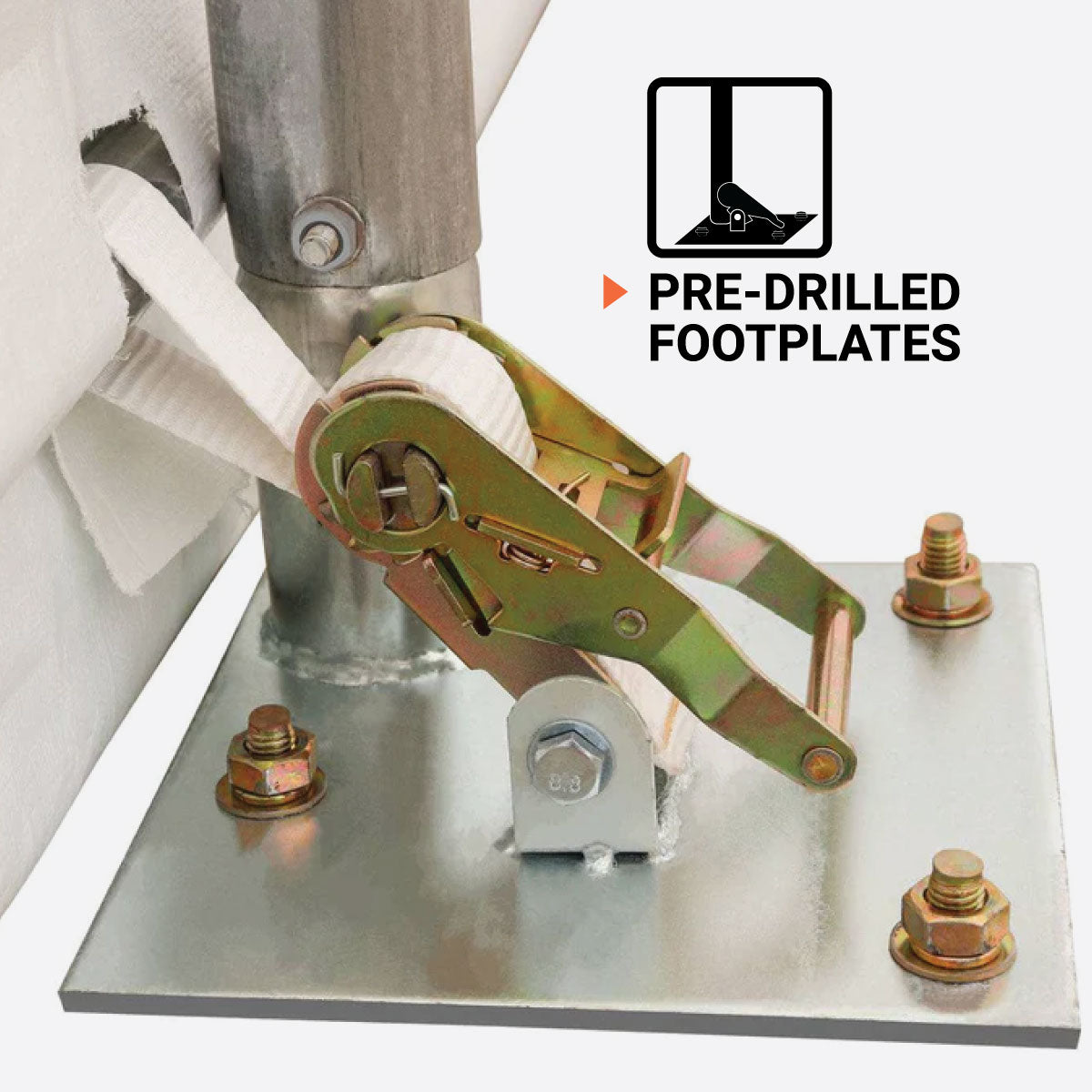

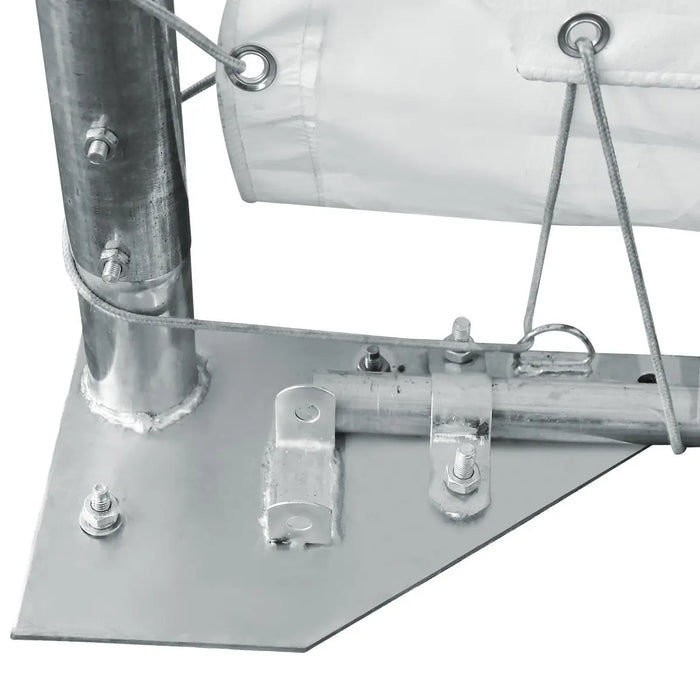

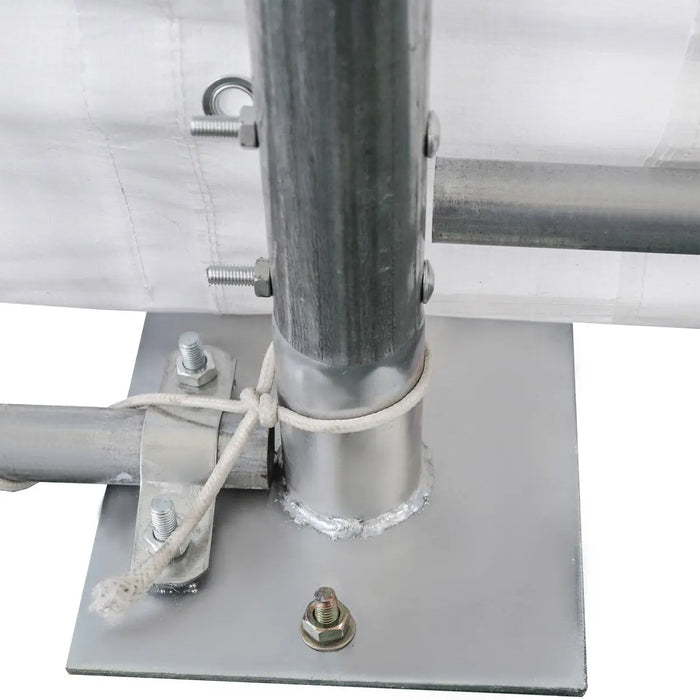

  • Footplates with pre-drilled hole (anchor bolts not included)

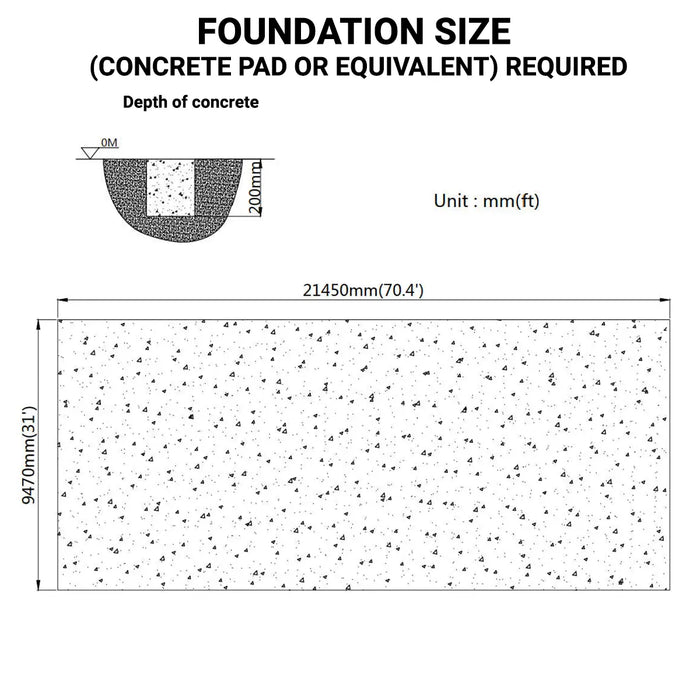

  • Foundation required: concrete, gravel, solid ground

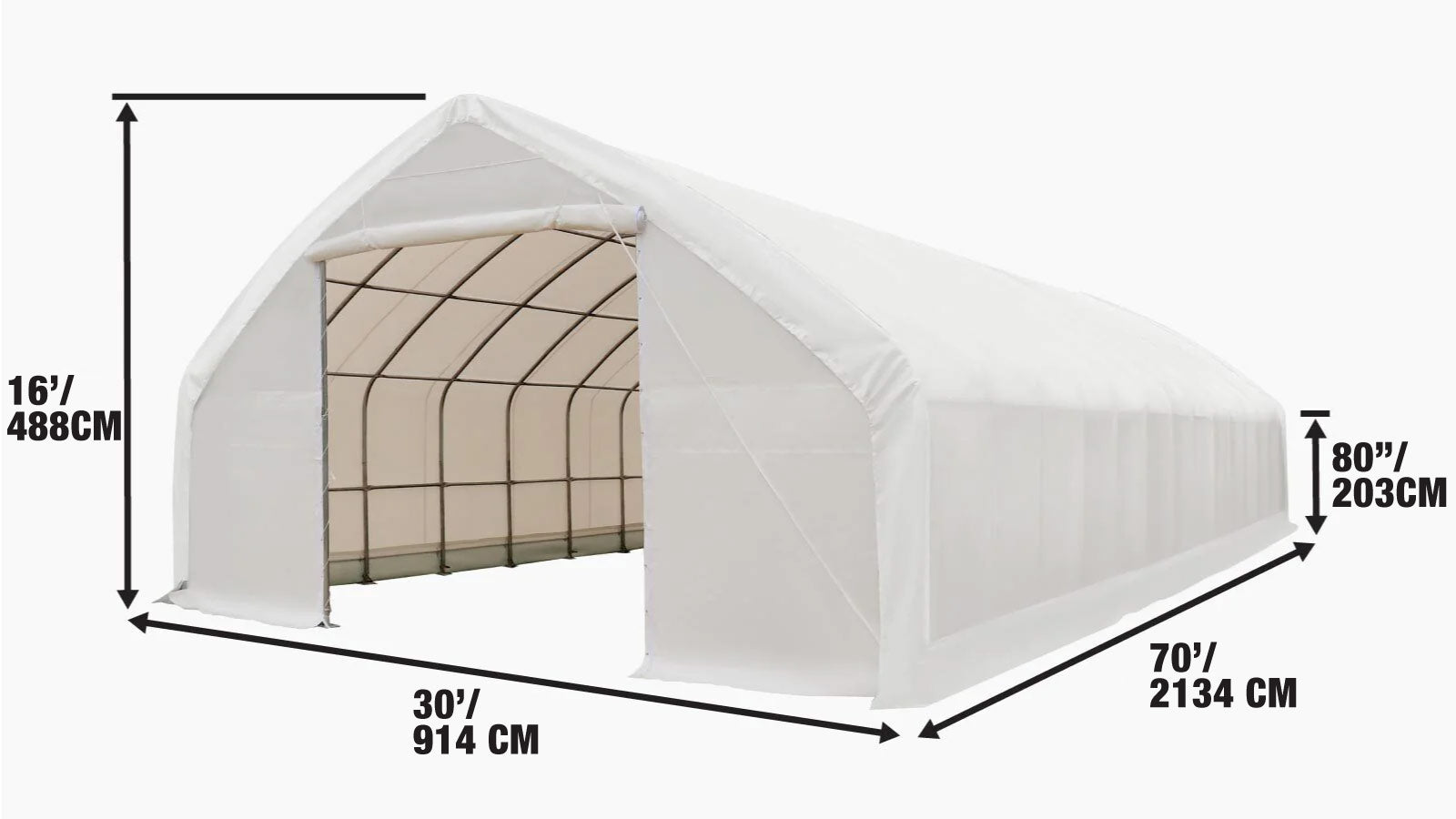

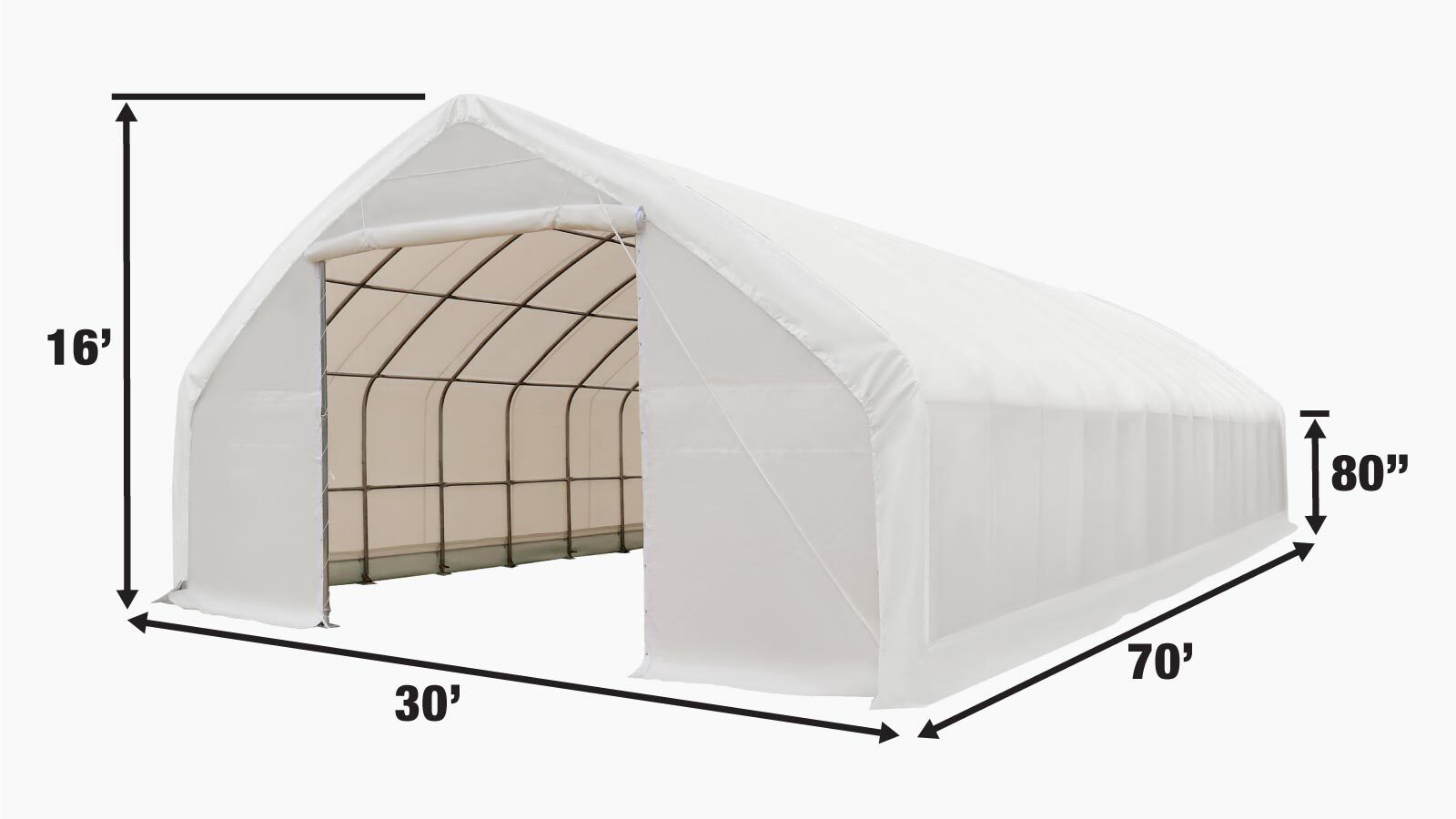

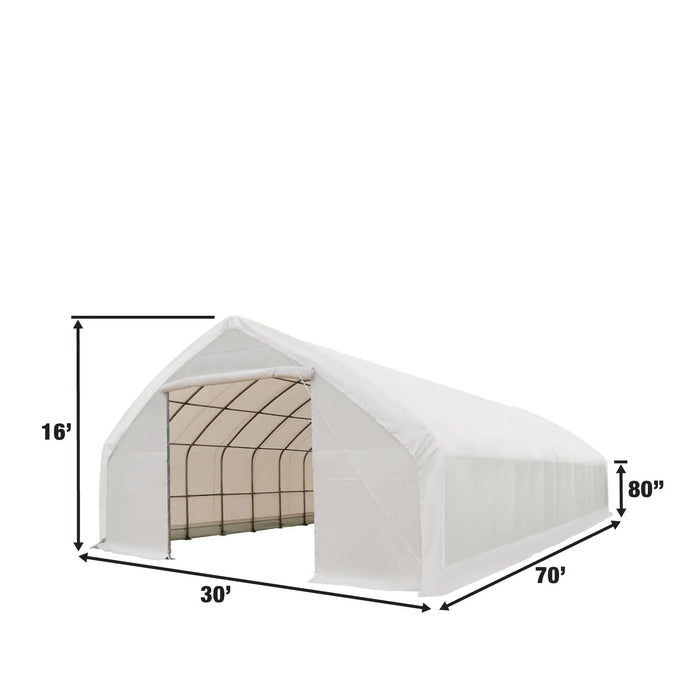

  • Exact floor footprint: 30’ (W) x 68.9’ (L)
  • Truss spacing: 59’’
  • Truss quantity: 15 groups
  • Peak ceiling height: 16'
  • Side-wall height: 80’’
  • Truss tubes:   ⌀2.3” – 15 gauge (approx.)
  • Purlin tubes:   ⌀1.65” – 17 gauge (approx.)
  • Purlins on rafter: 140 of 14 rows

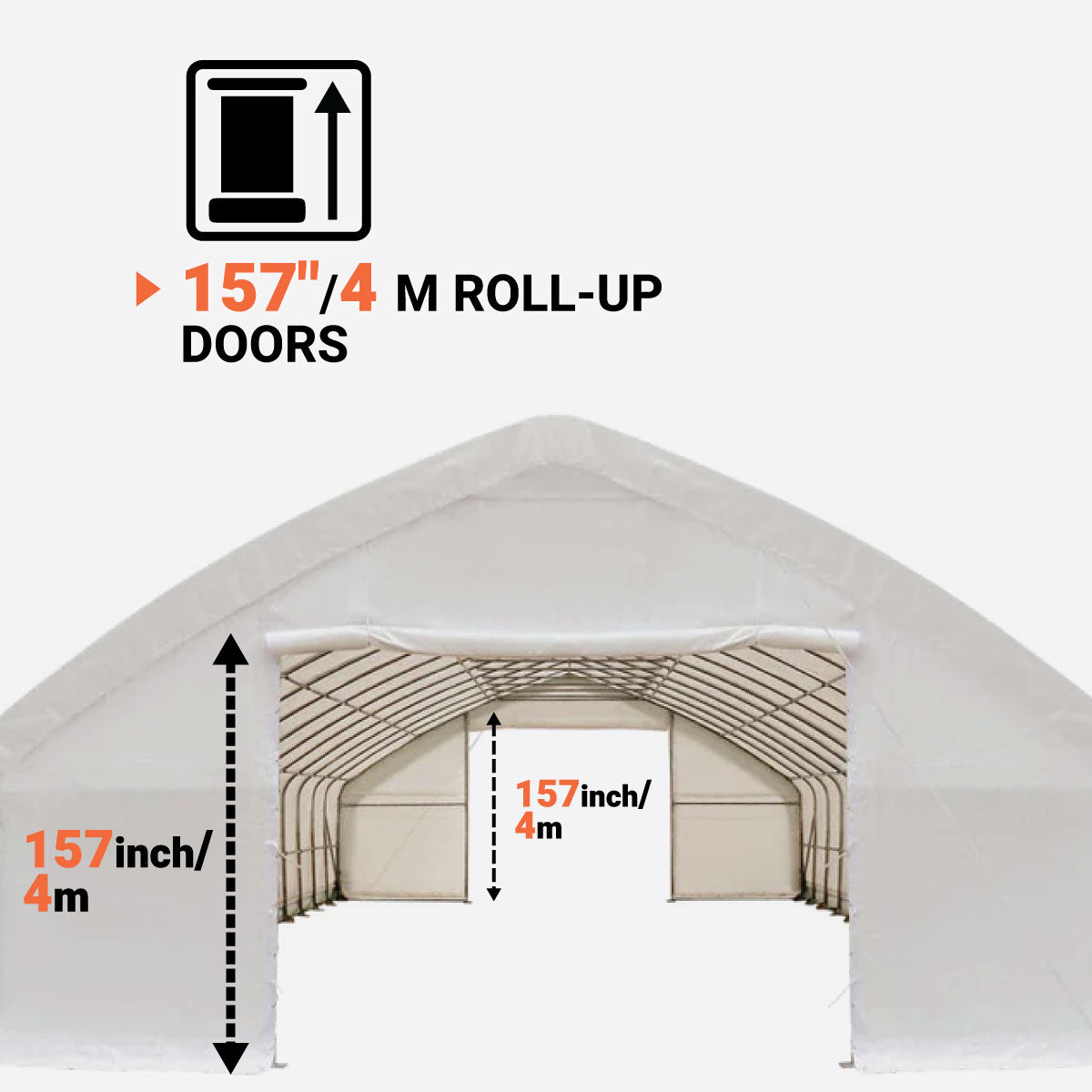

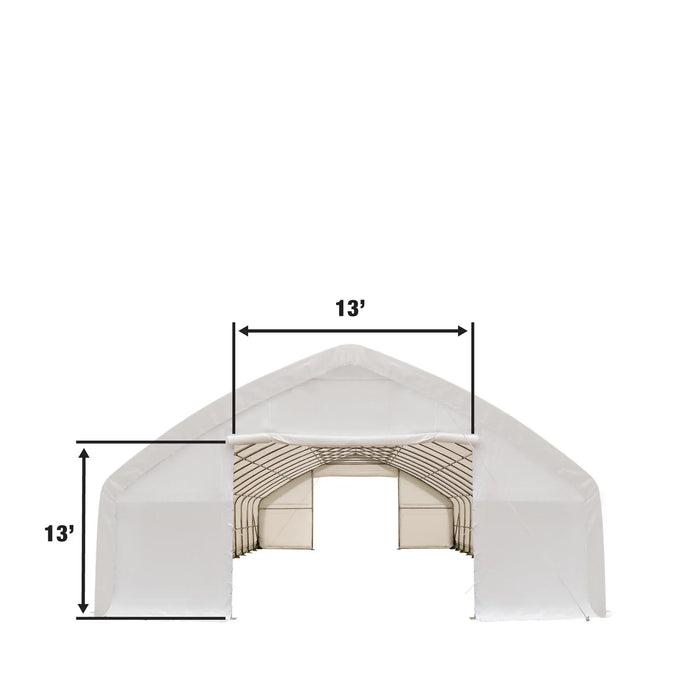

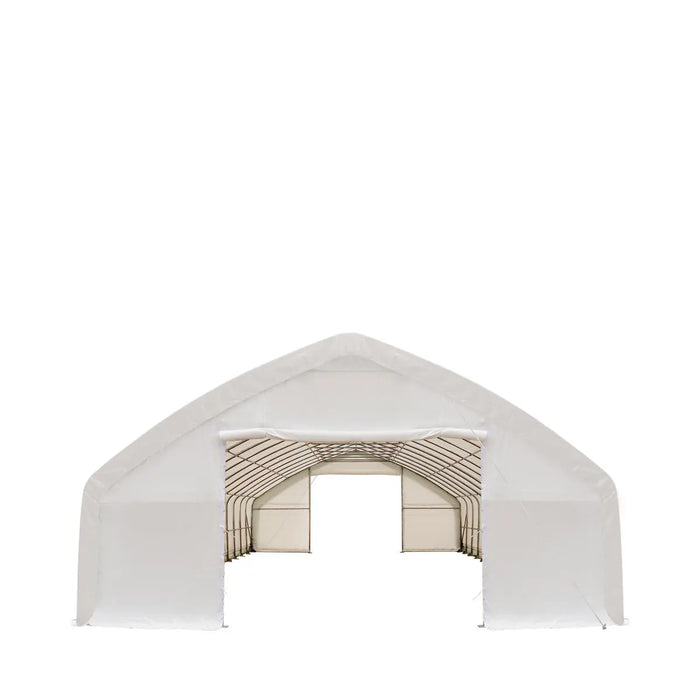

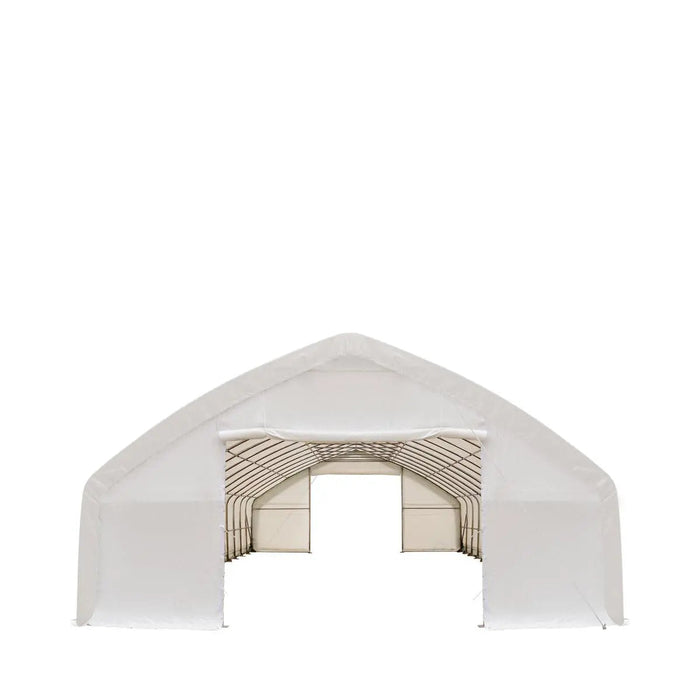

  • Door clearance: 13’(W) x 13’(H)

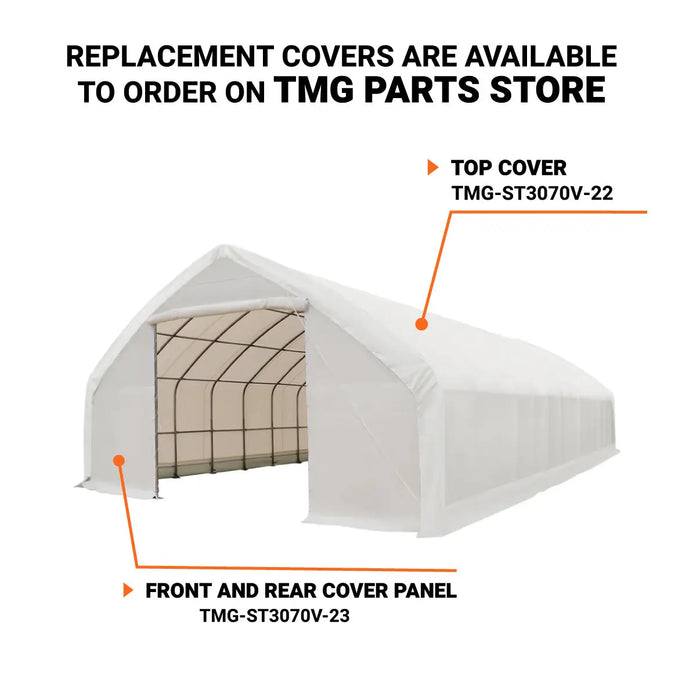

  • Cover material: 17oz PVC

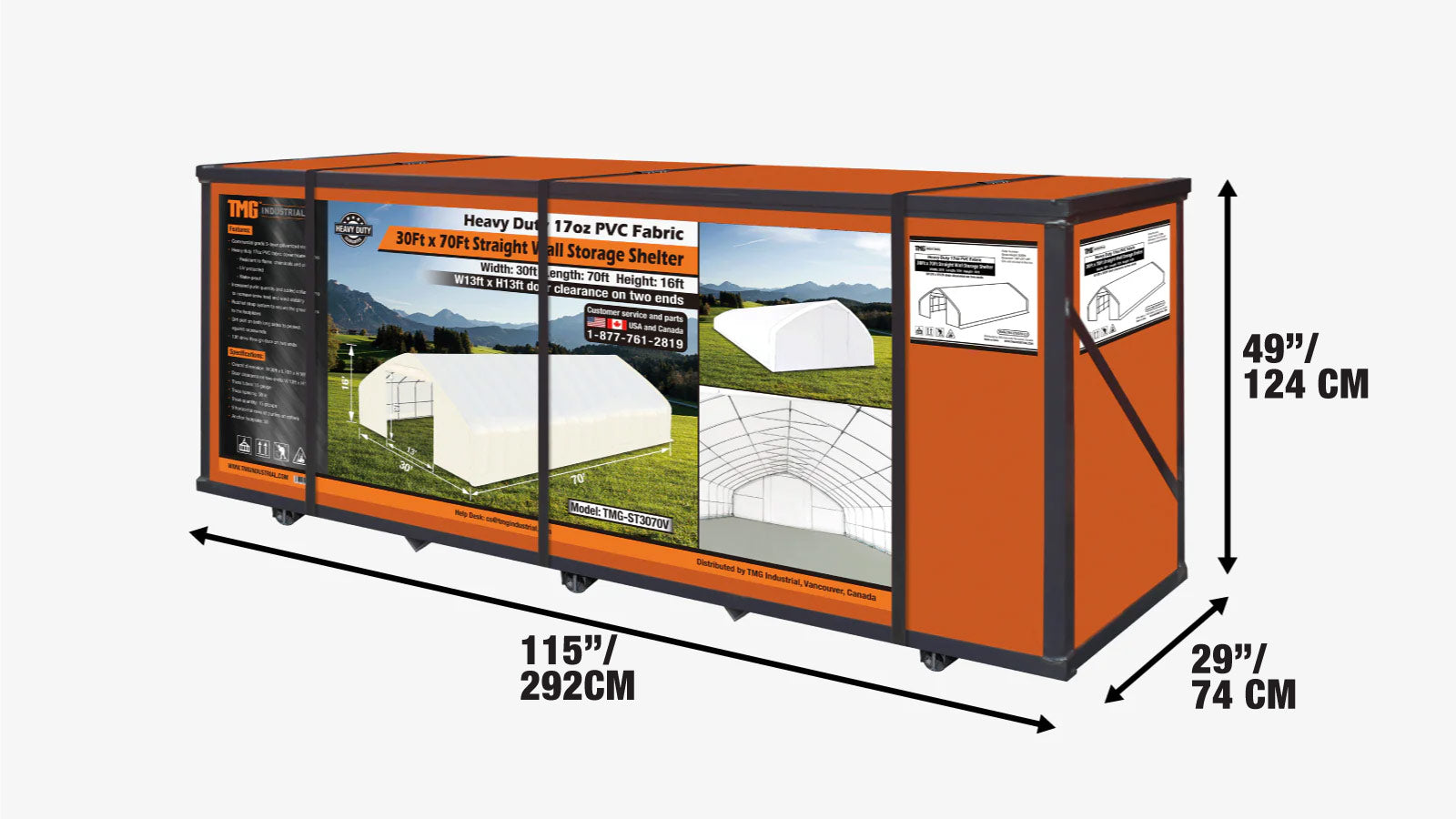

    • Packed in one metal crate shipping box
    • Shipping dimension: 130'' x 30'' x 48''
    • Shipping weight: 3050 lb

    ***Forklift or equivalent required to take delivery***
