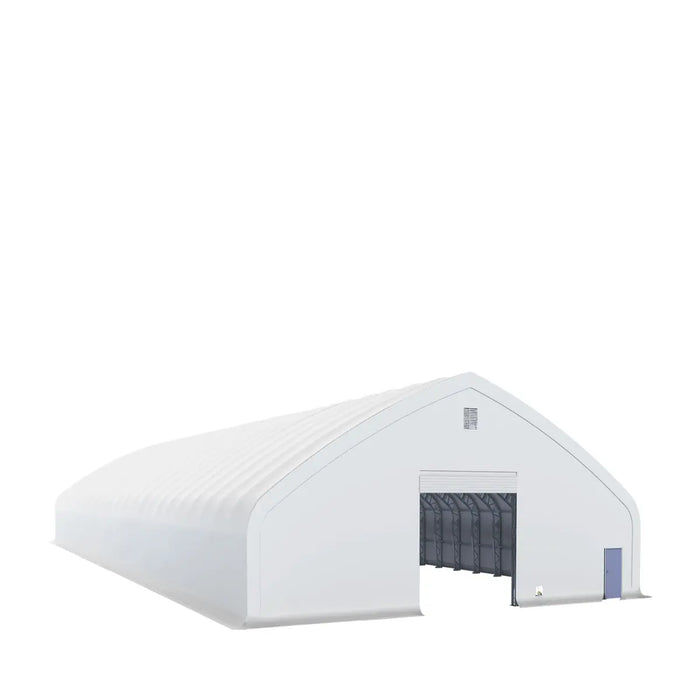

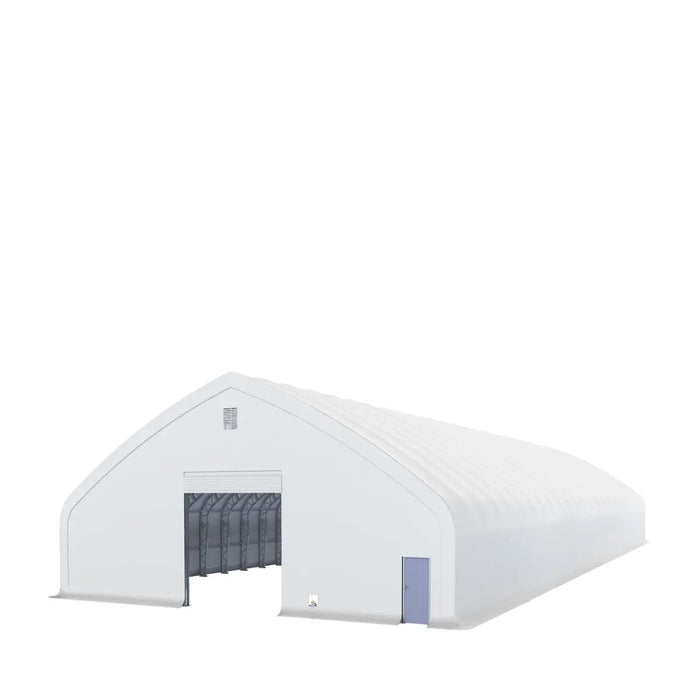

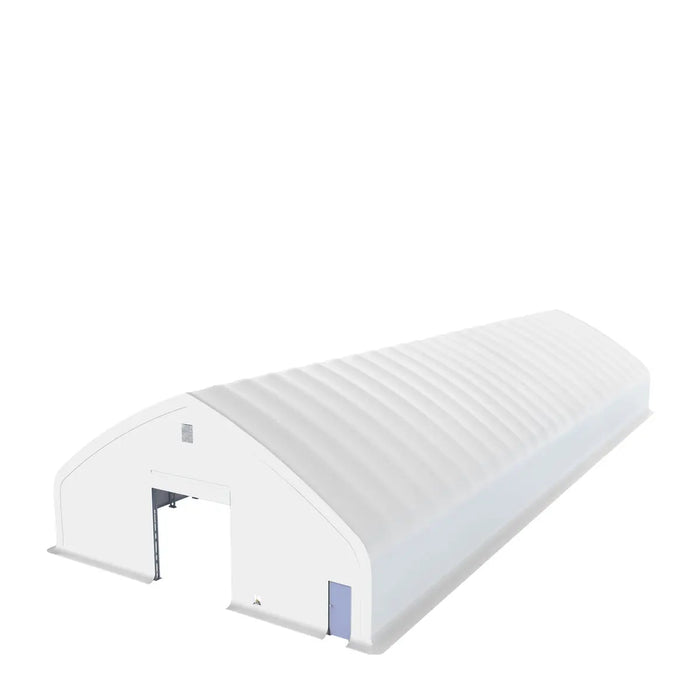

TMG-DT70150 Pro Series 70 X 150 Ft Dual Truss Storage Shelter with Heavy Duty 32oz PVC Cover
SKU TMG-DT70150-PRO

TMG-DT70150 Pro Series 70 X 150 Ft Dual Truss Storage Shelter with Heavy Duty 32oz PVC Cover

$145,500.00 - $145,500.00
$145,500.00
$145,500.00 - $145,500.00
$145,500.00
CURRENTLY OUT OF STOCK
FREE SHIPPING IN USA* Learn More
36000.0 lb
More Shipping Info
1-877-761-2819
cs@tmgindustrial.com
  • Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment and more

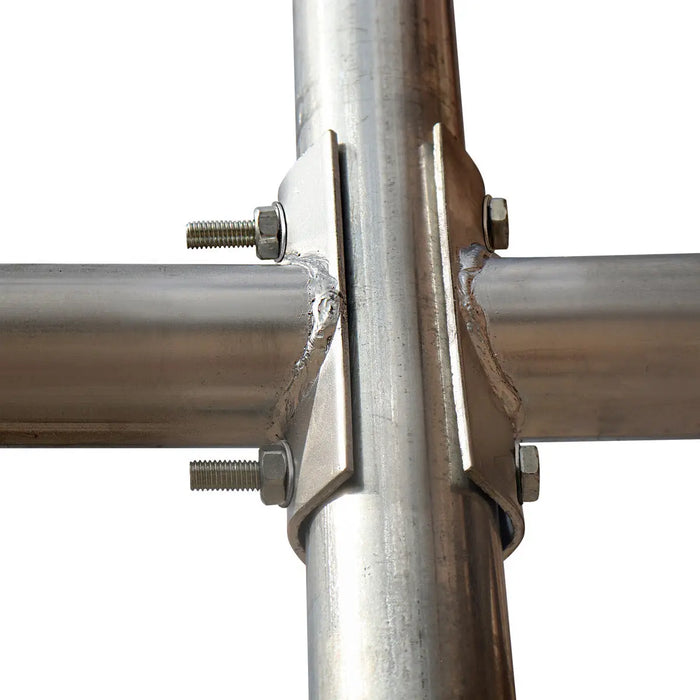

  • U-shape steel channel connection on all trusses to increase stability

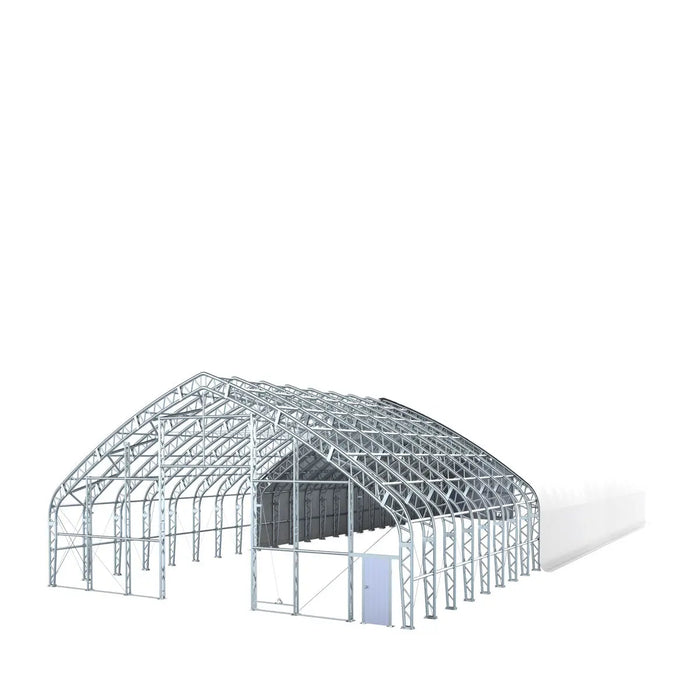

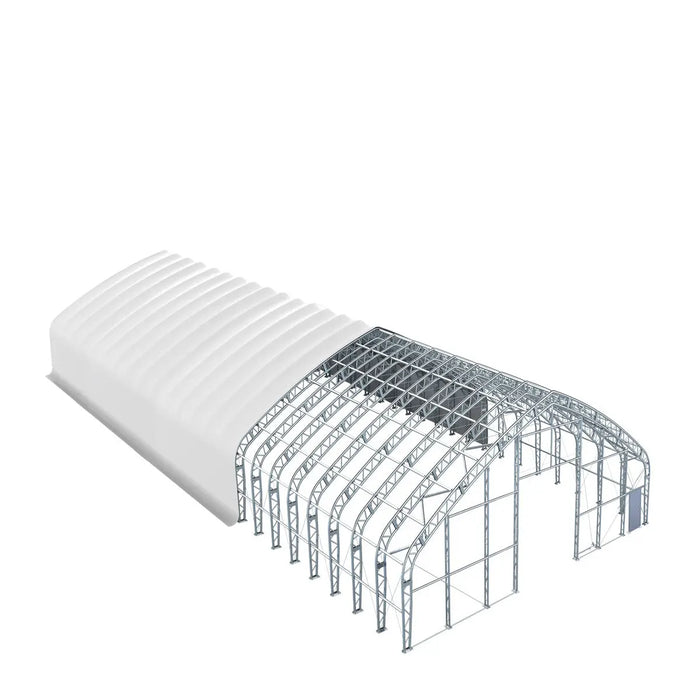

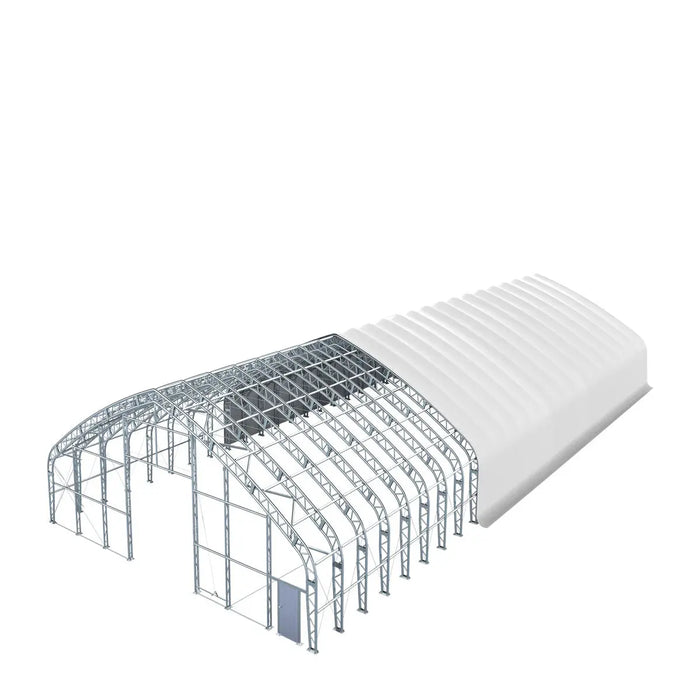

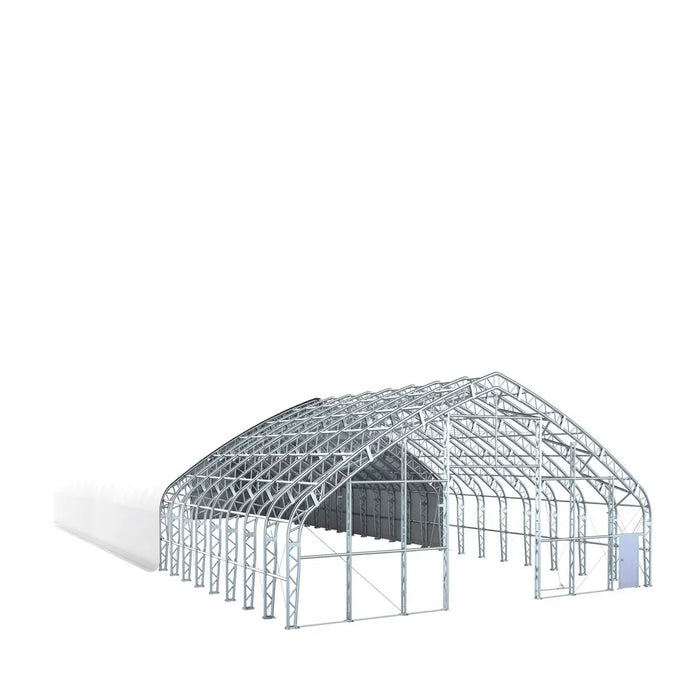

  • Heavy-duty galvanized steel tubes on all trusses and purlins
  • Mechanical winch style roll-up doors on both ends
  • Steel sandwich man door on both ends for entry convenience
  • Air vents on both ends

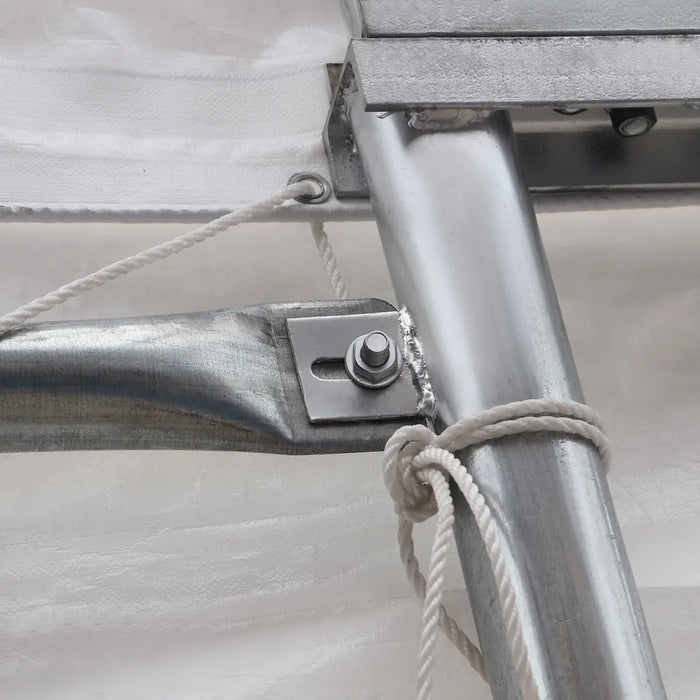

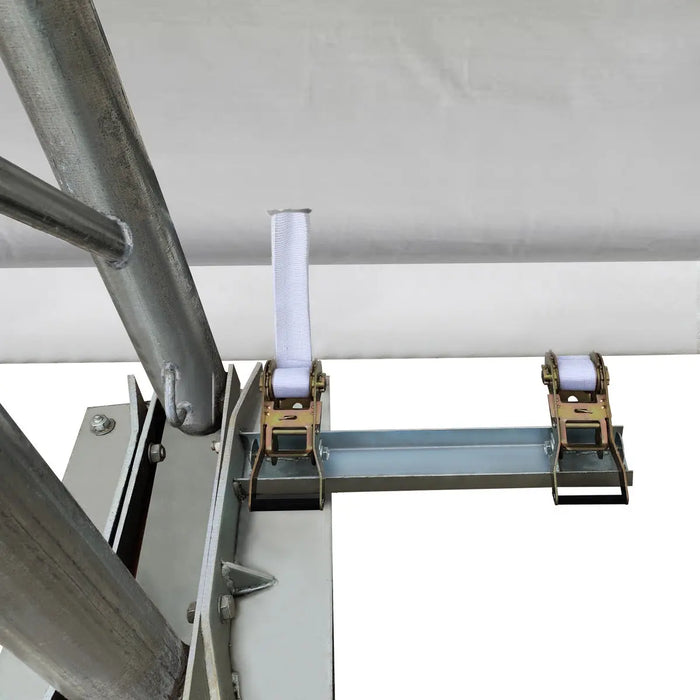

  • A combination of steel tube and cable quad tension system to reinforce stability
  • Heavy-duty base plates with pre-drilled holes
  • Commercial grade PVC fabric stands strong against tearing, leaking and chemical corrosion
  • Fire retardant, UV protection and water-proof
More Information
Features Specs Shipping Info Description Warranty Reviews

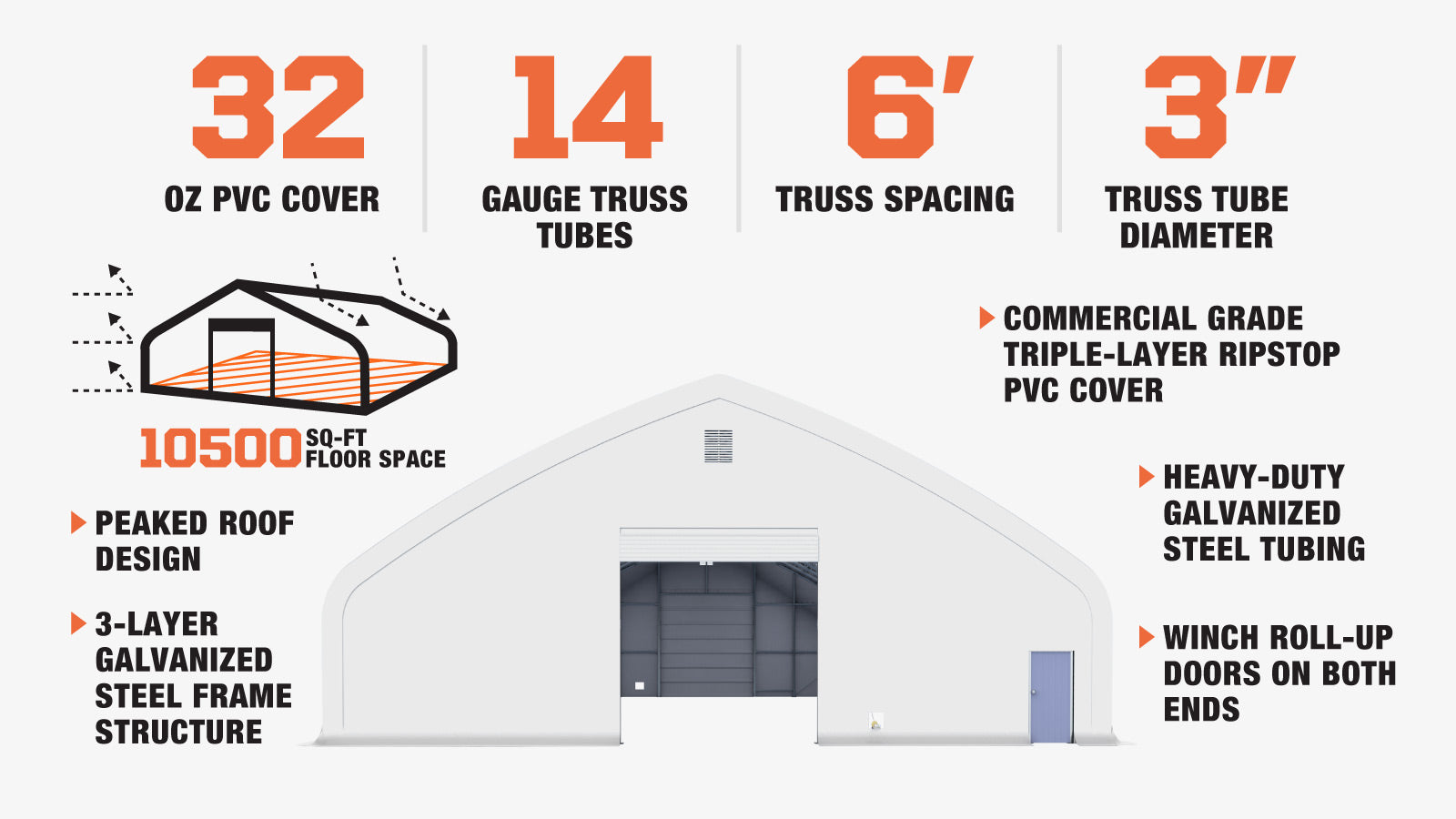

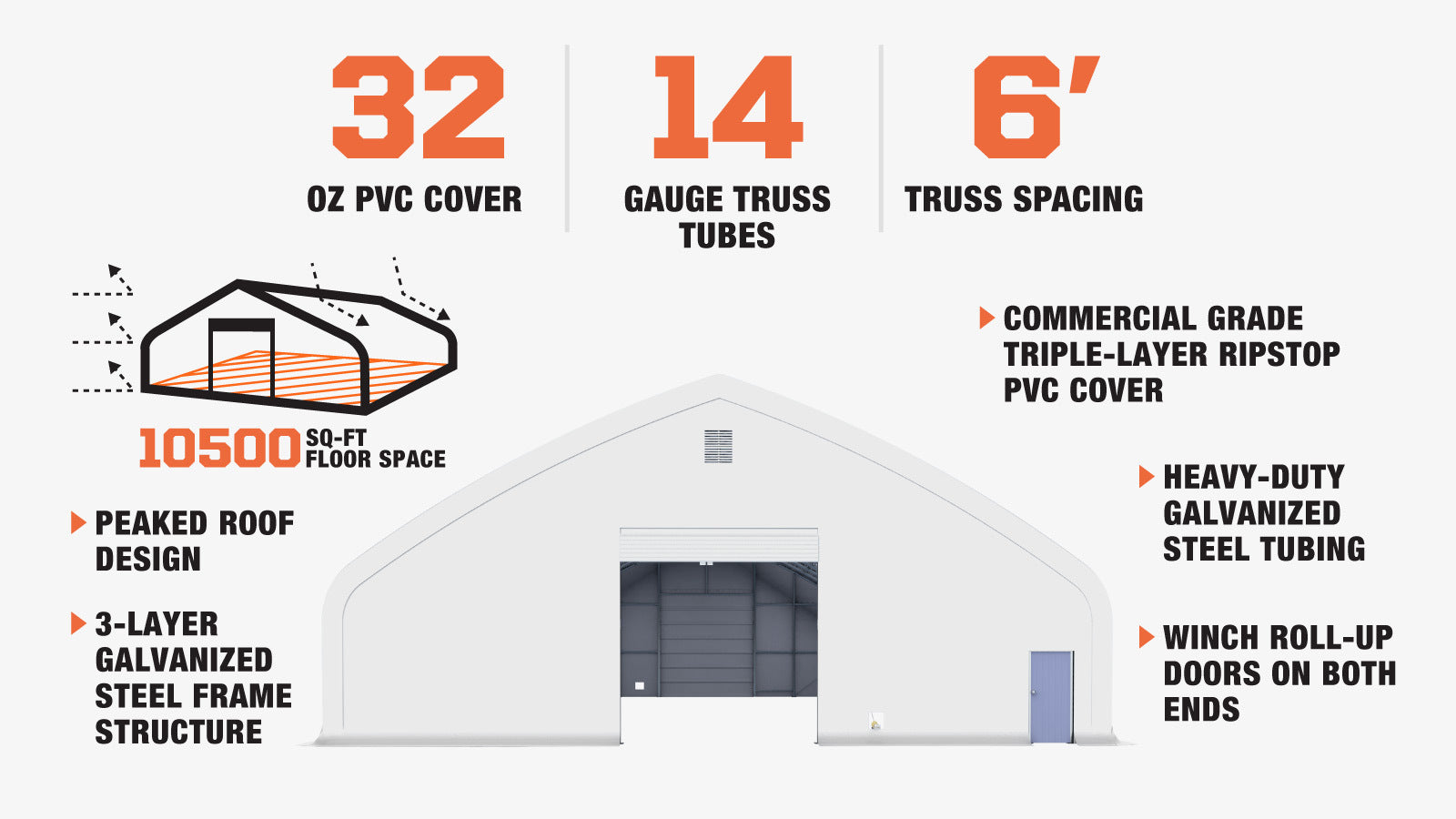

Features

  • Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment and more

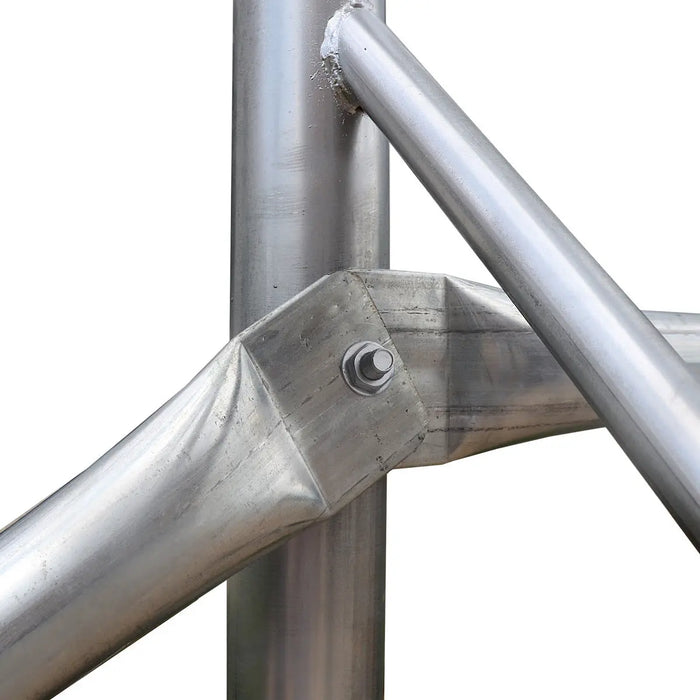

  • U-shape steel channel connection on all trusses to increase stability
  • Heavy-duty galvanized steel tubes on all trusses and purlins
  • Mechanical winch style roll-up doors on both ends
  • Steel sandwich man door on both ends for entry convenience
  • Air vents on both ends

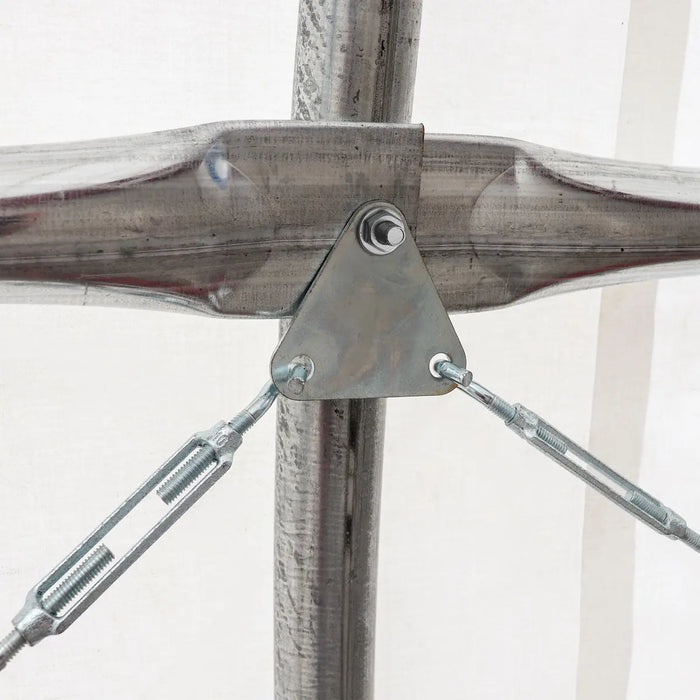

  • A combination of steel tube and cable quad tension system to reinforce stability
  • Heavy-duty base plates with pre-drilled holes
  • Commercial grade PVC fabric stands strong against tearing, leaking and chemical corrosion
  • Fire retardant, UV protection and water-proof

Specifications

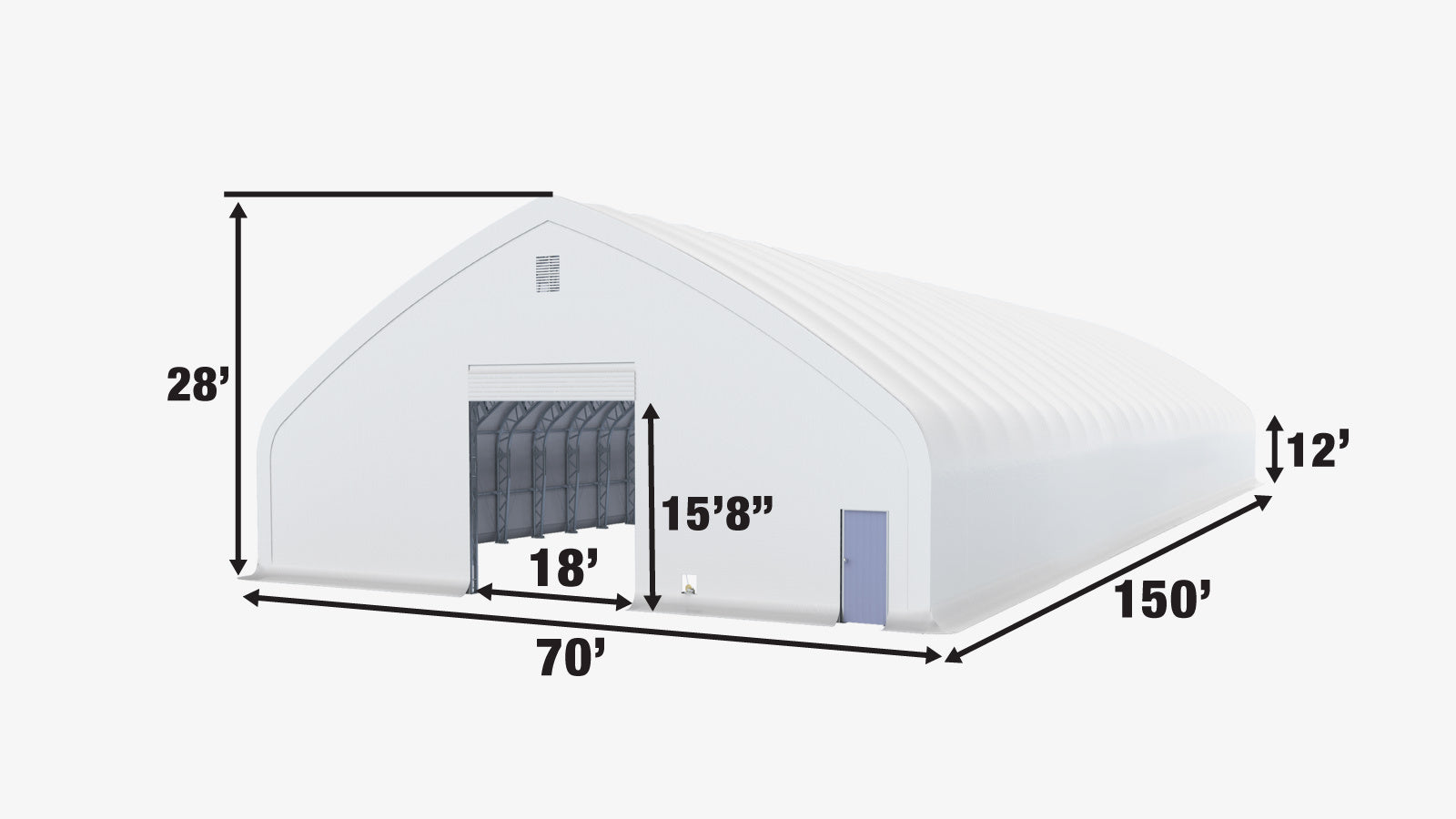

  • Exact floor footprint: 70 ft (W) x 150.0 ft (L)
  • Truss spacing: 6.6 ft
  • Peak ceiling height: 28 ft (outer), 26 ft (inner)
  • Sidewall height: 12 ft (approx.)

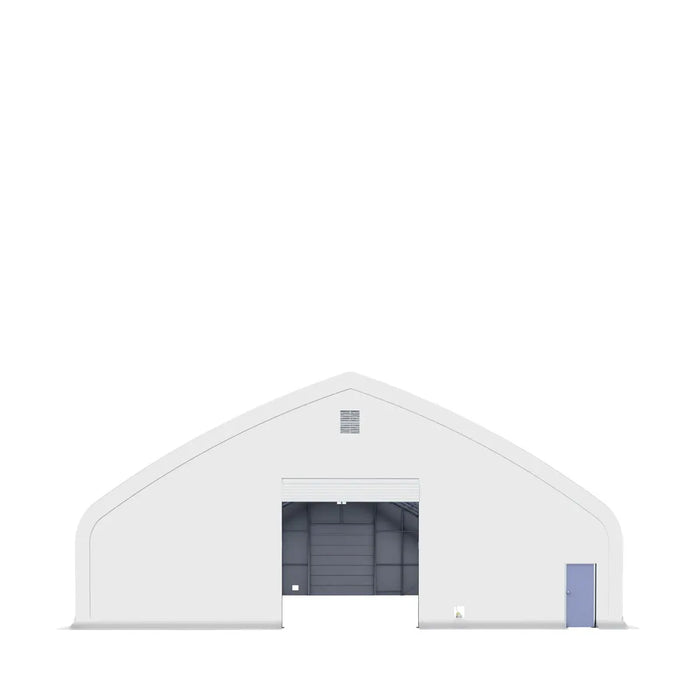

  • Door frame opening: 18 ft (W) x 17 ft (H)
  • Door drive through clearance: 18 ft (W) x 15.7 ft (H)
  • Truss tubes: ⌀3” – 14 gauge
  • Purlin tubes: ⌀2.3” – 15 gauge
  • Side entry door: 36’’ (W) x 78’’ (H)
  • Fabric: 32 oz PVC
  • Snow load: 30 PSF (reference only)
  • Wind load: 75 MPH (reference only)

Shipping Information

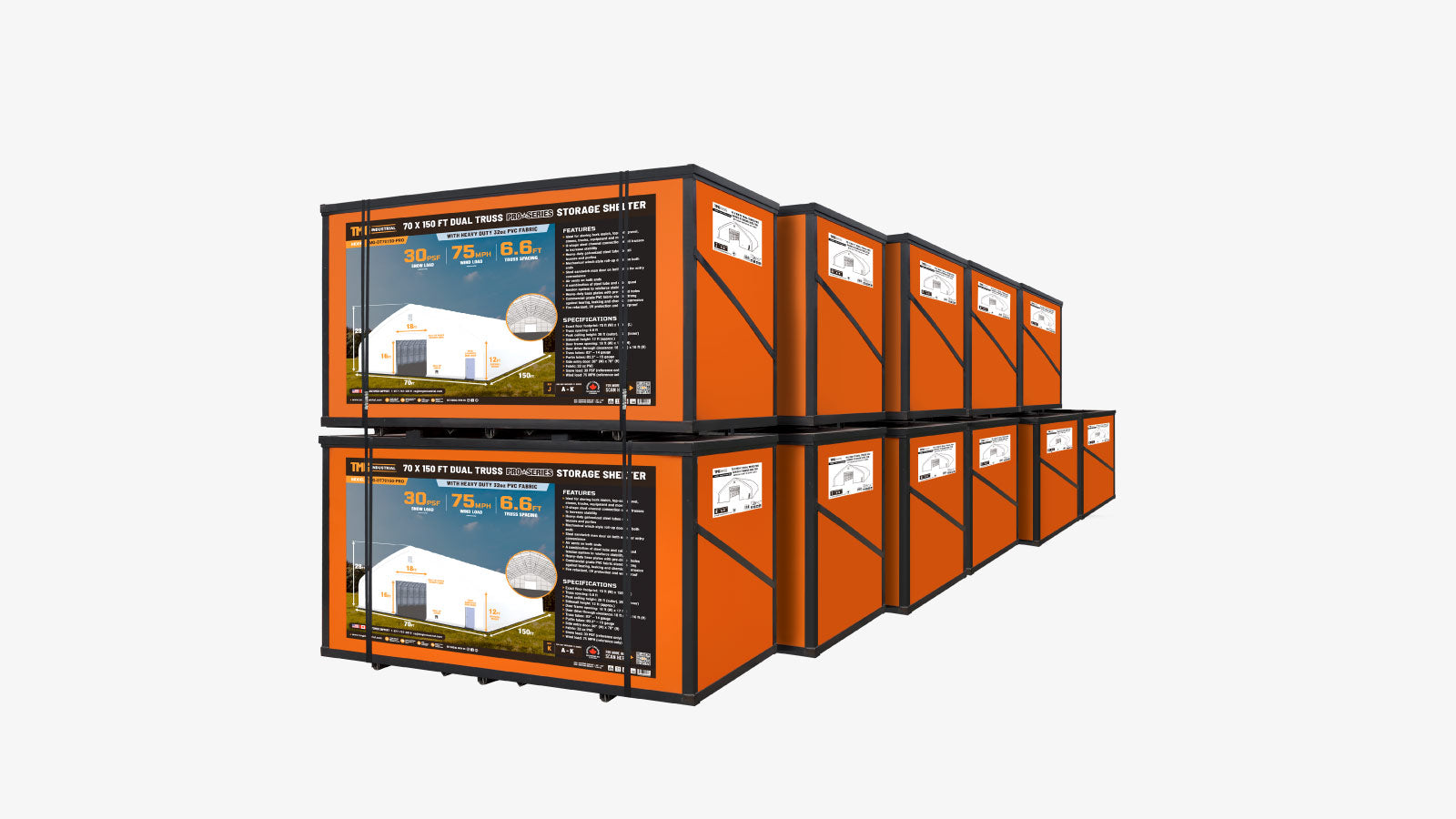

  • Packed in 15 metal crate shipping boxes
  • Box A shipping dimensions: 136’’ x 45’’ x 50’’
  • Box B-F shipping dimensions: 125’’ x 45’’ x 50’’
  • Box G-L shipping dimensions: 103’’ x 45’’ x 50’’
  • Box M-O shipping dimensions: 88’’ x 45’’ x 50’’
  • Total shipping weight: 36,000 lb
Watch our shipping video
Shipping from Richmond, BC

Product Description

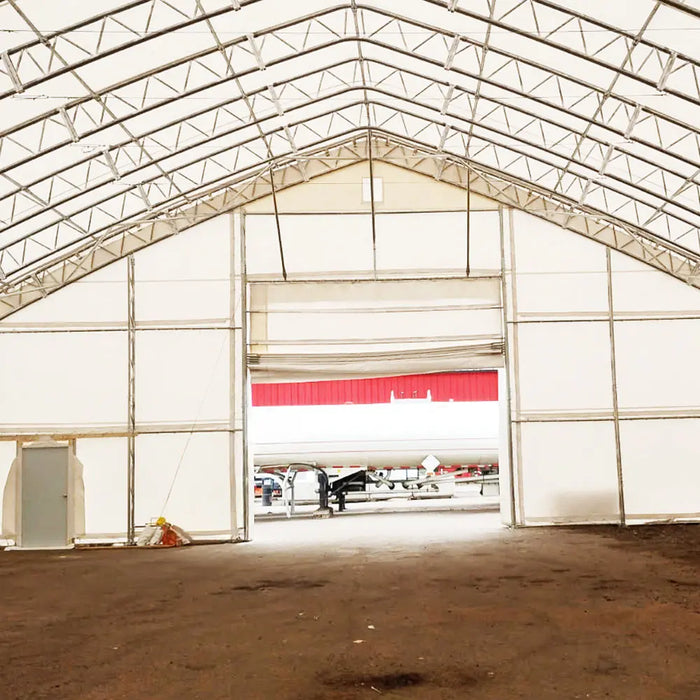

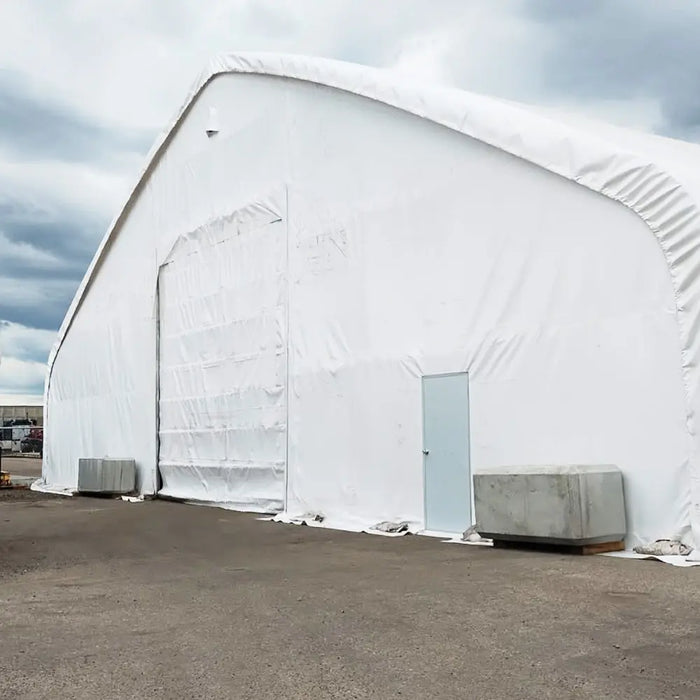

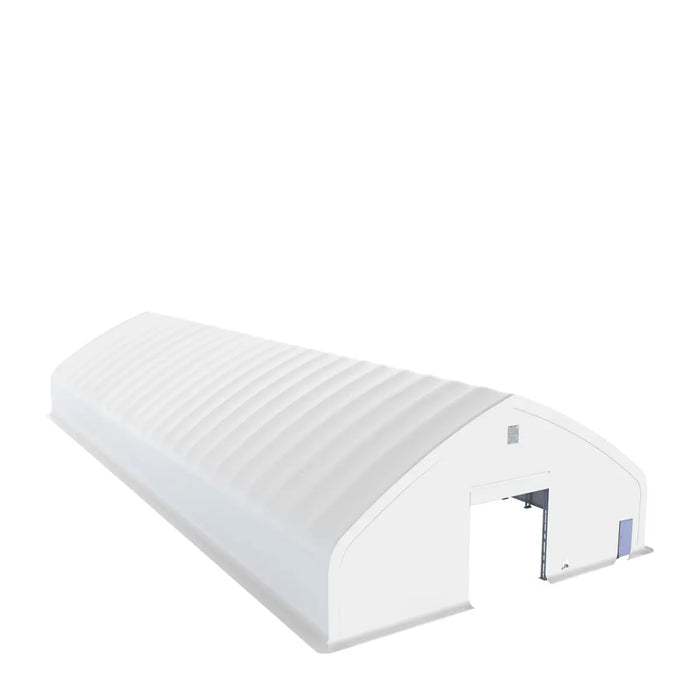

The TMG-DT70150 Pro Series 70ft Wide Dual Truss storage shelter with 32 oz PVC cover provides storage solutions on construction sites, farms, equipment dealerships, auto shops, and more. This improved Pro Series shelter features a reduced 6.6ft truss spacing, U-shape steel channel connection and our most durable 32oz PVC cover. Being relatively quick to build, only taking one to two weeks to erect, and costing less than comparably sized buildings, this shelter is often used at construction sites as a sawing shed or for storing construction materials. Another common use is in the agricultural industry as a storage area for tractors and other machinery. Heavy-duty PVC fabric and a sturdy dual truss frame mean this shelter is built to stand up to the weather. Available in length: 80ft, 100ft, 120ft and 150ft.

Additional Info

Engineering drawings are not available for this model.

Please check with your local municipality bylaws to ensure compliance. It is the customers' responsibility to provide any necessary drawings to obtain any permits that may be required.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
