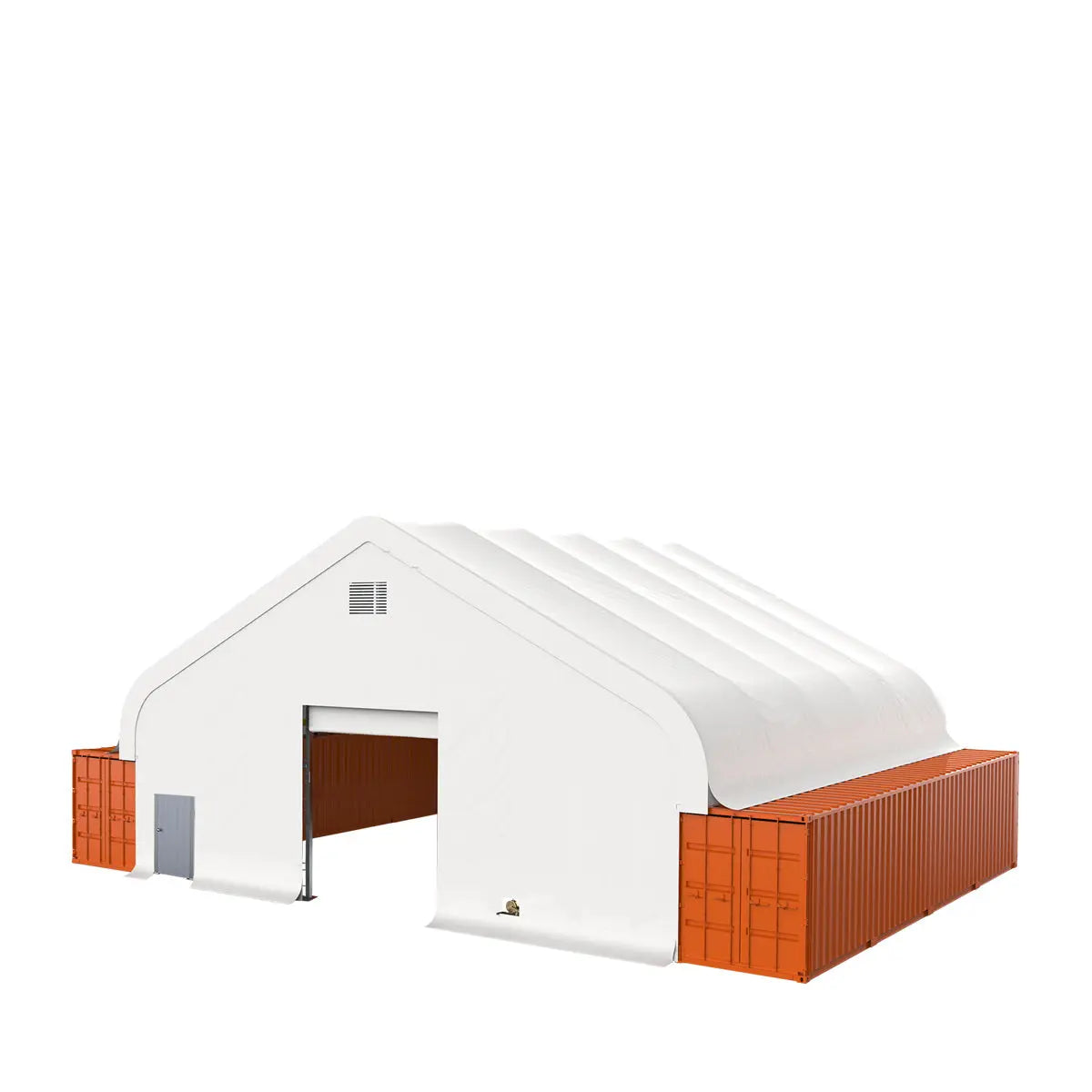

TMG Heavy Series™ 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features

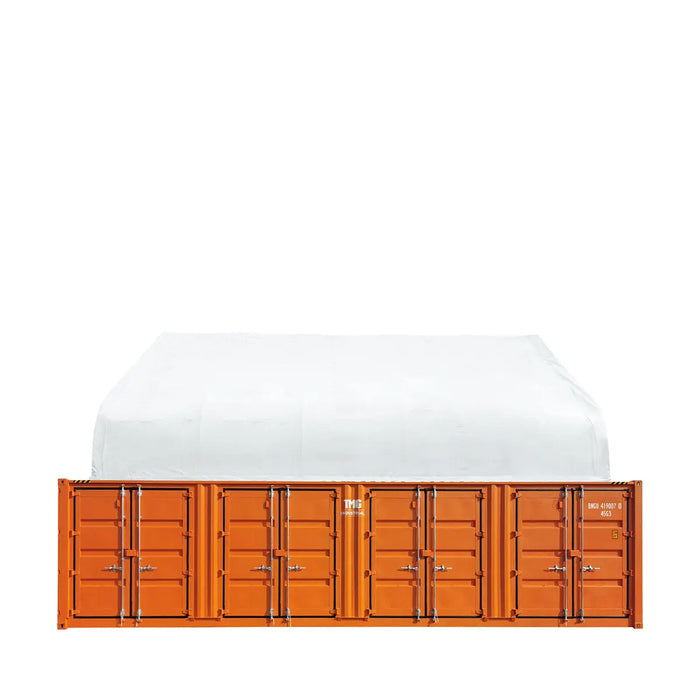

- Mounted on containers or concrete pony walls for maximum height, versatility and useability so that it can accommodate most job sites

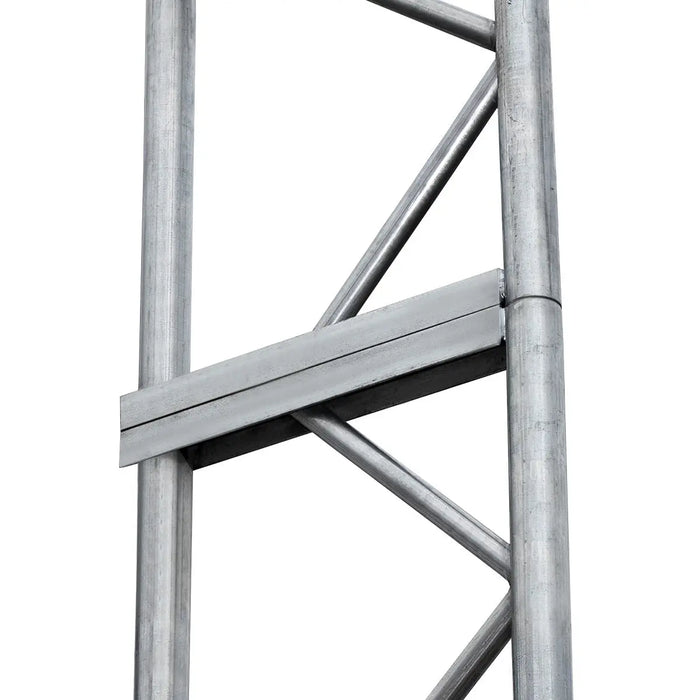

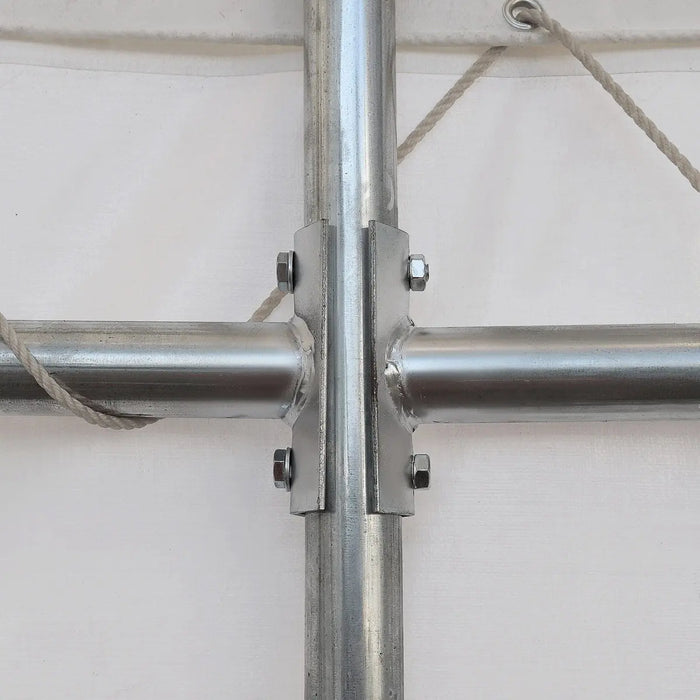

- Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
- Both front and back walls provide an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
- Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
- Use for large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs

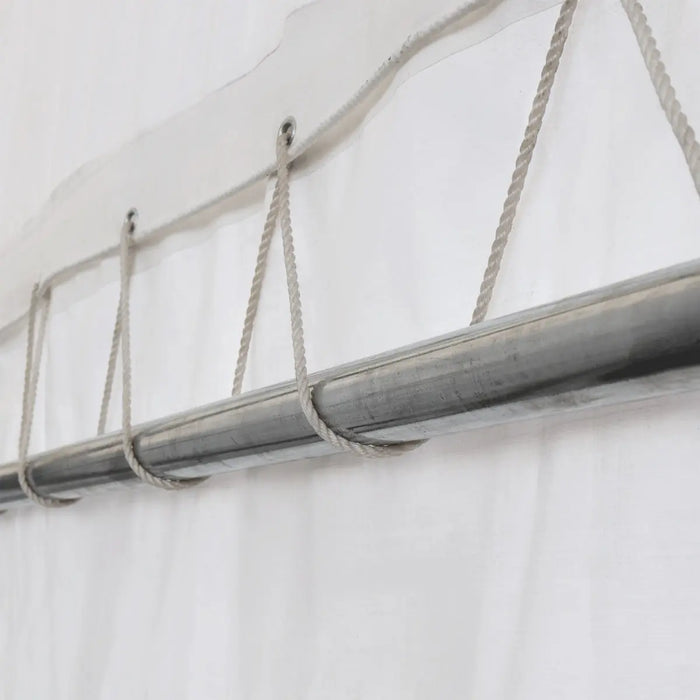

- Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White
- DT TMG Heavy Series™ is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability
- Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
- Wide open winch roll up door on front wall allows for easy parking, oversized machinery and dynamic workflow to run throughout
- Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
Specifications
Specifications
- Package configuration: TMG-DT5040CG includes TMG-DT5040C, TMG-DT50FCF, TMG-DT50FW8V and TMG-DT50BW8V
- Exact floor footprint: 50’4” (W) x 40’ (L)
- Truss spacing: 8’
- Peak ceiling height from the container top: 17’
- Peak ceiling height from the ground: 26' (with standard container height)
- Truss tubes: 2-½” – 15 GA (approx.)
- Purlin tubes: 2-½” – 15 GA (approx.)
- Front wall kit TMG-DT50FW8V
- Designed for 40’ standard container with 8’6’’ height

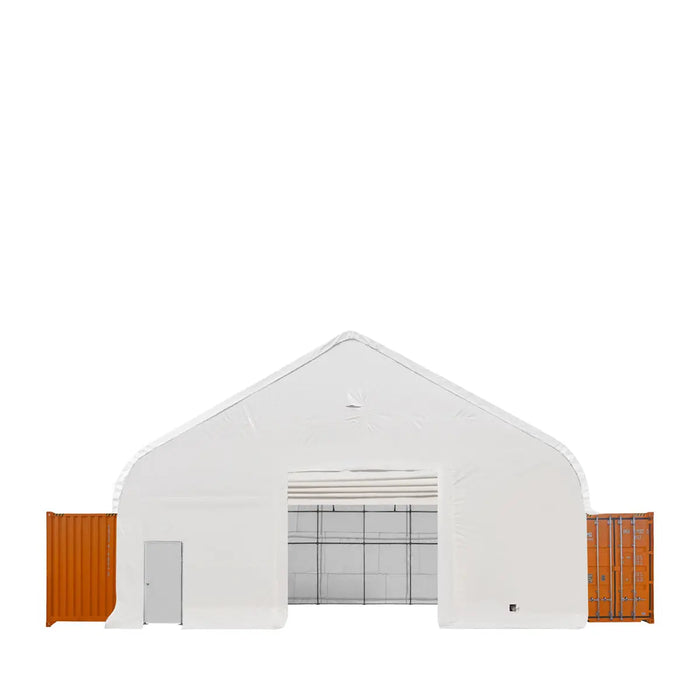

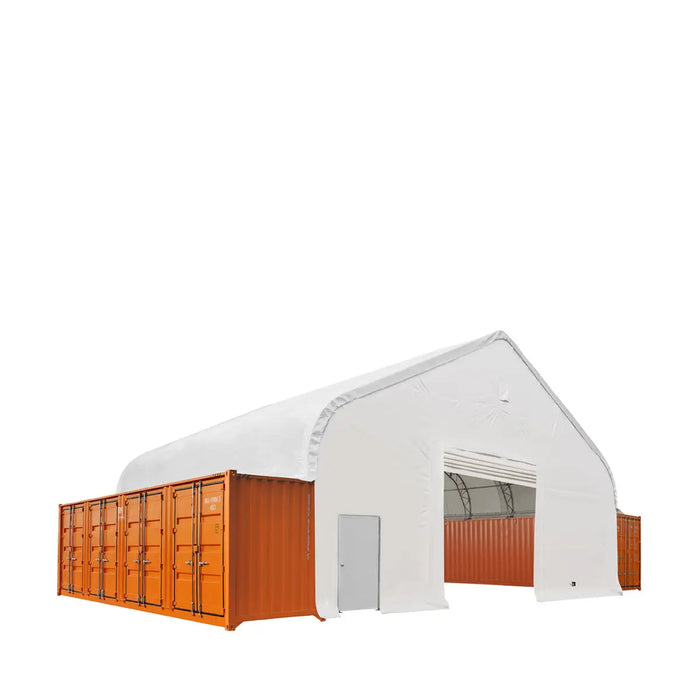

- Complete frame built and covered front wall with a steel man door and a wide open winch roll up door
- Man door: 3’ x 6’6” (W x H)

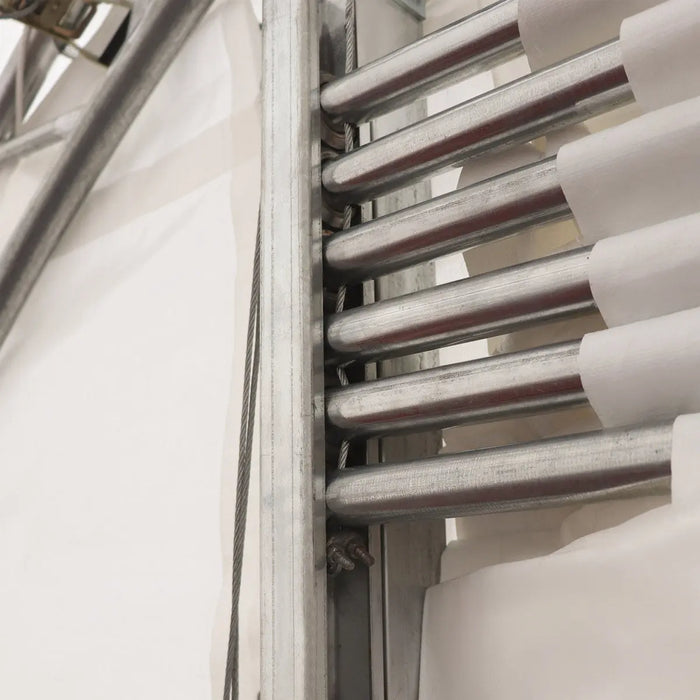

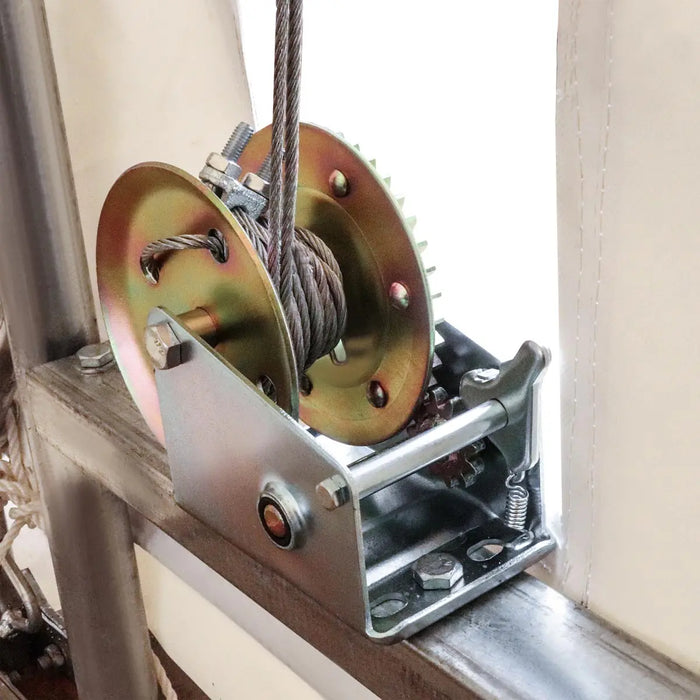

- Winch roll-up door with drive through clearance: 15’ x 13’ (W x H)

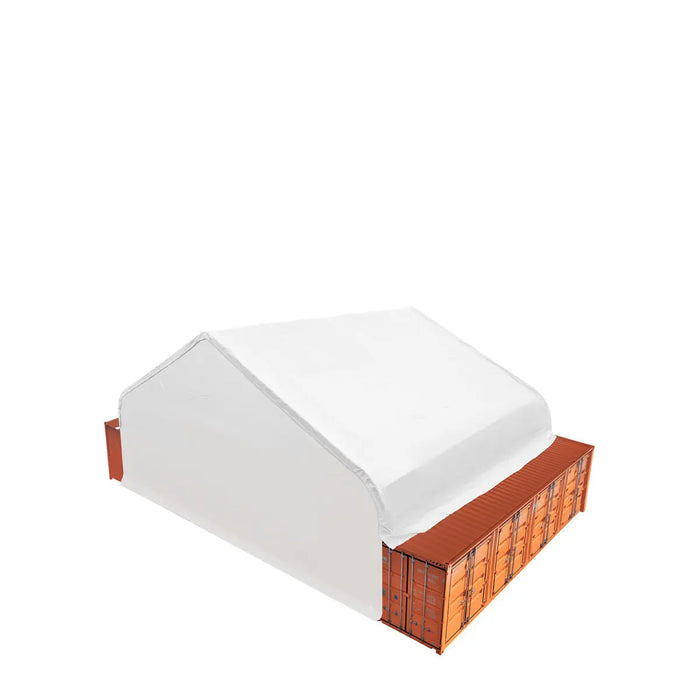

- Back wall is designed with tubing frame structure and fully covered

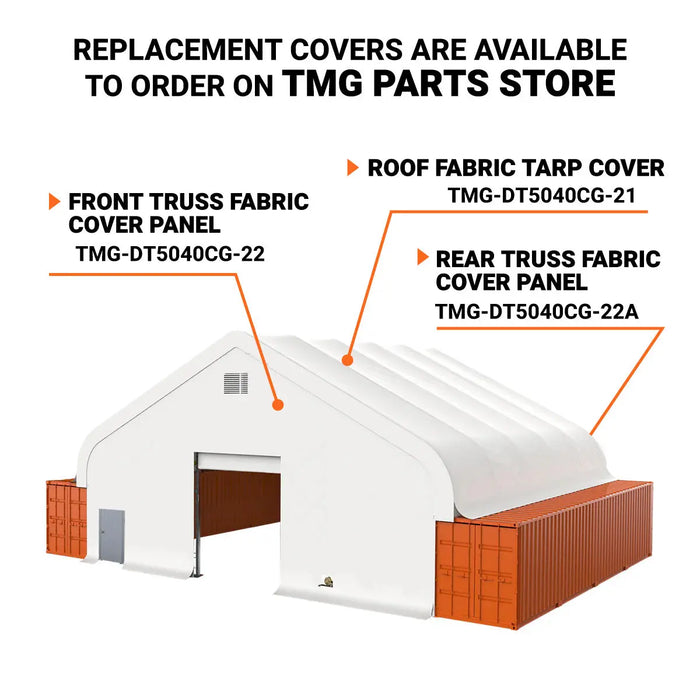

- Cover material: 32 oz PVC fabric (white color)

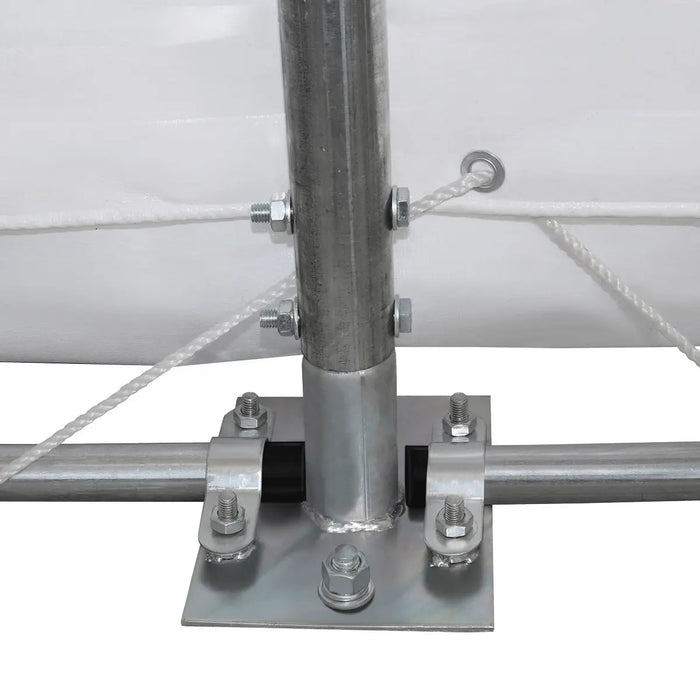

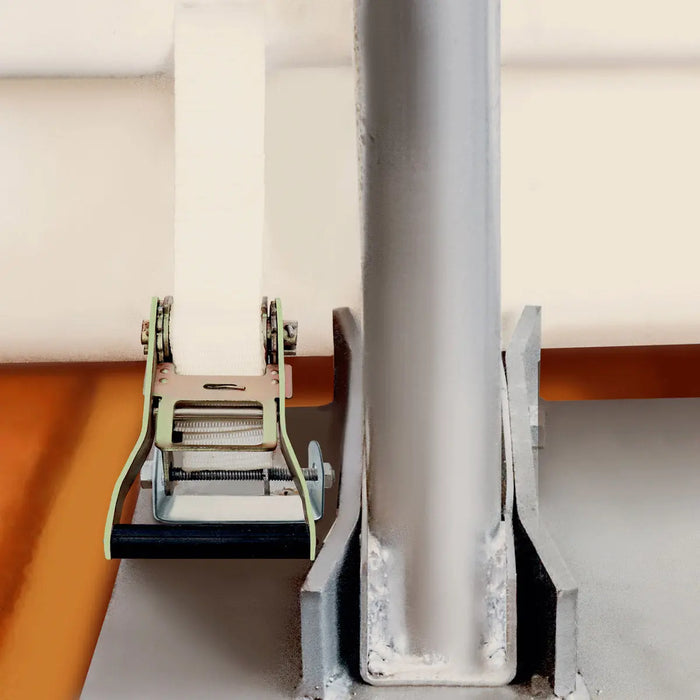

- Welding required for all footplates
- Containers not included
- Inner container edges to maximize interior clearance and usable square footage.
- Outer container edges to allow snow runoff and prevent accumulation in high-load regions.

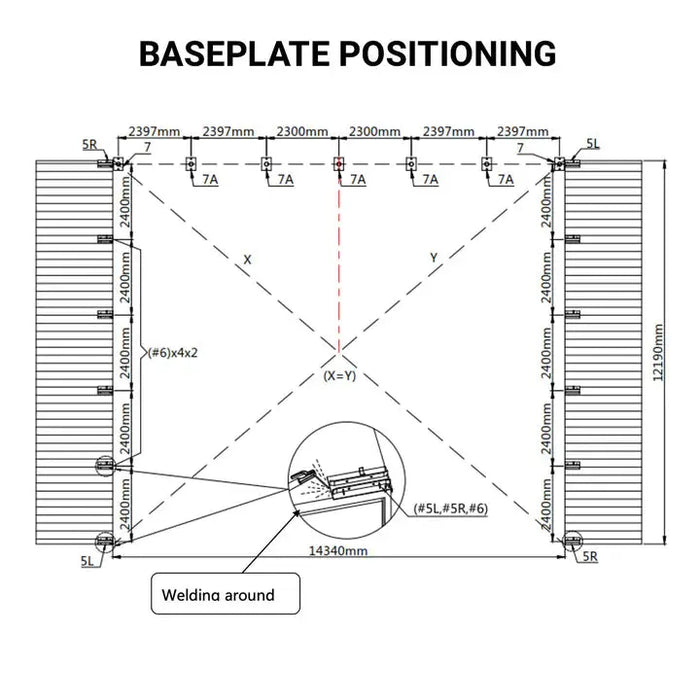

Baseplate Installation Positions (plan ahead for width):
Product Description
Product Description

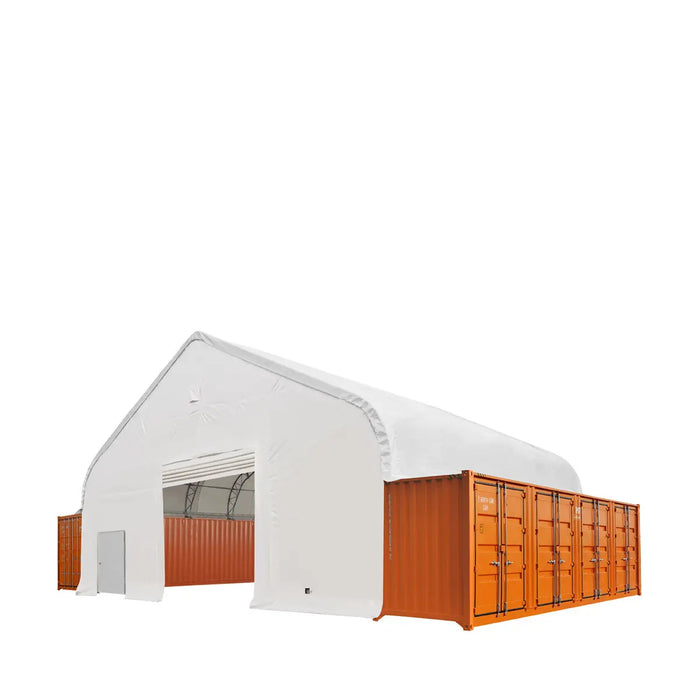

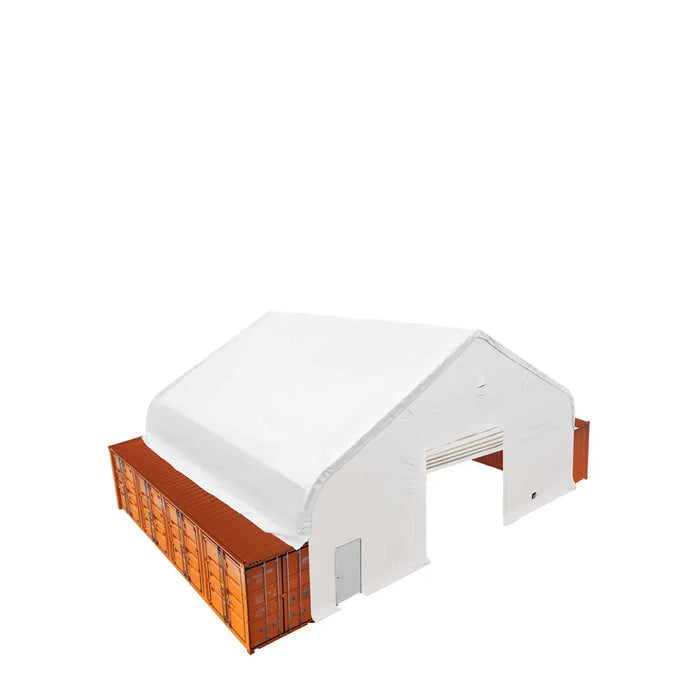

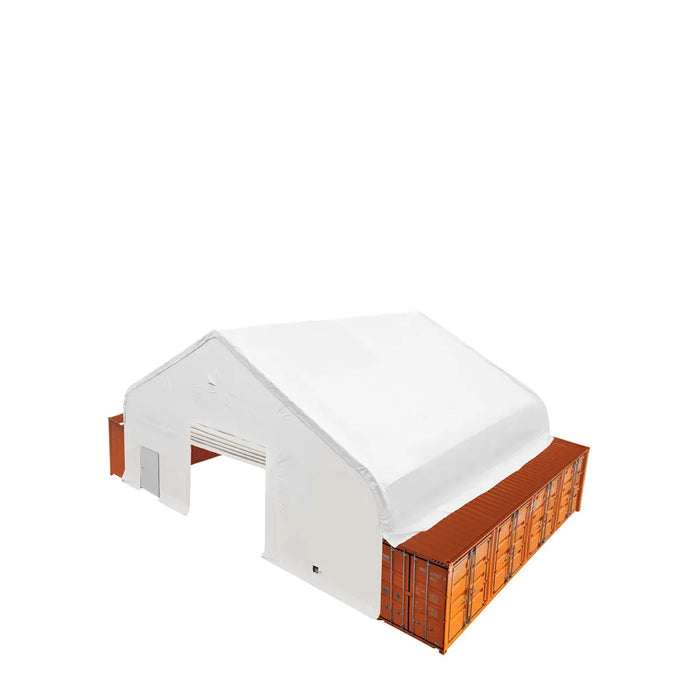

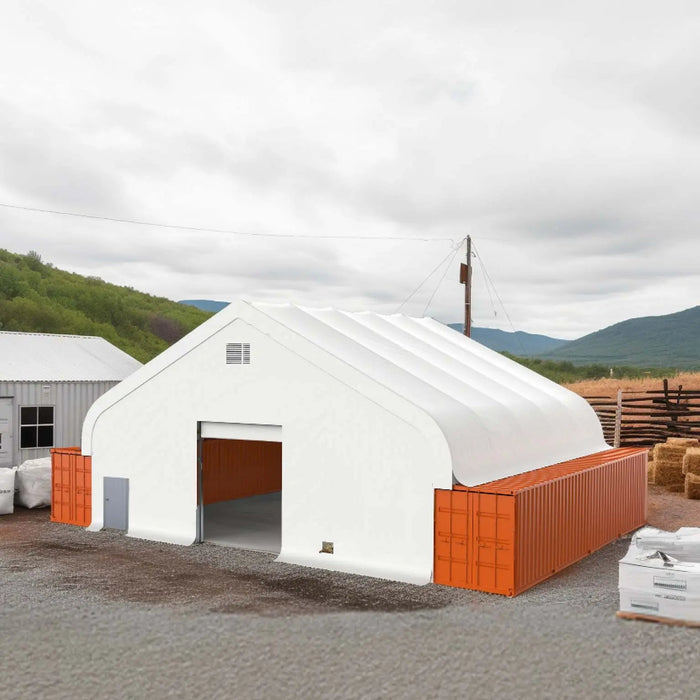

The TMG-DT5040CG TMG Heavy Series™ Fully Enclosed Dual Truss Container Shelter provides an easy to assemble, durable outdoor storage solution for your farm, construction site, oilfield equipment and more. Approximately 2000 square feet of covered space to stockpile materials for onsite projects and accommodate all other needs big or small. Able to install on any standard containers or concrete pony walls for versatile useability whether you're working in remote, rural or industrial locations.
Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. Both front and back walls included providing an extra layer of protection for your machinery and weather sensitive cargo. They are designed for standard 40' GP containers; a 14" base will need to add for installed on HC containers with 9'6" height.

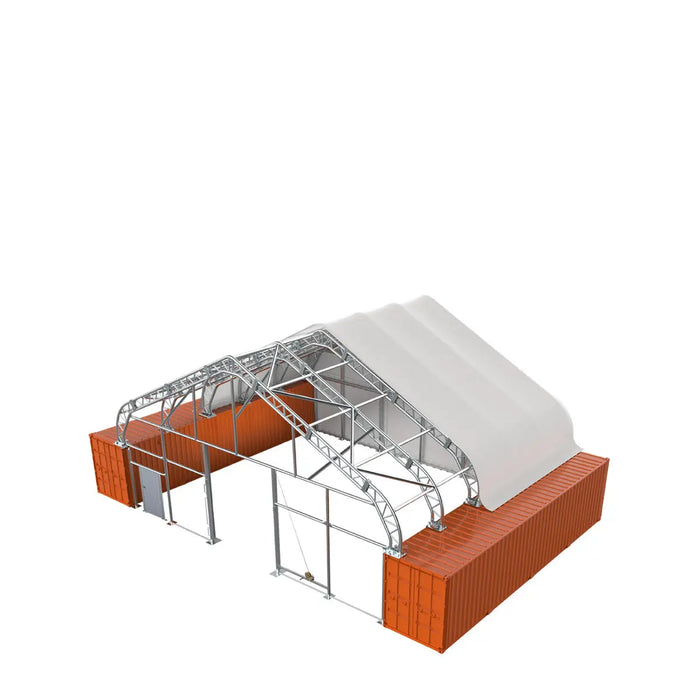

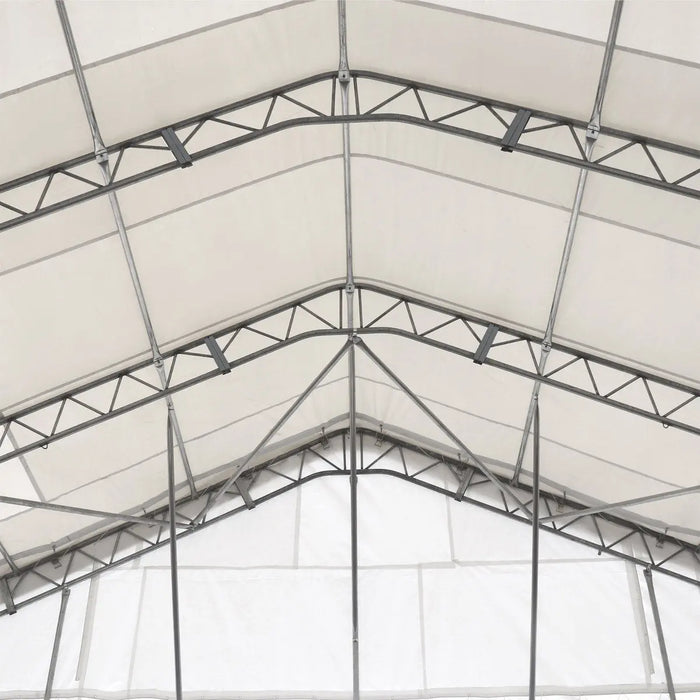

Double trusses also run throughout the whole interior which reinforces its exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it's recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure.
TMG-DT5040CG is a complete bundled model that includes TMG-DT5040C, TMG-DT50FCF, TMG-DT50FW8V and TMG-DT50BW8V. If you have previously purchased TMG-DT5040CF-PRO, you only need to purchase the front wall kit TMG-DT50FW8V to create a fully enclosed unit.
Additional Info
Shipping Information
Shipping Information
The order will ship FREE from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- TMG-DT5040C - 2 metal crate shipping boxes (Box A and Box B), each 115" x 45" x 49" (L x W x H); combined shipping weight: 4285 lb
- TMG-DT50FCF - 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 200 lb
- TMG-DT50FW8V - 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 835 lb
- TMG-DT50BW8V - 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 645 lb
- Total: 5 packages; total shipping weight: 5965 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
