72" Skid Steer Skeleton Grapple Attachment, Universal Mount, 34" Arm Opening, 3" Tine Spacing, 2600 lb Weight Capacity, TMG-SG73

72" Skid Steer Skeleton Grapple Attachment, Universal Mount, 34" Arm Opening, 3" Tine Spacing, 2600 lb Weight Capacity, TMG-SG73

TMG Industrial 72” Skid Steer Skeleton Grapple Attachment, Universal Mount, 34” Arm Opening, 3” Tine Spacing, 2600 lb Weight Capacity, TMG-SG73
CURRENTLY IN STOCK
SKU TMG-SG73
$3,399.00 - $3,399.00
$3,399.00
$3,399.00 - $3,399.00
$3,399.00
$3,399.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
1-888-467-5788
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image
2600 lb (1180 kg) grappling capacity for heavy duty material handling
Feature Image
72" (1830 mm) working width with skeleton tine base for debris sifting
Feature Image
34" (860 mm) arm opening handles varied brush, logs, and debris
Feature Image
3000 PSI (20 MPa) hydraulic cylinder with protective guard for durability
Feature Image
Includes hydraulic hoses and flat face couplers for quick, efficient setup
Feature Image
Universal mount provides fast, secure attachment to your skid steer

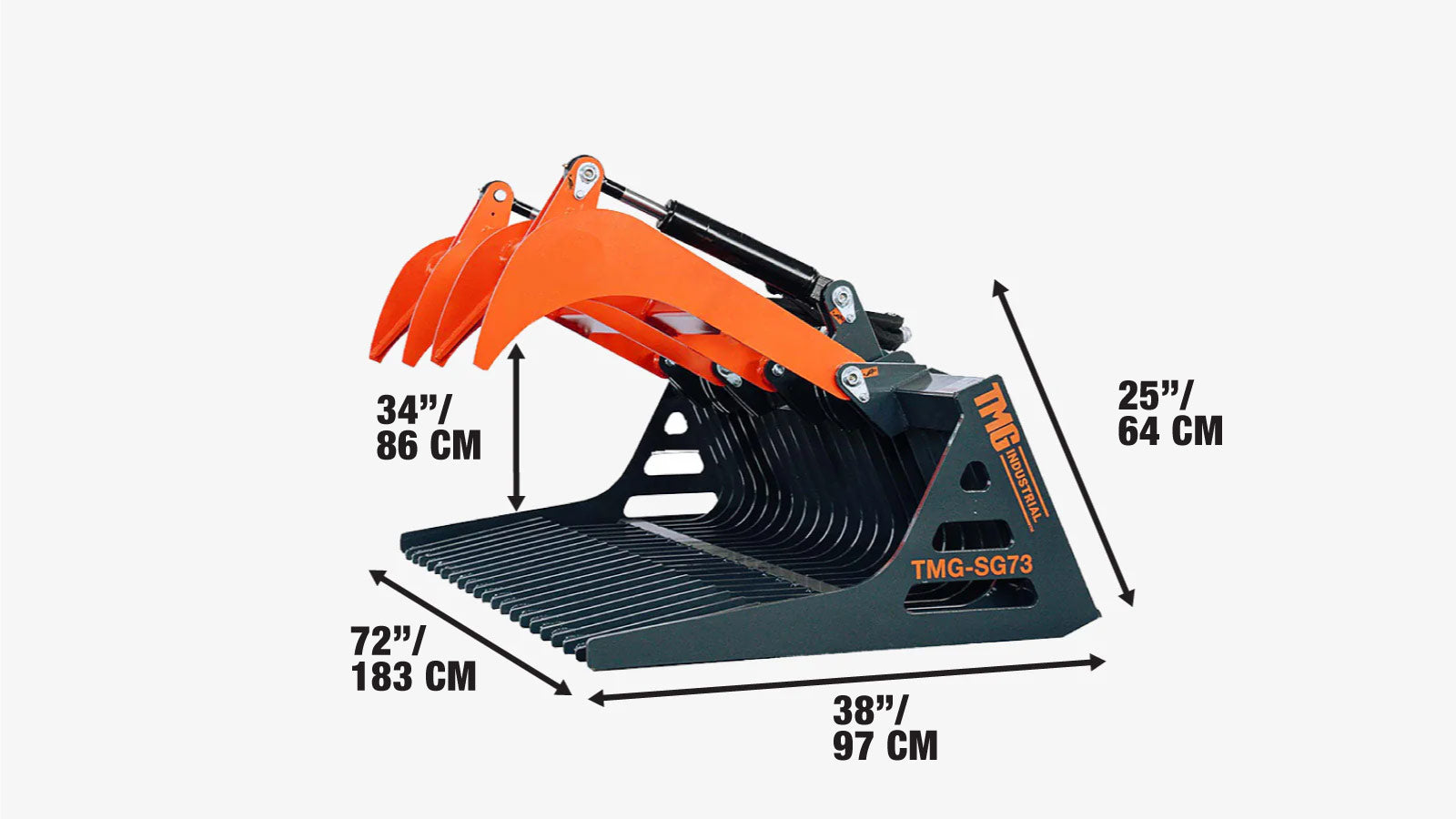

Specifications

  • Compatible with 30-60 HP skid steers
  • Grappling capacity: 2600 lb
  • Overall size: 72” (L) x 38” (W) x 25” (H)
  • Working width: 72”
  • Arm opening: 34”
  • Tine spacing: 3”
  • Tine length: 30”
  • Hydraulic pressure: 3000 PSI
  • Twin hydraulic cylinder grapple arms
  • Universal skid steer mount
  • Included flat face couplers and hydraulic hoses
72

Product Description

The TMG-SG73 Skid Steer Skeleton Grapple Attachment features twin hydraulic cylinder arms that can produce a grappling capacity of up to 2600 lb. A versatile attachment for your skid steer that can be used for a variety of applications including brush/log pick up, recycling, scrap metal sorting and any sort of moving chore around your acreage, farm or job site.

Equipped with a universal mount for easy hookup to your skid steer and quick, efficient workflow. Open end design allows you to grab varying lengths of logs, brush, scrap and debris. Two hydraulic cylinder grapple arms operate under 3000 PSI of pressure to create heavy duty working capacity that will get the job done.

72" of working width and a 34" arm opening offer diverse grappling capabilities on your farm, commercial property or worksite. The skeleton tine bottom design makes it easy for loose debris to sift through so you can efficiently manage the cleanup and transport of bulkier material. This attachment is built to last with greasable pins and bushings for easy routine maintenance, and comes with included flat-face couplers and hydraulic hoses.

We also carry other models of this skeleton grapple attachment: TMG-SG60, TMG-SG85

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 73” x 37” x 28” (L x W x H)
  • Shipping weight: 745 lb
Shipping from Charlotte, NC, or Seattle, WA
