SKU TMG-ST2040V

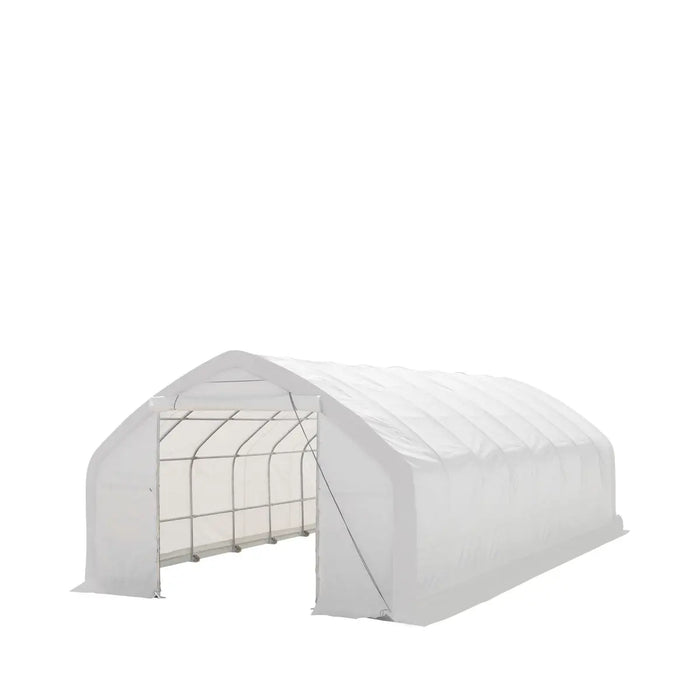

TMG-ST2040V 20 X 40 FT Straight Wall Storage Shelter, 17oz PVC Cover, 15 Ga. Structure, Roll-Up Doors on Both End Walls, 60” Side Wall Height

Original price $4,950.00 - Original price $4,950.00
Original price
$4,950.00
$4,950.00 - $4,950.00
Current price $4,950.00
CURRENTLY IN STOCK
FREE SHIPPING IN USA* Learn More
1350.0 lb
87 x 29 x 39 inches
More Shipping Info

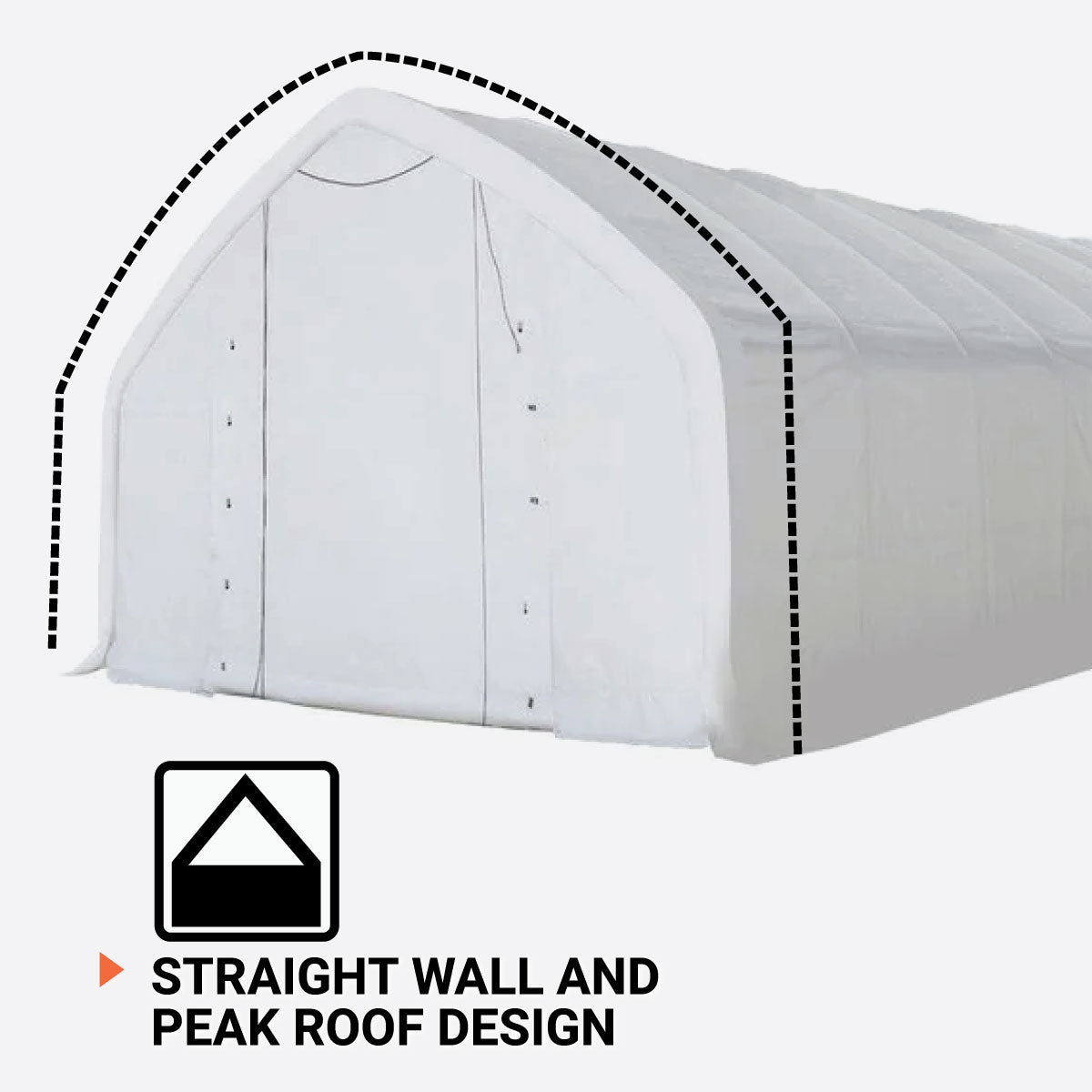

  • Straight wall gable roof design offers ample space for storage efficiency

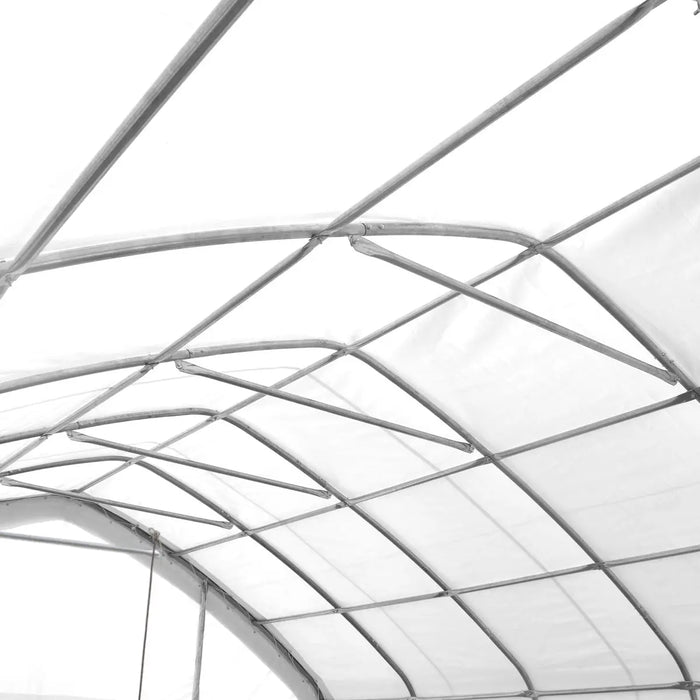

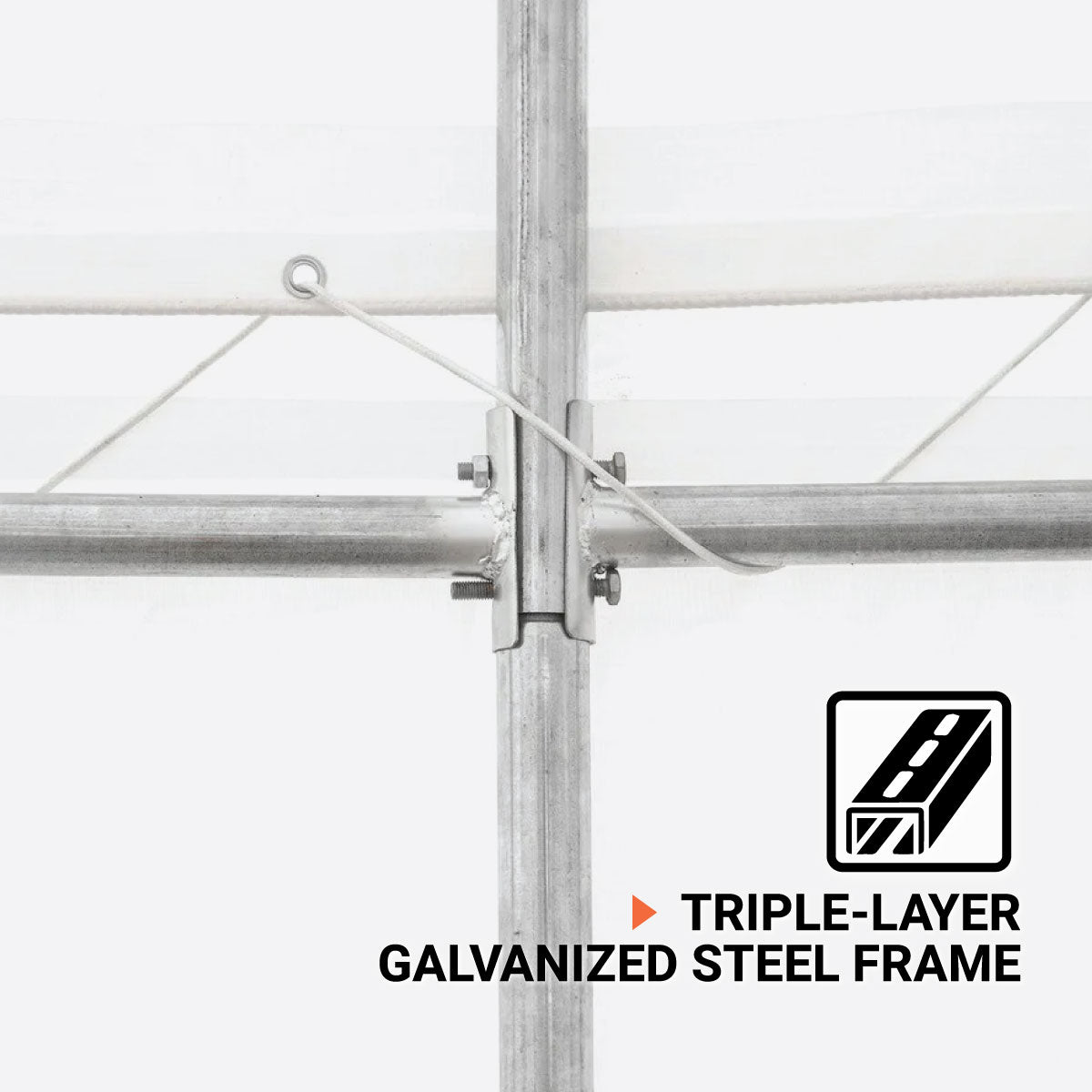

  • Commercial grade 3-layer galvanized steel frame structure

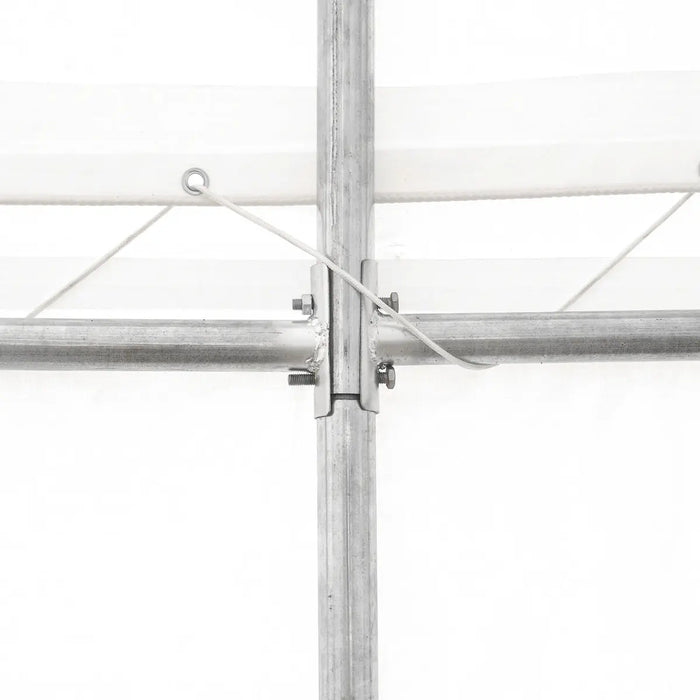

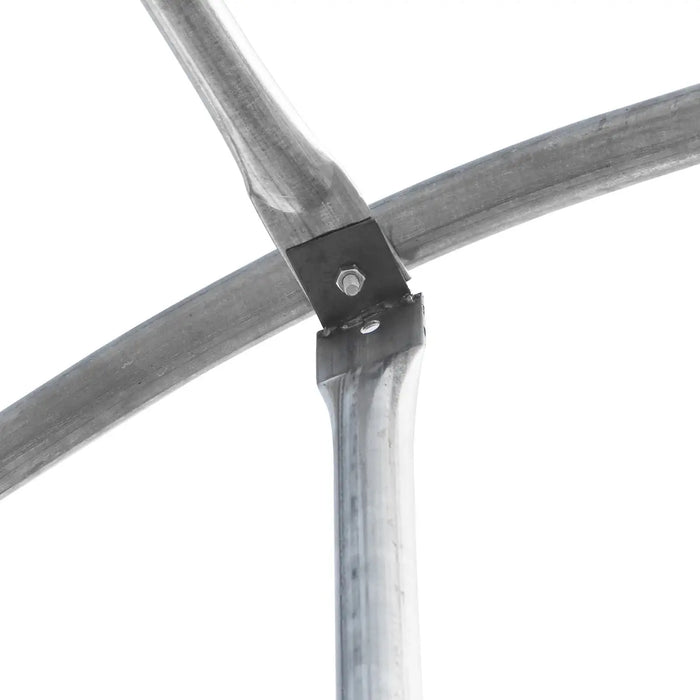

  • Collar beams added on all trusses to increase stability

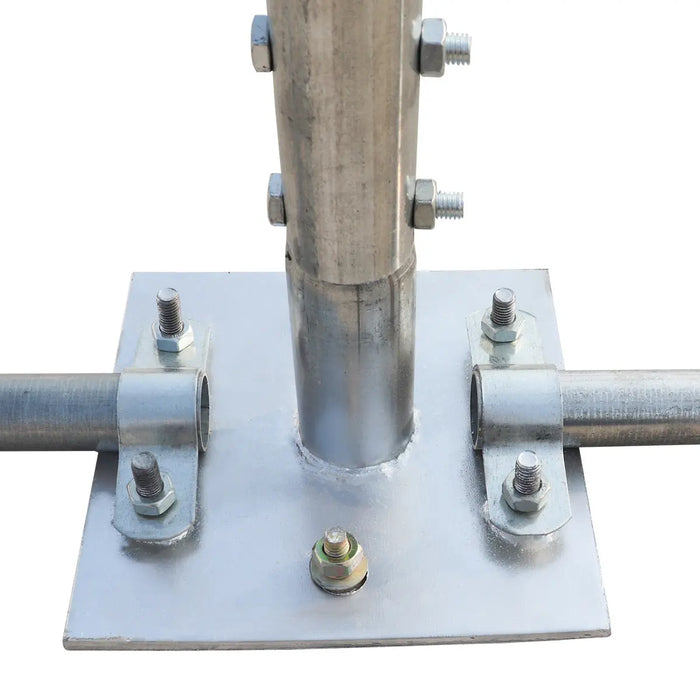

  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds

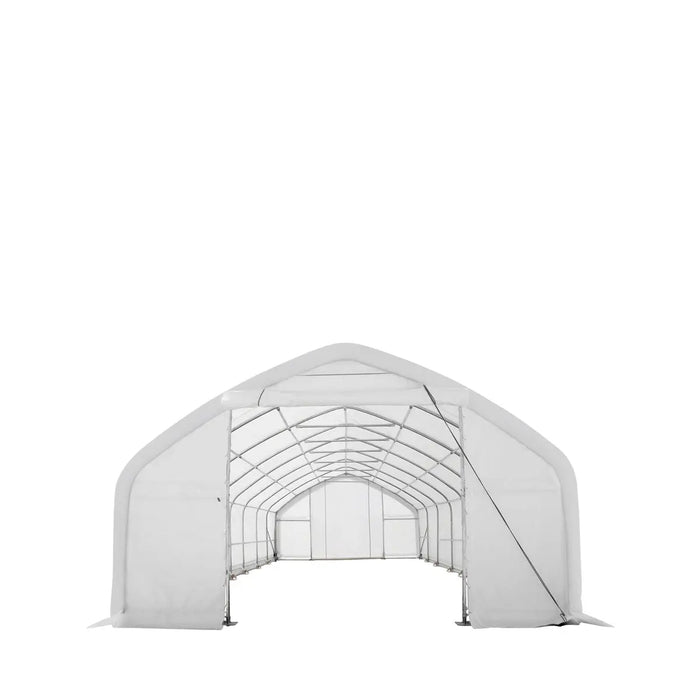

  • Fabric roll up doors are installed on two end walls

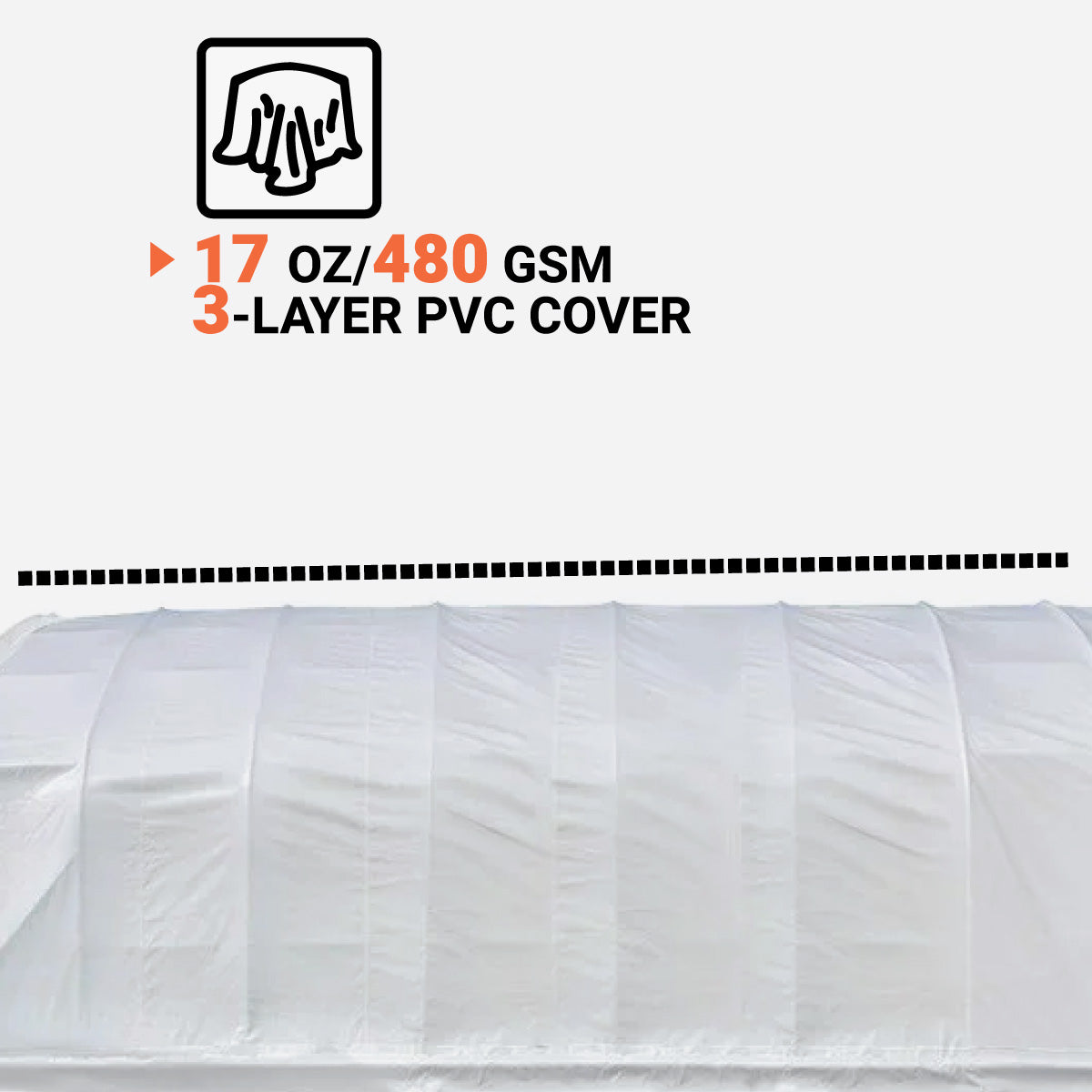

  • Commercial grade triple-layer ripstop PVC cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
  • Footplates with pre-drilled hole (anchor bolts not included)

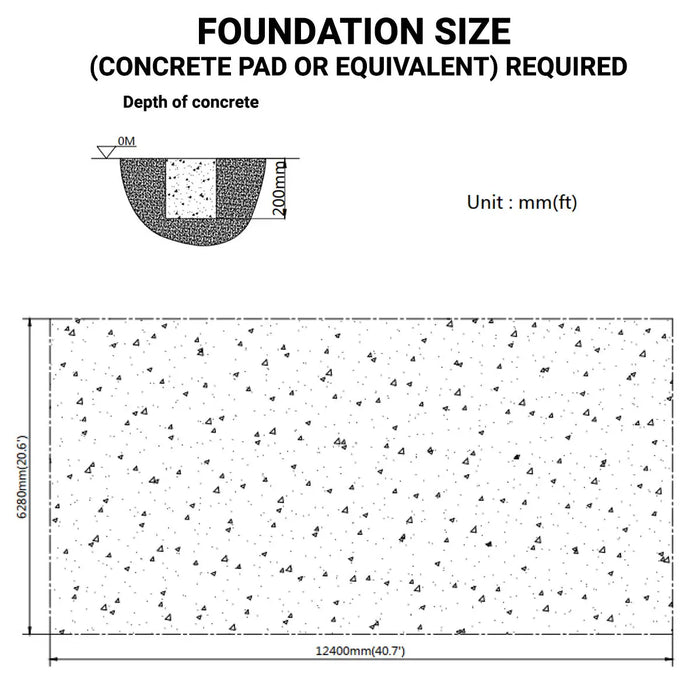

  • Foundation required: Concrete slabs or equivalent

Features

  • Straight wall gable roof design offers ample space for storage efficiency
  • Commercial grade 3-layer galvanized steel frame structure
  • Collar beams added on all trusses to increase stability
  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds
  • Fabric roll up doors are installed on two end walls
  • Commercial grade triple-layer ripstop PVC cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
  • Footplates with pre-drilled hole (anchor bolts not included)
  • Foundation required: Concrete slabs or equivalent
TMG-ST2040V 20 X 40 FT Straight Wall Storage Shelter, 17oz PVC Cover, 15 Ga. Structure, Roll-Up Doors on Both End Walls, 60” Side Wall Height-description-image

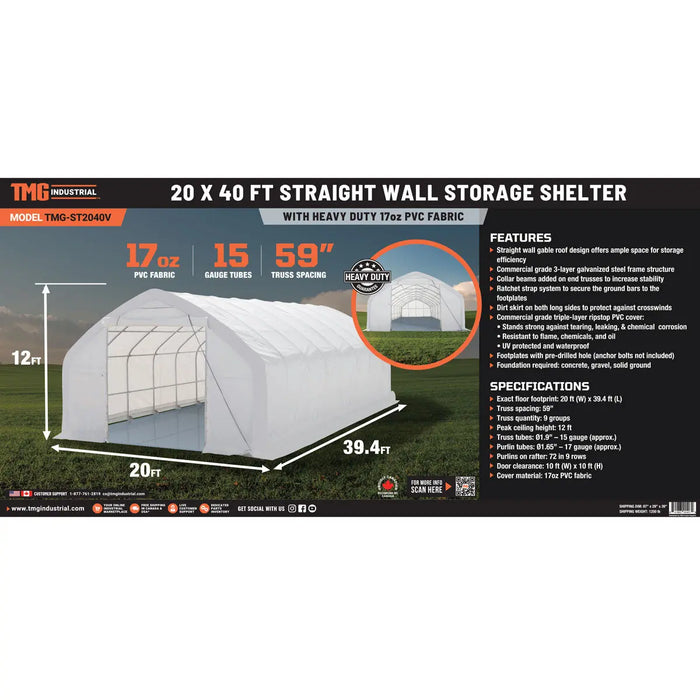

Specifications

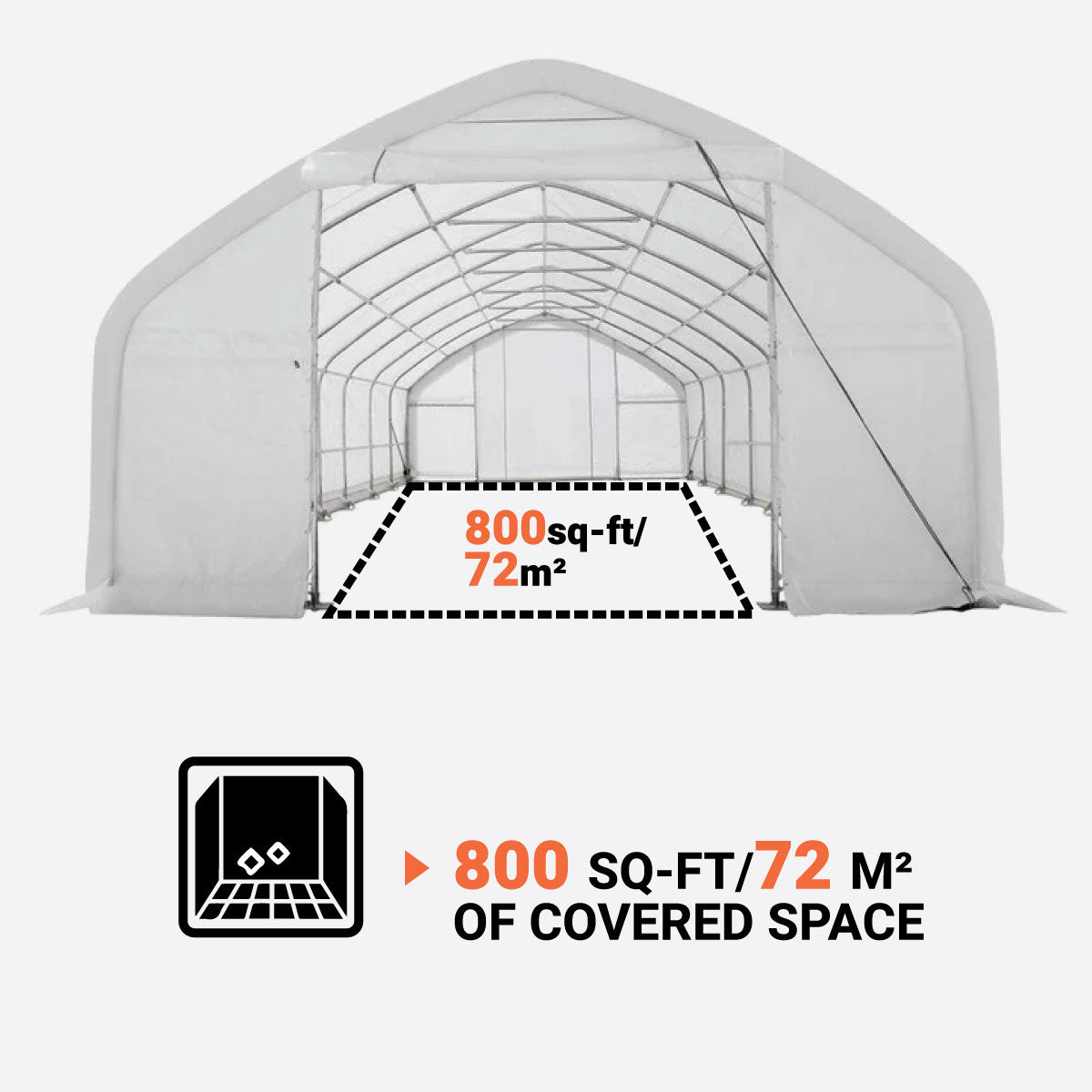

  • Exact floor footprint: 20’ (W) x 39.4’ (L)

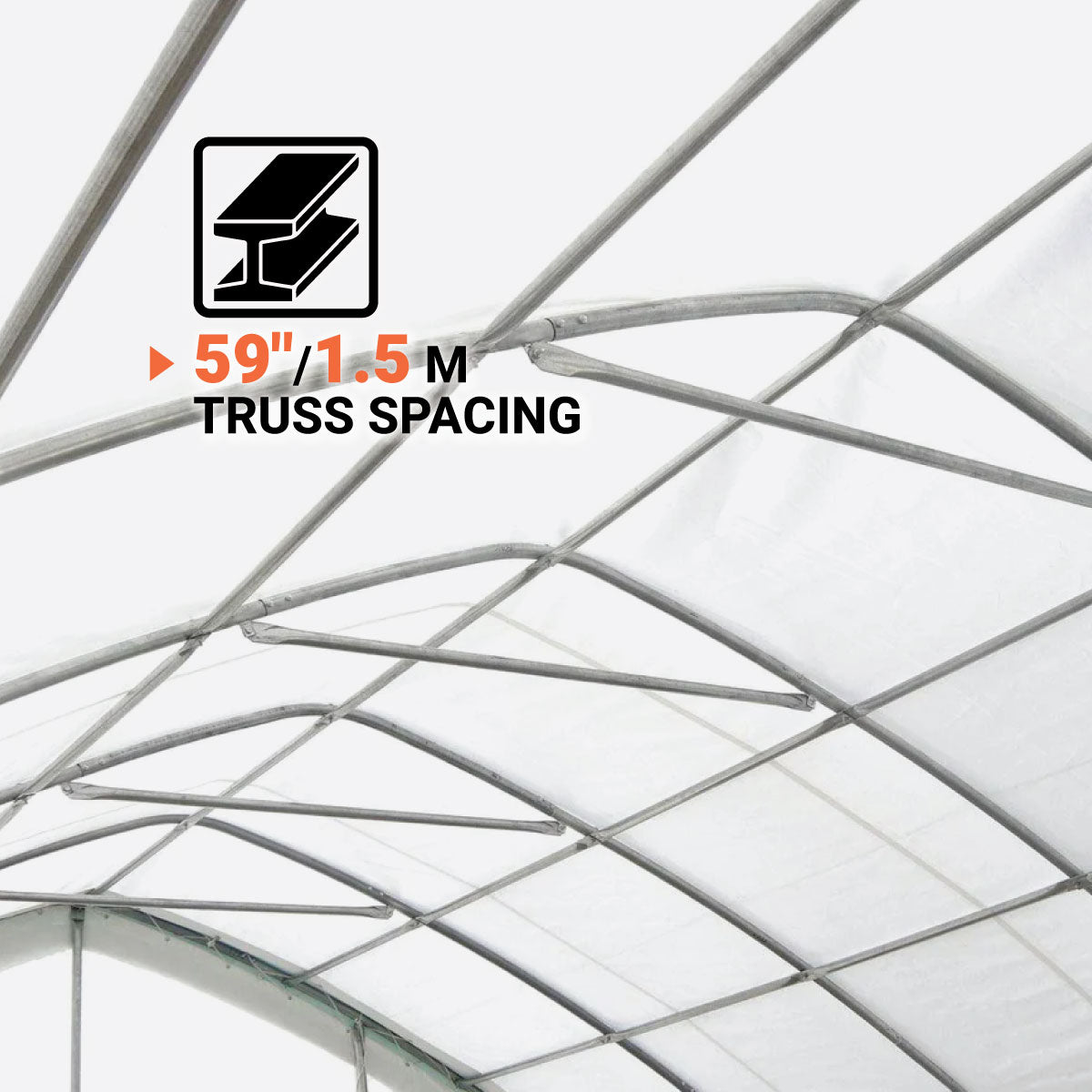

  • Truss spacing: 59’’
  • Truss quantity: 9 groups
  • Peak ceiling height: 12'
  • Side-wall height: 80’’
  • Truss tubes:   ⌀1.9” – 15 gauge (approx.)
  • Purlin tubes:   ⌀1.65” – 17 gauge (approx.)
  • Purlins on rafter: 72 of 9 rows

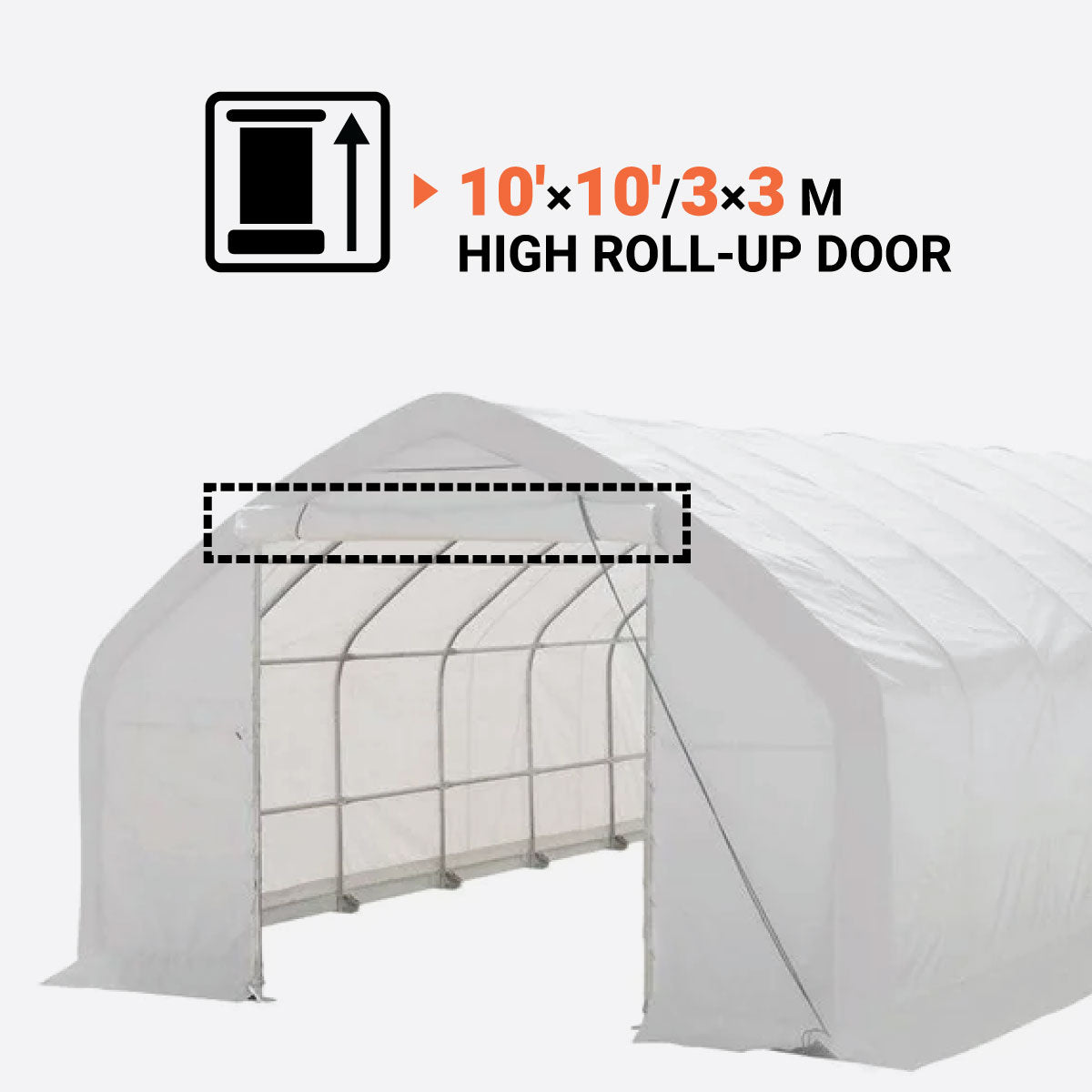

  • Door clearance: 10’(W) x 10’(H)
  • Cover material: 17oz PVC fabric

Shipping Information

  • Packed in one metal crate shipping box
  • Shipping size: 87” x 29” x 39”
  • Shipping weight: 1350 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.
Shipping from Richmond, BC

Product Description

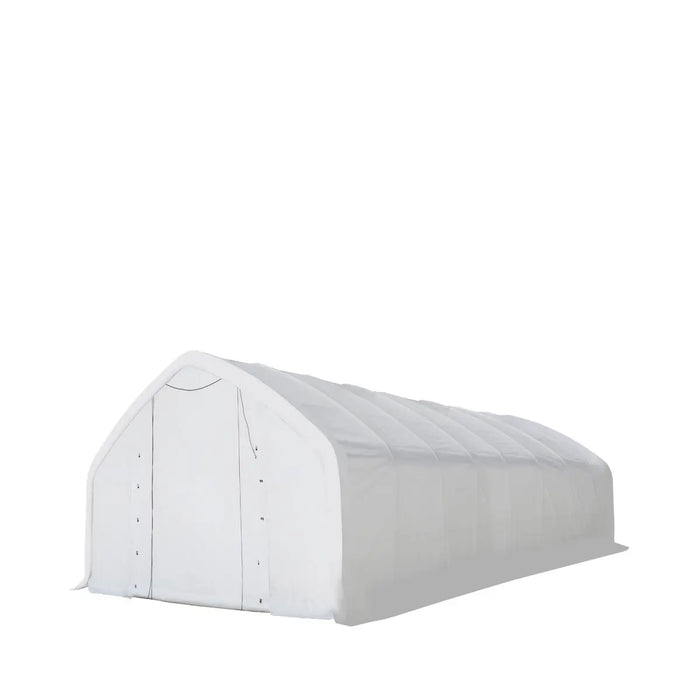

Need extra storage for your yard or workspace? The TMG-ST2040V is a 20’x40’ Straight Wall Storage Shelter that features a heavy-duty 17oz PVC cover treated to be fire retardant, UV resistant, and water-resistant. The structure is made of commercial-grade 3-layer galvanized steel tubes that are designed to be long-lasting and relatively easy to assemble. A dirt skirt along both long sides helps protect against crosswinds, giving the TMG-ST2040V increased durability. The roll-up door is installed on two end walls with a clearance of 10’ for both height and width. This shelter is great for cars, SUVs, boats, and ATVs, as a small shop, for storing farm equipment, and much more.

The 17oz commercial grade triple-layer ripstop PVC cover is ready to stand strong against tearing, leaks, or chemical corrosion. It is designed to be flame and oil resistant as well as UV protected and waterproof. The TMG-ST2040V has a ratchet strap system to secure the ground bars to the footplates, as well as collar beams on all trusses to increase stability.

Once assembled, the TMG-ST2040V has a peak ceiling height of 12’ and a sidewall height of 6 ½’. The purlins are 17 gauge and have 9 rows of 72 tubes. Packaged in one large metal crate, you and your team can get this unit assembled over a weekend. Keep in mind, this unit requires a concrete slab foundation, or compacted solid ground to be anchored to.

This shelter is designed to use as a temporary storage structure, it is not engineered to handle snow and wind load. The engineering drawing is not available. If you live somewhere snow and harsh winters are a concern, please select our DUAL TRUSS SERIES shelters.

Installation and maintenance:

  • We strongly recommend using proper anchors to secure the shelter for maximum stability dependent on your circumstances.
  • Clear any accumulated snow/ice from the roof structure immediately and remove, clear snow/ice from outside and both sides of the structure.

Failure to regularly remove snow or ice could result in collapsing and/or buckling of shelter, potentially causing damage to property not covered by warrant.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
