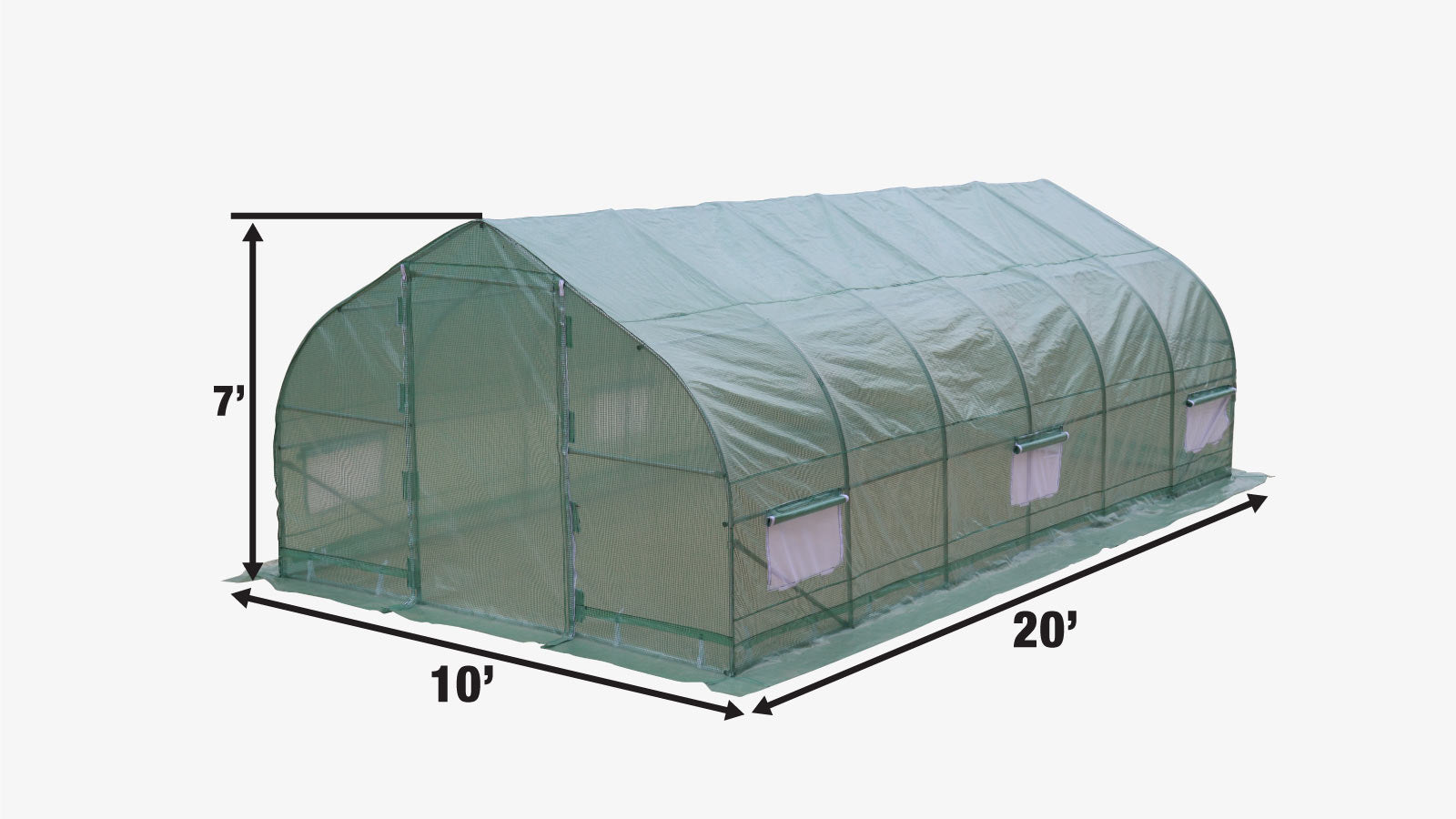

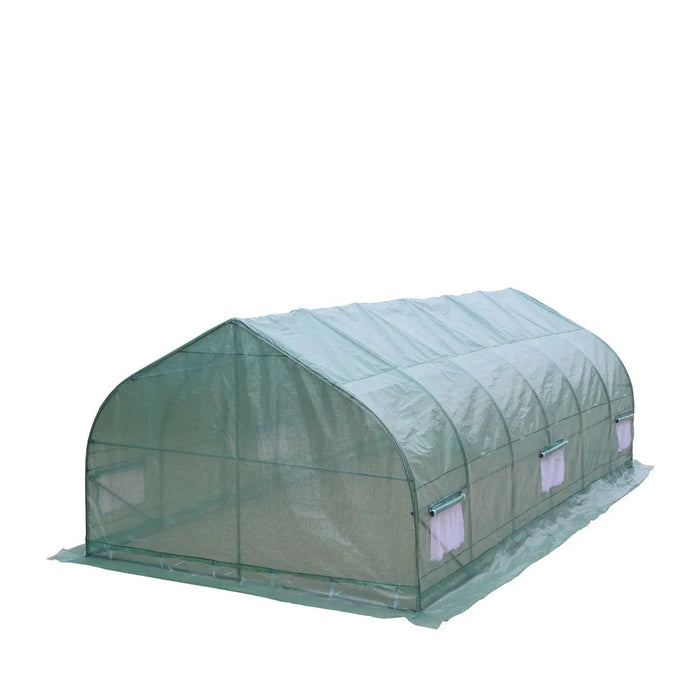

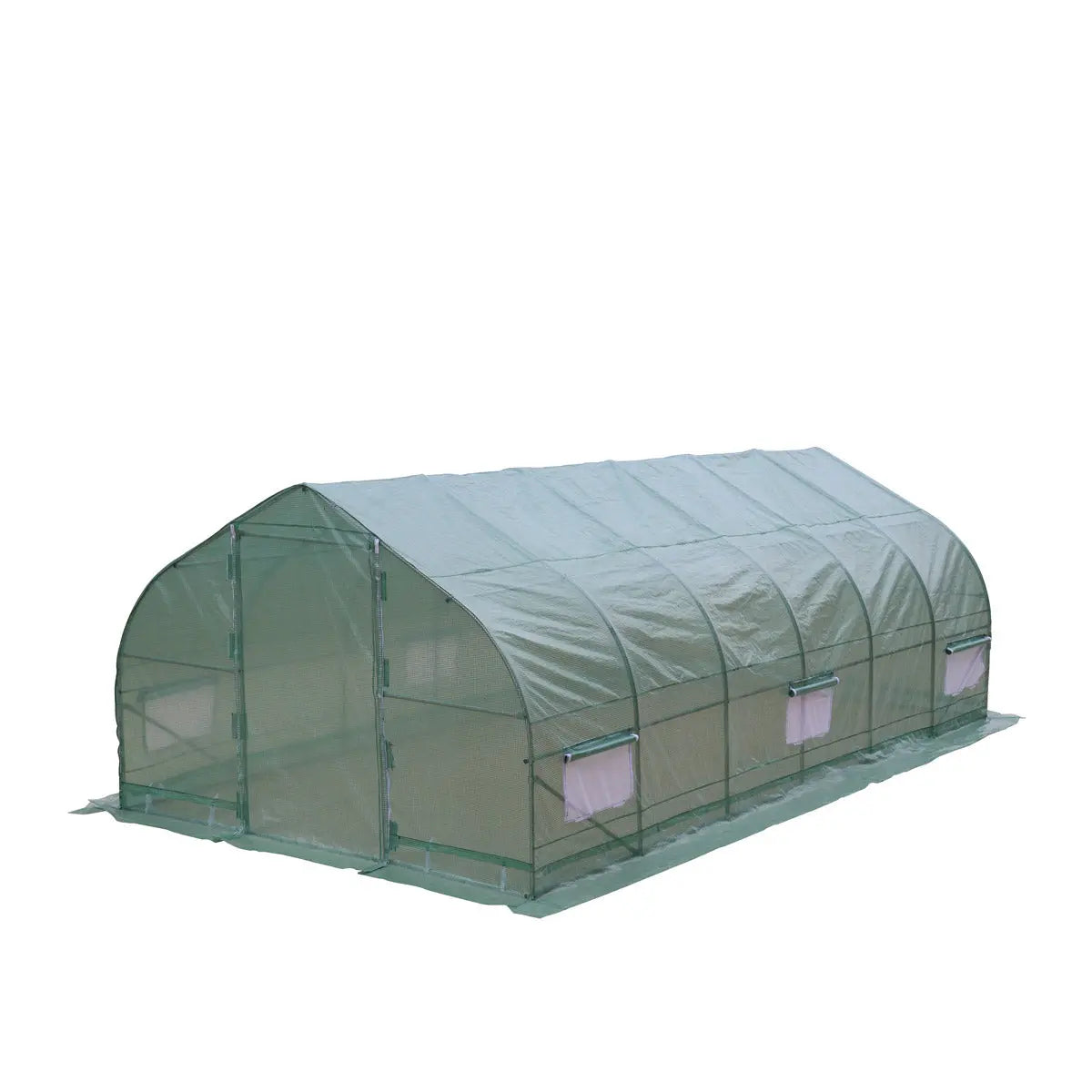

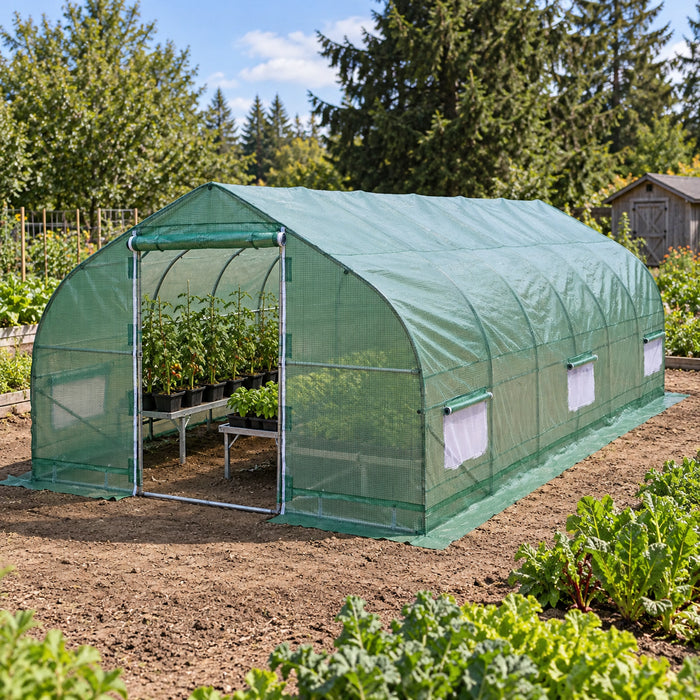

- Overall dimensions: 10’ (W) x 20’ (L) x 7’(H)
- Galvanized steel tube frame structure
- Frame tubes: ⌀1.0” – 19 gauge
- Bolt-on connection and ground bars

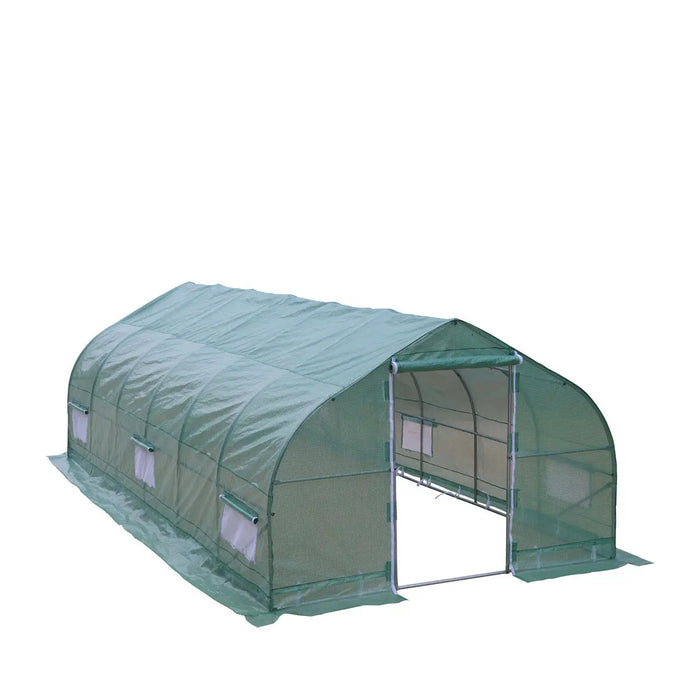

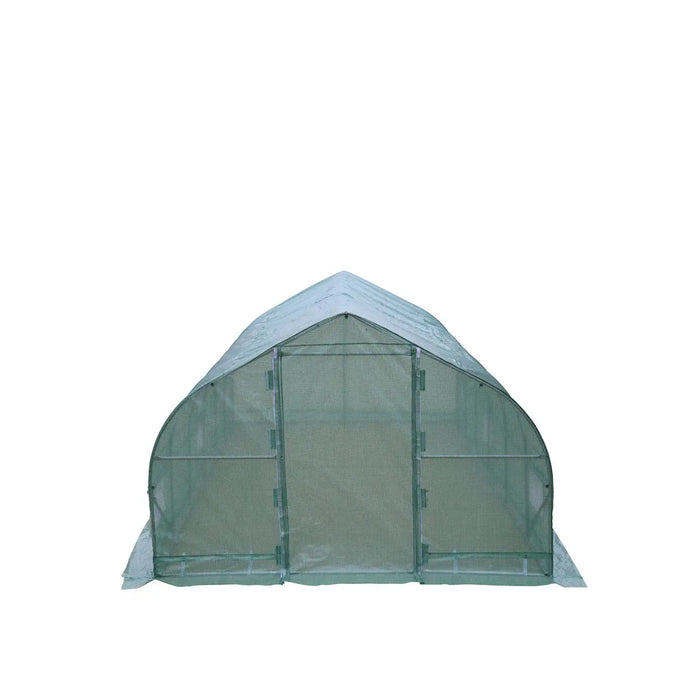

- Roll up entry door
- Leno weaved green mesh transparent ripstop tarpaulin

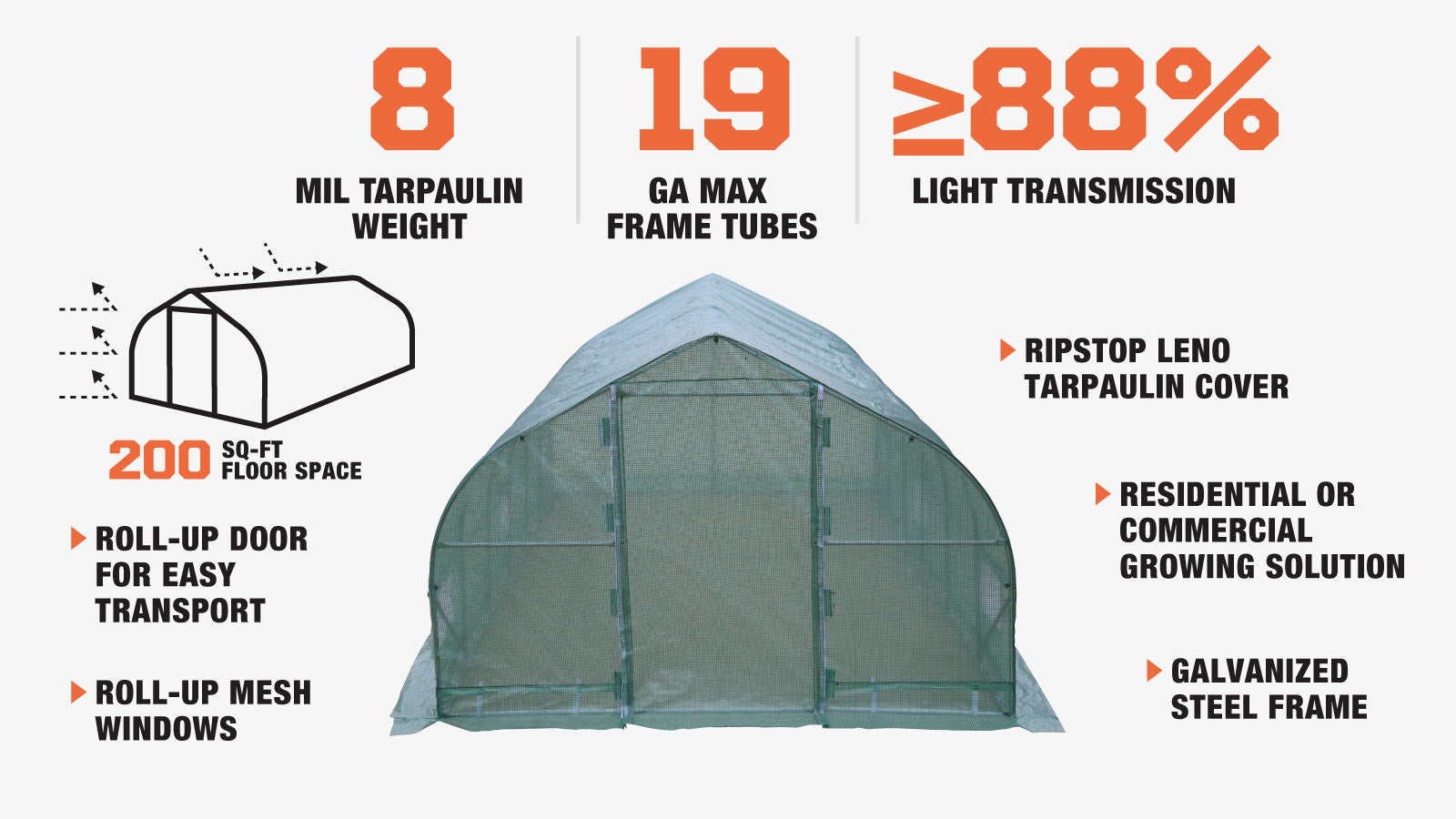

- Tarpaulin weight: 8 mil, 140 gsm
- (6) sizeable roll-up mesh windows: 24” x 16”
- UV coated, waterproof, ripstop
- Light transmission: ≥ 88%

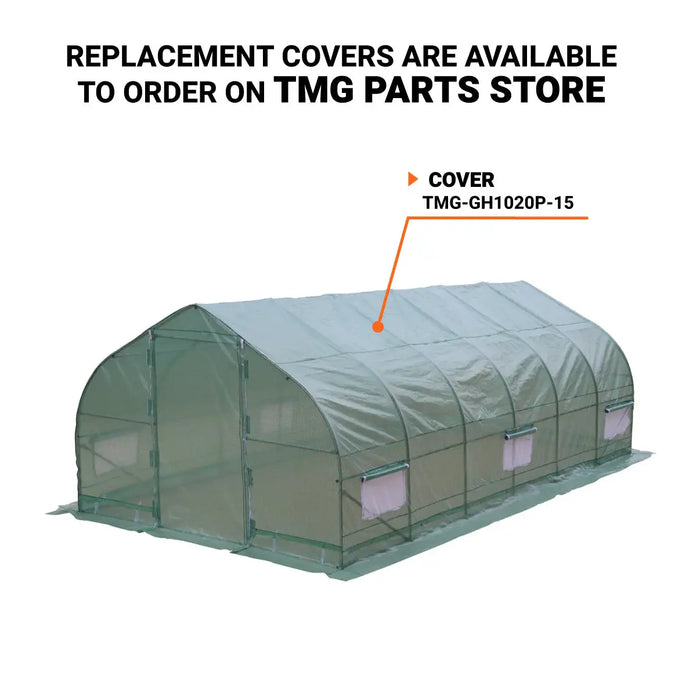

- Replacement covers available to purchase separately

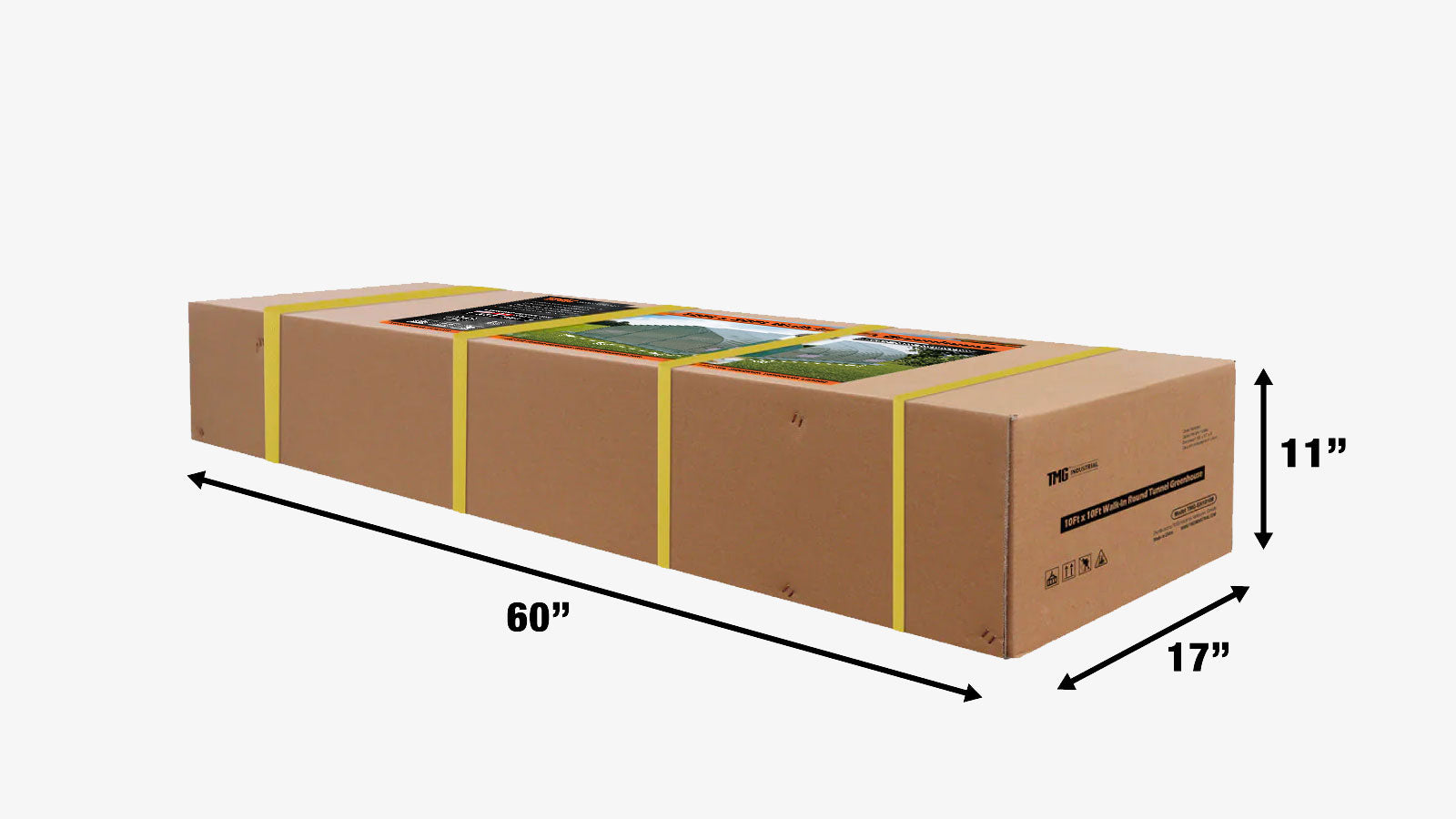

- Packed in one carton shipping box
- Shipping dimension: 60" x 17" x 10"
- Shipping weight: 158 lb
Engineering drawings are not available for this model.
Please check with your local municipality bylaws to ensure compliance. It is the customers' responsibility to provide any necessary drawings to obtain any permits that may be required.
