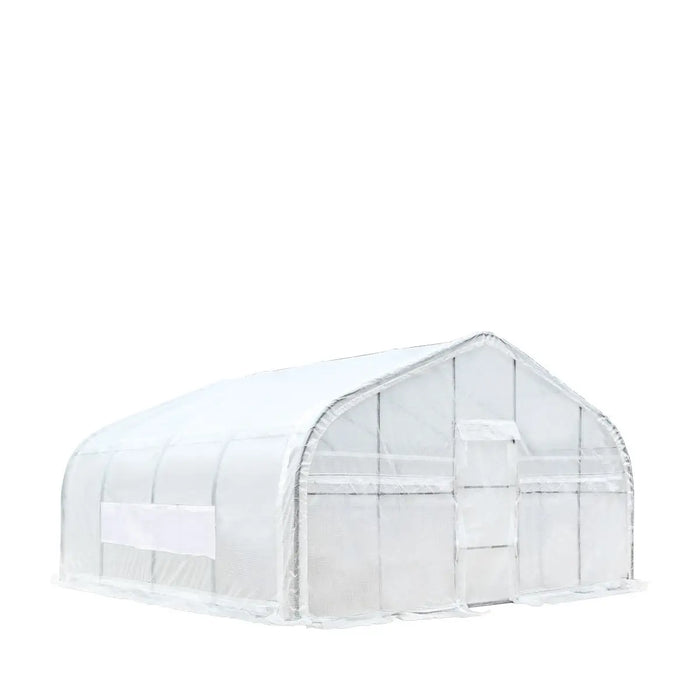

- Exact floor footprint: 19.7’ (W) x 19.7’ (L)
- Galvanized steel tube frame structure
- Steel tubes are added on the front and end walls to keep the cover tied
- Peak ceiling height: 10’

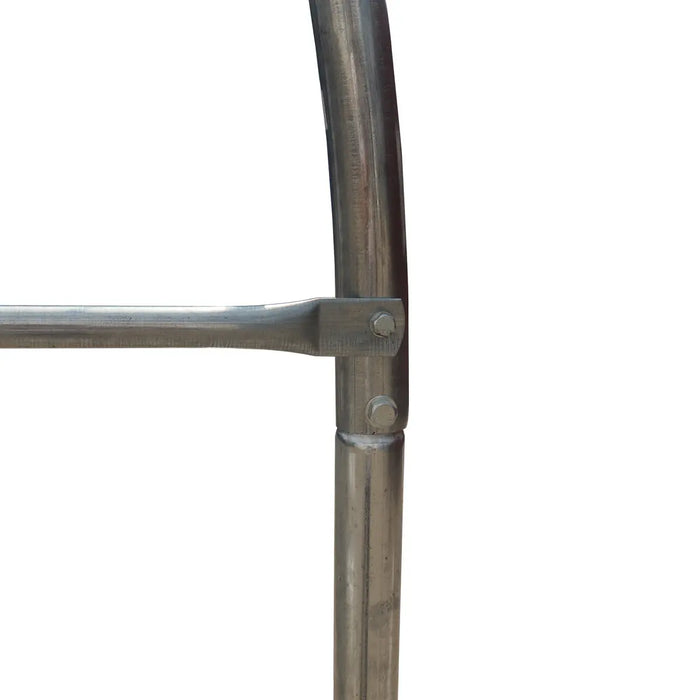

- Truss arches: ⌀1.9” – 15 gauge
- Horizontal purlins: ⌀1.0” – 19 gauge
- 59’’ bay spacing

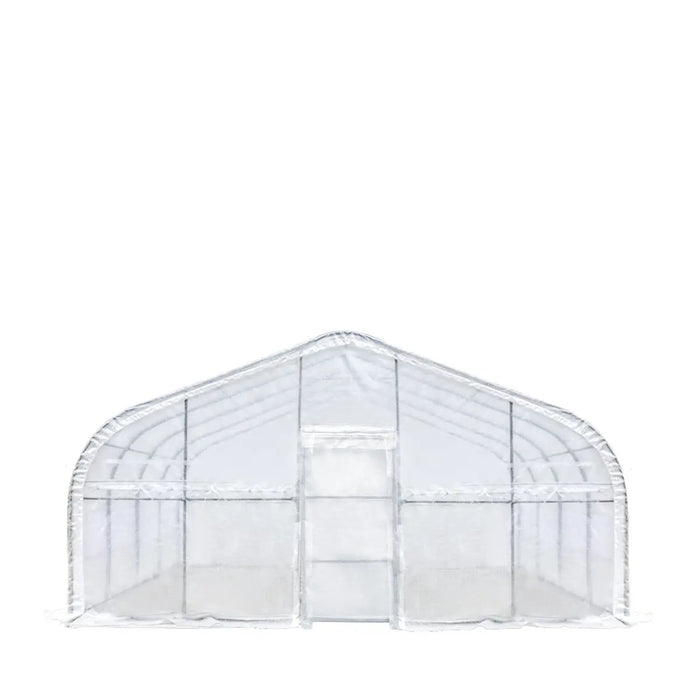

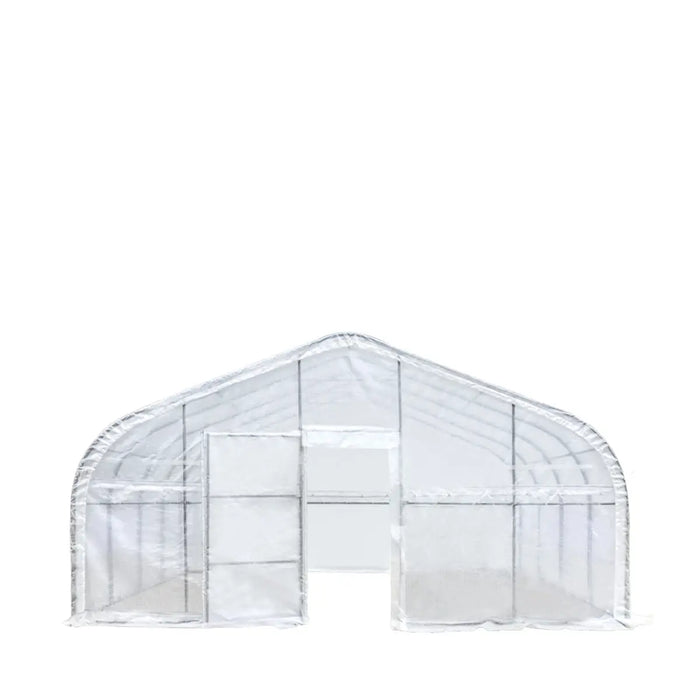

- 43’’ x 78’’ walk-through door

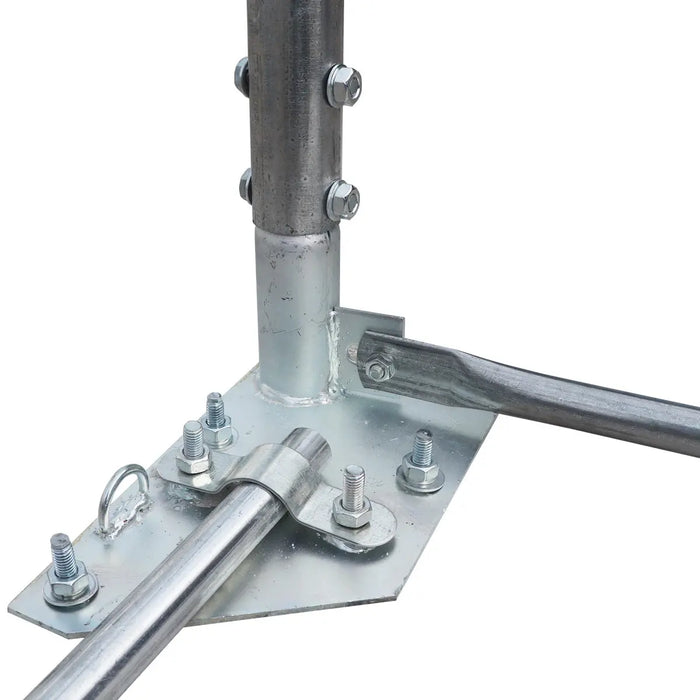

- Footplates with pre-drilled hole (anchor bolts included)

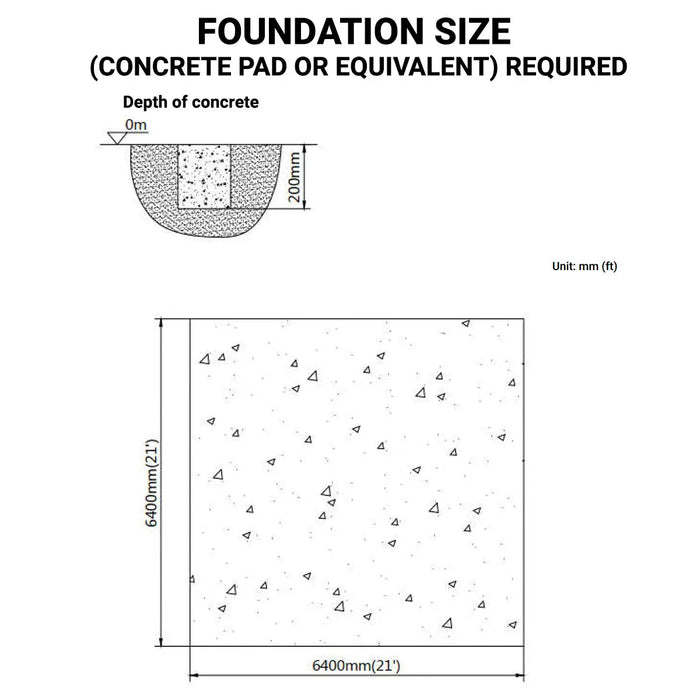

- Foundation required: concrete, solid ground or equivalent
- Leno mesh ripstop white tarpaulin, 12mil, 180gsm

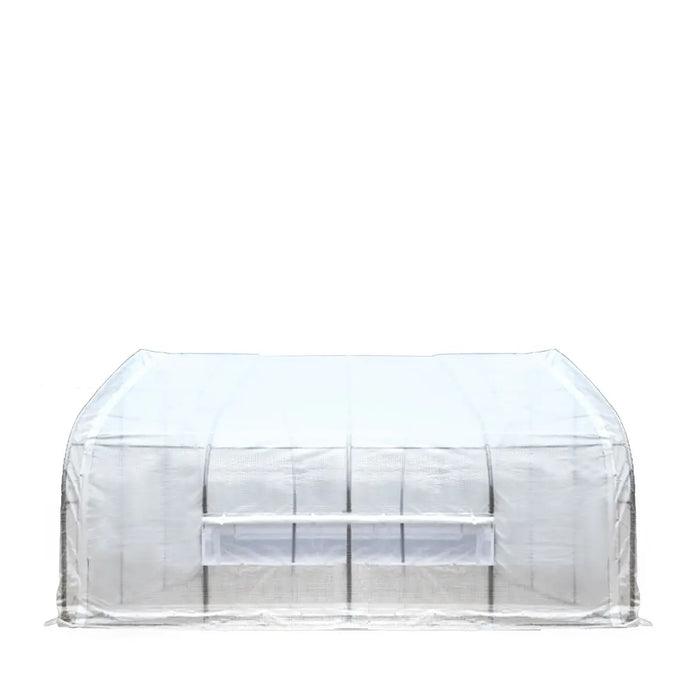

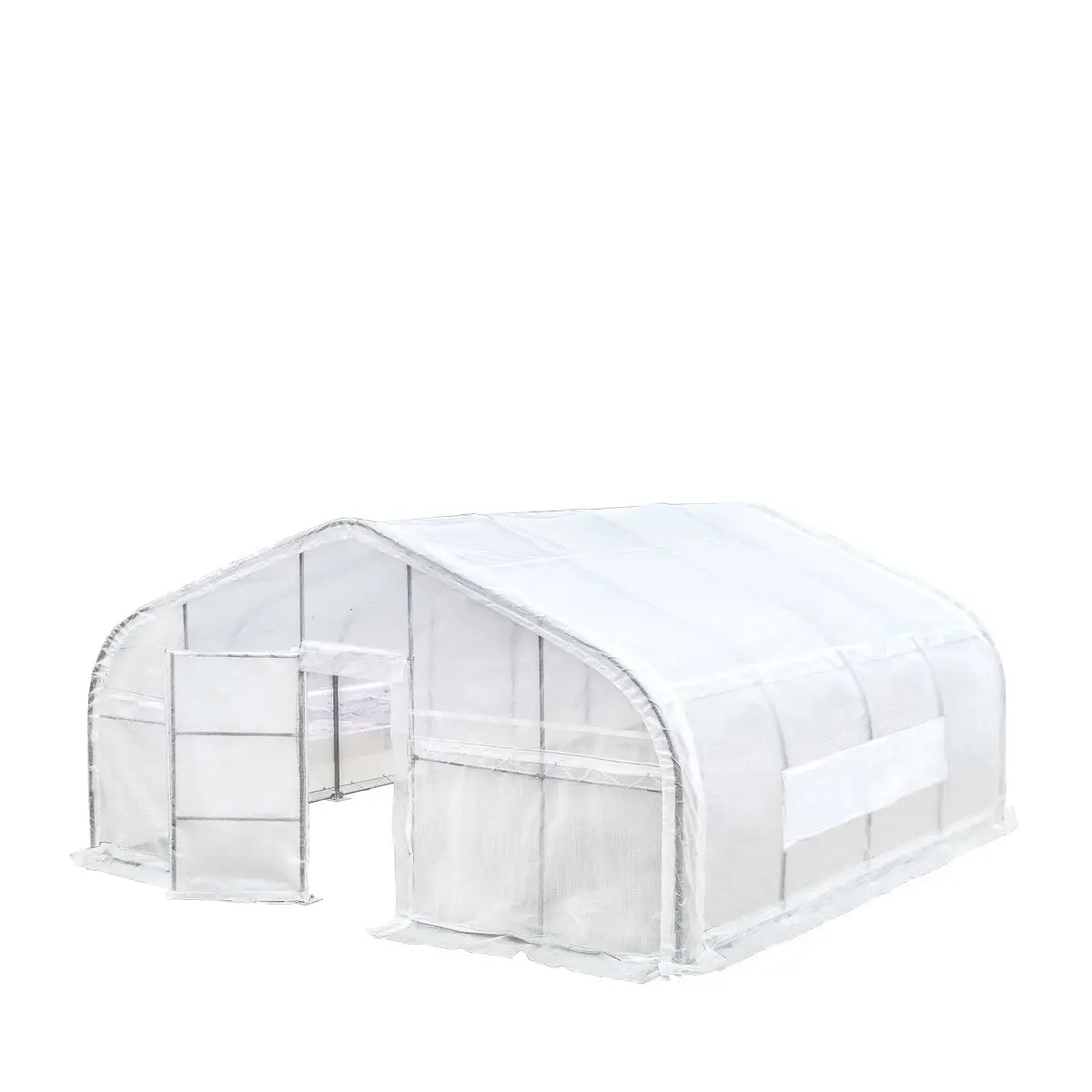

- Large roll-up mesh windows on both sides
- UV coated, waterproof, transparent
- Light transmission: ≥ 88%
- Light diffusion: 20%
- Life span: 48 months

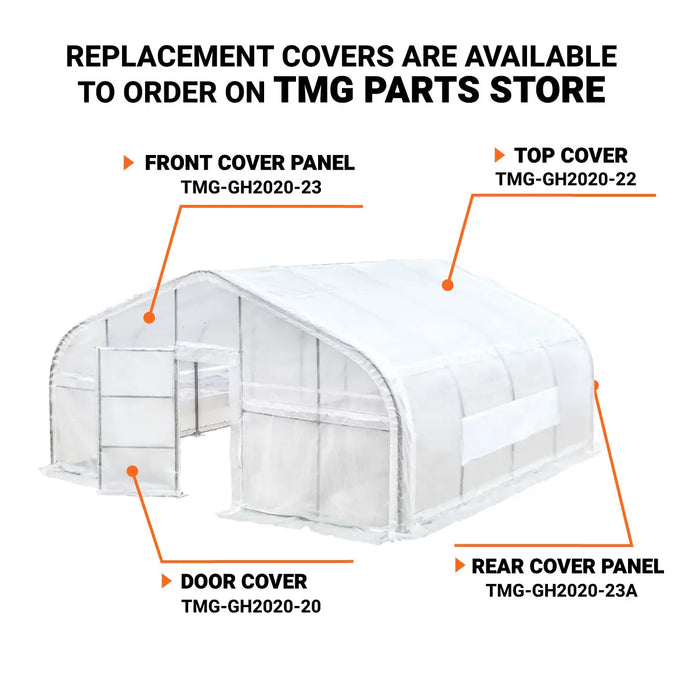

- Replacement covers available to purchase separately
- Packed in one wood crate shipping box
- Shipping dimension: 87" x 29" x 14"
- Shipping weight: 550 lb
***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.
Engineering drawings are not available for this model.
Please check with your local municipality bylaws to ensure compliance. It is the customers' responsibility to provide any necessary drawings to obtain any permits that may be required.
