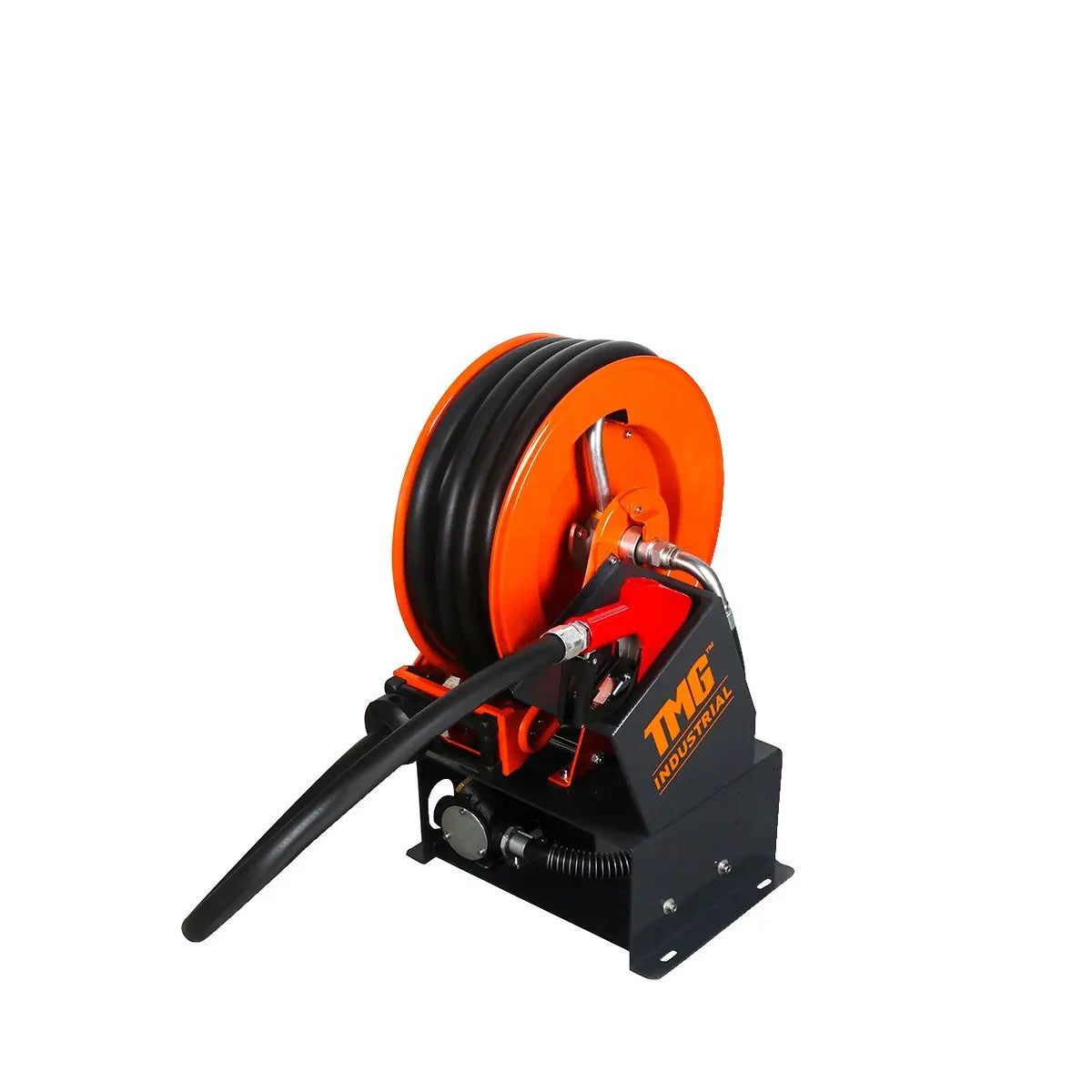

Portable Diesel Transfer Pump w/49' Hose Reel, Auto Shut Off, DC 12-Volt, 15 GPM, TMG-DFP10
Product Manual
Features
Features
- For the efficient volume transfer of diesel, biodiesel and kerosene to your pickup, boat, skid steer or other large construction or agricultural equipment
- Equipped with an aluminum die-cast nozzle that also features an automatic shut off for long lasting use, operational safety and overfill prevention
- 6-½’ cable connects easily to a 12 V DC battery (not included) as its power source, so you can easily use even in remote conditions
- 49’ hose is conveniently stored in the pumps reeled housing and can stretch to reach your parked vehicle, docked boat or equipment parked inside a job site
- Pump operates under 290 PSI of pressure to produce a pump flow rate of 15 GPM and a nozzle flow rate of 10 GPM so you’ll be able to fill up quick
- Compatible with a storage tank up to 10’ deep and also includes a ¾” universal NPT fitting for sealed a secure fluid transfer
- Compact profile and design allow for easy storage and portability around your farm, on the road or to and from customer job sites
Specifications
Specifications
- Fuel Pump
- Rated power: DC 12 V, 19 A, 3000 RPM
- Max suction: 10’
- Lift distance: 20’
- 30-minute duty cycle
- Hose Reel
- 49’ dispensing hose
- Working pressure: 290 PSI
- Break pressure: 580 PSI
- Automatic Fuel Nozzle
- Pump flow rate: 15 GPM
- Nozzle flow rate: 10 GPM
- Aluminum die-cast nozzle
- Universal fitting: ¾” NPT
- Compatible with diesel, biodiesel & kerosene; DO NOT USE WITH GASOLINE
- Connects to standard 12 V battery (not included)
- Automatic shut off to prevent overfill
Product Description
Product Description
The TMG-DFP10 Portable Diesel Fuel Tank Transfer Pump is an ideal attachment for anyone who needs convenient, efficient volume transfer to their vehicle, boat, skid steer or other heavy duty operating equipment. Equipped with an aluminum die-cast and automatic shut-off nozzle for long lasting use and safety. Compact enough for easy storage and portability, this pump is compatible with the following fuels: Diesel, biodiesel and kerosene.
Our transfer pump features a convenient 49' hose so you can reach your destination whether it's mounted on a pickup, stretching for a docked boat or extending through a jobsite to a piece of machinery. Its 6-½' cable connects easily to a 12 V DC battery as its power source, making this the ultimate versatile fuel pump solution for anyone working remotely or across large areas like in many agricultural settings.
Under 290 PSI of pressure this pump produces a flow rate of 15 GPM and a nozzle rate of 10 GPM. It will have your machine or vehicle filled up fast, and you'll be able to minimize downtime and get right back to work.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 23” x 19” x 31” (L x W x H)
- Shipping weight: 125 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
