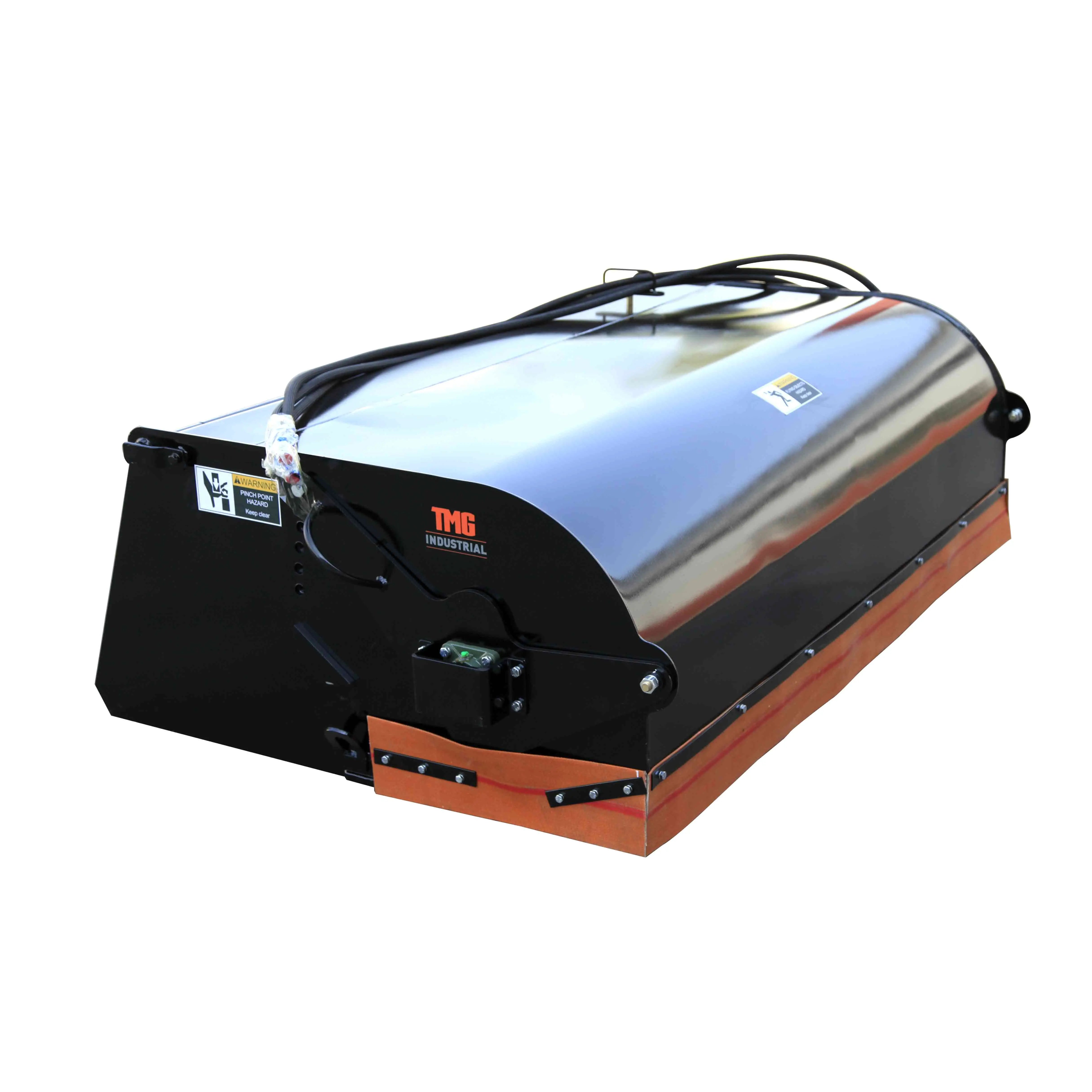

TMG-PS72 72" Skid Steer Pick Up Broom Sweeper, 10-25GPM Standard Flow, Bi-directional, 22'' Diameter Bristles

$5,450.00

In stock | Free Shipping

SKU TMG-PS72
Quantity
Free shipping in USA
Need Help? Call Us at 1-877-761-2819
Product Description

The TMG Industrial 72’’ skid steer pick-up broom sweeper is a practical attachment for sweeping, collecting, and dumping dirt and other job site debris.  Equipped with 22’’ diameter poly/steel wire mix bristles and kept with sufficient room for the bristles to collect dirt and debris toward the attached bucket, this sweeper is designed to work efficiently and is long-lasting. Other features include the bolt-on replaceable cut edge, protective rubber skirting, durable Danfoss hydraulic motor, height-adjustable metal shroud, and more!

A case drain line, the 3/8’’ hydraulic hose, is added to adapt for the newer version of skid steers to release the hydraulic pressure built up in the motor, which will alternatively extend the life span of the motor. If your skid steer is older or does not have a port for the third hose, it is safe to use this sweeper but keep the case drain line plugged. This sweeper cannot work with high-flow skid steers

This product is backed with a one-year manufacturer warranty, customer service and spare parts are supported from our headquarters located in Richmond, BC. We are proud to provide free shipping to most locations in Canada and the USA lower 48 states for the purchase of this product.

Features:

  • Durable direct-drive Danfoss® hydraulic motor
  • Bi-directional collection broom sweeps in forward and reverse
  • Poly/steel wire mix bristles
  • Rubber skirting to contain debris
  • Replaceable bolt-on cutting edge
  • Motor and shaft guards
  • Height adjustment pins with six positions
  • Heavy-duty dump stops
  • Grease fittings on all pivot points and bearings
  • Shroud protects objects flying debris
  • Universal skid steer quick attach
  • Case drain line (3/8’’ hydraulic hoe) added to release the motor pressure

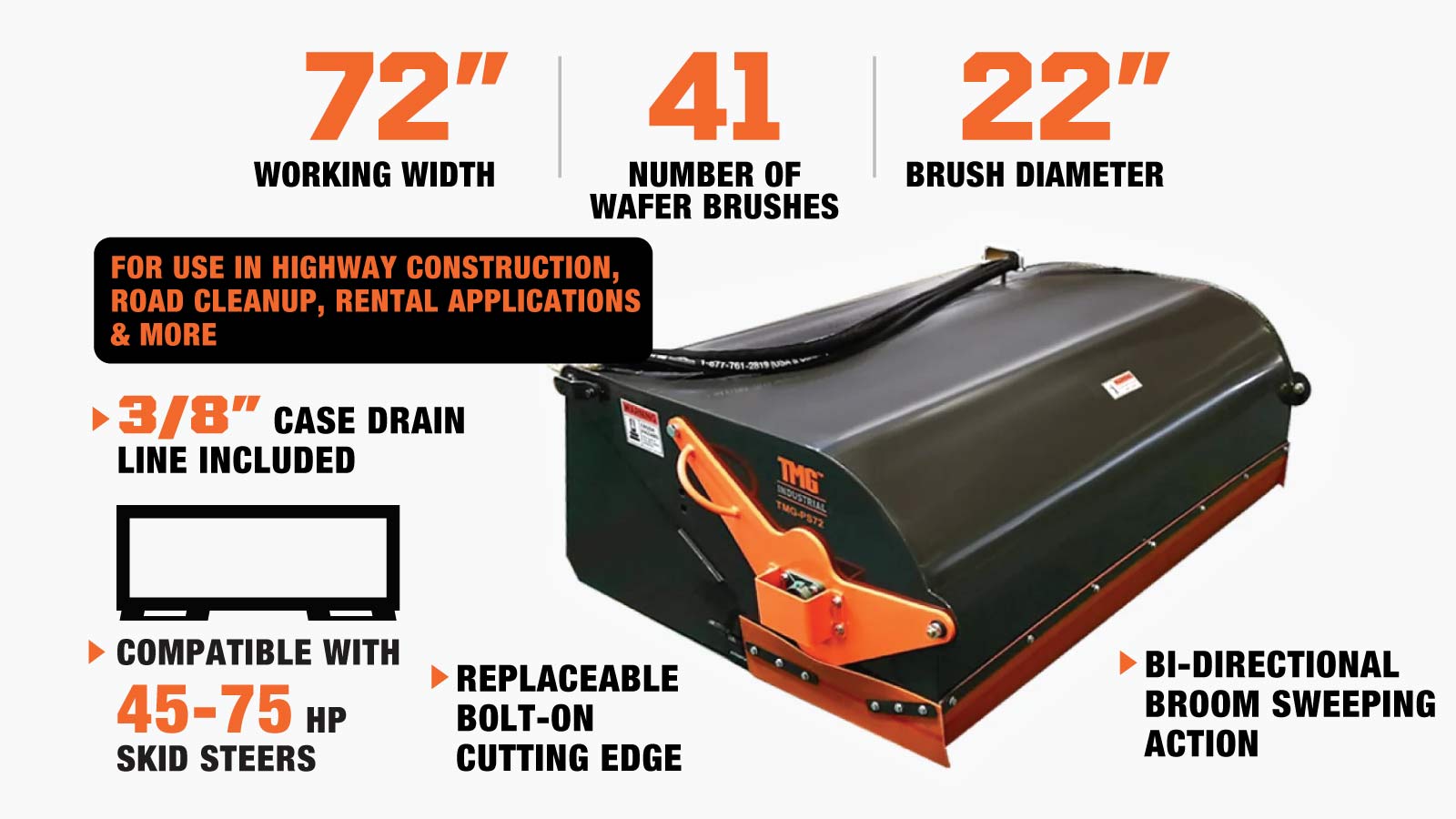

Specifications:

  • Working width: 72"
  • Number of wafer: 41
  • Wafer diameter: 22"
  • Core diameter: 6.5”
  • Bucket capacity: 0.6 cubic yards
  • Hydraulic flow: 10-25 GPM
  • Skid steer loader power recommended: 45-75 HP

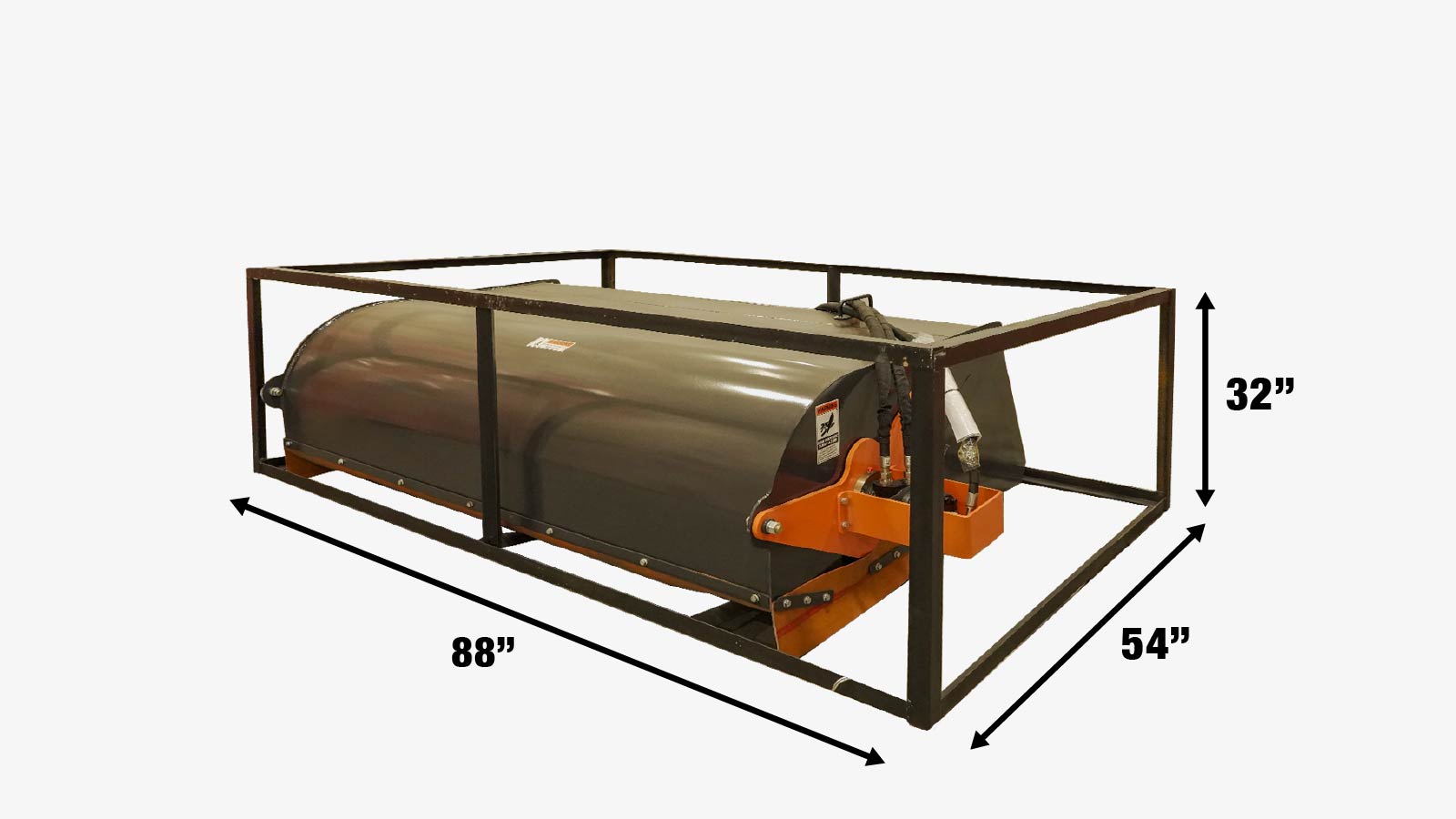

Packaging:

  • Packed in a metal shipping crate
  • Shipping dimension: 88” x 54” x 32”
  • Shipping weight: 1150 lb
