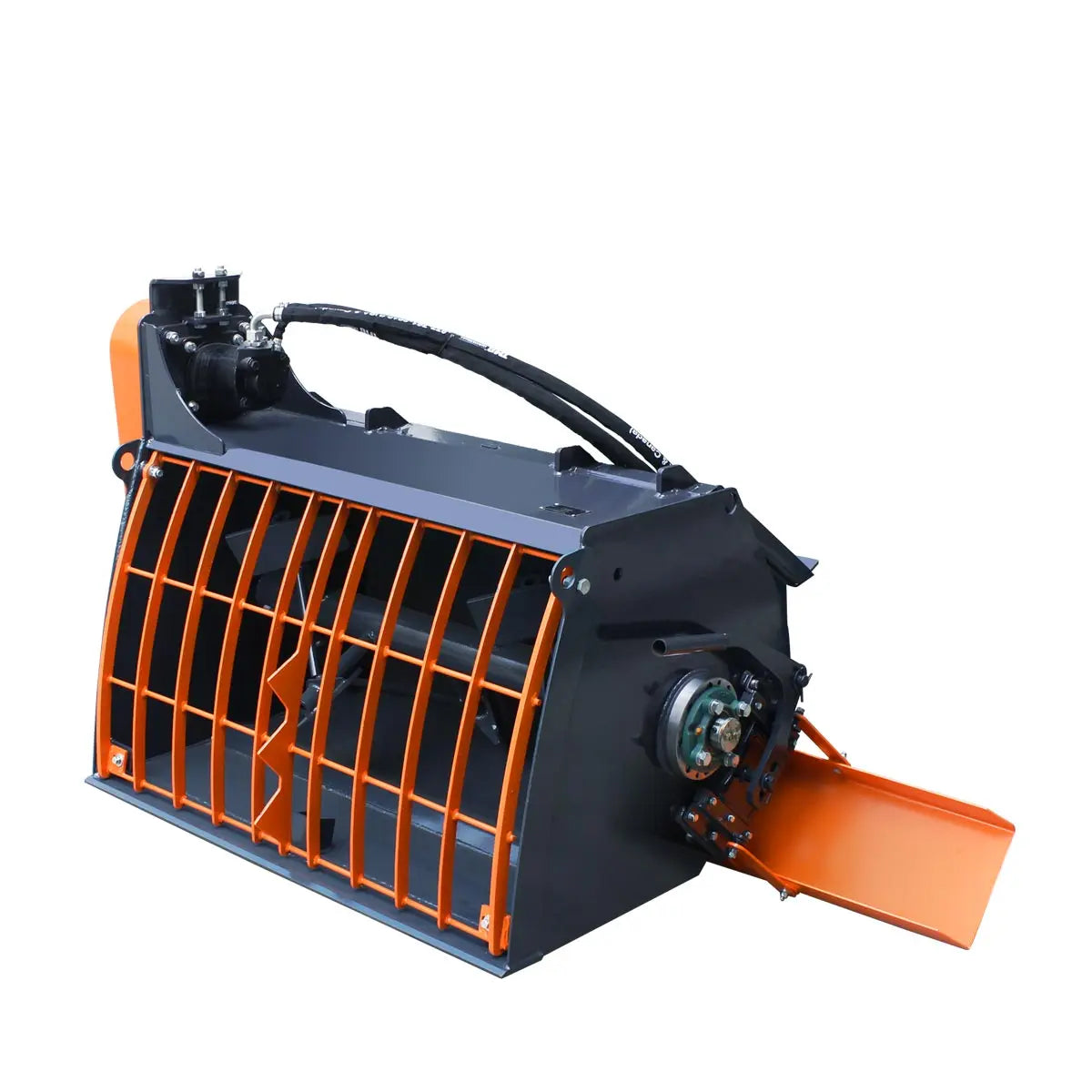

60" Skid Steer Concrete Mixer Attachment, Side Chute Dispenser & Bag Splitter, Universal Mount, 16 Cu-Ft Capacity, TMG-SCM61
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features

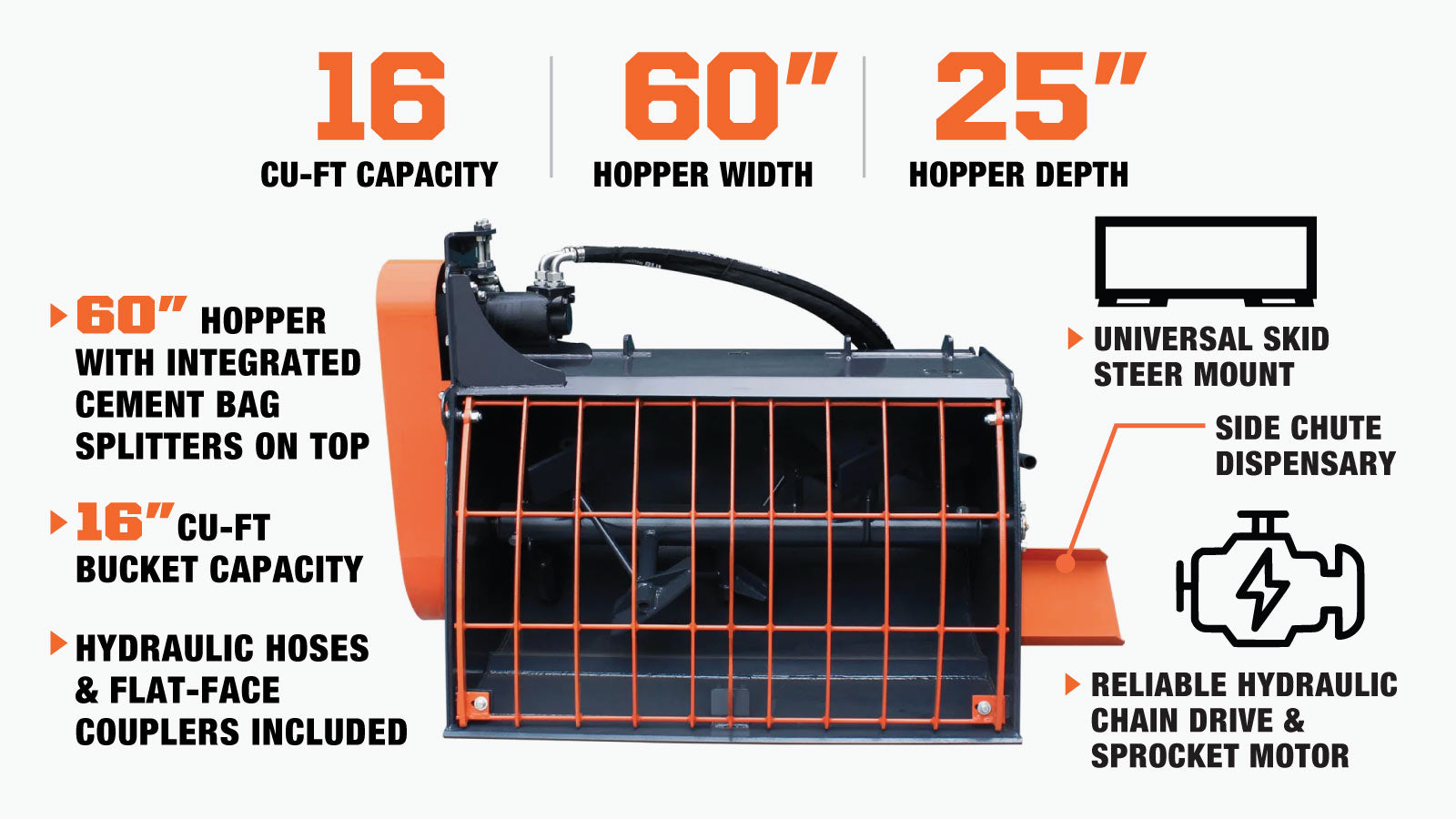

- Essential attachment for any skid steer operating in masonry, driveway/sidewalk repair and commercial or residential construction
- Reliable hydraulic chain and sprocket drive motor works under 3050 PSI of pressure for tough, superior mixing power
- Reversible revolving paddles thoroughly churn through concrete mix and keep it smooth for a high quality pour every time
- 16 cu-ft bucket capacity allows you to mix large quantities at once to save time and labour while out on the job site

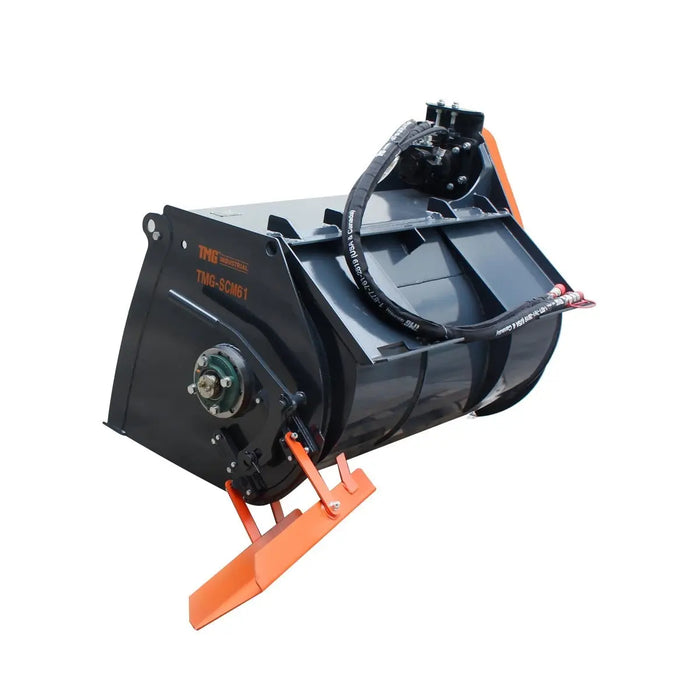

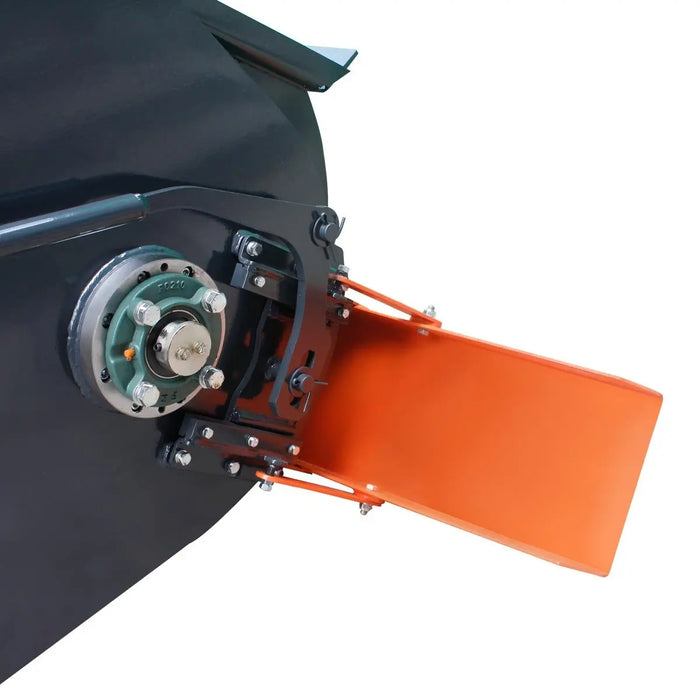

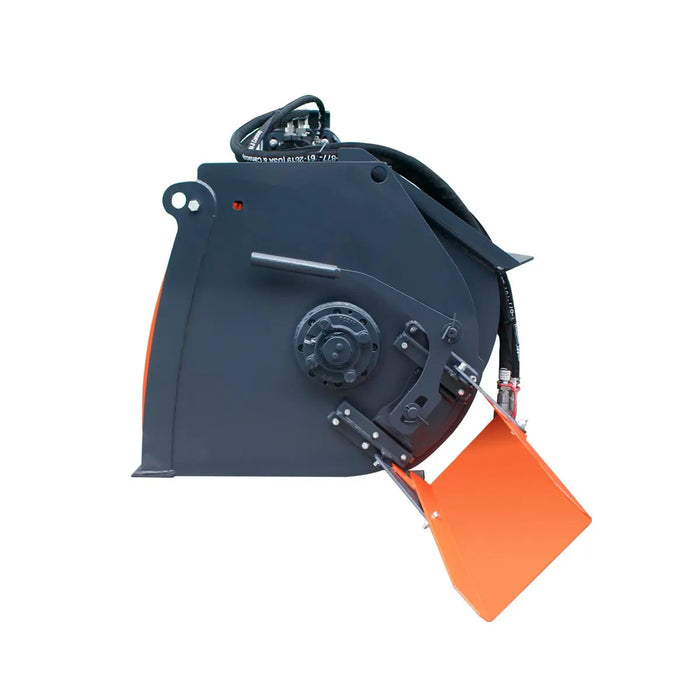

- Side chute dispensary gives you the option of a more precise and controlled flow, or opt to pour out the front for bigger pad and sidewalk pours
- 60” hopper width has integrated bag splitters build right into the top so you can easily add cement without the hassle of ripping each bag
- Universal mounting plate fits most skid steer makes and models and offers a simple, quick attach mount/dismount to save time on the job

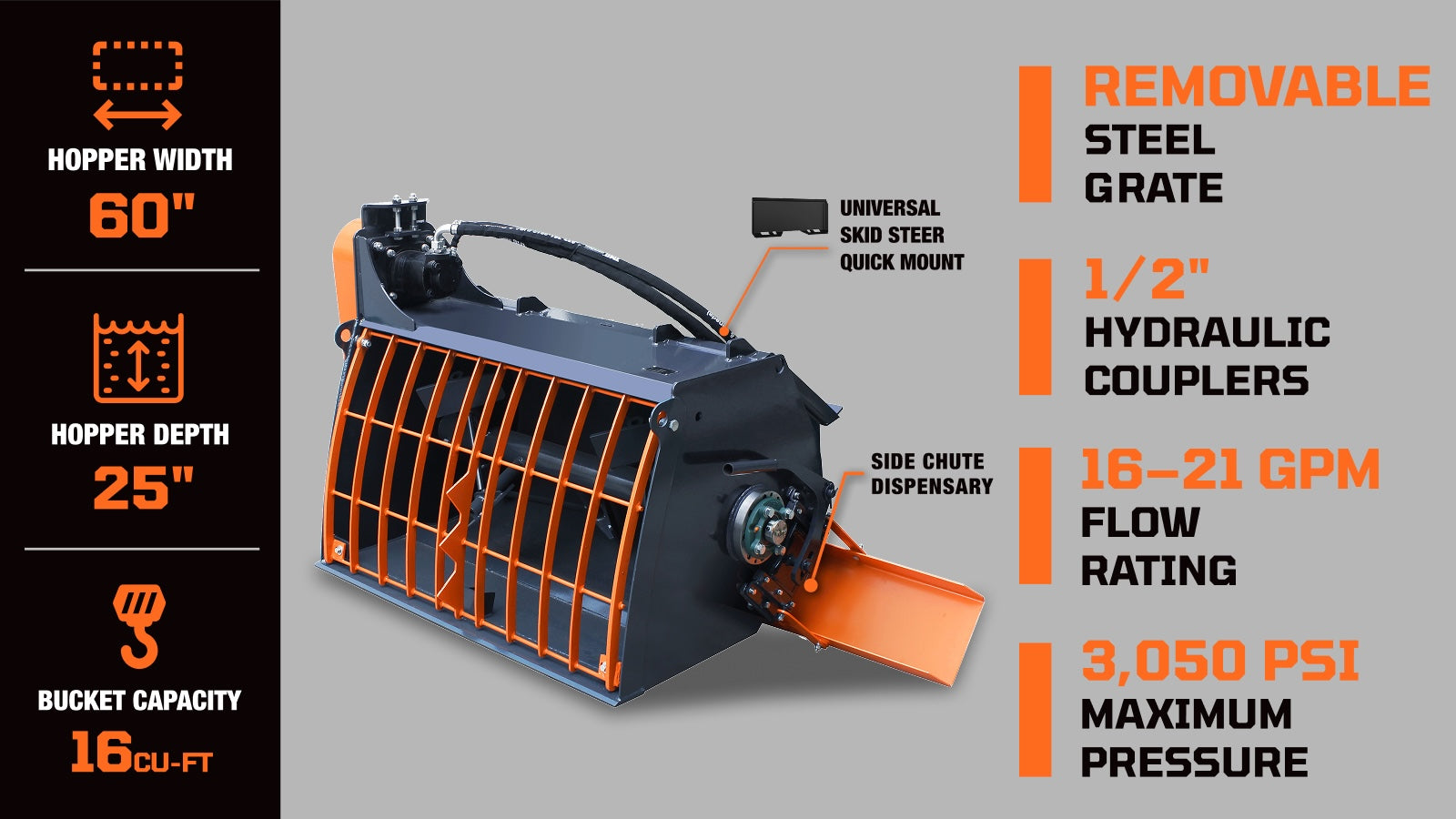

Specifications
Specifications

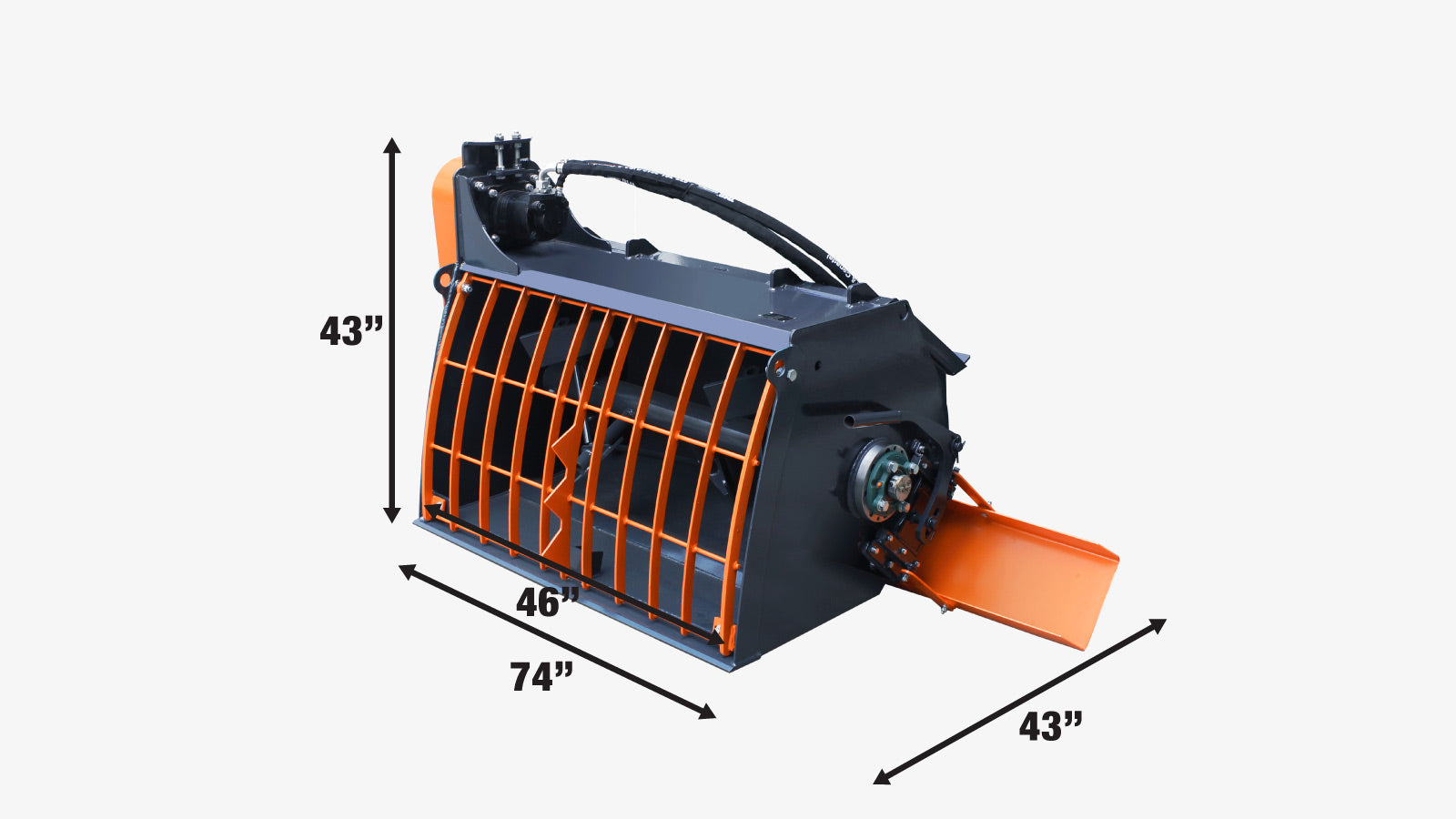

- Assembled size: 73” (L) x 53” (W) x 49” (H)
- Capacity: 16 cu-ft
- Hopper width: 60”
- Hopper depth: 25”
- Flow rating: 16-21 GPM
- Max. pressure: 3050 PSI
- Max. aggregate size: ¾” at 25% mix ratio or less
- Hydraulic chain & sprocket drive motor

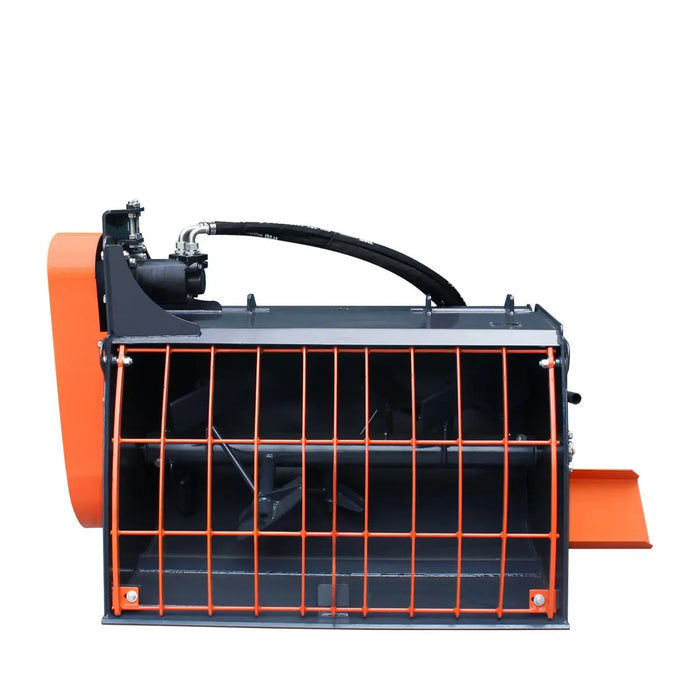

- Removable steel grate w/bag splitters
- Hydraulic hoses & flat-face couplers included
- Universal skid steer mount
Product Description
Product Description
The TMG-SCM61 Skid Steer Concrete Mixer is an essential attachment for your skid steer if you or your company does any type of concrete work. Driveways, masonry, commercial and residential construction could all be made easier with the addition of this mixer and its versatile design. Simply hookup to your skid steer with the universal mount and you'll be immediately saving time, money and labour.
Churn up to 16 cu-feet of cement at a time with the bucket's large capacity and heavy-duty overall construction built to handle even your toughest concrete jobs. A side chute dispensary allows you to direct product in a controlled fashion, or, if working on bigger jobs you have the option of pouring out the front for a higher volume pour.
The reversible revolving paddles optimize mixing and are powered by a hydraulic chain and sprocket drive motor that operates under 3050 PSI of pressure. An integrated bag splitter sits on top of the bucket, so you can easily pour concrete in from the top or scoop it up while driving. Mix it on the go and be ready to pour as soon as you reach your destination.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

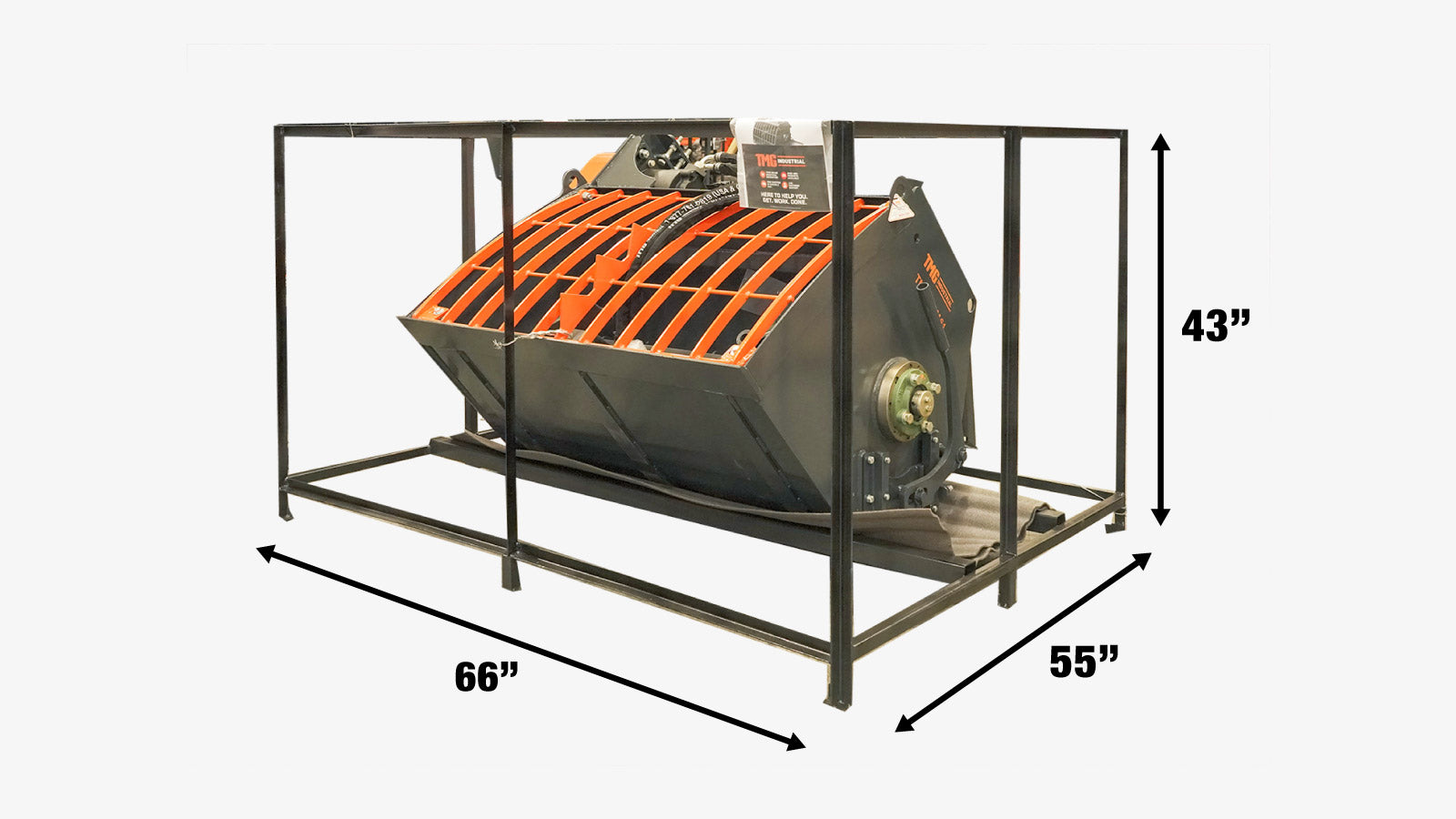

- This product is packed in a metal crate shipping box
- Shipping dimension: 66” x 55” x 43” (L x W x H)
- Shipping weight: 1130 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
