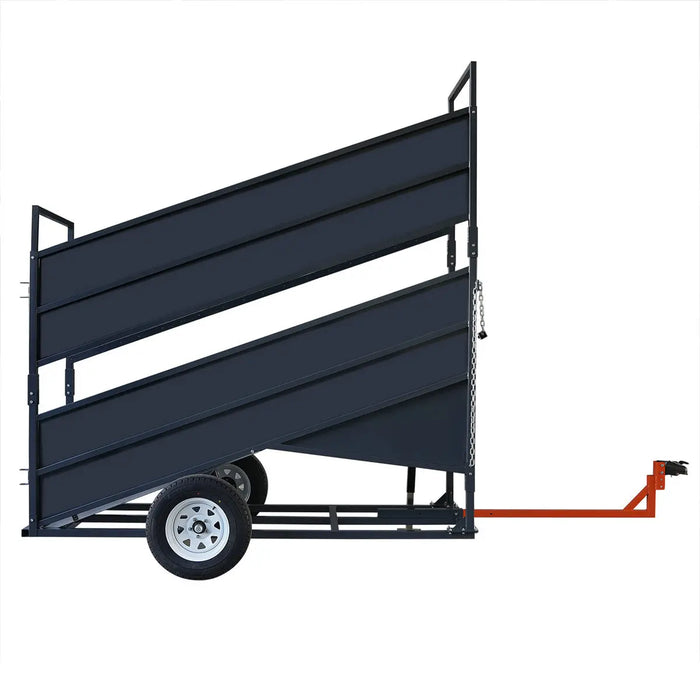

12' Portable Cattle Loading Ramp (Discontinued – No Longer Available) TMG-CSR12
FREE
shipping to most locations in
USA
Learn More
Features
Features
- 12’ ramp length is designed to make your cattle handling operations more efficient by allowing you to set up in a variety of locations
- Adjustable ramp height of 24” to 58” to accommodate varying trailer sizes and platforms so your cattle can transition smoothly out of the ramp

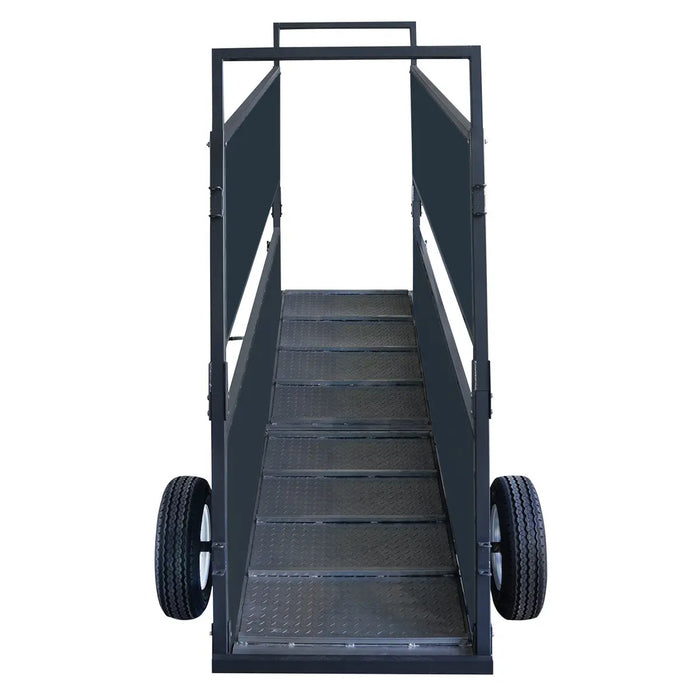

- Rib-checkered steel flooring features a 3 mm pattern board and anti skid tube to help with traction provide a stable footing for your animals
- Ramp surface has been treated with a hot-dip galvanization process and the whole frame is powder coated making it more durable and resistant against rust

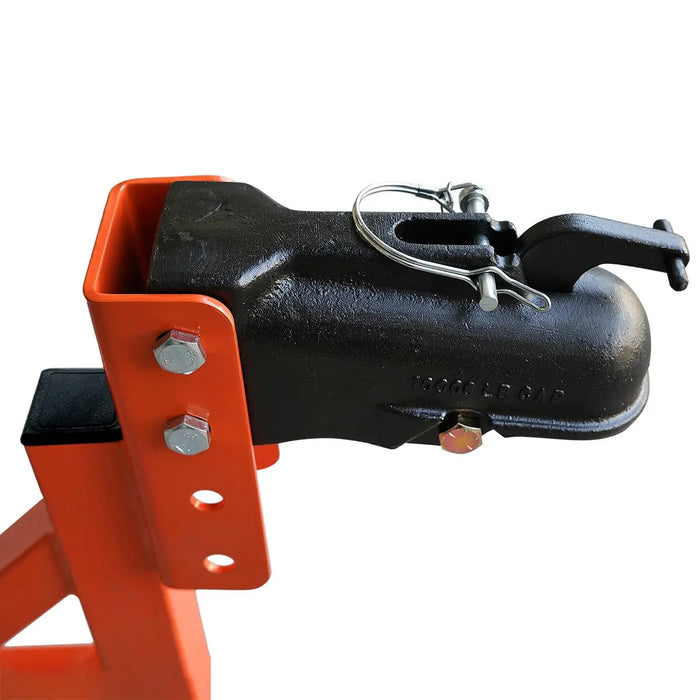

- 2” ball hitch has a 10,000 lb heavy-duty towing capacity allowing you to hook up and transport this ramp with confidence
- 11” vision slot allows you to easily monitor your cattle and guide them through the loading process to keep them comfortable and calm
- Chassis has a maximum load-bearing capacity of 2600 lb with a winch tension of 2500 lb so you can accommodate your unique working environment(s)
Specifications
Specifications

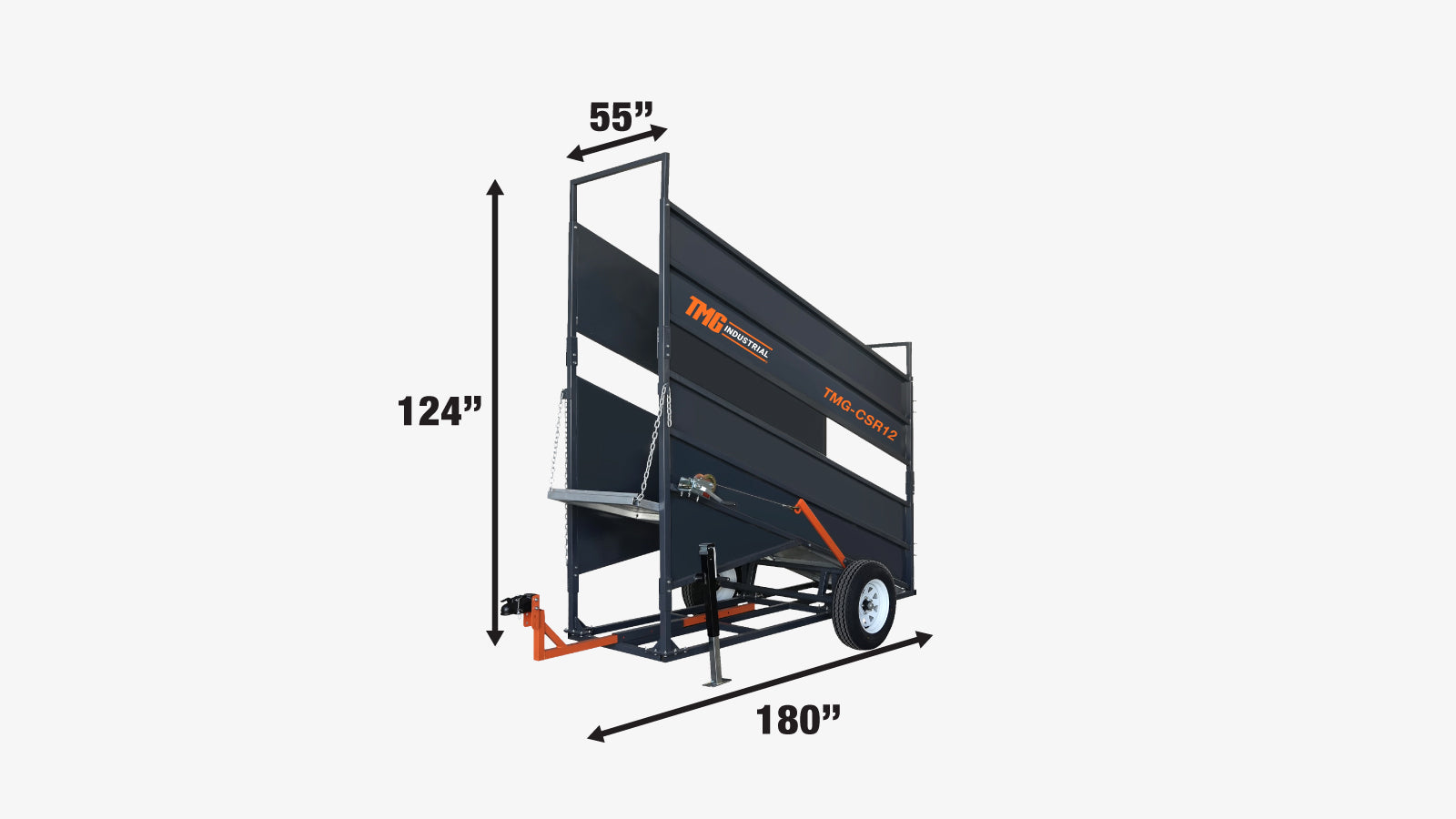

- Overall dimension: 180” (L) x 55” (W) x 124” (H)
- Ramp length inside: 114”
- Ramps width Inside: 32-½”
- Ramps height of sides: 80”
- Ramp height Settings: 24”-58”
- Hitch: 2” ball
- Capacity: 10,000 lb
- Maximum load-bearing of chassis: 2600 lb

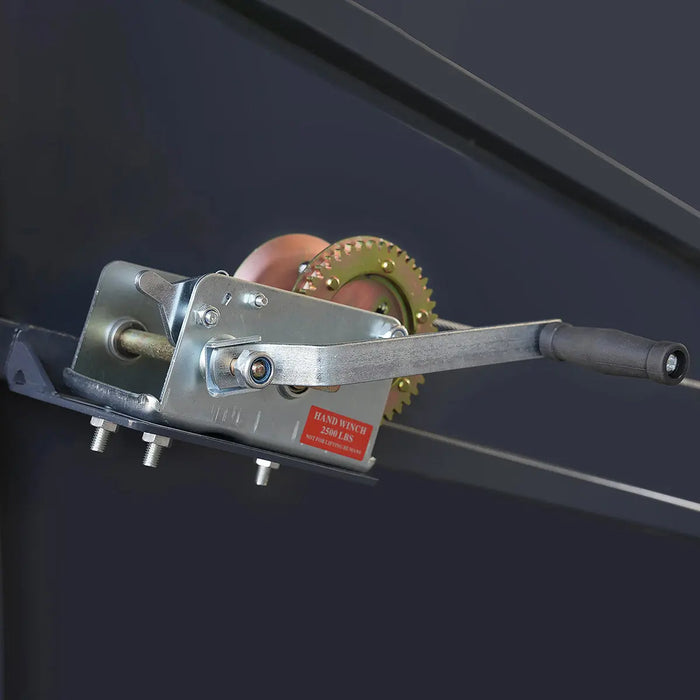

- Winch tension: 2500 lb

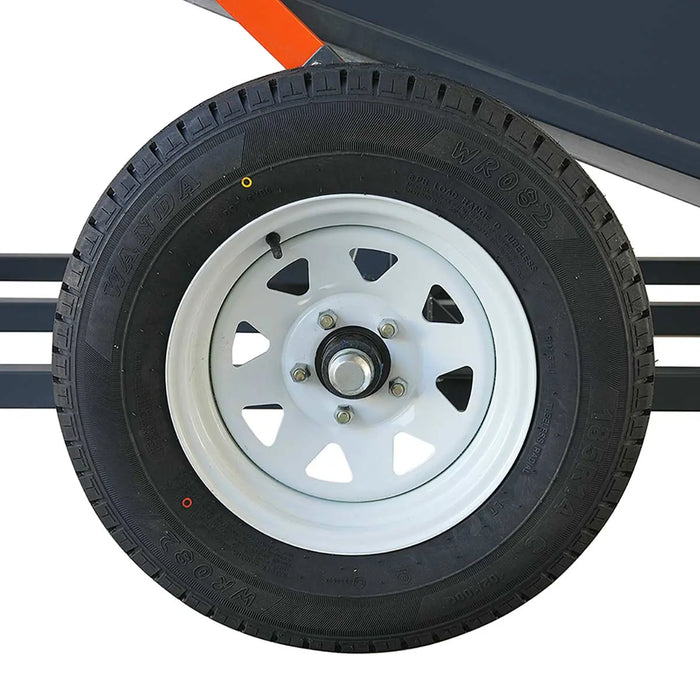

- Tire: 185R14C
Product Description
Product Description

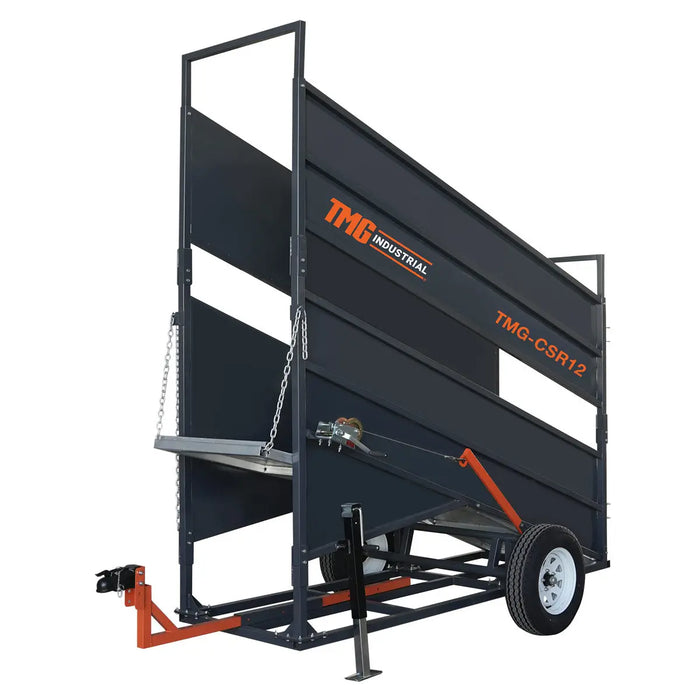

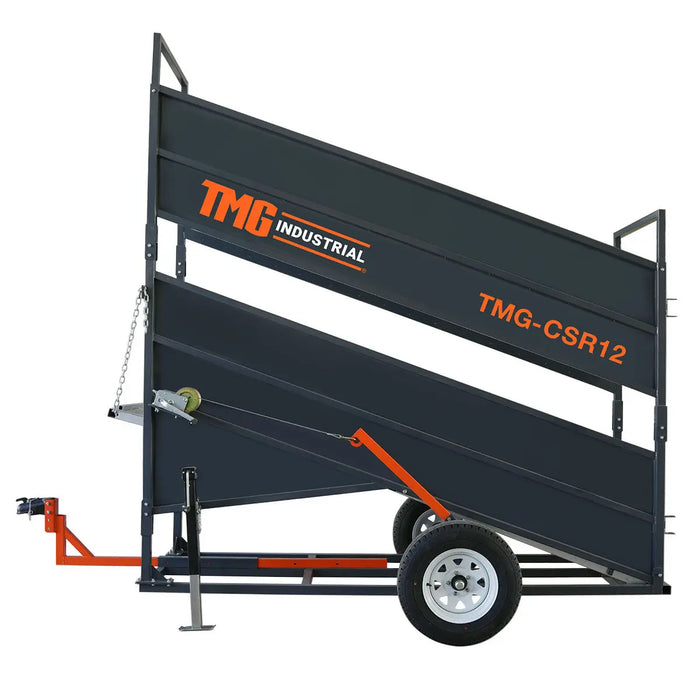

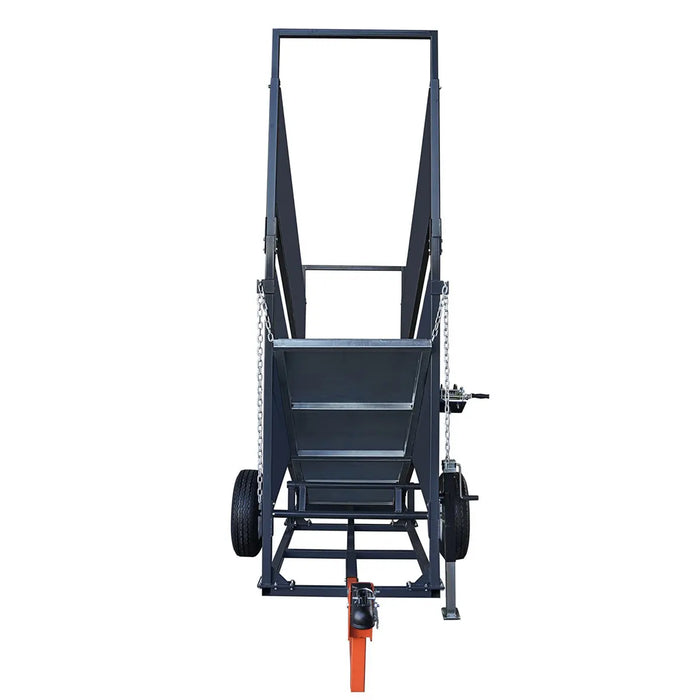

The TMG-CSR12 Portable Cattle Ramp offers unparalleled flexibility in your livestock handling setup. Designed to make your cattle operations and transport more efficient with a 12' ramp that allows you to set up in a variety of locations. A rib-checkered steel flooring, featuring a 3 mm pattern board and anti-skid tube, creates a secure journey for your animals while providing traction to keep them moving with assurance through the loading chute.
10,000 lb ball hitch heavy-duty towing capacity allows you to move your livestock with confidence. Maximum load-bearing of the chassis itself is 2600 lb with a winch tension of 2500 lb. Ramp height can be adjusted between 24" and 58" to accommodate your trailer. An 11" vision slot also allows you to easily monitor your cattle and guide them through the loading process.
Our loading chutes are constructed with a powder coated frame, designed to protect them from excessive moisture, chemicals, UV rays, and other extreme weather conditions. Built to last, providing resistance to rust, wear and corrosion over time.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

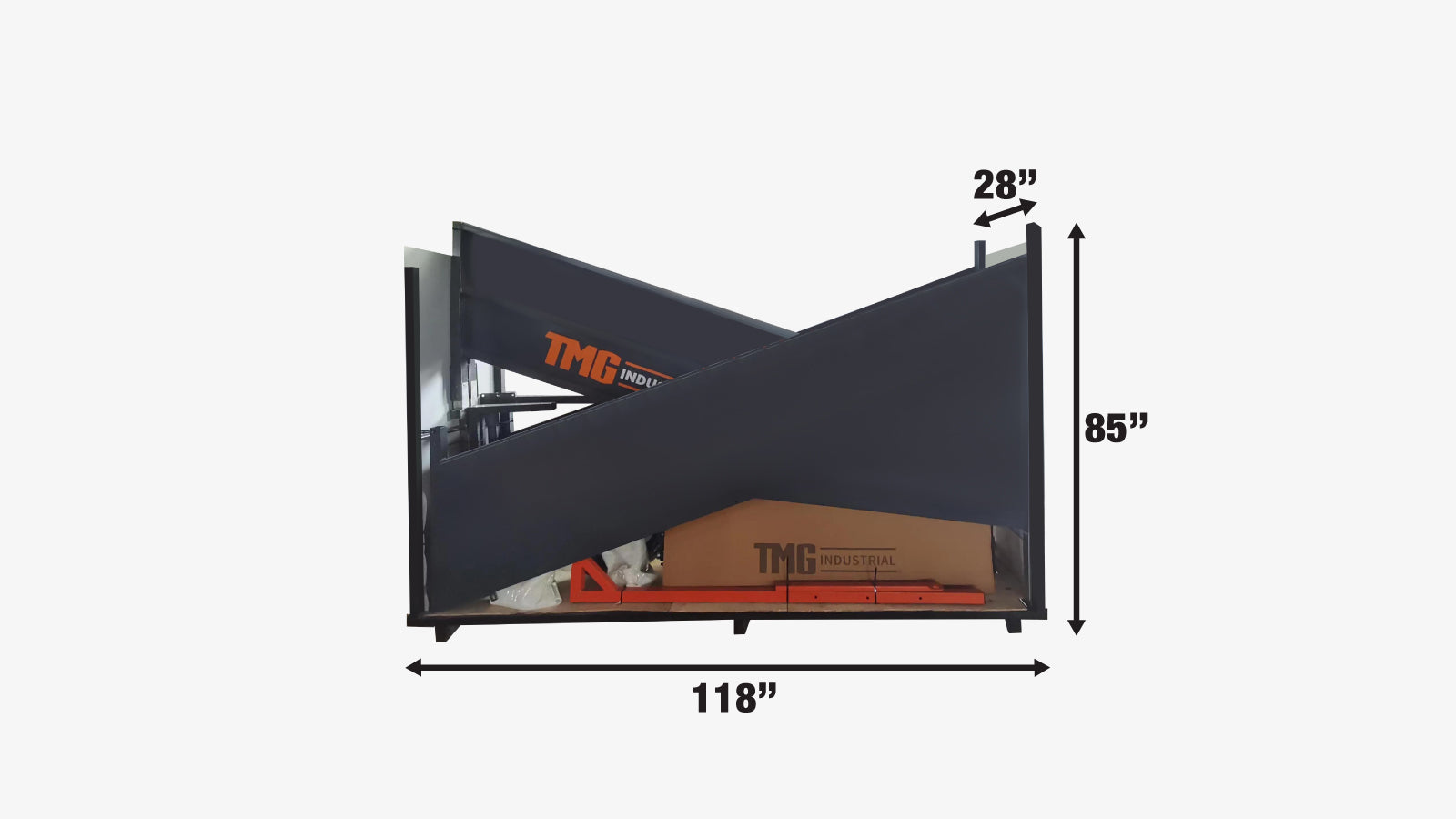

- This product is packed in a wood crate shipping box
- Shipping dimension: 118” x 28” x 85” (L x W x H)
- Shipping weight: 1150 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
