TMG-RSV70G

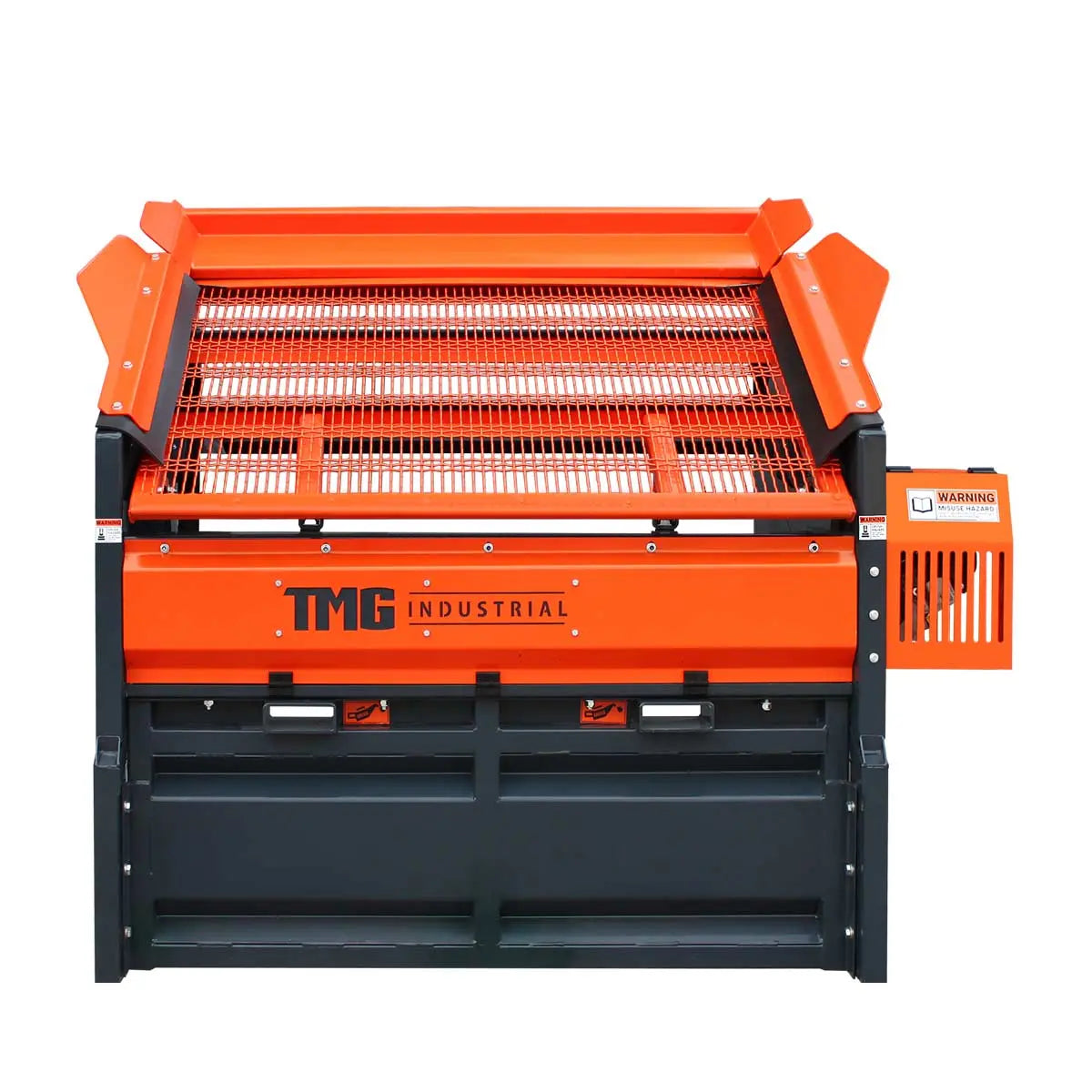

70" Vibratory Topsoil Rock Screen, 5.5 HP Kohler Engine, Cantilever Leaf-Springs, 30° Screen Deck, TMG-RSV70G

TMG Industrial 70” Vibratory Topsoil Rock Screen, 5.5 HP Kohler Engine, Cantilever Leaf-Springs, 30° Screen Deck, TMG-RSV70G
CURRENTLY IN STOCK
SKU TMG-RSV70G
$7,699.00
$7,699.00 - $7,699.00
$7,699.00
$7,099.00
$7,099.00 - $7,099.00
$7,099.00
$7,699.00 Save $600.00
$7,099.00
Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 3 LEFT IN STOCK
1-888-467-5788
Product Manual
Find Parts

Features

  • Compatible for use with compact tractors, small to medium excavators and skid steers to accommodate most commercial inventories
  • Ideal for jobsite and remote screening of sand, topsoil, compost, gravel, rock, crushed concrete, fine materials and more
  • Industrial strength structural frame with a 750 lb capacity will accommodate tough working conditions and significant impacts
  • No power supply required: Operated with a reliable 5.5 HP Kohler gasoline engine that can get the job done even in remote areas
  • Heavy gauge, 30° sloped screen mesh and cantilever leaf-spring vibration system offers optimal screening movement
  • Fully enclosed protective engine compartment and a baked-on powder coated finish will keep this screener free of rust and corrosion
  • Approximately 70” screen deck with added side swings to feed and contain materials efficiently while processing

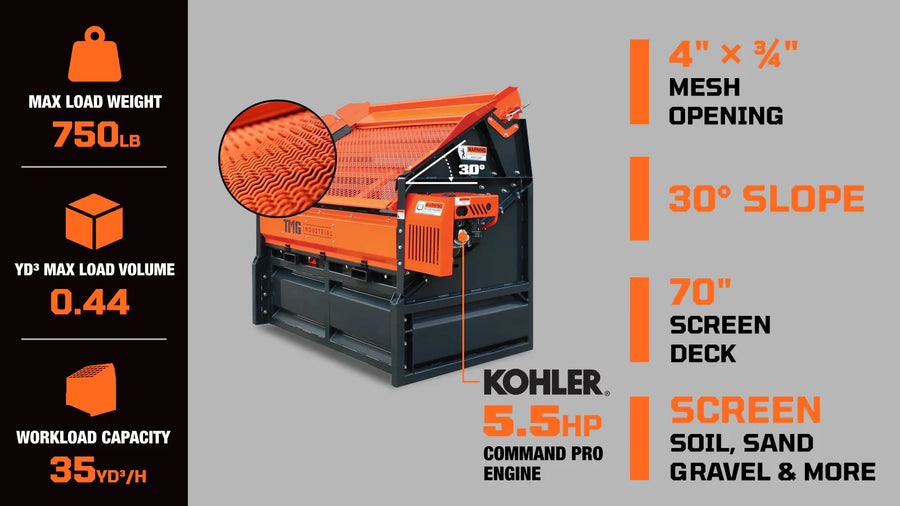

70" Vibratory Topsoil Rock Screen, 5.5 HP Kohler Engine, Cantilever Leaf-Springs, 30° Screen Deck, TMG-RSV70G-description-image

Specifications

  • Overall dimension: 91” (L) x 50” (W) x 76” (H)
  • Screen mesh size: 68” (L) x 48” (W)
  • Screen slope: 30°
  • Mesh opening: 4” x ¾”
  • Operation capacity on deck:
    • Max load weight: 750 lb
    • Max load volume: 0.44 yd³ (one bucket)
    • Load tipping flow recommended: 45 sec. (one bucket)
  • Hopper feed height: 78”
  • Inside access height: 57”
  • Inside access width: 60”
  • Workload capacity: 35 yd³/h
  • Product weight: 1760 lb
  • Two lift pockets for standard pallet forks
  • Assembly level: sectional component assembly required
  • Screen mesh with opening 4" x 1/2", 4" x 3/8”, 4" x 6/8" are available for special order

Engine:

  • Model: Kohler CH255 Command Pro Series
  • Power: 5.5 HP
  • Displacement: 177 cc
  • Gross Torque: 11-¼ ft-lb
  • Oil capacity: 0.63 US qt
  • Shaft output: 3600 RPM
  • Start type: Recoil
  • Cast iron cylinder liners
  • Oil Sentry automatic shutdown
  • Emissions Compliance: EPA Phase III

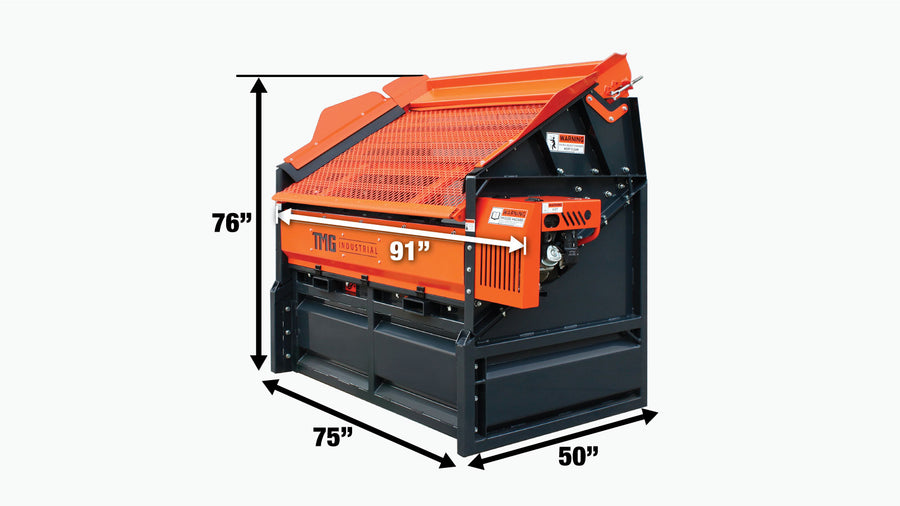

70" Vibratory Topsoil Rock Screen, 5.5 HP Kohler Engine, Cantilever Leaf-Springs, 30° Screen Deck, TMG-RSV70G-specifications-image

Product Description

The TMG-RSV70G Vibratory Topsoil Rock Screen makes the screening of bulky, mixed loads simple and efficient. Sort materials with ease by always having this screen available at your work yard or job site. Used extensively in a number of industries including open-pit mining, recycling, crushing, aggregates, site development, demolition and landscaping. This screener is built tough, made to last and will handle anything you can throw at it.

Equipped with a reliable 5.5 HP Kohler gasoline engine, which means you can run this screener even in the most remote job sites. Two lift pockets that fit standard forklift prongs allow you to easily load this screener on and off a trailer. Commonly used for sorting oversized material before screening, crushing or separating profitable landscaping materials from debris and waste.

This screener is compatible with compact tractors, small to medium sized excavators and skid steers. 70" of screen decking allows you to process large quantities at one time. Industrial strength construction design has a 750 lb working capacity for your most dynamic and versatile jobs.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 88” x 67” x 33” (L x W x H)
  • Shipping weight: 1850 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?

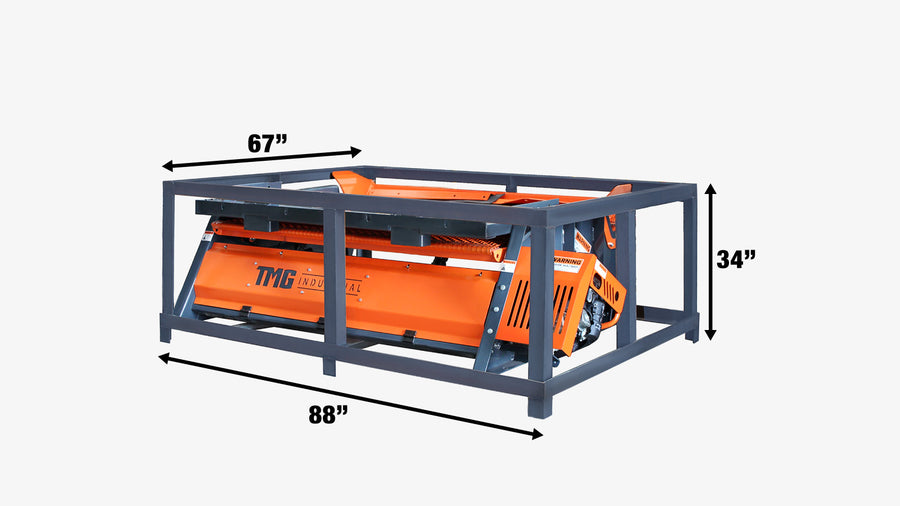

70" Vibratory Topsoil Rock Screen, 5.5 HP Kohler Engine, Cantilever Leaf-Springs, 30° Screen Deck, TMG-RSV70G-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
