TMG Heavy Series™ 20' x 63' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT2064-PRO
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment, and more

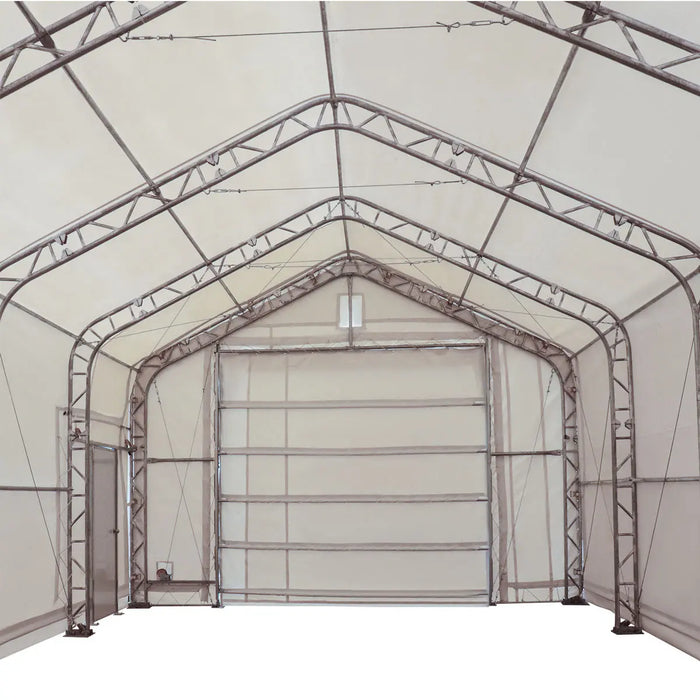

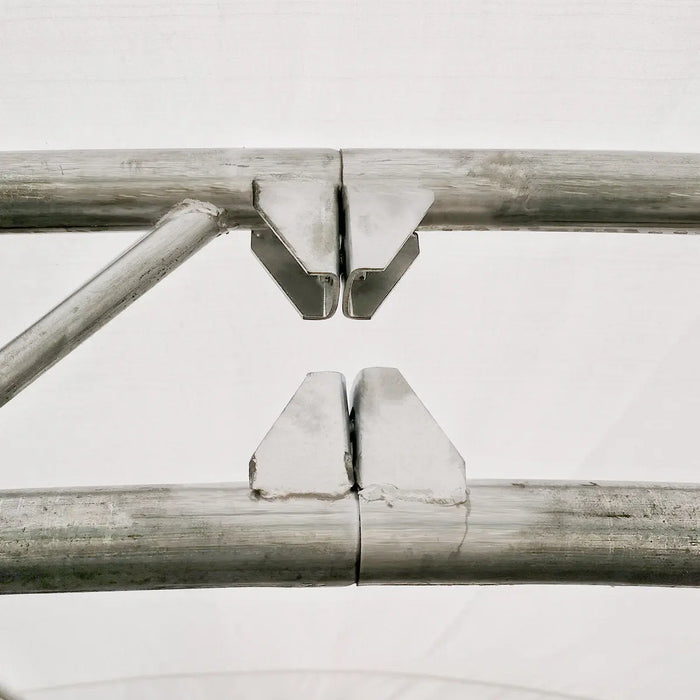

- Solid bolted connection on all trusses for stability
- Heavy-duty galvanized steel tubes on all trusses and purlins

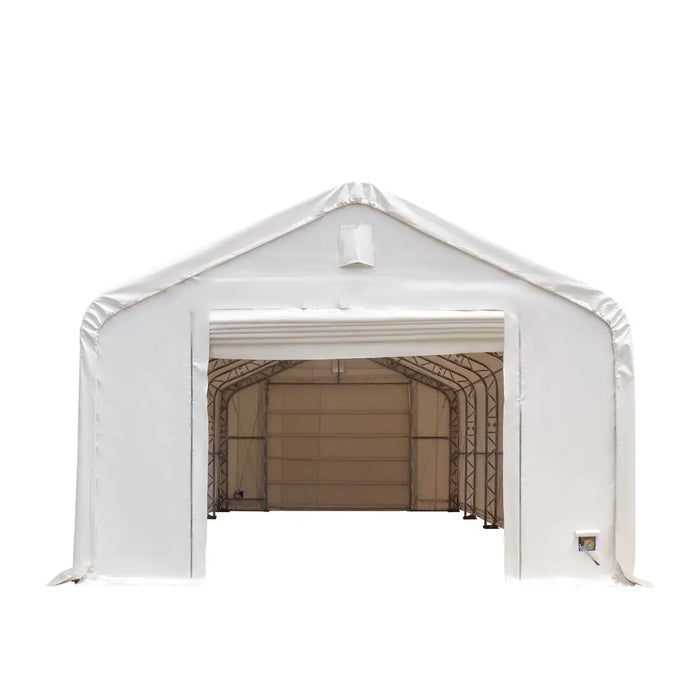

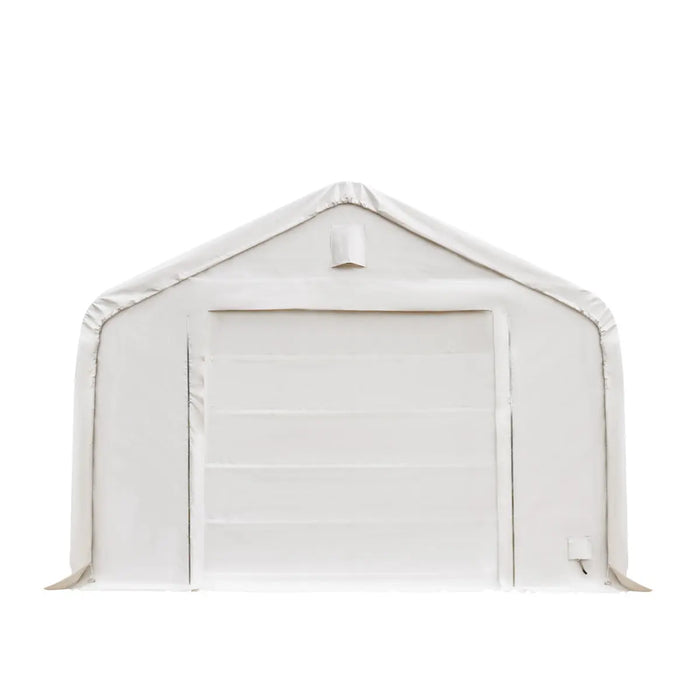

- Mechanic roll up door on both ends

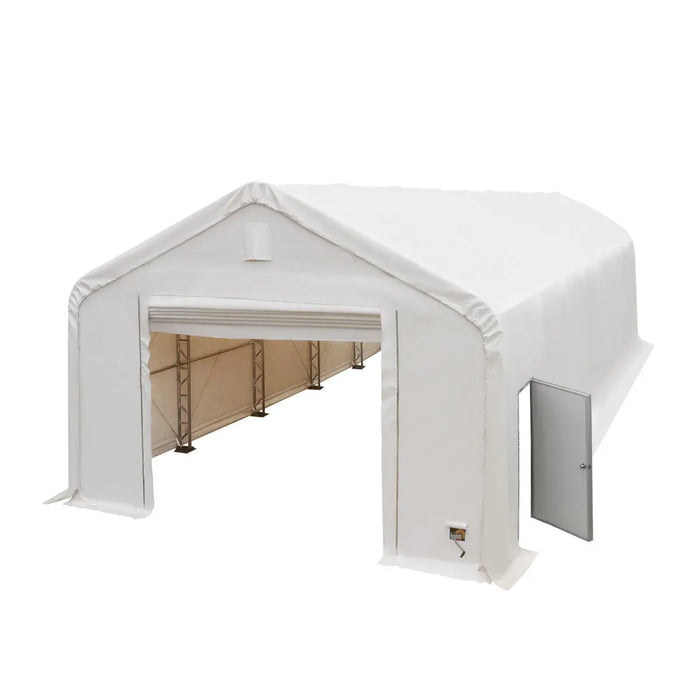

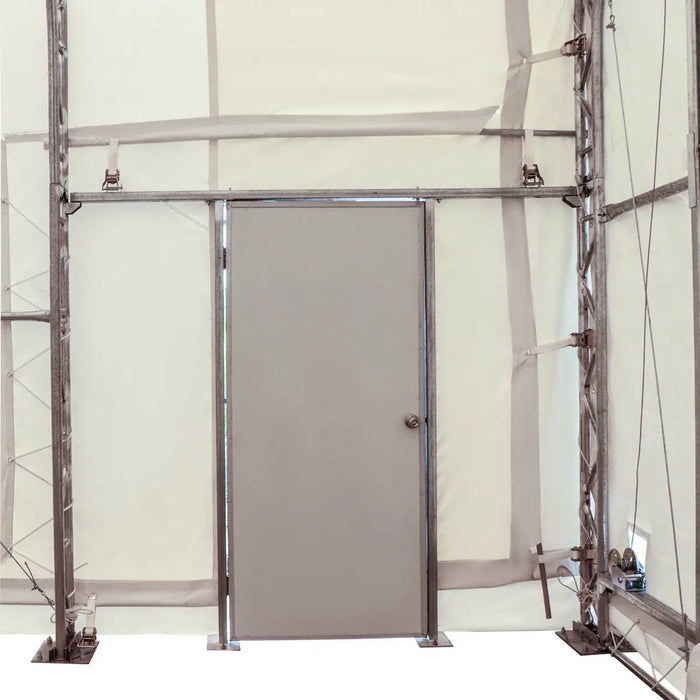

- Steel sandwich side man door for entry convenience
- Air vents on both ends

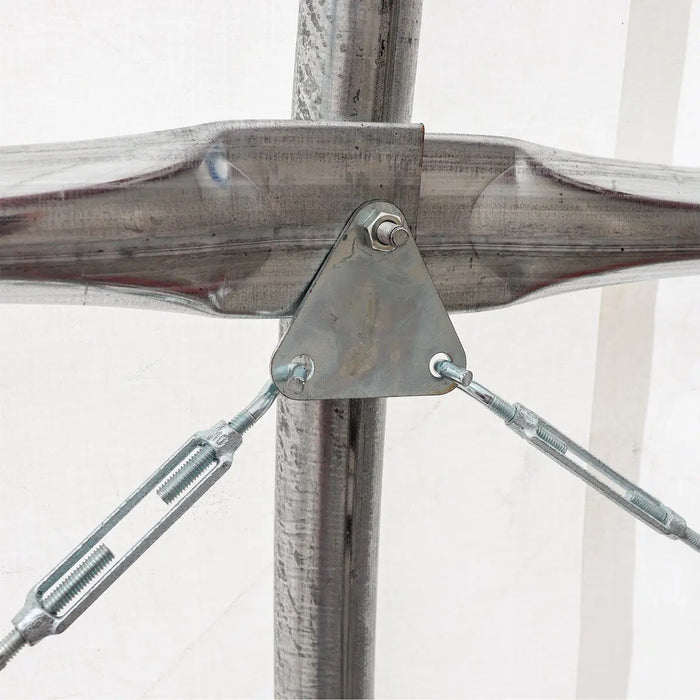

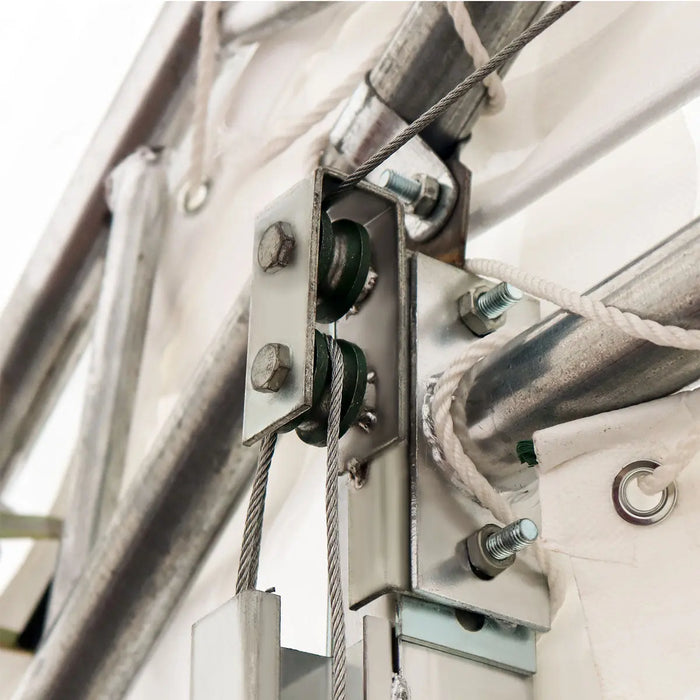

- A combination of steel tube and cable quad tension system to reinforce stability

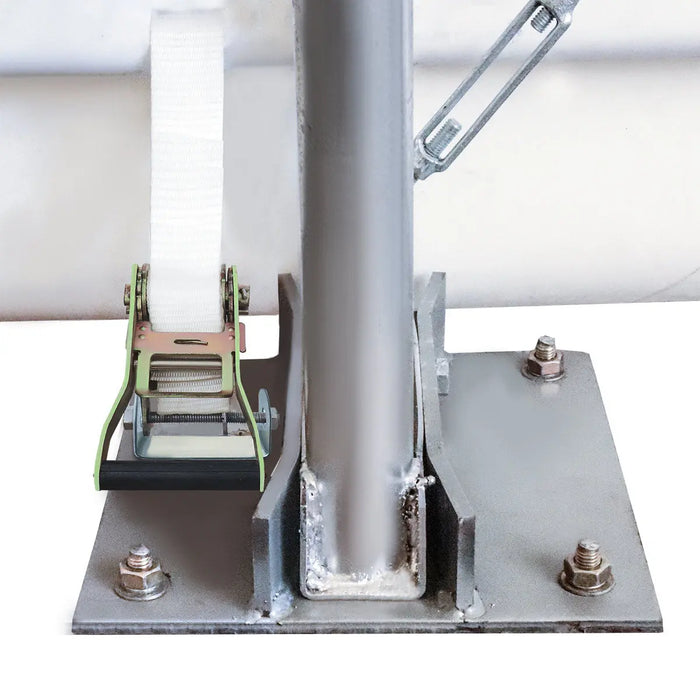

- Heavy-duty base plates with pre-drilled holes
- Anchoring: sleeve anchor bolts (included)
- Commercial grade PVC cover stands strong against tearing, leaking, and chemical corrosion
- Fire retardant, UV protection, and waterproof

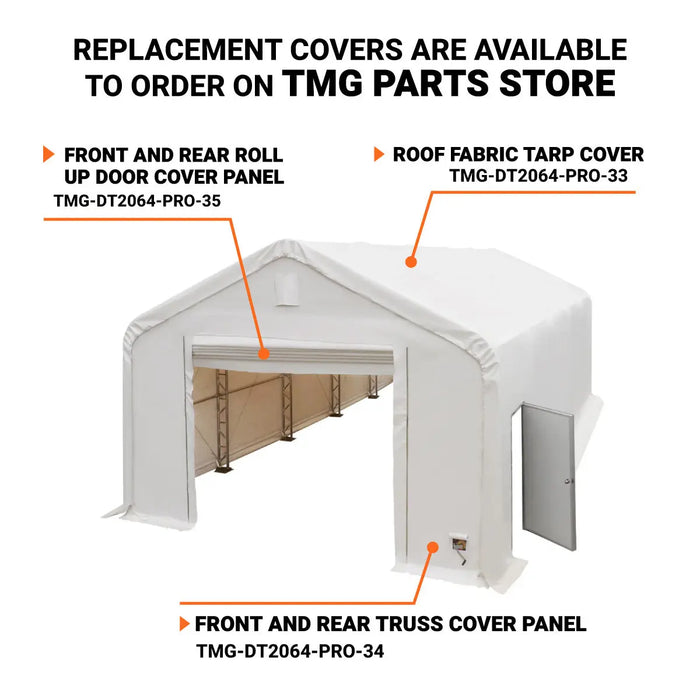

- Replacement covers available for order here TMG PARTS STORE
- Custom lengths available for 53’ containers or other dimensions upon request.
Specifications
Specifications

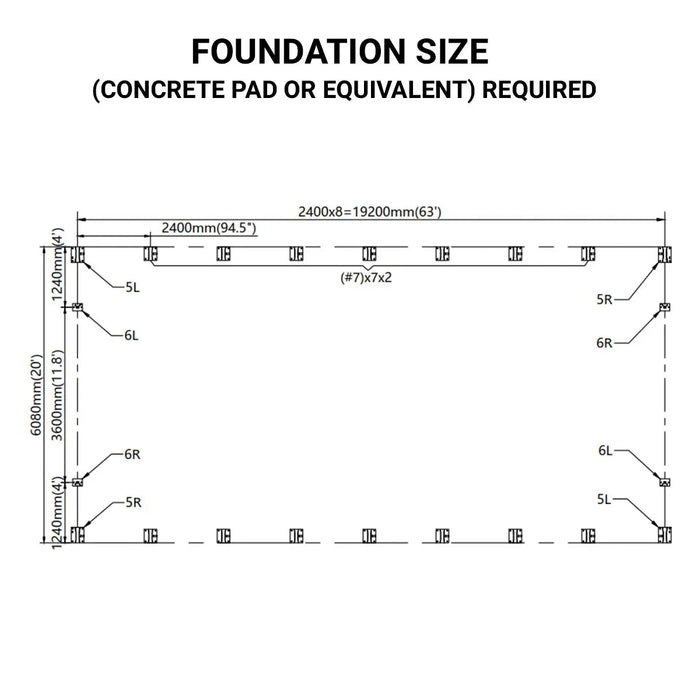

- Foundation size required:: 19200mm(63’) (W) x 6080mm(20’) (L)
- Truss spacing: 8'
- Sidewall height: 10'
- Peak height: 15'
- Door opening clearance: 12' (W) x 10' (H)
- Truss tubes: ⌀1.9” – 15 gauge (approx.)
- Purlin tubes: ⌀1.65” – 16 gauge (approx.)
- Man door: 3' (W) x 6.5' (H)
- Cover: 17oz PVC
- Snow load: 30PSF (reference only)
- Wind load: 75MPH (reference only)
Product Description
Product Description

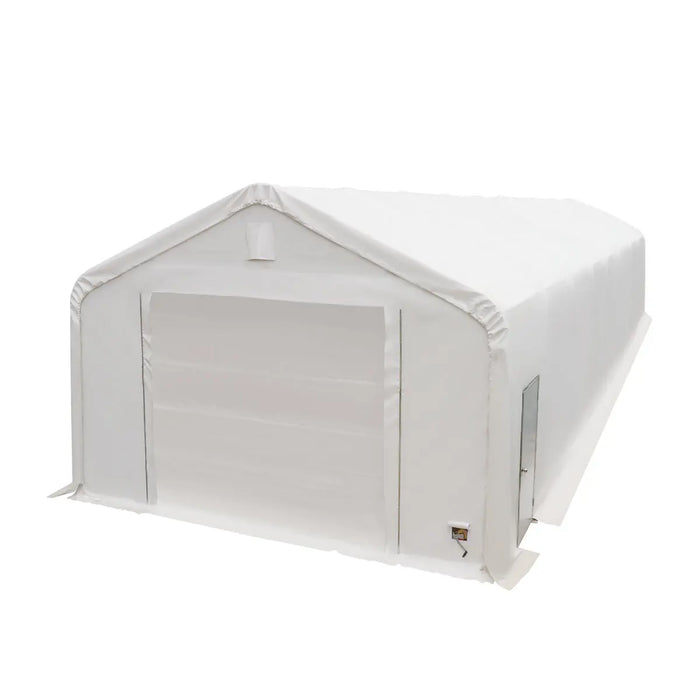

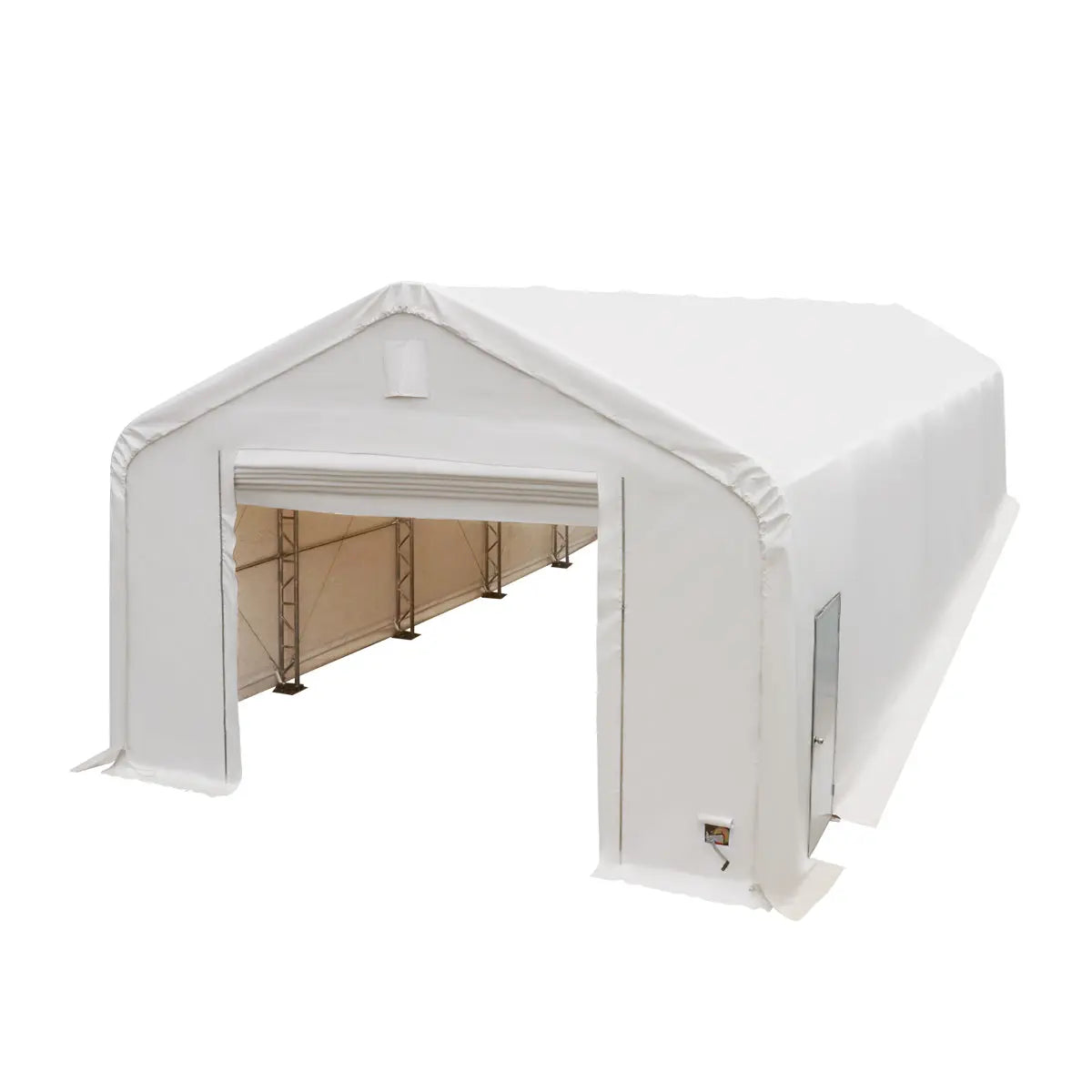

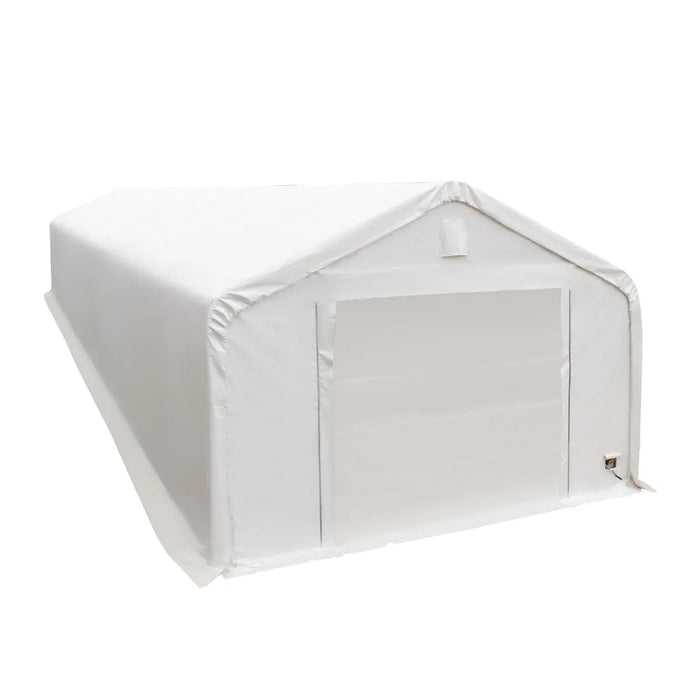

The TMG-DT2064-PRO Dual Truss PVC Fabric Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 1200 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. It is an upgraded replacement model for TMG-DT2063-PRO. Parts and customer support are still available for the old model.
Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The first 10' of each side is a straight wall which amplifies storage space along the edges. Double trusses with a reduced 8' truss spacing reinforce the entire DT TMG Heavy Series™ and give them all exceptional durability and stability.

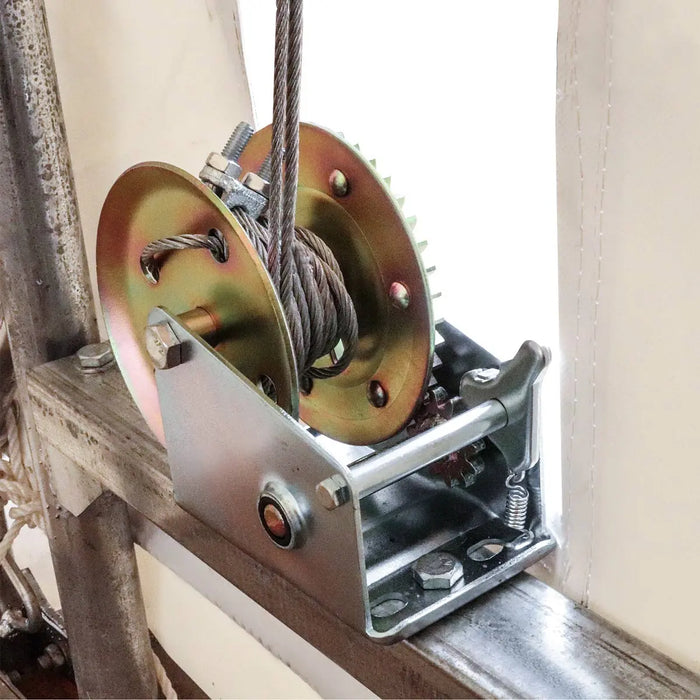

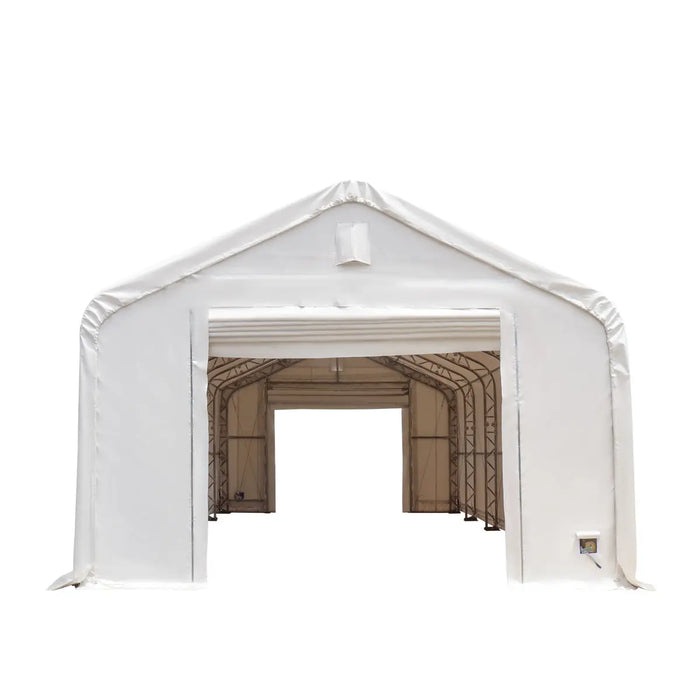

Roughly 12' wide winch roll-up doors on both endwalls provide a huge opening to allow workflow coming in and out. The steel man door provides a convenient, houselike entry that is more secure than standard fabric cut out openings. Our PVC fabric comes in a vibrant white colour that reflects UV rays but allows light to permeate through. This natural illuminating quality will help you save on utility costs and provide all day use even when it's cloudy.
We also carry a smaller model of this storage shelter: TMG-DT2041-PRO.
Additional Info
Shipping Information
Shipping Information

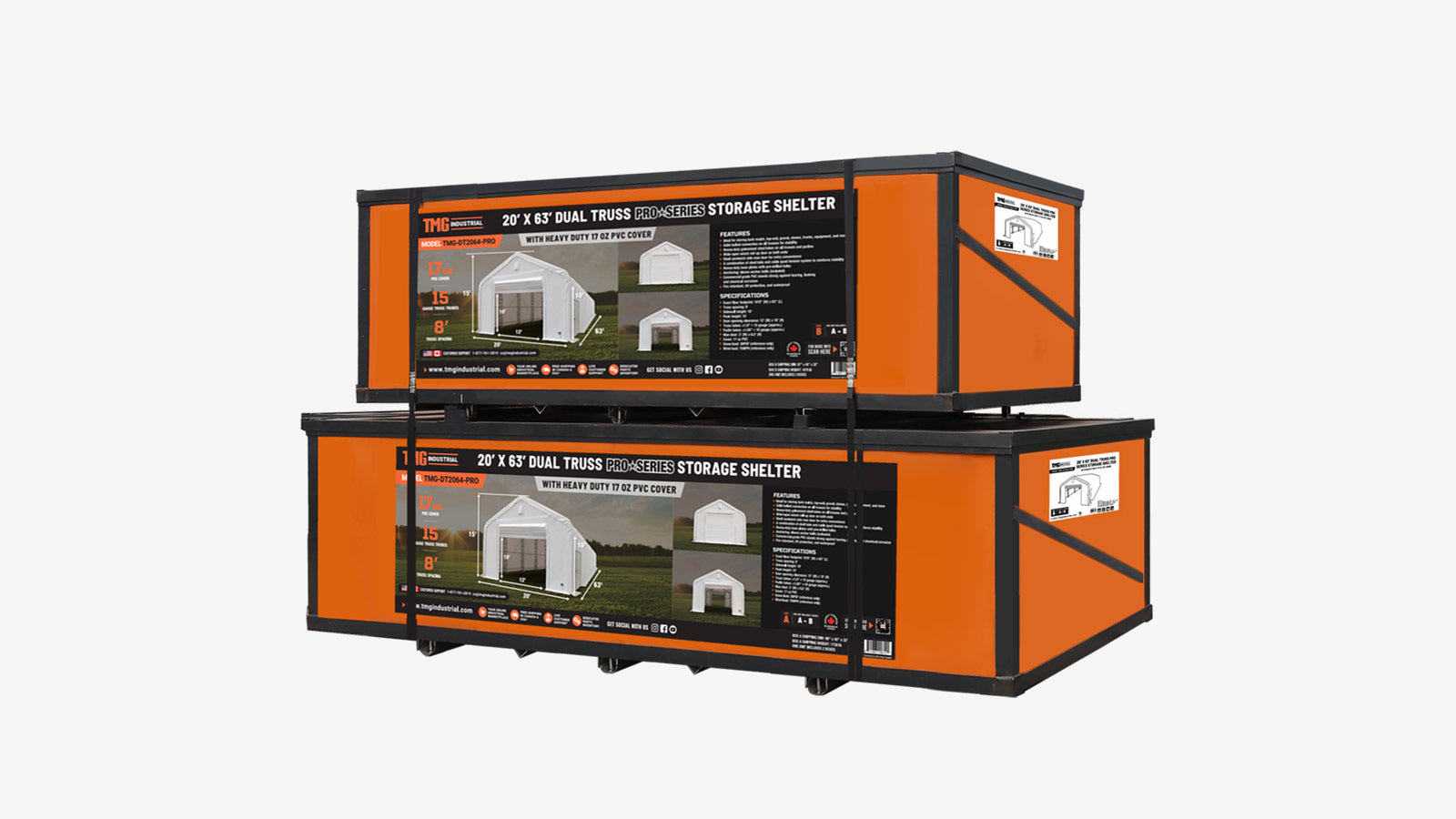

- Packed in two metal crate shipping boxes
- Box A shipping dimension: 99” x 45” x 32”
- Box B shipping dimension: 87” x 45” x 32”
- Shipping weight: 3413 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
