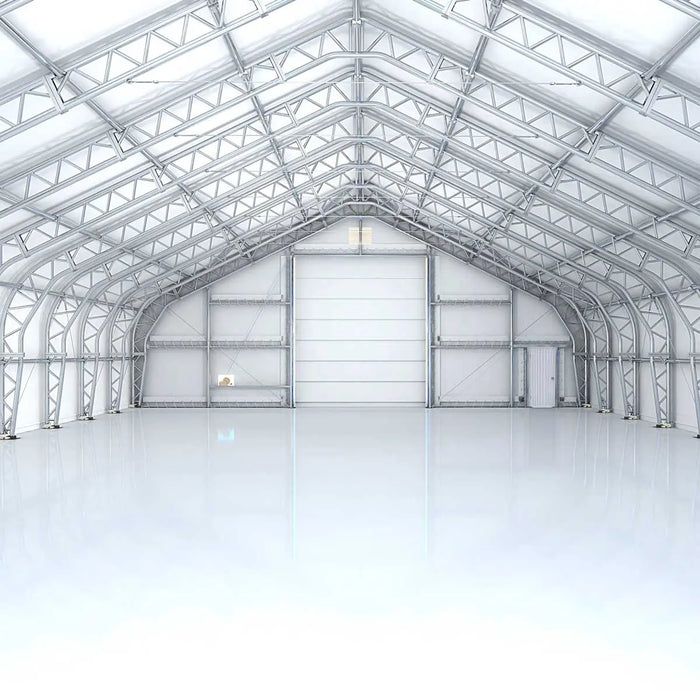

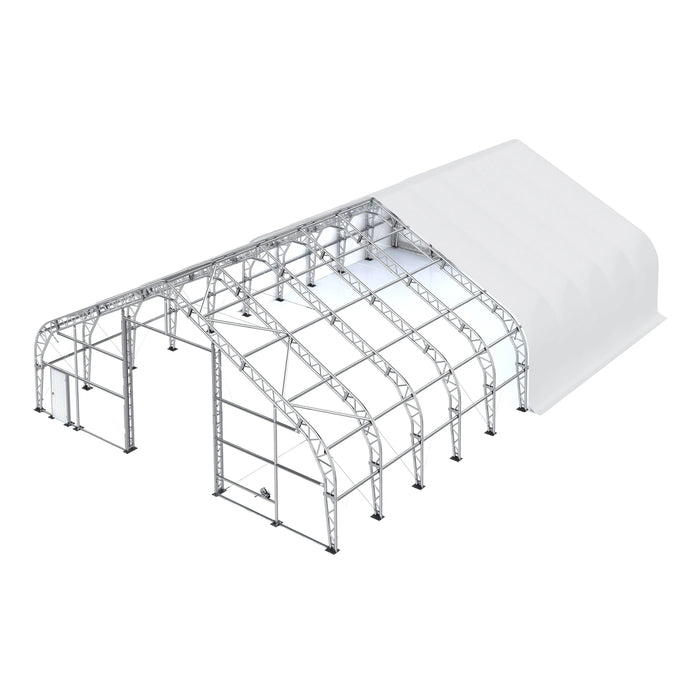

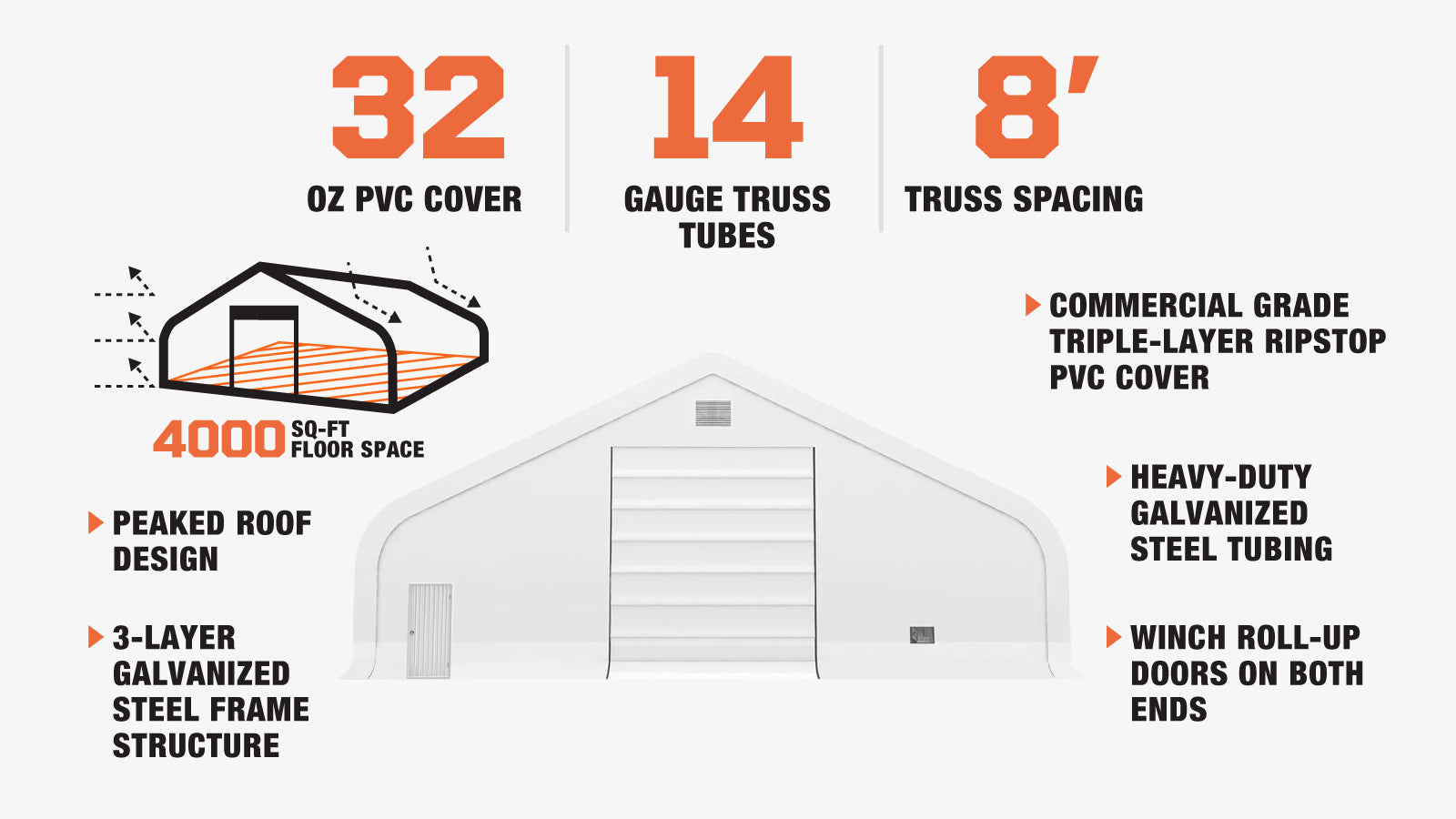

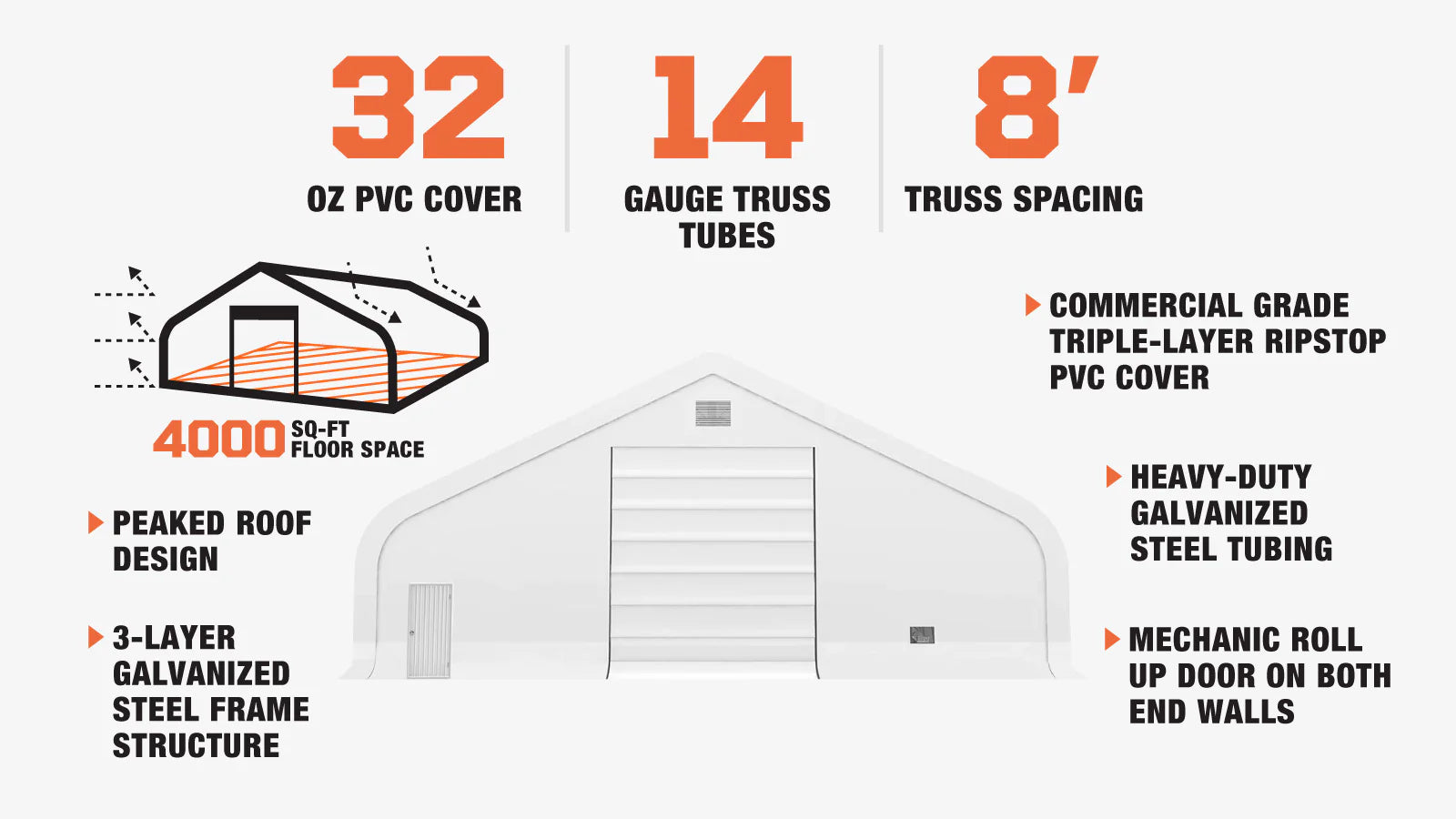

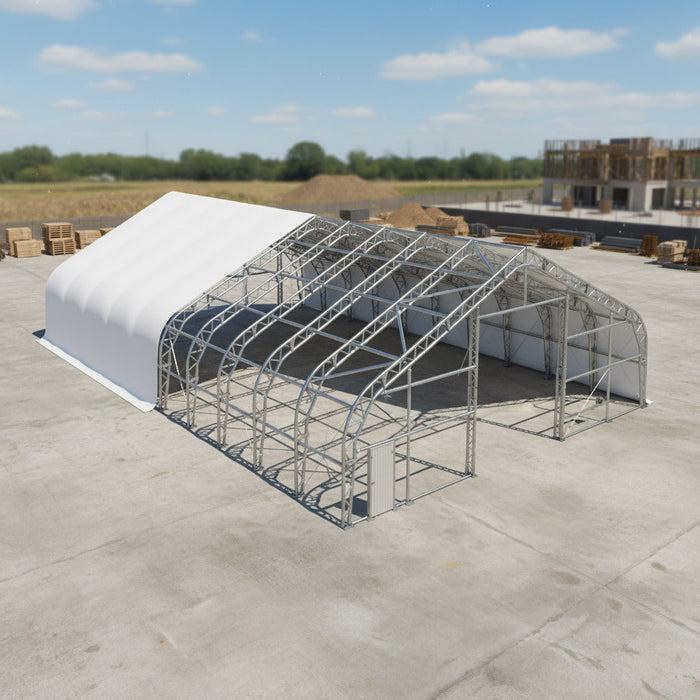

• Double truss frame and solid bolted, U-shaped channel connection on all trusses to increase support strength and rigidity
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion

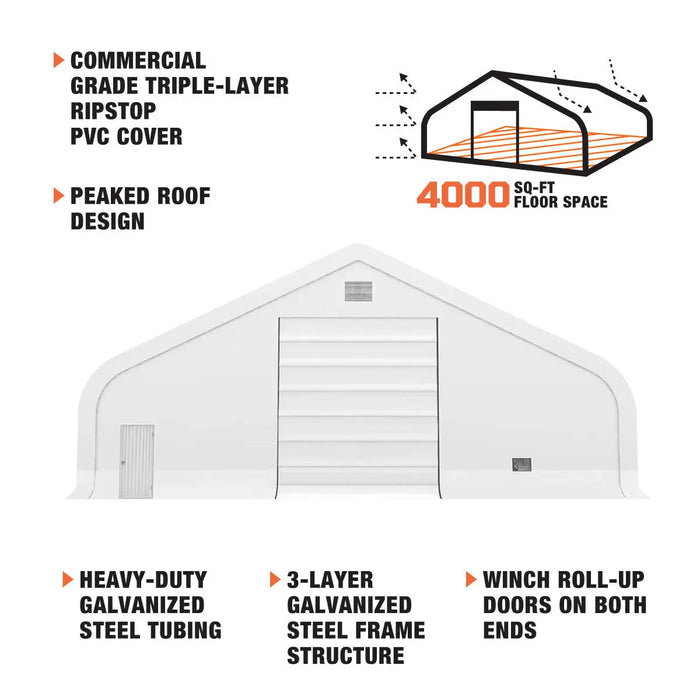

• Easy to assemble and install while costing far less than a comparable commercial size building; 4000 sq-ft of covered storage space
• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White
• DT TMG Heavy Series™ is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability

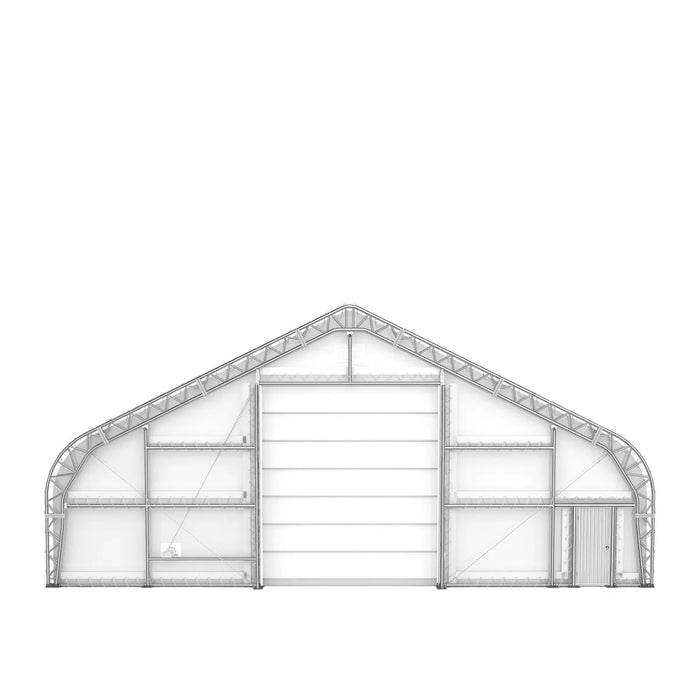

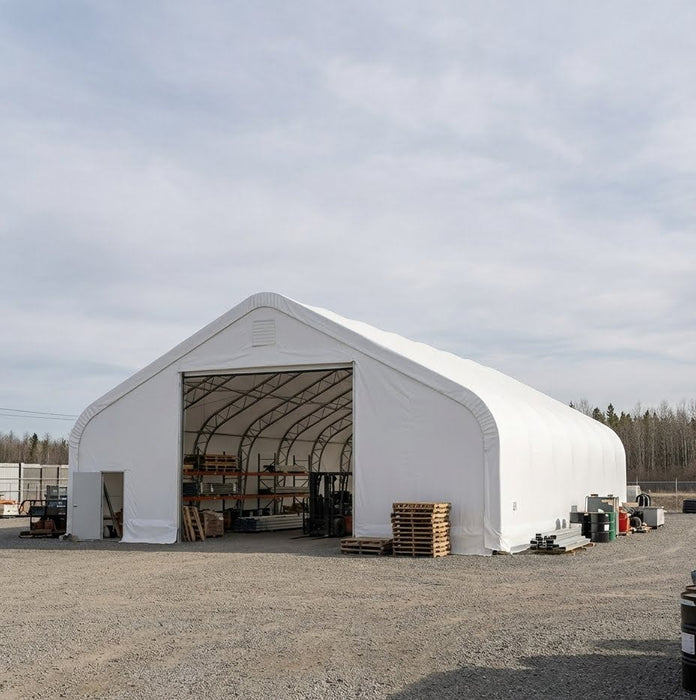

• Approx. 15’ wide winch roll-up doors on both endwalls that allow for easy parking and dynamic workflow to run throughout
• Peaked roof design prevents snow build up and allows moisture to be guided off the sides, protecting you and your equipment from the elements

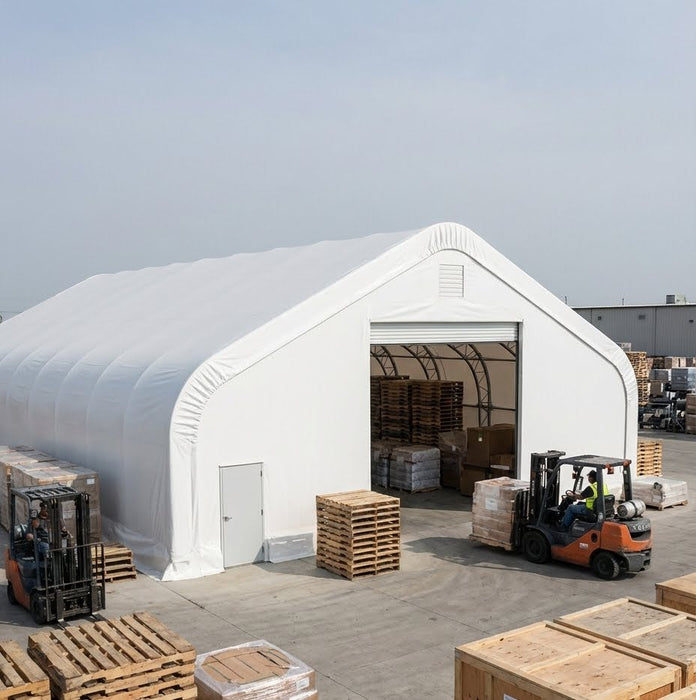

• Steel man doors offer convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main doors
• PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

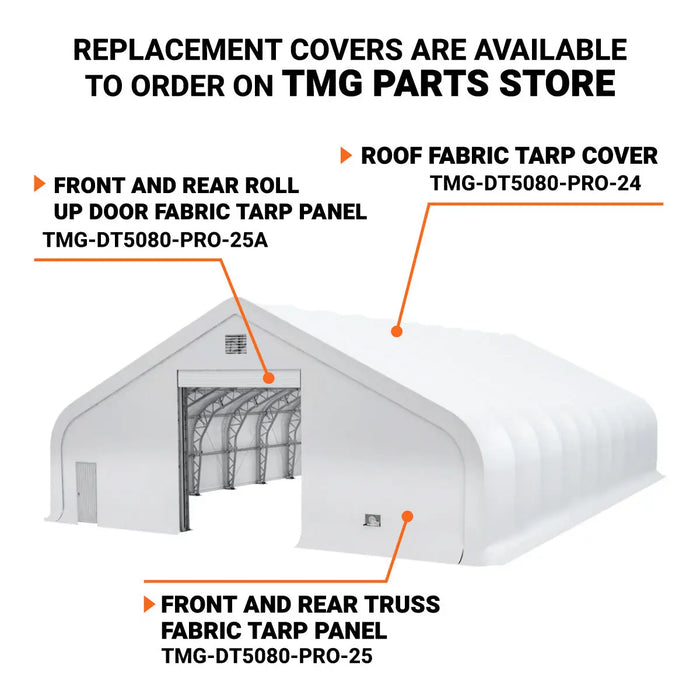

• Replacement covers available for order here TMG PARTS STORE

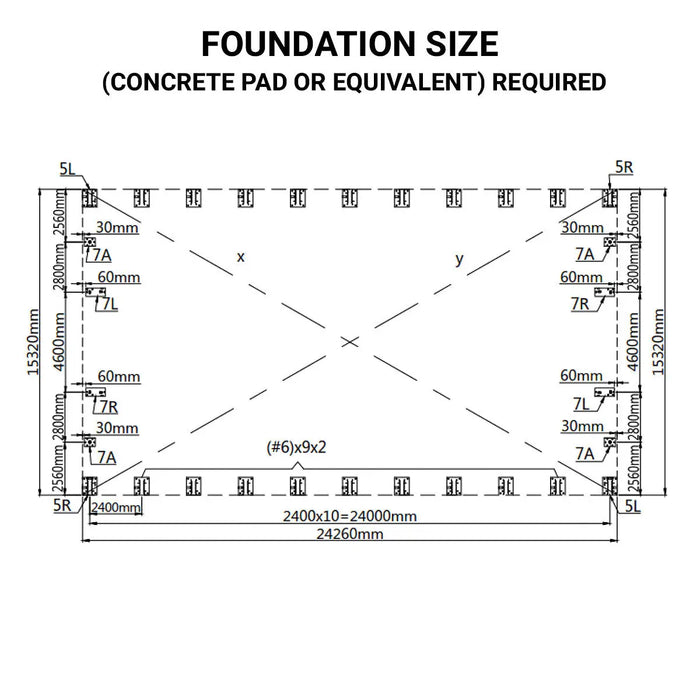

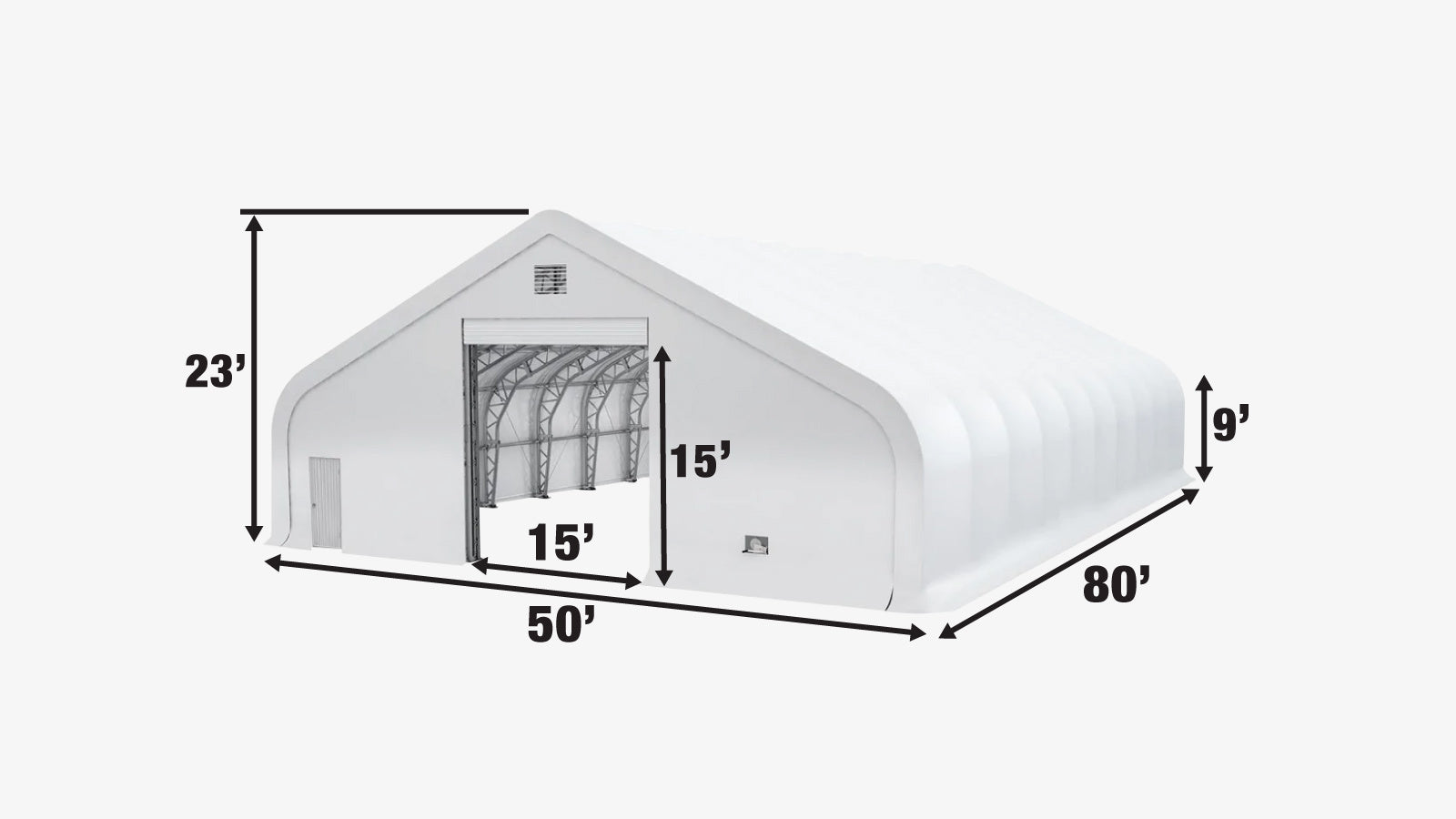

• Foundation size required: 15320mm (W) x 24260mm(L)

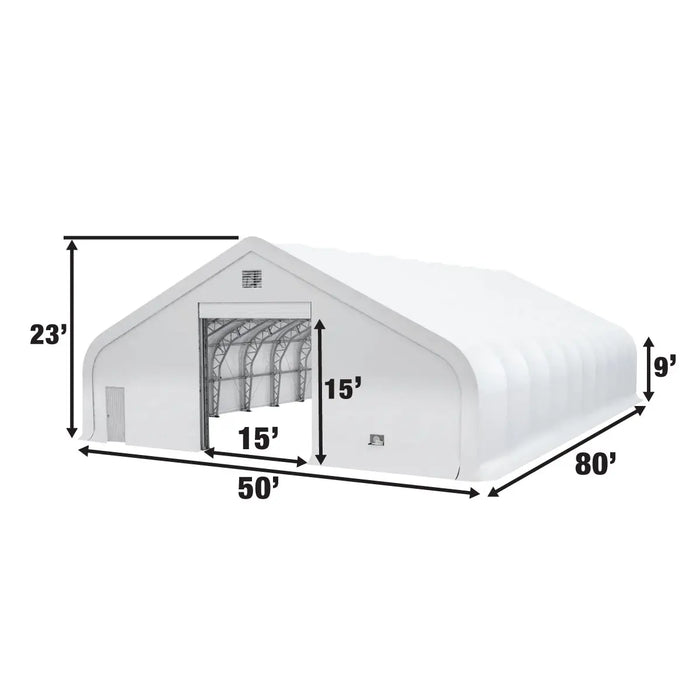

• Width: 50’4” (outer), 47’5” (inner)
• Truss spacing: 8’
• Peak ceiling height: 23' (outer), 21’ (inner)
• Side-wall height: 9’
• Truss tubes: 2-½” – 14 GA (approx.)
• Purlin tubes: 2-½” – 14 GA (approx.)
• Man Doors: 3’ x 6’6” (W x H)
• Mechanic roll up doors on both ends with drive through clearance: 15’ (W) x 15’ (H)
• Cover material: 32 oz PVC fabric (white color)
• Air vents on both ends
• Footplates with pre-drilled holes (anchor bolts not included)
• Foundation required: Concrete slabs or equivalent

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

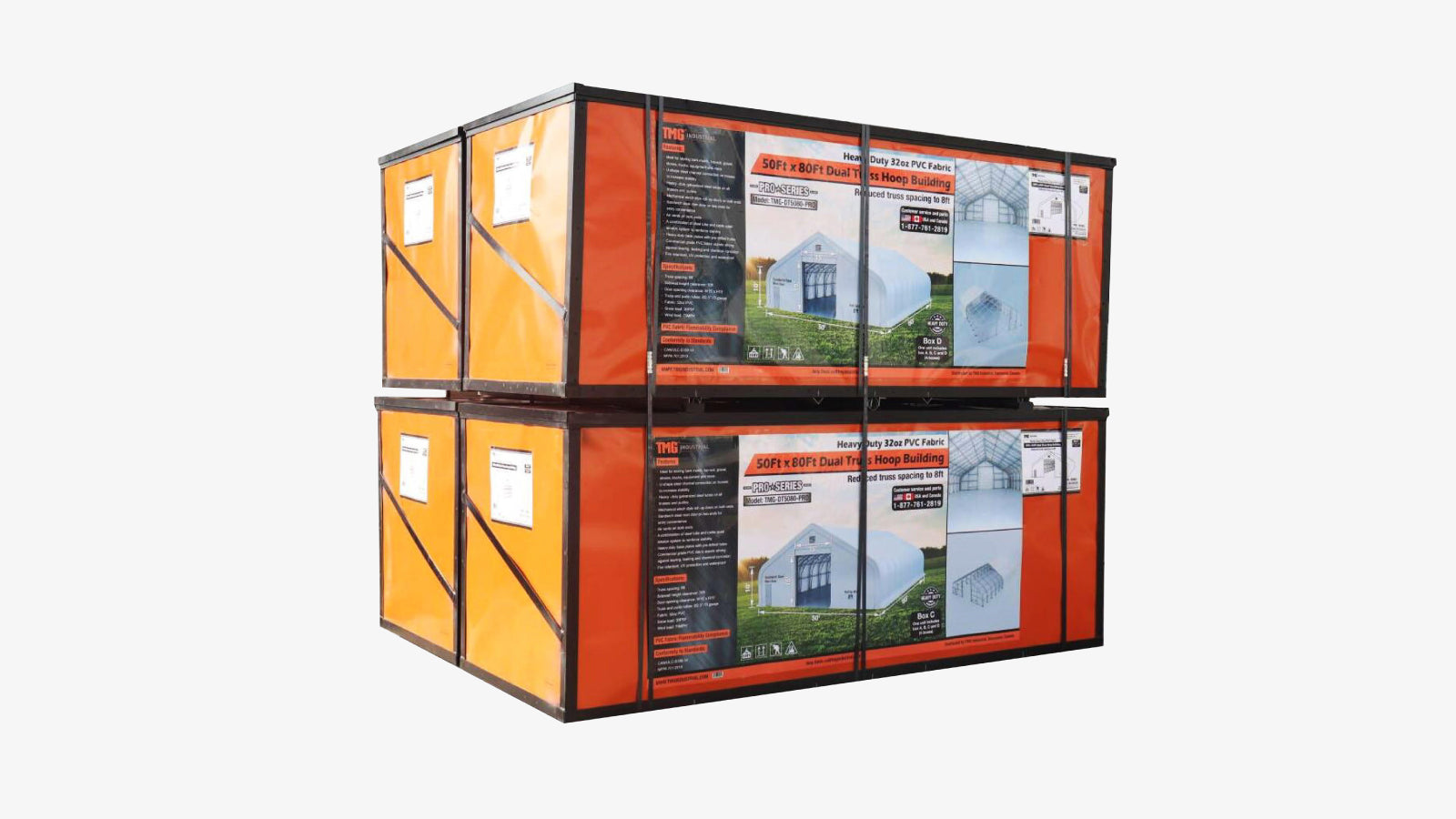

• This product is packed in four metal crate shipping boxes
• Box A shipping dimension: 115” x 45” x 49”
• Box B shipping dimension: 115” x 45” x 49”
• Box C shipping dimension: 115” x 45” x 49”
• Box D shipping dimension: 115” x 45” x 49”
• Shipping weight: 10,700 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
