TMG Heavy Series™ 20' x 40' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors TMG-DT2041-PRO
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features

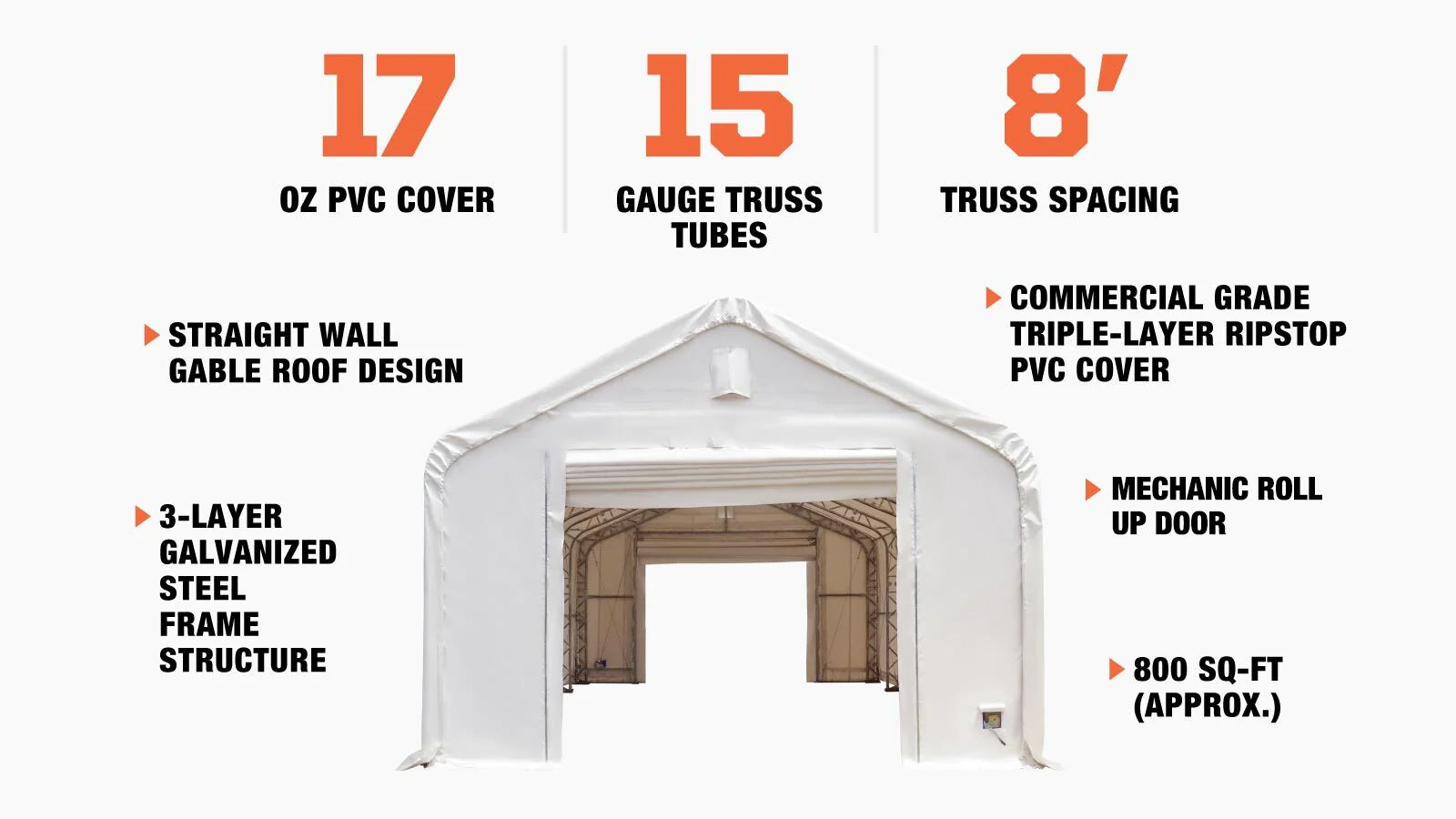

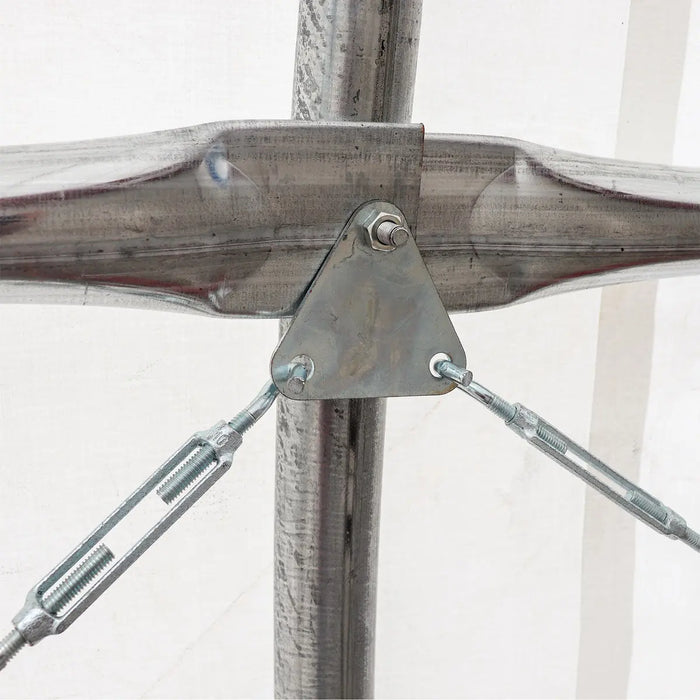

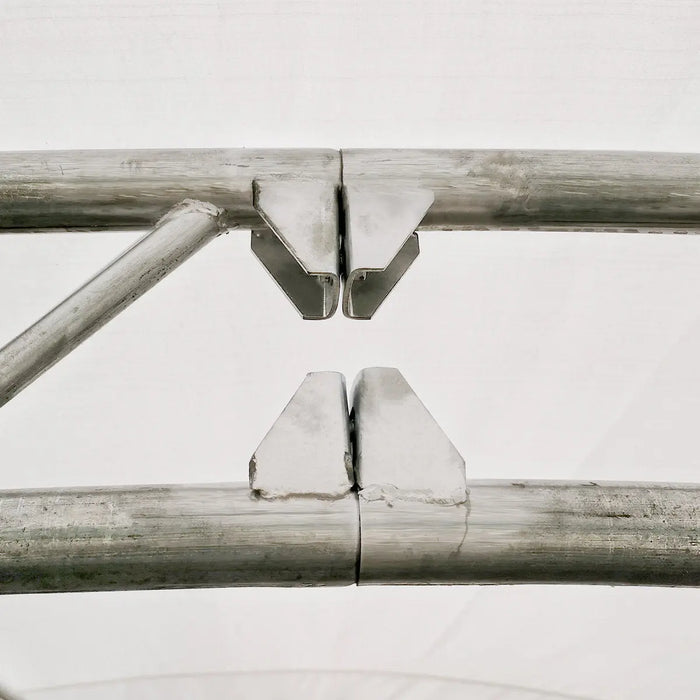

- Double truss frame and solid bolted, U-shaped channel connection on all trusses to increase support strength and rigidity
- Can install on any concrete pad or equivalent for a clean, professional covered space
- Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
- Easy to assemble and install while costing far less than a comparable commercial size building; 800 sq-ft of covered storage space
- Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White
- DT TMG Heavy Series™ is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability

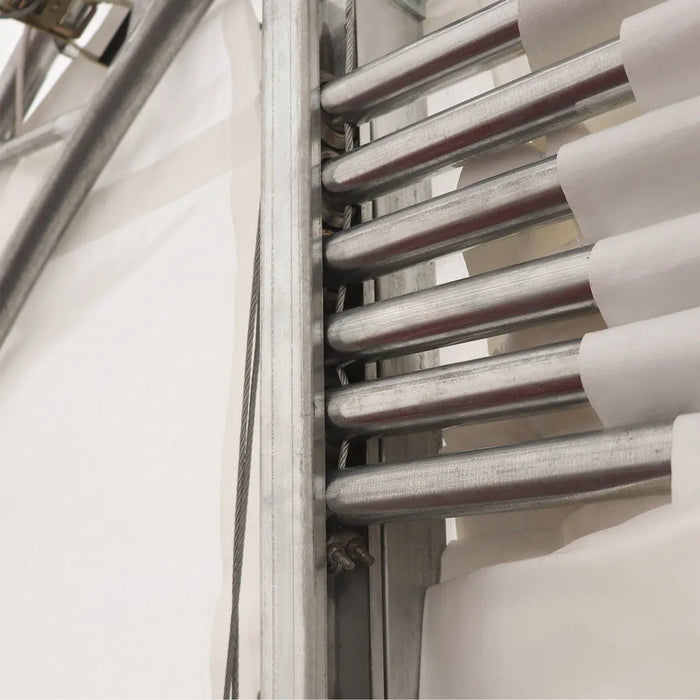

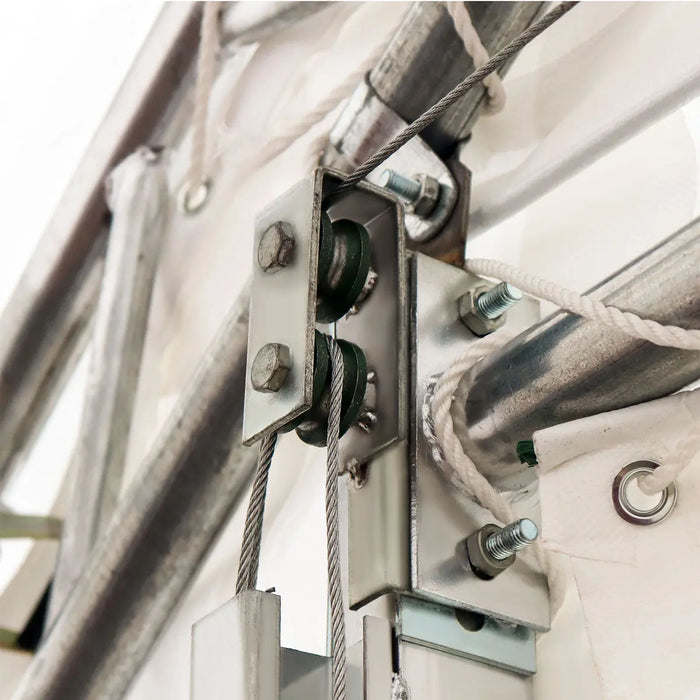

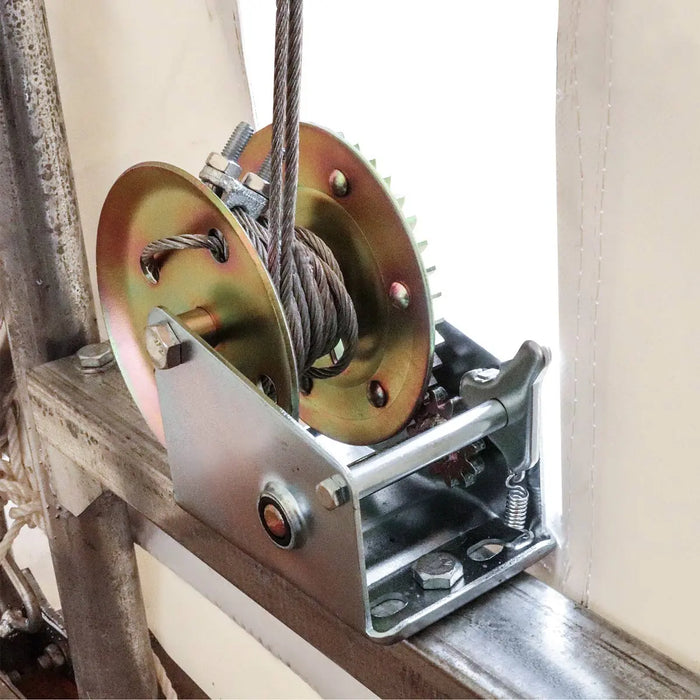

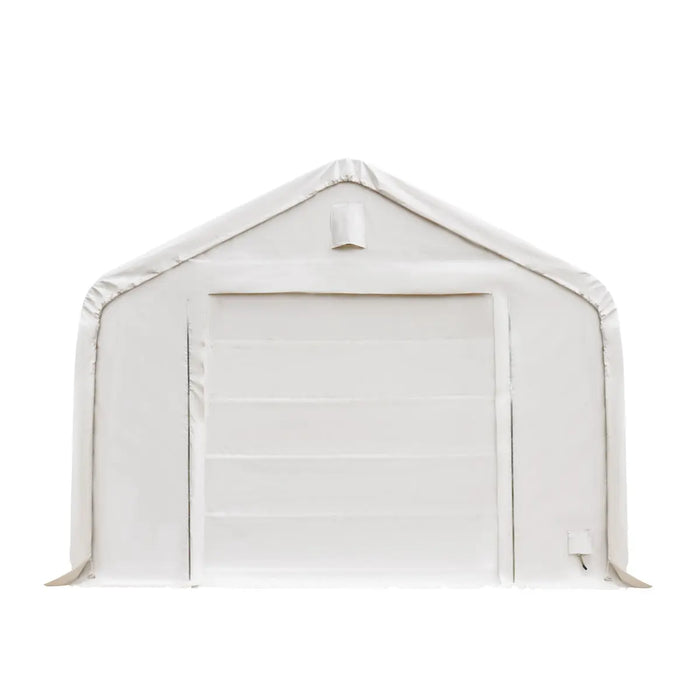

- Approx. 12’ wide winch roll-up doors on both endwalls that allow for easy parking and dynamic workflow to run throughout
- Peaked roof design prevents snow build up and allows moisture to be guided off the sides, protecting you and your equipment from the elements

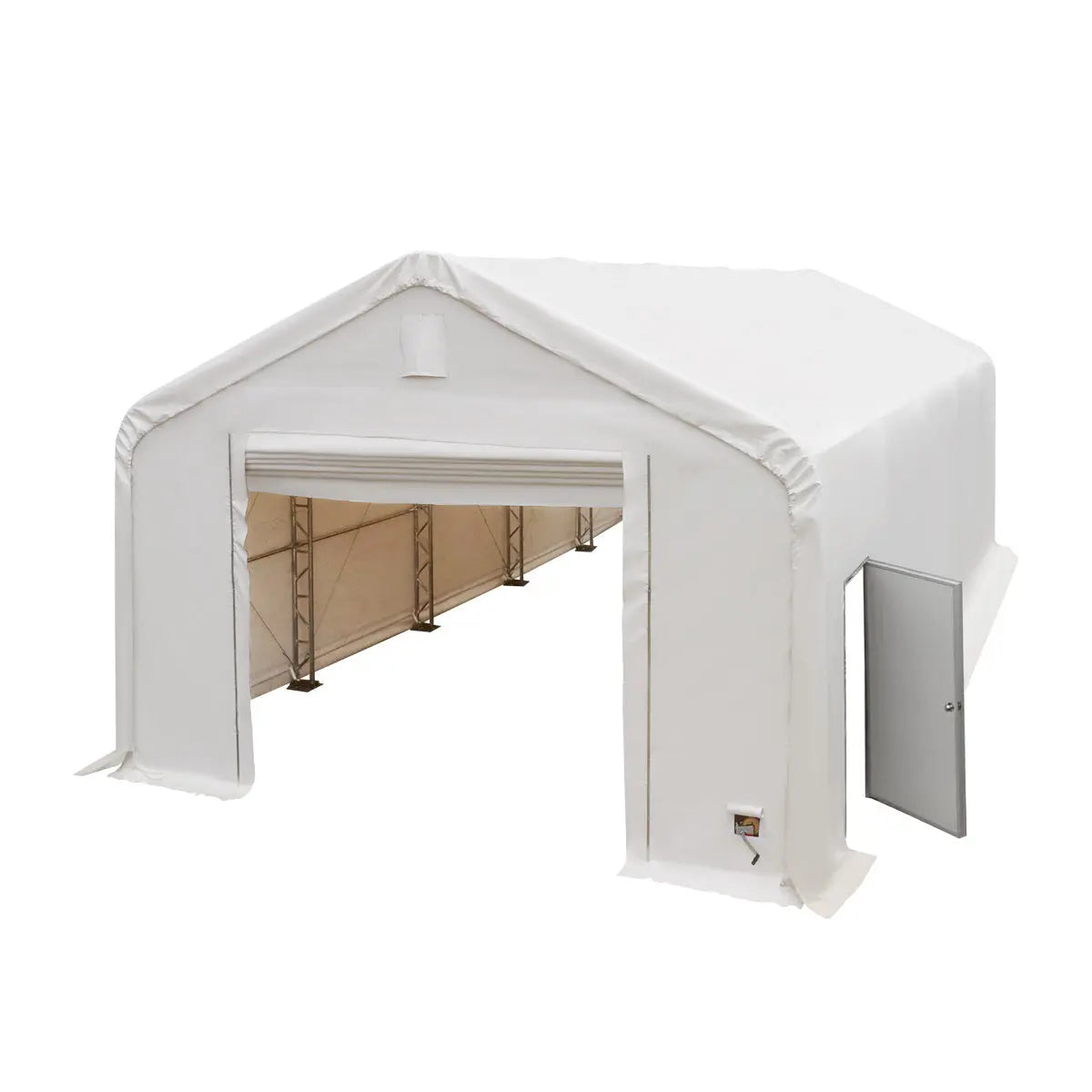

- Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
- PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

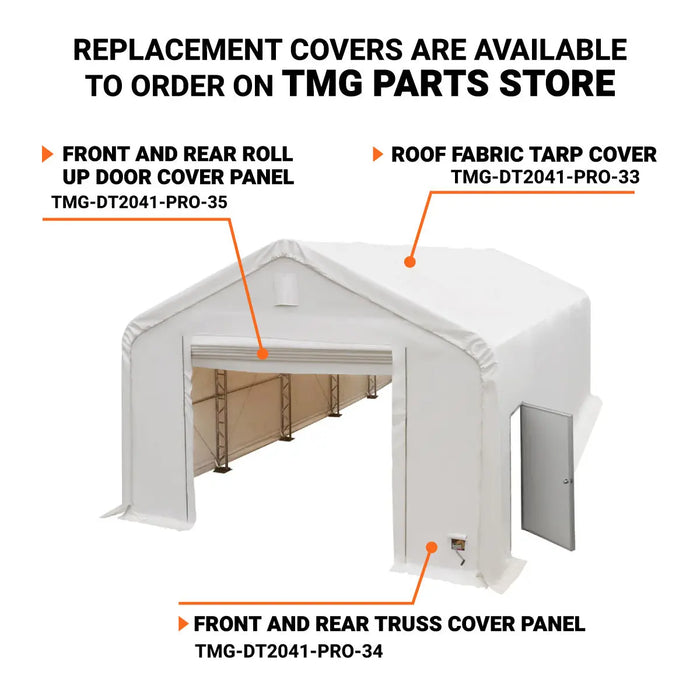

- Replacement covers available for order here TMG PARTS STORE
- Custom lengths available for 53’ containers or other dimensions upon request.
Specifications
Specifications

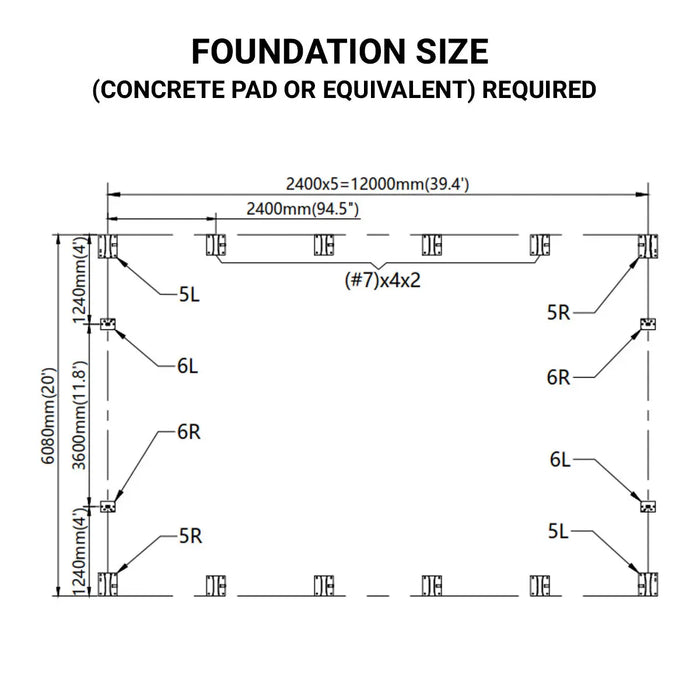

- Foundation size required: 12000mm(39.4’) (W) x 6080mm(20’) (L)
- Truss spacing: 8’

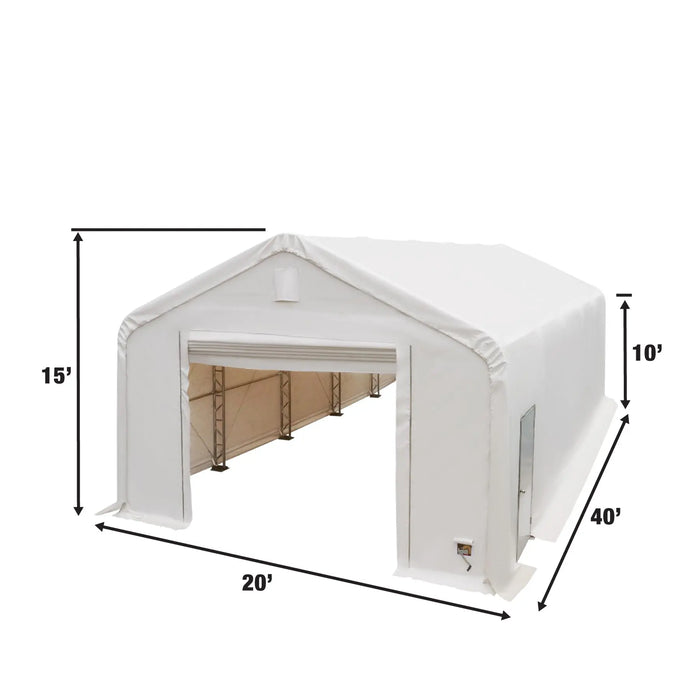

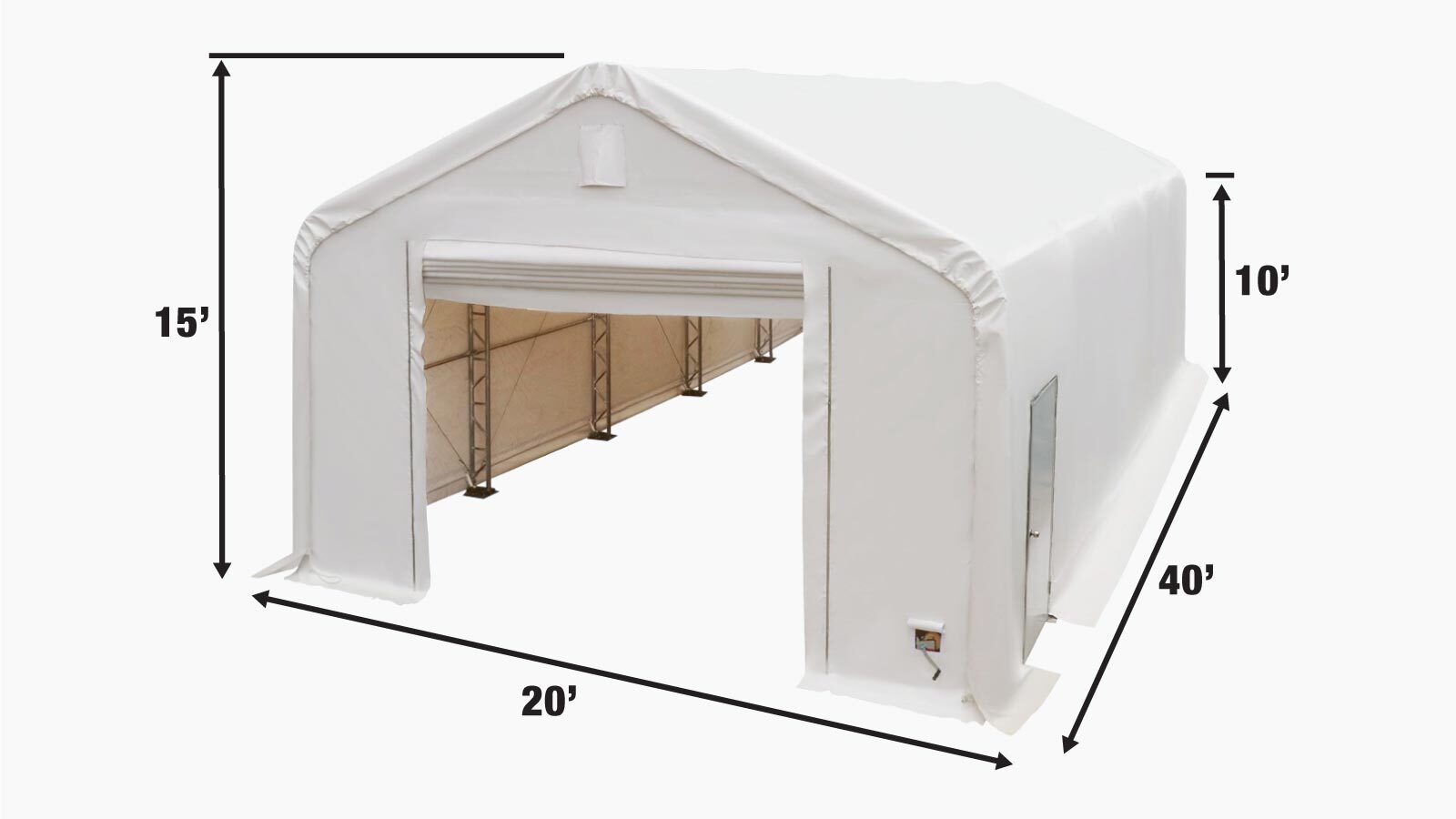

- Peak ceiling height: 15'
- Side-wall height: 10’
- Truss tubes: 2” – 15 GA (approx.)
- Purlin tubes: 1-½”– 16 GA (approx.)

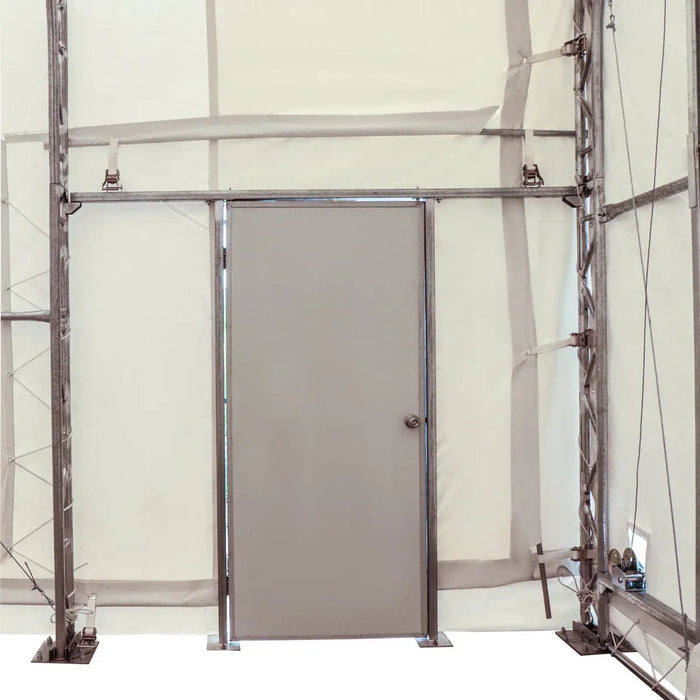

- Man Door: 3’ x 6’6” (W x H)

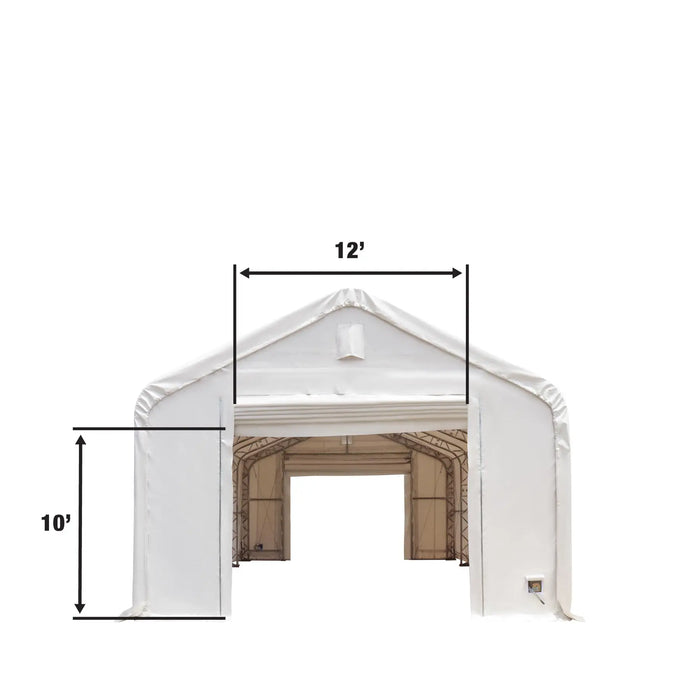

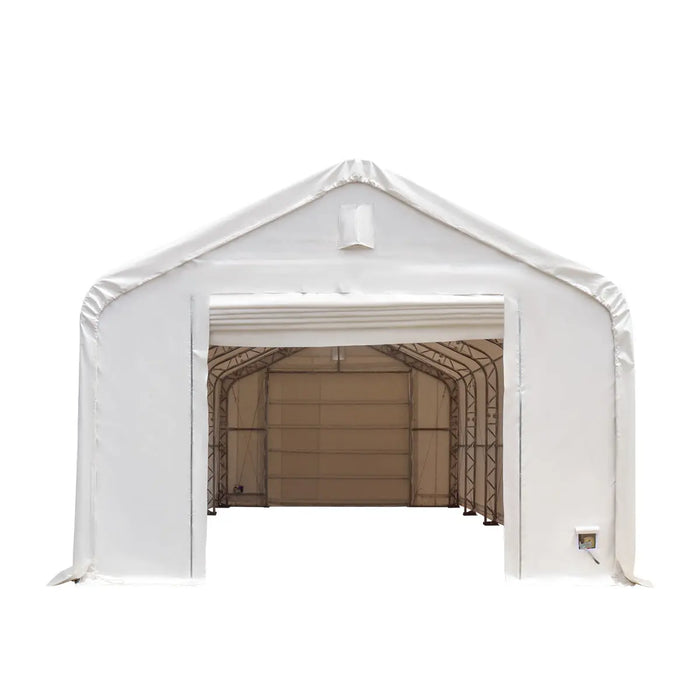

- Mechanic roll up door on both ends with drive through clearance: 12’ x 10’ (W x H)
- Cover material: 17 oz PVC fabric (white color)
- Air vents on both ends

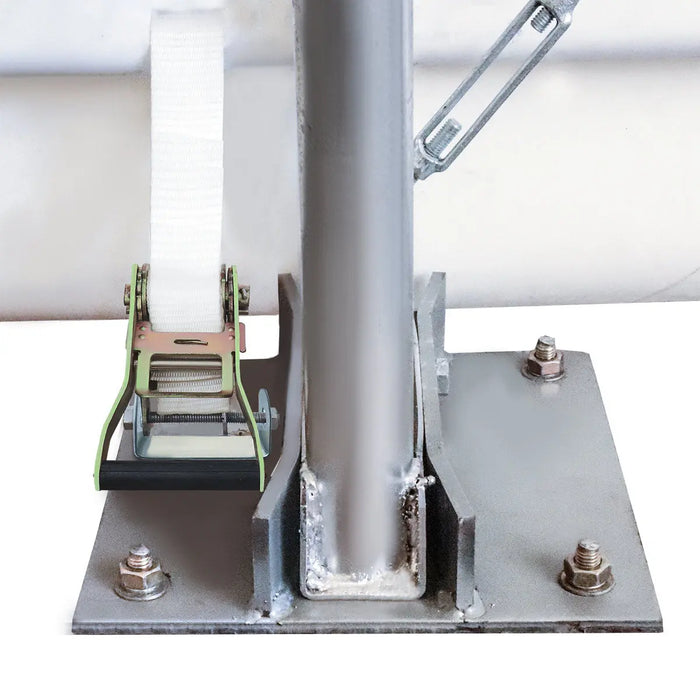

- Footplates with pre-drilled holes (anchor bolts not included)
- Foundation required: Concrete slabs or equivalent
Product Description
Product Description

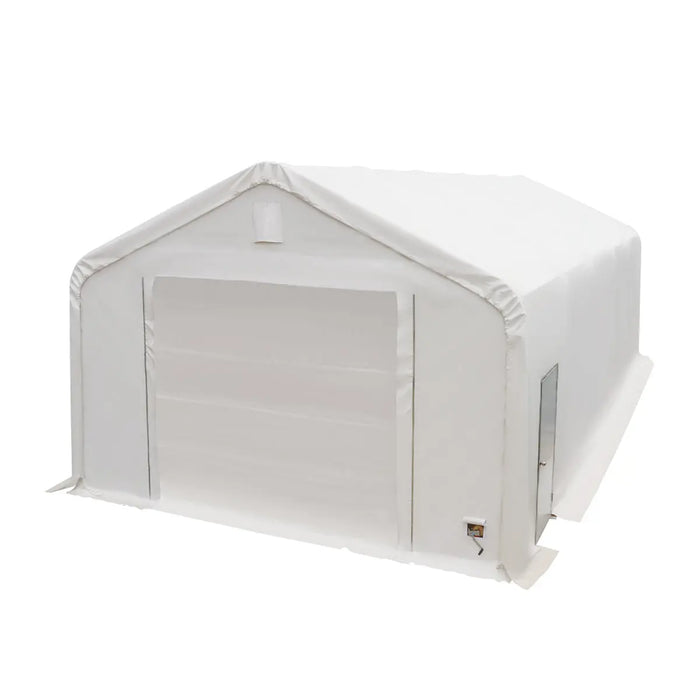

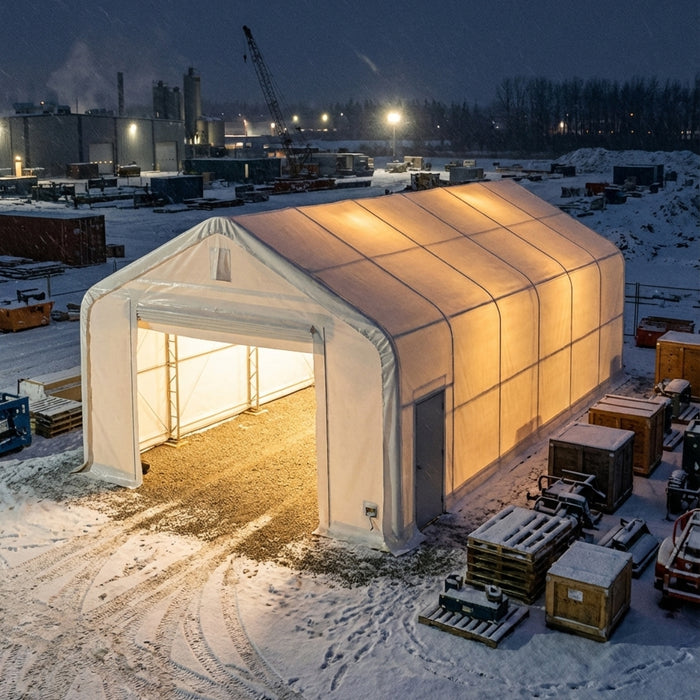

The TMG-DT2041-PRO PVC Fabric Peak Ceiling Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 800 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. It is an upgraded replacement model for TMG-DT2040-PRO. Parts and customer support are still available for the old model.
Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The first 10 ft of each side is a straight wall which amplifies storage space along the edges. Double trusses with a reduced 8' truss spacing reinforce the entire DT TMG Heavy Series™ and give them all exceptional durability and stability.
Roughly 12' wide winch roll-up doors on both end walls provide a huge opening to allow workflow coming in and out. The steel man door provides a convenient, house like entry that is more secure than standard fabric cut out openings. Our PVC fabric comes in a vibrant white color that reflects UV rays but allows light to permeate through. This natural illuminating quality will help you save on utility costs and provide all day use even when it's cloudy.
We also carry a smaller model of this storage shelter: TMG-DT2030-PRO.
Additional Info
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

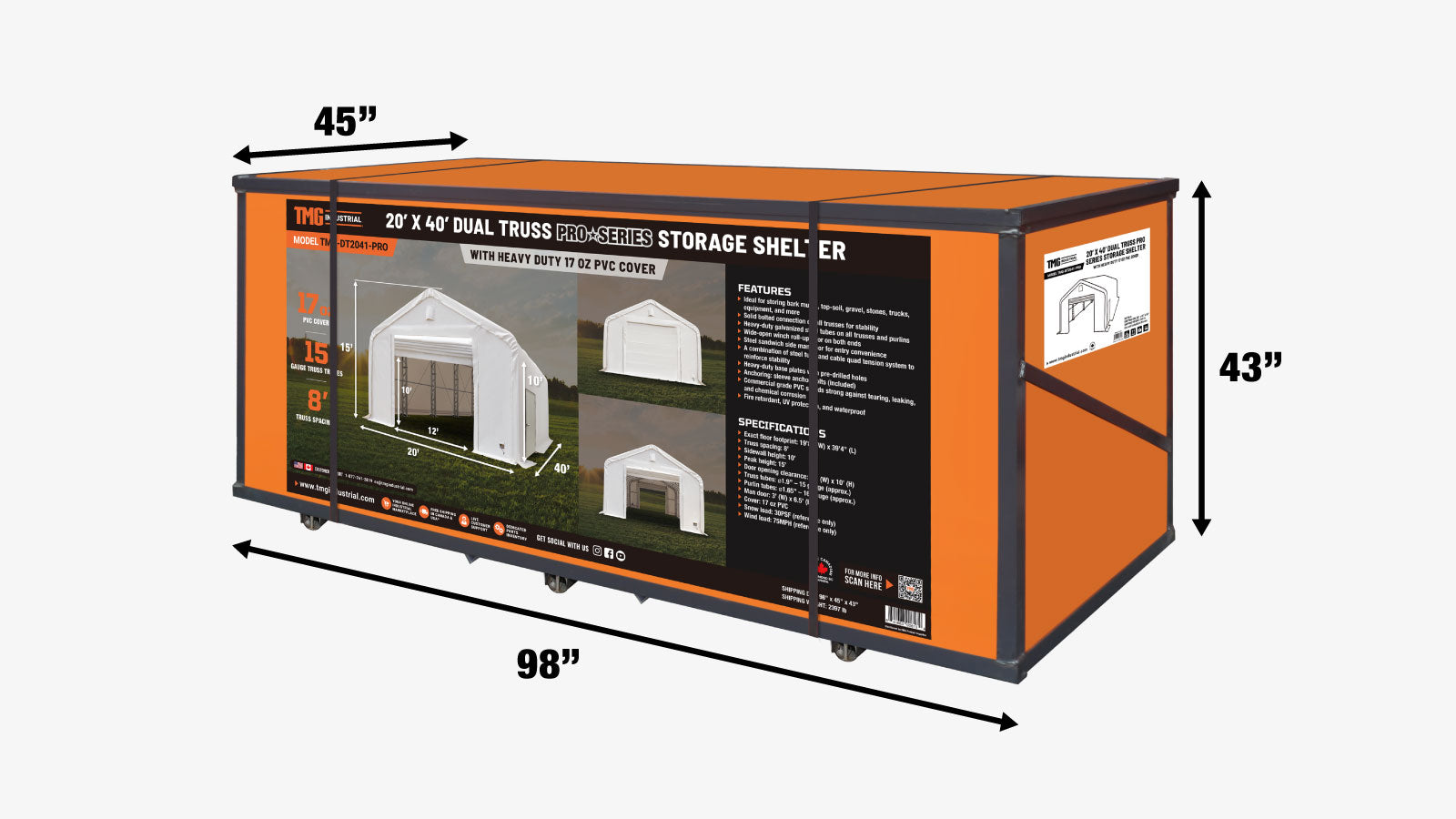

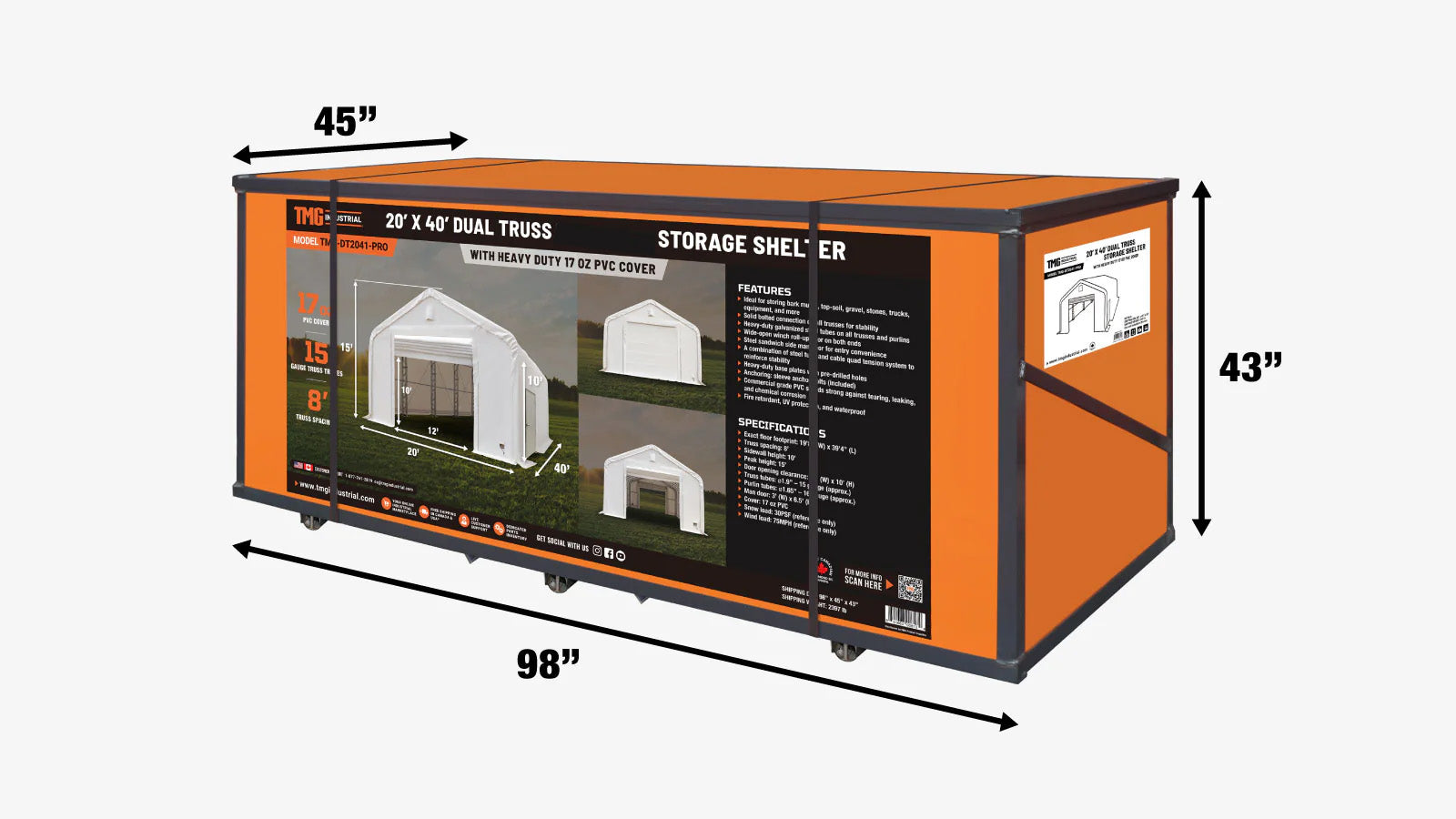

- This product is packed in a metal crate shipping box
- Shipping dimension: 98” x 45” x 43” (L x W x H)
- Shipping weight: 2,430 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
