SKU TMG-PD950S

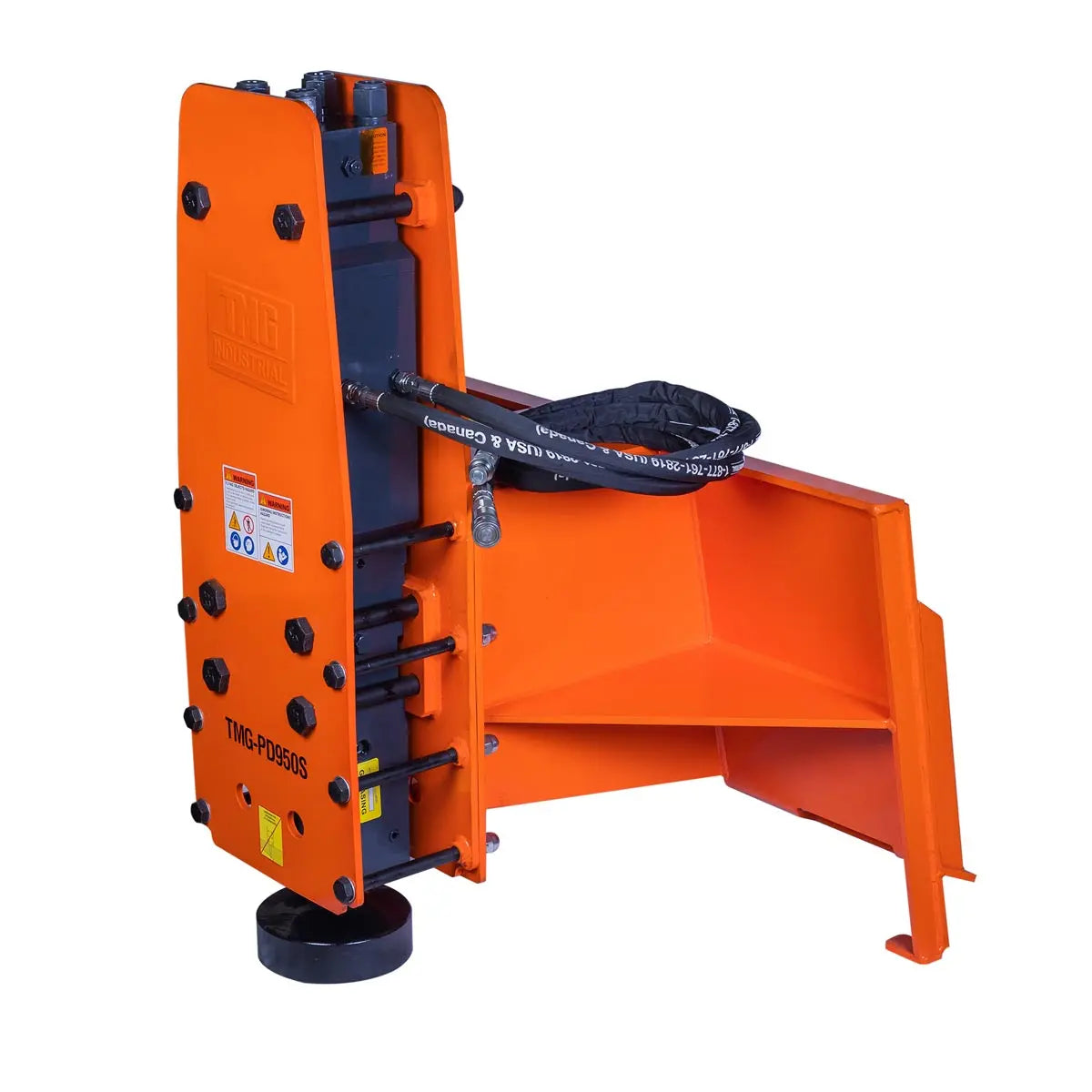

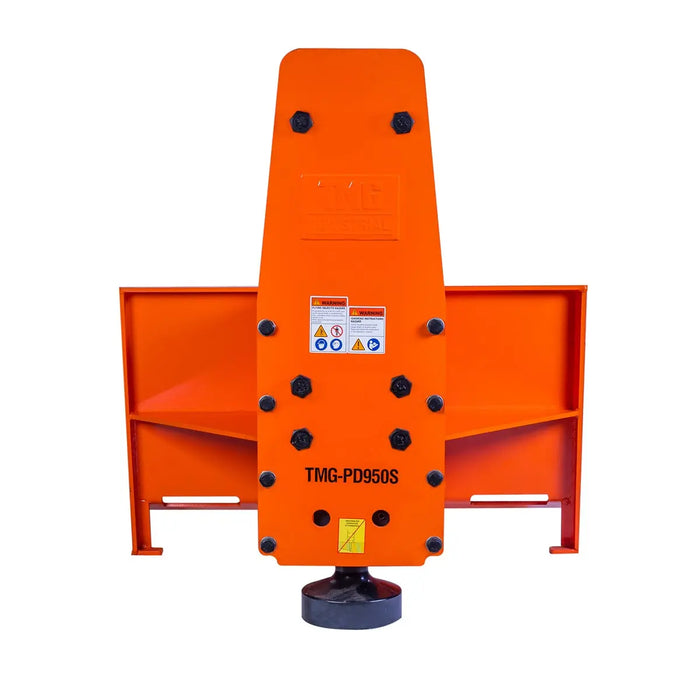

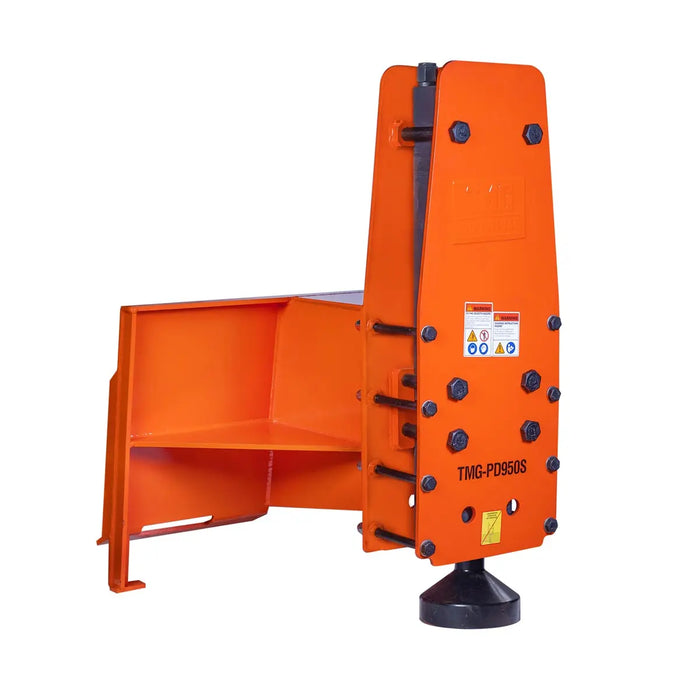

TMG Industrial Skid Steer Post Pounder, 10” Post Diameter, 580 Ft-lb Energy Class, 400-800 BPM Pounding Rate, TMG-PD950S

Original price $7,499.00 - Original price $7,499.00
Original price
$7,499.00
$7,499.00 - $7,499.00
Current price $7,499.00
CURRENTLY IN STOCK
FREE SHIPPING IN USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
1300.0 lb
50 x 38 x 56 inches
More Shipping Info

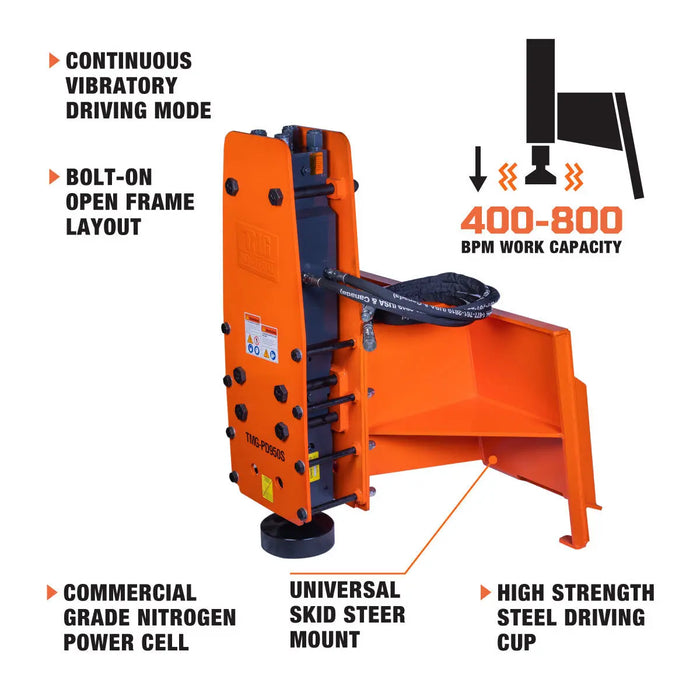

  • Install posts, pipe, signs and fencing at your home or business
  • Bolt-on open frame layout & universal skid steer mount
  • 580 ft-lb energy class & 400-800 BPM work capacity
  • High strength steel driving cup can accommodate posts up to 10” in diameter
  • Commercial grade nitrogen power cell, custom charge kit with CGA580 cylinder adaptor
Product Manual
Find the Parts

Features

  • Handy addition to your farm, contracting business or home operations for the installation of posts, pipe, signs and fencing of all kinds

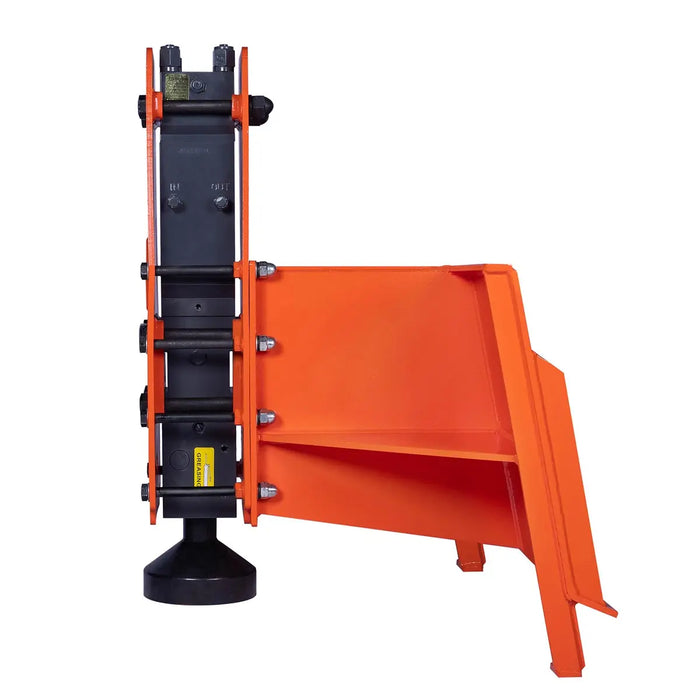

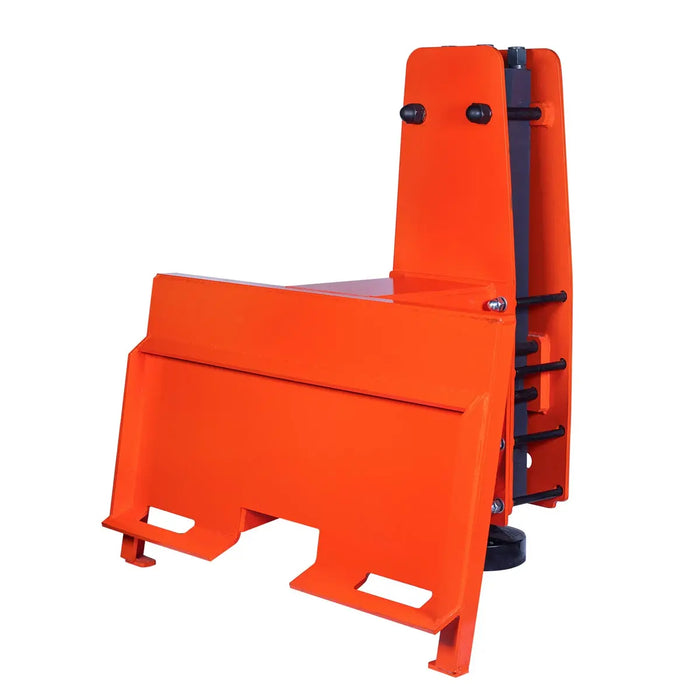

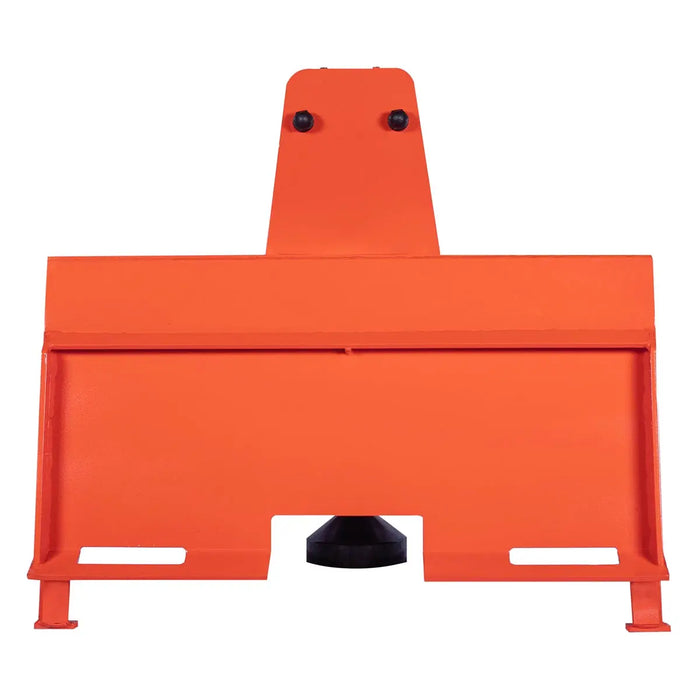

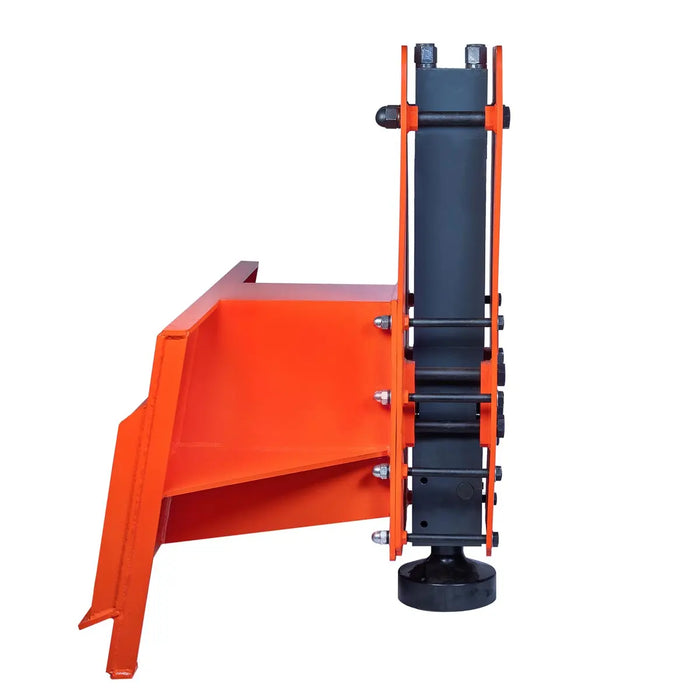

  • Bolt-on open-frame mounting plate made of strong, heavy-gauge steel that is easy to attach to your machine and remove for routine maintenance
  • Commercial-grade nitrogen power cell housed in the back head of the hammer provides maximum absorption of piston recoil for efficient hammering
  • Front head provides support, piston converts kinetic energy to pounding and the cylinder contains a hydraulic circuit for piston reciprocation

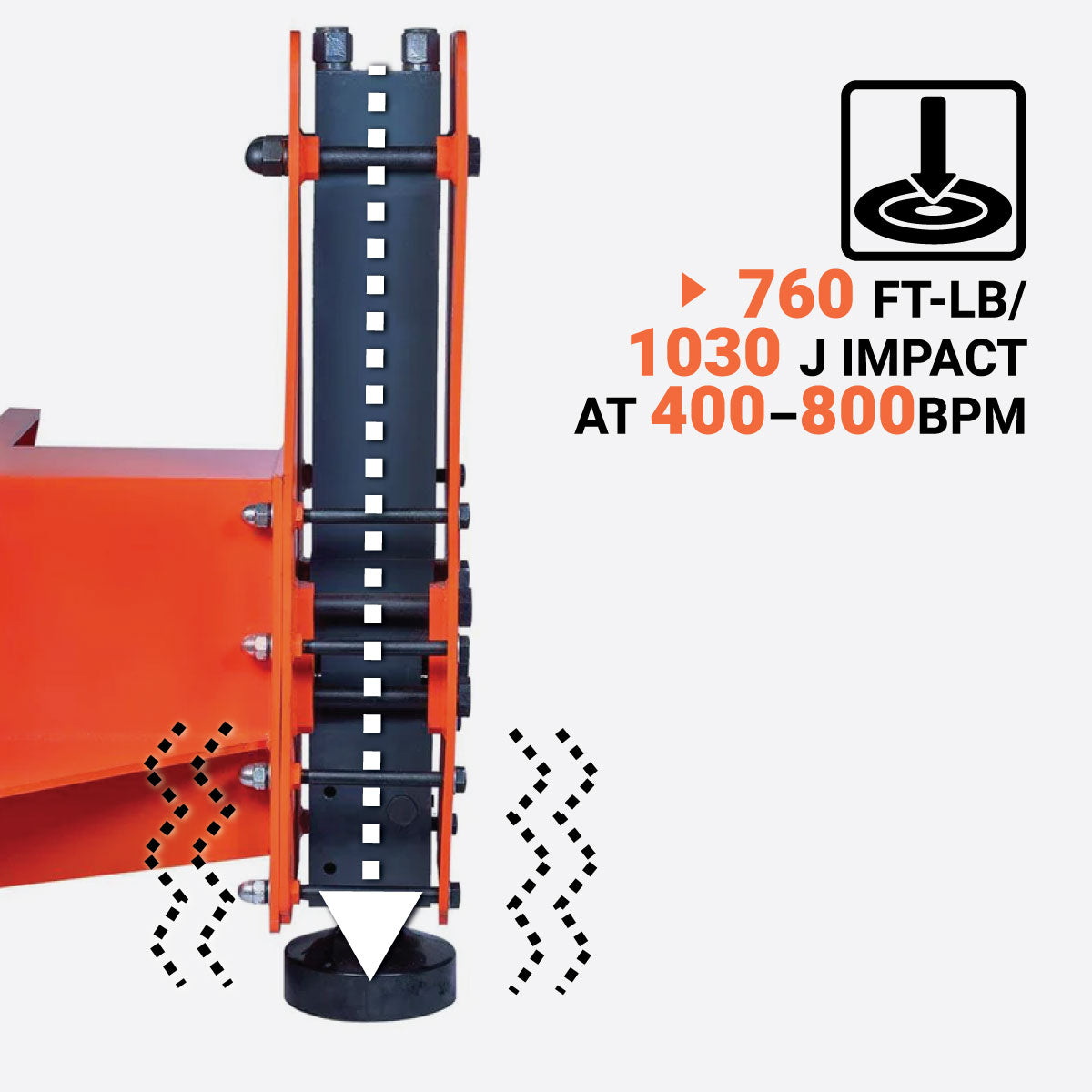

  • Continuous vibratory driving mode with a 400-800 BPM work rate evenly transfers energy downward into the object being hammered

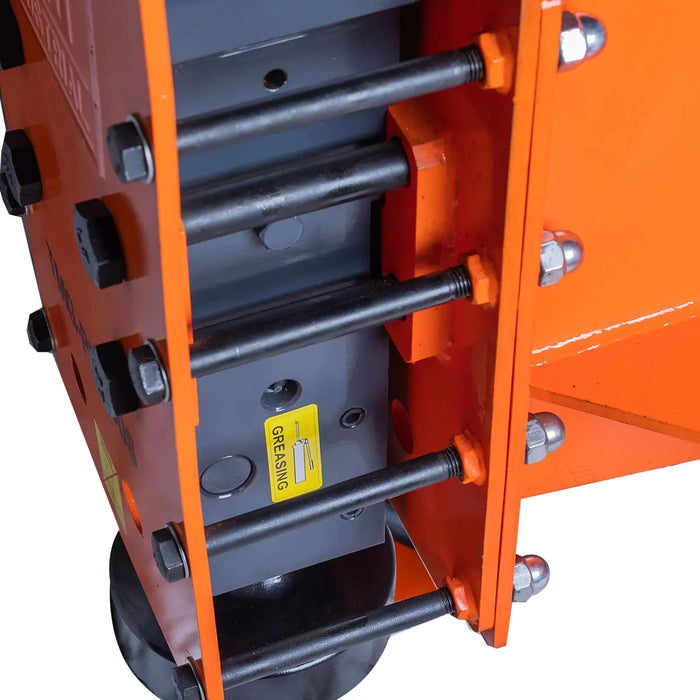

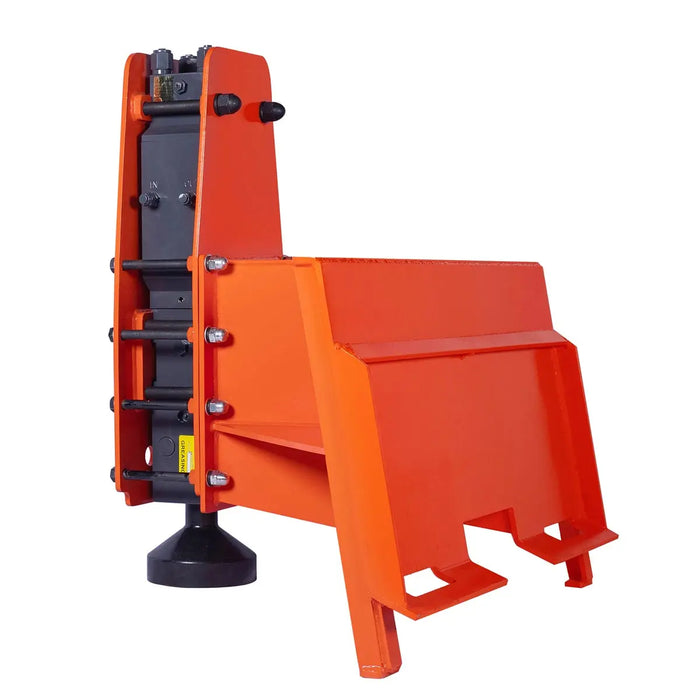

  • 1200 lb industrial steel construction with four through bolts that tightly affix the hammer’s front/back head and cylinder together

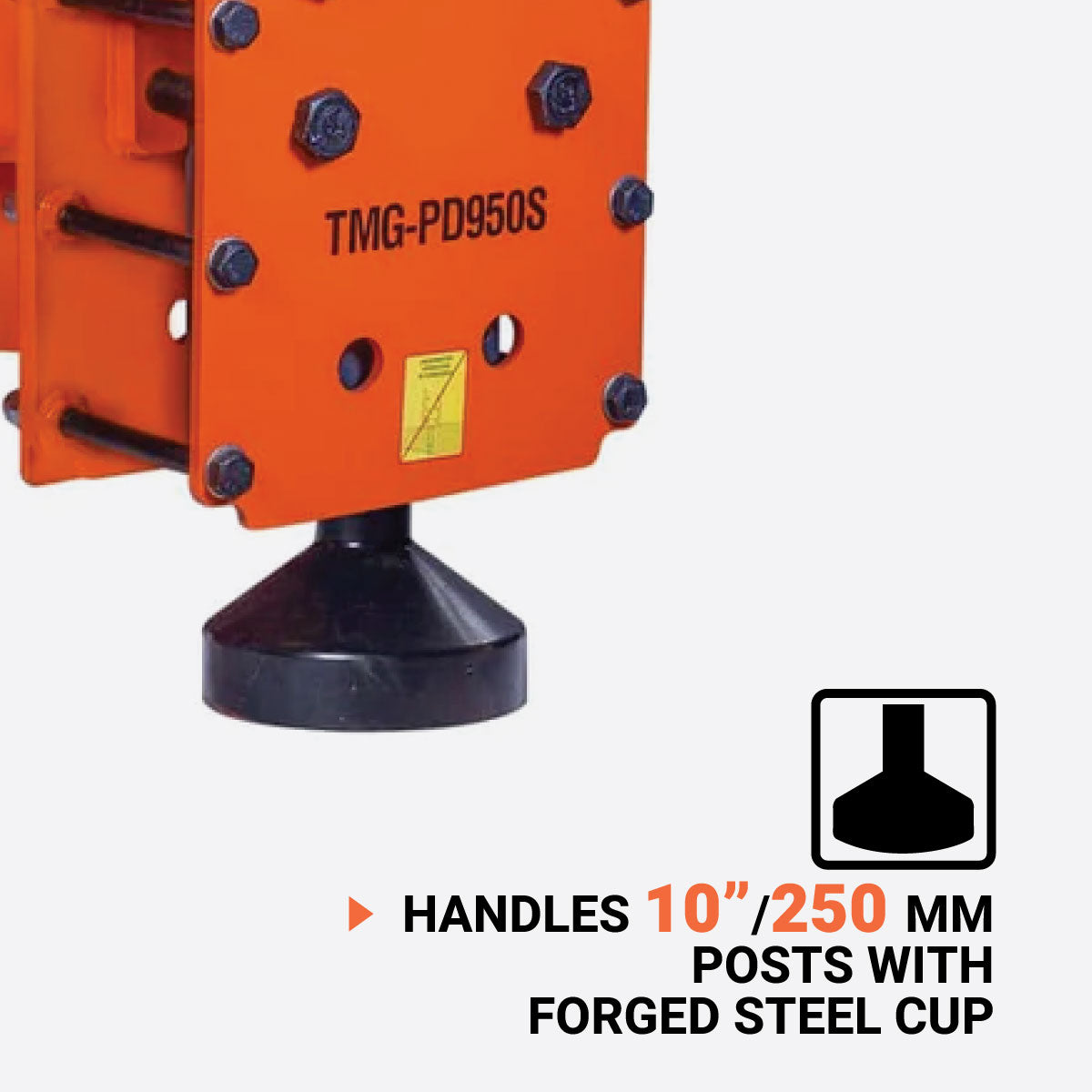

  • High strength steel driving cup can accommodate posts up to 10” in diameter and effectively transfers the pounders 580 ft-lb energy capacity

Specifications

  • Operating weight: 1200 lb
  • Energy class: 580 ft-lb
  • Skid steer lifting capacity required: 1750 lb
  • Skid steer power recommended: 50-100 HP
  • Hydraulic flow: 13-24 GPM

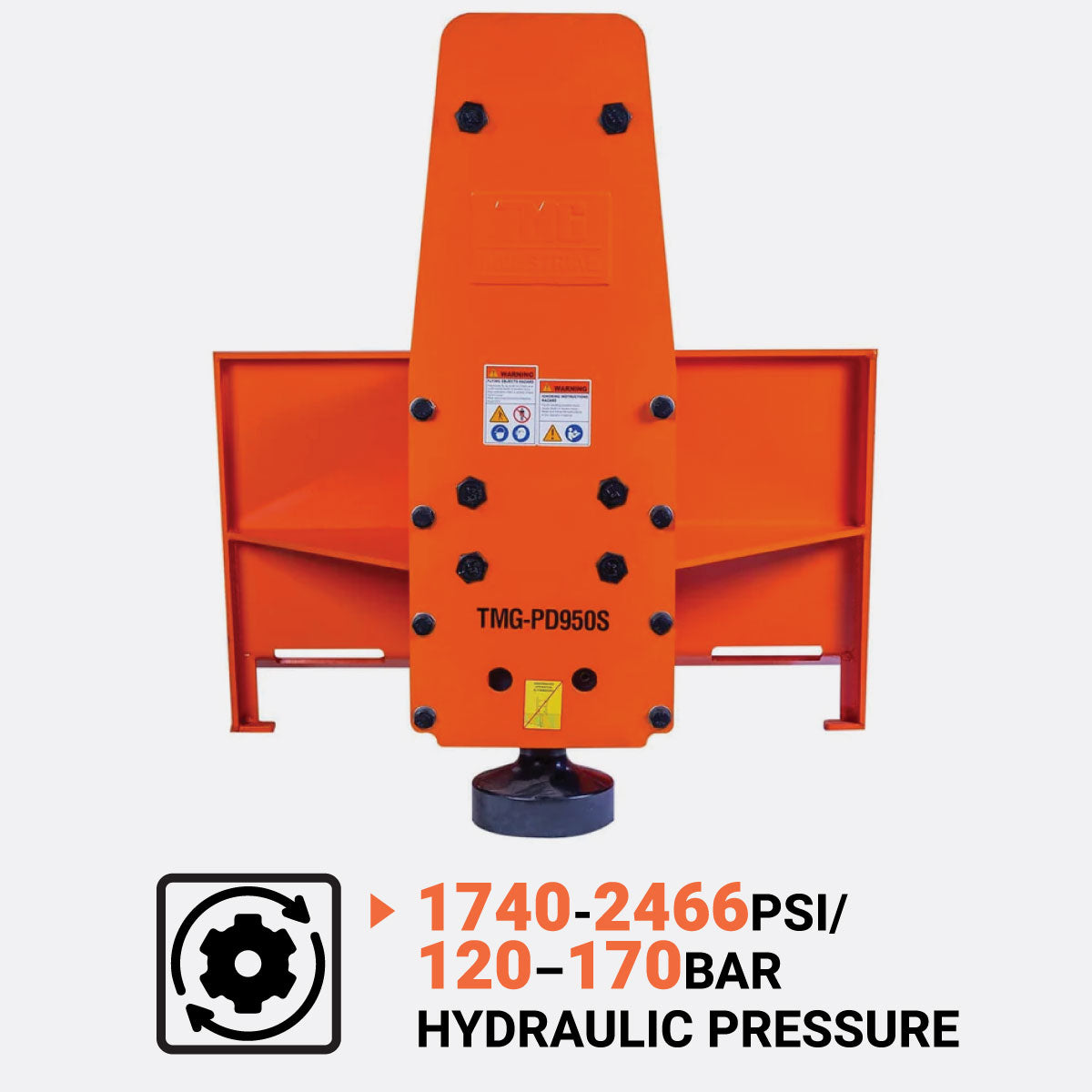

  • Working pressure: 1750-2500 PSI
  • Chisel shaft diameter: 3”
  • Pounding rate: 400-800 BPM

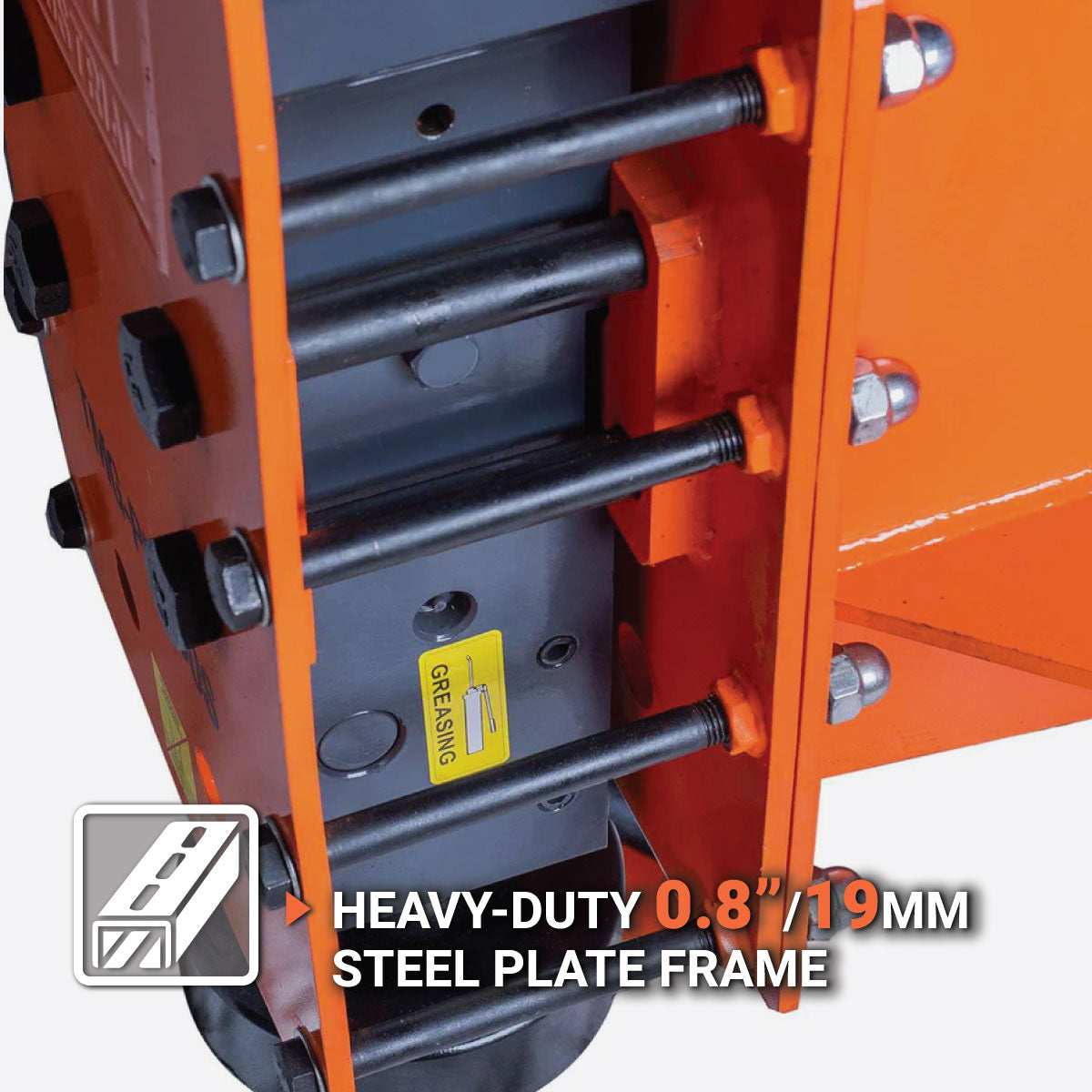

  • Steel plate frame: ¾”
  • Driving cup inside size: 10” diameter
  • Hydraulic hose: ½” diameter

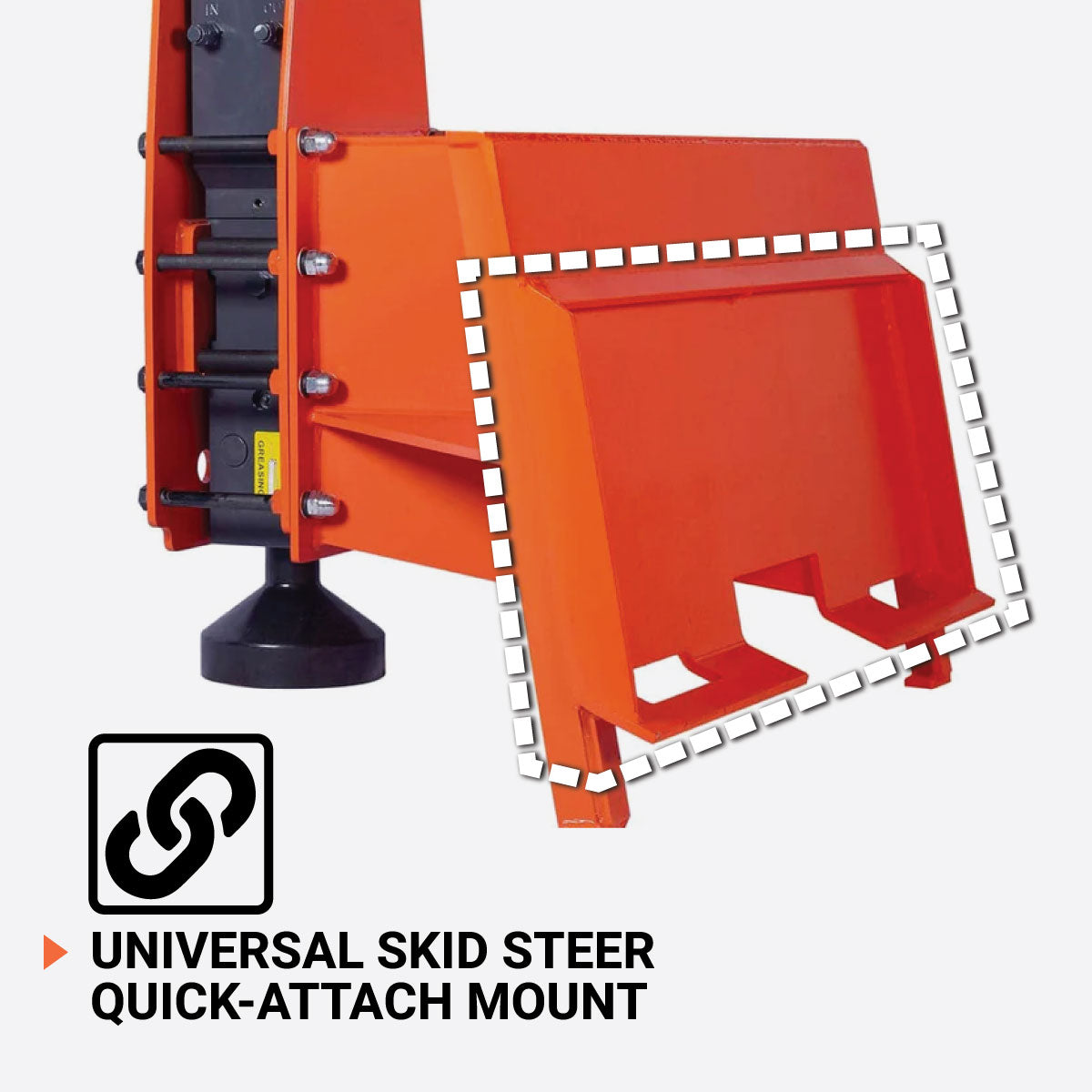

  • Universal skid steer quick attach mount

Accessories:

  • (1) Service toolbox kit

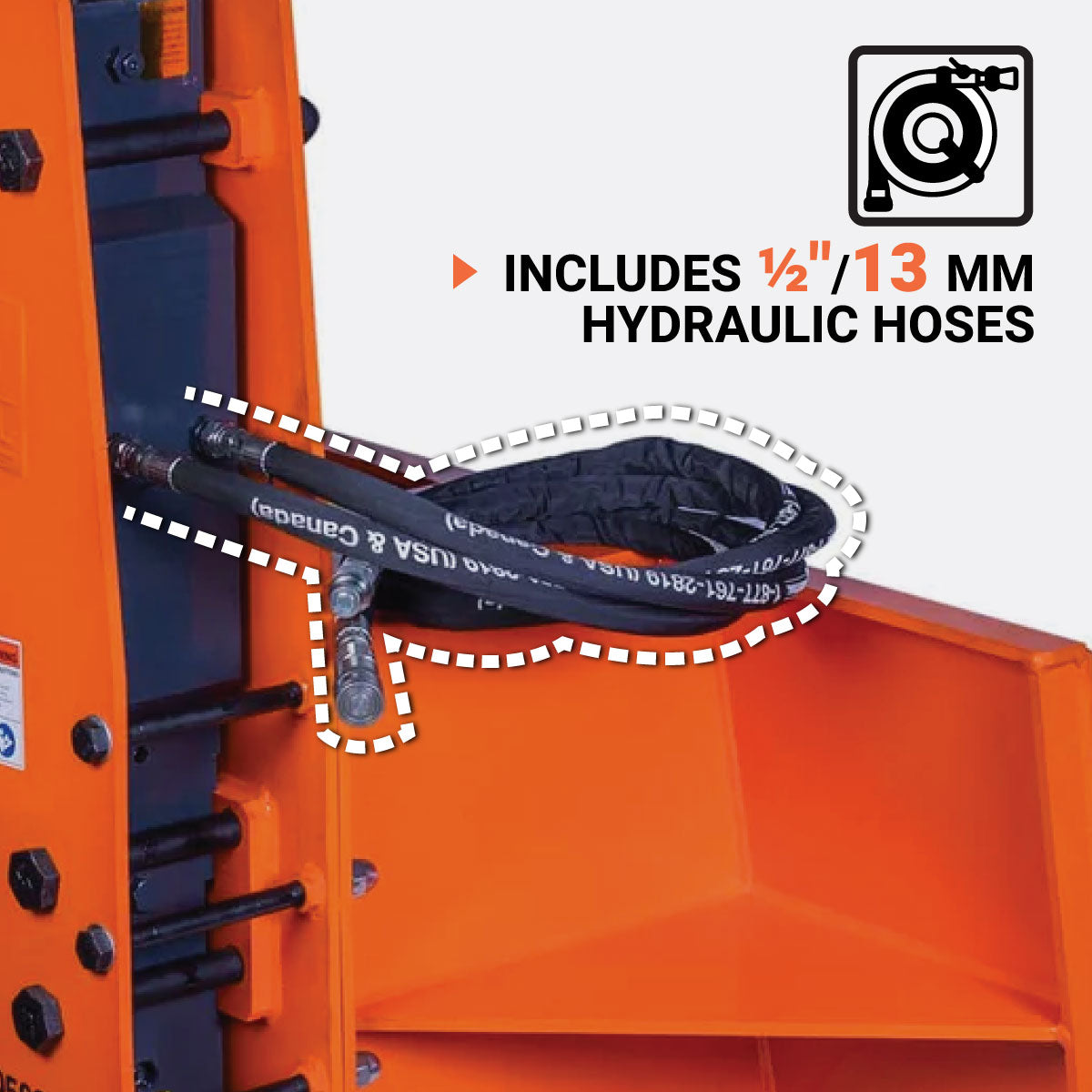

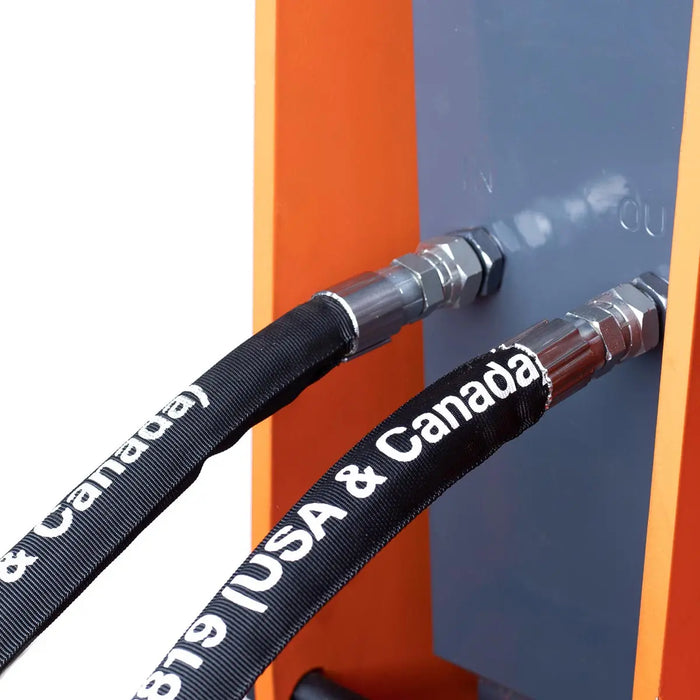

  • (2) ½” Hydraulic hoses and flat face couplers included
  • (1) Nitrogen charge kit with CGA580 cylinder adaptor
    • *Nitrogen does not come charged due to shipping protocols

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

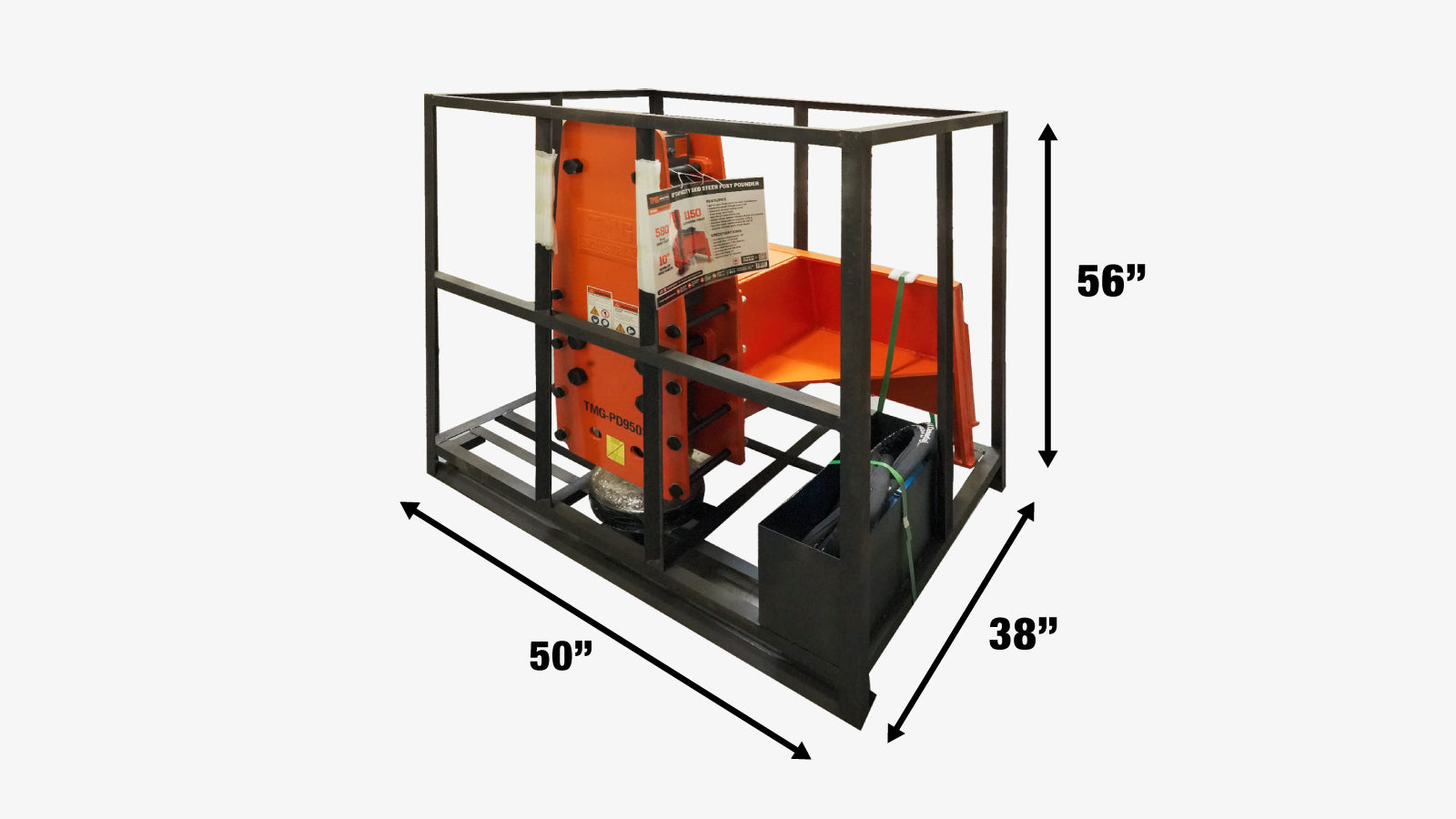

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 50” x 38” x 56” (L x W x H)
  • Shipping weight: 1300 lb
Shipping from Richmond, BC
TMG Industrial Skid Steer Post Pounder, 10” Post Diameter, 580 Ft-lb Energy Class, 400-800 BPM Pounding Rate, TMG-PD950S-shipping-info-image

Product Description

The TMG-PD950S Skid Steer Post Pounder is trusted by contractors, farmers and acreage homeowners across North America to install their fence posts and piping. Simple to attach hydraulic lines and a bolt-on, open frame mounting plate made of heavy gauge steel allow for a smooth and secure hook up to your machine. Easily set up a property perimeter, stand signs or put in agricultural fencing with this powerful post driver hammer.

Will accommodate posts up to 10” in diameter with a solid steel driving cup that efficiently transfers power from the piston to the object being struck. Four through bolts tightly affix the front/back head and cylinder of the post pounder for a durable construction that can handle its 580 ft-lb energy and 400-800 BPM work capacity.

Located in the back head of the hammer is a cushion chamber charged with nitrogen (N2) gas that compresses during upward strokes of the piston. This serves to provide maximum absorption of piston recoil, efficiently storing this energy for the next blow. Continuous vibratory drive motion means posts will be in the ground in no time at all. Allows you to work smarter and protect your body from unnecessary labour.

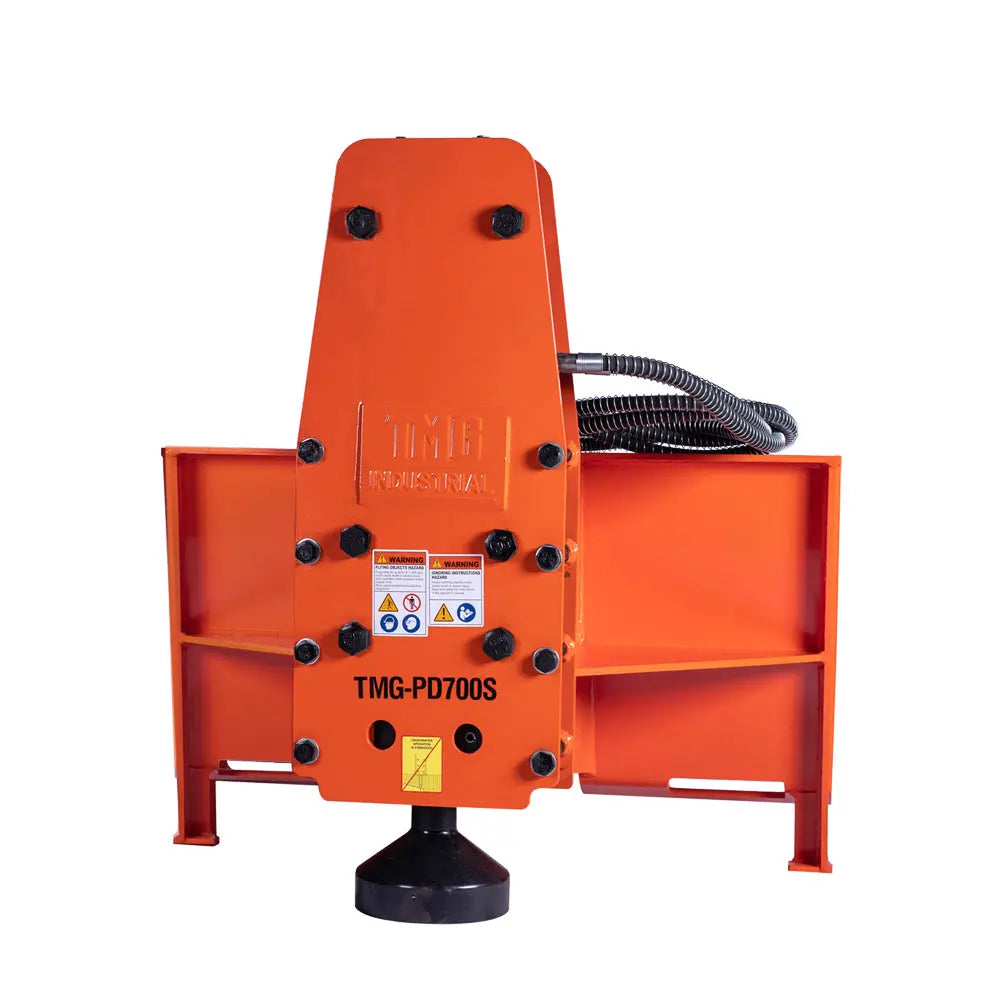

We also carry a smaller model of this post pounder: TMG-PD700S.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
