TMG-GSG9 14HP Heavy Duty Stump Grinder with Drum Brake for Pivot Cutting with Kohler Engine

The TMG Industrial walk behind stump grinder is the perfect tool to eliminate stumps from your yard. Driven by a reliable 14hp Kohler engine with dual V belts, this powerful stump grinder makes easy work of stumps 24” above ground and 9” below ground. An adjustable bow handle provides a steady and secure grip while a disk drum brake means excellent pivot cutting. With 9 teeth and a 3.5” cutting thickness this stump grinder tears its way through even the most stubborn stumps.

Specifications:

• Teeth: 9
• Cutting wheel diameter: 11.8” (300mm)
• Cutting wheel thickness: 3.54” (90mm)
• Cutter depth below ground: 9.25” (235mm)
• Cutter height above ground: 23.6” (600mm)
• Belt: (2) V-belts
• Brake: drum brake

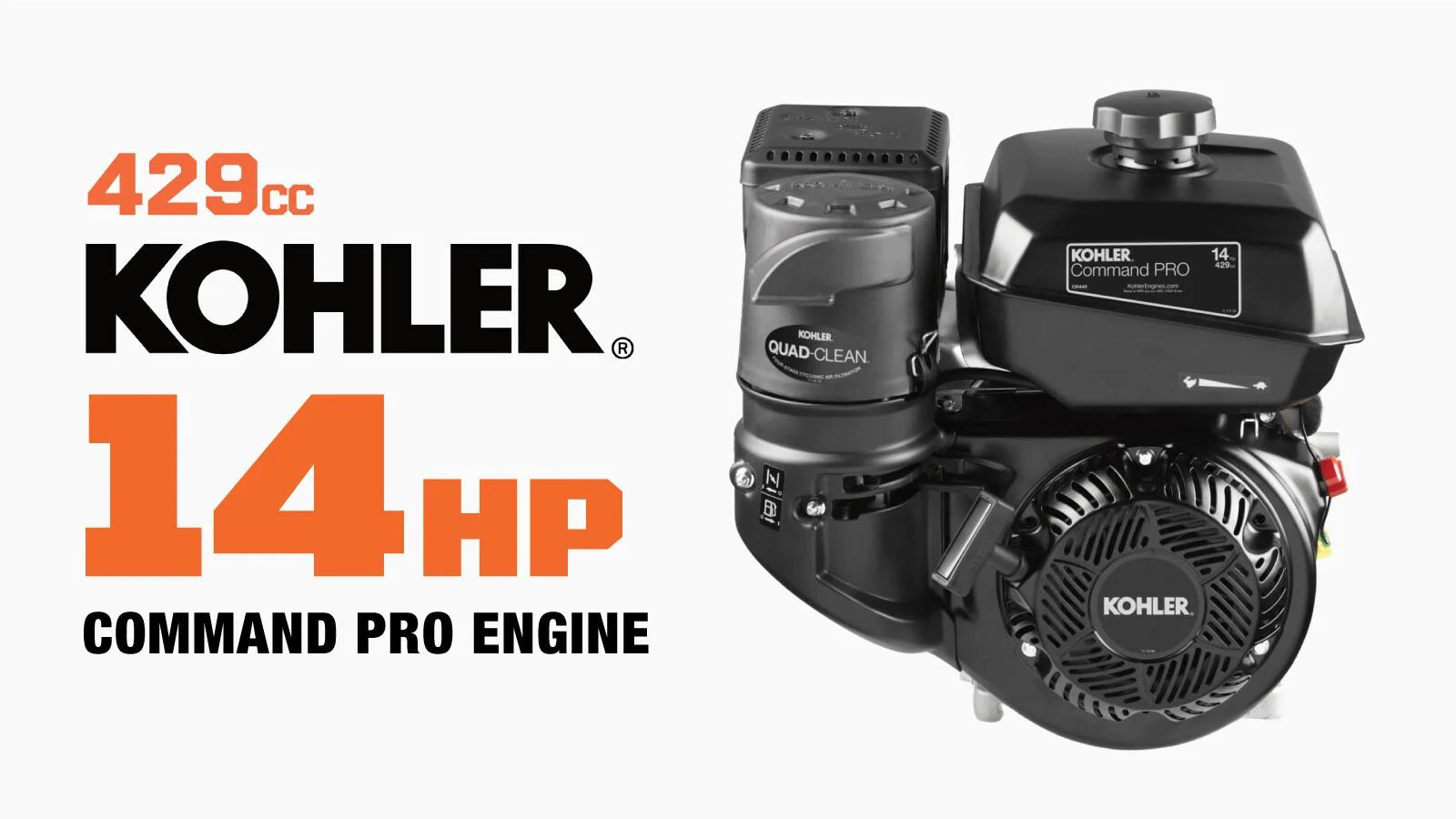

Engine Specifications:

• Kohler Model CH440TF
• Power: 14hp
• Four-cycle, tri-fuel conversion, OHV, aluminum head and crankcase
• Displacement: 429cc
• Oil Capacity: 1.16L
• KOHLER 3-year commercial warranty
• Oil SentryTM automatically shuts the engine down in low-oil condition

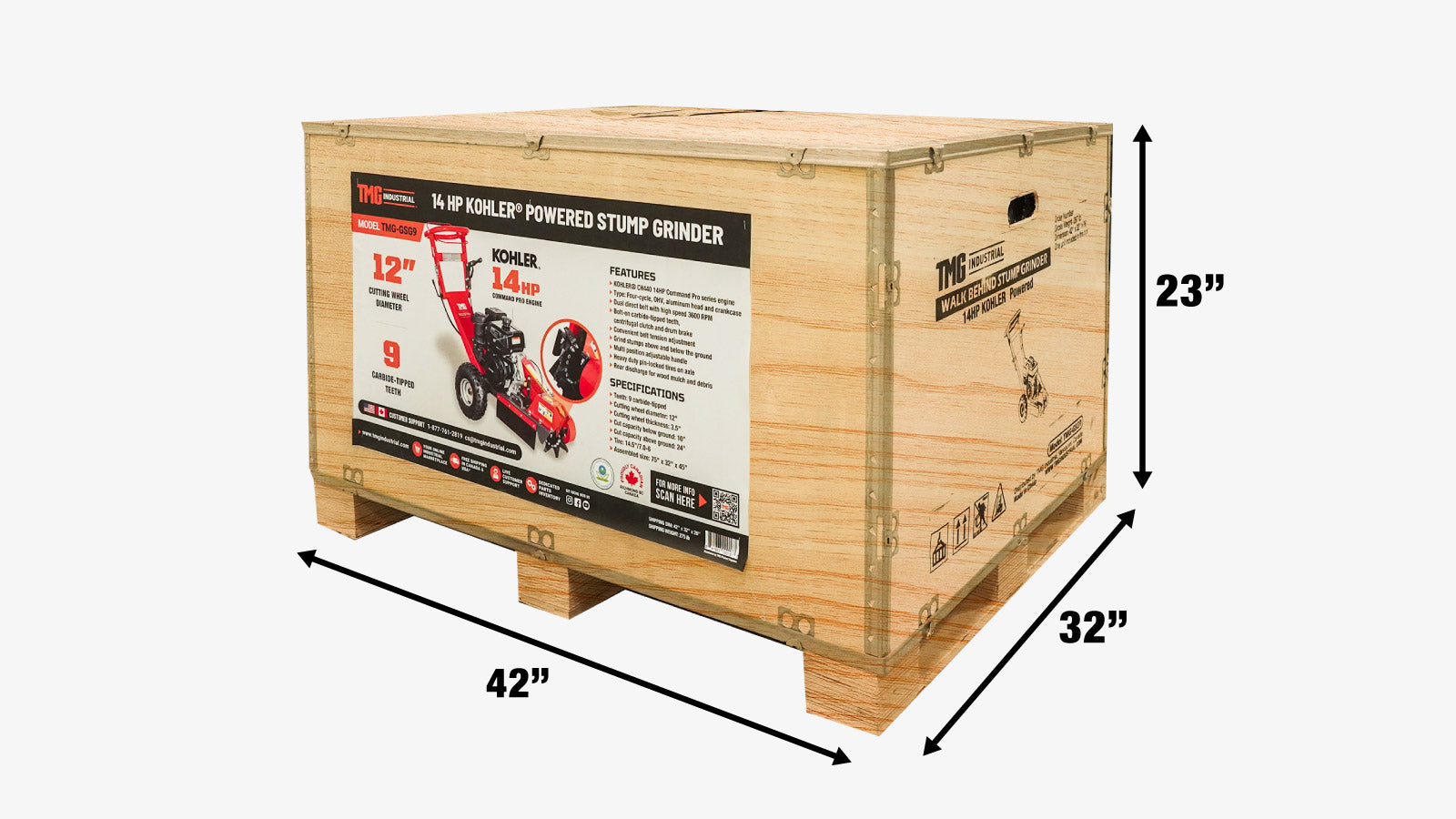

Packaging:

• Dimension: 42" x 32" x 23"
• Shipping weight: 275 lbs

Product Manual

Download here
