CURRENTLY IN STOCK

SKU DOBA-HPM1620-1

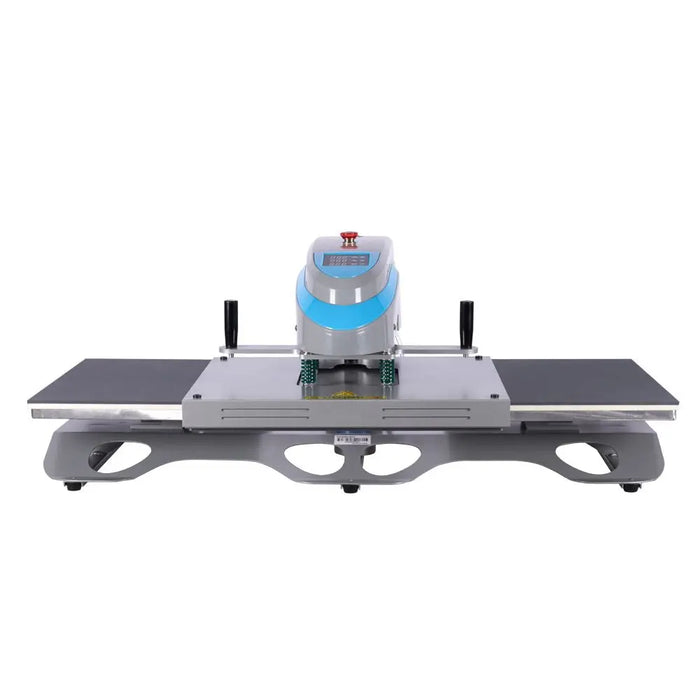

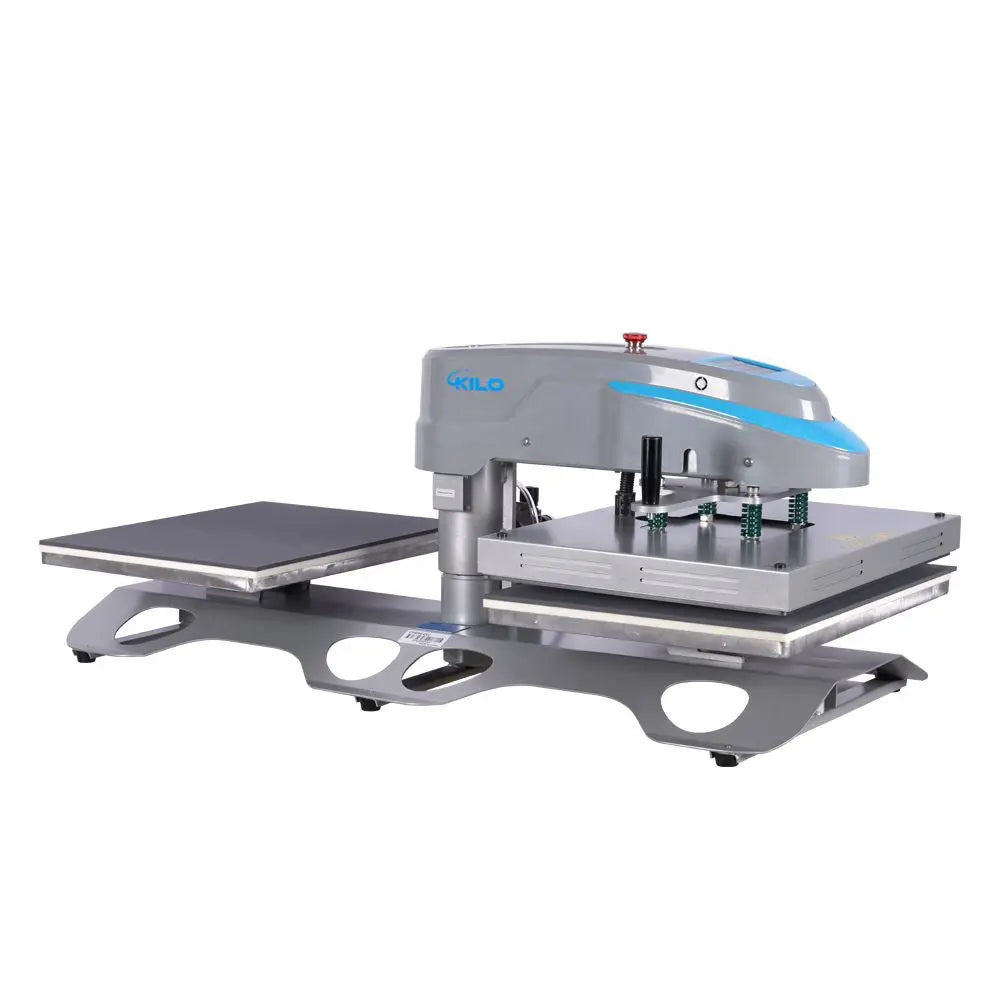

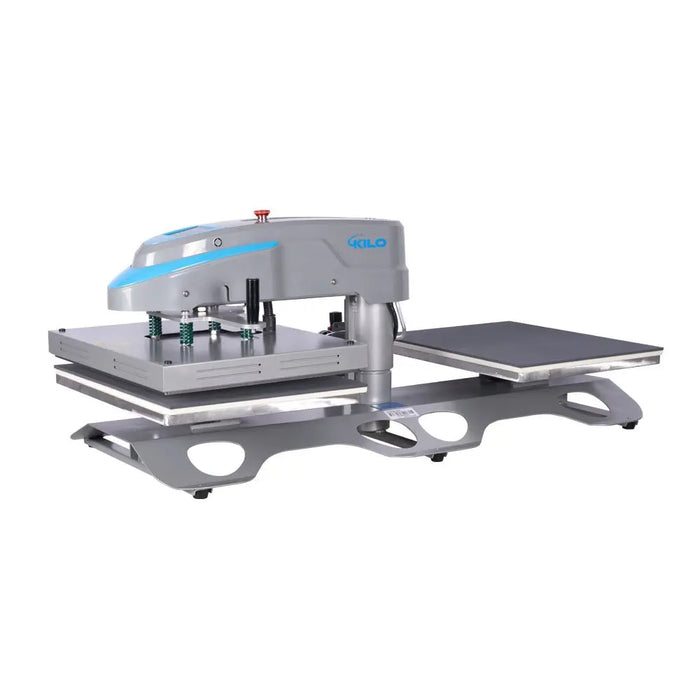

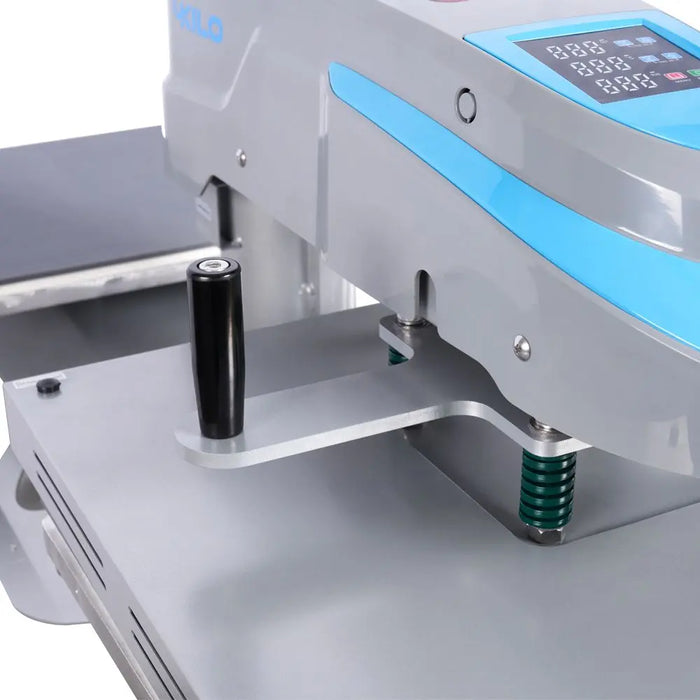

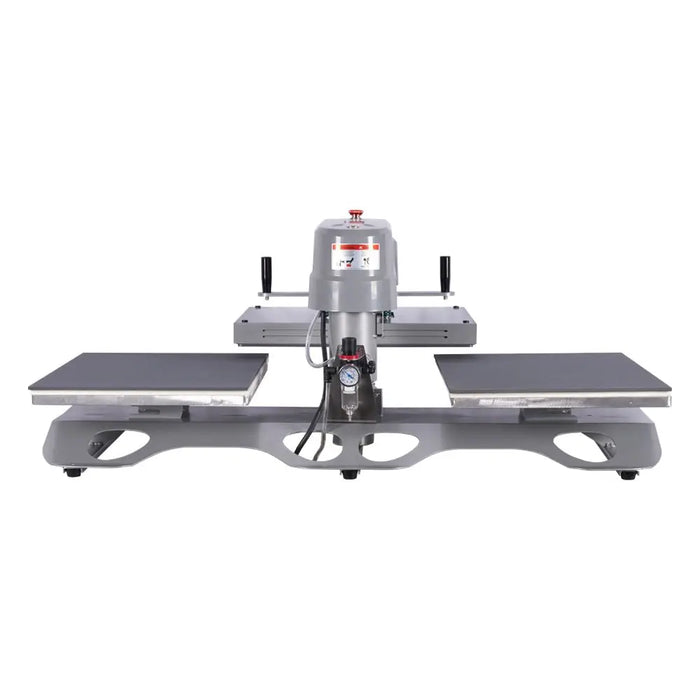

16" x 20" Heat Press Machine, Pneumatic Dual Platen Swing Head, 110V, 2000W, DOBA-HPM1620

CURRENTLY IN STOCK

SKU DOBA-HPM1620-1

$1,599.00 - $1,599.00

$1,599.00

$1,599.00 - $1,599.00

$1,599.00

Total:

FREE

shipping to most locations in

USA

Delivered in 10 to 15 business days

Learn More

Quantity

1-888-467-5788

cs@tmgindustrial.com

Find Parts

16" x 20" Heat Press Machine, Pneumatic Dual Platen Swing Head, 110V, 2000W, DOBA-HPM1620

Quantity

Multiple time settings for adjustable heat press cycles
Bright, large LCD display with wide viewing angle
Self-pressure balancing system for even pressure
Teflon-coated upper plate prevents sticking and scorching
Swing-head design with magnetic position limit sensor for auto-pressing at zero position
Pneumatic down-press operation with consistent air pressure
Powered by an external air compressor (not included)
Optional infrared positioning for precision printing
Improved lower support plate design for easier garment placement
Adjustable pressure range up to 6 cm for compatibility with more product types

Main Color: Blue + Grey
Main Material: Aluminium
Voltage: 110V / 60Hz
Power: 2 KW
Temperature Range: 0–299℃
Timer Range: 1–99 seconds
Gross Weight: 176.4 lb
Packing Size: 51.2'' × 20.9'' × 23.6''
Acceptable Thickness: Max. 2.36''
Heat Plate Size: 16'' × 20'' (40 × 50 cm)
Air Pressure Range: 0.4 Mpa – 0.6 Mpa
Pressure Capacity: Up to 8 kg/cm²
Lower Plate Material: 6 mm silicone mat + 1 cm sponge
Application Materials: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics

The DOBA-HPM1620 is a professional-grade solution for high-efficiency garment printing, built for precision, stability, and repeatable results. Featuring a swing-head design with magnetic position sensors and dual-station layout, it’s ideal for continuous operation in production environments.

Equipped with a digital LCD control panel and multiple timer settings, this heat press allows precise temperature and timing adjustments for various materials. Its integrated heating plate and tube system ensures even, consistent heating while the self-balancing pressure mechanism delivers uniform results across the press surface.

The upper plate is coated with non-stick Teflon, while the lower plate is covered with a 6 mm silicone mat and 1 cm sponge to ensure even pressure distribution. With adjustable pressure up to 8kg/cm² and compatibility with air compressors (not included), this press easily handles thick items up to 2.36" and a wide range of substrates like cotton, polyester, ceramics, and more.

Designed with sliding rails for efficiency and optional infrared positioning for precise alignment, this unit is ideal for small item printing, apparel production, and customized promotional goods.

Your heat press machine will be shipped from one of our U.S. warehouse locations. All orders are processed within 2–3 business days. Delivery is estimated within 10–15 business days depending on your region.

Packaging Type: Crated and foam protected
Shipping Dimensions: 51.2'' × 20.9'' × 23.6''
Shipping Weight: 176.4 lb
Ships From: U.S. warehouse
Handling Time: 2–3 business days

Shipping from Charlotte, NC, or Seattle, WA

What happens after you place your order?

This product is supplied by DOBA and follows a separate warranty policy from TMG Industrial products.

Return & refund application needs to be filed within 30 days from the delivered date.
We don’t support order cancellation before shipping.
We don’t accept non-defective remorse returns.
If the item was delivered damaged or defective, you will need to return them, and we will provide a return label at supplier's cost.
We don't offer warranties to customers.
