16" x 24" heat press machine, pneumatic up sliding dual platen with infrared positioning, DOBA-HPM1624
FREE
shipping to most locations in
USA
Learn More
Features
Features

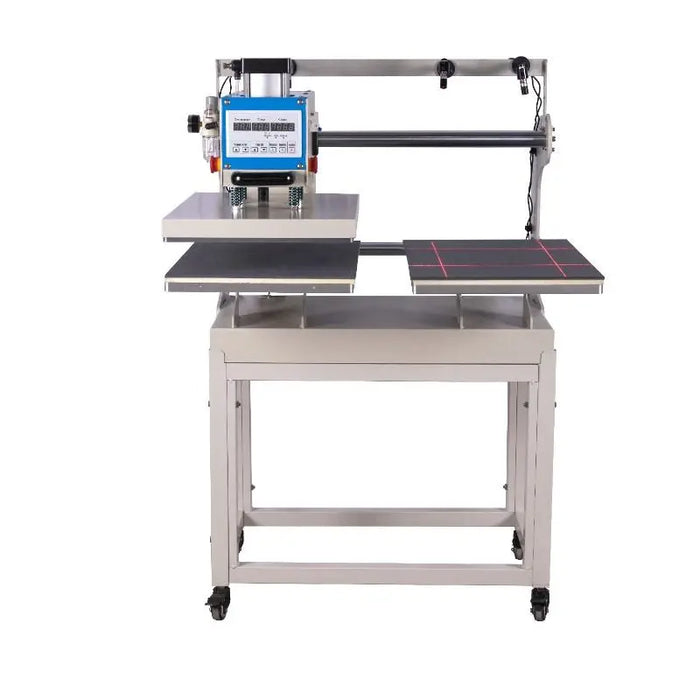

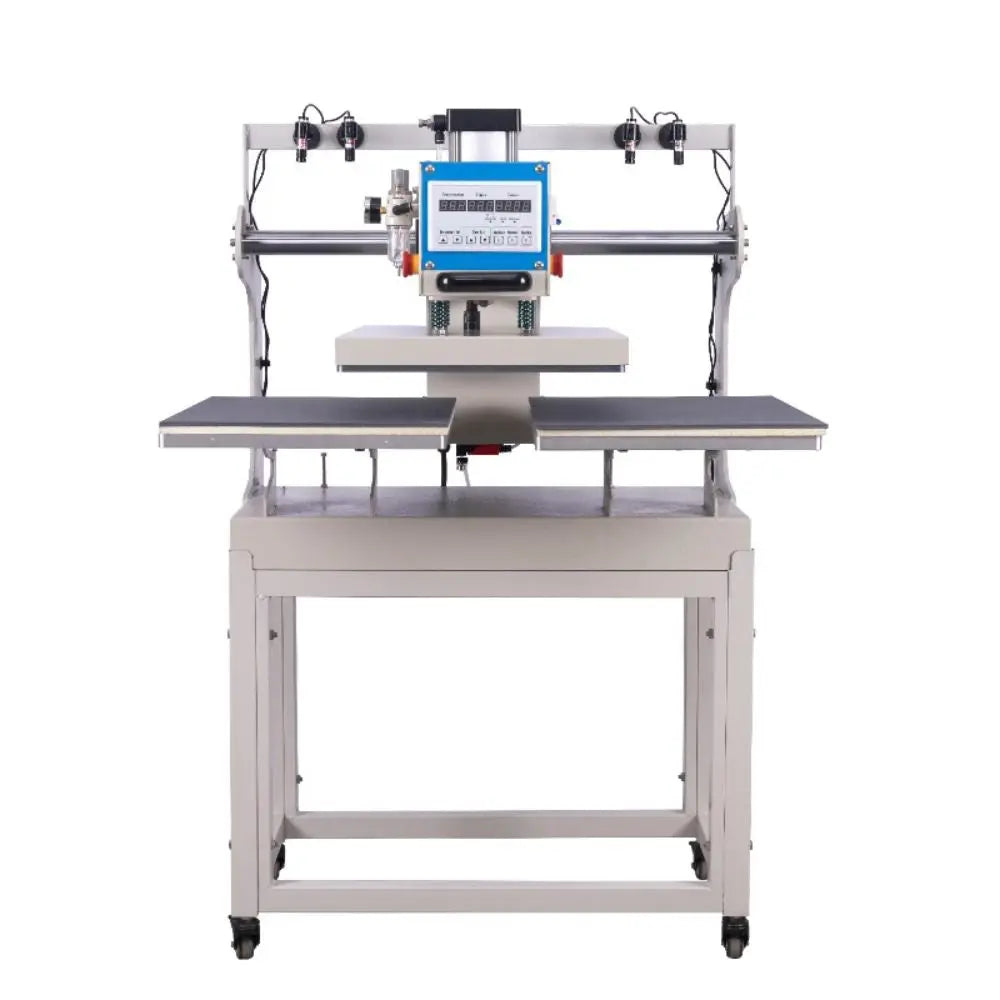

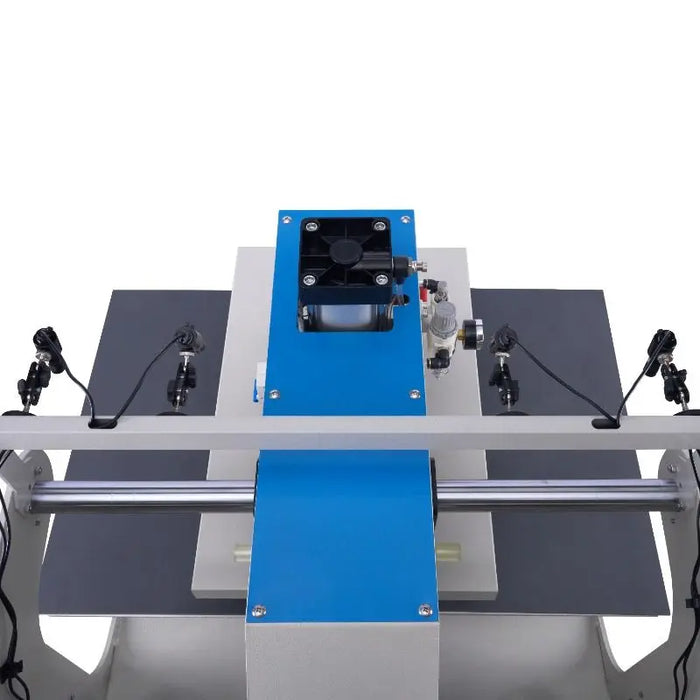

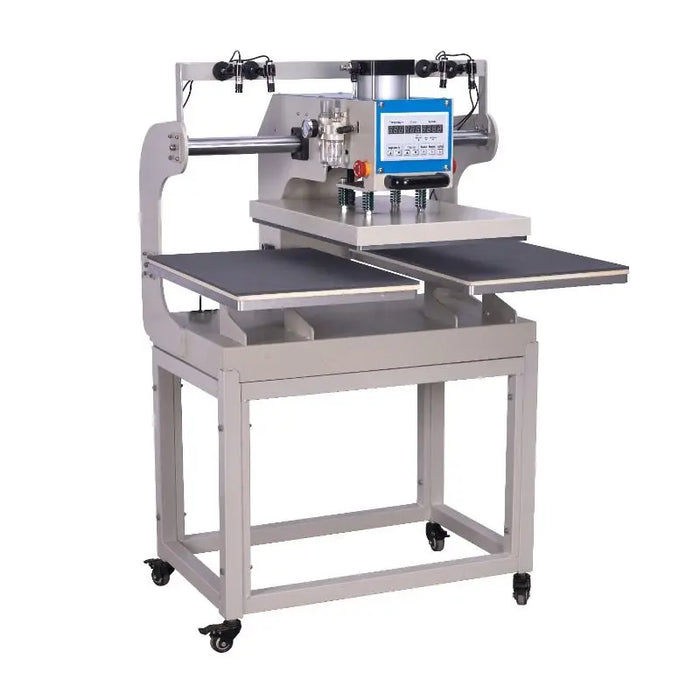

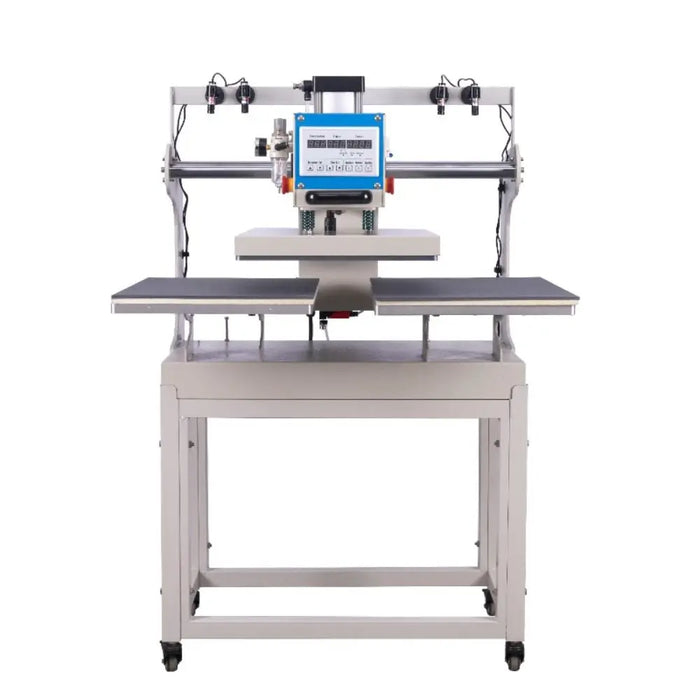

- Pneumatic Dual Station Design: Powered by an external air compressor (not included), the dual station enables fast, even, high-pressure transfers with automated side-to-side plate movement.
- Large 16" × 24" Heat Plate: Integrated heating elements deliver quick, even heat distribution for consistent transfer results across large surfaces.
- Digital LCD Control Panel: Easy-to-use interface allows precise temperature, time, and cycle count settings with auto job counter for productivity tracking.
- Precise Pressure Adjustment: Pressure range from 0.4–0.8 MPa, controlled via knob for optimal results across materials and thickness levels.
- Emergency Stop Safety System: Emergency stop button and lubricated air cylinder ensure safe, smooth operation at all times.

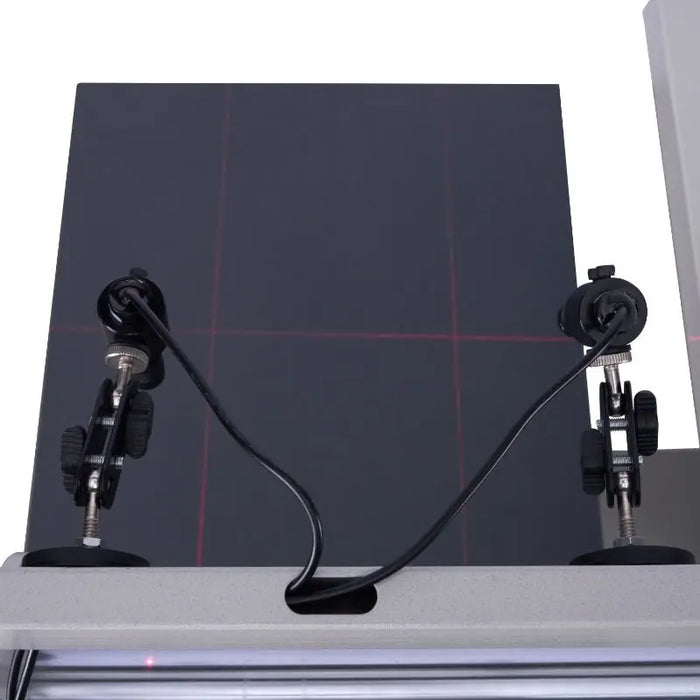

- Laser Positioning Ready: Supports optional laser alignment system (1-point) for precise positioning on smaller prints.
- Stable Frame with Brake Casters: Heavy-duty aluminum-steel frame paired with lockable casters provides both stability and mobility.
- Optimized for Multi-Material Applications: Suitable for cotton, polyester, chemical fibers, ceramics, pearl boards, and more.
Specifications
Specifications
- Main color: White + Blue
- Main material: Aluminum + steel frame
- Plate size: 16" × 24" (40 × 60 cm)
- Voltage: 110V / 60Hz
- Power: 1.6 KW
- Temperature range: 0–299°C
- Time range: 1–999 seconds
- Max pressing thickness: 2.36"
- Control panel: Digital LCD with auto counter
- Pressure range: 0.4–0.8 MPa (adjustable)
- Compressor required: Yes (external, not included)
- Gross weight: 306.5 lb
- Package size: 42.5" × 33.9" × 32.3"
- LTL freight: Yes
Material Application Guide
| Material | Time | Temperature |
|---|---|---|
| Pure cotton | 15s–25s | 356–428℉ (180–220°C) |
| Polyester | 40s | 356℉ (180°C) |
| Chemical fiber | 10s–40s | 302–356℉ (150–180°C) |
| Pearl board | 60s–100s | 356℉ (180°C) |
| Metal pendant | 60s | 356℉ (180°C) |
| Mousepad | 50s | 374℉ (190°C) |
| Vitrolite | 180s | 392℉ (200°C) |
| Key ring pendant | 100s | 356℉ (180°C) |
| Ceramics | 180s | 356–428℉ (180–220°C) |
Product Description
Product Description
DOBA-HPM1624 is a high-performance double station press designed for professional apparel printing, industrial branding, and custom product creation. Built with a heavy-duty aluminum frame and powered by an external air compressor (not included), this unit delivers consistent pressure and temperature control, even on thicker or delicate materials.
With automated up-sliding operation, adjustable pressure, and an emergency stop function, it combines safety, productivity, and precision. Ideal for printing on T-shirts, mousepads, ceramics, metal pendants, and more, this press is the perfect addition to any production facility looking to scale output with speed and consistency.
