CURRENTLY OUT OF STOCK
SKU D0102H5GFH2-as Pic

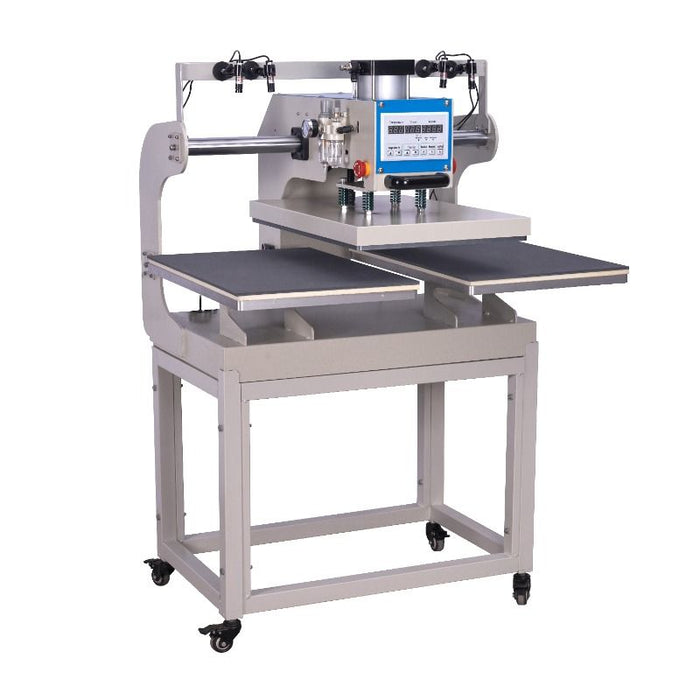

16x24 pneumatic up sliding dual platen heat press machine with infrared positioning

16x24 pneumatic up sliding dual platen heat press machine with infrared positioning

526749561
CURRENTLY OUT OF STOCK
SKU D0102H5GFH2-as Pic
$2,799.00
$2,799.00 - $2,799.00
$2,799.00
$2,499.00
$2,499.00 - $2,499.00
$2,499.00
$2,799.00 Save $300.00
$2,499.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
1-888-467-5788
Find Parts

Product Description

Specification

Main Color:White+Blue

Main Material:Aluminium

LTL:Yes

Details

Product Features:

Pneumatic heat press transfer machine makes machine more convenient for printing;

T-shirt printing machine is more accurate for small items printing;

Heat press machine powered by an air compressor ( not included);

Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes

Heat press machine with base frame for much stable printing and easy movement with the brake caster



Description:



<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">16" x 24" Up-sliding Heat Press Machine Pneumatic Heat Press Machine</divstyle="font-size:>
1. Heat press machine is full digital integrated display control;2. High accuracy of signal indication when press process is completed;3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;4. Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency;5. Special high temperature cloth for hot stamping machine covered6. Lower plate covered with silicon mat and sponge to heat even heating pressure 7. Heat press machine is automation print once backside inductive screw touched8. Left and right side bearings parallelly move the heat press machine9. General pressure for 0.4Mpa-0.6Mpa heat printing

<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Double Station Heat Press Machine</divstyle="font-size:>
1. Pneumatic heat press transfer machine makes machine more convenient for printing; 2. T-shirt printing machine is more accurate for small items printing;3. Heat press machine powered by an air compressor ( not included);4. Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes5. Heat press machine with base frame for much stable printing and easy movement with the brake caster

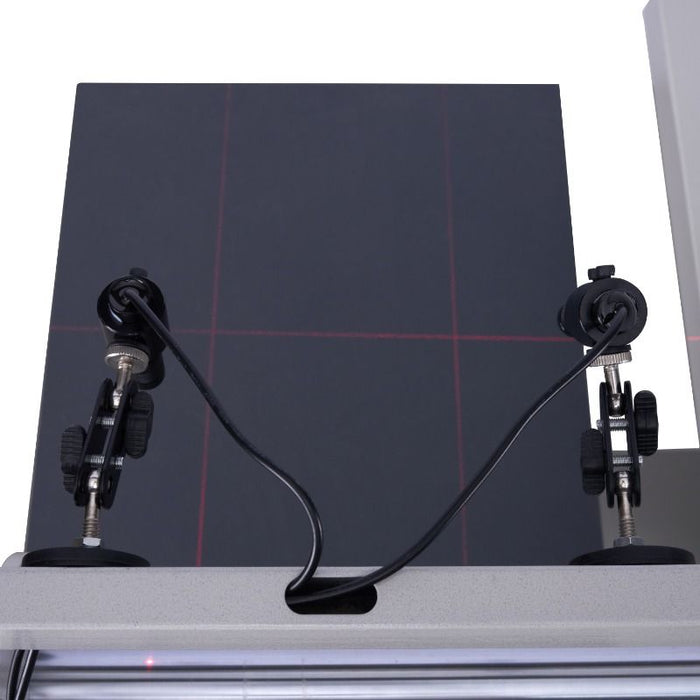

<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Laser positioning</divstyle="font-size:>
1

<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Big LCD Display Controlled, with Temperature, Time and Count Set</divstyle="font-size:>
Can save the labor and time cost with automatic counting.

<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Emergency Stop Button for Urgent Case Stop If Needed</divstyle="font-size:>
Pressure adjusting knob for easy adjustment of different pressureRight bottle for lubricate the air cylinder

<divstyle="font-size: 16px;="" font-weight:bold;line-height:24px;color:="" #333333;word-break:="" break-word;"="">Hose for the Air Compressor Included</divstyle="font-size:>
1

16 x 24'' Hot Selling Heat Press Machines
Voltage(V): 110V/60HZ
Power(KW): 1.6
Temperature(℃): 0-299
Delaying Time(S): 1-999
G.W.(LB): 306.5
Package Size(''): 42.5'' x 33.9'' x 32.3''
Accept Thickness: Max. 2.36'' Thick Items
Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Pure Cotton Time: 15s-25s
Polyester Time: 40s
Chemical Fiber Time: 10s-40s
Pearl Board Time: 60s-100s
Metal Pendant Time: 60s
Mousepad Time: 50s
Vitrolite Time: 180s
Key Ring Pendant Time: 100s
Ceramics Time: 180s
Heat Plate Size: 16'' x 24'' (40 x 60cm)
1
Material Temperature
Pure cotton 356℉-428℉ (180℃-220℃)
Polyester 356℉ (180℃)
Chemical fiber 302℉-356℉ (150℃-180℃)
Pearl board 356℉ (180℃)
Metal pendant 356℉ (180℃)
Mousepad 374℉ (190℃)
Vitrolite 392℉ (200℃)
Ceramics 356℉-428℉ (180℃-220℃)
