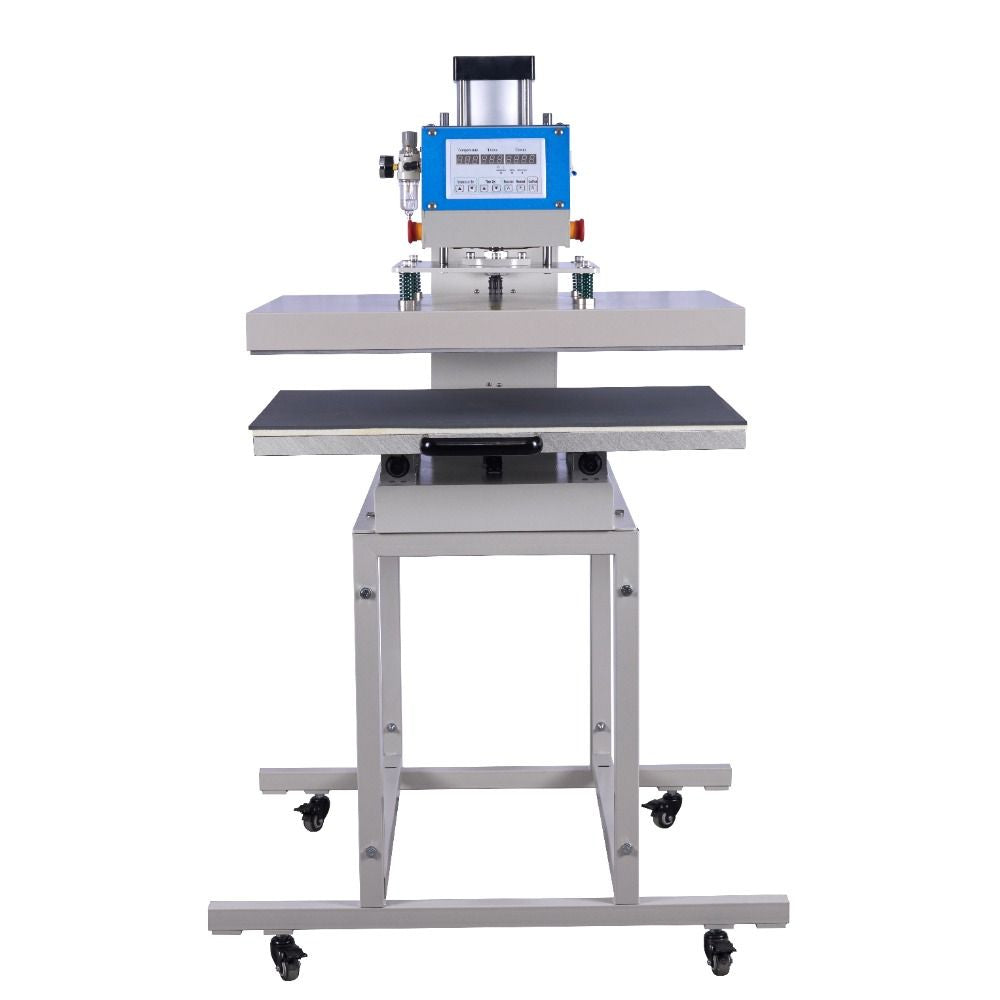

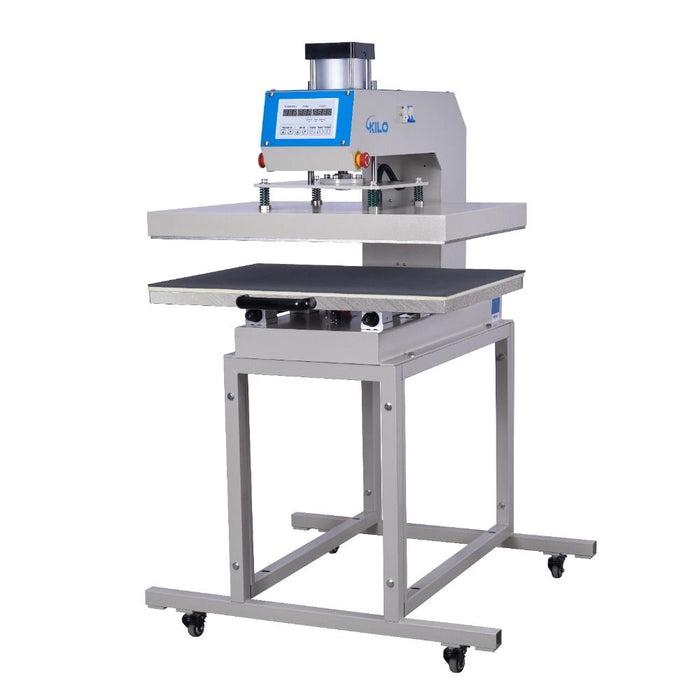

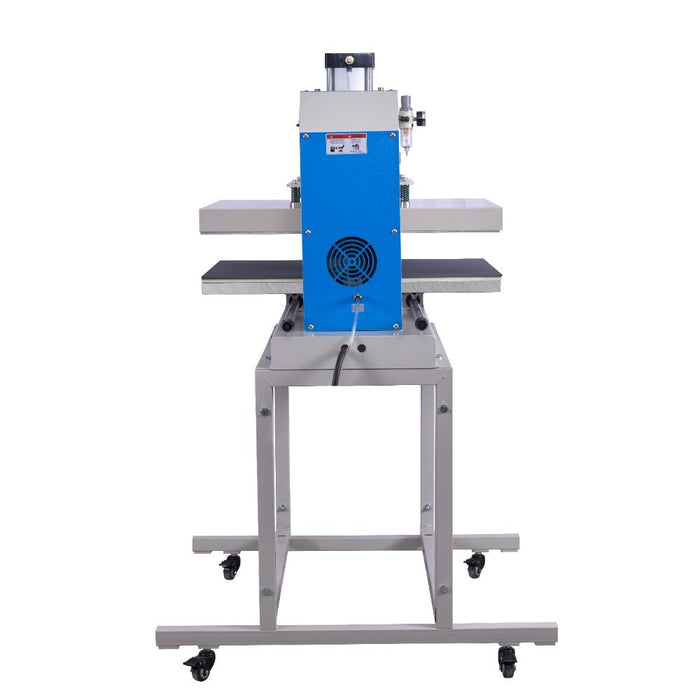

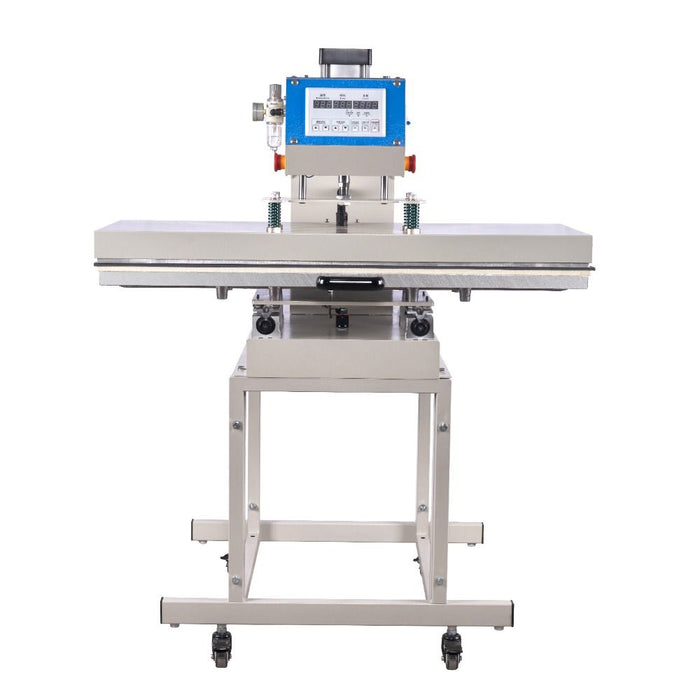

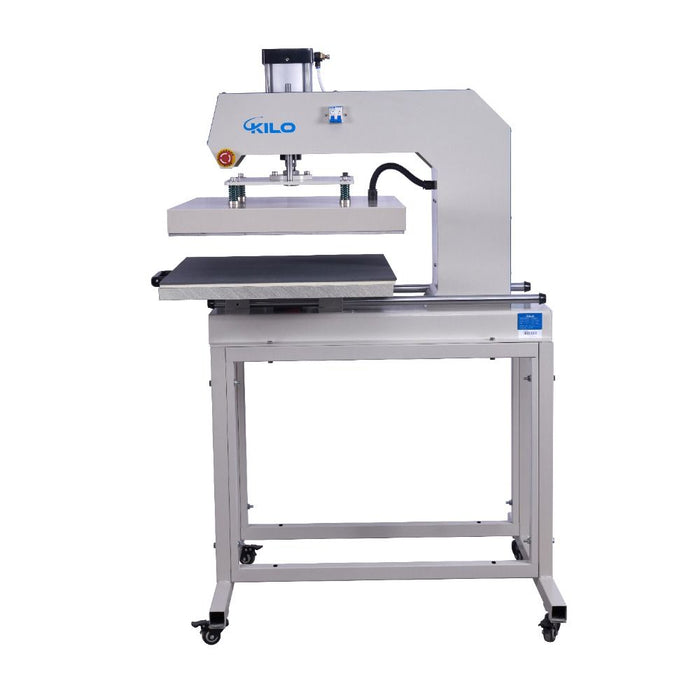

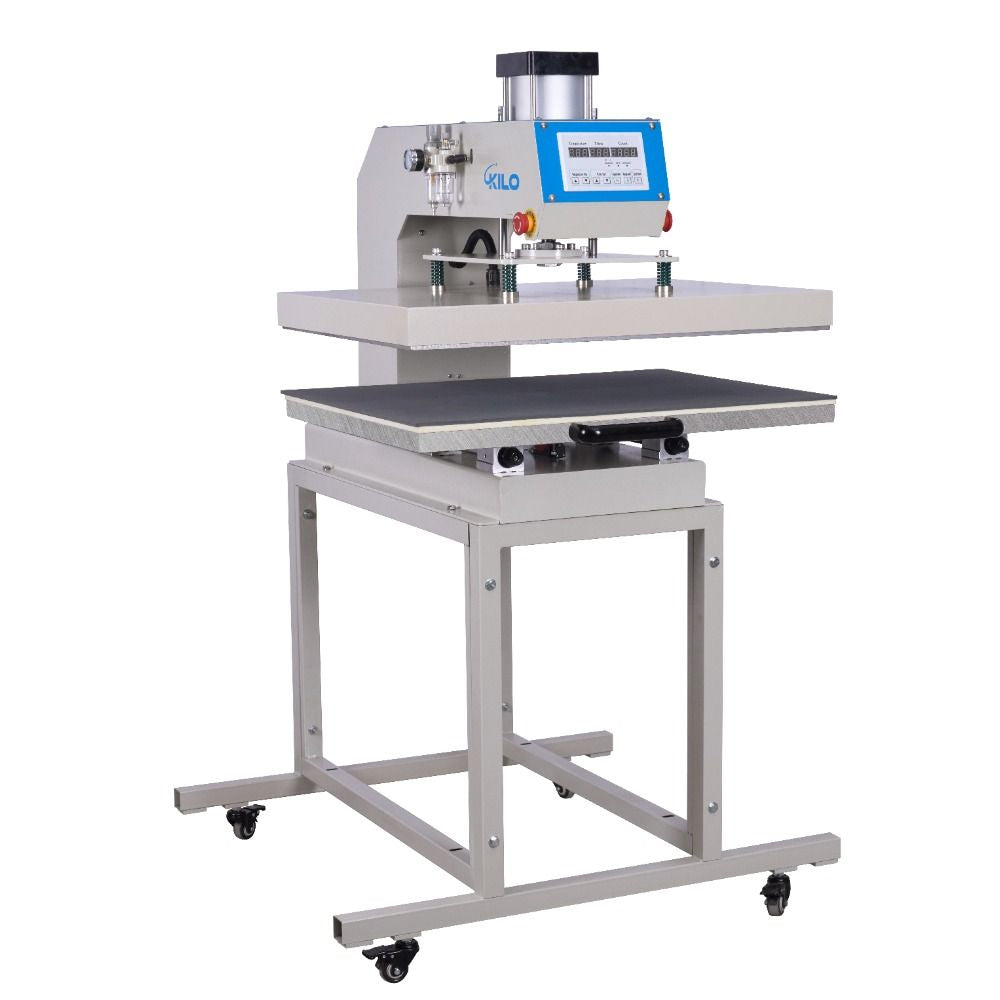

24" x 32" Pneumatic Heat Press Machine 6000W 220V Single Station, DOBA-HP2432

24" x 32" Pneumatic Heat Press Machine 6000W 220V Single Station, DOBA-HP2432

494403671
CURRENTLY OUT OF STOCK
SKU DOBA-HP2432
$2,799.00 - $2,799.00
$2,799.00
$2,799.00 - $2,799.00
$2,799.00
$2,799.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
Color: as Pic
1-888-467-5788
Find Parts

Features

  • Large 24" x 32" Heat Plate: 60 x 80 cm aluminum die-cast heating plate provides wide coverage for large-format transfers.
  • 6000W High-Power Output: Fast heating performance with even temperature distribution for professional-grade results.
  • Full Digital Integrated Control: Digital display allows precise temperature (0–299°C), time (1–999s), and counting adjustments.
  • Pneumatic Pressure System: Adjustable pressure up to 8 kg/cm² for thicker materials up to 2.36" (air compressor required).

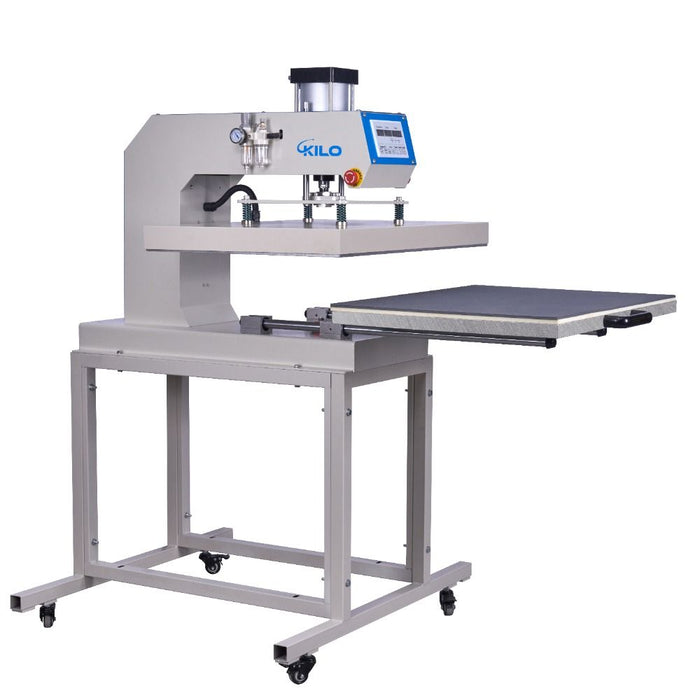

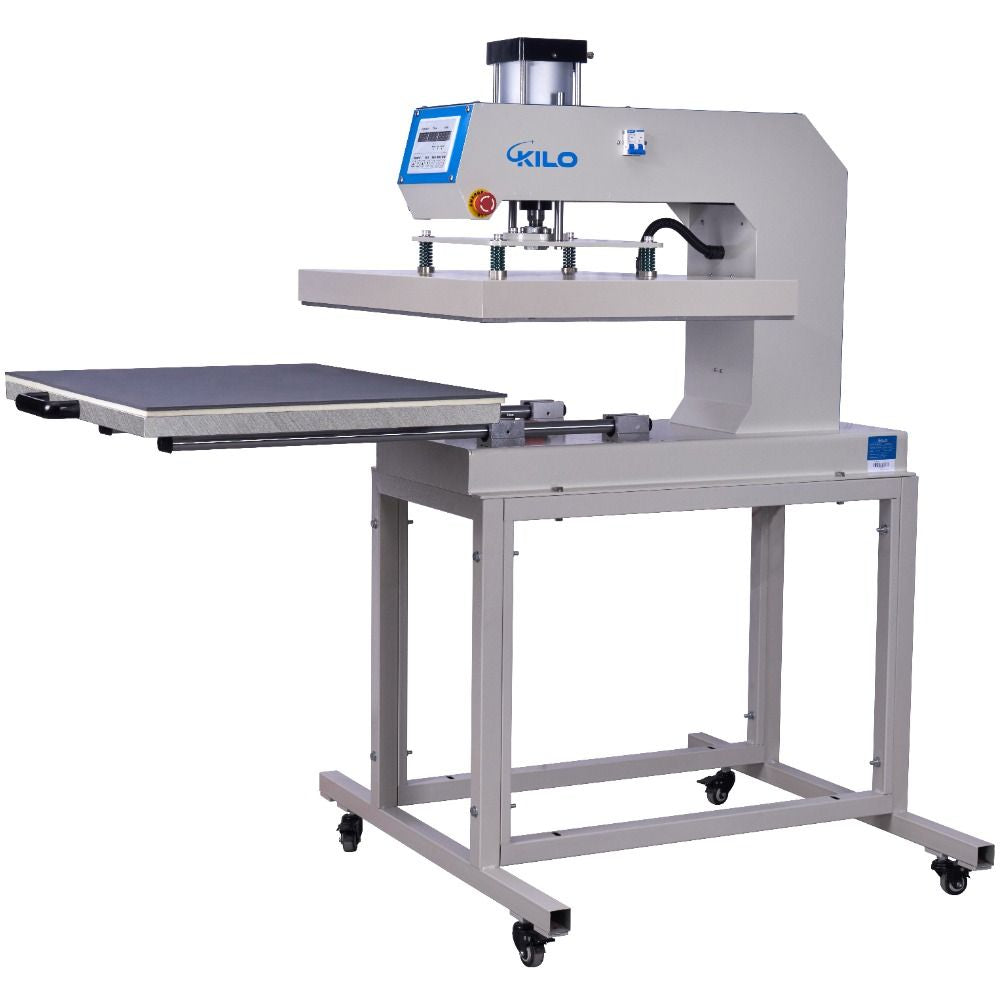

  • Sliding Heat Plate Design: Down-sliding head with parallel side bearings ensures stable and efficient operation.
24

Specifications

  • Voltage: 220V Single Phase
  • Power: 6000W
  • Heat Plate Size: 24" x 32" (60 x 80 cm)
  • Temperature Range: 0–299°C
  • Time Range: 1–999 Seconds
  • Max Material Thickness: 2.36"
  • Pressure Range: 0.4–0.6 MPa Recommended
  • Heating Plate: Aluminum with Integrated Die Casting Heating Pipe
  • Control System: Digital Integrated Display
  • Material Compatibility: Cotton, Polyester, Chemical Fiber, Metal Pendant, Mousepad, Ceramics, Vitrolite
  • Gross Weight: 403.5 lb
24

Product Description

This 24" x 32" large-format pneumatic heat press machine is designed for high-volume commercial printing and industrial heat transfer applications. Powered by 6000W at 220V single phase, it delivers consistent and even heating across a large aluminum heat plate, making it ideal for apparel, sublimation, promotional products, and specialty materials. The integrated digital control panel allows precise temperature, time, and counting settings for efficient workflow management.

Featuring a down-sliding heat plate head design and pneumatic operation (air compressor required, not included), this heat press provides stable, adjustable pressure up to 8 kg/cm² for various material thicknesses up to 2.36". The 6 mm silicone mat and 1 cm sponge base ensure uniform heat distribution and consistent transfer results. Built for professional workshops and production environments, this machine offers durability, efficiency, and precision performance.

Shipping Information

  • Package Size: 45.30" × 32.30" × 36.60"
  • Package Weight: 403.52 lb
  • Shipping From: United States
Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
24

Warranty

This product is supplied by DOBA and follows a separate warranty policy from TMG Industrial products.

  • Return & refund application needs to be filed within 30 days from the delivered date.
  • We don’t support order cancellation before shipping.
  • We don’t accept non-defective remorse returns.
  • If the item was delivered damaged or defective, you will need to return them, and we will provide a return label at supplier's cost.
  • We don't offer warranties to customers.
