24" x 32" Manual Heat Press Machine, 110V, 4500W, 2.36" Max Thickness, No Plug, DOBA-HPM2432
FREE
shipping to most locations in
USA
Learn More
Features
Features
- Digital Touch Control: User-friendly panel with ±2°C precision for accurate temperature and time settings.

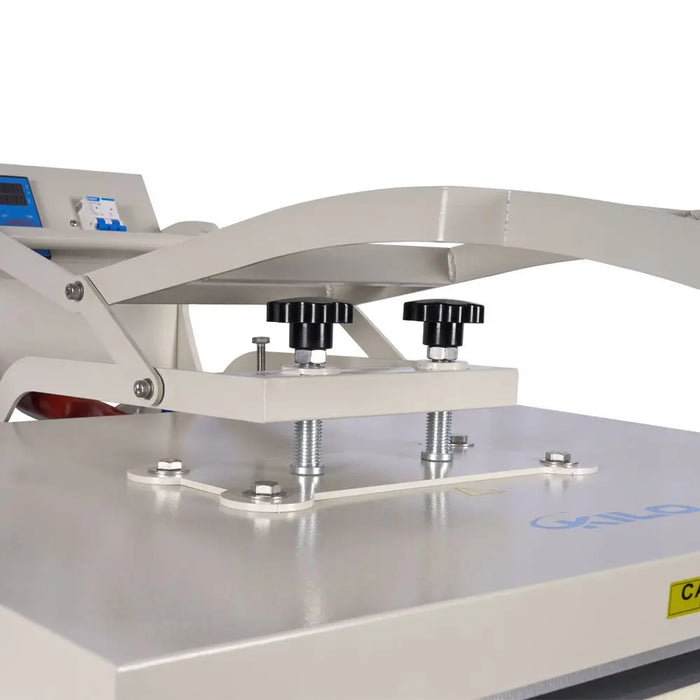

- Even Pressure System: Dual rods with helical knobs distribute pressure evenly across all surfaces.
- Sliding Plate Design: Ergonomic plate head glides open and closed to reduce operator fatigue.
- Infrared Positioning (Optional): Enables precise alignment, especially useful for detailed and small items.
- Large Working Area: 24" × 32" plate supports oversized garments and high-output production.
- Advanced Heating System: Ultra-precision wire tube element ensures balanced and reliable heating.
- High-Temp Cloth Coating: Protects the plate surface, minimizes sticking, and extends machine life.
- Signal Alert System: Automatically notifies the user when each press cycle is finished.
- Multi-Material Compatibility: Supports printing on cotton, polyester, chemical fiber, ceramics, metals, and more.
- Lifetime Technical Support: Includes direct access to expert factory support for long-term reliability.
Specifications
Specifications
- Main color: Grey
- Main material: Aluminum
- Voltage: 110V / Single Phase
- Power: 4.5 KW
- Temperature range: 0–299°C
- Time range: 1–999 seconds
- Max pressing thickness: 2.36"
- Heating plate size: 24" × 32" (60 × 80 cm)
- Gross weight: 205.1 lb
- Packing size: 40.9" × 33.1" × 20.9"
- Compatible materials: Pure cotton, polyester, chemical fiber, pearl board, metal pendant, mousepad, vitrolite, ceramics
- Recommended Settings by Material:
- Pure cotton: 356–428℉ (180–220°C), 15–25 sec
- Polyester: 356℉ (180°C), 40 sec
- Chemical fiber: 302–356℉ (150–180°C), 10–40 sec
- Pearl board: 356℉ (180°C), 60–100 sec
- Metal pendant: 356℉ (180°C), 60 sec
- Mousepad: 374℉ (190°C), 50 sec
- Key ring pendant: 356℉ (180°C)
- Vitrolite/Ceramics: 356–428℉ (180–220°C), 180 sec
Product Description
Product Description

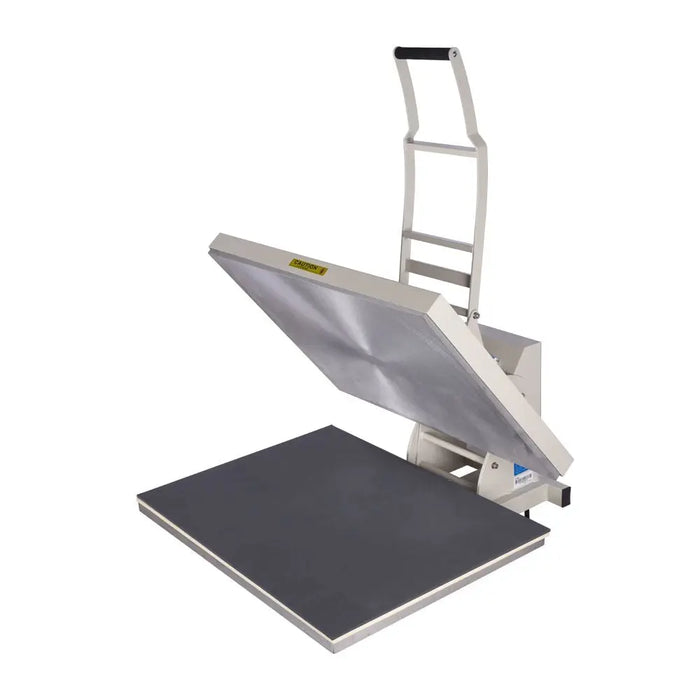

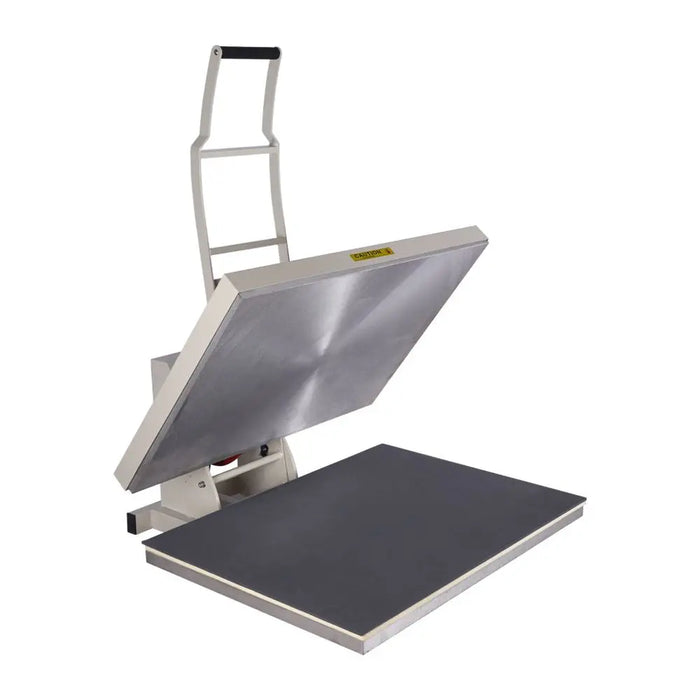

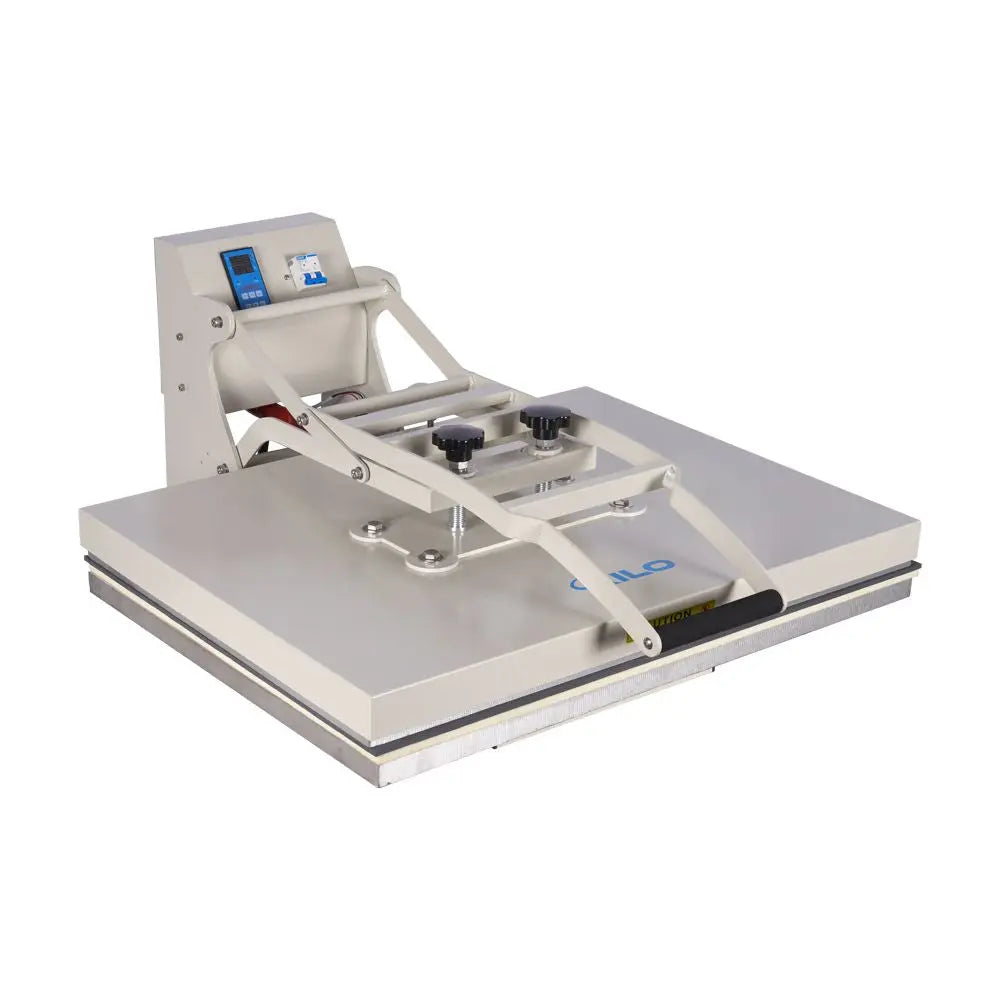

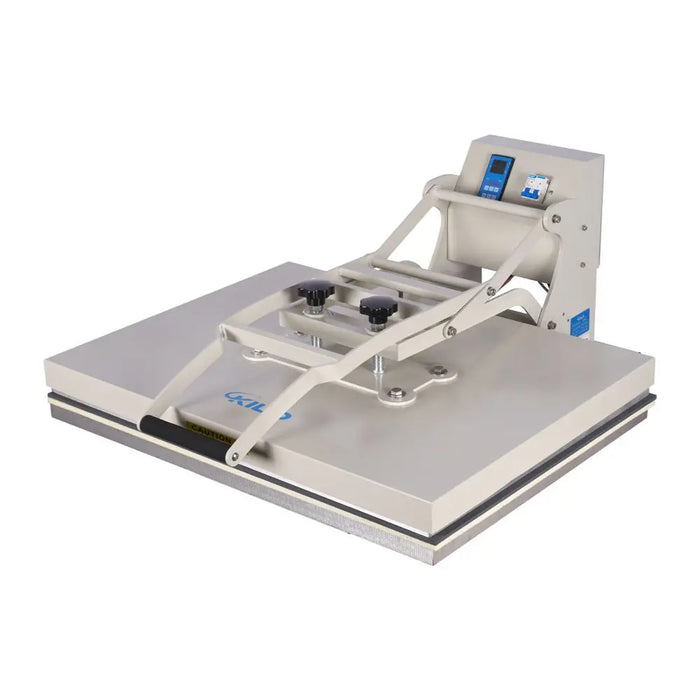

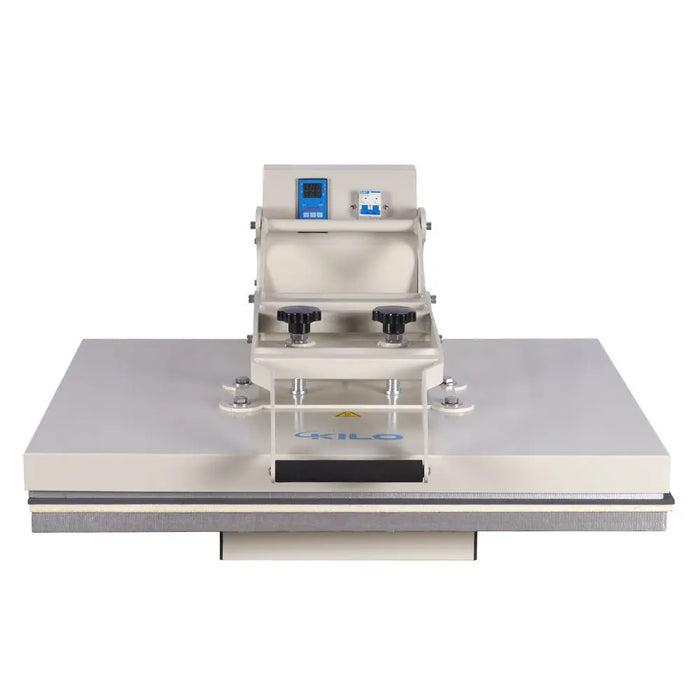

DOBA-HPM2432 is a professional-grade solution built for high-volume, large-area heat transfer and sublimation printing. With a spacious 24" × 32" heating plate and a durable die-cast aluminum base, this machine handles everything from garments to ceramics with consistent, even results. Its dual pressure rod system with double helical knobs ensures balanced pressure distribution, allowing for precise control in commercial or personal production environments.
Designed for efficiency, the ergonomic sliding head enables smooth open-close motion, reducing fatigue during extended operation. A digital touch screen controller gives you pinpoint accuracy over temperature and time, while the advanced heating system delivers uniform heat. Optional infrared positioning improves alignment for smaller items, and a signal alert system ensures seamless workflow by notifying users when each cycle is complete. Built for long-term performance and backed by lifetime factory support, this heat press is ideal for professional print shops and serious DIY creators alike.
Shipping Information
Shipping Information
Your order will be shipped via LTL freight from one of our North American warehouses. Processing typically takes 2–3 business days, with most deliveries arriving within 10–15 business days depending on your location and accessibility.
- Shipping packaging: Protective wood crate on pallet
- Shipping dimensions: 40.9" × 33.1" × 20.9"
- Shipping weight: 205.1 lb
- Ships from: North American warehouse locations
- Receiving requirements: Someone must be available to receive and sign for the shipment upon arrival
Warranty
Warranty
This product is supplied by DOBA and follows a separate warranty policy from TMG Industrial products.
- Return & refund application needs to be filed within 30 days from the delivered date.
- We don’t support order cancellation before shipping.
- We don’t accept non-defective remorse returns.
- If the item was delivered damaged or defective, you will need to return them, and we will provide a return label at supplier's cost.
- We don't offer warranties to customers.
