SKU TMG-TTC26

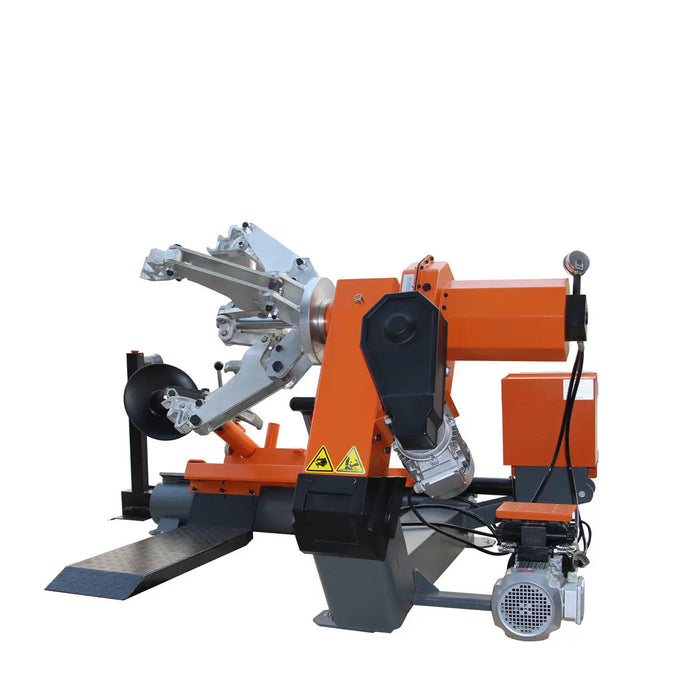

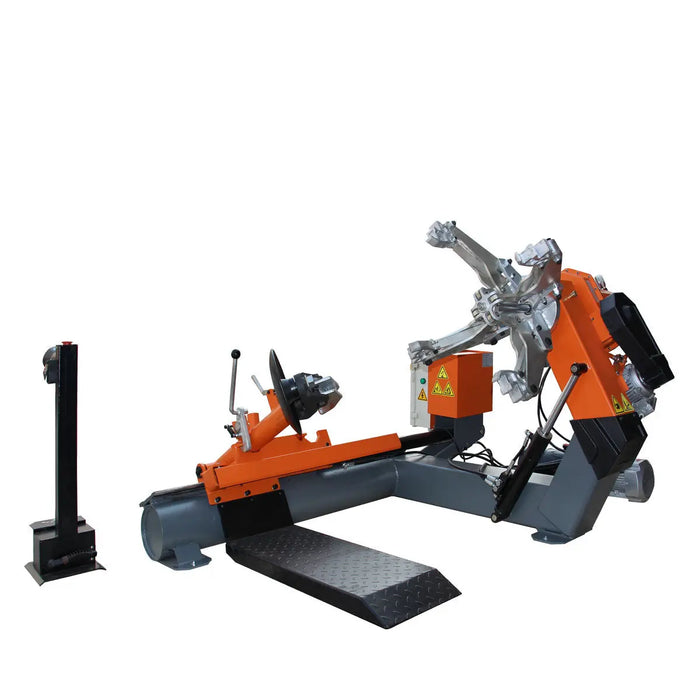

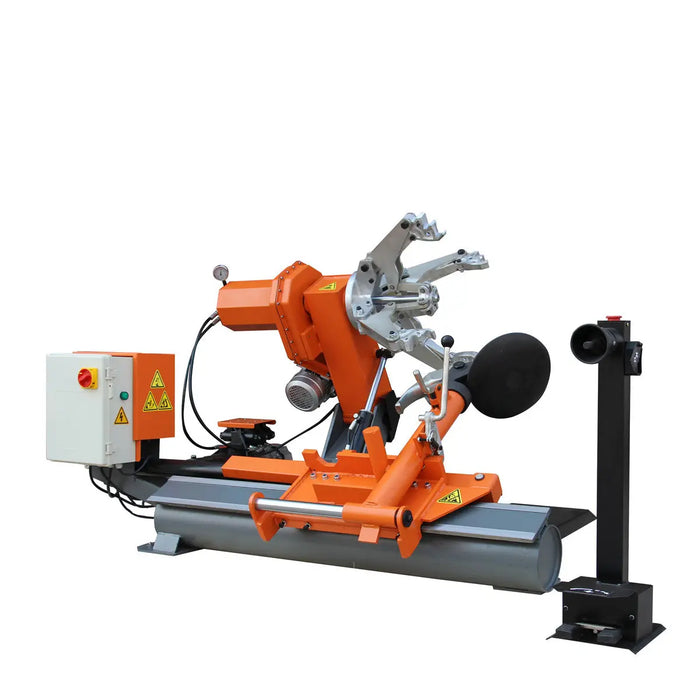

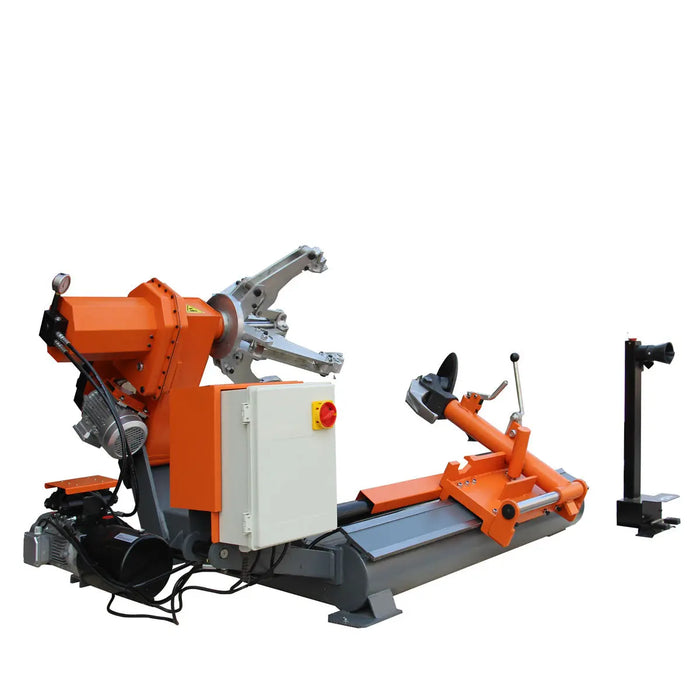

TMG Industrial 26” Heavy Duty Truck Tire Changer, 63” Tire Capacity, Bead Breaker w/Disk & Bead Hook, 3300 lb Weight Capacity, Portable Controls w/ Foot Pedal, CSA certified Motors, TMG-TTC26

Original price $8,299.00 - Original price $8,299.00
Original price
$8,299.00
$8,299.00 - $8,299.00
Current price $8,299.00
CURRENTLY IN STOCK
FREE SHIPPING IN USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
1059.0 lb
80 x 62 x 33 inches
More Shipping Info
  • Easily change semi-truck, forklift, tractor tires & more

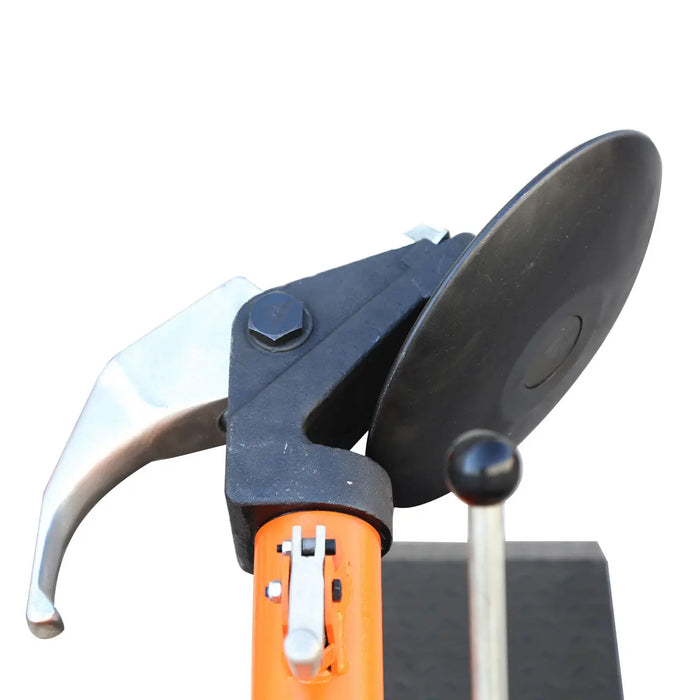

  • Integrated bead breaker w/disc head attachment & bead hook

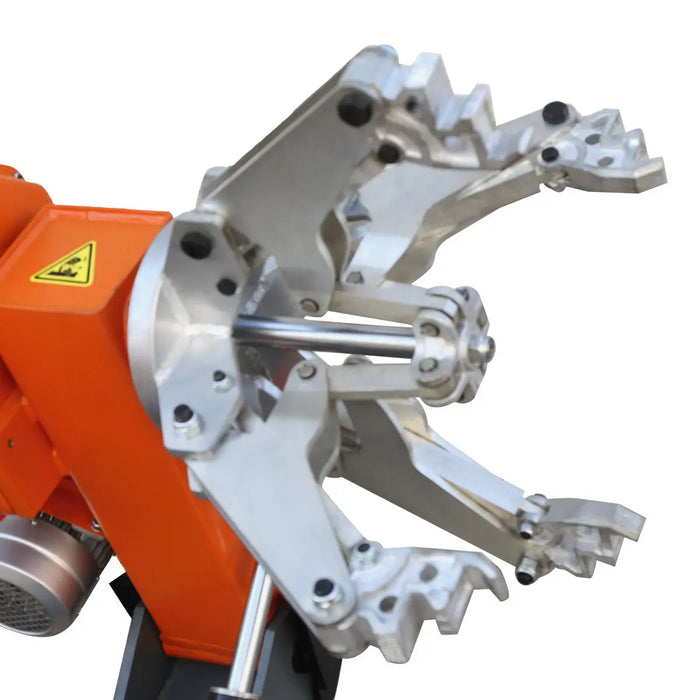

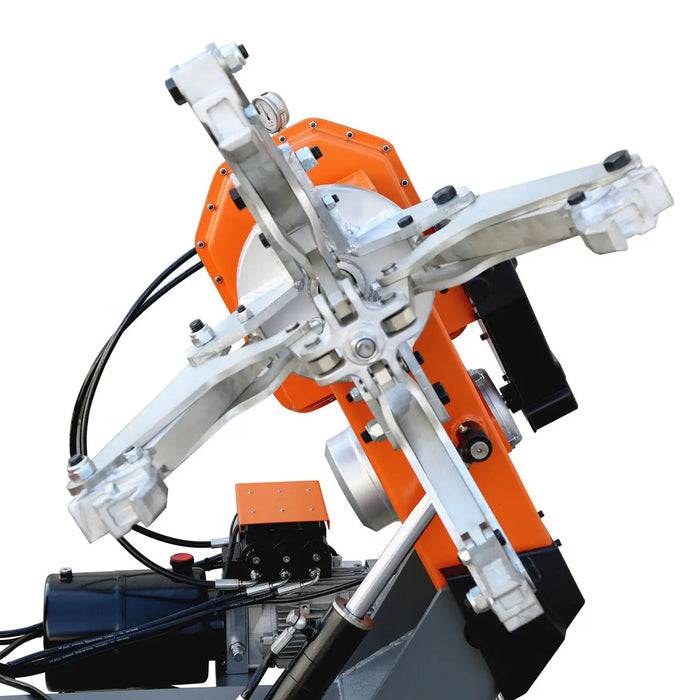

  • Self-centering hydraulic clamping chuck w/four jaws
  • Powered by two reliable CSA certified electric motors
  • Portable control console with foot pedal operation
Product Manual

Features

  • 3300 lb weight capacity designed for easily changing the tires of semi-trucks, trailers, forklifts, tractors, and other machinery
  • Max. rim size of 26” and max. tire size of 63” is perfect for tubeless truck, off-road and agricultural tires so you can expand service options to customers
  • Integrated bead breaker with disc attachment, bead hook and mount/demount head arm assembly improve work efficiency and reduce labour expenditure
  • Self-centring hydraulic clamping chuck with four jaws keep tires in place while working on them to avoid damage and improve work accuracy
  • Two heavy-duty CSA certified motors individually power the clamping chuck and hydraulic driven pump for superior work output and power
  • Automatic positioning and two bead breaker arm assembly locking positions make adjustments easy to do when working on multiple tire types/sizes
  • Portable control console with a foot pedal allows the operator to work from multiple positions; increasing safety and reducing the risk for injury

Specifications

  • Two motors: 2 HP, 220 VAC, 30 A, Single Phase
  • Rim clamping size: 14” - 26”
  • Max. tire weight capacity: 3300 lb
  • Max. tire diameter capacity: 63”
  • Max. tire width capacity: 30”
  • Max. chuck centre height: 34”
  • Breaker arm assembly slide: 34-½”

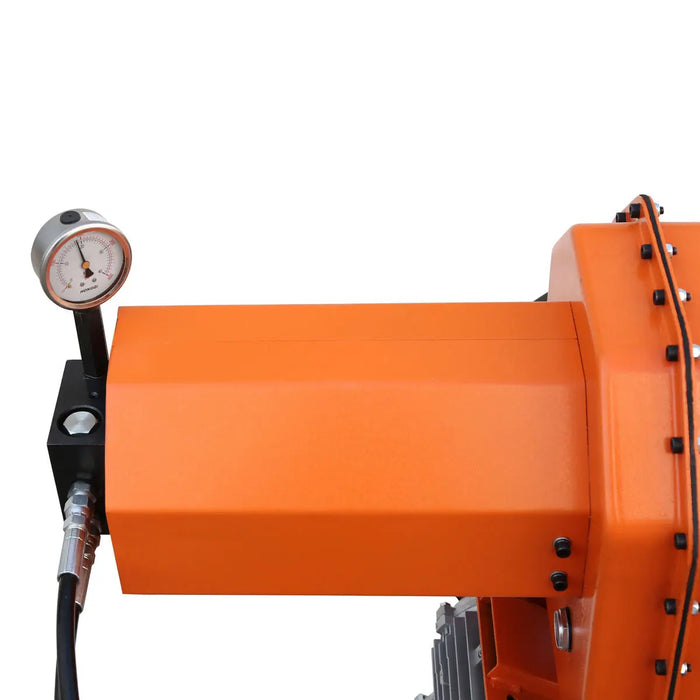

  • Max. operating pressure: 2000 PSI
  • Bead breaker force: 6600 lb
  • Clamping power: 12000 lb
  • Operation voltage: 24 VAC
  • Acoustic noise: <70 dB
  • Bead positioning clamp included
  • Pry bar included

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

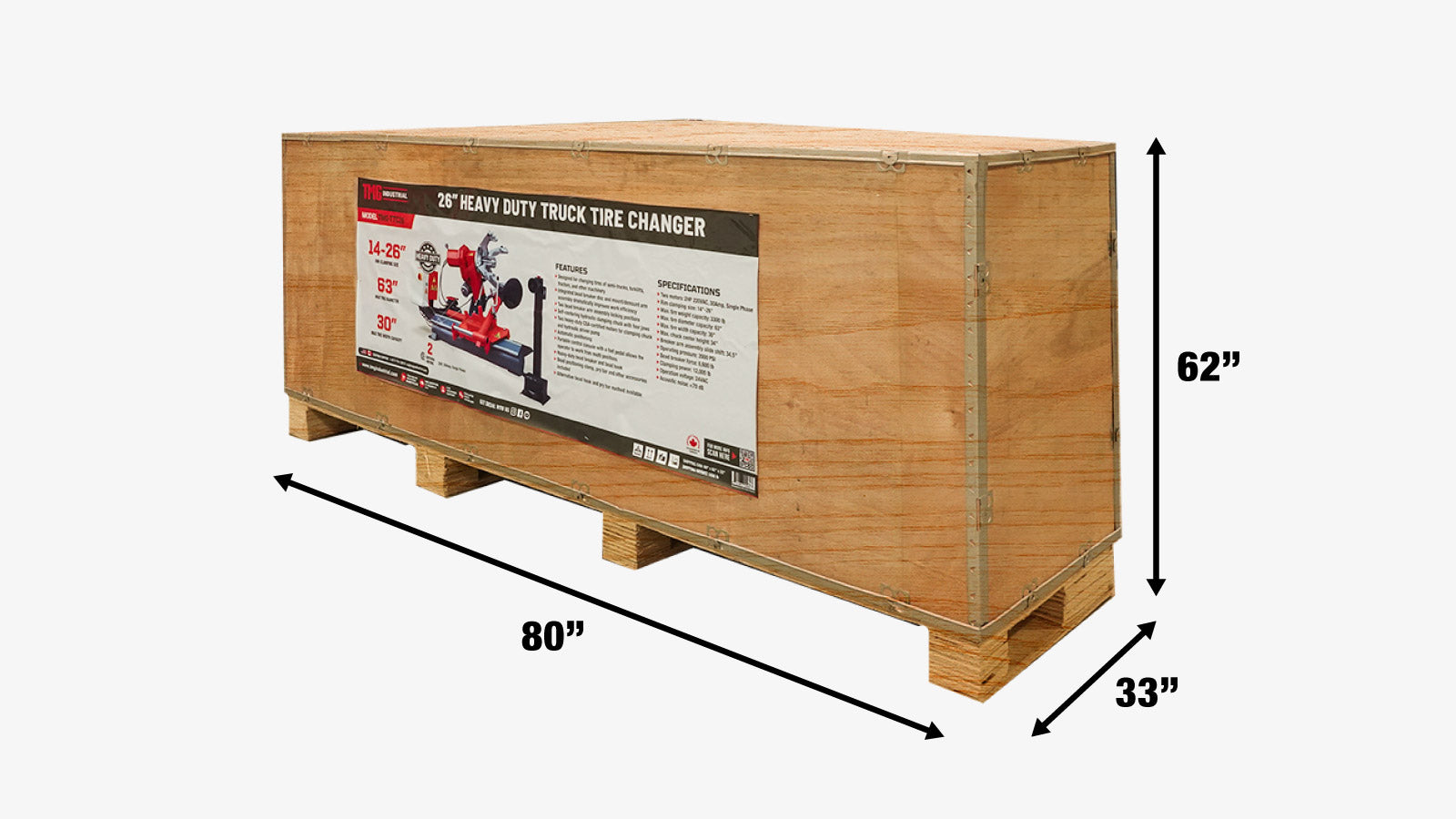

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 80” x 62” x 33” (L x W x H)
  • Shipping weight: 1060 lb

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.
Shipping from Richmond BC or Mississauga ON

Product Description

The TMG-TTC26 Heavy-Duty Truck Tire Changer is a fundamental machine for your tire shop or large scale automotive service department. Perfect for tubeless truck, off-road and agricultural tires up to 63”. With a maximum rim size of 26” and 3300 lb weight capacity, this machine can easily change the tires of semi-trucks, trailers, forklifts, tractors and other machinery.

An integrated bead breaker with disc head attachment and bead hook exert an enormous amount of air pressure through the tire to help separate it from the rim for dramatically increased work efficiency. Self-centering hydraulic clamping chuck with four jaws keeps the tire firmly in place while working, and is powered by its own reliable CSA certified electric motor.

Portable foot pedal control console ensures superior protection and dynamic working positions for changing tires of all size, style, brand and class without damaging the rim or tire itself and maximizing operator safety. Save yourself and your employees exhausting labour and make everyone's day a little easier with this electrically powered and air pressurized compact automotive shop essential.

We also carry an upright, 42” rim capacity heavy-duty tire changer: TMG-TTC42

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
