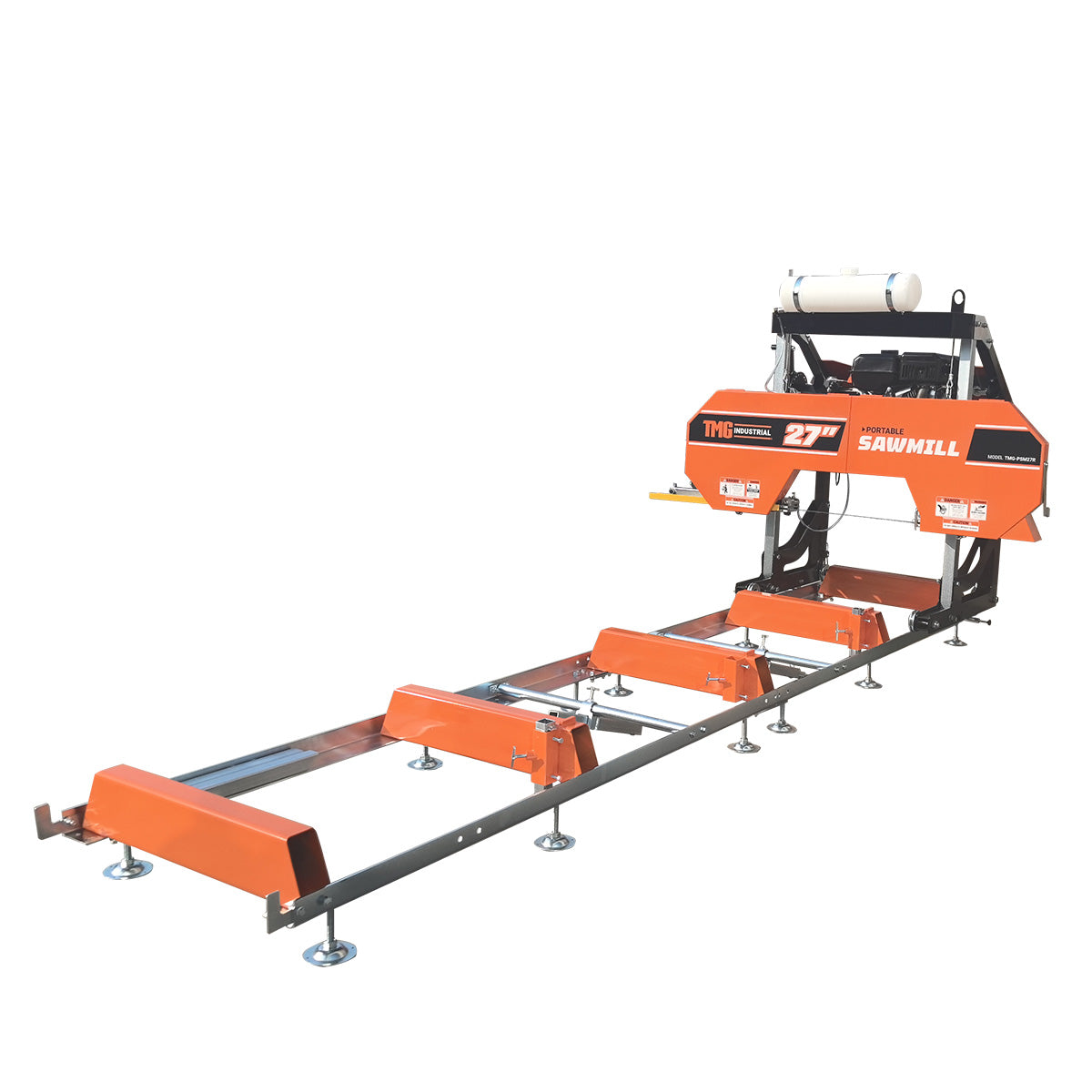

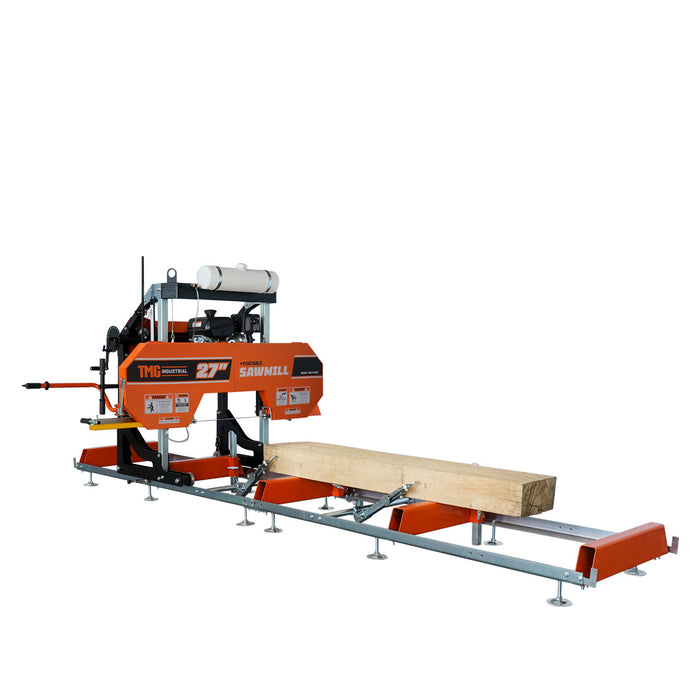

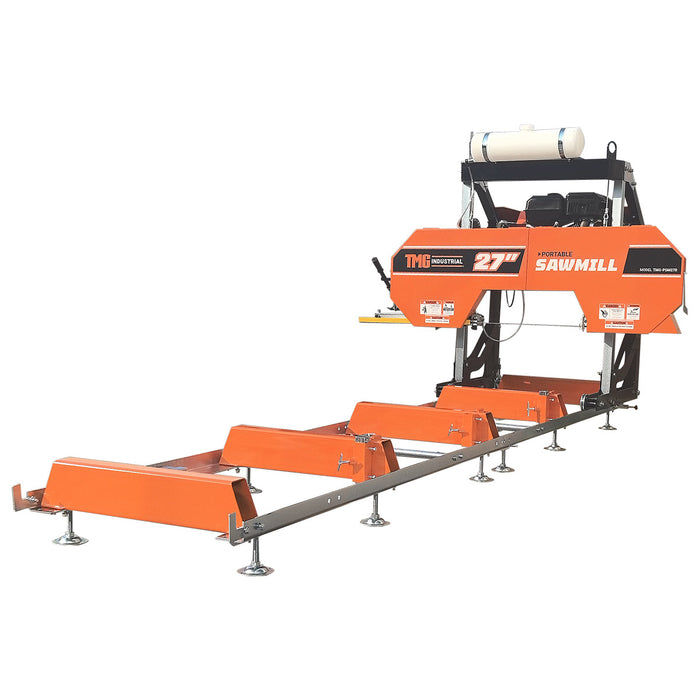

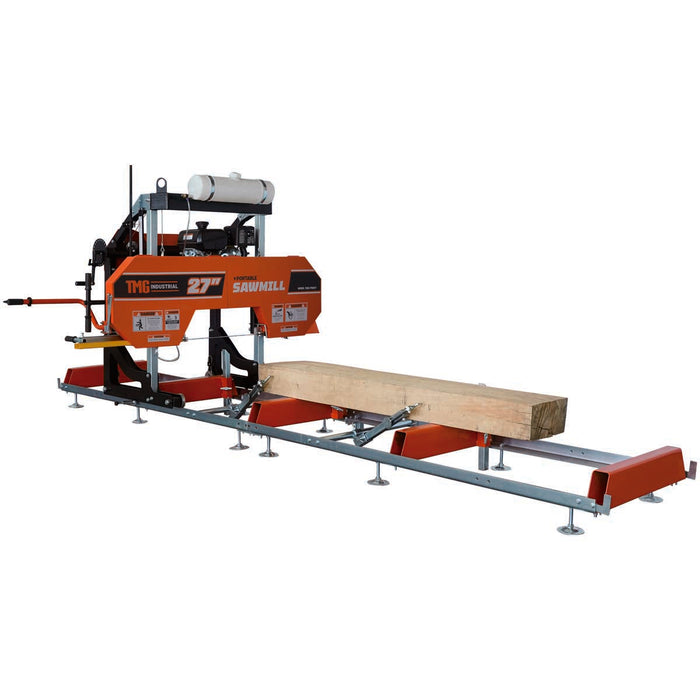

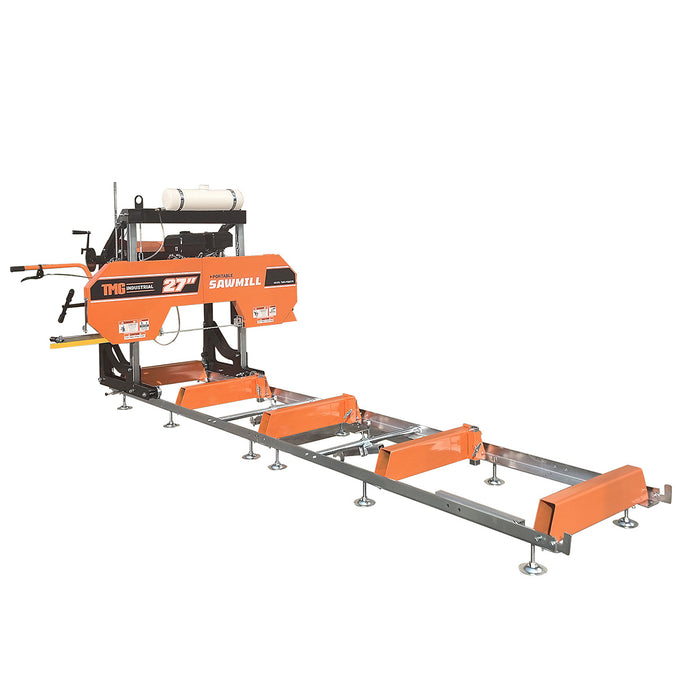

27” Portable Sawmill, 10’ Log Length Capacity, 27” Log Diameter, 15 HP RATO-R420 Engine, 12-¾’ Track Length (Extensions Available), TMG-PSM27R
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Heavy-duty 4-post carriage design provides superior stability and precision cutting
- Waist-height saw head crank mechanism allows for easy and ergonomic adjustments
- 15 HP RATO-R420 engine delivers reliable performance and low vibration and noise
- Dual quick log clamps and adjustable limit tubes ensure secure and accurate cutting
Specifications
Specifications
- Maximum log diameter: 27"
- Maximum log length: 10'
- Maximum board width: 21-½"
- Maximum board thickness: 7"
- Track length: 12-¾'
Additional 4' track extension kit is available to bring the total cutting capacity up to 24'; up to (3) 4' extension kits can be added.
Saw Blade:
- Blade length: 144"
- Blade width: 1-¼"-1-⅜"
- Blade thickness: 0.9-1.1mm
- (1) Blade included with online order
Engine:
- Model: RATO® R420
- Type: Four-cycle, tri-fuel conversion, OHV, aluminum head and crankcase
- Power: 15 HP
- Displacement: 420 cc
- Start type: Recoil
- Oil capacity: 1.1 L
- Cast iron cylinder liners provide lasting durability
- Easy-start, low noise design, low-oil shutdown system, low vibration, low fuel consumption design
Product Description
Product Description
The TMG-PSM27R Portable Sawmill is built for serious cutting power and ease of use—featuring a 4-post carriage design and a waist-height crank for convenient saw head adjustments.
With a maximum 27” log diameter and 10’ log length capacity, this mill handles sizable timber with both precision and care. Dual quick log clamps and adjustable limit tubes secure each piece of wood for safe and accurate cuts every time.
Powered by a reliable 15 HP RATO-R420 engine, this sawmill runs smooth and efficiently with low levels of noise and vibration. A translucent 10 L water tank and saw head locking system round out this rugged, transportable unit for professional contractors and DIY users alike.
Highlights
● Handles up to 27” diameter & 10’ long logs
● 15 HP engine; low noise & vibration
● Dual quick clamps & adjustable limit tubes
● 4-post carriage w/ergonomic crank
● Saw head locking system & SKF bearings
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in the USA. Under normal circumstances, it will take us 2 to 3 business days to process and ship your order. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 90" x 26" x 34" (L x W x H)
- Shipping weight: 860 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 | |
|---|---|
