30W CO2 Laser Engraver 210 x 210mm with Rotary Axis & EZCAD Software, DOBA-LM3021R
FREE
shipping to most locations in
USA
Learn More
Features
Features
- 30W CO₂ Laser Power: Delivers precise engraving and marking with consistent output and a laser lifespan of over 40,000 hours.
- 210 x 210 mm Working Area: Provides ample space for engraving logos, text, barcodes, dates, and patterns on various materials.

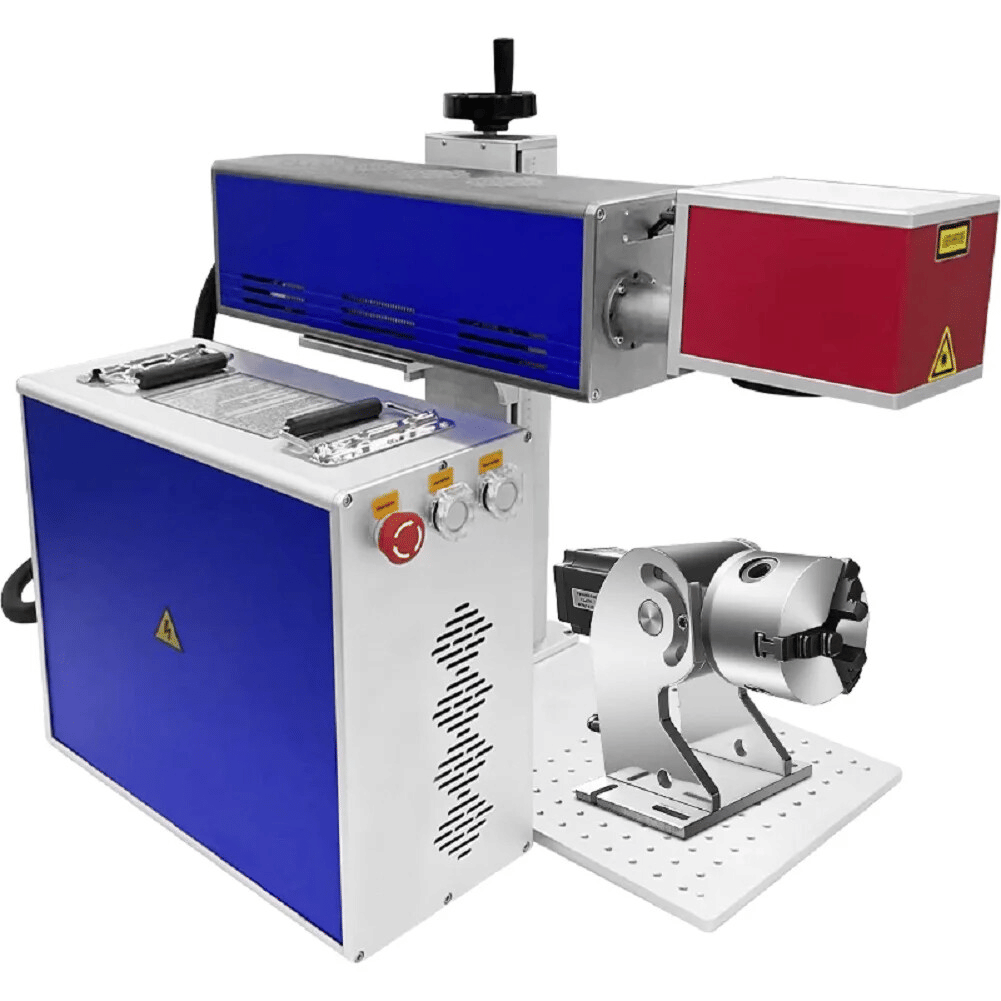

- Included Rotary Axis: Supports cylindrical object engraving such as bottles, cups, and tubes for expanded application capability.
- High-Speed & Precision Marking: Achieves speeds up to 7000 mm/s with repeatability accuracy of ±0.003 mm for fine detail work.
- Wide Software Compatibility: Works with EZCAD software and supports BMP, JPG, GIF, DXF, AI, PLT, PNG, TIF, DST, and more.
Specifications
Specifications
- Laser Power: 30W CO₂
- Working Area: 210 x 210 mm (8.27" x 8.27")
- Cooling Mode: Air Cooling
- Laser Wavelength: 10.6 μm
- Pulse Frequency: 20–100 KHz
- Marking Depth: ≤0.35 mm
- Max Marking Speed: ≤7000 mm/s
- Repeatability Accuracy: ±0.003 mm
- Minimum Line Width: 0.012 mm
- Minimum Character Size: 0.15 mm
- Control Software: EZCAD (English Version)
- Supported Systems: Windows XP / 2000 / 7 / 8 / 10
- Power Supply: 110V
- Rated Power: 280–300W
- Power Consumption: <350W
- Warranty: 1 Year
Product Description
Product Description
This 30W CO2 laser marking machine delivers precise and high-speed engraving performance for wood, leather, acrylic, and other non-metal materials. With a 210 x 210 mm working area and integrated rotary axis, it supports flat and cylindrical object engraving for expanded versatility. Featuring advanced galvanometer technology and stable laser supply components, it provides accurate marking with clean, fine details suitable for professional production and customization tasks.
Designed for efficiency and durability, this laser engraver offers marking speeds up to 7000 mm/s with repeatable precision of ±0.003 mm. The air-cooled system ensures stable operation without the need for complex cooling setups. Compatible with EZCAD control software and multiple graphic file formats, this machine is ideal for workshops, small businesses, and customized engraving services.
Shipping Information
Shipping Information
- Package Size: 34.25" × 18.90" × 32.68"
- Package Weight: 121 lb
- Shipping From: United States
Warranty
Warranty
This product is supplied by DOBA and follows a separate warranty policy from TMG Industrial products.
- Return & refund application needs to be filed within 30 days from the delivered date.
- We don’t support order cancellation before shipping.
- We don’t accept non-defective remorse returns.
- If the item was delivered damaged or defective, you will need to return them, and we will provide a return label at supplier's cost.
- We don't offer warranties to customers.
