CURRENTLY OUT OF STOCK
SKU D01027RNQ76-48 in-12-Gauge

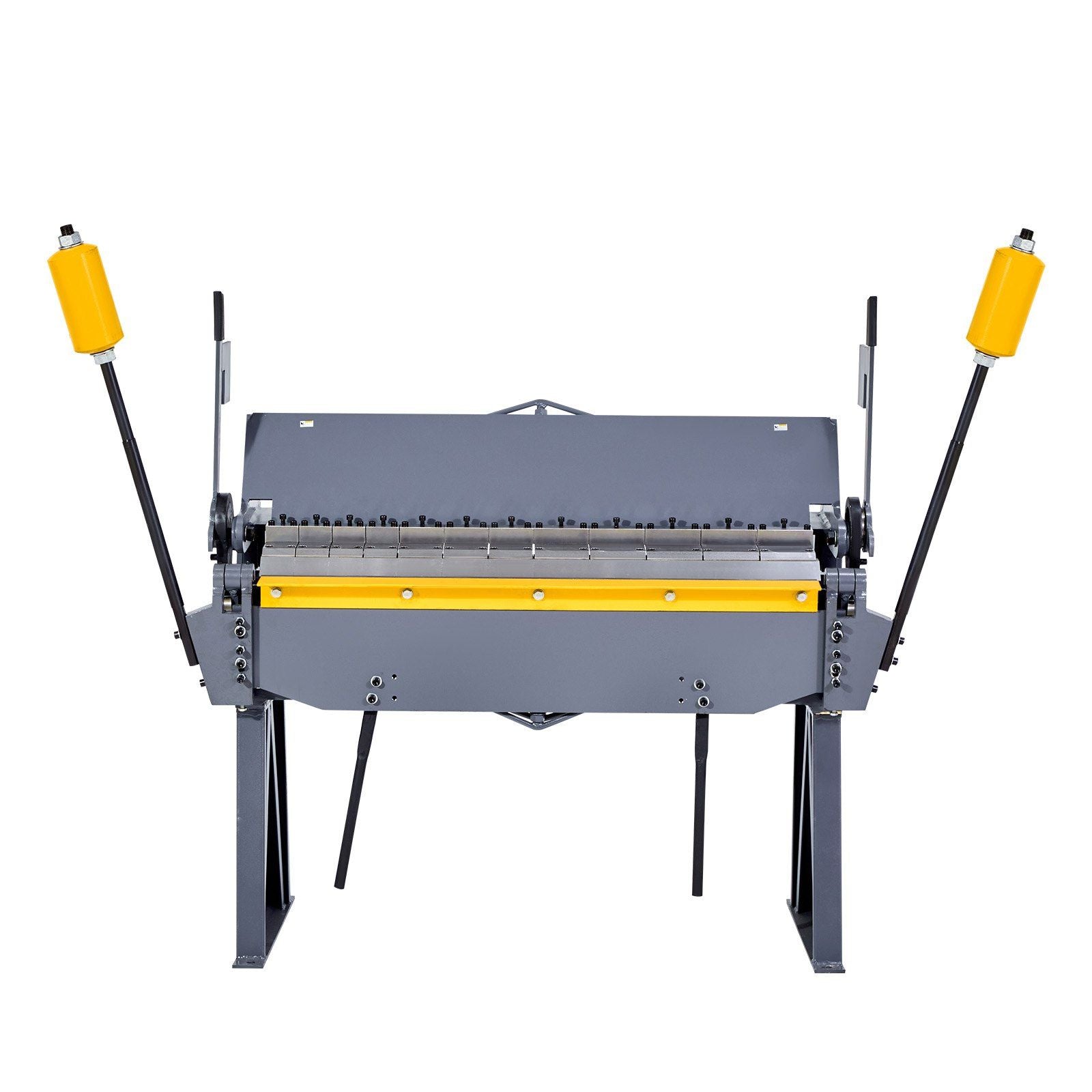

VEVOR Box and Pan Brake, 48 in Sheet Metal Bending Brake, 12-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 8 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

VEVOR Box and Pan Brake, 48 in Sheet Metal Bending Brake, 12-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 8 Fingers, Heavy-Duty Aluminum Folder for Precise Bending

494404211
CURRENTLY OUT OF STOCK
SKU D01027RNQ76-48 in-12-Gauge
$3,499.00 - $3,499.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
$3,499.00
Total:

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
1-888-467-5788
Find Parts

Features

  • 48" Wide Bending Capacity: Handles sheet metal up to 48 inches wide with adjustable bending angles from 0° to 135°.
  • 12-Gauge Mild Steel Capability: Bends up to 2.5 mm thick mild steel in a single pass for demanding fabrication tasks.
  • 8 Removable Segmented Fingers: Includes 3" (4 pcs), 4" (3 pcs), and 25" (1 pc) fingers for customizable, precision bending setups.
  • Dual Counterweight System: Provides improved clamping stability and reduces effort during heavy-duty bending operations.
  • Multi-Material Compatibility: Suitable for mild steel, stainless steel, copper, and aluminum sheet metal.
VEVOR Box and Pan Brake, 48 in Sheet Metal Bending Brake, 12-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 8 Fingers, Heavy-Duty Aluminum Folder for Precise Bending-description-image

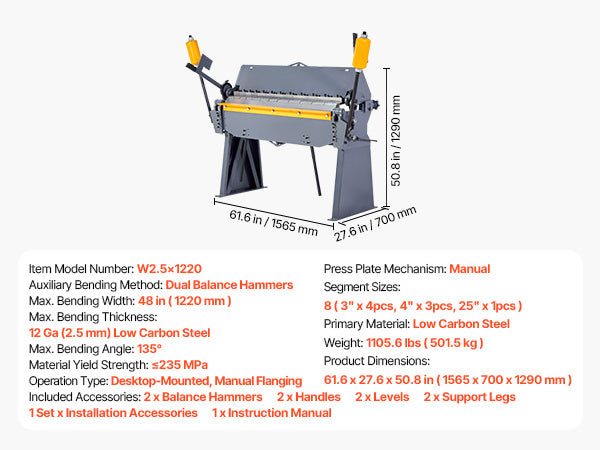

Specifications

  • Brand: VEVOR
  • Model Type: Box and Pan Brake
  • Bending Width: 48"
  • Max Mild Steel Thickness: 12 Gauge (2.5 mm)
  • Bending Angle Range: 0° – 135°
  • Finger Segments: 8 Removable Fingers
  • Material Compatibility: Mild Steel, Stainless Steel, Copper, Aluminum
  • Mounting: Bench Mount Recommended
VEVOR Box and Pan Brake, 48 in Sheet Metal Bending Brake, 12-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 8 Fingers, Heavy-Duty Aluminum Folder for Precise Bending-specifications-image

Product Description

Highlights

48-Inch Heavy-Duty Bending: This sheet metal brake handles metal sheets up to 48" wide with bending angles from 0degree to 135degree, making it ideal for medium-size fabrication shops and heavy-gauge projects.

Versatile Material Compatibility: Our box and pan brake is compatible with mild steel, stainless steel, copper, and aluminum. Capable of bending 12-gauge (2.5 mm) mild steel-built for demanding jobs.

Customizable Die Setup: This sheet metal bender includes 8 segmented fingers (3" x 4 pcs, 4" x 3 pcs, 25" x 1 pc) that can be freely arranged for precise, segmented bends. Perfect for fabricating electrical enclosures, casings, HVAC components, and complex flanged panels.

Dual Counterweights for Stability: Designed with dual balancing hammers, this metal bending machine offers stronger, more stable clamping of large sheets while reducing operator effort-ideal for heavy-duty bending tasks.

Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90degree bend, set the angle to 92degree).

Specification

Brand:VEVOR

Details

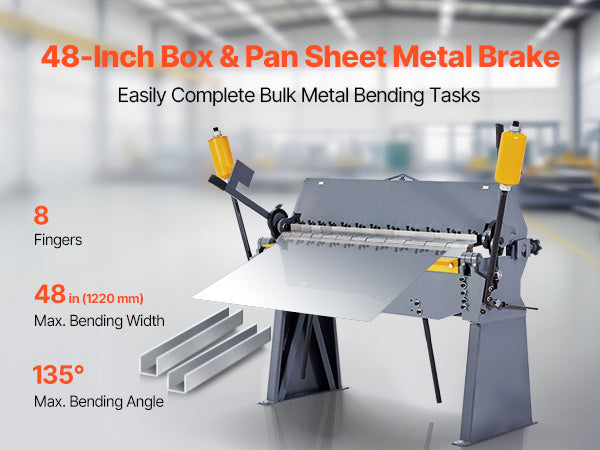

Sheet Metal Brake for Rapid Batch Bending
Bend metal like a pro with this 48-inch sheet metal brake. Ideal for workshops, the box and pan brake handles 12 gauge steel, supports multiple materials, and features modular fingers for complex bends—easy to use, stable, and built for precision bending.

The box and pan brake handles mild steel, stainless steel, aluminum, and copper with ease. Bends 12 gauge (2.5 mm) mild steel in a single pass—no need to swap between machines for different jobs.

The sheet metal bender includes 8 removable fingers in multiple sizes that can be freely arranged to avoid obstructions on the workpiece. Ideal for forming floor reinforcement channels, corrugated truck beds, bed headers, and inner fenders.

Enhanced with a balancing weight to offset the force during clamping, minimizing deformation—an upgrade over standard brakes. Bolt it down to your workbench to ensure steady, accurate bends.

Always wear goggles, non-slip gloves, and safety shoes before operating the metal bending brake. Stand to the side during bending to avoid injury from springback. For larger sheets, team up with a partner for secure handling.

Shipping Information

  • Package Size: 64.18" × 27.56" × 37.41"
  • Package Weight: 1220.26 lb
  • Shipping From: United States
Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
VEVOR Box and Pan Brake, 48 in Sheet Metal Bending Brake, 12-Gauge Mild Steel Capacity, 0-135 Degree Adjustable, Metal Bender Machine with 8 Fingers, Heavy-Duty Aluminum Folder for Precise Bending-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
