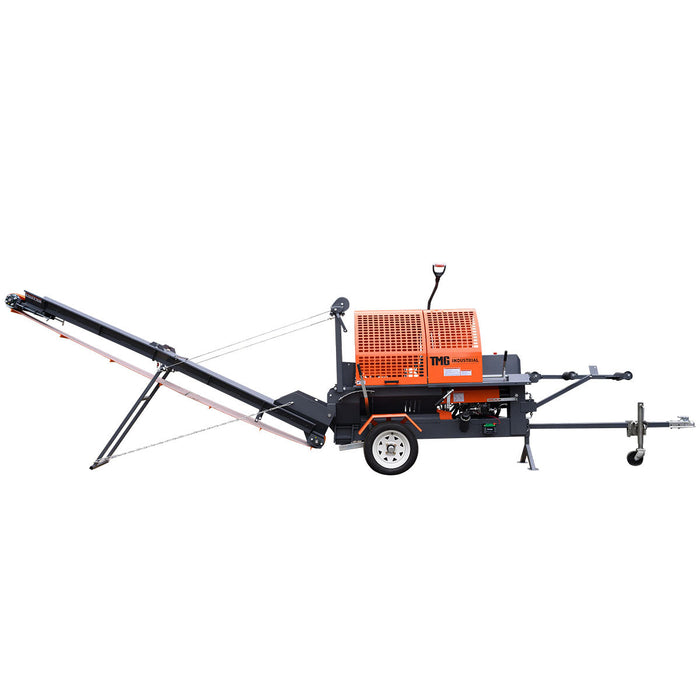

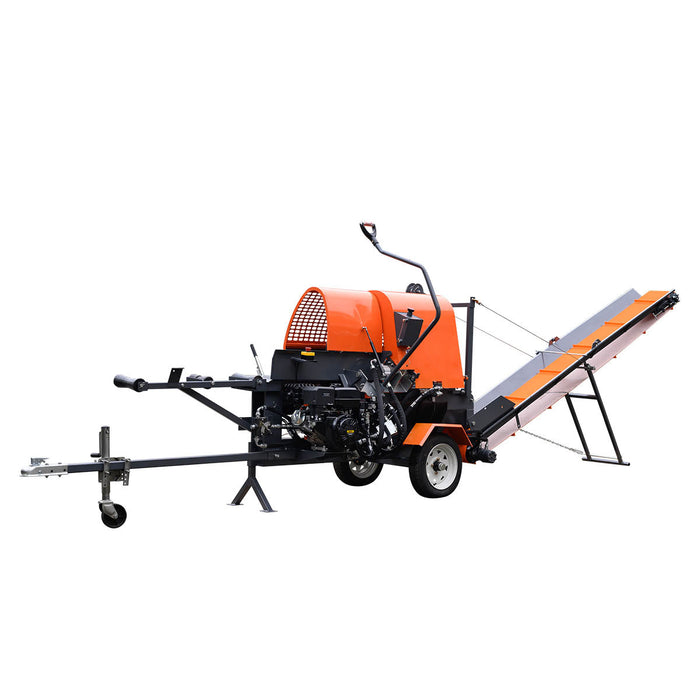

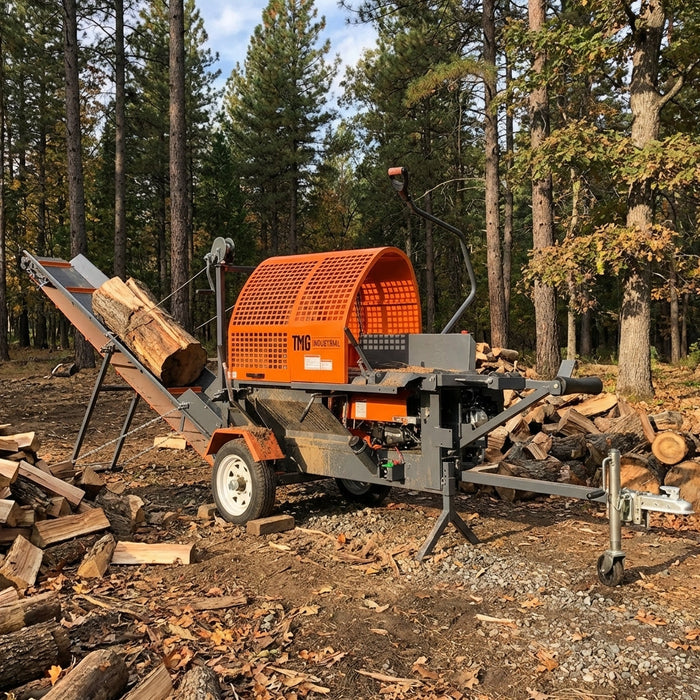

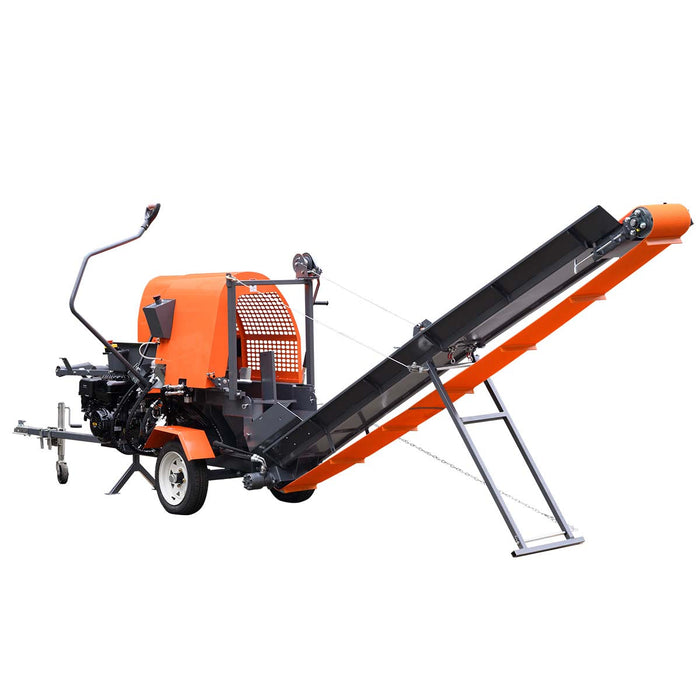

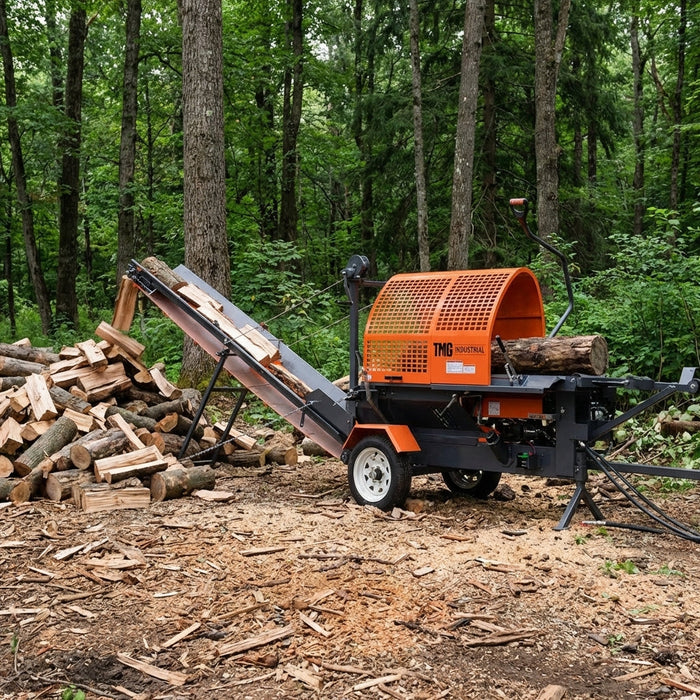

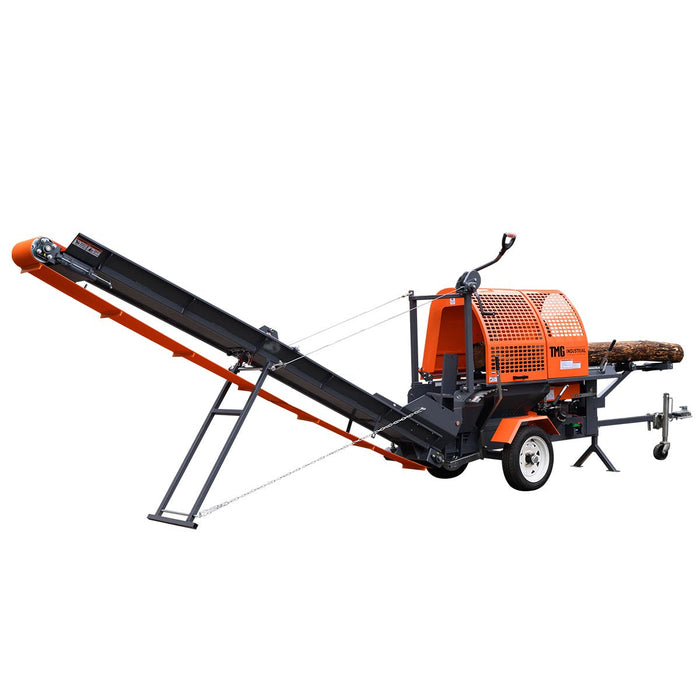

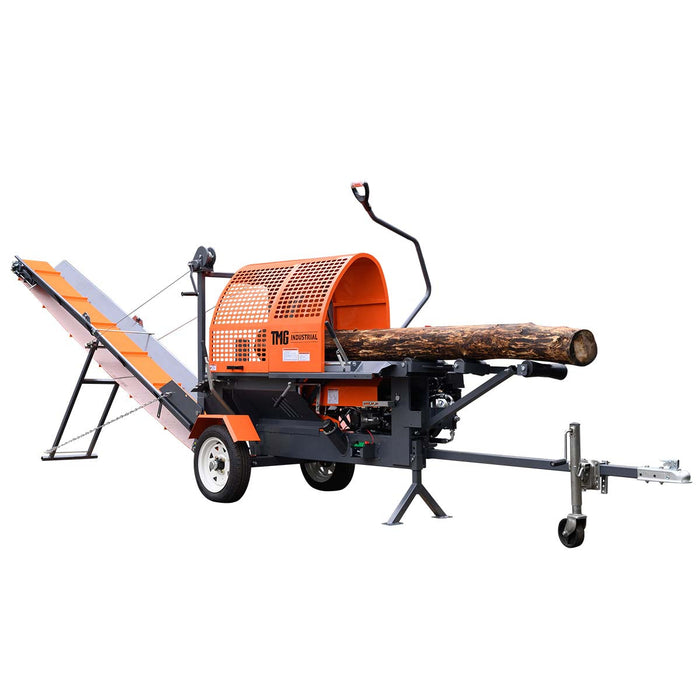

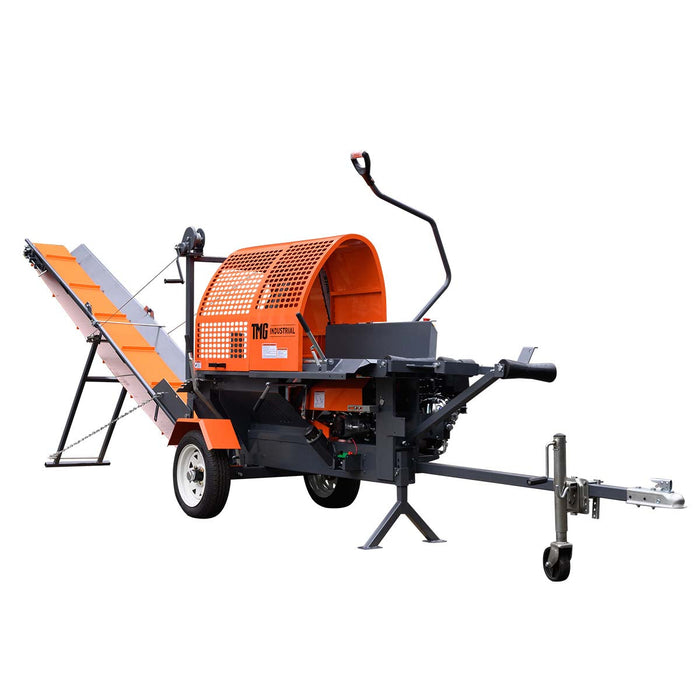

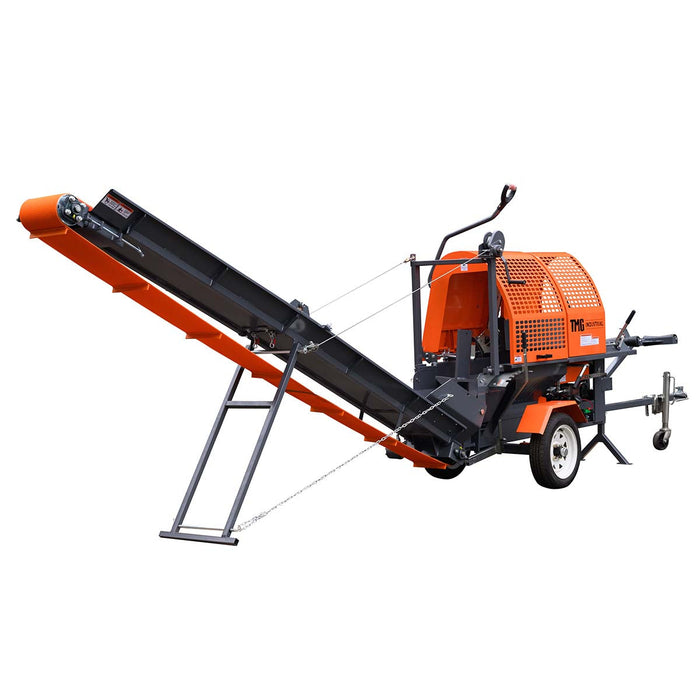

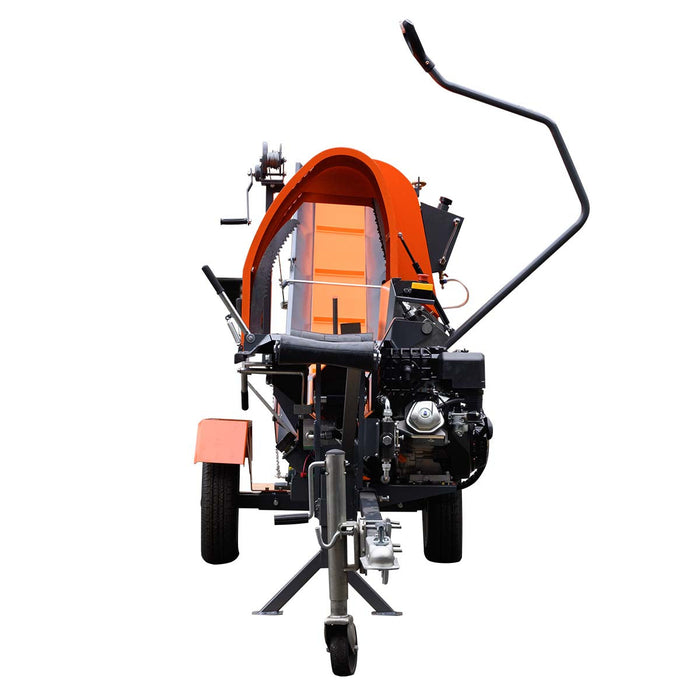

Firewood Processor with Conveyor, 15 HP Gas Engine, 18" STIHL® Chainsaw, ∅15" x 24" Log Capacity TMG-GLS16
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Power Performance: Equipped with a reliable 15 HP gas engine and 20 tons of splitting force to deliver exceptional power for effortless processing of logs up to 15" (380 mm) in diameter.

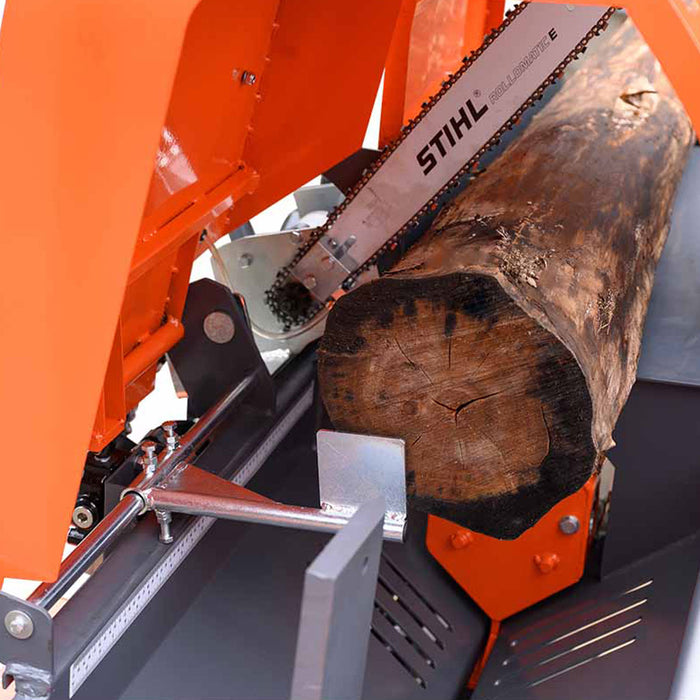

- Precision Cutting: Hydraulic-driven 18" (460 mm) chainsaw bar effortlessly cuts through logs to provide clean and accurate cuts for high-quality firewood production.
- 2–4 Way Splitter: Adjustable 2-way and 4-way splitter accommodates different wood sizes, allowing you to customize splitting into 2 or 4 logs, each up to 24" (610 mm) in length.

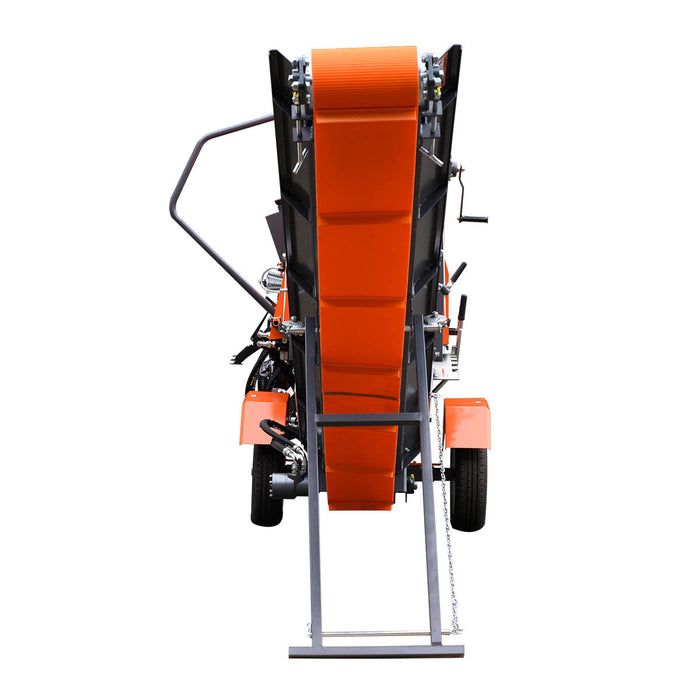

- Foldable Conveyor: Foldable output conveyor design allows for easy transportation and compact storage, maximizing convenience and minimizing space requirements.
- Easy Mobility: Equipped with a 2" coupler and trailer jack for easy transport between job sites, including remote areas.
- Safety First: Emergency stop switch ensures quick and effective prevention of accidents, prioritizing operator safety during wood processing.
Specifications
Specifications
- Maximum log diameter: 15" (380 mm)
- Maximum splitting length: 24" (610 mm)
- Maximum splitting force: 20 tons
- Hydraulic chainsaw: 18" (450 mm) bar, 0.325" (8.25 mm) pitch
- Inlet conveyor size: 41" x 10" (L x W), 1040 x 255 mm
- Outlet conveyor size: 126" x 10" (L x W), 3200 x 255 mm
- Hydraulic tank capacity: 6.9 gal (26 L)
- Splitter configuration: 2-way / 4-way
- Foldable output conveyor
- 2" coupler and trailer jack
- Metal safety splitting cage
Engine Specifications

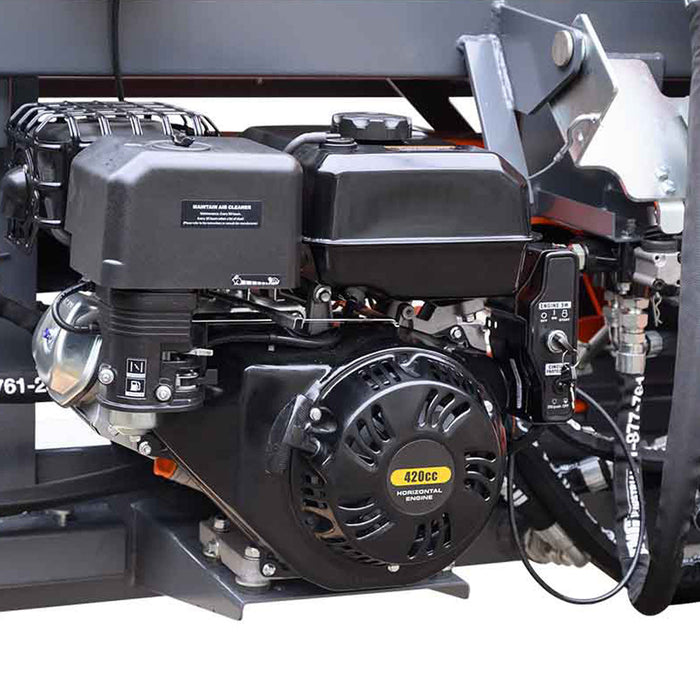

- Engine model: RATO® R420
- Engine type: Four-cycle, OHV, aluminum head and crankcase
- Power output: 15 HP
- Displacement: 420 cc
- Start type: Electric start and recoil
- Oil capacity: 1.1 L
- Low-oil shutdown system
- Easy-start, low-noise design
- Low fuel consumption
- Cast iron cylinder liners for long-term durability
Product Description
Product Description

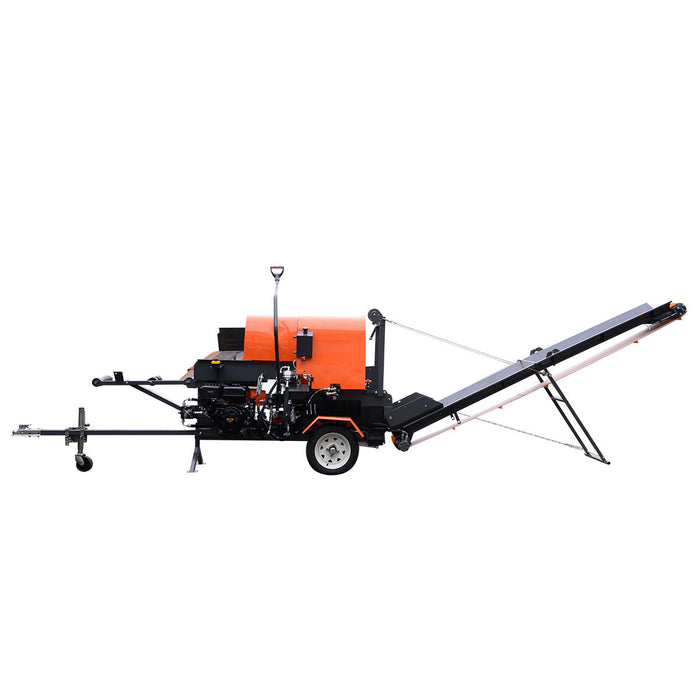

The TMG-GLS16 Firewood Splitter Processor with Foldable Conveyor is powered by a reliable 15 HP RATO® R420 engine and designed to handle all your firewood processing needs with ease and efficiency. It delivers consistent heavy-duty performance, a robust build, and optimized safety features, making it a top choice in the market for professionals and enthusiasts alike.
Equipped with a hydraulic-driven 18" chainsaw bar with a 0.325" pitch, this unit cuts through logs up to 15" in diameter effortlessly. With a splitting force of up to 20 tons and a maximum splitting length of 24", this firewood processor is built to handle demanding workloads. It also features an innovative 2-way and 4-way splitter, allowing you to process raw timber of varying sizes and produce finished firewood two or four pieces at a time.
Transport and storage are made easy thanks to the 2" coupler, trailer jack, and foldable output conveyor. Safety is enhanced with a metal splitting cage, an emergency shut-off switch, and a low-oil shutdown system that automatically stops the engine when oil levels are low, ensuring safe and reliable operation.

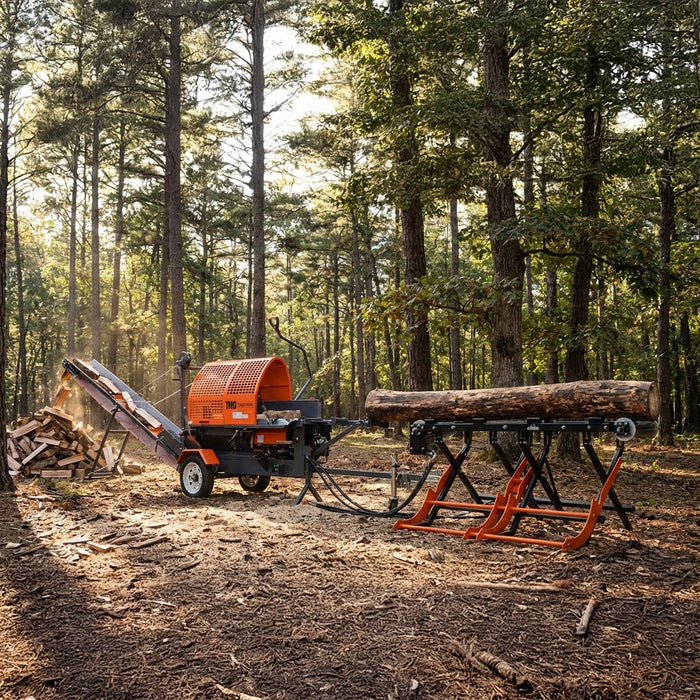

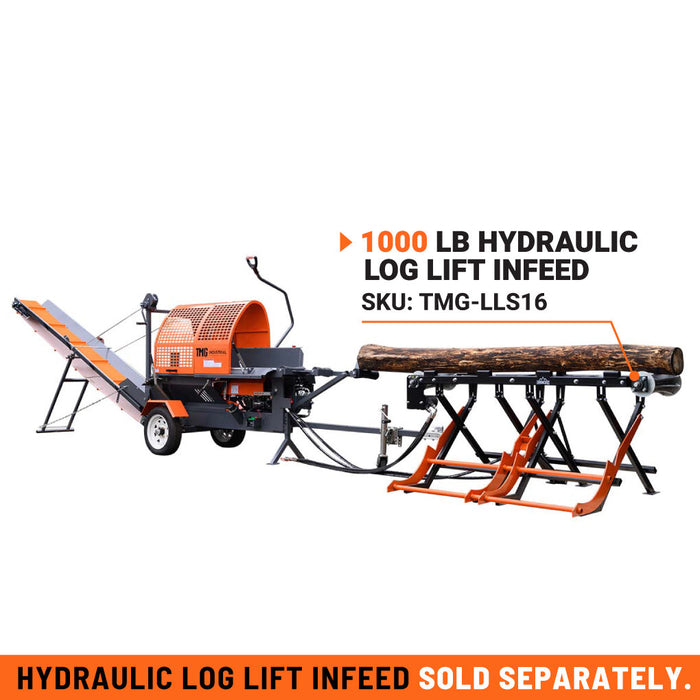

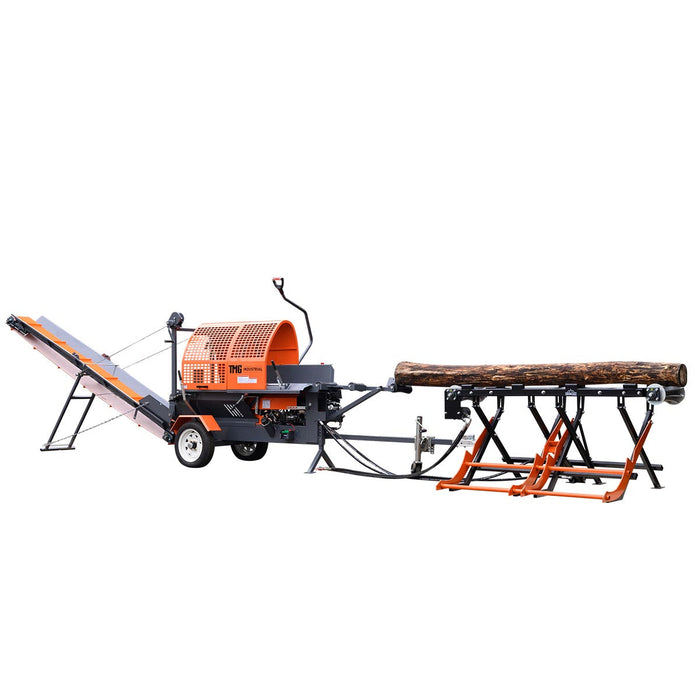

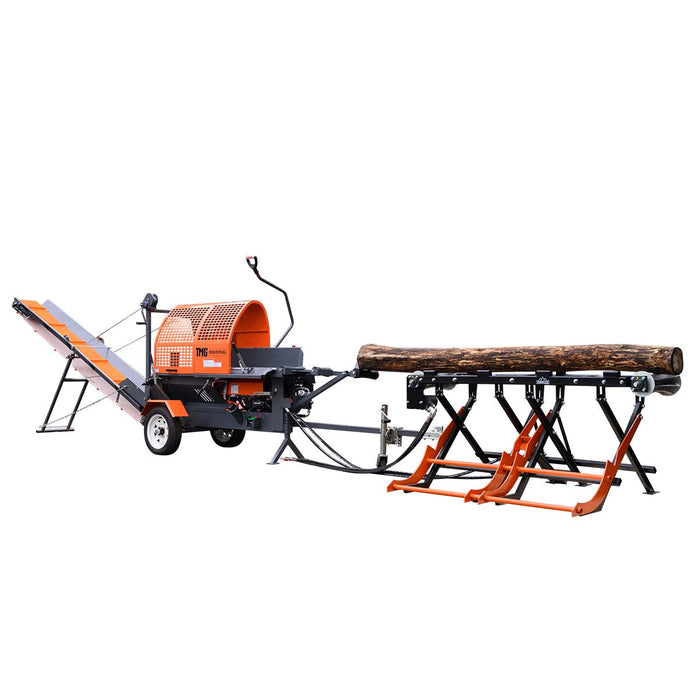

TMG Industrial also carries the TMG-LLS16 Hydraulic Log Lift with Chain Drive Infeed, the ideal match for the TMG-GLS16 Firewood Processor.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in the USA. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is. In-store pickup is also available.

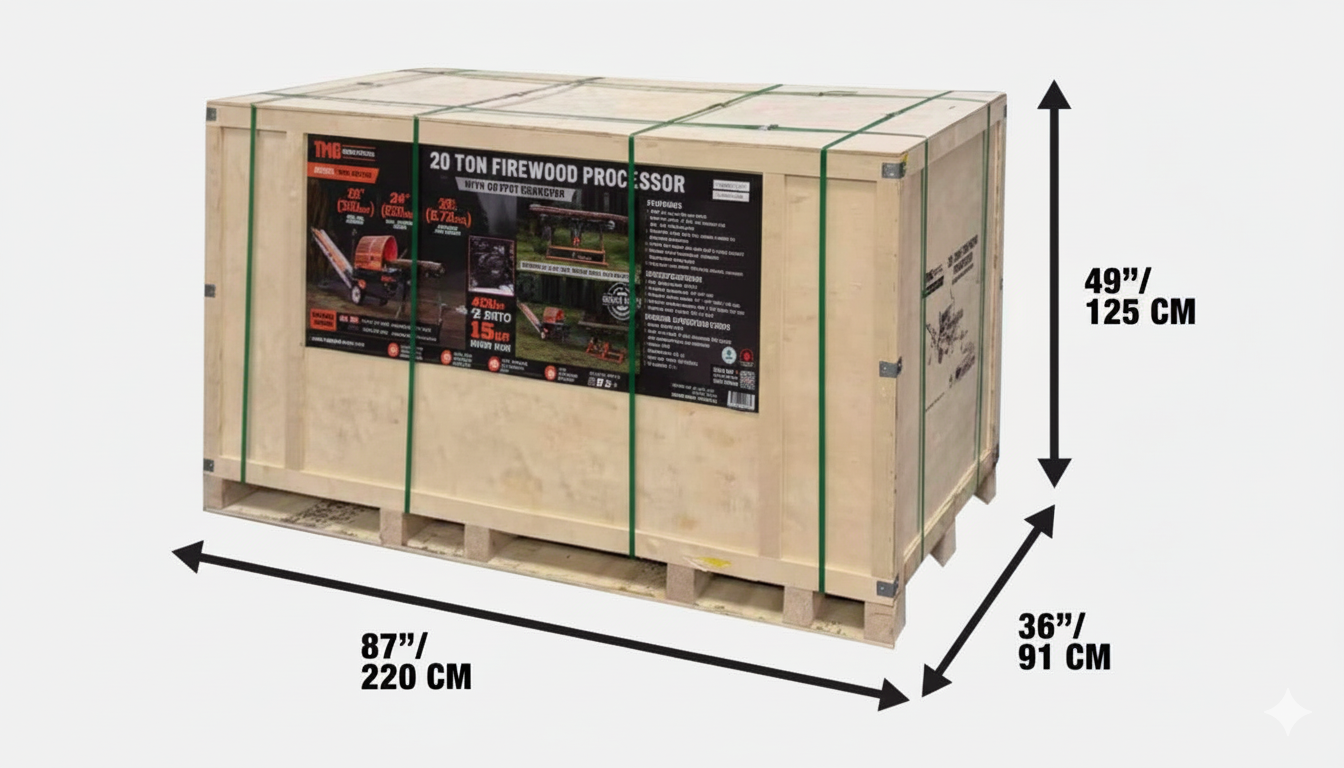

- This product is packed in a wood crate shipping box
- Shipping dimension: 87" x 36" x 49" (L x W x H), 220 x 91 x 125 cm
- Shipping weight: 1380 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
