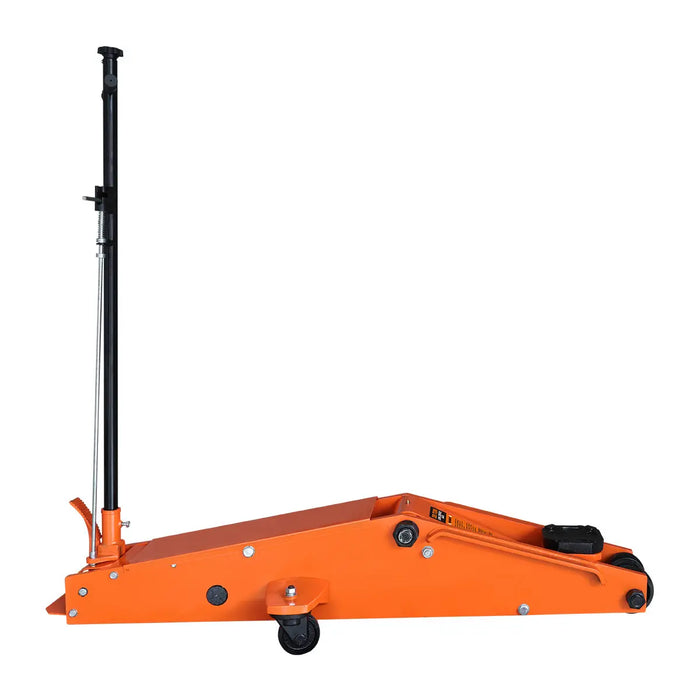

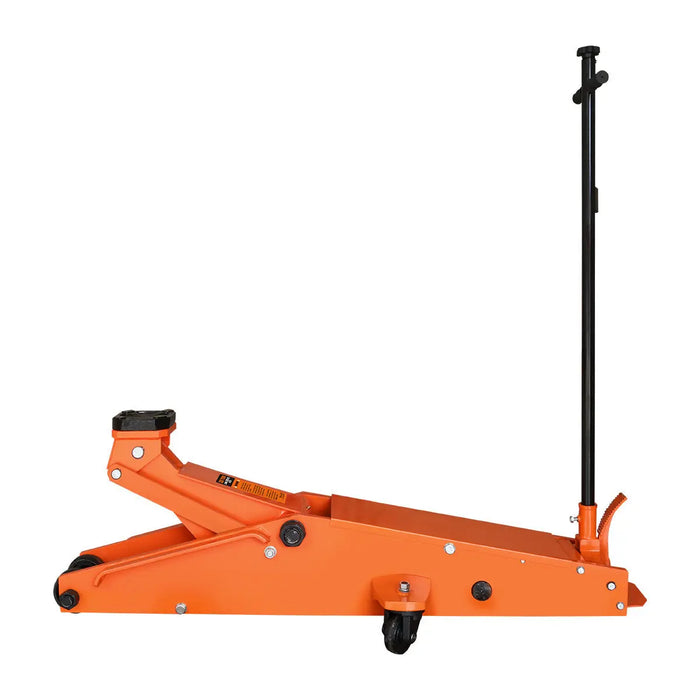

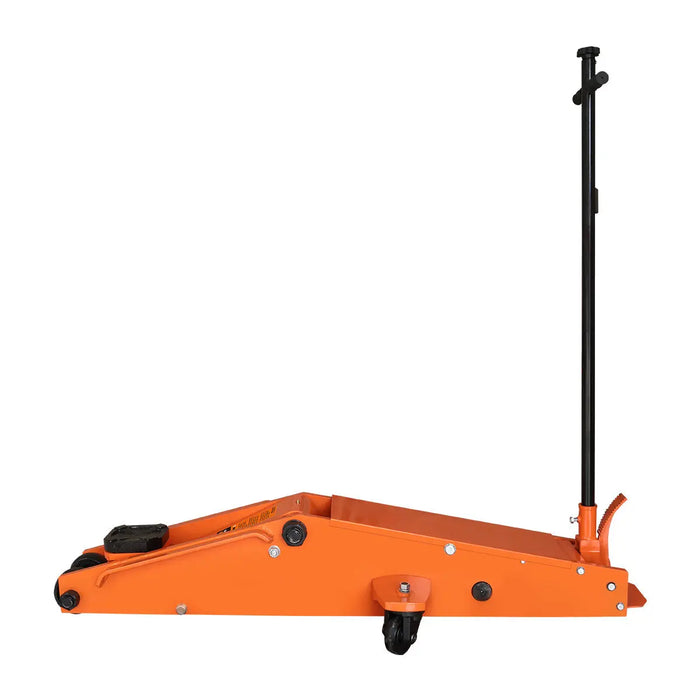

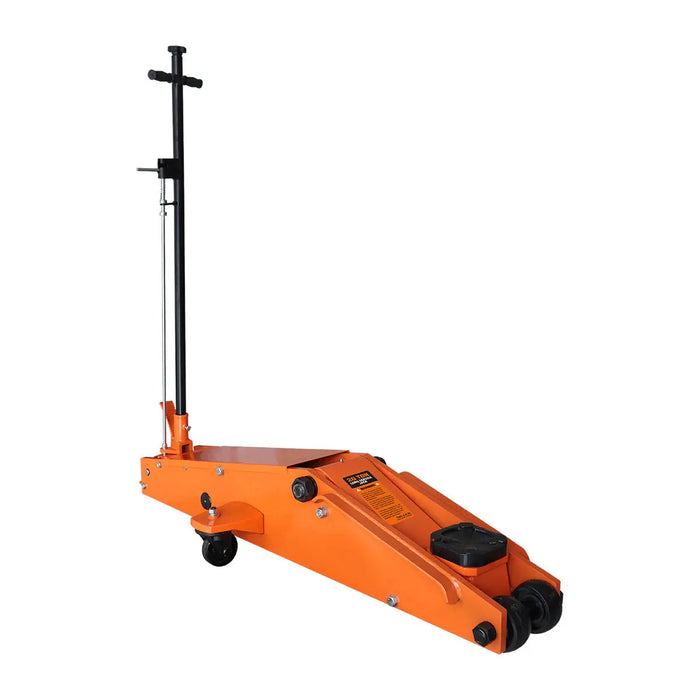

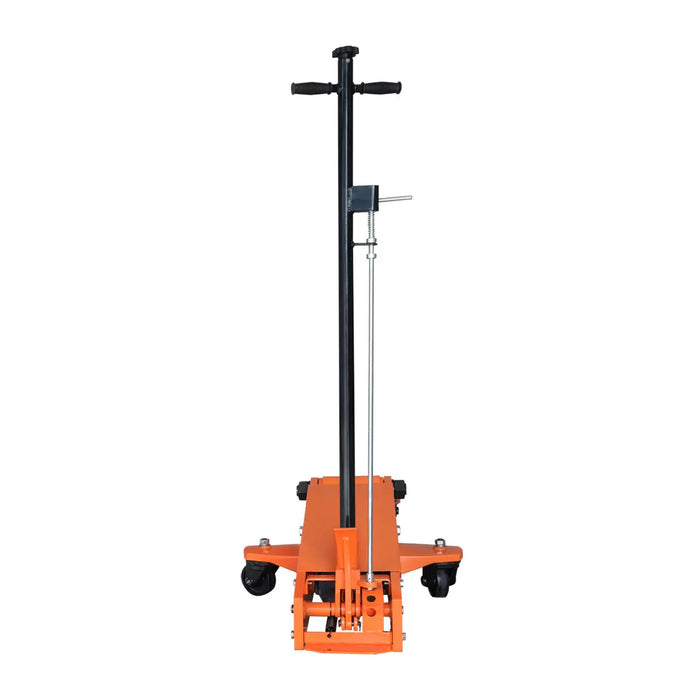

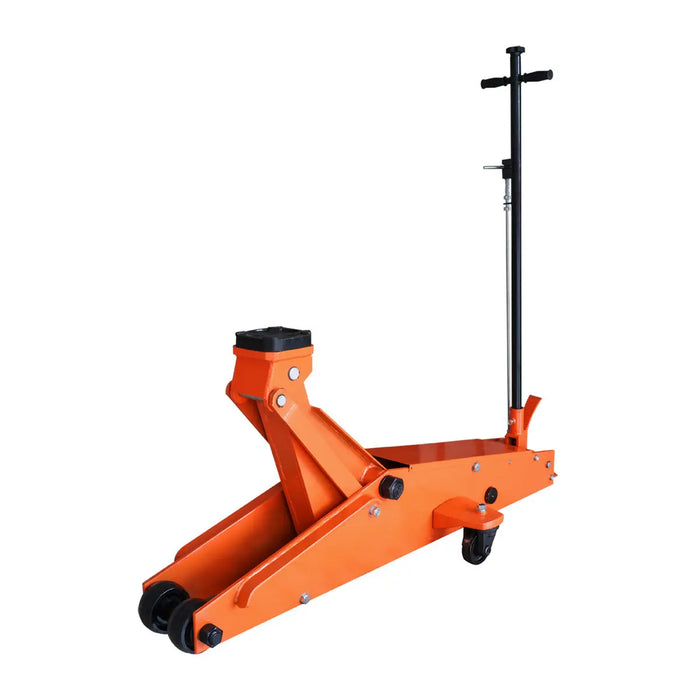

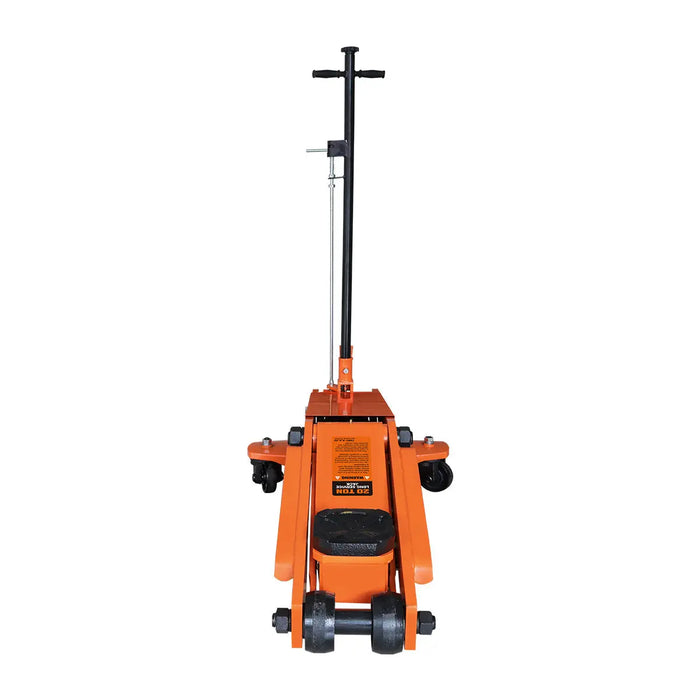

20 Ton Long Reach Chassis Service Jack, Twin Pistons, 9" Ground Clearance, 360° Pivot, TMG-AJL20 (Discontinued – No Longer Available)
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- 20 ton (44,000 lb) lifting capacity with a long chassis design for all your undercarriage mechanical, tire change and general equipment lifting needs
- Sealed cast iron pump base operates twin pistons for faster rising action with a slow, controlled down function for enhanced safety
- Heavy-duty rear caster wheels pivot 360° so you can easily position the jack underneath vehicles and stow away in tight spaces with ease
- Smooth hydraulic lifting action with a maximum lifting height of 27” offering plenty of room to the perform the work that needs to be done

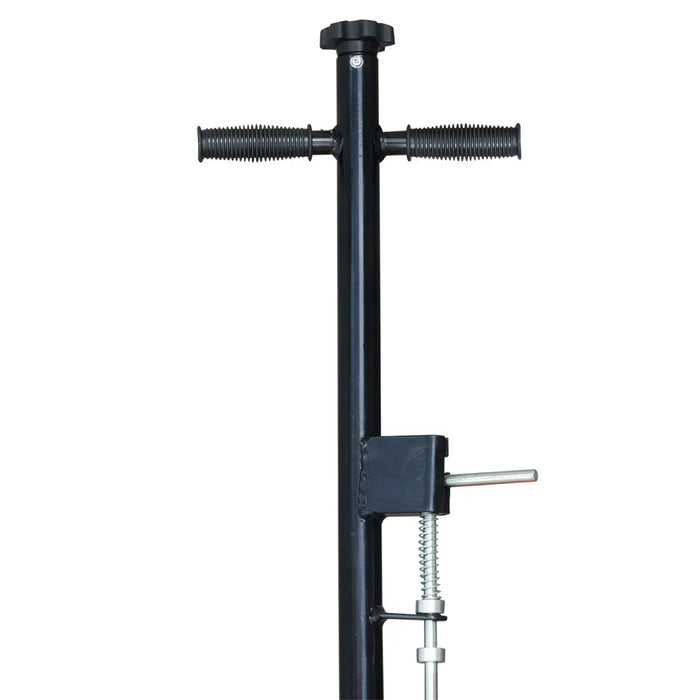

- T-bar handle features a versatile locking mechanism and air release valve while the reinforced structural lifting arm adds strength to the entire unit
Specifications
Specifications
- Capacity: 20 ton (44,000 lb)
- Min. Height: 220mm (approx. 9”)
- Max. Height: 680mm (approx. 27”)
- Ground clearance required: 220mm (approx. 9”)
- Product size: 61” x 22” x 12”
- Net Weight: 474 lb
- Finish: Orange + black
- Material: All steel

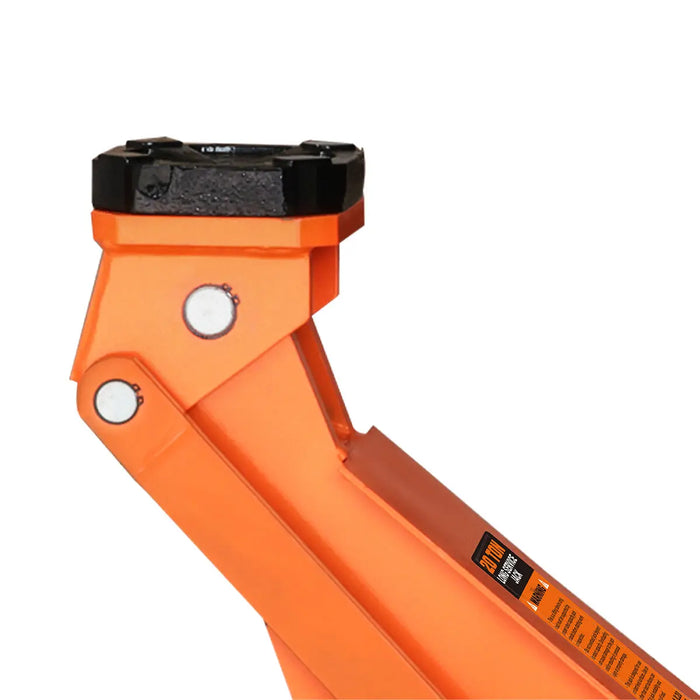

- Reinforced structural lifting arm

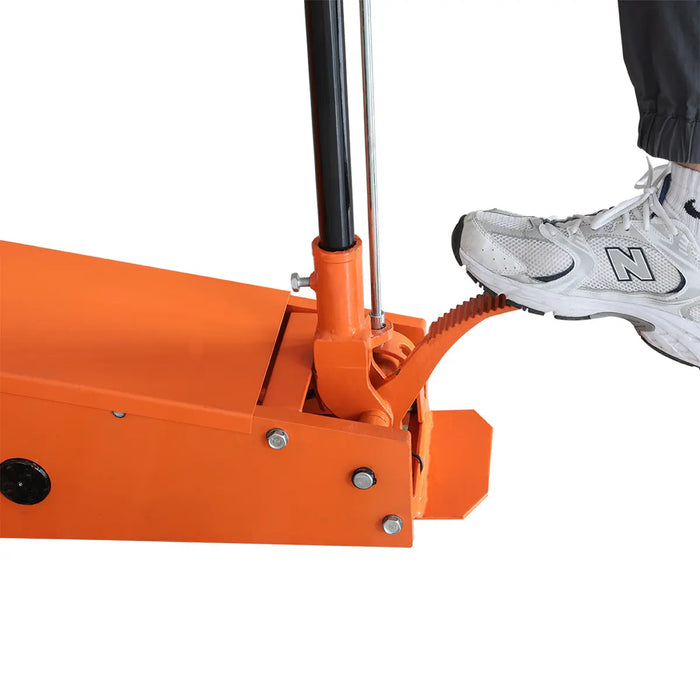

- Foot pedal control
- Air release valve
- Handle locking mechanism
Product Description
Product Description
The TMG-AJL20 Long Reach Chassis Service Jack has a 20 ton (44,000 lb) lifting capacity and easy to operate foot pedal for all your undercarriage mechanical, tire change, and general equipment or vehicle lifting needs. Its long chassis design easily reaches under most vehicles and takes up little space in your shop, barn or garage.
A sealed cast iron pump base operates twin pistons for faster rising action with a slowdown function for safety and controlled lifting under the chassis of the vehicle. The rear caster wheels pivot 360° for superior maneuverability, storage and positioning.
With a smooth hydraulic lifting action and maximum height of 27" you'll have plenty of room to perform your work. The handle has a versatile locking mechanism and air release valve for reliable, heavy-duty lifting assistance. Ideal for fleet service, maintenance shops and commercial vehicle service bays.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 67” x 21” x 17” (L x W x H)
- Shipping weight: 510 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
