8-½’ U/V Angle Blade Snowplow, Reversible Rubber Edges, 6 Positions, Category 1 & 2 Hookups, 3-Point Hitch, 40-90 HP Tractors, TMG-SP08
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Ideal attachment for commercial snow removal companies that need to move snow out of large parking lots, clearings, work sites and more
- 102” working width is able to move large piles of snow to make removal more efficient after light to heavy snowfalls in bigger lot areas

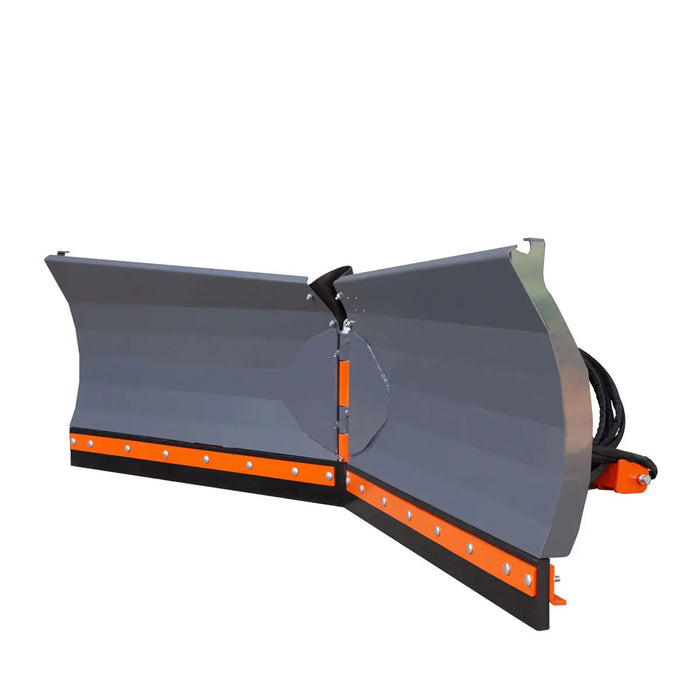

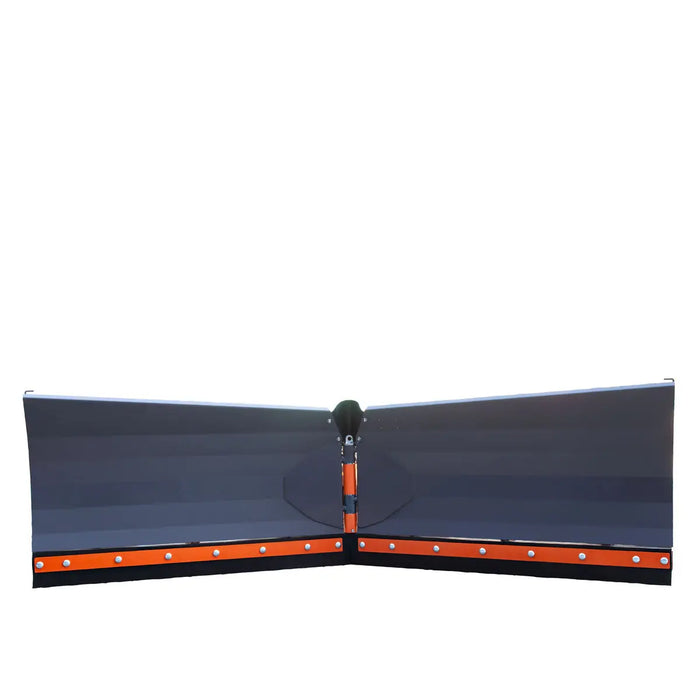

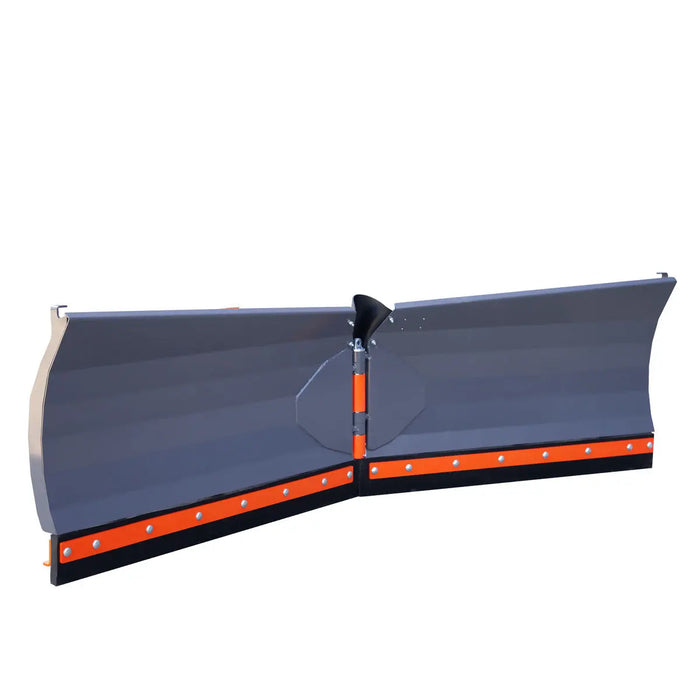

- Two bolt-on, reversible rubber cutting edges are resistant to wear and provide superior snow pushing power for a clean, professional finish

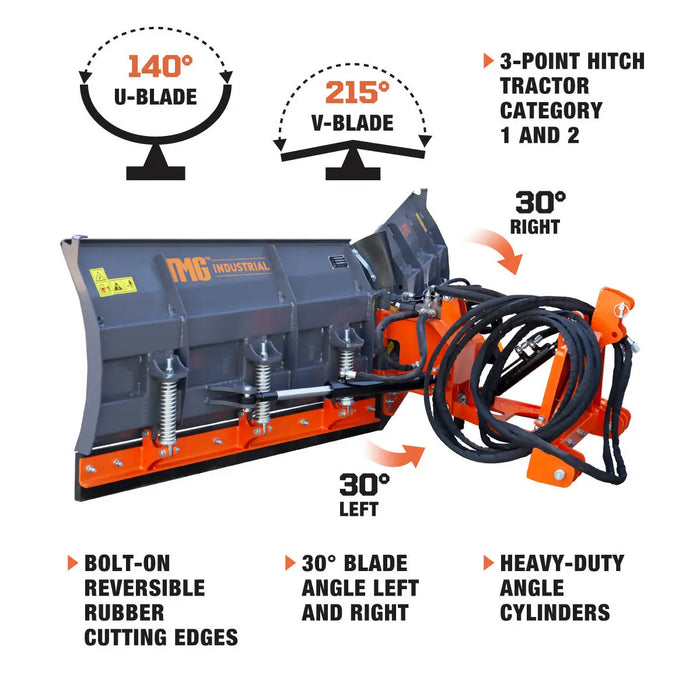

- 140° angled U-blade and 215° angled V-blade with a 30° variance left or right provides both strong snow pushing and drift breaking capacity
- 2-way, 6-port hydraulic diverting solenoid valve integrated to manipulate in all directions; included flat face couplers and hydraulic hose
- Ideal for the inventory of college campuses, shopping mall properties and professional buildings to clear sidewalks, driveways and entrances

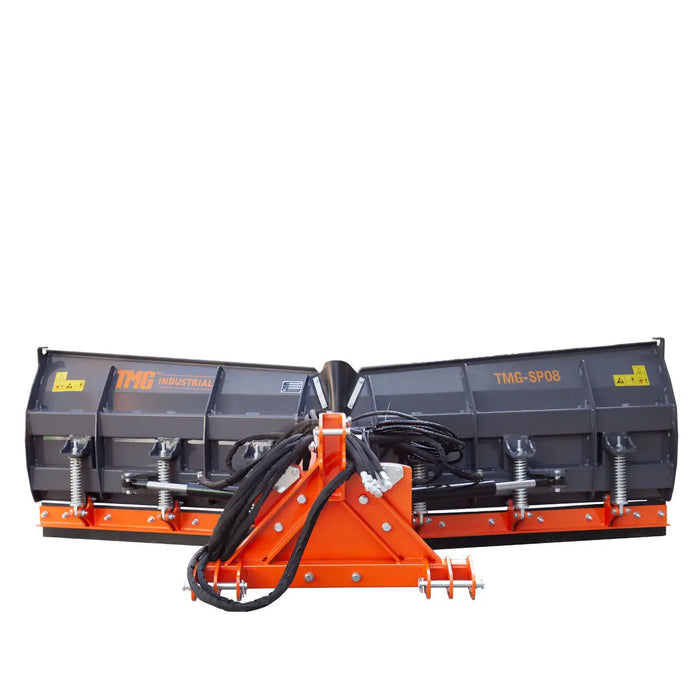

- Equipped with a 3-point hitch for easy Category 1 and 2 hookup to your tractor with the ability to also accommodate other carriers
Specifications
Specifications

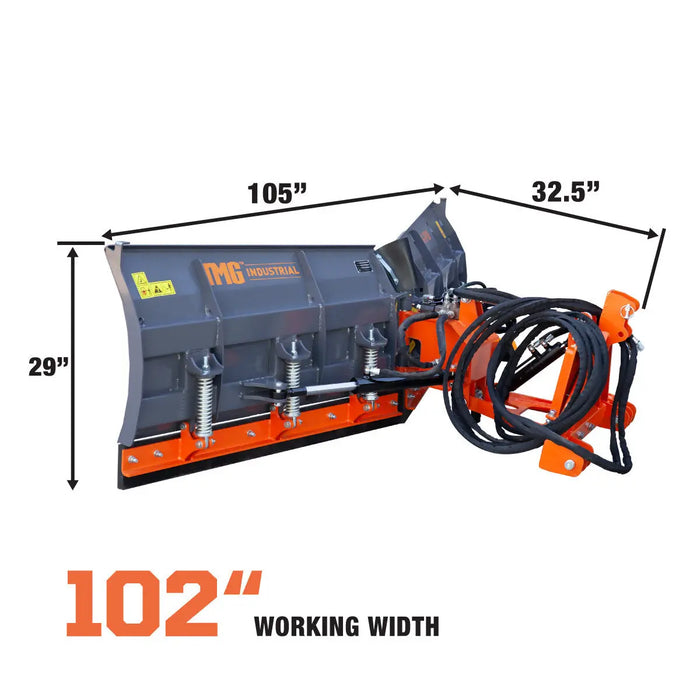

- Assembled size: 105” (L) x 32-½” (W) x 29” (H)
- Working width: 102”
- Rubber cutting edges (2): 52” x 5-½” x 1-¼”
- U-blade angle: 140°
- V-blade angle: 215°
- Side angle: 30°
- Quantity of cylinders: 3
- Quantity of positioning springs: 6
- Hydraulic hose: 13’ long, ½” diameter
- Hydraulic pressure: 3050 PSI
- Flow rate: 8 GSM
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 75” x 36” x 24” (L x W x H)
- Shipping weight: 820 lb
Product Description
Product Description

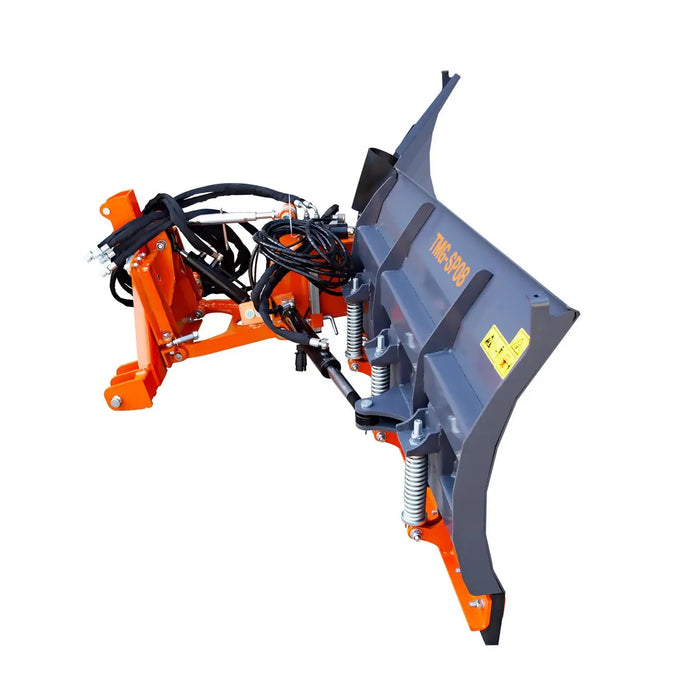

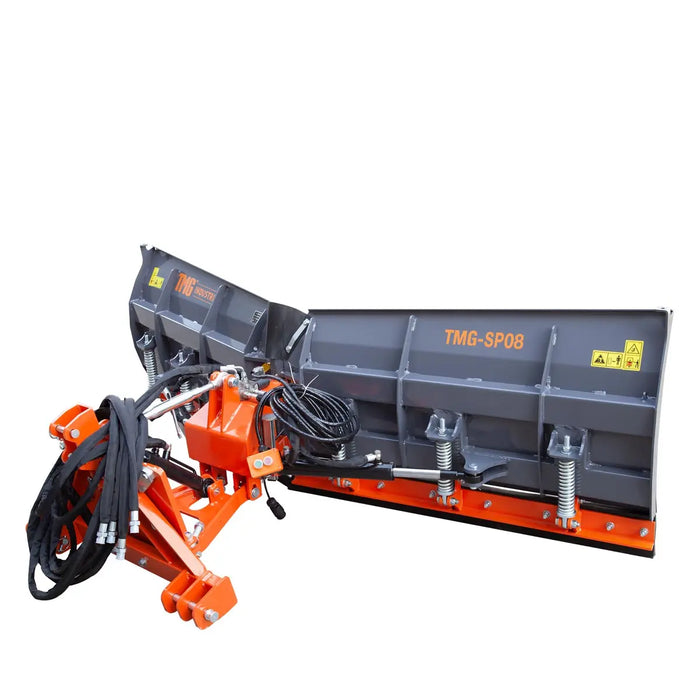

The TMG-SP08 U/V Angle Blade Snowplow is an ideal attachment for commercial snow removal companies who need to work on large parking lots, clearings and work sites. Its 8-½’ of working width and versatile moving blade makes bigger lots and diverse areas easy to clear even after heavy snowfalls due to its tough, rugged build. Could also be used on farms that have large clearings, driveways and trucking areas.
Two bolt-on, reversible rubber cutting edges are resistant to wear and provide superior, heavy-duty pushing power for a clean, professional finish that you and your customers will be proud of. 140° angled U-blade and 215° angled V-blade with a 30° variance left or right provides both strong snow pushing and drift breaking capacity.
2-way, 6-port hydraulic diverting solenoid valve integrated to manipulate in all directions. Equipped with a 3-point hitch for easy hookup to your tractor and capable of accommodating other carriers as well. The included flat face couplers and hydraulic hose allow you to have total control from the comfort of your cab so you can get the job done no matter the conditions.
We also carry a 10’ model of this snow plow: TMG-SP10V
