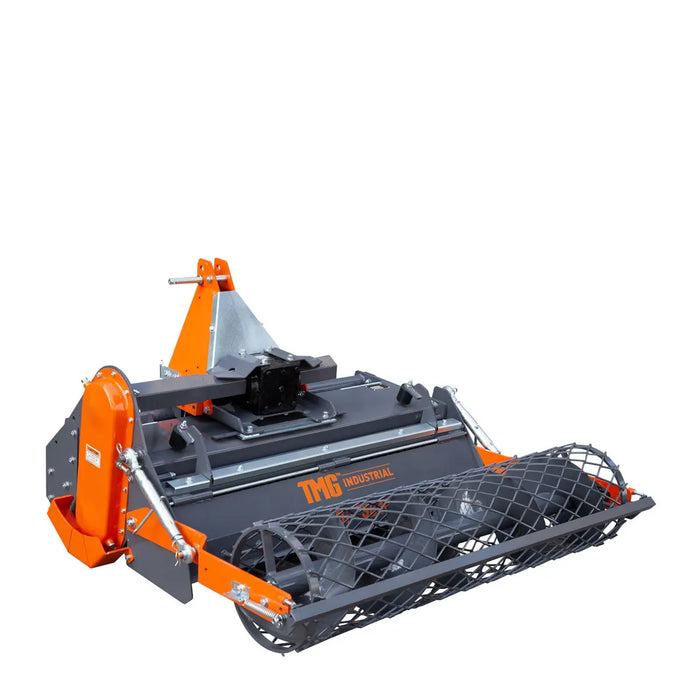

48" Stone Burier Rotary Tiller, 3-Point Hitch, Category 1 Hookup, 25-50 HP Tractors, PTO Shaft Included, 2-1/2" Stone Capacity, TMG-TSB48 (Discontinued – No Longer Available)
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features

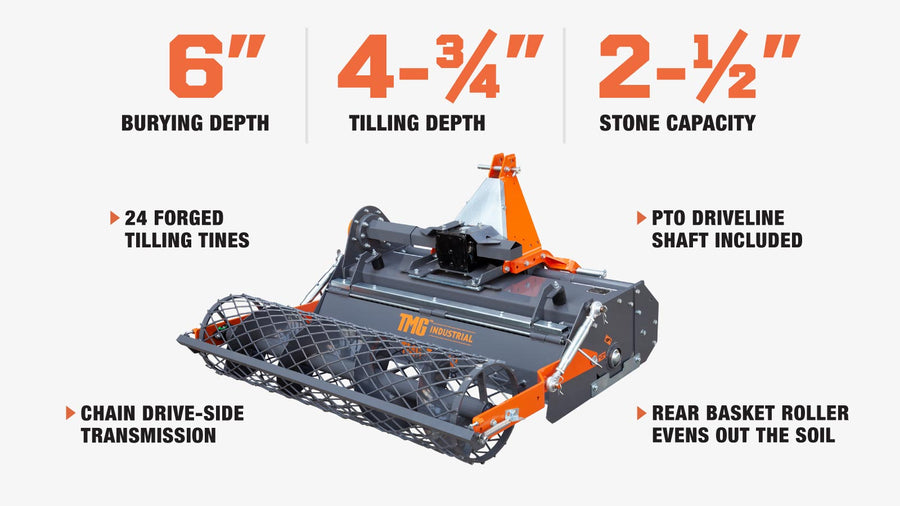

- Ideal for seedbed preparation, sod/hobby farms, garden plots, landscaping projects, nurseries and more
- Pushes stones & other materials up to 6” deep into the ground leaving finely tilled soil on the surface

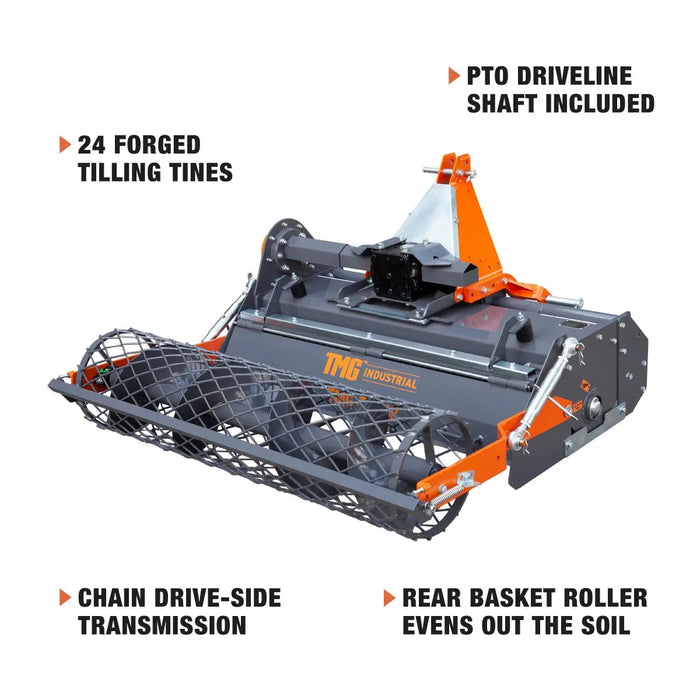

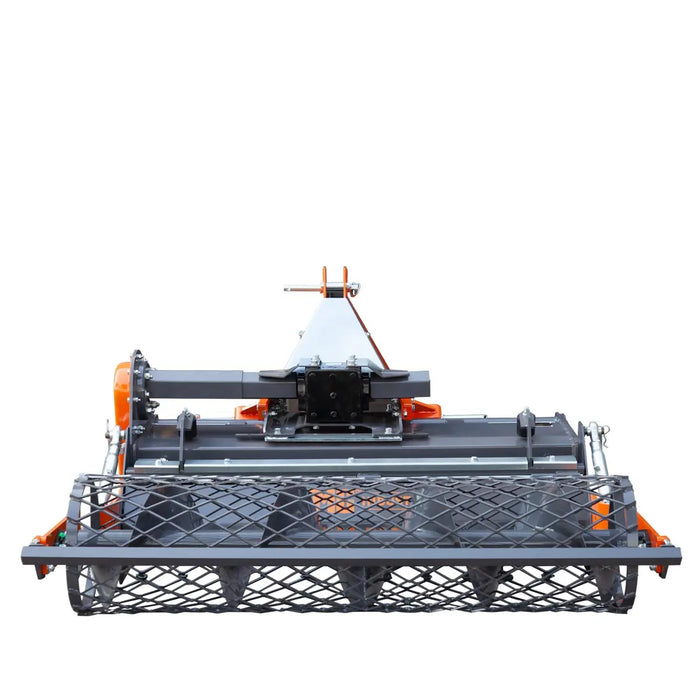

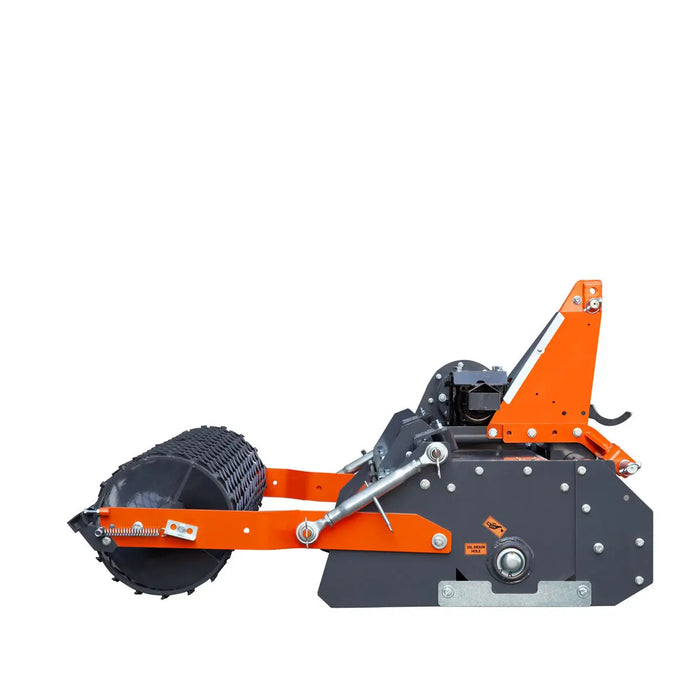

- Rear basket style roller evens out the soil as you till for a groomed, level finish that you can then work or drive on

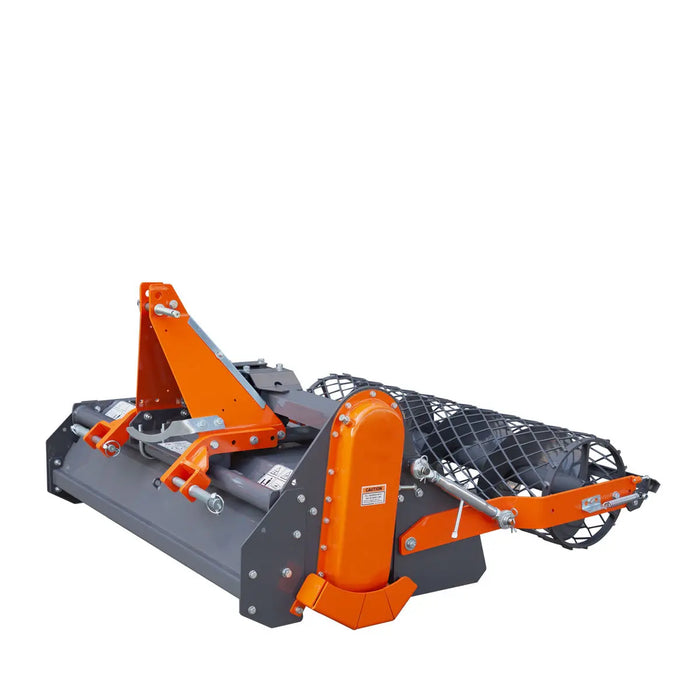

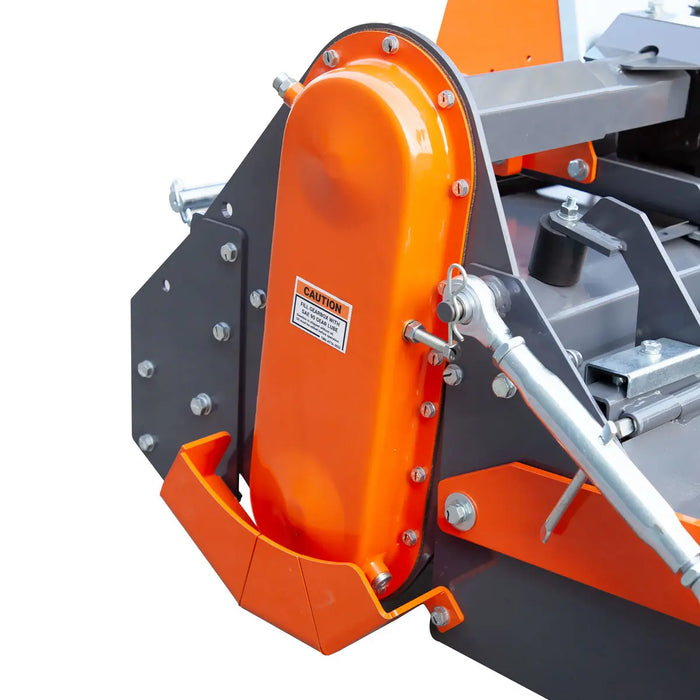

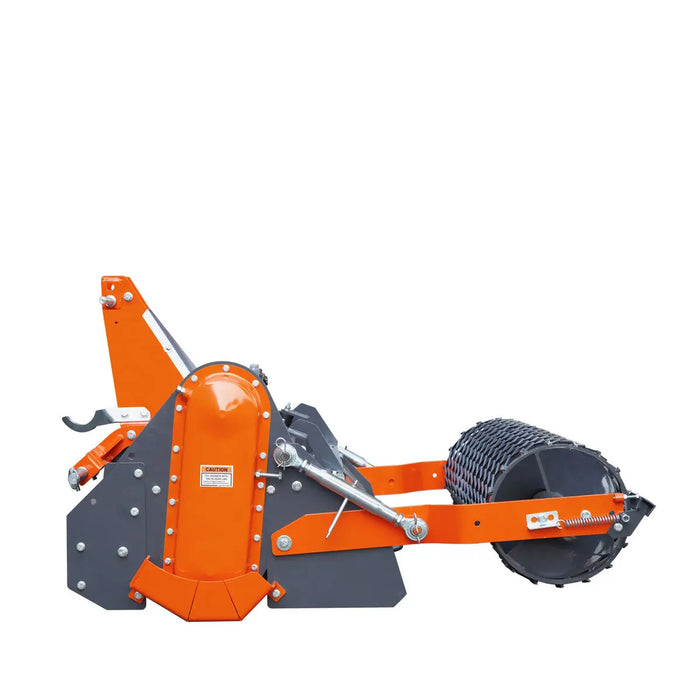

- Chain drive-side transmission provides dynamic energy transfer for powerful digging; side mount articulation which allows for easy maintenance
- Adjustable PTO mounting point supports a horizontal offset capability allowing you to get close to fence lines, buildings, trees and bushes

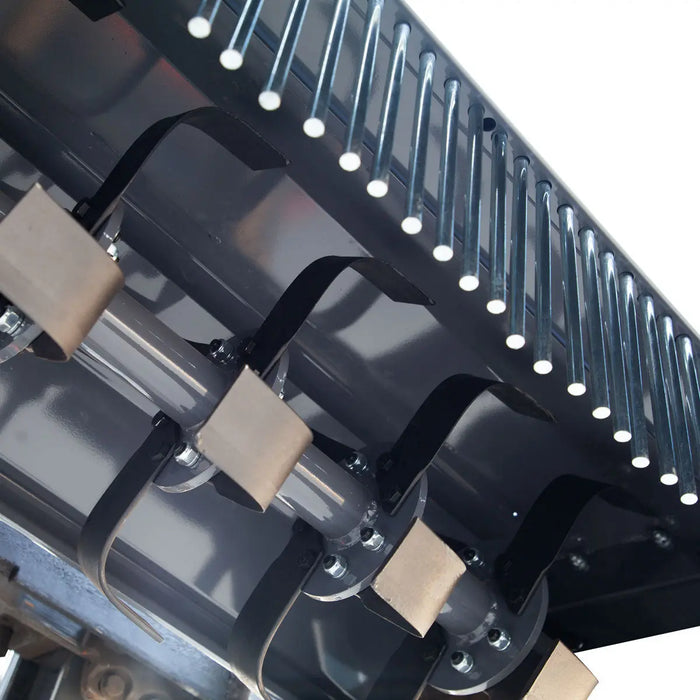

- 24 heavy-duty, replaceable forged steel LH and RH tines are long lasting even with the hard work they have to do smashing against stones, roots and other debris
- Powder-coated finish defends this tiller from the elements and makes it resistant to rust, wear and corrosion; all year, all weather use and storage protection
- PTO driveline shaft included for easy hook up to your tractor and allows you to draw power directly from its engine
- Strong, dependable construction made of industrial strength materials; built to last and get the job done
- The machine prepares soil for farming and landscaping by breaking up clumps, removing stones and debris, and creating a smooth seedbed. Before use, clear the ground of objects like iron, glass, large stones (over 5 inches), and logs. Operate at a slow walking speed (1 to 3 mph)
Specifications
Specifications
- Tractor power recommended: 25-50 HP

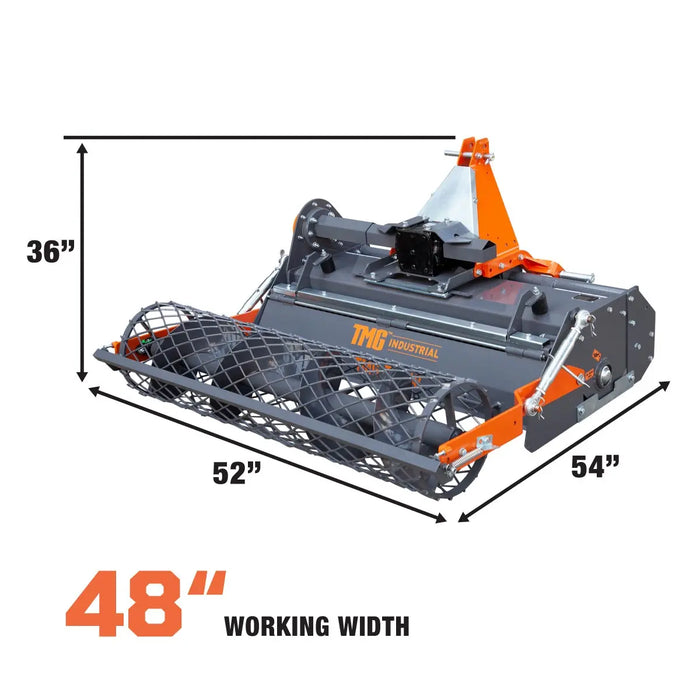

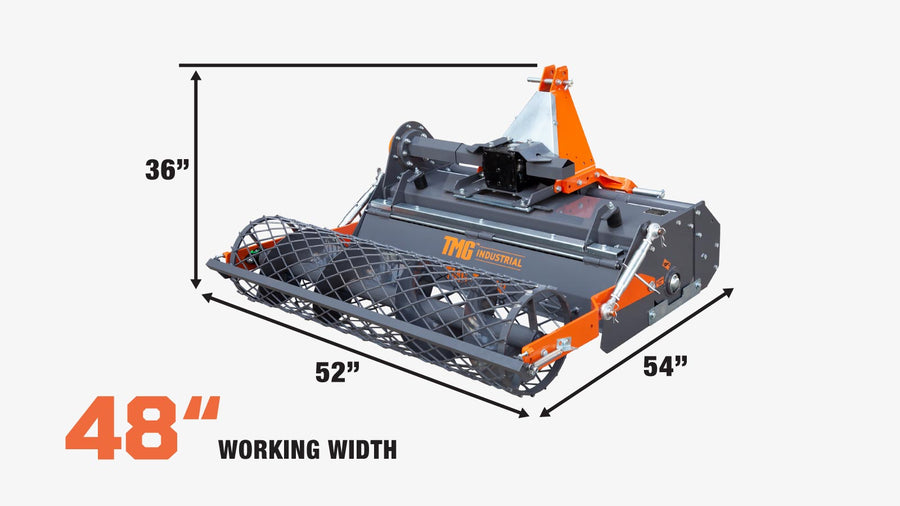

- Size: 52” x 54” x 36”
- Working width: 48”
- Tilling depth: 4-¾”
- Blade quantity: 24
- Rotary flanges: 7
- Stone burying capacity: 2-½”
- Rotor shaft speed: 208 RPM
- PTO rotary speed: 540 RPM
- PTO driveline shaft (included)
- Category 1, 3-point hitch
Product Description
Product Description
The TMG-TSB48 Stone Burier & Rotary Tiller has been designed to efficiently prepare your seed bed, nursery, sod farm, garden plot or other landscaping area with a clean, fine-soiled finish. Capable of burying stones and other debris up to 6" deep, leaving fresh, organic earth layered on top for prime seeding grounds and superior growing potential.
Compatible with 25-50 HP tractors, this stone burier comes complete with a Category 1, 3-point hitch hookup and PTO driveline shaft that easily attaches to your tractor. This provides efficient energy transfer directly from the machine and has a rotary speed of 540 RPM. 24 heavy-duty tines powerfully dig into the ground with the help of 7 rotary flanges at a low speed of 208 RPM that ensures a thorough reworking of the land after just one pass.
Conveniently side mounted chain drive for easy maintenance and a powder coated finish protects this tiller from rust, wear and corrosion for all weather, all year performance and storage. 48" of working width makes large passes go by in a flash so you can spend less time maintaining and more time producing your final product or growing your next crop.
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

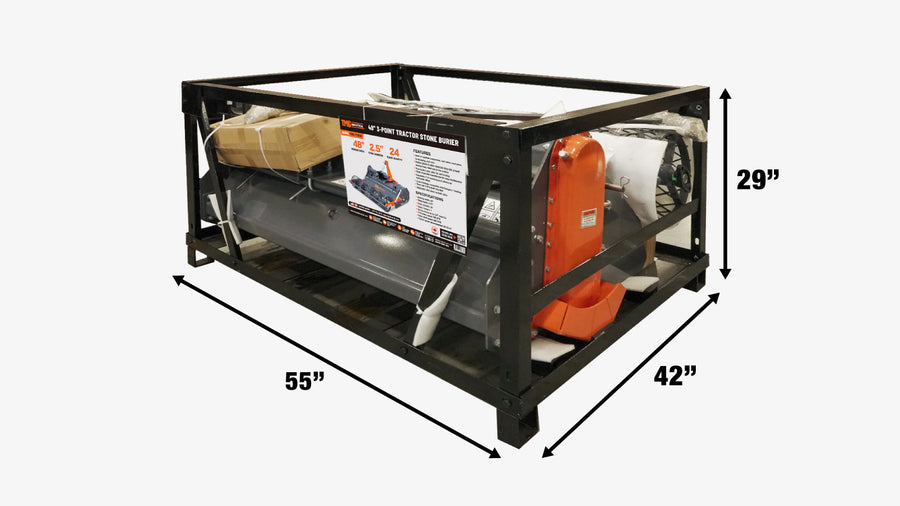

- This product is packed in a metal crate shipping box
- Shipping dimension: 55” x 42” x 29” (L x W x H)
- Shipping weight: 785 lb
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
