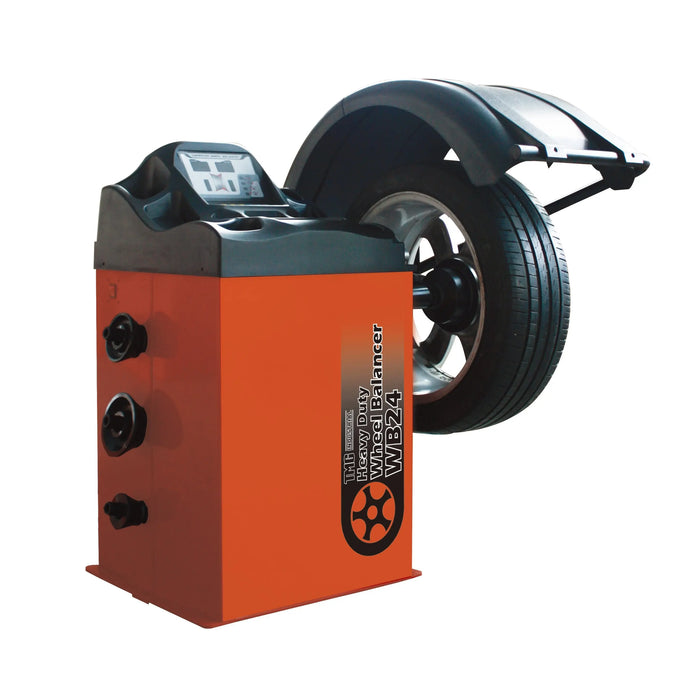

Self-Calibrating Wheel Balancer with Protection Hood, 10"-24" Rim Diameter, Computerized, +/- 1 g of Accuracy, ALU Balancing Modes, TMG-WB24H
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Essential component for any tire shop or general automotive service department that delivers precision performance at an exceptional value

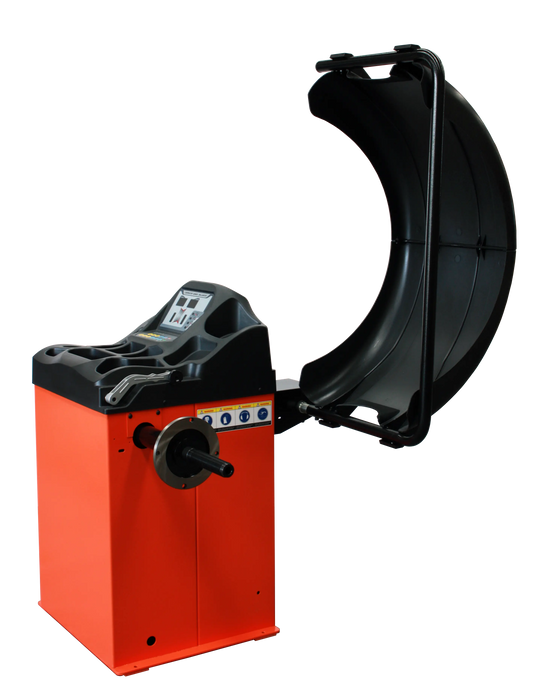

- Protection hood that has an automatic stop/start feature when the hood is raised/lowered for maximum safety and protection

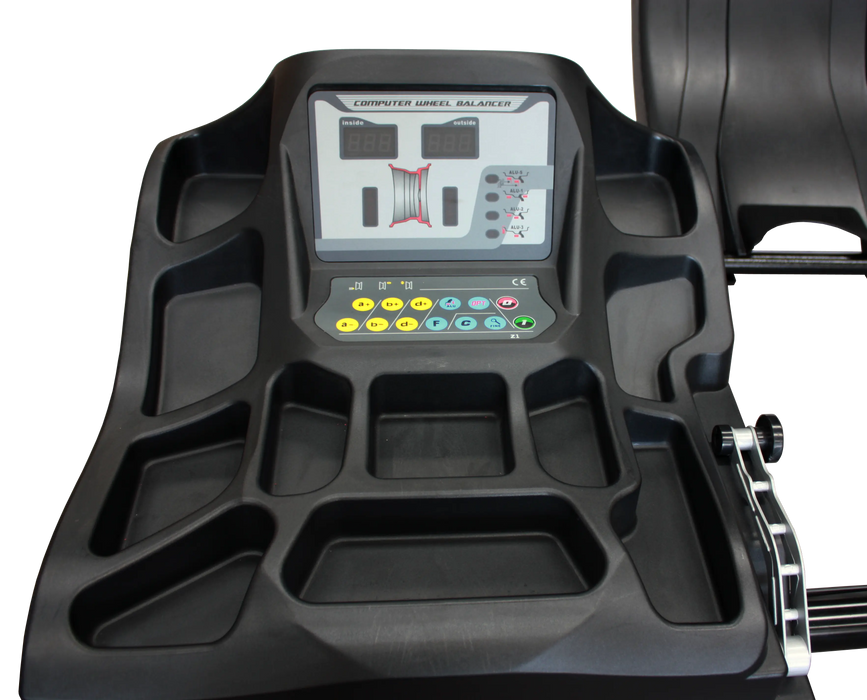

- Automatic positioning feature that shows the operator where to apply weights, minimizing guesswork and allowing for quick, easy workflow

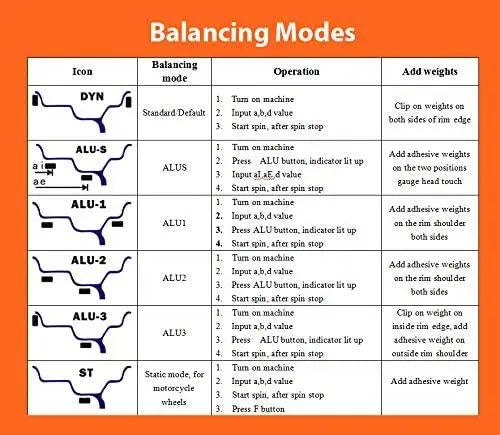

- 4 balance modes including static, dynamic EALU functions and motorcycle modes for dynamic wheel accommodation and balancing capabilities
- Self-diagnostic and calibration features ensures accuracy to within +/- 1 gram for a reliable, professionally serviced tire every time
- Display that can switch between grams, ounces, millimeters and inches so you can ensure quality no matter what type of tire you’re working on
- Heavy-duty, industrial construction that doesn’t take up much space and fits perfectly in any shop; powered by a reliable 120 VAC electric motor
- Accessories included are 4 centering cones, weight pliers, width gauge caliper, and a quick release nut adding extra value for one affordable price
Specifications
Specifications
- Motor: 110-120 VAC, 8 A
- Max. tire balancing capacity: 39-⅜” diameter
- Rim diameter 10”-24”
- Rim width 1.5”-16”
- Balancing speed: 220 RPM
- Maximum wheel weight: 154 lb
- Imbalance accuracy: +/- 1gram
- Shaft size: 36 mm
- Cycle time: 8s
- Noise: <70 db
- Rapid optimization (OPT)
- Protection hood included
- CETL certified machine for Canada and the USA
- Also available without the protective hood: TMG-WB24

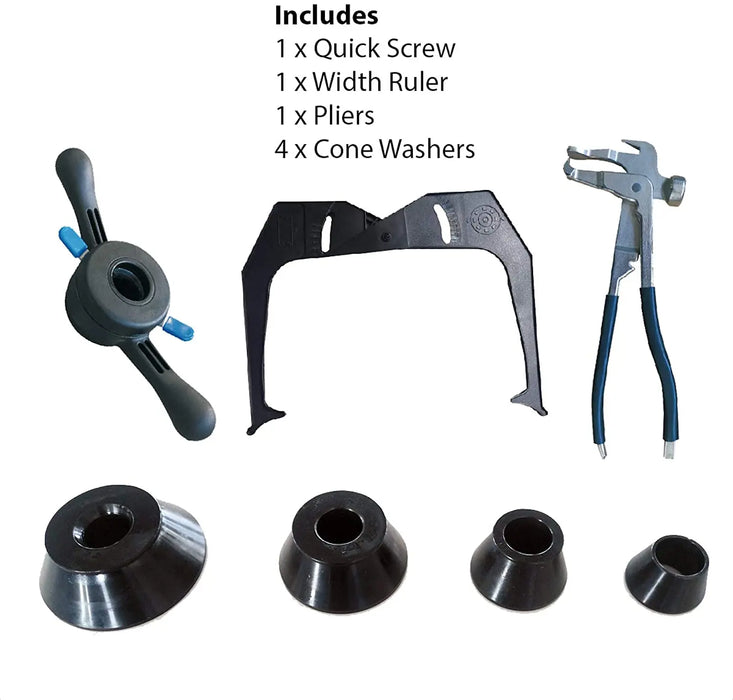

Accessories:
- 4-piece cone set
- Quick release nut
- Reverse bowl
- Width gauge
- Weight pliers
- Motorcycle adaptor (sold separately)
Product Description
Product Description
The TMG-WB24H Wheel Balancer with Protection Hood is a computerized, self-calibrating machine that is an essential component to any tire shop or general automotive service department. Give your customers the absolute best quality of service by getting their tires balanced with precision and accuracy. A user-friendly interface and multiple modes of operation makes this wheel balancer dynamic, easy to use and reliable so your shop can run smoothly, saving you time, money and labour in the process.
Capable of accommodating rims with 10"-24" diameters so you can work with most standard vehicle tires of various makes and models. Self-diagnostic and calibrating features take the guesswork out of wheel balancing and gives you and your team peace of mind knowing the job will be done right every time. 4 different balancing modes including static and dynamic balancing options.
Heavy-duty, industrial construction built for any shop and a protective hood that maximizes user safety. This wheel balancer offers precision performance at exceptional value that pays for itself in no time. Expertly fine-tune customer tires with +/- 1 gram of accuracy, and automatic positioning will show you where to apply weights with this fast, efficient automotive commodity.
Also available without the protective hood: TMG-WB24
Shipping Information
Shipping Information
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

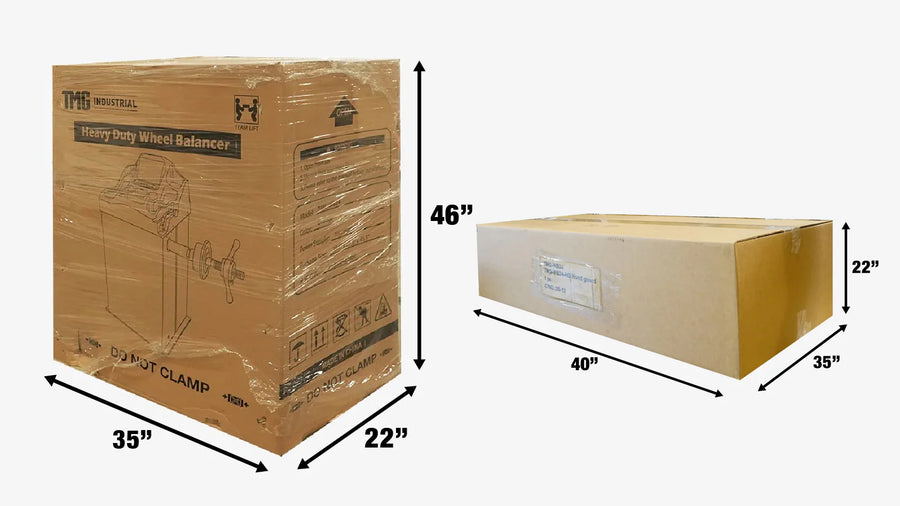

- This product is packed in 2 carton shipping box
- Shipping dimension: 35” x 22” x 46” (L x W x H)
- Shipping dimension: 40” x 35” x 22” (L x W x H)
- Total Shipping weight: 240 lb
