40" ATV Tow-Behind Offset Flail Mower, Briggs & Stratton 13.5 HP Engine, Adjustable Mowing Height, 15" Cut Capacity, TMG-AFM40
FREE
shipping to most locations in
USA
Learn More
Product Manual

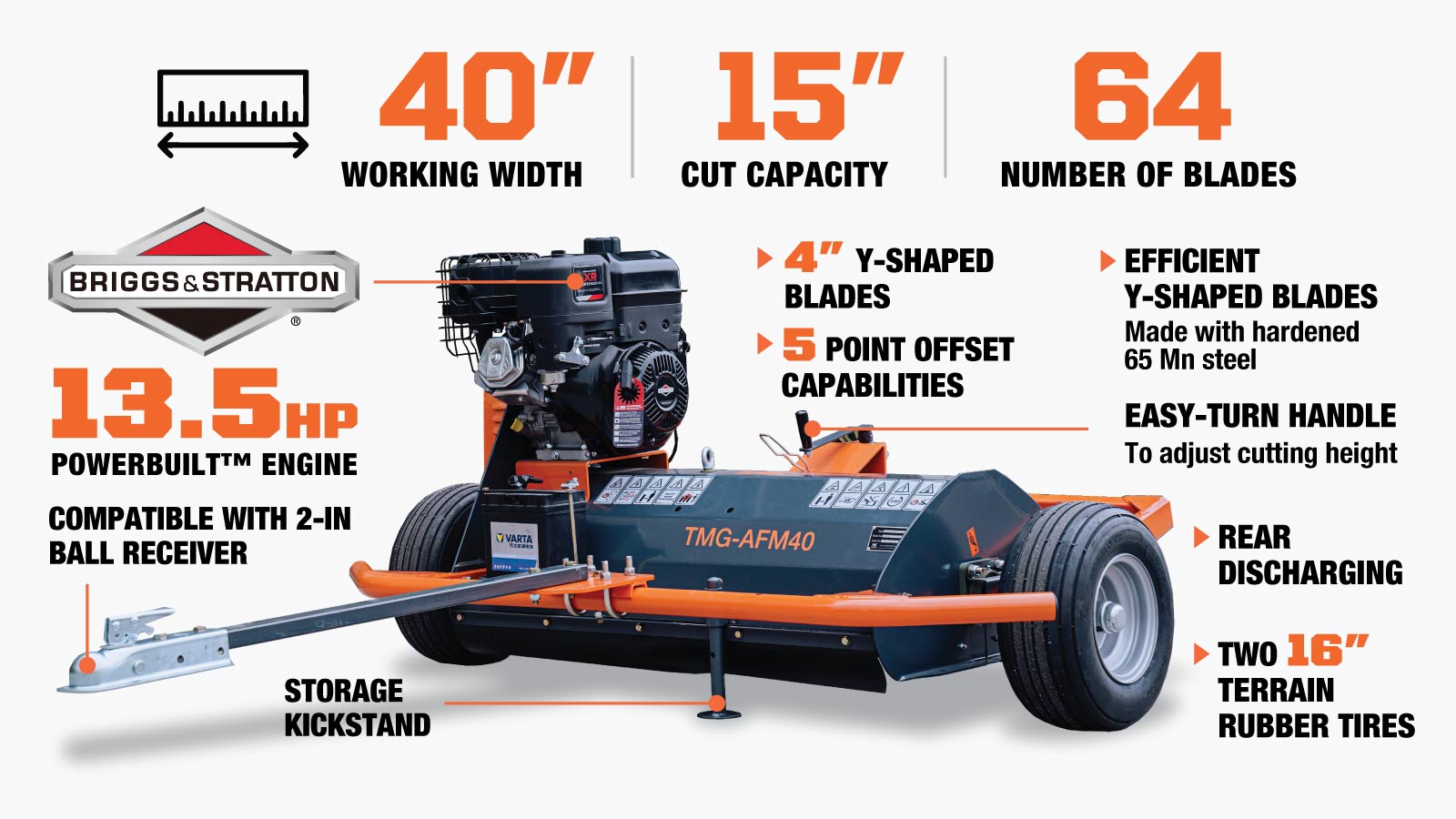

Features
Features
Specifications
Specifications
- Drive path width: 68”
- Working width: 40”
- Cut capacity: up to 15” grass height
- Adjustable mowing height: 1-1/4“ to 6-3/4”
- Offset distance in driving direction to the left: 51”
- Offset distance in driving direction to the right: 51”
- Blade length: 4”
- Number of blades: 64
- Ground clearance: 6”
- Max rotor speed: 3200 RPM
- Tire size: 16”
- Work efficiency: 0.5 - 0.65 acre/hour
- Compatible with 2” ball receiver
- Storage kickstand
Engine:
- Briggs & Stratton XR Professional Series, 13.5 HP, 420 cc
- Dura-Bore™ Cast Iron Sleeve
- Cartridge air cleaner with standard pre-cleaner
- Electric start (battery included)
Shipping Information
Shipping Information
The order will ship from one of our main warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

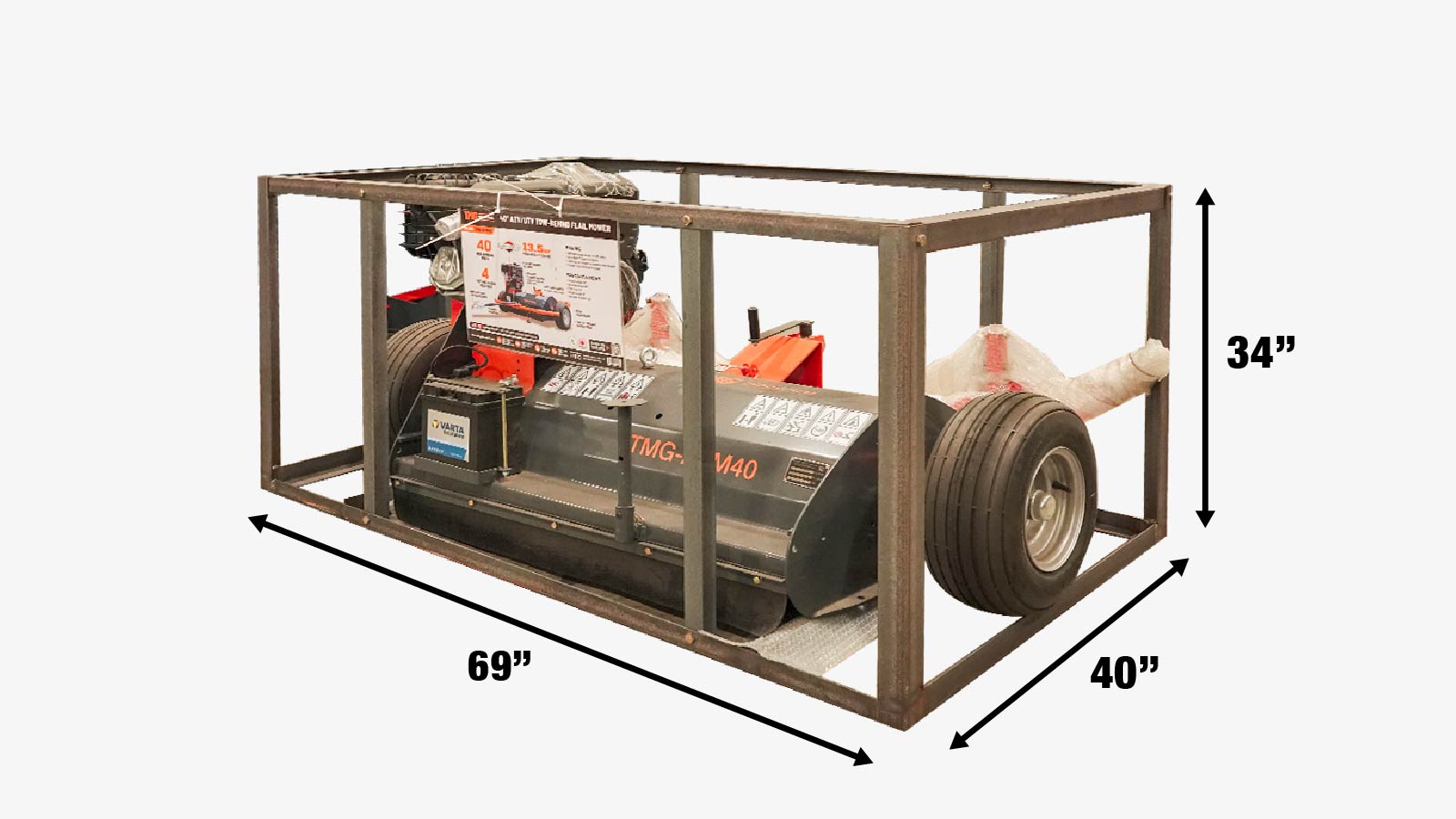

- This product is packed in a wood crate shipping box
- Shipping dimension: 69” x 40” x 34” (L x W x H)
- Shipping weight: 725 lb
Product Description
Product Description

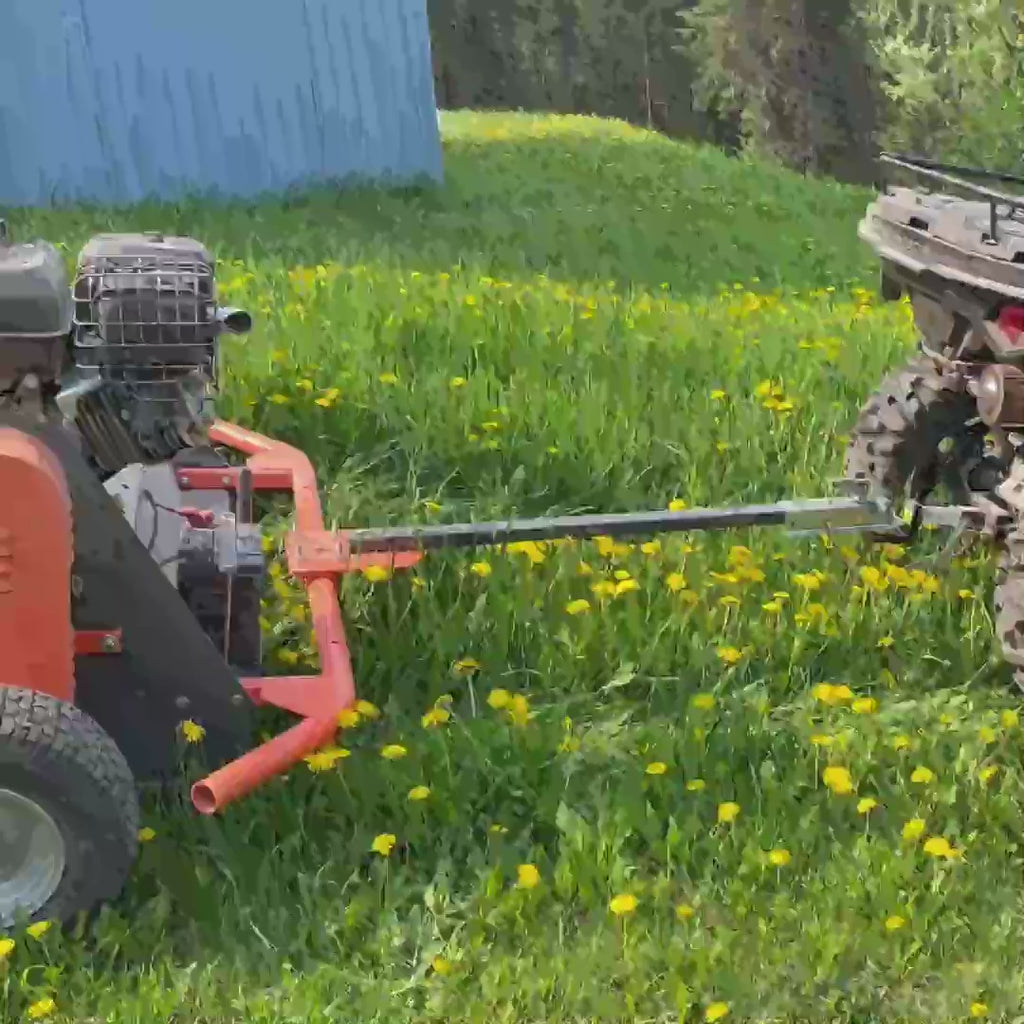

The TMG-AFM40 ATV Tow-Behind Flail Mower makes the cutting of uneven, overgrown and harsh terrain efficient and easy to do. Simple, easy hookup to a 2" ball receiver on your ATV or UTV for use around your home, farm or commercial property. This mower is the perfect attachment for your four-wheeler and turns it into a versatile maintenance machine to keep your property looking sharp.
40" of working width for fast, efficient cutting and 5-point offset capabilities for when you're working around trees and bush lines or getting close to buildings and garden areas. Cut grass up to 15" in height and leave a smooth, finished surface with the attached heavy-duty rear roller. A two-belt drive system provides efficient energy transfer and reduces slippage for a long-lasting, low-maintenance mower that will last for many years.
64 razor sharp 4" Y-shaped blades are powered by a reliable, electric start 13.5 HP Briggs & Stratton XR Professional Series engine to make sure you get the job done right. The engine is durable and features a Dura-Bore™ cast iron sleeve and cartridge air cleaner that includes a standard pre-cleaner. Ships free from our warehouse in Richmond, BC.
We also carry a 48" model of this mower: TMG-AFM48
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 | |
|---|---|
| ATV/UTV Flail Mower Slasher | |
Drive Path Width |
|
Working Width |
|
Work Efficiency |
|
Tire Size |
|
Cut Capacity |
|
Mowing Height |
|
Ground Clearance |
|
Offset Distance in Driving Direction to the Left |
|
Offset Distance in Driving Direction to the Right |
|
Number of Blades |
|
Blade Type |
|
Blade Size |
|
Blade Material |
|
Max Rotor Speed |
|
Drive Type |
|
Number of Belts |
|
Belt Model |
|
Engine Model |
|
Engine Power |
|
Dura-Bore Cast Iron Sleeve |
|
Cartridge Air Cleaner with Standard Pre-cleaner |
|
Electric Start (Battery Included) |
|
Compatible with 2 in ball receiver |
|
Finish |
|
Overall Dimension (L x W x H) |
|
