34 Ton ATV/UTV Tow-Behind Log Splitter, 7 HP Kohler Gasoline Engine, 28" Log Diameter Capacity, 3-Sec Cycle Time, TMG-GLS34

34 Ton ATV/UTV Tow-Behind Log Splitter, 7 HP Kohler Gasoline Engine, 28" Log Diameter Capacity, 3-Sec Cycle Time, TMG-GLS34

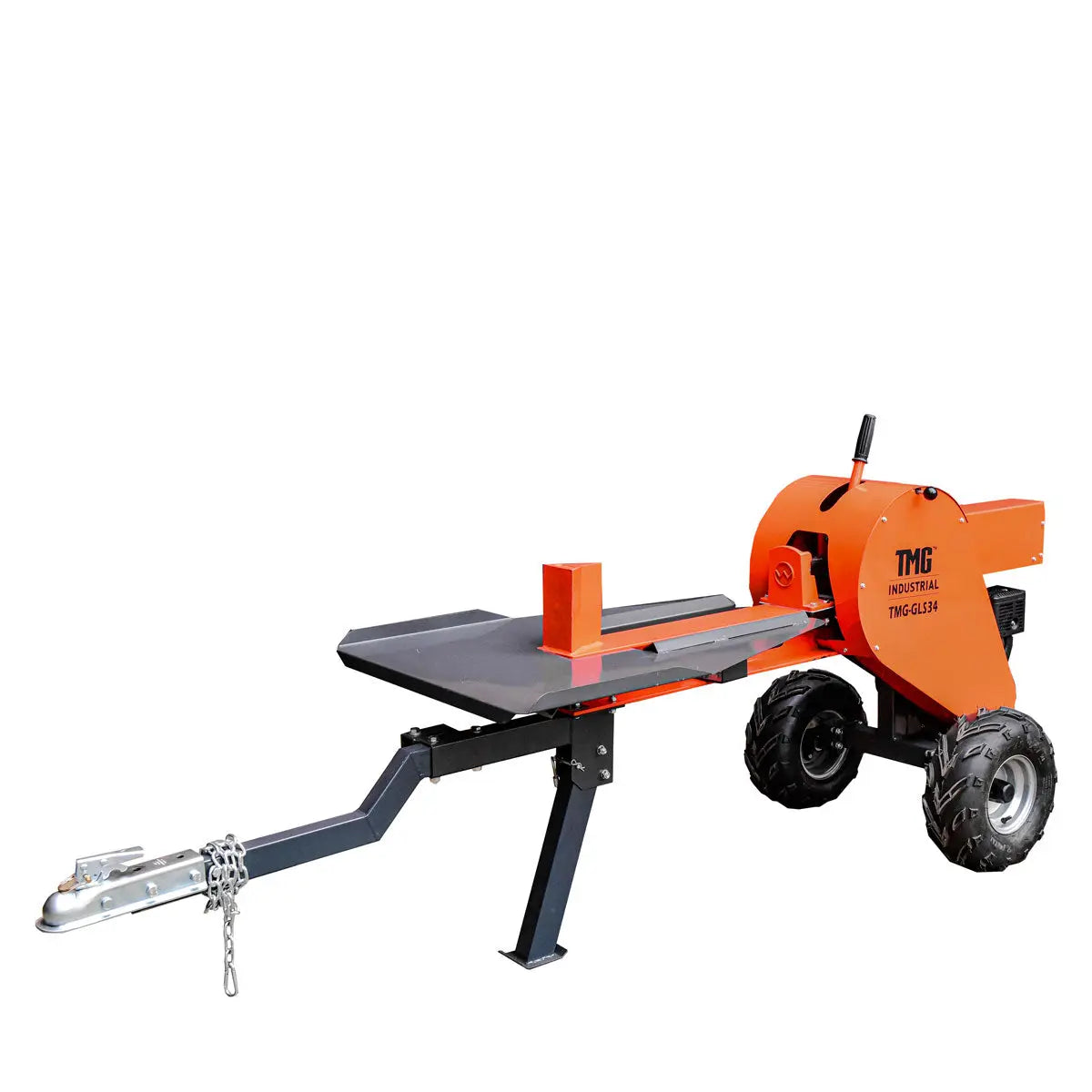

TMG Industrial 34 Ton ATV/UTV Tow-Behind Log Splitter, 7 HP Kohler Gasoline Engine, 28” Log Diameter Capacity, 3-Sec Cycle Time, TMG-GLS34
CURRENTLY IN STOCK
SKU TMG-GLS34
$3,799.00
$3,799.00 - $3,799.00
$3,799.00
$2,899.00
$2,899.00 - $2,899.00
$2,899.00
$3,799.00 Save $900.00
$2,899.00

FREE

shipping to most locations in

USA
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts
Product Video

Features

Feature Image
7 hp Kohler Command Pro engine with Oil Sentry low oil shutdown
Feature Image
68,000 lbs (34 ton) splitting power
Feature Image
3 second cycle keeps the workflow moving smoothly
Feature Image
Handle logs up to 28″ (710 mm) in diameter and 24″ (610 mm) long
Feature Image
Robust 8″ (203 mm) steel wedge on Hbeam table simplifies splitting cycles
Feature Image
Tow-ready design with 2″ (51 mm) ball receiver and ATV-style tires for off-grid mobility

Specifications

  • Force: 34 ton (68,000 lb)
  • Wedge height: 8”
  • Log diameter capacity: 28”
  • Log length capacity: 24”
  • Tire:16 x 8.0-7
  • Cycle time: 3 seconds
  • H-beam height: 26”
  • Overall size: 83” x 33” x 38” (L x W x H)
  • 2” ball receiver

Engine:

  • Model: Kohler® CH270
  • Type: Four-cycle, tri-fuel conversion, OHV, aluminum head and crankcase
  • Power: 7 HP
  • Displacement: 208 cc
  • Start type: Recoil
  • Oil capacity: 0.6 L
  • Cast iron cylinder liners provide lasting durability
  • Oil Sentry™ automatically shuts the engine down in low-oil condition
34 Ton ATV/UTV Tow-Behind Log Splitter, 7 HP Kohler Gasoline Engine, 28

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 68” x 19” x 34” (L x W x H)
  • Shipping weight: 530 lb
Shipping from Charlotte, NC, or Seattle, WA
What happens after you place your order?
34 Ton ATV/UTV Tow-Behind Log Splitter, 7 HP Kohler Gasoline Engine, 28

Product Description

The TMG-GLS34 ATV/UTV Tow-Behind Log Splitter delivers dynamic and mobile log splitting power around your home, acreage, farm or commercial property. Powered by a reliable 7 HP Command Pro Series Kohler gasoline engine that ruptures lumber with up to 34 tons of devastating force with just the push of a lever. You'll save time and exhausting labour with this handy add-on to your four wheeler.

This splitter can handle logs up to 28" in diameter and 24" in length. The H-beam and steel worktable sit 28" off the ground so you barely have to bend over to add logs or remove splitted wood, making what used to be hard work into a simple and efficient task. Equipped with 8" cutting wedge for easy splitting, and also has cast iron cylinder liners to provide long lasting durability.

Easy hookup to your ATV or UTV with a 2" ball receiver attached to the heavy-duty steel frame that is ready for any rugged or rural environment. You can get as remote as you want thanks to the gasoline engine that doesn't depend on having electricity nearby, and two off-road all-terrain tires will get you where you need to go.
