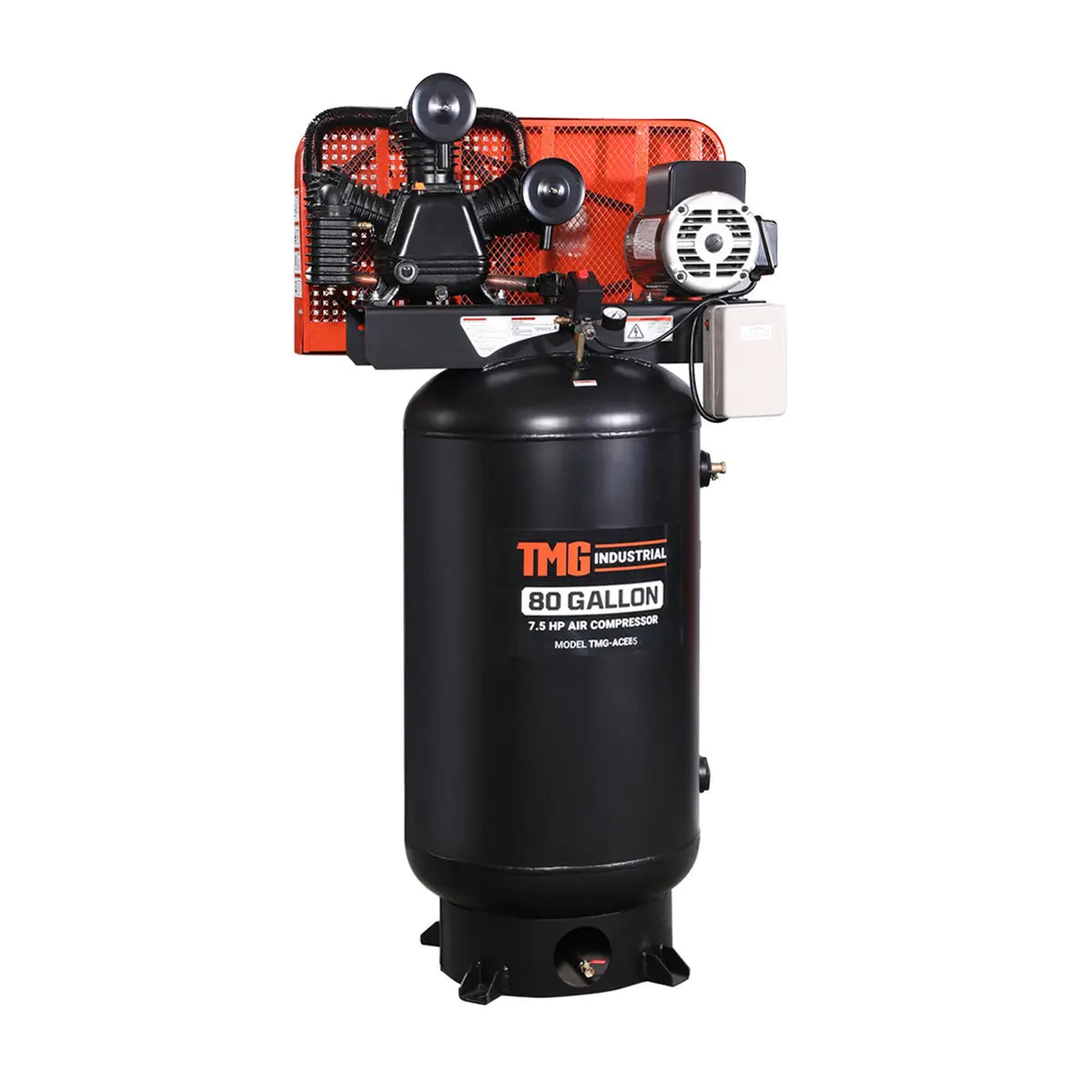

80 Gallon 7.5 HP Stationary Electric Air Compressor, 6 Min Fill Time, 230V Induction Motor, Vertical Tank, TMG-ACE85
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
- Excellent piece of equipment to power hoses and tools like sanders, sprayers, nail guns and more around an automotive garage, warehouse or machine shop
- Equipped with an 80 gallon air tank that is filled by a single phase heavy-duty 230V induction motor that has a top operating speed of 3450 RPM
- CSA approved, 7.5 HP, double cast iron, oil-lubricated motor that has a one-piece cast iron crankcase and full body cast iron cylinder body
- 175 max. PSI air pressure for optimum tool performance
- 1/4” and 1/2” NPT connectors for simultaneous multiple tool use and air output ports for manual draining to protect against rust and corrosion
- Durable cast iron oil-lubricated pump has one-piece cast iron crankcase and full cast iron cylinder body
- Finned tube intercooler for maximum cooling and increased valve life
Specifications
Specifications
- Electric motor: AC230V/60hz, single phase, 7.5HP
- Induction motor speed: 3450 RPM
- Maximum working pressure: 175 PSI
- 17.5 CFM at 40 PSI
- 15 CFM at 90 PSI
- Air tank size: 80 gal vertical tank
- Tank fill time: <6 minutes
- Noise level: 80 dB
- (1) ¼” NPT quick connector
- (1) ½” NPT valve
Shipping Information
Shipping Information
The order will ship from one of our main warehouse in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 40” x 26” x 77” (L x W x H)
- Shipping weight: 575 lb
Product Description
Product Description
The TMG-ACE85 7.5 HP Stationary Electric Air Compressor is equipped with a 80 gallon air tank and operated by a CSA approved, double cast iron, oil-lubricated motor that houses a one-piece cast iron crankcase and full cast iron cylinder body. Excellent piece of equipment to power hoses and tools around an automotive shop, manufacturing warehouse or repair garage.
¼" and ½" quick connectors enable operators to use two tools at the same time, with an air outlet port for simple, rust-protective draining. This compressor is powered by a single phase heavy-duty 230V induction motor with a top operating speed of 3450 RPM so you never experience a drop in power.
Designed with a finned tube intercooler that offers maximum cooling action to prolong valve life, eliminate carbon buildup and contribute to better output and performance overall. Built to last in tough industrial settings long-term.
TMG Industrial also carries other air compressors: TMG-ACE10, TMG-ACE25, TMG-ACE60, TMG-ACE65, TMG-ACE80
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
