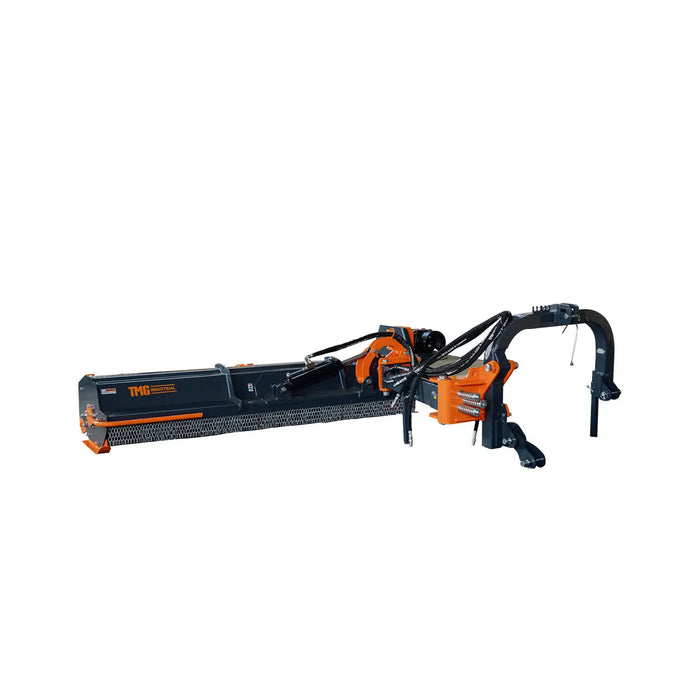

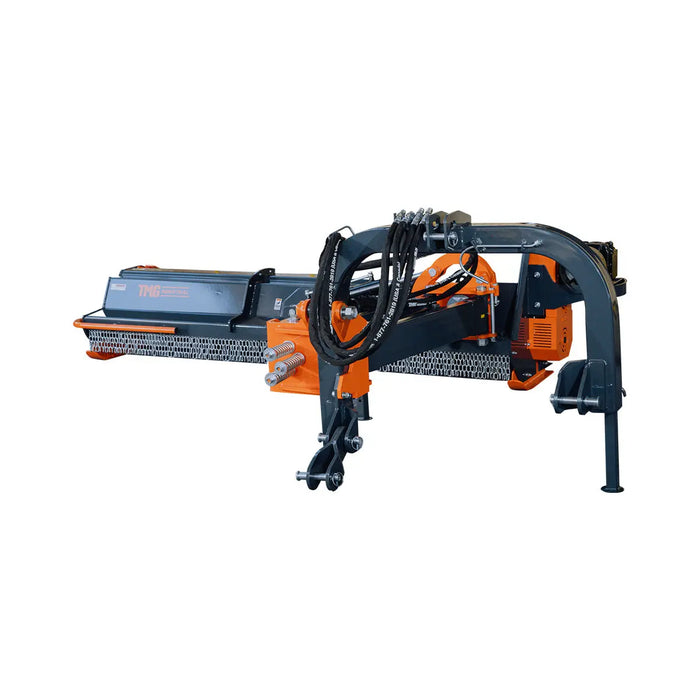

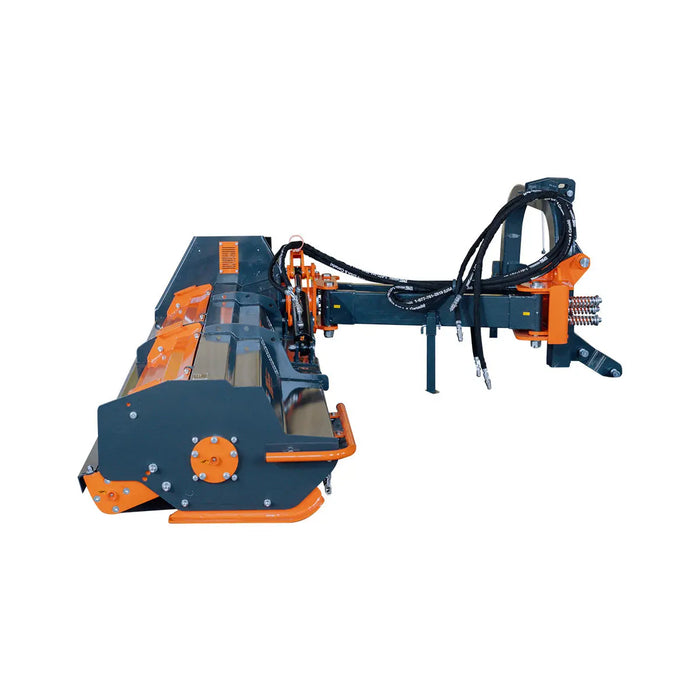

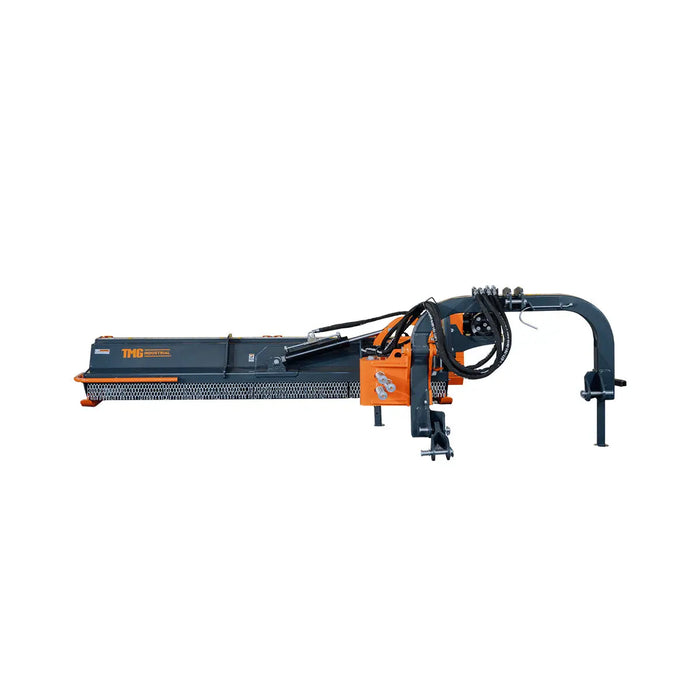

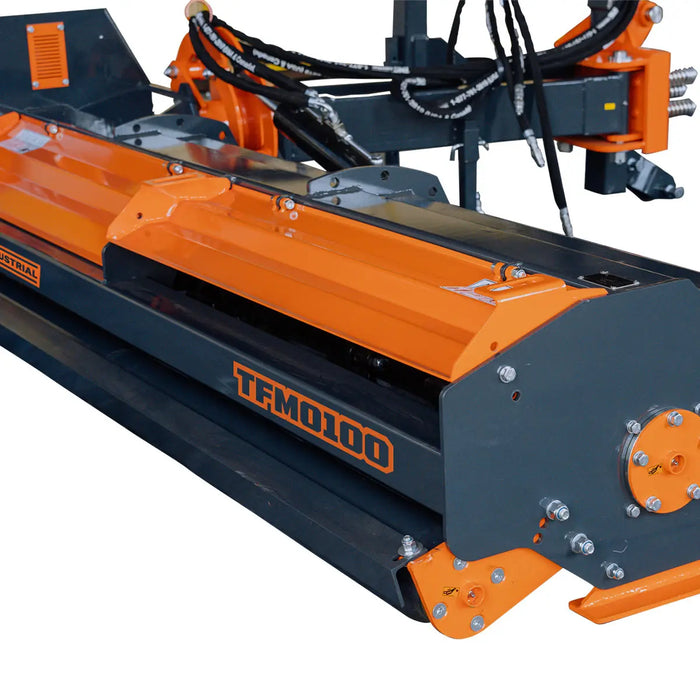

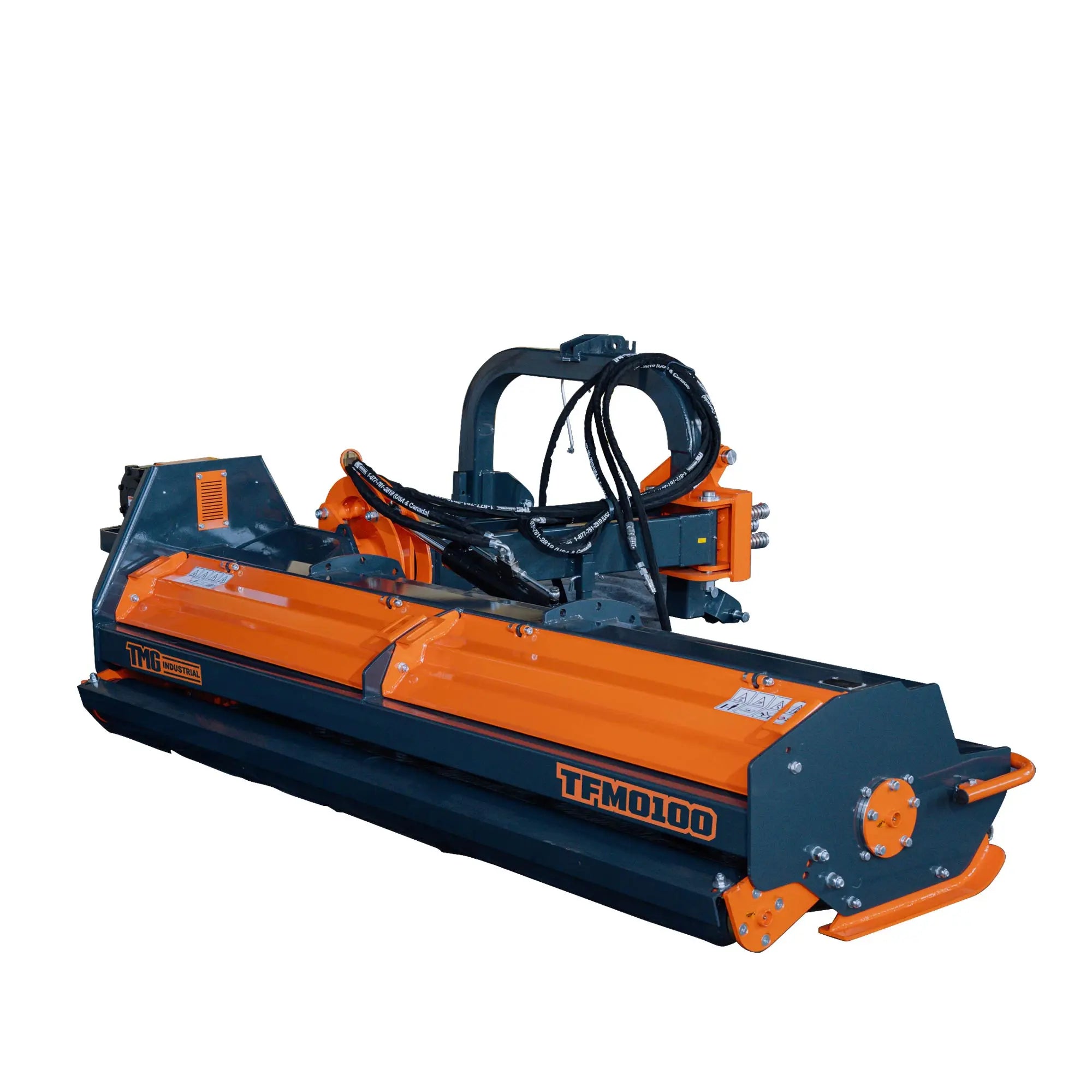

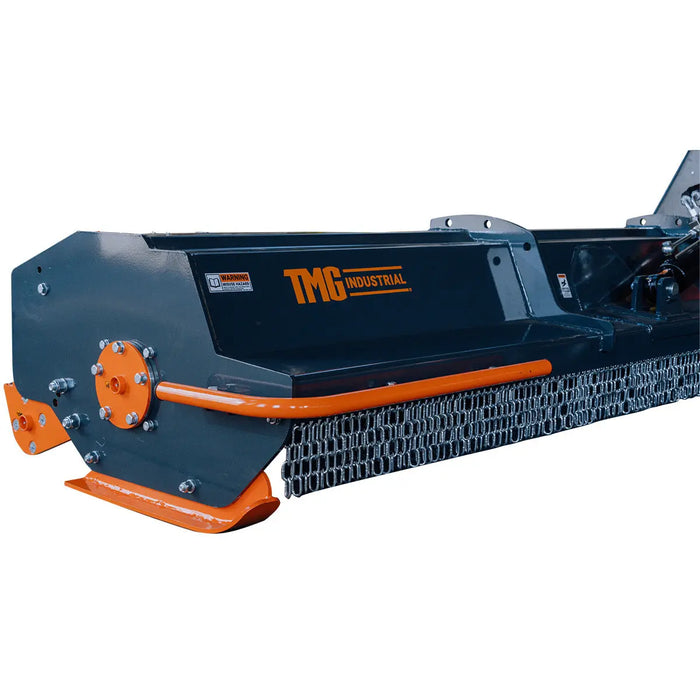

100" Ditch Bank Flail Mower, Offset Verge & Slope Cutter for Tractors 80-120 HP, Italian Gearbox TMG-TFMO100
FREE
shipping to most locations in
USA
Learn More
Product Manual
Features
Features
Specifications
Specifications

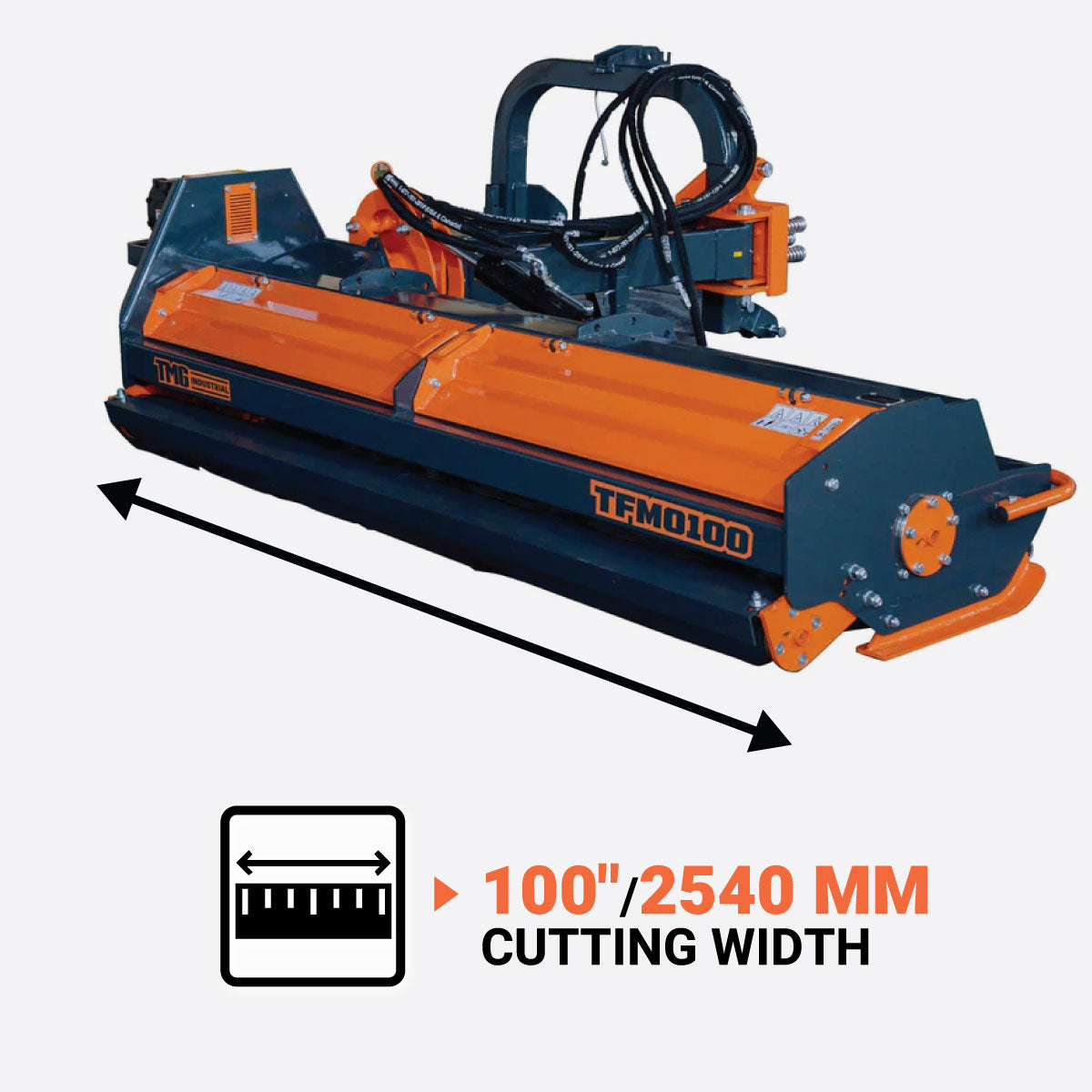

- Working width: 100”

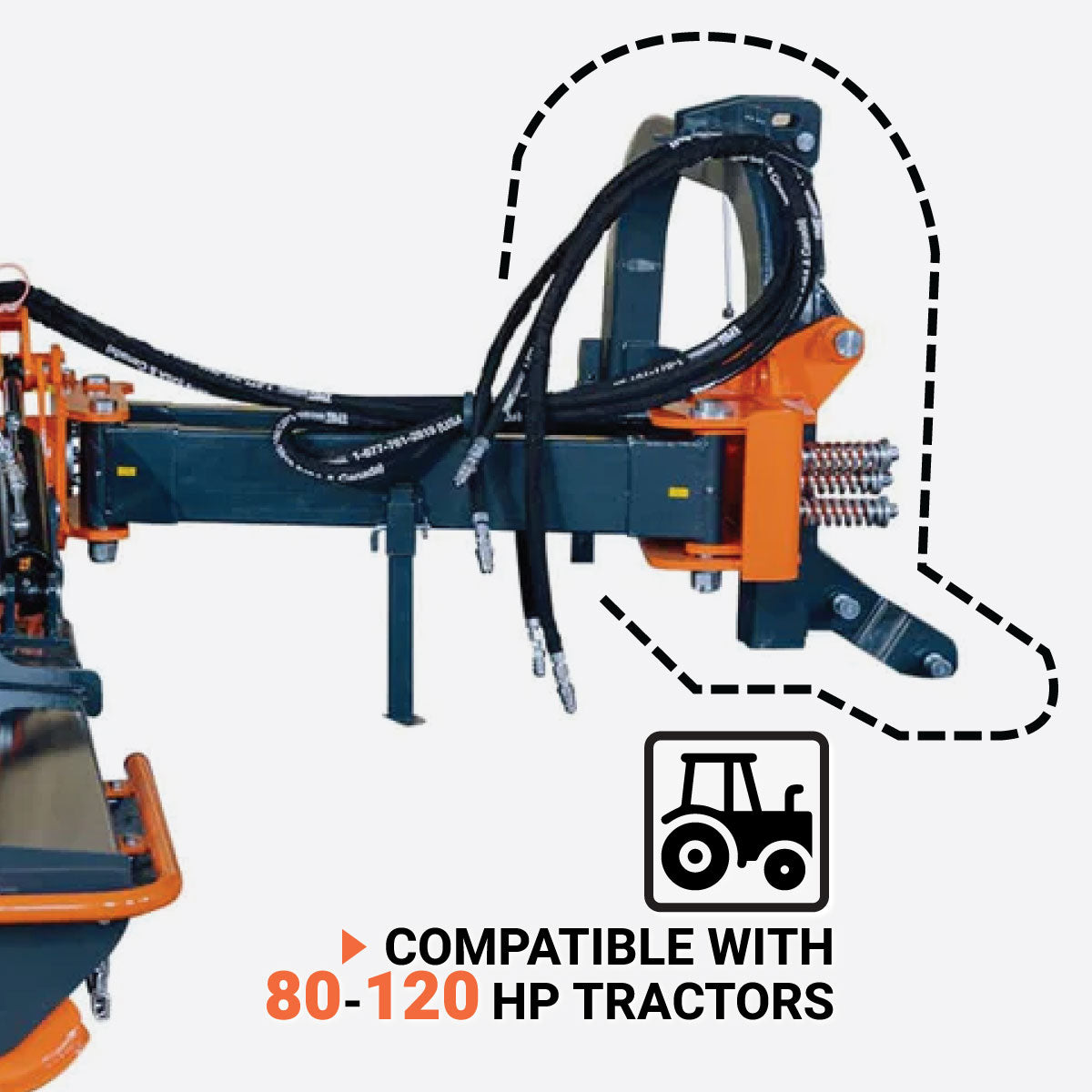

- Tractor power required: 80-120 HP
- Category 2, 3-point hitch

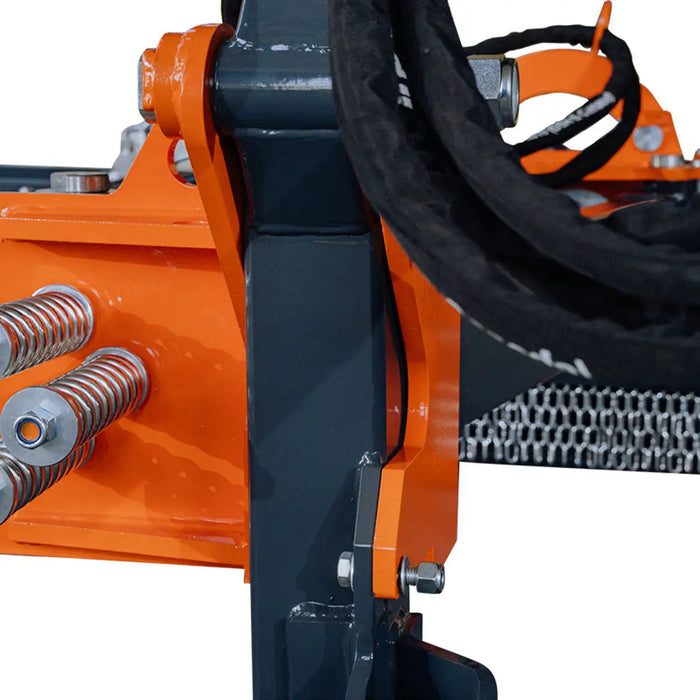

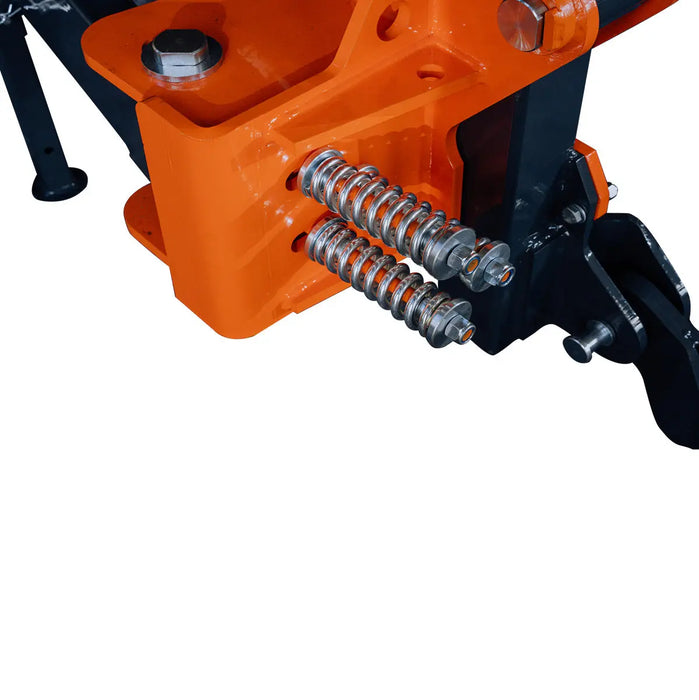

- Anti-shock with spring, outside rotor bearing
- 1200g hammer: 24
- Rotor diameter: 5-½”
- Rotor thickness: ½”
- Rear roller diameter: 6”
- Rear roller thickness: ¼”

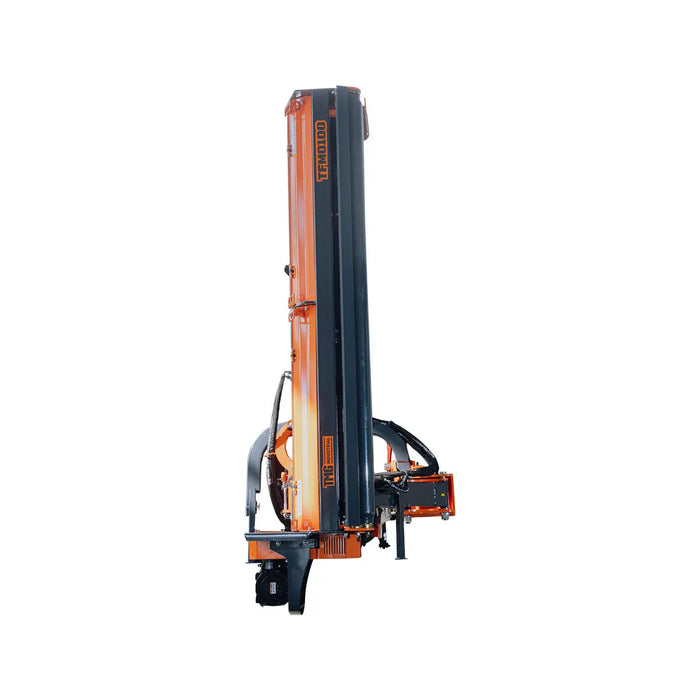

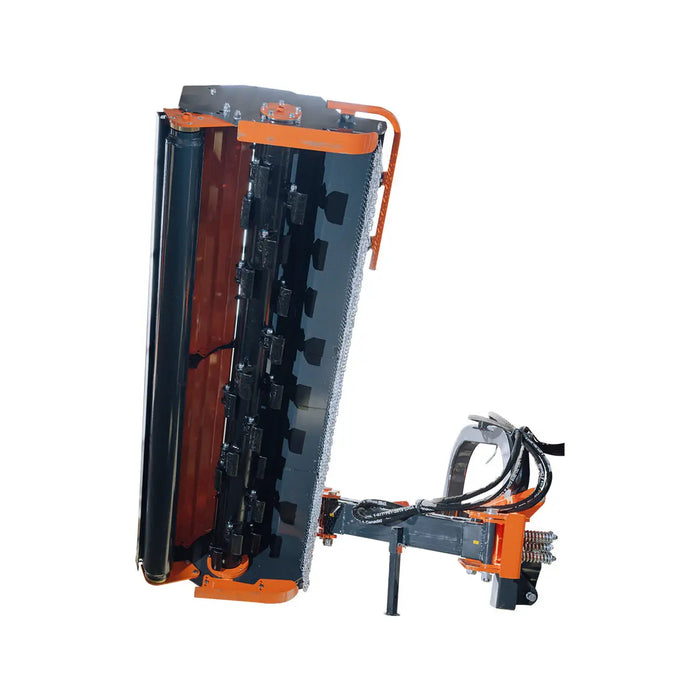

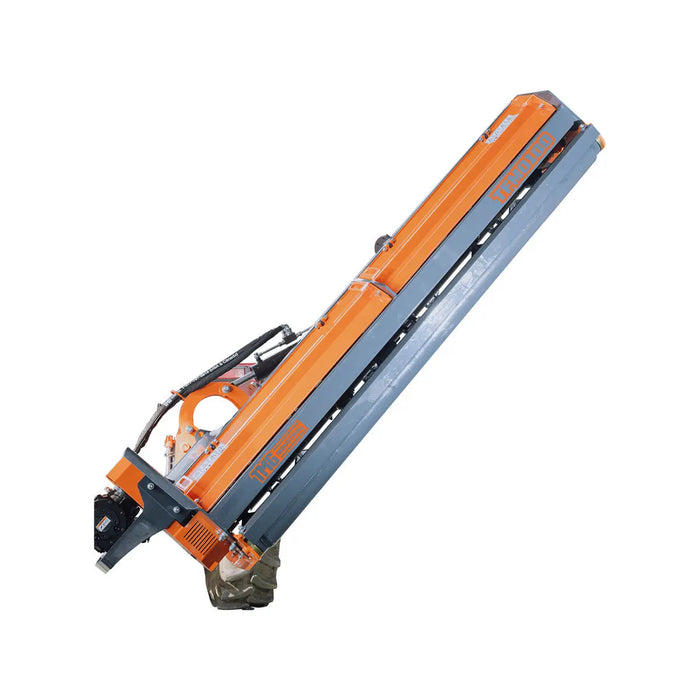

- Tilt-up angle: 90°

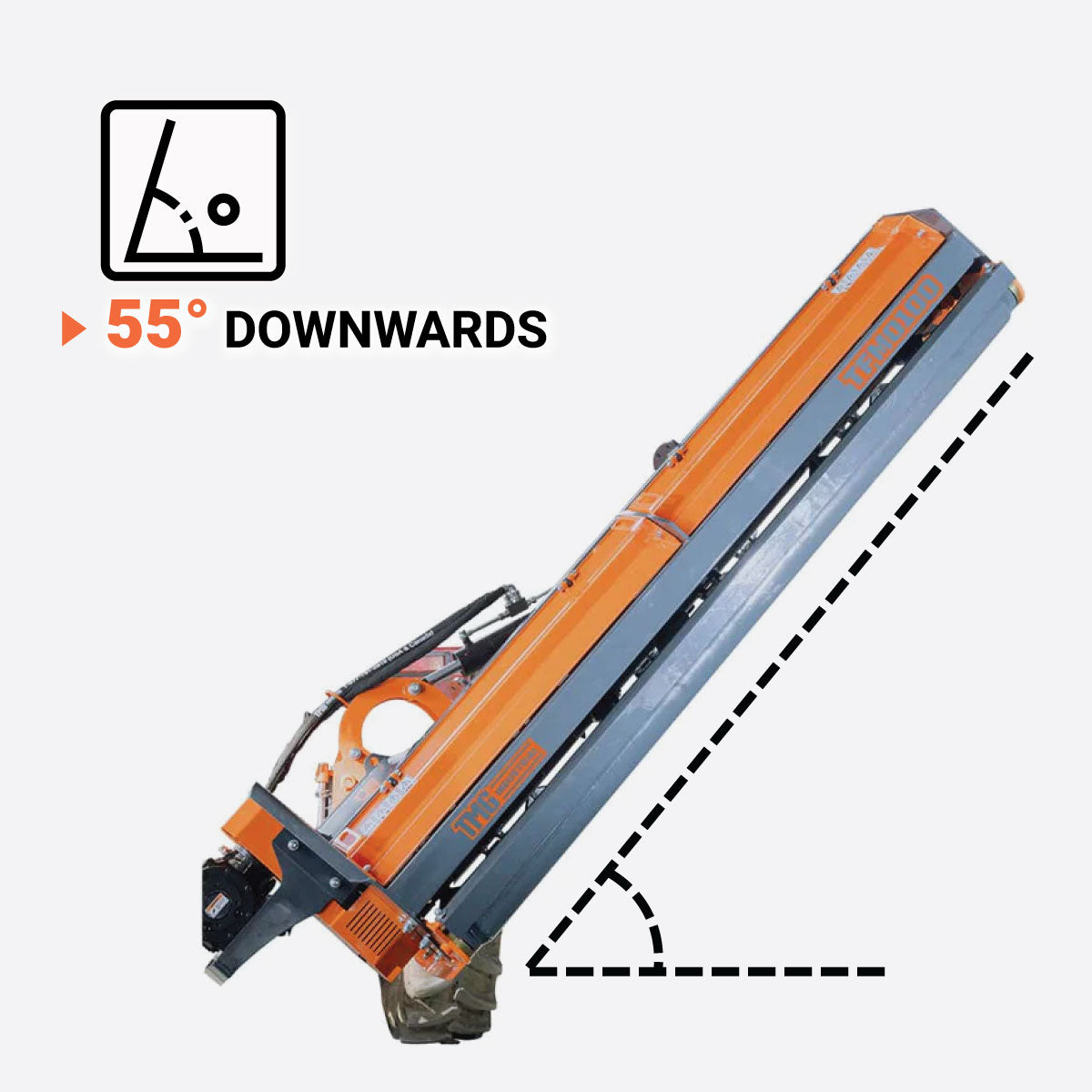

- Tilt-down angle: 55°

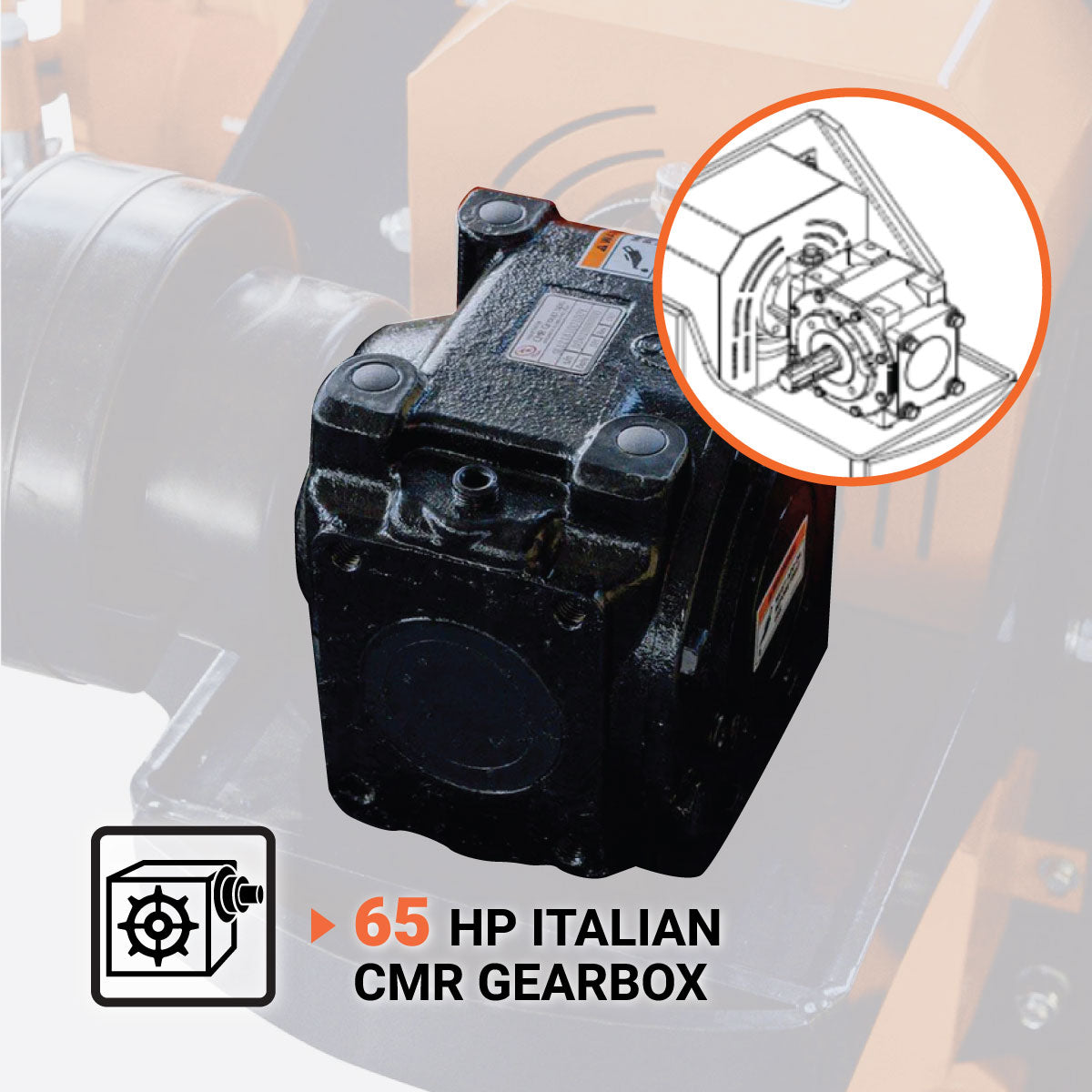

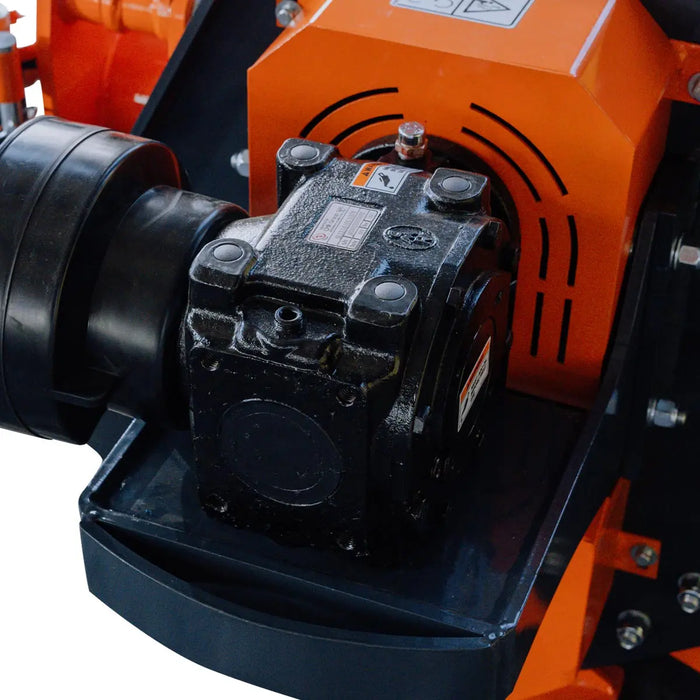

- Gearbox (RPM 540): 65 HP CMR Italian gearbox
- With rear open door: 2 pcs rear open door
- Vertical extending distance: 109”
- Horizontal extending distance: 92”
- Adjustable rear opening panel for easy maintenance

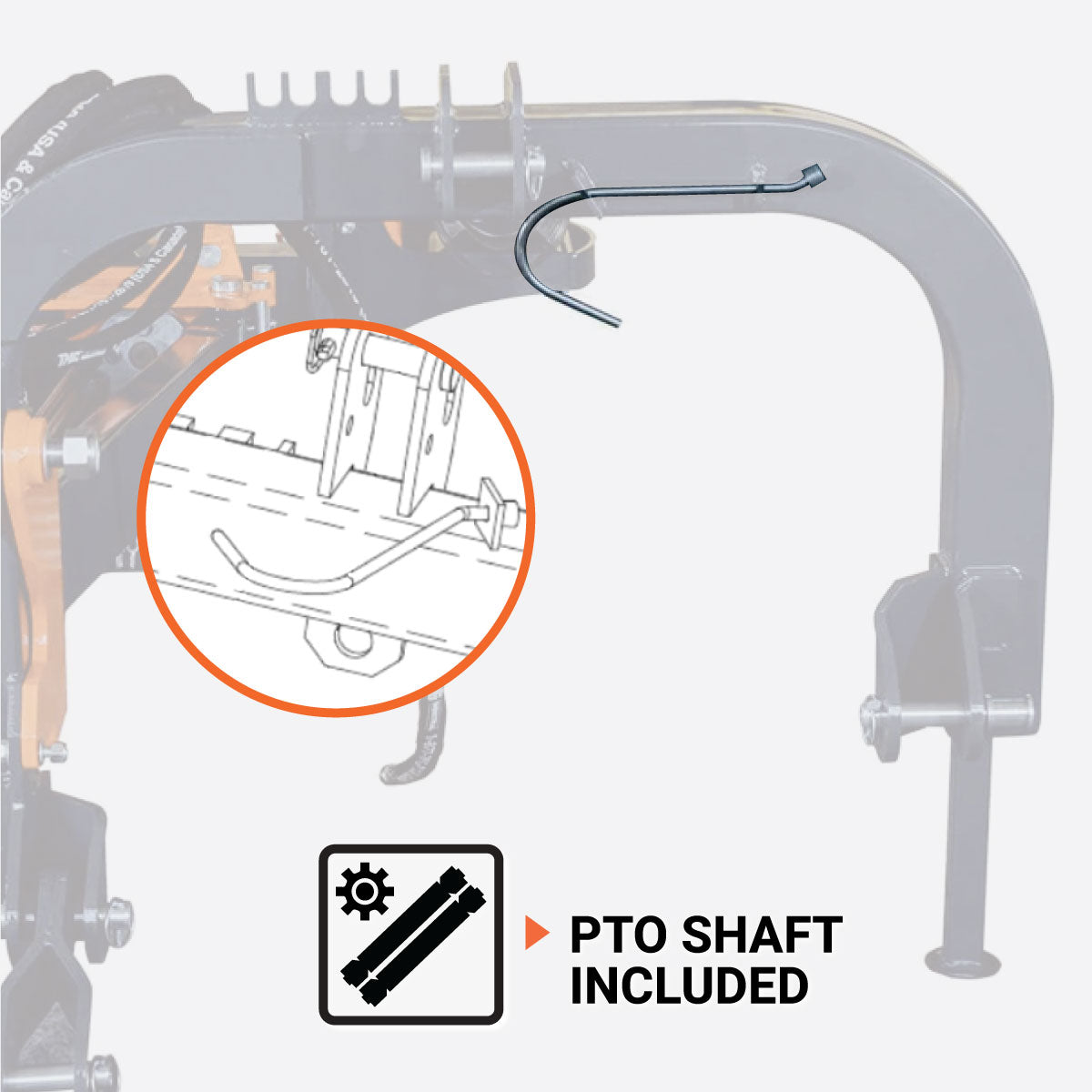

- Includes PTO shaft w/safety pin
- Each mower has passed a dynamic balance test

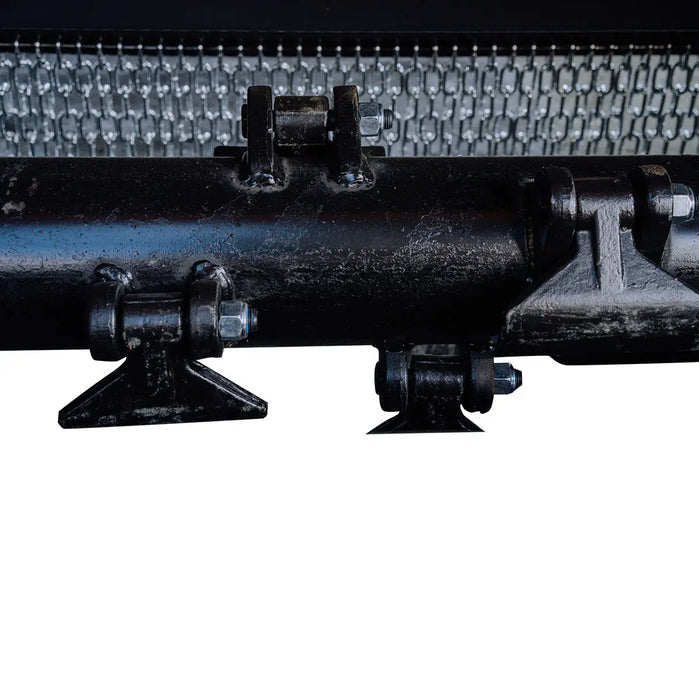

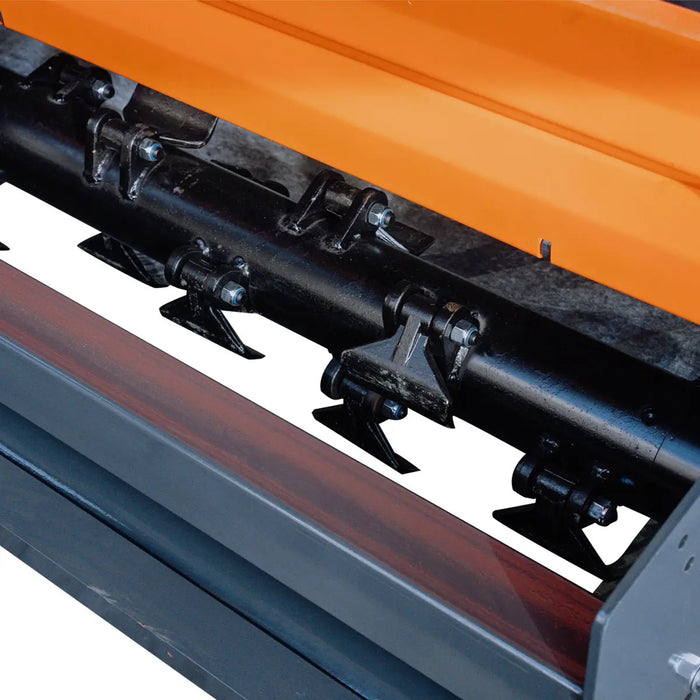

- All models are equipped w/a double spiral rotor

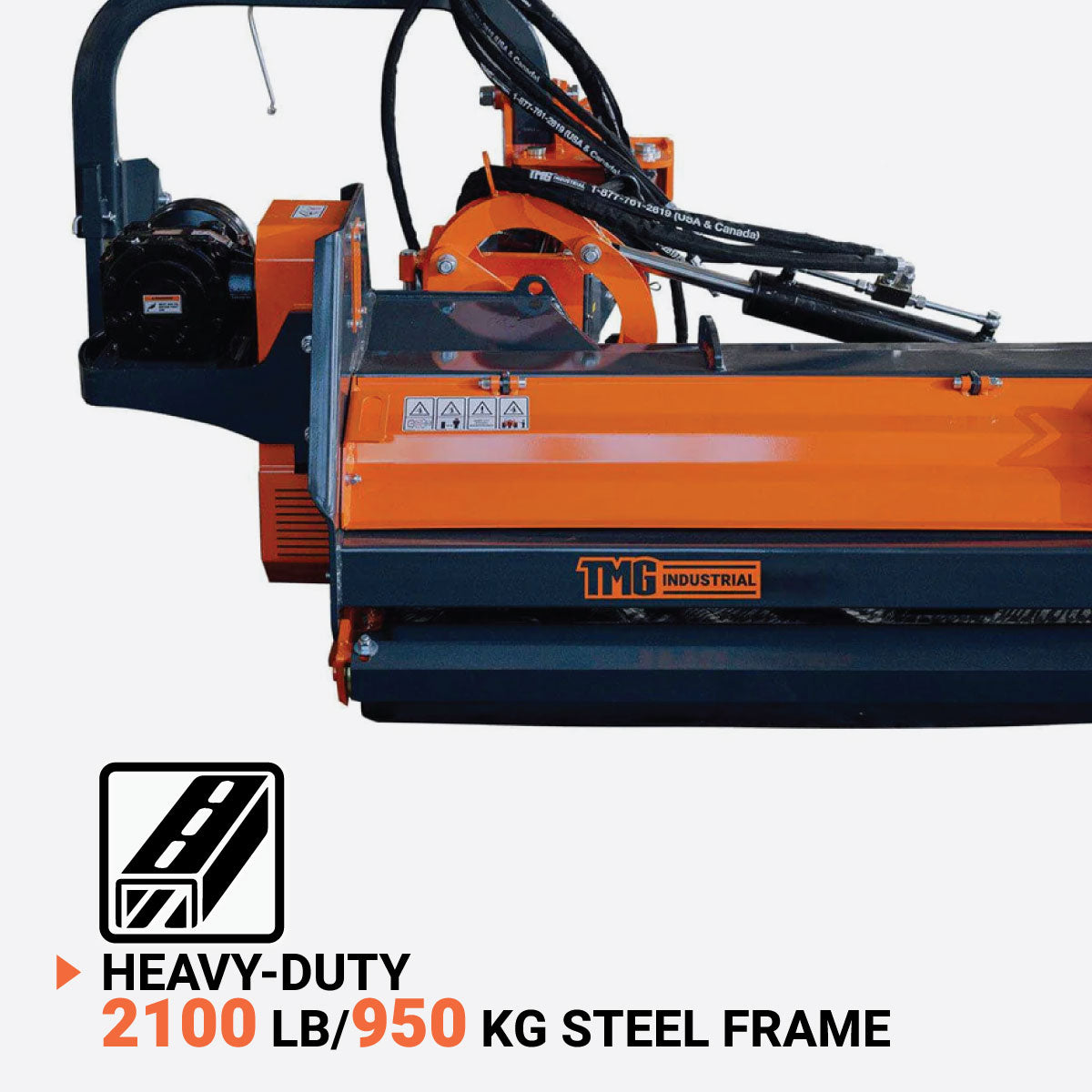

- Product net weight: 2100 lb
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

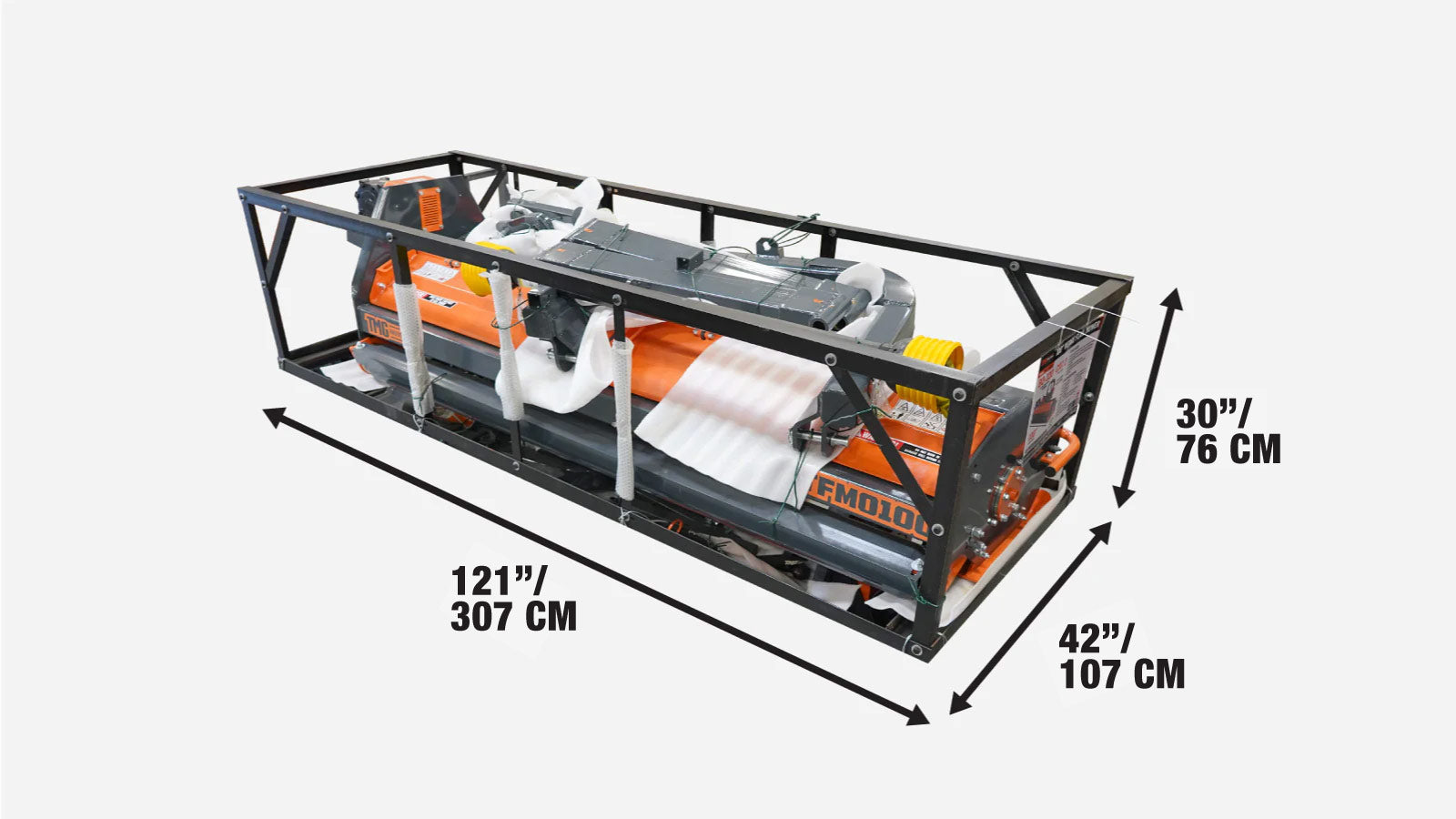

- This product is packed in a metal crate shipping box
- Shipping dimension: 121" x 42" x 30" (L x W x H)
- Shipping weight: 2230 lb
Product Description
Product Description

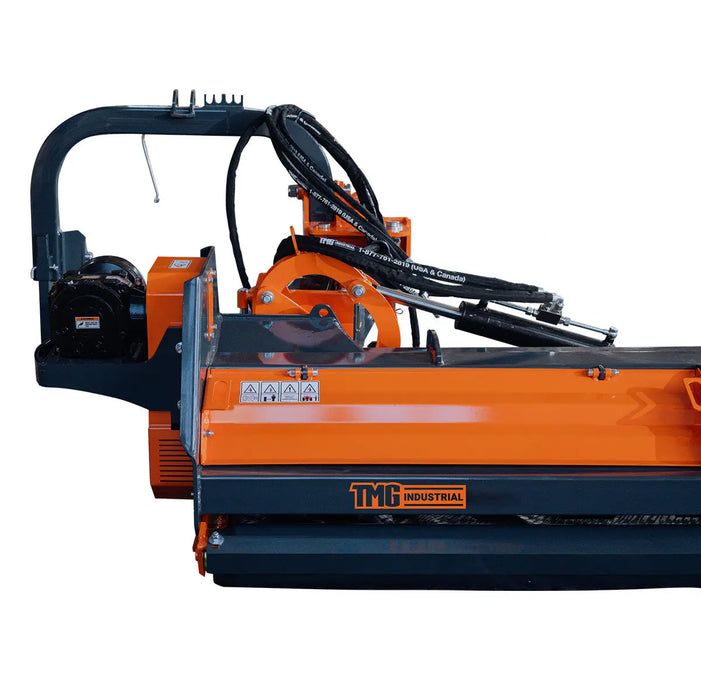

The TMG-TFMO100 Ditch Bank Flail Mower is a heavy-duty, commercial-grade mower built to handle tough, uneven terrain. With a 2100 lb frame and CMR gearbox from Italy, it provides reliable, long-lasting performance for agriculture, landscaping, and property maintenance.

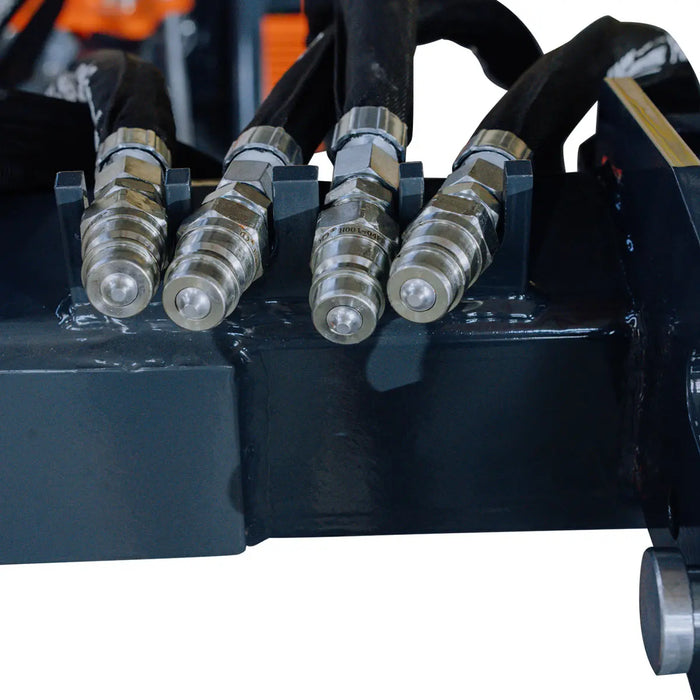

Featuring a double spiral hammer rotor and 100" working width, it easily cuts through thick grass, brush, and overgrowth. The hydraulic side offset allows for precise, clean cuts on slopes, ditches, and embankments. The mower also includes an adjustable rear discharge panel and a PTO shaft with safety cover for enhanced efficiency and safety.

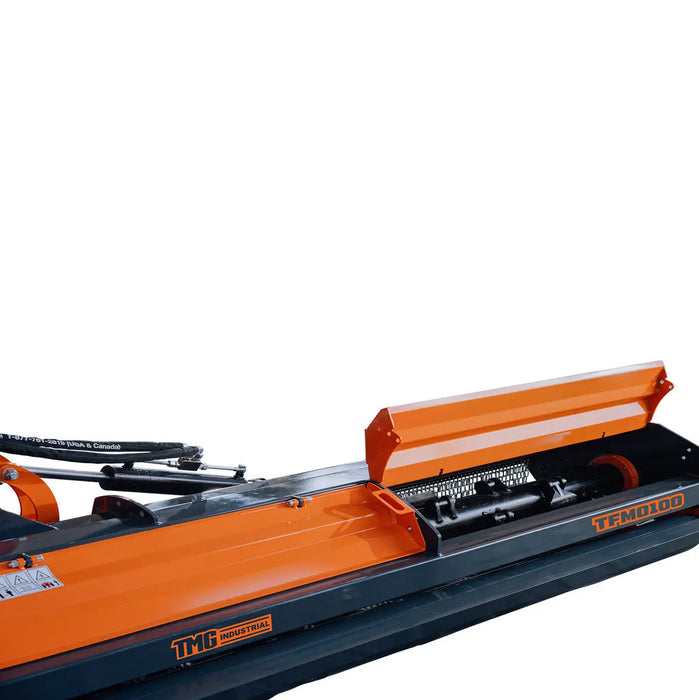

For easy maintenance, the TMG-TFMO100 has a top lid that opens for quick grass jam clearance and blade replacements, minimizing downtime.
Ideal for farms, estates, and professional landscaping, the TMG-TFMO100 delivers the power, durability, and ease of use needed to maintain large properties and diverse terrains.
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
 |
|---|
